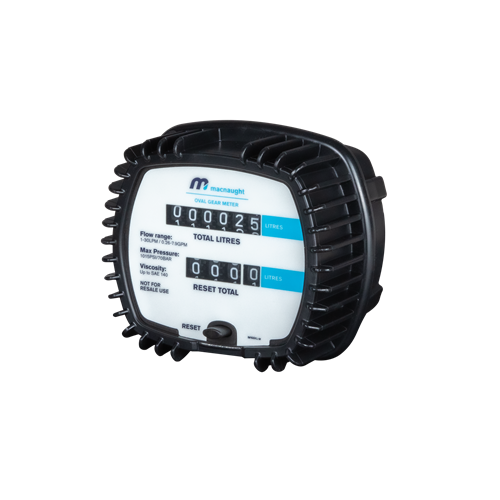

1/2" BSP MECHANICAL OIL METER 1/2" BSP (F) INLET/OUTLET

MACNAUGHT MECHANICAL OIL INLINE METER

Product Code: IM012KMM-01

Description

Incorporating oval gear technology, combined with heavy duty construction and a quality mechanical register display, this in-line meter range offers reliable and accurate fluid measurements for most oil applications. The mechanical register shows both cumulative and push button reset batch total. The meter is ideally suited for use in both inline meter applications or fitted to a hose end oil control gun.

  • Flow Range: 1-30 L/min
  • Maximum Pressure: 1000 psi / 6895 kPa / 69 bar
  • Minimum Temperature: -10oC
  • Maximum Temperature: 60oC
  • Meter / Register: Oval gear / Mechanical
  • Accuracy (Flow Rate): +/- 1% (lube oils)
  • Inlet Port: 1/2”BSPT (F)
  • Outlet Port: 1/2”BSPT (F)
  • Compatible Fluids: Oils up to SAE140
  • Accumulative Totaliser: 6 Digit Resettable Totaliser: 999.9 litre



  • Small versatile design, ideal for mobile use
  • Requires no batteries
  • Shock absorbing housing protection
  • Oval gear mechanical meter, gears are made of acetal resin
  • Mechanical 6 digit totaliser with resettable 999.9 litre batch total
  • Ready to use





  • Mechanical oil meter
  • Instruction manual
SKU IM012KMM-01
Brand Macnaught
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
