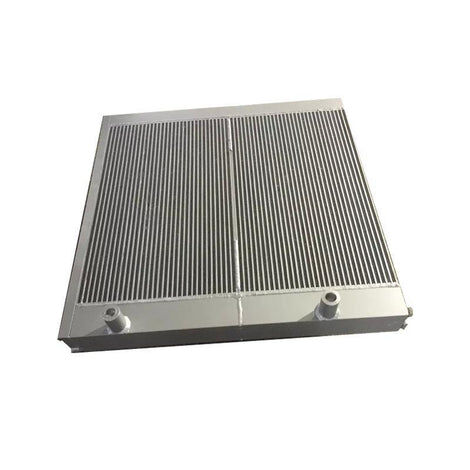

1613 8012 00 Atlas Copco Combi Cooler GA55

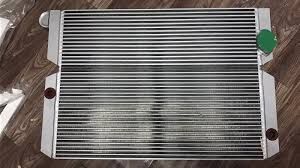

1613 8012 00 Atlas Copco Cooler

Price includes air freight into Australia





































































Ref. Part number Qty Name Remarks
1020 1613 8043 00 1 Valve housing
1025 0147 1402 03 2 Hexagon bolt
1030 0301 2358 00 2 Washer
1035 0686 3716 29 1 Hexagon plug
1040 0661 1000 33 1 Seal washer
1045 0574 9878 02 1 Hose assembly
1050 0571 0035 25 1 Hexagon nipple
1055 0661 1000 29 1 Seal washer
1060 2250 4983 00 1 Nipple
1065 0661 1000 30 1 Seal washer
1070 2250 4983 00 2 Nipple
1075 0661 1000 30 2 Seal washer
1080 0574 9870 02 1 Hose assembly
1085 0574 9870 03 1 Hose assembly
1090 2250 4983 00 1 Nipple
1095 0661 1000 30 1 Seal washer
1100 1613 8051 00 1 Pipe
1110 1619 3770 00 2 Nipple
1115 1613 6105 00 2 Oil filter
Ref. Part number Qty Name Remarks
1120 1079 5840 01 1 Nipple
1125 0661 1000 24 1 Seal washer
1130 0574 9917 01 1 Hose assembly
1135 1613 8060 00 1 Scavenge line
1140 0661 1000 26 1 Seal washer
2020 1 Combicooler
1613 8012 00 GA55
1613 8013 00 GA75
2025 Washer
0301 2335 00 4 GA55
0301 2335 00 6 GA75
2030 Hexagon bolt
0147 1322 03 4 GA55
0147 1322 03 6 GA75
2035 1 Plate assembly
1613 8034 80 GA55
1613 8033 80 GA75
2036 1619 3843 00 · AR Seal
2040 1619 2766 00 5 Bolt

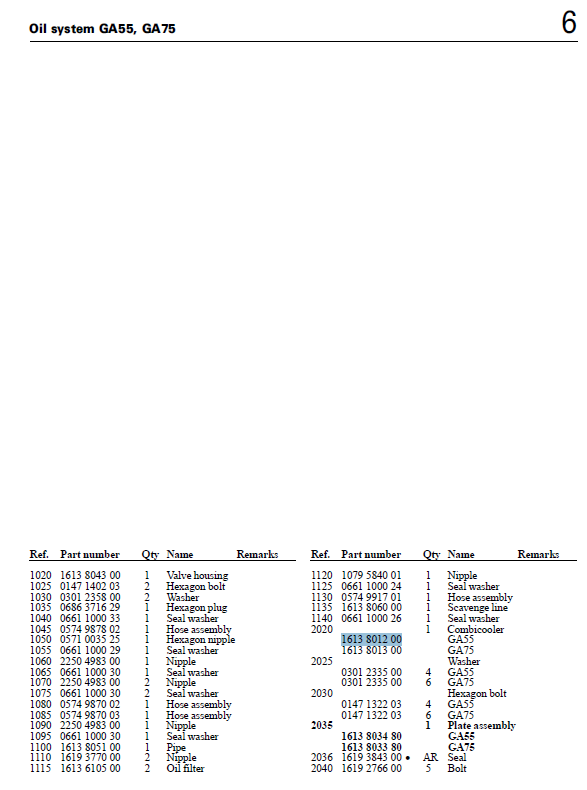

Oil system GA55, GA75
