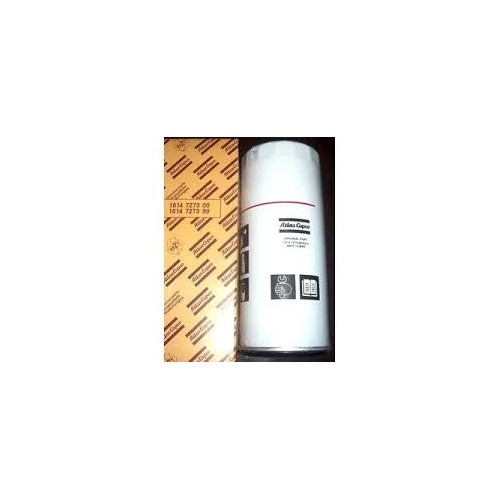

1614 7273 00 Atlas Copco Replacement oil filter - Per filter (x1)

AIR-PN H1H108
AA8722 (AA 8722)
ATLAS-COPCO 1614727300
ATLAS-COPCO 1614727399
ATLAS-COPCO 2906019900
ATLAS-COPCO 3216921401
ATLAS-COPCO 1614 7273 00
ATLAS-COPCO 1614 7273 99
ATLAS-COPCO 2906 0199 00
ATLAS-COPCO 3216 9214 01
BETICO 4704007
BOGE 558000305
MACO-MEUDON 527238
MANN & HUMMEL 6761258356
MANN & HUMMEL W1110222
MARK 640151
NOITECH NO104480
SF-FILTER SPH9361
WISMET WHS46055
WORTHINGTON 6211433800
WORTHINGTON 6211433850
WORTHINGTON 6211473100
WORTHINGTON 6211473150
WORTHINGTON 6211473300

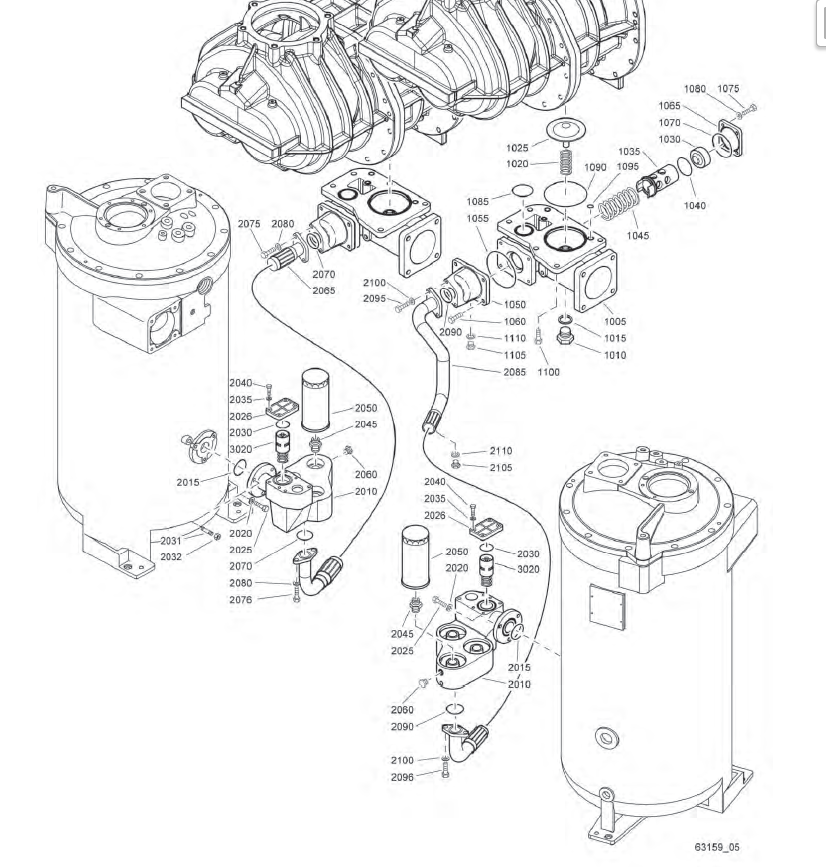

1005 1614 8980 00 2 Valve housing
1010 1614 8976 00 2 Plug
1015 0661 1000 30 2 Seal washer
1020 1614 8978 00 2 Spring
1025 1614 8977 00 2 Check valve
1030 1614 8974 00 2 Piston
1035 1614 8973 00 2 Valve
1040 0663 2111 67 2 O-ring
1045 1614 8979 00 2 Spring
1050 1614 8972 00 2 Cover
1055 0663 2106 18 2 O-ring
1060 0147 1363 03 8 Bolt
1065 1614 8975 00 2 Flange
1070 0663 2106 57 2 O-ring
1075 0147 1363 03 8 Bolt
1080 0301 2344 00 8 Washer
1085 0663 2102 89 2 O-ring
1090 0663 2111 58 2 O-ring
1095 0663 2111 66 6 O-ring
1100 0211 1960 28 12 Cap screw
1105 0686 3716 01 4 Plug
1110 0661 1000 25 4 Seal washer
2010 1614 9006 01 2 Oil filter housing
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2025 6 Bolt
0147 1363 03 No ENergy RECovery
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2031 6 Stud
0246 1956 36 ENergy RECovery
2032 6 Nut
0266 2111 00 ENergy RECovery
2035 0301 2335 00 8 Washer
2040 0147 1325 03 8 Bolt
2045 6 Nipple
1614 8076 00 13-13.8 bar(e)
1614 7062 00 6.9-7.5-8.5-10-10.4 bar(e)
2050 6 Oil filter
1614 8065 00 13-13.8 bar(e)
1614 7273 00 6.9-7.5-8.5-10-10.4 bar(e)
1623 0196 00 Option Glass fiber oil filter,max 10bar
2060 0686 3716 01 2 Plug
2065 1 Hose assembly
1621 1440 00 No ENergy RECovery
1621 2092 00 ENergy RECovery
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt

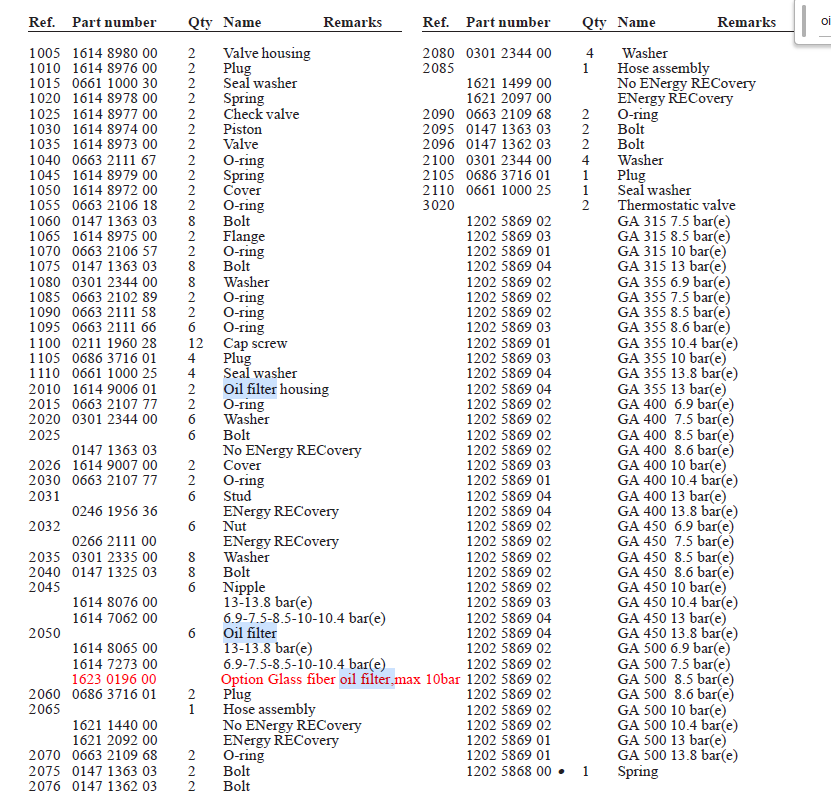

Ref. Part number Qty Name Remarks
2080 0301 2344 00 4 Washer
2085 1 Hose assembly
1621 1499 00 No ENergy RECovery
1621 2097 00 ENergy RECovery
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1362 03 2 Bolt
2100 0301 2344 00 4 Washer
2105 0686 3716 01 1 Plug
2110 0661 1000 25 1 Seal washer
3020 2 Thermostatic valve
1202 5869 02 GA 315 7.5 bar(e)
1202 5869 03 GA 315 8.5 bar(e)
1202 5869 01 GA 315 10 bar(e)
1202 5869 04 GA 315 13 bar(e)
1202 5869 02 GA 355 6.9 bar(e)
1202 5869 02 GA 355 7.5 bar(e)
1202 5869 02 GA 355 8.5 bar(e)
1202 5869 03 GA 355 8.6 bar(e)
1202 5869 01 GA 355 10.4 bar(e)
1202 5869 03 GA 355 10 bar(e)
1202 5869 04 GA 355 13.8 bar(e)
1202 5869 04 GA 355 13 bar(e)
1202 5869 02 GA 400 6.9 bar(e)
1202 5869 02 GA 400 7.5 bar(e)
1202 5869 02 GA 400 8.5 bar(e)
1202 5869 02 GA 400 8.6 bar(e)
1202 5869 03 GA 400 10 bar(e)
1202 5869 01 GA 400 10.4 bar(e)
1202 5869 04 GA 400 13 bar(e)
1202 5869 04 GA 400 13.8 bar(e)
1202 5869 02 GA 450 6.9 bar(e)
1202 5869 02 GA 450 7.5 bar(e)
1202 5869 02 GA 450 8.5 bar(e)
1202 5869 02 GA 450 8.6 bar(e)
1202 5869 02 GA 450 10 bar(e)
1202 5869 03 GA 450 10.4 bar(e)
1202 5869 04 GA 450 13 bar(e)
1202 5869 04 GA 450 13.8 bar(e)
1202 5869 02 GA 500 6.9 bar(e)
1202 5869 02 GA 500 7.5 bar(e)
1202 5869 02 GA 500 8.5 bar(e)
1202 5869 02 GA 500 8.6 bar(e)
1202 5869 02 GA 500 10 bar(e)
1202 5869 02 GA 500 10.4 bar(e)
1202 5869 01 GA 500 13 bar(e)
1202 5869 01 GA 500 13.8 bar(e)
1202 5868 00 • 1 Spring
