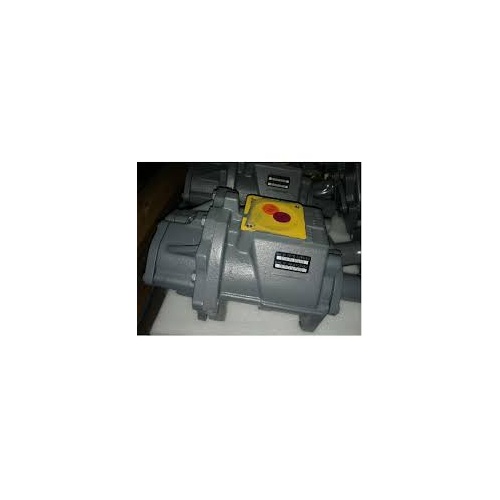

1616 8693 80 Atlas Copco Airend
Atlas Copco 1616-8693-80 Ois M-10 Element Compressor
Original Atlas Copco
.png)
.png)

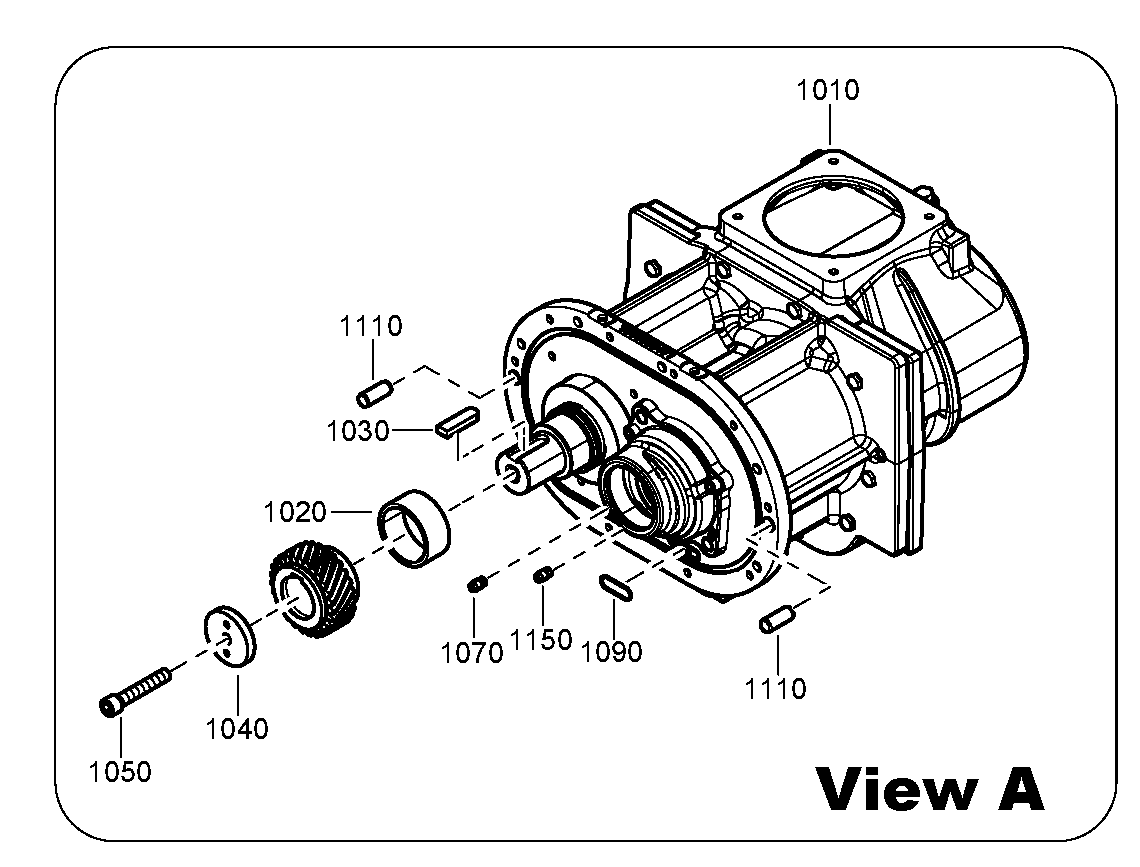

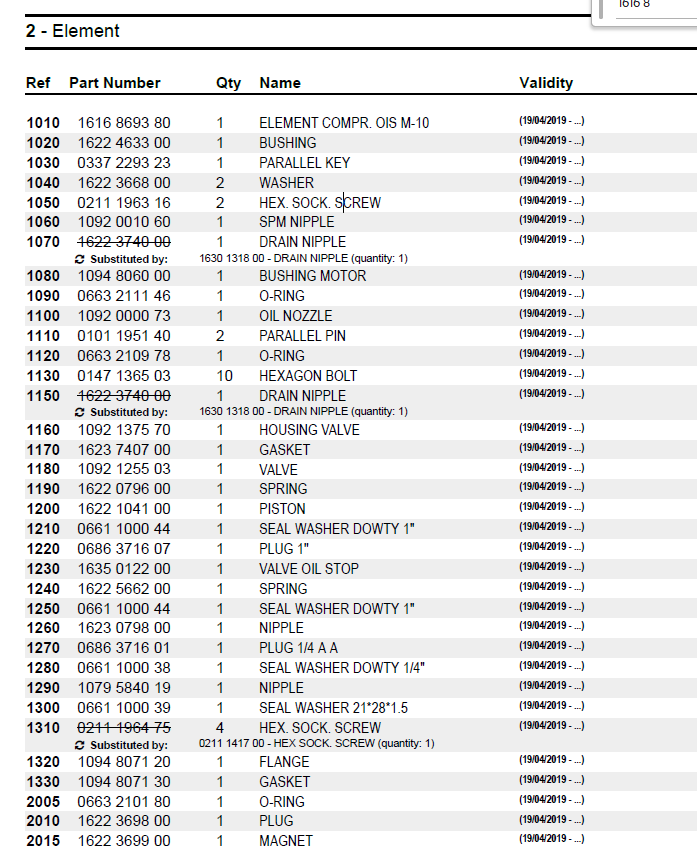

1010 1616 8693 80 1 ELEMENT COMPR. OIS M-10 (19/04/2019 - ...)
1020 1622 4633 00 1 BUSHING (19/04/2019 - ...)
1030 0337 2293 23 1 PARALLEL KEY (19/04/2019 - ...)
1040 1622 3668 00 2 WASHER (19/04/2019 - ...)
1050 0211 1963 16 2 HEX. SOCK. SCREW (19/04/2019 - ...)
1060 1092 0010 60 1 SPM NIPPLE (19/04/2019 - ...)
1070 1622 3740 00 1 DRAIN NIPPLE (19/04/2019 - ...)
Substituted by: 1630 1318 00 - DRAIN NIPPLE (quantity: 1)
1080 1094 8060 00 1 BUSHING MOTOR (19/04/2019 - ...)
1090 0663 2111 46 1 O-RING (19/04/2019 - ...)
1100 1092 0000 73 1 OIL NOZZLE (19/04/2019 - ...)
1110 0101 1951 40 2 PARALLEL PIN (19/04/2019 - ...)
1120 0663 2109 78 1 O-RING (19/04/2019 - ...)
1130 0147 1365 03 10 HEXAGON BOLT (19/04/2019 - ...)
1150 1622 3740 00 1 DRAIN NIPPLE (19/04/2019 - ...)
Substituted by: 1630 1318 00 - DRAIN NIPPLE (quantity: 1)
1160 1092 1375 70 1 HOUSING VALVE (19/04/2019 - ...)
1170 1623 7407 00 1 GASKET (19/04/2019 - ...)
1180 1092 1255 03 1 VALVE (19/04/2019 - ...)
1190 1622 0796 00 1 SPRING (19/04/2019 - ...)
1200 1622 1041 00 1 PISTON (19/04/2019 - ...)
1210 0661 1000 44 1 SEAL WASHER DOWTY 1" (19/04/2019 - ...)
1220 0686 3716 07 1 PLUG 1'' (19/04/2019 - ...)
1230 1635 0122 00 1 VALVE OIL STOP (19/04/2019 - ...)
1240 1622 5662 00 1 SPRING (19/04/2019 - ...)
1250 0661 1000 44 1 SEAL WASHER DOWTY 1" (19/04/2019 - ...)
1260 1623 0798 00 1 NIPPLE (19/04/2019 - ...)
1270 0686 3716 01 1 PLUG 1/4 A A (19/04/2019 - ...)
1280 0661 1000 38 1 SEAL WASHER DOWTY 1/4" (19/04/2019 - ...)
1290 1079 5840 19 1 NIPPLE (19/04/2019 - ...)
1300 0661 1000 39 1 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1310 0211 1964 75 4 HEX. SOCK. SCREW (19/04/2019 - ...)
Substituted by: 0211 1417 00 - HEX SOCK. SCREW (quantity: 1)
1320 1094 8071 20 1 FLANGE (19/04/2019 - ...)
1330 1094 8071 30 1 GASKET (19/04/2019 - ...)
2005 0663 2101 80 1 O-RING (19/04/2019 - ...)
2010 1622 3698 00 1 PLUG (19/04/2019 - ...)
2015 1622 3699 00 1 MAGNET (19/04/2019 - ...)
Atlas Copco
Oil-injected compressors
G90, G110, G132, G 110VSD, G 132 VSD
16/09/2019
No. 9829 3178 12
www.atlascopco.com
Atlas Copco
Oil-injected compressors
G90, G110, G132, G 110VSD, G 132 VSD
Parts List
Edition: 4
Copyright, Atlas Copco Wuxi,China.
Any unauthorized use or copying of the contents or any part thereof is
prohibited. This applies in particular to trademarks, model denominations,
part numbers and drawings.
Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.
Table of Contents
9829 3178 12 1
Instructions ................................................................................................................................... 3
1 Service Kits ........................................................................................................................... 18
2 Element...................................................................................................................................20
3 Gear - G90/110/132................................................................................................................22
4 Gear - G110/132 VSD............................................................................................................ 24
5 Motor - G90/110/132...............................................................................................................26
6 Motor - G110/132 VSD...........................................................................................................32
7 Air Filter.................................................................................................................................. 38
8 Air Receiver - CHINA............................................................................................................. 40
9 Air Receiver - MOM/ASME.................................................................................................... 42
10 Connection Oil - Aircooled................................................................................................... 44
11 Connection Oil - Watercooled.............................................................................................. 46
12 Connection Air - Aircooled................................................................................................... 48
13 Connection Air - Watercooled.............................................................................................. 50
14 Coolers - G90/110 VSD Aircooled (19/04/2019 - 27/04/2019)............................................. 52
15 Coolers - G90/110 VSD Aircooled (28/04/2019 - ...)............................................................ 54
16 Coolers - G132 Aircooled (19/04/2019 - 27/04/2019).......................................................... 56
17 Coolers - G132 Aircooled (28/04/2019 - ...)......................................................................... 58
18 Coolers - Watercooled..........................................................................................................60
19 Drain System........................................................................................................................ 62
20 Fan Arrangement - Aircooled............................................................................................... 64
21 Fan Arrangement - Watercooled.......................................................................................... 66
22 Regulation System - G90/110/132....................................................................................... 68
23 Regulation System - G110/132 VSD....................................................................................70
24 Unloader Assembly - G90/110/132...................................................................................... 72
25 Control System - G90/110/132............................................................................................. 74
26 Control System - G110/132 VSD......................................................................................... 76
27 Safety Valve - CHINA ..........................................................................................................78
28 Safety Valve - ASME .......................................................................................................... 80
29 Thermostatic Valve............................................................................................................... 82
30 Connection Water................................................................................................................. 84
31 Bodywork - Aircooled........................................................................................................... 86
32 Bodywork - Watercooled...................................................................................................... 88
33 Electrical System.................................................................................................................. 90
33.1 Cubicle - G0/110/132...................................................................................................90
33.2 Cubicle - G110/132 VSD............................................................................................. 92
33.3 Control Panel - IEC - G90/110/132............................................................................. 94
33.4 Control Panel - CSA-UL - G90/110/132.................................................................... 100
33.5 Control Panel - IEC - G110/132 VSD........................................................................102
33.6 Starter Module - IEC - G90/110/132..........................................................................104
33.7 Starter Module - CSA-UL - G90/110/132...................................................................108
Table of Contents
2 9829 3178 12
33.8 Starter Module - IEC - G110/132 VSD...................................................................... 110
33.9 Cooler Control Panel - IEC - Aircooled - 50/60Hz - 380/440-460V........................... 112
33.10 Cooler Control Panel - CSA-UL - Aircooled - 60Hz - 440-460V.............................. 114
33.11 Cooler Control Panel - IEC - Watercooled - 380/440-460V - 60Hz......................... 116
33.12 Cooler Control Panel - IEC - Watercooled - 380/400-415V - 50Hz......................... 118
33.13 Cooler Control Panel - IEC - G 110/132 VSD Watercooled - 380V - 50Hz (19/04/2019
- 22/04/2019)....................................................................................................................... 120
33.14 Cooler Control Panel - IEC - G 110/132 VSD Watercooled - 380V - 50Hz (23/04/2019
- ...).......................................................................................................................................122
33.15 Cooler Control Panel - CSA-UL - Watercooled - 440-460V - 60Hz......................... 124
33.16 Smartbox..................................................................................................................126
34 Marking............................................................................................................................... 128
35 Option - Safety Valve......................................................................................................... 130
Instructions
9829 3178 12 3
EN - English
1 ORDERING PARTS
Always specify the part number, the name and quantity of the required items, as well as the type and serial number
of the machine.
2 COLUMN INFORMATION
Ref - Reference number: links a specific part from the list to the drawing. Only parts with a reference number are
shown in the drawing. Parts in the drawing without a reference number are simply there to illustrate the assembly.
Part number - Part number to be used when ordering spare parts.
When no part number is specified, the component is not available as a spare part.
Parts which are contained in a kit will have the kit number mentioned on the line below. For complete content of the
kit see chapter “1 - Service kits”.
A part number preceded by a black dot is comprised in the assembly right above.
Remarks: Additional information to the part number right above.
Substituted by: The part number right above has been replaced by another part number due to an update or revision.
Qty - Quantity: Indicates the number of parts in relation to the corresponding reference number. „AR“ means „As
required“: quantity or number to be determined.
Name - Part name: Translations of the English names can be found in document “Glossary of part names”.
Validity - Defines the timeframe and type/version of the machines the part is valid for. Clarification of the codes
used in the validity pattern can be found in the legend at the bottom of the page. A validity pattern mentioned in the
chapter title applies to the whole chapter. A plus sign in the pattern is to be interpreted as ‘and’, a comma as ‘or’.
Parentheses group the validity codes, similarly to mathematical parentheses, see following example:
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ is valid for machines with 8 bar working
pressure and 50Hz frequency and 500V supply voltage, or 8 bar working pressure and 60Hz frequency and 575V
supply voltage.
EL – Reference to the drawing or the component inside the electric cubicle.
R. – Remarks: Extra information about the part. Explanation can be found at the bottom of the page.
BG - български
1 ПОРЪЧКА НА ЧАСТИ
Винаги цитирайте номера на частта, наименованието и количеството на необходимите изделия, както и типа и
серийния номер на машината.
2 ИНФОРМАЦИЯ В КОЛОНИТЕ
Ref - Референтен номер: свързва дадена част от списъка с чертежа. На чертежа са показани само части с
референтен номер.
Частите на чертежа без референтен номер са там, единствено за да се покаже възелът.
Part number - Номер на частта, който да се използва при поръчката на резервни части.
Ако не е посочен номер на частта, компонентът не се предлага като резервна част.
Частите, които се съдържат в даден комплект, ще включват номер на комплекта на долния ред. За пълното
съдържание на комплекта вижте глава „1 – Service kits“.
Номер на част, пред който има черна точка, се съдържа във възела непосредствено по-горе.
Remarks: Допълнителна информация за частта – непосредствено по-горе.
Substituted by: Номерът на частта непосредствено по-горе е заменен от друг номер на частта поради
актуализация или ревизия.
Qty - Количество: Посочва броя на частите във връзка със съответния референтен номер. „AR“ означава „Според
нуждата“: количеството или броят ще бъдат определени допълнително.
Name - Име на частта: превод на английските имена можете да откриете в документа „Glossary of part names“.
Validity - Определя периода и типа/версията на машините, за които частта е валидна. Обяснение на елементите
от кода, използвани в кода за валидността, можете да откриете в легендата в долната част на страницата.
Кодът за валидността, посочен в заглавието на главата, се отнася за цялата глава. Знакът плюс в кода се
приема за „и“, а запетаята – за „или“. Скобите групират елементите на кодовете за валидност подобно на
математическите скоби, вижте следния пример:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ е валидно за машини с работно налягане
8 bar, честота 50 Hz и захранващо напрежение 500 V или работно налягане 8 bar, честота 60 Hz и захранващо
напрежение 575 V.
EL – Референция към чертежа или компонента в електрическата кутия.
R.. – Забележки: допълнителна информация относно частта. Обяснения можете да намерите в долната част на
страницата.
Instructions
4 9829 3178 12
BR - Brasileiro
1 ENCOMENDANDO PEÇAS
Sempre especifique o número da peça, o nome e a quantidade dos itens necessários, assim como o tipo e o número de
série da máquina.
Páginas marcadas com o símbolo Serviço - “ “ contêm peças do(s) Kit(s) de serviço. Para conhecer o conteúdo completo
do kit, consulte o capítulo “1 - Service kits” (1 - Kits de
serviço).
2 INFORMAÇÕES SOBRE AS COLUNAS
Ref. - Número de referência: indica onde está uma peça específica listada no desenho. Somente peças com número de
referência são mostradas no desenho. As peças no desenho que
não têm um número de referência destinam-se simplesmente a ilustrar o conjunto.
Part number - Número da peça: se nenhum número de peça estiver especificado, o componente não está disponível
como peça sobressalente. Uma linha mostrada em negrito é um
conjunto. Uma peça cujo número seja seguido por um ponto preto faz parte do conjunto impresso em negrito
imediatamente acima dela.
O símbolo “<<< >>>” direciona para outra lista com o mesmo título, como “Name” (Nome).
Quando o número de peça específico é colocado abaixo da linha “Ref.”/”Name” (Ref. / Nome), é preciso escolher o tipo/
versão da máquina.
Qty - Quantidade: indica o número de peças e os números de referência correspondentes. “AR” significa “As
required” (Conforme solicitado): a quantidade ou o número a ser
determinado.
Name - Nome da peça: as traduções dos nomes em inglês podem ser encontradas no documento “Glossary of part
names” (Glossário de nomes de peças).
Remarks - Observações - Informações extras sobre a peça.
Uma série de letras pode indicar que uma determinada peça é certificada pelo órgão autorizado específico, de acordo
com os códigos ou as regras da lista.
As medidas são fornecidas em milímetros.
CS - čeština
1 OBJEDNÁNÍ DÍLŮ
Vždy uveďte číslo dílu, název a množství požadovaných položek a také typ a sériové číslo stroje.
2 INFORMACE VE SLOUPCÍCH
Ref – Referenční číslo: Propojuje konkrétní díl ze seznamu s výkresem. Pouze díly s referenčním číslem jsou zobrazeny
na výkresu. Díly bez referenčního čísla, které jsou na výkresu uvedeny, slouží pouze jako ilustrace.
Part number – Číslo dílu se používá pro objednávání náhradních dílů.
Pokud není uvedeno žádné číslo dílu, komponenta není k dispozici jako náhradní díl.
Díly obsažené v sadě mají na následujícím řádku uvedeno číslo sady. Úplný obsah sady viz kapitolu „1 – Service kits“.
Díl s číslem, před kterým je černý puntík, je obsažen v sestavě přímo nad ním.
Remarks: Další informace k číslu dílu přímo nad ním.
Substituted by: Číslo dílu přímo nad ním bylo nahrazeno jiným číslem dílu v důsledku aktualizace nebo revize.
Qty – Množství: Indikuje počet dílů pro odpovídající referenční číslo. „AR“ znamená „As required“ (Podle potřeby):
množství nebo počet bude určen.
Name – Název dílu: Překlady anglických názvů naleznete v dokumentu „Glossary of part names“.
Validity – Definuje časový rámec a typ/verzi strojů, na které se daný díl vztahuje. Objasnění kódů použitých ve
vzorci platnosti naleznete v legendě na konci stránky. Vzorec platnosti uvedený v názvu kapitoly se vztahuje na celou
kapitolu. Znaménko plus ve vzorci se interpretuje jako „a“ a čárka jako „nebo“. Závorky seskupují kódy platnosti,
obdobně jako matematické závorky, viz následující příklad:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ platí pro stroje s provozním tlakem 8 bar,
frekvencí 50 Hz a napájecím napětím 500 V nebo pro stroje s provozním tlakem 8 bar, frekvencí 60 Hz a napájecím
napětím 575 V.
EL – Reference na výkres nebo komponentě uvnitř elektrického rozvaděče.
R. – Poznámky: Doplňující informace o dílu. Vysvětlení naleznete na konci stránky.
Instructions
9829 3178 12 5
DA - Dansk
1 BESTILLING AF DELE
Angiv altid styknummeret, navnet på og antallet af de ønskede varer samt typen og serienummeret for maskinen.
2 OPLYSNINGER TIL KOLONNERNE
Ref - Referencenummer: Knytter en bestemt del fra listen til tegningen. Kun dele med et referencenummer vises på
tegningen. Dele på tegningen uden et referencenummer er blot medtaget for at vise samlingen.
Part number - Styknummer, der skal bruges ved bestilling af reservedele.
Hvis der ikke er angivet et styknummer, fås komponenten ikke som reservedel.
Dele, der er indeholdt i et sæt, har sætnummeret stående på linjen nedenfor. Se kapitel "1 – Service kits" for at få
vist hele indholdet af sættet.
Et styknummer med en sort prik foran indgår i samlingen lige ovenfor.
Remarks: Der findes yderligere oplysninger til styknummeret lige ovenfor.
Substituted by: Styknummeret lige ovenfor er blevet erstattet af et andet styknummer i forbindelse med en
opdatering eller en revidering.
Qty - Antal: Angiver antallet af dele, der hører til det tilsvarende referencenummer. "AR" står for "As required":
Antallet eller nummeret skal fastsættes.
Name - Navn på del: Oversættelser af de engelske navne kan findes i dokumentet "Glossary of part names".
Validity - Angiver tidshorisont og maskintype/-version, som delen gælder for. Forklaringer til koderne, der anvendes
i modellen for gyldigheden, kan findes i teksten nederst på siden. En model for gyldigheden, der er nævnt i kapitlets
titel, gælder for hele kapitlet. Et plustegn i modellen skal fortolkes som et "og", og et komma som et "eller".
Parenteser inddeler koderne, der beskriver gyldigheden, på samme måde som parenteser i matematik. Se følgende
eksempel:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ gælder for maskiner med et arbejdstryk
på 8 bar, en frekvens på 50 Hz og en forsyningsspænding på 500 V eller for maskiner med et arbejdstryk på 8 bar, en
frekvens på 60 Hz og en forsyningsspænding på 575 V.
EL – Refererer til tegningen eller komponenten inde i elskabet.
R. - Bemærkninger: Yderligere oplysninger om delen. Forklaringer kan findes nederst på siden.
DE - Deutsch
1 TEILE BESTELLEN
Geben Sie immer genau die Teilenummer, den Namen und die Anzahl des gewünschten Artikels und den Typ und die
Seriennummer der Maschine an.
2 SPALTENINFORMATION
Ref - Referenznummer: Verknüpft ein spezifisches Teil der Liste mit der Zeichnung. Es werden nur Referenznummern
in der Zeichnung gezeigt. In der Zeichnung dargestellte Teile ohne Referenznummer sind einfach nur zu
Illustrationszwecken der Baugruppe abgebildet.
Part number - Die Teilenummer wird bei der Bestellung von Ersatzteilen angegeben.
Ist keine Teilenummer angegeben, ist die Komponente nicht als Ersatzteil verfügbar.
Bei Teilen, die zu einem Set gehören, wird die Setnummer unten auf der Linie angegeben. Zum kompletten Inhalt des
Sets siehe Kapitel „1 – Service kits“.
Eine mit einem schwarzen Punkt versehene Teilenummer ist in dem direkt darüber stehenden Set enthalten.
Remarks: Zusätzliche Informationen zur Teilenummer stehen direkt darüber.
Substituted by: Die direkt darüber stehende Teilenummer wurde aufgrund einer Aktualisierung oder Überarbeitung
durch eine andere Teilenummer ersetzt.
Qty - Anzahl: Gibt die Anzahl der Teile im Verhältnis zur entsprechenden Referenznummer an. „AR“ steht für „Nach
Bedarf“: Anzahl oder Nummer muss noch angegeben werden.
Name - Teilename: Übersetzungen der englischen Bezeichnungen finden Sie im Dokument „Glossary of part names“.
Validity - Gibt den Zeitrahmen und den Typ/die Version der Maschine vor, für die die Teile gültig sind. Eine
Erläuterung der Codes, die für das Gültigkeitsmuster angewandt werden, finden Sie am Fuß der Seite. Ein im
Kapiteltitel genanntes Gültigkeitsmuster bezieht sich auf das gesamte Kapitel. Ein Pluszeichen im Muster steht
für „und“, ein Komma für „oder“. Klammern fassen die Codes in Gruppen zusammen, ähnlich wie bei mathematischen
Klammern. Siehe dazu folgendes Beispiel:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ ist für Maschinen gültig mit 8 bar-
Betriebsdruck, 50 Hz-Frequenz und 500 V-Versorgungsspannung oder 8 bar-Betriebsdruck, 60 Hz-Frequenz und
575 V-Versorgungsspannung.
EL – Referenz zu der Zeichnung oder dem Bauteil im Inneren des Schaltkastens.
R. – Anmerkungen: Zusatzinformationen zum Teil. Erklärungen finden Sie am Fuß der Seite.
Instructions
6 9829 3178 12
EL - ελληνικά
1 ΠΑΡΑΓΓΕΛΙΑ ΑΝΤΑΛΛΑΚΤΙΚΩΝ
Πρέπει πάντα να προσδιορίζετε τον κωδικό εξαρτήματος, την ονομασία και την ποσότητα των απαιτούμενων
ειδών, καθώς και τον τύπο και τον αριθμό σειράς του μηχανήματος.
2 ΠΛΗΡΟΦΟΡΙΕΣ ΓΙΑ ΤΙΣ ΣΤΗΛΕΣ
Ref - Κωδικός αναφοράς: συσχετίζει ένα συγκεκριμένο εξάρτημα από τη λίστα με το σχέδιο. Μόνο εξαρτήματα
που έχουν κωδικό αναφοράς εμφανίζονται στο σχέδιο. Τα εξαρτήματα στο σχέδιο που δεν έχουν κωδικό αναφοράς,
υπάρχουν απλώς για την εικονογράφηση του συγκροτήματος.
Part number - Κωδικός εξαρτήματος, ο οποίος χρησιμοποιείται κατά την παραγγελία ανταλλακτικών.
Όταν δεν αναφέρεται κάποιος κωδικός εξαρτήματος, το εξάρτημα δεν διατίθεται ως ανταλλακτικό.
Για τα εξαρτήματα που περιέχονται σε κιτ, ο αριθμός του κιτ θα αναφέρεται στην παρακάτω γραμμή. Για το
πλήρες περιεχόμενο του κιτ, βλ. κεφάλαιο "1 – Service kits".
Όταν μπροστά από τον κωδικό εξαρτήματος υπάρχει μια μαύρη κουκίδα, το εξάρτημα περιέχεται στο συγκρότημα
που βρίσκεται ακριβώς από πάνω.
Remarks (Παρατηρήσεις): Πρόσθετες πληροφορίες για τον κωδικό εξαρτήματος ακριβώς από πάνω.
Substituted by (Έχει αντικατασταθεί από): Ο πιο πάνω κωδικός εξαρτήματος έχει αντικατασταθεί από άλλο
κωδικό εξαρτήματος λόγω ενημέρωσης ή αναθεώρησης.
Qty - Ποσότητα: Δείχνει τον αριθμό των εξαρτημάτων σε σχέση με τον αντίστοιχο κωδικό αναφοράς. Το "AR"
σημαίνει "As required" (Αναλόγως των απαιτήσεων): η ποσότητα ή ο αριθμός θα πρέπει να προσδιοριστούν.
Name - Ονομασία εξαρτήματος: Μεταφράσεις των ονομασιών από τα αγγλικά μπορείτε να βρείτε στο έγγραφο
"Glossary of part names".
Validity - Καθορίζει το χρονικό πλαίσιο και τον τύπο/την έκδοση των μηχανημάτων στα οποία μπορεί να
χρησιμοποιηθεί το εξάρτημα. Στο υπόμνημα, στο κάτω μέρος της σελίδας, μπορείτε να βρείτε μια αποσαφήνιση
των κωδικών που χρησιμοποιούνται στο υπόδειγμα ισχύος παραγγελίας. Εάν αναφέρεται ένα υπόδειγμα ισχύος
παραγγελίας στον τίτλο του κεφαλαίου, αυτό ισχύει για ολόκληρο το κεφάλαιο. Ένα σύμβολο "συν" στο υπόδειγμα
θα πρέπει να ερμηνεύεται ως "και", ένα κόμμα ως "ή". Οι παρενθέσεις ομαδοποιούν τους κωδικούς ισχύος
παραγγελίας, όπως οι παρενθέσεις στους μαθηματικούς τύπους. Δείτε το ακόλουθο παράδειγμα:
Το ‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ ισχύει για μηχανήματα με πίεση
λειτουργίας 8 bar, συχνότητα 50 Hz και τάση τροφοδοσίας 500 V ή με πίεση λειτουργίας 8 bar, συχνότητα 60 Hz
και τάση τροφοδοσίας 575 V.
EL – Κωδ. αναφοράς για το σχέδιο ή το εξάρτημα στο εσωτερικό του ηλεκτρικού πίνακα.
R. – Παρατηρήσεις: Πρόσθετες πληροφορίες σχετικά με το εξάρτημα. Επεξήγηση παρέχεται στο κάτω μέρος της
σελίδας.
Instructions
9829 3178 12 7
ES - Español
1 PEDIDO DE PIEZAS
Especifique siempre el número de referencia, el nombre y la cantidad de los elementos que necesita, además del tipo y
número de serie de la máquina.
2 INFORMACIÓN DE LAS COLUMNAS
Ref - Número de referencia: enlaza una pieza concreta de la lista con el solo. Solo se muestran piezas con número
de referencia en el plano. Las piezas del plano que no tienen números de referencia solo se muestran para ilustrar el
conjunto.
Part number - Designación que se debe utilizar para pedir piezas de repuesto.
Si no se especifica una designación, esto quiere decir que el componente no está disponible como pieza de repuesto.
Las piezas que forman parte de un kit tendrán el número de kit en la línea inferior. Para consultar el contenido
completo del kit, consulte el capítulo "1 – Service kits".
Una designación precedida por un punto negro forma parte del conjunto inmediatamente superior.
Remarks: información adicional de la designación inmediatamente superior.
Substituted by: la designación inmediatamente superior se ha sustituido por otra debido a una actualización o
revisión.
Qty - Cantidad: indica el número de piezas en relación con el número de referencia correspondiente. "AR" significa
"Según necesidad": cantidad o número a determinar.
Name - Nombre de la pieza: las traducciones de los nombres en inglés pueden encontrarse en el documento “ Glossary
of part names”
Validity - Define el periodo y tipo/versión de las máquinas en las que se puede utilizar la pieza. Puede encontrar
una explicación de los códigos utilizados en el patrón de validez en la leyenda de la parte inferior de la página. Un
patrón de validez mencionado en el título del capítulo es aplicable a todo el capítulo. Un signo '+' en el patrón debe
interpretarse como una 'y' y una coma debe interpretarse como una 'o'. Los paréntesis agrupan los códigos de validez
de manera similar a su uso en matemáticas; véase el siguiente ejemplo:
'PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)' es válido para máquinas con una presión de
trabajo de 8 bar, una frecuencia de 50 Hz y un voltaje de alimentación de 500 V o de 8 bar, una frecuencia de 60 Hz y
un voltaje de alimentación de 575 V.
EL – Referencia al plano o el componente del interior del armario eléctrico.
R. – Notas: información adicional sobre la pieza; se puede encontrar la explicación en la parte inferior de la página.
ET - Eesti
1 OSADE TELLIMINE
Täpsustage alati osa number, soovitud ühikute nimi ja kogus, aga ka masina tüüp ja seerianumber.
2 TEABE TULP
Ref - Viitenumber: seostab loendis nimetatud konkreetse osa joonisega. Joonisel on näidatud ainult viitenumbriga
osad. Joonisel ilma viitenumbrita esitatud osadel on koostu kuvamisel illustreeriv tähendus.
Part number - Osa number, mida varuosade tellimisel kasutada.
Kui osa numbrit ei ole täpsustatud, ei ole vastav osa varuosana saadaval.
Komplekti kuuluvate osade puhul on alloleval real nimetatud komplekti number. Komplekti tervikliku kirjelduse leiate
peatükist „1- Service kits”.
Kui osa numbri ees on must punkt, sisaldub osa ülaltoodud koostus.
Remarks: osa numbri kohal kuvatav lisateave.
Substituted by: ülaltoodud osa number on uuenduse või kontrolli tulemusena asendatud teise osa numbriga.
Qty - Kogus: osutab asjaomase viitenumbriga seotud osade arvule. „AR” tähendab „vastavalt vajadusele”: kogus või
arv tuleb kindlaks määrata.
Name - Osa nimi: inglisekeelsete nimede tõlked leiate dokumendist „Glossary of part names”.
Validity - Määratleb ajavahemiku ja masina tüübi/versiooni, mille puhul osa kasutatakse. Kasutusmustris kasutatud
koodide selgituse leiate iga lehekülje allosas olevast legendist. Peatüki pealkirjas nimetatud kasutusmuster kohaldub
tervele peatükile. Mustris kasutatud plussmärki tuleb tõlgendada sõnana „ja”, komana või sõnana „või”. Sarnaselt
ümarsulgude matemaatikas kasutamisele rühmitavad ümarsulud kehtivuskoodide rühmad; vt järgmist näidet:
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ kehtib masinate puhul, mille töörõhk
on 8 bar ja sagedus 50 Hz ja toitepinge 500 V, või siis masinate puhul, mille töörõhk on 8 bar ja sagedus 60 Hz ja
toitepinge 575V.
EL – Viide joonisele või elektrikapis olevale osale.
R. - Märkused: lisateave osa kohta. Selgituse leiate lehekülje allosast.
Instructions
8 9829 3178 12
FI - Suomalainen
1 OSIEN TILAAMINEN
Määritä aina osanumero, haluttujen tuotteiden nimi ja määrä sekä koneen tyyppi ja sarjanumero.
2 SARAKETIEDOT
Ref - Viitenumero: Yhdistää jonkin tietyn luettelossa mainitun osan piirrokseen. Piirroksessa näkyvät vain ne osat,
joilla on viitenumero. Ne osat, joilla ei ole viitenumeroa, ovat piirroksessa vain kokoonpanoa kuvaamassa.
Part number - Osanumero, jota on käytettävä varaosia tilattaessa.
Jos osanumeroa ei ole määritetty, komponentti ei ole saatavana varaosana.
Sarjan mukana tulevilla osilla on sarjanumero, joka on merkitty alla olevalle viivalle. Lue tiedot sarjan täydellisestä
sisällöstä luvusta 1 – Service kits.
Osanumero, jota edeltää musta piste, sisältyy edellä olevaan kokoonpanoon.
Remarks: lisätietoja edellä olevaan osanumeroon.
Substituted by: edellä oleva osanumero on korvattu toisella osanumerolla päivityksen tai korjauksen takia.
Qty - Määrä: Osoittaa viitenumeroon liittyvien osien määrän. AR (As required) tarkoittaa määritettävää määrää.
Name - Osan nimi: englanninkielisten nimien käännökset on kerrottu asiakirjassa ”Glossary of part names”.
Validity - Määrittää sen ajanjakson ja koneiden tyypin tai version, joita osa koskee. Määrityskaavassa käytetyt
koodit on selitetty sivun alalaidan kuvatekstissä. Luvun otsikossa mainittu määrityskaava koskee koko lukua.
Kaavassa oleva plusmerkki tarkoittaa ja-sanaa ja pilkku tai-sanaa. Sulkeet ryhmittävät määrityskoodit
matemaattisten sulkeiden tavalla, esimerkiksi näin:
PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V) koskee koneita, joiden työskentelypaine on 8
baaria, taajuus 50 hertsiä ja verkkojännite 500 volttia tai joiden työskentelypaine on 8 baaria, taajuus 60 hertsiä ja
verkkojännite 575 volttia.
EL – Viittaus piirrokseen tai sähkökotelon sisällä olevaan komponenttiin.
R. – Huomautukset: Lisätietoja osasta. Selitys on sivun alalaidassa.
FR - Français
1 COMMANDER DES PIÈCES
Toujours spécifier le numéro de pièce, la désignation et la quantité des articles souhaités ainsi que le type et le
numéro de série de la machine.
2 COLONNE INFORMATIONS
Ref - Référence : associe une pièce donnée de la liste au schéma. Seules les pièces avec une référence sont illustrées
sur le schéma. Les pièces représentées sur le schéma sans référence servent uniquement à illustrer l'ensemble.
Part number - Numéros de pièce à utiliser lors de la commande de pièces de rechange.
Si aucun numéro de pièce n'est indiqué, le composant n'est pas disponible en tant que pièce de rechange.
Pour les pièces contenues dans un kit, le numéro de kit est mentionné à la ligne ci-dessous. Pour voir le contenu du kit
en détail, consulter le chapitre « 1 – Service Kits ».
Un numéro de pièce précédé d'un point noir est compris dans l'ensemble ci-dessus.
Remarks : informations supplémentaires sur le numéro de pièce ci-dessus.
Substituted by : le numéro de pièce ci-dessus a été remplacé par un autre numéro de pièce suite à une mise à jour ou
une révision.
Qty - Quantité : indique le nombre de pièces en fonction du numéro de pièce correspondant. « AR » signifie « As
required » (autant que nécessaire) : quantité ou nombre à définir.
Name - Désignation de la pièce : les traductions des désignations anglaises sont disponibles dans le document
« Glossary of part names ».
Validity - Définit le délai et le type/version de machines pour lesquels les pièces sont valides. Pour plus de détails
sur les codes utilisés dans le modèle de validité, voir la légende en bas de page. Un modèle de validité mentionné dans
le titre du chapitre s'applique à l'ensemble du chapitre. Le signe plus utilisé dans le modèle se comprend comme un
« et », une virgule comme un « ou». Les parenthèses regroupent les codes de validité, comme en mathématiques, voir
l'exemple suivant :
« PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V) » est valide pour des machines avec une
pression de service de 8 bar et une fréquence de 50 Hz et une tension d'alimentation de 500 V ou une pression de
service de 8 bar et une fréquence de 60 Hz et une tension d'alimentation de 575 V.
EL – Référence sur le schéma ou le composant à l'intérieur de l'armoire électrique.
R. – Remarque : informations supplémentaires sur la pièce. Pour plus de détails, voir le bas de page.
Instructions
9829 3178 12 9
HU - Magyar
1 ALKATRÉSZRENDELÉS
Mindig adja meg a cikkszámot, a kért elemek nevét és mennyiségét, valamint a típust és a gyári számot.
2 A TÁBLÁZAT OSZLOPAI
Ref - Hivatkozási szám: a felsorolt alkatrészt a megfelelő ábrához társítja. A rajzon csak hivatkozási számmal
ellátott alkatrészek láthatók. Az ábrán a hivatkozási számmal nem rendelkező alkatrészek csak az összeszerelés
módját illusztrálják.
Part number - A pótalkatrészek rendelésénél használandó cikkszám.
Ha nincs megadva cikkszám, az adott alkatrész nem kapható pótalkatrészként.
Azokra az alkatrészekre, amelyek egy készlet részeként kaphatók, a készlet cikkszáma vonatkozik, amely az alsó
sorban szerepel. A készlet teljes tartalmát lásd: „1 – Service Kits” című fejezet.
Ha egy cikkszámot pont előz meg, az illető alkatrész a közvetlenül felette lévő sorban szereplő egység részét képezi.
Remarks: További információk a közvetlenül felette lévő sorban szereplő cikkszámra vonatkozóan.
Substituted by: A közvetlenül felette lévő sorban szereplő cikkszámot frissítés vagy új változat következtében új
cikkszám váltotta fel.
Qty - Mennyiség: az adott hivatkozási számhoz kapcsolódó alkatrészek számát jelöli. Az „AR” jelentése „As
required” (igény szerint): itt megadhatja a mennyiséget vagy a számot.
Name - Az alkatrész neve: az angol nyelvű elnevezések fordítása az „Glossary of part names” c. dokumentumban
található.
Validity - Azt az időkeretet, továbbá azokat a géptípusokat/-verziókat adja meg, amelyekhez az alkatrész
használható. Az érvényességi formulában használt kódok magyarázata a lap alján olvasható. A fejezetcímben szereplő
érvényességi formula az egész fejezetre érvényes. A formulában szereplő plusz (+) jel jelentése: „és”, a vessző (,)
jelentése: „vagy”. A zárójelek a matematikában használt zárójelekhez hasonlóan csoportosítják az érvényességi
kódokat; lásd a következő példát:
A „PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” 8 bar üzemi nyomású, 50 Hz frekvenciájú
és 500 V tápfeszültségű, vagy 8 bar üzemi nyomású, 60 Hz frekvenciájú és 575 V tápfeszültségű berendezéseket
jelöl.
EL – Hivatkozás az elektromos szekrényen belüli ábrára vagy alkatrészre.
R. – Megjegyzések: Az alkatrésszel kapcsolatos további információk. A magyarázat a lap alján található.
IT - Italiano
1 ORDINE DEI RICAMBI
Specificare sempre il numero categorico, il nome e la quantità degli articoli richiesti, oltre al tipo e al numero di serie
della macchina.
2 COLONNA DELLE INFORMAZIONI
Ref - Numero di riferimento: associa un ricambio specifico dalla lista all'illustrazione. Nell'illustrazione sono mostrati
solo ricambi dotati di numero di riferimento. I ricambi presenti nell'illustrazione privi di numero di riferimento sono
riportati semplicemente per illustrare il montaggio.
Part number - Numero categorico da utilizzare per l'ordine di parti di ricambio.
Quando non è specificato alcun numero categorico, il componente non è disponibile come parte di ricambio.
I ricambi contenuti in un kit avranno il numero di kit riportato nella riga sottostante. Per il contenuto completo del
kit vedere il capitolo "1 – Service kits".
Un numero categorico preceduto da un punto nero fa parte del gruppo immediatamente precedente.
Remarks: le informazioni aggiuntive relative al numero categorico sono riportate in alto.
Substituted by: il numero categorico immediatamente precedente è stato sostituito da un altro numero categorico a
causa di un aggiornamento o di una revisione.
Qty - Quantità: indica il numero di ricambi corrispondenti al numero di riferimento. "AR" significa "As
required" (Secondo necessità): quantità o numero da definire.
Name - Nome parte: la traduzione dei termini dall'inglese è reperibile nel documento "Glossary of part names".
Validity - Definisce i tempi e il tipo/versione di macchine per le quali il ricambio è valido. La legenda in fondo alla
pagina riporta una spiegazione dei codici utilizzati nello schema di validità. Uno schema di validità menzionato nel
titolo del capitolo si applica all'intero capitolo. Un segno più nello schema deve essere interpretato come "e", una
virgola come "o". Tra le parentesi sono raggruppati i codici di validità, al pari delle parentesi matematiche, vedere il
seguente esempio:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" è valido per le macchine con pressione di
esercizio di 8 bar e 50Hz di frequenza e una tensione di alimentazione di 500 V, o con pressione di esercizio di 8 bar,
frequenza di 60Hz e tensione di alimentazione di 575 V.
EL – Riferimento all'illustrazione o al componente all'interno dell'armadio elettrico.
R. – Note: informazioni aggiuntive sulla spiegazione dei ricambi sono reperibili in fondo alla pagina.
Instructions
10 9829 3178 12
JA - 日本の
1 部品の注文
部品番号、注文するアイテムの名称および数量、機器のタイプおよびシリアル番号を必ず指定してください。
サービスマーク“ ”のついたページにはサービスキットの部品が記載されています。 キットの内容物について
は、第1章「サービスキット」を参照してください。
2 各列の説明
Ref. - 参照番号：リストの部品が図のどこにあるかを示します。 参照番号がある部品のみが図に示されていま
す。 参照番号がない部品はアセンブリを表現するため便宜上表記されています。
Part number - 部品番号：部品番号が示されていない部品は、スペア部品としては提供されていません。 太字の行
はアセンブリを示します。 番号の後に黒い点が付いている部品は、すぐ上にある太字のアセンブリを構成してい
ます。
“<<< >>>”は、“Name”と同じタイトルの別のリストを示します。
“Ref.”または”Name”行の下に、特定の部品の部品番号が記載されている場合は、機器のタイプ/バージョンに
応じて部品を選択してください。
Qty - 数量：参照番号に対応する部品の数量を示します。 „AR“は「必要に応じて」を意味し、必要に応じて数
量または番号を指定します。
Name - 部品名：英語に対応する各言語の名称は「Glossary of part names」（部品名称対応表）に記載されてい
ます。
Remarks - 部品に関する追加情報です。
一連の文字列は特定の部品が指定認定団体によって承認されていることを示し、リストのコードまたは規定に準拠
しています。
測定値はミリメートル単位で示されています。
LT - Lietuvos
1 DALIŲ UŽSAKYMAS
Visada nurodykite pageidaujamos prekės dalies numerį, pavadinimą ir kiekį. Taip pat nurodykite įrenginio tipą ir
serijos numerį.
2 INFORMACIJA STULPELIUOSE
Ref - Nuorodos numeris: susieja konkrečią dalį iš sąrašo su brėžiniu. Brėžinyje rodomos tik nuorodos numerį turinčios
dalys. Brėžinyje parodytos dalys be nuorodos numerio yra tiesiog įrenginio iliustracija.
Part number - Dalies numeris, naudojamas užsakant atsargines dalis.
Jei dalies numeris nenurodytas, komponentas negalimas kaip atsarginė dalis.
Rinkinyje esančios dalys turi rinkinio numerį, minimą apatinėje eilutė. Visą rinkinio turinį gali pamatyti skyriuje „1 –
Service kits“.
Jei prieš dalies numerį yra juodas taškas, jis yra viršuje pateiktame įrenginyje.
Remarks: papildoma dalies numerio informacija pateikta dešinėje pusėje viršuje.
Substituted by: dešinėje viršuje nurodytas dalies numeris buvo pakeistas kitu dalies numerio, nes vyko atnaujinimas
arba revizija.
Qty - Kiekis: pateikiamas dalių, kurioms priskiriamas atitinkamas nuorodos numeris, skaičius. „AR“ reiškia
„Priklausomai nuo poreikio“: kiekis arba skaičius bus nustatytas to prireikus.
Name - Dalies pavadinimas: anglų kalba pateiktų pavadinimų vertimus rasite dokumente „Glossary of part names“.
Validity - Apibūdinamas laikotarpis ir įrenginio tipas / versija, kurioms dalis tinka. Tinkamumo šablone naudojami
kodai paaiškinti puslapio apačioje esančioje legendoje. Tinkamumo šablonas skyriaus pavadinimas taikomas visam
skyriui. Pliuso ženklas šablone reiškia „ir“, o kablelis – „arba“. Skliaustais grupuojami tinkamumo kodai (kaip ir
matematiniai veiksmai), žr. pavyzdį:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ tinka įrenginiams, kurių darbinis slėgis yra
8 barai, dažnis yra 50 Hz, o maitinimo įtampa yra 500 V, arba darbinis slėgis yra 8 barai, dažnis yra 60 Hz, o maitinimo
įtampa yra 575 V.
EL – Nuoroda į brėžinį arba komponentą elektros modulio viduje.
R. – Pastabos: papildoma informacija apie dalį. Paaiškinimus galite rasti puslapio apačioje.
Instructions
9829 3178 12 11
LV - Latvijas
1. DETAĻU PASŪTĪŠANA
Vienmēr norādiet detaļas numuru, nosaukumu un vajadzīgo daudzumu, kā arī iekārtas tipu un sērijas numuru.
2. KOLONNAS INFORMĀCIJA
Ref – Atsauces numurs: saista konkrētu sarakstā esošo detaļu ar rasējumu. Rasējumā tiek parādītas tikai detaļas ar
atsauces numuru. Detaļas rasējumā bez atsauces numura paredzētas vienīgi tam, lai attēlotu attiecīgo mezglu.
Part number – Detaļas numurs, kas jāizmanto, pasūtot rezerves daļas.
Ja detaļas numurs nav norādīts, attiecīgais komponents nav pieejams kā rezerves daļa.
Komplektā iekļautām detaļām nākamajā rindā būs norādīts komplekta numurs. Komplekta pilnīgs saturs aprakstīts
nodaļā “1 – Service kits”.
Ja pirms detaļas numura ir melns punkts, tā ir iekļauta iepriekš attēlotajā mezglā.
Remarks: papildinformācija par iepriekšējo detaļas numuru.
Substituted by: iepriekšējais detaļas numurs ir aizstāts ar citu detaļas numuru atjaunināšanas vai pārskatīšanas dēļ.
Qty – Daudzums: apzīmē detaļu skaitu attiecīgajam atsauces numuram. “AR” nozīmē “pēc nepieciešamības”: jānosaka
daudzums vai numurs.
Name – Detaļas nosaukums: angļu valodas nosaukumu tulkojumi ir atrodami dokumentā “Glossary of part names”.
Validity – Nosaka iekārtu derīguma periodu un tipu/versiju. Derīguma norādē iekļauto kodu skaidrojums ir norādīts
eksplikācijā lappuses apakšdaļā. Nodaļas virsrakstā minētā derīguma norāde attiecas uz visu nodaļu. Pluszīme norādē
jāinterpretē kā “un”, bet komats kā “vai”. Iekavas grupē derīguma kodus līdzīgi kā iekavas matemātikā, piemēram:
“PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” ir derīgs iekārtām ar 8 bāru darba
spiedienu, 50 Hz frekvenci un 500 V barošanas spriegumu vai iekārtām ar 8 bāru darba spiedienu, 60 Hz frekvenci un
575 V barošanas spriegumu.
EL – Atsauce uz rasējumu vai elektrosadales skapja komponentu.
R. – Piezīmes: papildinformācija par detaļu. Skaidrojums atrodams lappuses apakšdaļā.
NL - Nederlands
1 BESTELLEN VAN ONDERDELEN
Vermeld altijd het onderdeelnummer, de benaming en de hoeveelheid van de gewenste onderdelen, alsmede het type en
het serienummer van de machine.
2 KOLOMINFORMATIE
Ref. - Referentienummer: koppelt een specifiek onderdeel in de lijst aan de desbetreffende tekening. Alleen
onderdelen met een referentienummer zijn in de tekening afgebeeld. Onderdelen zonder referentienummer die op de
tekening voorkomen, worden slechts getoond om het geheel te illustreren.
Part number - Onderdeelnummer dat wordt gebruikt voor het bestellen van reserveonderdelen.
Indien geen onderdeelnummer is aangegeven, is de betreffende component niet als reserveonderdeel verkrijgbaar.
Van onderdelen uit een kit wordt het kitnummer op de regel eronder vermeld. Voor de volledige inhoud van de kit, zie
paragraaf "1 - Service kits".
Een onderdeel waarvan het nummer gevolgd wordt door een zwart rondje, maakt deel uit van het vet afgedrukte
samenstel direct erboven.
Remarks: aanvullende informatie voor het onderdeelnummer direct erboven.
Substituted by: het nummer direct erboven is vervangen door een ander onderdeelnummer als gevolg van een update
of herziening.
Qty - Hoeveelheid: geeft het aantal onderdelen aan met betrekking tot met het overeenkomstige referentienummer.
"AR" betekent "As required": de hoeveelheid of het aantal moet nader worden bepaald.
Name - Naam van het onderdeel: vertalingen van de Engelse benamingen zijn te vinden in het document "Glossary of
part names".
Validity - Bepaalt het tijdsframe en type/versie van de machines waarvoor het onderdeel geldig is. Verklaring van de
codes die in het geldigheidspatroon zijn gebruikt, vindt u in de legenda onder aan de pagina. Een geldigheidspatroon
vermeld in de titel van het hoofdstuk is van toepassing op het hele hoofdstuk. Een plusteken in het patroon staat
voor 'en' en een komma voor 'of'. Haakjes groeperen de geldigheidscodes, vergelijkbaar met die in de wiskunde, zie het
volgende voorbeeld:
"PRESS:8 BAR + (FREQ:50HZ+MOVOL:500V, FREQ:60HZ+MOVOL:575V)" is geldig voor machines met een werkdruk
van 8 bar, 50Hz-frequentie en 500V-voedingsspanning of een werkdruk van 8 bar, 60Hz-frequentie en 575Vvoedingsspanning.
EL – Referentie van de tekening of het onderdeel in de elektrische aansluitkast.
R. - Opmerkingen: extra informatie over het onderdeel. Uitleg vindt u onder aan de pagina.
Instructions
12 9829 3178 12
NO - Norsk
1 BESTILLE DELER
Spesifiser alltid delenummeret, navnet og antallet til den nødvendige artikkelen, samt typen og serienummeret til
maskinen.
2 KOLONNEINFORMASJON
Ref – Referansenummer: knytter en spesifikk del fra listen til tegningen. Kun delene med et referansenummer vises i
tegningen. Delene i tegningen som vises uten et referansenummer, er kun tatt med for å illustrere monteringen.
Part number – Delenummer skal brukes ved bestilling av reservedeler.
Når det er ikke er spesifisert et delenummer, er ikke komponenten tilgjengelig som en reservedel.
Deler som inngår i et sett, har settnummeret nevnt på linjen nedenfor. Du finner fullstendig oversikt over innholdet i
settet i kapittel 1 – Service kits.
Et delenummer med en svart prikk foran er en del av settet rett ovenfor.
Remarks: ytterligere informasjon om delenummeret rett ovenfor.
Substituted by: Delenummeret rett ovenfor har blitt erstattet av et annet delenummeret på grunn av en oppdatering
eller revisjon.
Qty – Antall: angir antall deler av det tilhørende referansenummeret. AR betyr Etter behov: Antallet er ikke
bestemt.
Name – Delenavn: Du finner oversettelser av de engelske navnene i dokumentet «Glossary of part names».
Validity – Definerer tidsrommet og maskintypen/-versjonen som delen er gyldig for. Du finner en oversikt over
kodene som brukes i gyldighetsmønsteret, i forklaringen nederst på siden. Et gyldighetsmønster som nevnes i
kapitteltittelen, gjelder for hele kapittelet. Et pluss-tegn i mønsteret skal tolkes som "og", mens et komma skal
tolkes som "eller". Parenteser deler inn gyldighetskodene, omtrent på samme måte som matematiske parenteser. Se
følgende eksempel:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" er gyldig for maskiner med arbeidstrykk
på 8 bar, frekvens på 50 Hz og forsyningsspenning på 500 V; eller arbeidstrykk på 8 bar, frekvens på 60 Hz og
forsyningsspenning på 575V.
EL – Referanse til tegningen eller komponentene inne i koplingsskapet.
R. – Kommentarer: Ekstra informasjon om delen. Du finner en forklaring nederst på siden.
PL - Polski
1 ZAMAWIANIE CZĘŚCI
Podczas zamawiania produktów należy zawsze podawać następujące informacje: numer części, nazwę i liczbę
produktów, a także typ i numer seryjny urządzenia.
2 OBJAŚNIENIE NAZW KOLUMN
Ref. — numer referencyjny: informuje, na którym rysunku można znaleźć konkretną część z listy. Na rysunku
zamieszczone są wyłącznie części opatrzone numerem referencyjnym. Części bez przypisanego numeru
referencyjnego zostały zamieszczone na rysunku wyłącznie w celu prawidłowego zilustrowania montażu.
Part number — numer części stosowany podczas zamawiania części zamiennych.
W przypadku braku numeru części danej pozycji nie można zamówić jako części zamiennej.
Jeśli dana część jest elementem zestawu, w kolejnym wierszu znajduje się numer zestawu. Informacje na temat pełnej
zawartości zestawu można znaleźć w rozdziale „1 – Service kits”.
Jeśli numer części poprzedza czarna kropka, dana część jest elementem zestawu opisanego powyżej.
Remarks: dodatkowe informacje na temat numeru części zamieszczonego powyżej.
Substituted by: numer części zamieszczony powyżej został zastąpiony innym numerem części na skutek modernizacji
lub aktualizacji.
Qty — ilość: oznacza liczbę części w odniesieniu do danego numeru referencyjnego. Symbol „AR” oznacza „zależnie od
wymagań”: liczba lub numer do ustalenia.
Name — nazwa części: tłumaczenia nazw angielskich znajdują się w dokumencie „Glossary of part names”.
Validity — wskazuje ramy czasowe oraz typ/wersję urządzenia, do którego przeznaczona jest część. Kody
wykorzystywane we wzorze przydatności zostały objaśnione w legendzie u dołu strony. Wzór przydatności
wspomniany w tytule rozdziału dotyczy całego rozdziału. Znak dodawania we wzorze należy interpretować jako
słowo „i”, natomiast przecinek — jako słowo „lub”. Nawiasy pełnią tu funkcję podobną do nawiasów w matematyce —
grupują kody przydatności — jak w poniższym przykładzie:
kod „PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” dotyczy maszyn o ciśnieniu roboczym
8 bar, częstotliwości 50 Hz i napięciu zasilania 500 V lub o ciśnieniu roboczym 8 bar, częstotliwości 60 HZ i napięciu
zasilania 575 V.
EL — odnośnik do rysunku lub podzespołu wewnątrz szafki rozdzielczej.
R. — uwagi: dodatkowe informacje na temat części. Wyjaśnienie znajduje się u dołu strony.
Instructions
9829 3178 12 13
PT - Português
1 ENCOMENDA DE PEÇAS
Especifique sempre a referência da peça, o nome e a quantidade de itens pretendidos, bem como o tipo e o número de
série da máquina.
2 INFORMAÇÕES DAS COLUNAS
Ref - Número de referência: associa uma peça específica da lista ao desenho. Neste último, são apresentadas apenas
as peças com um número de referência. As peças apresentadas no desenho sem um número de referência destinam-se
simplesmente a ilustrar o processo de montagem.
Part number - Referência da peça a utilizar no caso de encomenda de peças sobresselentes.
Se não for especificada uma referência da peça, significa que o componente não se encontra disponível como uma peça
sobresselente.
As peças incluídas num kit terão o número do kit mencionado na linha abaixo. Para obter informações sobre o conteúdo
completo do kit, consulte o capítulo "1 – Service kits".
Uma referência da peça precedida de um ponto preto está incluída no processo de montagem imediatamente acima
mencionado.
Remarks: encontra informações adicionais sobre a referência da peça imediatamente acima.
Substituted by: a referência da peça imediatamente acima foi substituída por outra referência devido a uma
actualização ou revisão.
Qty - Quantidade: indica o número de peças em relação ao número de referência correspondente. "AR" (As required)
significa "Como exigido": quantidade ou número a determinar.
Name - Nome da peça: encontra as traduções dos nomes em inglês no documento "Glossary of part names".
Validity - Define o período de tempo e o tipo/versão de máquinas para que a peça é válida. Encontra a explicação sobre
os códigos utilizados no padrão de validade na legenda situada no final da página. Um padrão de validade mencionado
no título do capítulo aplica-se a todo o capítulo. Um sinal de adição no padrão deve ser interpretado como "e", ao
passo que uma vírgula deve ser interpretada como "ou". Os parênteses agrupam os códigos de validade, da mesma
forma que os parênteses utilizados em operações matemáticas; veja o seguinte exemplo:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" é válido para máquinas com uma pressão de
trabalho de 8 bar, uma frequência de 50 Hz e uma tensão de alimentação de 500 V ou uma pressão de trabalho de 8
bar, uma frequência de 60 Hz e uma tensão de alimentação de 575 V.
EL – Referência ao desenho ou ao componente dentro do compartimento eléctrico.
R. – Observações: informações adicionais sobre a peça. Encontra a explicação no final da página.
RO - român
1 COMANDAREA PIESELOR
Indicaţi întotdeauna numărul de catalog, numele şi cantitatea articolelor solicitate, precum şi tipul şi numărul de serie
al maşinii.
2 INFORMAŢIILE DIN COLOANE
Ref. - Numărul de referinţă: face legătura între o piesă din listă şi una din schemă. Numai piesele care au un număr
de referinţă apar în schemă. Piesele din schemă care nu au un număr de referinţă sunt incluse doar pentru a clarifica
modul de asamblare.
Part number - Numărul de catalog este utilizat pentru comandarea pieselor de schimb.
Atunci când nu este specificat un număr de catalog, componenta nu este disponibilă ca piesă de schimb.
Pentru piesele incluse în kituri, numărul kitului este menţionat pe rândul următor. Pentru conţinutul complet al
kitului, consultaţi capitolul „1 – Service kits”.
Un număr de catalog precedat de un punct negru este inclus în ansamblul aflat chiar deasupra acestuia.
Remarks: Informaţii suplimentare privind numărul de catalog de mai sus.
Substituted by: Numărul de catalog de mai sus a fost înlocuit de un alt număr de catalog din cauza unei actualizări sau
a unei revizuiri.
Qty - Cantitate: indică numărul de piese care au numărul de referinţă corespunzător. „AR” este abrevierea pentru „As
required”: cantitatea şi numărul vor fi determinate conform necesităţilor.
Name - Numele piesei: traducerile numelor din engleză se află în documentul „Glossary of part names”.
Validity - Defineşte perioada de valabilitate şi tipul/versiunea utilajelor cu care piesa este compatibilă. Clarificarea
codurilor utilizate în modelul de valabilitate poate fi găsită în legenda din partea de jos a paginii. Un model de
valabilitate menţionat în titlul unui capitol se aplică întregului capitol. Un semn plus care apare într-un model va fi
interpretat drept „şi”, virgulă ori „sau”. Codurile de valabilitate sunt grupate cu ajutorul unor paranteze având o
funcţie similară parantezelor matematice, a se vedea exemplul de mai jos:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)” indică valabilitatea pentru utilajele cu
presiune de lucru de 8 bari, frecvenţă de 50 Hz şi tensiune de alimentare de 500 V sau presiune de lucru de 8 bari,
frecvenţă de 60 Hz şi tensiune de alimentare de 575 V.
EL – Referire la schemă sau la componenta din cofretul electric.
R. – Observaţii: informaţii suplimentare privind piesa. Explicaţiile pot fi găsite în partea de jos a paginii.
Instructions
14 9829 3178 12
RU - русский
1 ЗАКАЗ ДЕТАЛЕЙ
Всегда указывайте номер по каталогу, наименование и количество требуемых позиций, а также тип и серийный
номер машины.
2 ИНФОРМАЦИЯ
Ref - Ссылочный номер: соотносит деталь из списка со схемой. На схеме показаны только детали со ссылочным
номером. Детали без ссылочного номера приведены на схемах только для демонстрации всего узла в сборе.
Part number - Номер детали, указываемый при заказе запасных частей.
Если номер детали не указан, то компонент недоступен в качестве отдельной запасной части.
Для деталей, входящих в состав комплекта, будут приведены номера этих комплектов, упомянутых строчкой
ниже. Чтобы узнать полный состав комплекта см. раздел “1 – Service kits”.
Деталь, перед номером которой стоит черная точка, входит в состав изображенного выше узла.
Remarks: дополнительная информация о номере приведенной выше детали.
Substituted by: номер изображенной выше детали был заменен другим номером по причине обновления или
переработки.
Qty - Количество: указывает количество деталей относительно соответствующего ссылочного номера. „AR“
значит „As required“: количество или номер будут определены.
Name - Наименование детали: перевод англоязычных наименований можно найти в документе “Glossary of part
names”(Словарь наименований деталей).
Validity - Определяет временные рамки и тип/версию машины, в которой используется деталь. Пояснение
кодов, используемых в данной графе, можно найти в списке обозначений внизу страницы. Информация
о совместимости, упомянутая в данной главе, актуальна для всей главы. Знак плюса в примечании о
совместимости следует принимать за ‘и’, запятые — за ‘или’. Скобки группируют коды совместимости по
принципу, схожему с математическим. См. пример:
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ применима в машинах с рабочим
давлением 8 бар, частотой 50 Гц и напряжением источника питания 500 В или рабочим давлением 8 бар,
частотой 60 Гц и напряжением источника питания 575 В.
EL – Ссылка на схему или компонент электрического шкафа.
R. – Примечания: дополнительная информация о детали. Пояснения приведены внизу страницы.
SK - slovenský
1 OBJEDNÁVANIE DIELOV
Vždy uveďte číslo dielu, názov a množstvo požadovaných položiek, ako aj typ a výrobné číslo zariadenia.
2 INFORMÁCIE V STĹPCOCH
Ref – Referenčné číslo: spája konkrétny diel v zozname s nákresom. Na nákrese sú zobrazené len diely s referenčným
číslom. Diely v nákrese bez referenčného čísla slúžia len na znázornenie zostavy.
Part number – Číslo dielu, ktoré treba použiť pri objednávaní náhradných dielov.
Ak nie je uvedené žiadne číslo dielu, daný komponent nie je k dispozícii ako náhradný diel.
Diely, ktoré sú súčasťou súpravy, majú v riadku nižšie uvedené číslo súpravy. Zoznam všetkých dielov v súprave
nájdete v kapitole „1 – Service kits“.
Číslo dielu, pred ktorým sa nachádza čierna bodka, je súčasťou zostavy uvedenej nad ním.
Remarks: Ďalšie informácie o čísle dielu vyššie.
Substituded by: Číslo dielu uvedené vyššie bolo nahradené iným dielom kvôli inovácii alebo revízii.
Qty – Množstvo: Indikuje počet dielov v súvislosti s príslušným referenčným číslom. „AR“ znamená „As required“:
množstvo alebo počet sa musí určiť.
Name – Názov dielu: Preklady anglických názvov nájdete v dokumente „Glossary of part names“(Slovník názvov
dielov).
Validity – Definuje časový rámec a typ/verziu zariadení, pre ktoré možno daný diel použiť. Informácie o význame
kódov použitých v reťazci označujúcom platnosť nájdete v legende v spodnej časti strany. Reťazec označujúci
platnosť uvedený v názve kapitoly sa vzťahuje na celú kapitolu. Znamienko plus v tomto reťazci znamená „a“ a čiarka
znamená „alebo“. Zátvorky slúžia na zoskupenie kódov označujúcich platnosť podobne ako v matematických vzorcoch.
Pozrite si nasledujúci príklad:
„PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)“ – platí pre zariadenia s pracovným
tlakom 8 barov, frekvenciou 50 Hz a napájacím napätím 500 V alebo pracovným tlakom 8 barov, frekvenciou 60 Hz
a napájacím napätím 575 V.
EL – Odkaz na nákres komponentu v elektrickej skrini.
R. – Poznámky: Ďalšie informácie o danom diele. Vysvetlenie nájdete v spodnej časti stránky.
Instructions
9829 3178 12 15
SL - slovenščina
1 NAROČANJE DELOV
Vedno navedite številko dela, ime in količino zahtevanih predmetov ter tip in serijsko številko stroja.
2 INFORMACIJE O STOLPCU
Ref - Referenčna številka: povezuje določen navedeni del z risbo. Na risbi so prikazani samo deli z referenčno številko.
Deli na risbi, ki nimajo referenčne številke, so namenjeni samo prikazu sklopa.
Part number - Številko dela uporabite pri naročanju nadomestnih delov.
- Če številka dela ni navedena, komponenta ni na voljo kot nadomestni del.
Za dele, ki so del kompleta, bo v spodnji vrstici navedena tudi številka kompleta. Celotno vsebino kompleta si oglejte v
poglavju "1 – Service kits".
Številka dela, pred katero je črna pika, spada v sklop tik zgoraj.
Remarks: dodatne informacije o številki dela tik zgoraj.
Substituted by: številka dela tik zgoraj je zamenjana z drugo številko dela, zaradi posodobitve ali revizije.
Qty Količina: določa število delov v povezavi z ustrezno referenčno številko. Kratica "AR" pomeni "As required" (kot je
zahtevano): količina ali število za določitev.
Name - Ime dela: prevodi angleških imen se nahajajo v dokumentu "Glossary of part names".
Validity - Določa časovni razpon in tip/različico stroja, ki veljata za del. Razlago kod, ki se uporabljajo v vzorcu
veljavnosti, najdete v legendi na dnu strani. Vzorec veljavnosti, ki je naveden v naslovu poglavja, velja za celotno
poglavje. Znak plus v vzorcu lahko pomeni besedo "in", vejico ali besedo "ali". Oklepaji združujejo kode veljavnosti,
podobno kot oklepaji pri matematiki; glejte spodnji primer:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" velja za stroje z delovnim tlakom 8 barov
in frekvenco 50 Hz ter napajalno napetostjo 500 V, ali z delovnim tlakom 8 barov, frekvenco 60 Hz in napajalno
napetostjo 575 V.
EL – Referenca za risbo ali komponenta znotraj električne omarice.
R. – Opombe: dodatne informacije o delu. Razlago lahko najdete na dnu strani.
SV - Svenska
1 BESTÄLLA DELAR
Ange alltid reservdelsnummer, namn och antal delar som önskas, samt typbeteckning och tillverkningsnummer på
maskinen.
2 SPALTINFORMATION
Ref. – Referensnummer: kopplar ihop en viss reservdel i förteckningen med ritningen. Endast reservdelar med
referensnummer visas i ritningen. Reservdelar som saknar referensnummer i ritningen finns med för att illustrera
själva monteringen.
Part number – Reservdelsnummer som används vid beställning av reservdelar.
Om reservdelsnummer saknas finns komponenten inte som reservdel.
Delar som tillhör en sats har satsnumret angivet på raden nedanför. Se kapitel ”1 – Service kits” för satsens
kompletta innehåll.
Ett reservdelsnummer som föregås av en svart punkt finns med i enheten direkt ovanför.
Remarks: Ytterligare information om reservdelsnumret direkt ovanför.
Substituted by: Reservdelsnumret direkt ovanför har ersatts med ett annat reservdelsnummer på grund av en
uppdatering eller revision.
Qty – Antal: Anger hur många delar som är kopplade till motsvarande referensnummer. "AR" betyder "As required" (som
erfordras): Antal eller nummer bestäms senare.
Name - Reservdelsbeteckningar: Översättningar av de engelska beteckningarna återfinns i dokumentet "Glossary of
part names" (Ordlista med reservdelsbeteckningar).
Validity – Definierar tidsramen och typ/version av maskin som reservdelen passar för. En förklaring av koderna som
används i giltighetsmönstret finns i symbolförklaringen längst ner på sidan. Ett giltighetsmönster som nämns i ett
kapitel gäller för hela kapitlet. Ett plustecken i mönstret ska tolkas som "och" och ett komma som "eller". Parenteser
grupperar giltighetskoderna i likhet med parenteser inom matematiken. Se följande exempel:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" gäller maskiner med 8 bar arbetstryck,
50 Hz frekvens och 500 V matningsspänning, eller 8 bar arbetstryck, 60 Hz frekvens och 575 V matningsspänning.
EL – Referens till ritningen eller komponenten inuti elskåpet.
R. – Anmärkningar: Extra information om reservdelen. En förklaring finns längst ner på sidan.
Instructions
16 9829 3178 12
TR - Türk
1 PARÇA SİPARİŞİ
Her zaman gereken parçaların parça numarası, adı ve miktarının yanı sıra makinenin tipini ve seri numarasını da
belirtin.
2 SÜTUN BİLGİLERİ
Ref - Referans numarası: Listenin belirli bir bölümünü çizime bağlar. Yalnızca referans numarası olan parçalar çizimde
gösterilir. Çizimde referans numarası olmayan parçalar yalnızca mekanizmanın tamamını göstermek için konulmuştur.
Part number - Yedek parça siparişi verirken kullanılacak parça numarası.
Parça numarası belirtilmediğinde, bu bileşen bir yedek parça olarak bulunmaz.
Bir kite dahil olan parçalar, alttaki satırda bulunan kit numarasına sahiptir. Kitin tüm içeriğini görmek için bkz. bölüm
"1 – Service kits".
Önünde siyah nokta olan parça numaraları, hemen yukarıdaki mekanizmada bulunur.
Remarks: Hemen yukarıdaki parça numarası ile ilgili ek bilgiler.
Substituted by: Bir güncelleme veya revizyon nedeniyle hemen yukarıdaki parça numarası yerine başka bir parça
numarası gelmiştir.
Qty - Miktar: İlgili referans numarasıyla ilgili parça sayısını gösterir. "AR" kısaltması "As required" (miktarı veya sayısı
belirlenecek) anlamına gelir.
Name - Parça adı: İngilizce adların tercümeleri "Glossary of part names”(Parça adları sözlüğü) adlı belgede bulunabilir.
Validity - Parçanın geçerli olduğu zaman aralığını ve makine tiplerini/modellerini belirler. Geçerlilik düzeninde
kullanılan kodların açıklamaları sayfanın alt kısmında bulunabilir. Bölüm başlığında bahsedilen bir geçerlilik düzeni,
tüm bölüm için geçerlidir. Düzende bir artı işareti olması "ve", virgül işareti olması "veya" olarak anlaşılabilir. Geçerlilik
kodları, matematikte kullanılan parantezlere benzer şekilde, parantezler ile gruplara ayrılır. Aşağıdaki örneğe
bakabilirsiniz:
"PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)" düzeni 8 bar çalışma basıncı olan, 50 Hz
frekanslı, 500 V besleme gerilimli makineler veya 8 bar çalışma basıncı, 60 Hz frekanslı ve 575 V besleme gerilimli
makineler için geçerlidir.
EL – Elektrik panosu içindeki çizim veya parçaya referans anlamına gelir.
R. – Notlar: Parça hakkında ek bilgiler. Açıklamalar sayfanın alt kısmında bulunabilir.
ZH - 中国的
1 ##零件
#必###明所需物件的零件号、名称和数量，以及机器的#型和 序列号。
2 #信息
Ref - 参考#号：将列表中的具体零件与##相##。##中##示具有参考#号的零件。##中不#参考#号的零件只用于#明#成##。
Part number - ###件#需要使用零件号。
如果不###明零件号#，将无法以#件形式提供部件。
套件中包含的零件将具有下行所提的套件#号。有#套件的完整信息，#参#第 1 章 – Service kits 保#套件。
上方的#成中包含了零件号，零件号前加有#点符号。
Remarks (#注)：上方零件号的##信息。
Substituted by (取代)：上方的零件号因更新或版本原因更##其他零件号。
Qty - 数量：表示与##参考#号相#的零件数量。"AR" 表示“根据需要”：数量或数目待#定。
Name - 零件名称：“Glossary of names”(零件名称##)文#中提供了英文名称的##翻#。
Validity - 定##零件#用的##期限以及机器的#型/版本。本#底部的#例#有#性表#式中使用的代##行了#明。章###中提及的
有#性表#式#用于全部章#。表#式中的加号表示“和”，逗号表示“或”。#括号用于#合有#代#，#似于数学括号，参#以下示例：
‘PRESS:8BAR + (FREQ:50HZ+MOVOL:500V , FREQ:60HZ+MOVOL:575V)’ #用于以下机器：工作#力 8 bar，#率 50 Hz，
#源## 500 V；或工作#力 8 bar，#率 60 Hz，#源## 575 V。
EL –参考##或##内部#件。
R.– #注：有#零件的#充信息。本#底部提供相##明。
Instructions
9829 3178 12 17
1 - Service Kits
continues on next page ...
18 9829 3178 12
3002 6058 10 - MPV KIT
Qty Name
1 O-RING
1 SPRING
1 SPRING
2 O-RING
1 MIN.PRESS.VALVE
3002 6057 70 - OSE KIT
Qty Name
2 O-RING
1 FILTER ELEM. B
1 HEXAGON BOLT
3002 6057 90 - SHAFT SEAL KIT
Qty Name
1 BUSHING
1 BUSHING MOTOR
3002 6058 00 - COOLER KIT
Qty Name
4 O-RING
8 O-RING
2 WASHER
3002 6057 80 - CV-OSV KIT
Qty Name
1 VALVE CLACK
1 VALVE OIL STOP
1 SPRING
1 SEAL WASHER DOWTY 1"
1 SEAL WASHER 21*28*1.5
3002 6057 60 - C142 UNLOADER KIT
Qty Name
8 BUSHING
1 BUSHING
1 O-RING
1 INT.CIRCLIP
1 SPRING
1 WASHER LOCK
1 SOLENOID VALVE
1 SEAL
1 SEAL WASHER DOWTY 1/4"
1 SEAL WASHER 21*28*1.5
1 BLOW-OFF VALVE
3002 6057 40 - ELEMENT EXCHANGE KIT
Qty Name
2 WASHER
1 O-RING
1 O-RING
1 SEAL WASHER 21*28*1.5
1 - Service Kits
... continued from previous page
9829 3178 12 19
3002 6057 40 - ELEMENT EXCHANGE KIT
Qty Name
1 SEAL WASHER DOWTY 1"
1 SEAL WASHER DOWTY 1/4"
3002 6057 20 - AIR+OIL FILTER
Qty Name
1 AIR FILTER
2 OIL FILTER
3002 6057 58 - MOTOR KIT
Qty Name
3002 6057 57 - MOTOR KIT
Qty Name
3002 6057 55 - MOTOR KIT
Qty Name
3002 6057 54 - MOTOR KIT
Qty Name
3002 6057 53 - MOTOR KIT
Qty Name
3002 6057 52 - MOTOR KIT
Qty Name
3002 6057 51 - MOTOR KIT
Qty Name
3002 6057 56 - MOTOR KIT
Qty Name
2 - Element
20 9829 3178 12
2 - Element
9829 3178 12 21
Ref Part Number Qty Name Validity
1010 1616 8693 80 1 ELEMENT COMPR. OIS M-10 (19/04/2019 - ...)
1020 1622 4633 00 1 BUSHING (19/04/2019 - ...)
1030 0337 2293 23 1 PARALLEL KEY (19/04/2019 - ...)
1040 1622 3668 00 2 WASHER (19/04/2019 - ...)
1050 0211 1963 16 2 HEX. SOCK. SCREW (19/04/2019 - ...)
1060 1092 0010 60 1 SPM NIPPLE (19/04/2019 - ...)
1070 1622 3740 00 1 DRAIN NIPPLE (19/04/2019 - ...)
Substituted by: 1630 1318 00 - DRAIN NIPPLE (quantity: 1)
1080 1094 8060 00 1 BUSHING MOTOR (19/04/2019 - ...)
1090 0663 2111 46 1 O-RING (19/04/2019 - ...)
1100 1092 0000 73 1 OIL NOZZLE (19/04/2019 - ...)
1110 0101 1951 40 2 PARALLEL PIN (19/04/2019 - ...)
1120 0663 2109 78 1 O-RING (19/04/2019 - ...)
1130 0147 1365 03 10 HEXAGON BOLT (19/04/2019 - ...)
1150 1622 3740 00 1 DRAIN NIPPLE (19/04/2019 - ...)
Substituted by: 1630 1318 00 - DRAIN NIPPLE (quantity: 1)
1160 1092 1375 70 1 HOUSING VALVE (19/04/2019 - ...)
1170 1623 7407 00 1 GASKET (19/04/2019 - ...)
1180 1092 1255 03 1 VALVE (19/04/2019 - ...)
1190 1622 0796 00 1 SPRING (19/04/2019 - ...)
1200 1622 1041 00 1 PISTON (19/04/2019 - ...)
1210 0661 1000 44 1 SEAL WASHER DOWTY 1" (19/04/2019 - ...)
1220 0686 3716 07 1 PLUG 1'' (19/04/2019 - ...)
1230 1635 0122 00 1 VALVE OIL STOP (19/04/2019 - ...)
1240 1622 5662 00 1 SPRING (19/04/2019 - ...)
1250 0661 1000 44 1 SEAL WASHER DOWTY 1" (19/04/2019 - ...)
1260 1623 0798 00 1 NIPPLE (19/04/2019 - ...)
1270 0686 3716 01 1 PLUG 1/4 A A (19/04/2019 - ...)
1280 0661 1000 38 1 SEAL WASHER DOWTY 1/4" (19/04/2019 - ...)
1290 1079 5840 19 1 NIPPLE (19/04/2019 - ...)
1300 0661 1000 39 1 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1310 0211 1964 75 4 HEX. SOCK. SCREW (19/04/2019 - ...)
Substituted by: 0211 1417 00 - HEX SOCK. SCREW (quantity: 1)
1320 1094 8071 20 1 FLANGE (19/04/2019 - ...)
1330 1094 8071 30 1 GASKET (19/04/2019 - ...)
2005 0663 2101 80 1 O-RING (19/04/2019 - ...)
2010 1622 3698 00 1 PLUG (19/04/2019 - ...)
2015 1622 3699 00 1 MAGNET (19/04/2019 - ...)
3 - Gear - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
22 9829 3178 12
3 - Gear - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 23
Ref Part Number Qty Name Validity
1010 1092 1371 29 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G132W3 +
PRESS:8.5BAR
1010 1092 1371 01 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G110W3 + PRESS:7.5BAR
1010 1092 1371 23 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G110W3 +
PRESS:8.5BAR
1010 1092 1371 15 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G90W3 +
PRESS:7.5BAR
1010 1092 1371 07 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G132W3 + PRESS:7.5BAR
1010 1092 1371 21 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G110W3 +
PRESS:7.5BAR
1010 1092 1371 37 1 GEAR Z:39 (19/04/2019 - ...) (COOL:AIR + MAPPR:AS121MOM , MAPPR:CHINA)
+ FREQ:50HZ + MODEL:G90W3 + PRESS:10BAR
1010 1092 1371 27 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G132W3 +
PRESS:7.5BAR
1010 1092 1371 05 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G110W3 + PRESS:10BAR
1010 1092 1371 11 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G132W3 + PRESS:10BAR
1010 1092 1371 19 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G90W3 +
PRESS:10BAR
1010 1092 1371 25 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G110W3 +
PRESS:10BAR
1010 1092 1371 35 1 GEAR Z:37 (19/04/2019 - ...) (COOL:AIR + MAPPR:AS121MOM , MAPPR:CHINA)
+ FREQ:50HZ + MODEL:G90W3 + PRESS:8.5BAR
1010 1092 1371 03 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G110W3 + PRESS:8.5BAR
1010 1092 1371 31 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G132W3 +
PRESS:10BAR
1010 1092 1371 09 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G132W3 + PRESS:8.5BAR
1010 1092 1371 17 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G90W3 +
PRESS:8.5BAR
1010 1092 1371 33 1 GEAR Z:39 (19/04/2019 - ...) (COOL:AIR + MAPPR:AS121MOM , MAPPR:CHINA)
+ FREQ:50HZ + MODEL:G90W3 + PRESS:7.5BAR
1020 1092 1371 26 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G110W3 +
PRESS:10BAR
1020 1092 1371 04 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G110W3 + PRESS:8.5BAR
1020 1092 1371 10 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G132W3 + PRESS:8.5BAR
1020 1092 1371 32 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G132W3 +
PRESS:10BAR
1020 1092 1371 18 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G90W3 +
PRESS:8.5BAR
1020 1092 1371 24 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G110W3 +
PRESS:8.5BAR
1020 1092 1371 34 1 GEAR Z:33 (19/04/2019 - ...) (COOL:AIR + MAPPR:AS121MOM , MAPPR:CHINA)
+ FREQ:50HZ + MODEL:G90W3 + PRESS:7.5BAR
1020 1092 1371 02 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G110W3 + PRESS:7.5BAR
1020 1092 1371 08 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G132W3 + PRESS:7.5BAR
1020 1092 1371 30 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G132W3 +
PRESS:8.5BAR
1020 1092 1371 16 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G90W3 +
PRESS:7.5BAR
1020 1092 1371 22 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G110W3 +
PRESS:7.5BAR
1020 1092 1371 38 1 GEAR Z:38 (19/04/2019 - ...) (COOL:AIR + MAPPR:AS121MOM , MAPPR:CHINA)
+ FREQ:50HZ + MODEL:G90W3 + PRESS:10BAR
1020 1092 1371 28 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G132W3 +
PRESS:7.5BAR
1020 1092 1371 06 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G110W3 + PRESS:10BAR
1020 1092 1371 12 1 GEAR (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA) + FREQ:50HZ
+ MODEL:G132W3 + PRESS:10BAR
1020 1092 1371 20 1 GEAR (19/04/2019 - ...) FREQ:60HZ + MAPPR:ASME + MODEL:G90W3 +
PRESS:10BAR
1020 1092 1371 36 1 GEAR Z:34 (19/04/2019 - ...) (COOL:AIR + MAPPR:AS121MOM , MAPPR:CHINA)
+ FREQ:50HZ + MODEL:G90W3 + PRESS:8.5BAR
Legend:
COOL:AIR - Cooling:Air cooled
MAPPR:AS121MOM - Pressure Vessel Approval:AS1210/MOM
MODEL:G110W3 - Model:G110
PRESS:10BAR - Working pressure:10 bar
FREQ:50HZ - Frequency:50 Hz
MAPPR:ASME - Pressure Vessel Approval:ASME (U Stamp)
MODEL:G132W3 - Model:G132
PRESS:7.5BAR - Working pressure:7.5 bar
FREQ:60HZ - Frequency:60 Hz
MAPPR:CHINA - Pressure Vessel Approval:CHINA
MODEL:G90W3 - Model:G90
PRESS:8.5BAR - Working pressure:8.5 bar
4 - Gear - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
24 9829 3178 12
4 - Gear - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
9829 3178 12 25
Ref Part Number Qty Name Validity
1010 1092 1371 39 1 GEAR Z:44 (19/04/2019 - 27/04/2019) (FREQ:50HZ + MAPPR:CHINA ,
FREQ:60HZ + MAPPR:ASME) + COOL:AIR + MODEL:G132VSDW2 +
PRESS:10BAR
(28/04/2019 - 30/12/2040) ((COOL:WATER + MAPPR:AS121MOM ,
MAPPR:CHINA) + FREQ:50HZ , FREQ:60HZ + MAPPR:ASME) +
MODEL:G132VSDW2 + PRESS:10BAR
(31/12/2040 - ...) ((MAPPR:AS121MOM , MAPPR:CHINA) +
FREQ:50HZ , FREQ:60HZ + MAPPR:ASME) + MODEL:G132VSDW2 +
PRESS:10BAR
1010 1092 1371 13 1 GEAR (19/04/2019 - 27/04/2019) ((COOL:WATER + MODEL:G132VSDW2 ,
MODEL:G110VSDW2) + (FREQ:50HZ + MAPPR:CHINA , FREQ:60HZ +
MAPPR:ASME) , COOL:WATER + FREQ:50HZ + MAPPR:AS121MOM +
MODEL:G132VSDW2) + PRESS:10BAR
(28/04/2019 - 30/12/2040) (FREQ:50HZ + MAPPR:CHINA ,
FREQ:60HZ + MAPPR:ASME) + MODEL:G110VSDW2 + PRESS:10BAR
(31/12/2040 - ...) ((MAPPR:AS121MOM , MAPPR:CHINA) +
FREQ:50HZ , FREQ:60HZ + MAPPR:ASME) + MODEL:G110VSDW2 +
PRESS:10BAR
1020 1092 1371 40 1 GEAR Z:32 (19/04/2019 - 27/04/2019) (FREQ:50HZ + MAPPR:CHINA ,
FREQ:60HZ + MAPPR:ASME) + COOL:AIR + MODEL:G132VSDW2 +
PRESS:10BAR
(28/04/2019 - 30/12/2040) ((COOL:WATER + MAPPR:AS121MOM ,
MAPPR:CHINA) + FREQ:50HZ , FREQ:60HZ + MAPPR:ASME) +
MODEL:G132VSDW2 + PRESS:10BAR
(31/12/2040 - ...) ((MAPPR:AS121MOM , MAPPR:CHINA) +
FREQ:50HZ , FREQ:60HZ + MAPPR:ASME) + MODEL:G132VSDW2 +
PRESS:10BAR
1020 1092 1371 14 1 GEAR (19/04/2019 - 27/04/2019) ((COOL:WATER + MODEL:G132VSDW2 ,
MODEL:G110VSDW2) + (FREQ:50HZ + MAPPR:CHINA , FREQ:60HZ +
MAPPR:ASME) , COOL:WATER + FREQ:50HZ + MAPPR:AS121MOM +
MODEL:G132VSDW2) + PRESS:10BAR
(28/04/2019 - 30/12/2040) (FREQ:50HZ + MAPPR:CHINA ,
FREQ:60HZ + MAPPR:ASME) + MODEL:G110VSDW2 + PRESS:10BAR
(31/12/2040 - ...) ((MAPPR:AS121MOM , MAPPR:CHINA) +
FREQ:50HZ , FREQ:60HZ + MAPPR:ASME) + MODEL:G110VSDW2 +
PRESS:10BAR
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:60HZ - Frequency:60 Hz
MAPPR:CHINA - Pressure Vessel Approval:CHINA
PRESS:10BAR - Working pressure:10 bar
COOL:WATER - Cooling:Water cooled
MAPPR:AS121MOM - Pressure Vessel Approval:AS1210/MOM
MODEL:G110VSDW2 - Model:G 110VSD
FREQ:50HZ - Frequency:50 Hz
MAPPR:ASME - Pressure Vessel Approval:ASME (U Stamp)
MODEL:G132VSDW2 - Model:G 132 VSD
5 - Motor - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
26 9829 3178 12
5 - Motor - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 27
Ref Part Number Qty Name Validity
1010 1092 1573 22 1 MOTOR 110KW 380V/50HZ 2P IP55 (19/04/2019 - ...) FREQ:50HZ + IP:IP55 + MODEL:G110W3 +
MOVOL:380V
1010 1092 1573 01 1 MOTOR 90KW 380V/50HZ 2P IP23 (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MODEL:G90W3 +
MOVOL:380V
1010 1092 1573 24 1 MOTOR 110KW 380V/60HZ 2P IP55 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 + MODEL:G110W3 +
MOVOL:380V
1010 1092 1573 02 1 MOTOR 90KW 380V/50HZ 2P IP55 (19/04/2019 - ...) FREQ:50HZ + IP:IP55 + MODEL:G90W3 +
MOVOL:380V
1010 1092 1573 45 1 MOTOR 132KW 50/60HZ 2P IP55 (19/04/2019 - 22/04/2019) FREQ:50HZ + IP:IP55 + MODEL:G132W3 +
MOVOL:400-415V
(23/04/2019 - ...) (FREQ:50HZ + MOVOL:400-415V , FREQ:60HZ +
MOVOL:440-460V) + IP:IP55 + MODEL:G132W3
1010 1092 1573 44 1 MOTOR 132KW 380V/60HZ 2P IP55 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 + MODEL:G132W3 +
MOVOL:380V
1010 1092 1573 42 1 MOTOR 132KW 380V/50HZ 2P IP55 (19/04/2019 - ...) FREQ:50HZ + IP:IP55 + MODEL:G132W3 +
MOVOL:380V
1010 1092 1573 21 1 MOTOR 110KW 380V/50HZ 2P IP23 (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MODEL:G110W3 +
MOVOL:380V
1010 1092 1573 41 1 MOTOR 132KW 380V/50HZ 2P IP23 (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MODEL:G132W3 +
MOVOL:380V
1010 1092 1573 05 1 MOTOR 90KW 50/60HZ 2P IP55 (19/04/2019 - 22/04/2019) FREQ:50HZ + IP:IP55 + MODEL:G90W3 +
MOVOL:400-415V
(23/04/2019 - ...) (FREQ:50HZ + MOVOL:400-415V , FREQ:60HZ +
MOVOL:440-460V) + IP:IP55 + MODEL:G90W3
1010 1092 1573 04 1 MOTOR 90KW 380V/60HZ 2P IP55 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 + MODEL:G90W3 +
MOVOL:380V
1010 1092 1573 25 1 MOTOR 110KW 50/60HZ 2P IP55 (19/04/2019 - 22/04/2019) FREQ:50HZ + IP:IP55 + MODEL:G110W3 +
MOVOL:400-415V
(23/04/2019 - ...) (FREQ:50HZ + MOVOL:400-415V , FREQ:60HZ +
MOVOL:440-460V) + IP:IP55 + MODEL:G110W3
1020 1094 8070 60 1 SUPPORT
1030 0147 1400 03 4 BOLT M12*25 FZB (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1040 0301 2358 00 4 WASHER D12*24 (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1050 1092 0003 81 2 ANTIVIBR.PAD (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
Substituted by: 1613 6752 18 - ANTIVIBRATION PAD (quantity: 1)
1060 0147 1400 03 4 BOLT M12*25 FZB (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1070 0301 2358 00 4 WASHER D12*24 (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1080 0147 1477 03 2 BOLT M16*40 FZB (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1090 0333 3244 00 2 LOCK WASHER (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1100 0147 1336 03 2 HEXAGON BOLT (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
Legend:
FREQ:50HZ - Frequency:50 Hz
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
FREQ:60HZ - Frequency:60 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
IP:IP23 - Motor protection class:IP 23
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
5 - Motor - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
28 9829 3178 12
5 - Motor - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 29
Ref Part Number Qty Name Validity
1110 0301 2335 00 2 PLAIN WASHER D8*16 FZB (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1120 1202 6668 11 2 SPACER (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1130 1094 8060 50 1 STUD (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1140 1094 8060 60 1 PLATE (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1150 0301 2358 00 2 WASHER D12*24 (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1160 0147 1410 03 2 HEXAGON BOLT (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1170 1094 8070 50 2 SPACER (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1180 0301 2378 00 1 WASHER D16*32 (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1190 0261 2114 00 1 NUT (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1200 1092 1301 03 1 ANTIVIBRATION PAD (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1210 0147 1400 03 2 BOLT M12*25 FZB (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1220 0301 2358 00 2 WASHER D12*24 (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1230 0101 1626 00 2 PIN (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1240 0147 1368 03 10 HEXAGON BOLT (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1250 1094 8060 30 1 BAFFLE (19/04/2019 - 22/04/2019) (FREQ:50HZ + MOVOL:400-415V ,
MOVOL:380V) + IP:IP55
(23/04/2019 - ...) ((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55
Legend:
FREQ:50HZ - Frequency:50 Hz
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
FREQ:60HZ - Frequency:60 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
IP:IP23 - Motor protection class:IP 23
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
5 - Motor - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
30 9829 3178 12
5 - Motor - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 31
Ref Part Number Qty Name Validity
1250 1094 8070 30 1 BAFFLE (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MOVOL:380V
1260 1094 8060 40 1 BAFFLE (19/04/2019 - 22/04/2019) (FREQ:50HZ + MOVOL:400-415V ,
MOVOL:380V) + IP:IP55
(23/04/2019 - ...) ((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55
1260 1094 8070 40 1 BAFFLE (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MOVOL:380V
1270 0147 1962 72 6 HEXAGON BOLT (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1280 0661 1000 26 1 SEAL WASHER (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - 27/05/2019) (((MOVOL:380V , MOVOL:400-415V) +
FREQ:50HZ , (MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) +
IP:IP55 , FREQ:50HZ + IP:IP23 + MOVOL:380V)
Substituted by: 0661 1000 40 - SEAL WASHER DOWTY 3/8 (quantity: 1)
1280 0661 1000 40 1 SEAL WASHER DOWTY 3/8 (28/05/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1290 0571 0036 25 1 NIPPLE HEXAGON (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1300 0574 8066 26 1 FLEXIBLE (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1310 0346 1000 15 1 PIPE CLAMP (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1320 0147 1962 72 1 HEXAGON BOLT (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1330 1614 9252 00 1 PLUG (19/04/2019 - 22/04/2019) ((IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ , FREQ:60HZ + IP:IP55 + MOVOL:380V)
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
Legend:
FREQ:50HZ - Frequency:50 Hz
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
FREQ:60HZ - Frequency:60 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
IP:IP23 - Motor protection class:IP 23
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
6 - Motor - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
32 9829 3178 12
6 - Motor - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
9829 3178 12 33
Ref Part Number Qty Name Validity
1010 1092 1574 01 1 MOTOR G110 VSD 380/50 IP23 (19/04/2019 - 27/04/2019) FREQ:50HZ + IP:IP23 + MOVOL:380V
(28/04/2019 - ...) FREQ:50HZ + IP:IP23 + MODEL:G110VSDW2 +
MOVOL:380V
1010 1092 1574 11 1 MOTOR G132 VSD 380/50 IP23 (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MODEL:G132VSDW2 +
MOVOL:380V
1010 1092 1574 22 1 MOTOR G110 VSD 50/60 IP55 (19/04/2019 - 22/04/2019) FREQ:50HZ + IP:IP55 + MOVOL:380V
(23/04/2019 - 27/04/2019) ((MOVOL:380V , MOVOL:400-415V) +
FREQ:50HZ , (MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) +
IP:IP55
(28/04/2019 - ...) ((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 +
MODEL:G110VSDW2
1010 1092 1574 32 1 MOTOR G132 VSD 50/60 IP55 (19/04/2019 - 22/04/2019) FREQ:50HZ + IP:IP55 +
MODEL:G132VSDW2 + MOVOL:380V
(23/04/2019 - ...) ((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 +
MODEL:G132VSDW2
1020 1094 8070 60 1 SUPPORT
1030 0147 1400 03 4 BOLT M12*25 FZB (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1040 0301 2358 00 4 WASHER D12*24 (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1050 1092 0003 81 2 ANTIVIBR.PAD (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
Substituted by: 1613 6752 18 - ANTIVIBRATION PAD (quantity: 1)
1060 0147 1400 03 4 BOLT M12*25 FZB (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1070 0301 2358 00 4 WASHER D12*24 (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1080 0147 1477 03 2 BOLT M16*40 FZB (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1090 0333 3244 00 2 LOCK WASHER (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1100 0147 1336 03 2 HEXAGON BOLT (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1110 0301 2335 00 2 PLAIN WASHER D8*16 FZB (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1120 1202 6668 11 2 SPACER (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1130 1094 8060 50 1 STUD (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1140 1094 8060 60 1 PLATE (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1150 0301 2358 00 2 WASHER D12*24 (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
Legend:
FREQ:50HZ - Frequency:50 Hz
IP:IP55 - Motor protection class:IP 55
MOVOL:380V - Supply voltage:380 V
FREQ:60HZ - Frequency:60 Hz
MODEL:G110VSDW2 - Model:G 110VSD
MOVOL:400-415V - Supply voltage:400-415 V
IP:IP23 - Motor protection class:IP 23
MODEL:G132VSDW2 - Model:G 132 VSD
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
6 - Motor - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
34 9829 3178 12
6 - Motor - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
9829 3178 12 35
Ref Part Number Qty Name Validity
1160 0147 1410 03 2 HEXAGON BOLT (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1170 1094 8070 50 2 SPACER (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1180 0301 2378 00 1 WASHER D16*32 (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1190 0261 2114 00 1 NUT (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1200 1092 1301 03 1 ANTIVIBRATION PAD (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1210 0147 1400 03 2 BOLT M12*25 FZB (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1220 0301 2358 00 2 WASHER D12*24 (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1230 0101 1626 00 2 PIN (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1240 0147 1368 03 10 HEXAGON BOLT (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1250 1094 8070 30 1 BAFFLE (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MOVOL:380V
1250 1094 8060 30 1 BAFFLE (19/04/2019 - 22/04/2019) FREQ:50HZ + IP:IP55 + MOVOL:380V
(23/04/2019 - ...) ((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55
1260 1094 8070 40 1 BAFFLE (19/04/2019 - ...) FREQ:50HZ + IP:IP23 + MOVOL:380V
1260 1094 8060 40 1 BAFFLE (19/04/2019 - 22/04/2019) FREQ:50HZ + IP:IP55 + MOVOL:380V
(23/04/2019 - ...) ((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55
1270 0147 1962 72 6 HEXAGON BOLT (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1280 0661 1000 40 1 SEAL WASHER DOWTY 3/8 (28/05/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1280 0661 1000 26 1 SEAL WASHER (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - 27/05/2019) (((MOVOL:380V , MOVOL:400-415V) +
FREQ:50HZ , (MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) +
IP:IP55 , FREQ:50HZ + IP:IP23 + MOVOL:380V)
Substituted by: 0661 1000 40 - SEAL WASHER DOWTY 3/8 (quantity: 1)
1290 0571 0036 25 1 NIPPLE HEXAGON (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1300 0574 8066 26 1 FLEXIBLE (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1310 0346 1000 15 1 PIPE CLAMP (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
1320 0147 1962 72 1 HEXAGON BOLT (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
Legend:
FREQ:50HZ - Frequency:50 Hz
IP:IP55 - Motor protection class:IP 55
MOVOL:380V - Supply voltage:380 V
FREQ:60HZ - Frequency:60 Hz
MODEL:G110VSDW2 - Model:G 110VSD
MOVOL:400-415V - Supply voltage:400-415 V
IP:IP23 - Motor protection class:IP 23
MODEL:G132VSDW2 - Model:G 132 VSD
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
6 - Motor - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
36 9829 3178 12
6 - Motor - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
9829 3178 12 37
Ref Part Number Qty Name Validity
1330 1614 9252 00 1 PLUG (19/04/2019 - 22/04/2019) FREQ:50HZ + MOVOL:380V
(23/04/2019 - ...) (((MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ ,
(MOVOL:380V , MOVOL:440-460V) + FREQ:60HZ) + IP:IP55 ,
FREQ:50HZ + IP:IP23 + MOVOL:380V)
Legend:
FREQ:50HZ - Frequency:50 Hz
IP:IP55 - Motor protection class:IP 55
MOVOL:380V - Supply voltage:380 V
FREQ:60HZ - Frequency:60 Hz
MODEL:G110VSDW2 - Model:G 110VSD
MOVOL:400-415V - Supply voltage:400-415 V
IP:IP23 - Motor protection class:IP 23
MODEL:G132VSDW2 - Model:G 132 VSD
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
7 - Air Filter
38 9829 3178 12
7 - Air Filter
9829 3178 12 39
Ref Part Number Qty Name Validity
1010 1094 8055 90 1 HOSE (19/04/2019 - ...)
1020 1094 8070 10 1 BRACKET (19/04/2019 - ...)
1030 1094 8070 00 1 AIR FILTER (19/04/2019 - ...)
1040 1092 0002 55 2 HOSE CLAMP (19/04/2019 - ...)
1050 0147 1962 72 9 HEXAGON BOLT (19/04/2019 - ...)
1060 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1070 0147 1360 03 4 HEXAGON BOLT (19/04/2019 - ...)
1080 1094 8052 20 1 BAFFLE (19/04/2019 - ...)
8 - Air Receiver - CHINA
MAPPR:CHINA
40 9829 3178 12
8 - Air Receiver - CHINA
MAPPR:CHINA
9829 3178 12 41
Ref Part Number Qty Name Validity
1010 1094 8059 99 1 VESSEL OIL (19/04/2019 - ...)
1020 1094 8059 92 1 COVER VESSEL (19/04/2019 - ...)
2010 0663 2106 19 1 O-RING (19/04/2019 - ...)
2015 0147 1403 03 4 BOLT M12*40 FZB (19/04/2019 - ...)
2020 0301 2358 00 4 WASHER D12*24 (19/04/2019 - ...)
3005 1092 1373 30 1 MIN.PRESS.VALVE (19/04/2019 - ...)
1092 1373 31 1 VALVE CLACK
1092 1373 32 2 O-RING
1092 1373 33 1 SPRING
1092 1373 34 1 SPRING
4010 0663 2103 25 2 O-RING (19/04/2019 - ...)
4020 0661 1000 40 1 SEAL WASHER DOWTY 3/8 (19/04/2019 - ...)
4030 1092 0000 72 1 SIGHT GLASS (19/04/2019 - ...)
4040 0663 3130 00 1 O-RING (19/04/2019 - ...)
4050 1619 5509 00 1 NIPPLE (19/04/2019 - ...)
4060 0661 1000 43 1 SEAL WASHER (19/04/2019 - ...)
4070 0574 8235 29 1 FLEXIBLE (19/04/2019 - ...)
4080 0346 1000 15 1 PIPE CLAMP (19/04/2019 - ...)
4090 1614 9252 00 1 PLUG (19/04/2019 - ...)
4100 0686 3105 00 1 PLUG (19/04/2019 - ...)
4110 2250 2528 00 1 PLUG (19/04/2019 - ...)
4120 0661 1000 62 2 SEAL (19/04/2019 - ...)
4140 1623 5777 00 3 BUFFER (19/04/2019 - ...)
4150 0266 2111 00 3 NUT M10 FZB (19/04/2019 - ...)
4160 1623 6907 25 3 SPACER (19/04/2019 - ...)
4170 0147 1404 03 3 HEXAGON BOLT (19/04/2019 - ...)
4180 0301 2358 00 3 WASHER D12*24 (19/04/2019 - ...)
4190 1088 0019 02 2 CONTACT WASHER (19/04/2019 - ...)
4200 0147 1360 03 2 HEXAGON BOLT (19/04/2019 - ...)
4210 1092 0044 00 1 CABLE (19/04/2019 - ...)
4220 0147 1360 03 2 HEXAGON BOLT (19/04/2019 - ...)
4230 1088 0019 02 2 CONTACT WASHER (19/04/2019 - ...)
5010 1094 8058 00 1 FILTER ELEM. B (19/04/2019 - ...)
5020 1094 8060 90 1 SUCTION PIPE (19/04/2019 - ...)
Legend:
MAPPR:CHINA - Pressure Vessel Approval:CHINA
9 - Air Receiver - MOM/ASME
MAPPR:AS121MOM , MAPPR:ASME
42 9829 3178 12
9 - Air Receiver - MOM/ASME
MAPPR:AS121MOM , MAPPR:ASME
9829 3178 12 43
Ref Part Number Qty Name Validity
1010 1094 8071 99 1 VESSEL OIL (19/04/2019 - ...)
1020 1094 8071 92 1 COVER VESSEL (19/04/2019 - ...)
2010 0663 2106 19 1 O-RING (19/04/2019 - ...)
2015 0147 1403 03 4 BOLT M12*40 FZB (19/04/2019 - ...)
2020 0301 2358 00 4 WASHER D12*24 (19/04/2019 - ...)
3005 1092 1373 30 1 MIN.PRESS.VALVE (19/04/2019 - ...)
4010 0663 2103 25 2 O-RING (19/04/2019 - ...)
4020 0661 1000 40 1 SEAL WASHER DOWTY 3/8 (19/04/2019 - ...)
4030 1092 0000 72 1 SIGHT GLASS (19/04/2019 - ...)
4040 0663 3130 00 1 O-RING (19/04/2019 - ...)
4050 1619 5509 00 1 NIPPLE (19/04/2019 - ...)
4060 0661 1000 43 1 SEAL WASHER (19/04/2019 - ...)
4070 0574 8235 29 1 FLEXIBLE (19/04/2019 - ...)
4080 0346 1000 15 1 PIPE CLAMP (19/04/2019 - ...)
4090 1614 9252 00 1 PLUG (19/04/2019 - ...)
4100 0686 3105 00 1 PLUG (19/04/2019 - ...)
4110 2250 2528 00 1 PLUG (19/04/2019 - ...)
4120 0661 1000 62 2 SEAL (19/04/2019 - ...)
4140 1623 5777 00 3 BUFFER (19/04/2019 - ...)
4150 0266 2111 00 3 NUT M10 FZB (19/04/2019 - ...)
4160 1623 6907 25 3 SPACER (19/04/2019 - ...)
4170 0147 1404 03 3 HEXAGON BOLT (19/04/2019 - ...)
4180 0301 2358 00 3 WASHER D12*24 (19/04/2019 - ...)
4190 1088 0019 02 2 CONTACT WASHER (19/04/2019 - ...)
4200 0147 1360 03 2 HEXAGON BOLT (19/04/2019 - ...)
4210 1092 0044 00 1 CABLE (19/04/2019 - ...)
4220 0147 1360 03 2 HEXAGON BOLT (19/04/2019 - ...)
4230 1088 0019 02 2 CONTACT WASHER (19/04/2019 - ...)
5010 1094 8058 00 1 FILTER ELEM. B (19/04/2019 - ...)
5020 1094 8060 90 1 SUCTION PIPE (19/04/2019 - ...)
Legend:
MAPPR:AS121MOM - Pressure Vessel Approval:AS1210/MOM MAPPR:ASME - Pressure Vessel Approval:ASME (U Stamp)
10 - Connection Oil - Aircooled
COOL:AIR
44 9829 3178 12
10 - Connection Oil - Aircooled
COOL:AIR
9829 3178 12 45
Ref Part Number Qty Name Validity
1010 1094 8050 40 1 HOSE ASSEMBLY (19/04/2019 - ...)
1020 0663 2109 68 2 O-RING (19/04/2019 - ...)
1030 0147 1363 03 4 BOLT M10*30 FZB (19/04/2019 - ...)
1040 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1050 0580 8400 15 1 CONNECTOR (19/04/2019 - ...)
1060 0661 1000 38 1 SEAL WASHER DOWTY 1/4" (19/04/2019 - ...)
1070 1092 1375 50 1 HOUSING FILTER (19/04/2019 - ...)
1080 1619 5337 01 4 HEXAGON BOLT (19/04/2019 - ...)
1090 0147 1358 03 4 HEXAGON BOLT (19/04/2019 - ...)
1100 1621 7378 00 2 OIL FILTER (19/04/2019 - ...)
1110 1623 1451 00 2 NIPPLE (19/04/2019 - ...)
1120 1094 8050 20 1 HOSE ASSEMBLY (19/04/2019 - ...)
1130 0663 2109 68 1 O-RING (19/04/2019 - ...)
1140 0147 1363 03 2 BOLT M10*30 FZB (19/04/2019 - ...)
1150 1094 8050 30 1 HOSE ASSEMBLY (19/04/2019 - ...)
1160 1094 8050 10 1 HOSE ASSEMBLY (19/04/2019 - ...)
1170 0663 2109 68 1 O-RING (19/04/2019 - ...)
1180 0147 1363 03 2 BOLT M10*30 FZB (19/04/2019 - ...)
1190 1094 8050 00 1 HOSE ASSEMBLY (19/04/2019 - ...)
1200 0663 2109 68 1 O-RING (19/04/2019 - ...)
1210 0147 1363 03 4 BOLT M10*30 FZB (19/04/2019 - ...)
1220 1614 9007 00 1 COVER (19/04/2019 - ...)
Substituted by: 1635 3147 00 - COVER VALVE (quantity: 1)
1230 0663 2109 68 1 O-RING (19/04/2019 - ...)
1240 1619 5337 01 4 HEXAGON BOLT (19/04/2019 - ...)
Legend:
COOL:AIR - Cooling:Air cooled
11 - Connection Oil - Watercooled
COOL:WATER
46 9829 3178 12
11 - Connection Oil - Watercooled
COOL:WATER
9829 3178 12 47
Ref Part Number Qty Name Validity
1010 1092 1375 50 1 HOUSING FILTER (19/04/2019 - ...)
1020 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1030 0147 1358 03 4 HEXAGON BOLT (19/04/2019 - ...)
1040 1614 9007 00 1 COVER (19/04/2019 - ...)
Substituted by: 1635 3147 00 - COVER VALVE (quantity: 1)
1050 0663 2109 68 1 O-RING (19/04/2019 - ...)
1060 1619 2766 00 4 SCR.BOLT M8X20 (19/04/2019 - ...)
1070 1621 7378 00 2 OIL FILTER (19/04/2019 - ...)
1080 1623 1451 00 2 NIPPLE (19/04/2019 - ...)
1090 1094 8050 40 1 HOSE ASSEMBLY (19/04/2019 - ...)
1100 0663 2109 68 2 O-RING (19/04/2019 - ...)
1110 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1120 0147 1363 03 4 BOLT M10*30 FZB (19/04/2019 - ...)
1130 1094 8053 10 1 HOSE ASSEMBLY (19/04/2019 - ...)
1140 0663 2109 68 2 O-RING (19/04/2019 - ...)
1150 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1160 0147 1363 03 4 BOLT M10*30 FZB (19/04/2019 - ...)
1170 1094 8053 20 1 HOSE ASSEMBLY (19/04/2019 - ...)
1180 0663 2109 68 2 O-RING (19/04/2019 - ...)
1190 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1200 0147 1363 03 4 BOLT M10*30 FZB (19/04/2019 - ...)
1210 1094 8050 00 1 HOSE ASSEMBLY (19/04/2019 - ...)
1220 0663 2109 68 1 O-RING (19/04/2019 - ...)
1230 0301 2344 00 2 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1240 0147 1363 03 2 BOLT M10*30 FZB (19/04/2019 - ...)
Legend:
COOL:WATER - Cooling:Water cooled
12 - Connection Air - Aircooled
COOL:AIR
48 9829 3178 12
12 - Connection Air - Aircooled
COOL:AIR
9829 3178 12 49
Ref Part Number Qty Name Validity
1010 1094 8056 20 1 PIPE CV TO VESSEL (19/04/2019 - ...)
1020 0663 2106 19 1 O-RING (19/04/2019 - ...)
1030 0147 1403 03 8 BOLT M12*40 FZB (19/04/2019 - ...)
1040 1094 8070 20 1 ELBOW (19/04/2019 - ...)
1050 0663 2106 12 2 O-RING 69.5*3 (19/04/2019 - ...)
1060 1094 8055 70 1 PIPE MPV TO AC 1 (19/04/2019 - ...)
1070 0663 2106 19 2 O-RING (19/04/2019 - ...)
1080 0147 1408 03 8 BOLT M12*65 FZB (19/04/2019 - ...)
1090 1094 8060 80 1 FLANGE OUTLET AIR-COOLED (19/04/2019 - ...)
1100 0663 2106 19 1 O-RING (19/04/2019 - ...)
1110 0147 1403 03 4 BOLT M12*40 FZB (19/04/2019 - ...)
Legend:
COOL:AIR - Cooling:Air cooled
13 - Connection Air - Watercooled
COOL:WATER
50 9829 3178 12
13 - Connection Air - Watercooled
COOL:WATER
9829 3178 12 51
Ref Part Number Qty Name Validity
1010 1094 8056 20 1 PIPE CV TO VESSEL (18/07/2019 - ...)
1010 1094 8056 40 1 PIPE ELEMENT TO VESSEL (19/04/2019 - 17/07/2019)
1020 0147 1367 03 4 HEXAGON BOLT (19/04/2019 - ...)
1030 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1040 0147 1408 03 4 BOLT M12*65 FZB (19/04/2019 - ...)
1050 0301 2358 00 4 WASHER D12*24 (19/04/2019 - ...)
1060 0663 7142 00 2 O-RING (19/04/2019 - ...)
1070 1094 8070 20 1 ELBOW (19/04/2019 - ...)
1080 0147 1250 03 1 HEXAGON BOLT (19/04/2019 - ...)
1090 0663 7145 00 1 O-RING (19/04/2019 - ...)
1100 1094 8051 70 1 PIPE MPV TO COOLER (19/04/2019 - ...)
1110 0663 2106 19 1 O-RING (19/04/2019 - ...)
1120 0663 6147 00 1 O-RING (19/04/2019 - ...)
1130 0301 2358 00 4 WASHER D12*24 (19/04/2019 - ...)
1140 0147 1408 03 4 BOLT M12*65 FZB (19/04/2019 - ...)
1150 0266 2112 00 4 NUT M12 FZB (19/04/2019 - ...)
1160 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1170 0147 1962 64 4 HEXAGON SCREW (19/04/2019 - ...)
1180 1094 8052 70 1 PIPE UNIT OUTLET (19/04/2019 - ...)
1190 0663 6147 00 1 O-RING (19/04/2019 - ...)
1200 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1210 0147 1962 64 4 HEXAGON SCREW (19/04/2019 - ...)
1220 1094 8060 70 1 OUTLET FLANGE LOCAL (19/04/2019 - ...)
1230 0211 1363 03 4 CAP SCREW (19/04/2019 - ...)
Legend:
COOL:WATER - Cooling:Water cooled
14 - Coolers - G90/110 VSD Aircooled (19/04/2019 - 27/04/2019)
(MODEL:G110VSDW2 , MODEL:G110W3 , MODEL:G90W3) + COOL:AIR
52 9829 3178 12
14 - Coolers - G90/110 VSD Aircooled (19/04/2019 - 27/04/2019)
(MODEL:G110VSDW2 , MODEL:G110W3 , MODEL:G90W3) + COOL:AIR
9829 3178 12 53
Ref Part Number Qty Name Validity
1010 1094 8059 60 1 COOLER AFTER (19/04/2019 - ...)
1020 0147 1962 72 4 HEXAGON BOLT (19/04/2019 - ...)
1030 1094 8059 50 2 COOLER OIL (19/04/2019 - ...)
1040 0686 3716 02 4 PLUG G1/2" (19/04/2019 - ...)
1050 0661 1000 39 4 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1060 0147 1962 72 8 HEXAGON BOLT (19/04/2019 - ...)
2010 1094 8053 70 1 SUPPORT (19/04/2019 - 27/04/2019)
2020 1619 5337 01 2 HEXAGON BOLT (19/04/2019 - 27/04/2019)
2030 1094 8053 80 1 SUPPORT (19/04/2019 - 27/04/2019)
2040 1619 5337 01 2 HEXAGON BOLT (19/04/2019 - 27/04/2019)
2050 1094 8055 30 2 BAFFLE (19/04/2019 - 27/04/2019)
2060 1619 5337 01 8 HEXAGON BOLT (19/04/2019 - 27/04/2019)
2070 1094 8055 40 2 BAFFLE (19/04/2019 - 27/04/2019)
2080 1619 5337 01 4 HEXAGON BOLT (19/04/2019 - 27/04/2019)
Legend:
COOL:AIR - Cooling:Air cooled
MODEL:G90W3 - Model:G90
MODEL:G110VSDW2 - Model:G 110VSD MODEL:G110W3 - Model:G110
15 - Coolers - G90/110 VSD Aircooled (28/04/2019 - ...)
(MODEL:G110VSDW2 , MODEL:G110W3 , MODEL:G90W3) + COOL:AIR
54 9829 3178 12
15 - Coolers - G90/110 VSD Aircooled (28/04/2019 - ...)
(MODEL:G110VSDW2 , MODEL:G110W3 , MODEL:G90W3) + COOL:AIR
9829 3178 12 55
Ref Part Number Qty Name Validity
1010 1094 8059 60 1 COOLER AFTER (19/04/2019 - ...)
1020 0147 1962 72 4 HEXAGON BOLT (19/04/2019 - ...)
1030 1094 8059 50 2 COOLER OIL (19/04/2019 - ...)
1040 0686 3716 02 4 PLUG G1/2" (19/04/2019 - ...)
1050 0661 1000 39 4 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1060 0147 1962 72 8 HEXAGON BOLT (19/04/2019 - ...)
2010 1094 8053 70 1 SUPPORT (28/04/2019 - ...)
2020 0147 1400 03 2 BOLT M12*25 FZB (28/04/2019 - ...)
2030 0147 1962 72 2 HEXAGON BOLT (28/04/2019 - ...)
2040 1094 8053 80 1 SUPPORT (28/04/2019 - ...)
2050 0147 1400 03 2 BOLT M12*25 FZB (28/04/2019 - ...)
2060 0147 1962 72 2 HEXAGON BOLT (28/04/2019 - ...)
2070 1094 8055 30 1 BAFFLE (28/04/2019 - ...)
2080 0147 1962 72 6 HEXAGON BOLT (28/04/2019 - ...)
2090 1094 8055 40 1 BAFFLE (28/04/2019 - ...)
2100 0147 1962 72 6 HEXAGON BOLT (28/04/2019 - ...)
Legend:
COOL:AIR - Cooling:Air cooled
MODEL:G90W3 - Model:G90
MODEL:G110VSDW2 - Model:G 110VSD MODEL:G110W3 - Model:G110
16 - Coolers - G132 Aircooled (19/04/2019 - 27/04/2019)
(MODEL:G132VSDW2 , MODEL:G132W3) + COOL:AIR
56 9829 3178 12
16 - Coolers - G132 Aircooled (19/04/2019 - 27/04/2019)
(MODEL:G132VSDW2 , MODEL:G132W3) + COOL:AIR
9829 3178 12 57
Ref Part Number Qty Name Validity
1010 1094 8059 40 1 COOLER AFTER (19/04/2019 - ...)
1020 0147 1962 72 4 HEXAGON BOLT (19/04/2019 - ...)
1030 1094 8059 30 2 COOLER OIL (19/04/2019 - ...)
1040 0686 3716 02 4 PLUG G1/2" (19/04/2019 - ...)
1050 0661 1000 39 4 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1060 0147 1962 72 8 HEXAGON BOLT (19/04/2019 - ...)
2010 1094 8053 70 1 SUPPORT (19/04/2019 - 27/04/2019)
2020 1619 5337 01 2 HEXAGON BOLT (19/04/2019 - 27/04/2019)
2030 1094 8053 80 1 SUPPORT (19/04/2019 - 27/04/2019)
2040 1619 5337 01 2 HEXAGON BOLT (19/04/2019 - 27/04/2019)
2050 1094 8055 30 2 BAFFLE (19/04/2019 - 27/04/2019)
2060 1619 5337 01 8 HEXAGON BOLT (19/04/2019 - 27/04/2019)
2070 1094 8055 40 2 BAFFLE (19/04/2019 - 27/04/2019)
2080 1619 5337 01 4 HEXAGON BOLT (19/04/2019 - 27/04/2019)
Legend:
COOL:AIR - Cooling:Air cooled MODEL:G132VSDW2 - Model:G 132 VSD MODEL:G132W3 - Model:G132
17 - Coolers - G132 Aircooled (28/04/2019 - ...)
(MODEL:G132VSDW2 , MODEL:G132W3) + COOL:AIR
58 9829 3178 12
17 - Coolers - G132 Aircooled (28/04/2019 - ...)
(MODEL:G132VSDW2 , MODEL:G132W3) + COOL:AIR
9829 3178 12 59
Ref Part Number Qty Name Validity
1010 1094 8059 40 1 COOLER AFTER (19/04/2019 - ...)
1020 0147 1962 72 4 HEXAGON BOLT (19/04/2019 - ...)
1030 1094 8059 30 2 COOLER OIL (19/04/2019 - ...)
1040 0686 3716 02 4 PLUG G1/2" (19/04/2019 - ...)
1050 0661 1000 39 4 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1060 0147 1962 72 8 HEXAGON BOLT (19/04/2019 - ...)
2010 1094 8053 70 1 SUPPORT (28/04/2019 - ...)
2020 0147 1400 03 2 BOLT M12*25 FZB (28/04/2019 - ...)
2030 0147 1962 72 2 HEXAGON BOLT (28/04/2019 - ...)
2040 1094 8053 80 1 SUPPORT (28/04/2019 - ...)
2050 0147 1400 03 2 BOLT M12*25 FZB (28/04/2019 - ...)
2060 0147 1962 72 2 HEXAGON BOLT (28/04/2019 - ...)
2070 1094 8055 30 1 BAFFLE (28/04/2019 - ...)
2080 0147 1962 72 6 HEXAGON BOLT (28/04/2019 - ...)
2090 1094 8055 40 1 BAFFLE (28/04/2019 - ...)
2100 0147 1962 72 6 HEXAGON BOLT (28/04/2019 - ...)
Legend:
COOL:AIR - Cooling:Air cooled MODEL:G132VSDW2 - Model:G 132 VSD MODEL:G132W3 - Model:G132
18 - Coolers - Watercooled
COOL:WATER
60 9829 3178 12
18 - Coolers - Watercooled
COOL:WATER
9829 3178 12 61
Ref Part Number Qty Name Validity
1010 1094 8052 60 1 COOLER AFTER (19/04/2019 - ...)
1020 0147 1360 03 4 HEXAGON BOLT (19/04/2019 - ...)
1030 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1040 1094 8052 80 1 COOLER OIL (19/04/2019 - ...)
1050 0147 1360 03 4 HEXAGON BOLT (19/04/2019 - ...)
1060 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
2010 1094 8053 00 1 SUPPORT (19/04/2019 - ...)
2020 0147 1962 72 4 HEXAGON BOLT (19/04/2019 - ...)
2030 1094 8053 70 1 SUPPORT (19/04/2019 - ...)
2040 0301 2358 00 2 WASHER D12*24 (19/04/2019 - ...)
2050 0147 1400 03 2 BOLT M12*25 FZB (19/04/2019 - ...)
2060 0147 1962 72 2 HEXAGON BOLT (19/04/2019 - ...)
2070 1094 8053 80 1 SUPPORT (19/04/2019 - ...)
2080 0301 2358 00 2 WASHER D12*24 (19/04/2019 - ...)
2090 0147 1400 03 2 BOLT M12*25 FZB (19/04/2019 - ...)
2100 0147 1962 72 2 HEXAGON BOLT (19/04/2019 - ...)
2110 1094 8072 20 2 DOOR LOCK SUPPORT (31/12/2020 - ...)
2120 0147 1962 72 8 HEXAGON BOLT (31/12/2020 - ...)
Legend:
COOL:WATER - Cooling:Water cooled
19 - Drain System
62 9829 3178 12
19 - Drain System
9829 3178 12 63
Ref Part Number Qty Name Validity
1005 0581 1200 27 1 ELBOW (19/04/2019 - ...)
1010 0070 6002 06 5 PLASTIC TUBE D12 BLACK (19/04/2019 - ...)
1015 0581 0000 53 1 PIPE COUPLING (19/04/2019 - ...)
1020 0661 1000 38 1 SEAL WASHER DOWTY 1/4" (19/04/2019 - ...)
1025 1614 9934 00 1 PIPE COUPLING (19/04/2019 - ...)
1030 0852 0010 14 1 BALL VALVE (19/04/2019 - ...)
20 - Fan Arrangement - Aircooled
COOL:AIR
64 9829 3178 12
20 - Fan Arrangement - Aircooled
COOL:AIR
9829 3178 12 65
Ref Part Number Qty Name Validity
1010 1092 2311 60 1 GRATING FAN G 160 (19/04/2019 - ...)
1020 1092 0050 22 1 BUSHING (19/04/2019 - ...)
1030 1094 8071 40 1 FAN ASSEMBLY G90-110 60HZ (19/04/2019 - ...)
1030 1092 1497 50 1 FAN ASSEMBLY (19/04/2019 - ...)
1030 1092 1402 50 1 FAN GL90-132 (19/04/2019 - ...)
1030 1094 8071 50 1 FAN ASSEMBLY G132 60HZ (19/04/2019 - ...)
1040 1614 6456 00 1 WASHER (19/04/2019 - ...)
1050 0147 1362 03 1 HEXAGON BOLT (19/04/2019 - ...)
1060 1094 8060 10 1 COWL FAN (19/04/2019 - ...)
1070 1094 8060 20 2 BRACKET (19/04/2019 - ...)
1080 0147 1962 72 8 HEXAGON BOLT (19/04/2019 - ...)
1090 0147 1366 03 4 HEXAGON BOLT (19/04/2019 - ...)
1100 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1110 0301 2358 00 4 WASHER D12*24 (19/04/2019 - ...)
1120 0147 1402 03 4 BOLT M12*35 FZB (19/04/2019 - ...)
1130 1625 0336 61 1 FAN WIRING IEC (19/04/2019 - ...)
2010 1092 1142 25 1 MOTOR 3.0KW 400/50 440-460/60 (19/04/2019 - ...)
2010 1092 1142 23 1 MOTOR 3.0KW 380V 60HZ (19/04/2019 - ...)
2010 1092 1142 21 1 MOTOR 3.0KW 380V 50HZ (19/04/2019 - ...)
Legend:
COOL:AIR - Cooling:Air cooled
21 - Fan Arrangement - Watercooled
COOL:WATER
66 9829 3178 12
21 - Fan Arrangement - Watercooled
COOL:WATER
9829 3178 12 67
Ref Part Number Qty Name Validity
1005 0147 1363 03 1 BOLT M10*30 FZB (23/04/2019 - ...)
1005 0147 1250 03 3 HEXAGON BOLT (23/04/2019 - ...)
1005 0147 1250 03 4 HEXAGON BOLT (23/04/2019 - ...)
1010 0301 2321 00 4 PLAIN WASHER D6*12 FZB (23/04/2019 - ...)
1010 0301 2321 00 3 PLAIN WASHER D6*12 FZB (23/04/2019 - ...)
1010 1614 6456 00 1 WASHER (23/04/2019 - ...)
1015 1088 1001 01 1 WARNING MARK (23/04/2019 - ...)
1020 1503 0786 00 1 ROTATION ARROW (23/04/2019 - ...)
1030 2000 0211 05 1 FAN WIRING (23/04/2019 - ...)
1030 1625 0101 01 1 WIRING CSA/UL (23/04/2019 - ...)
1030 1625 0227 07 1 FAN WIRING (23/04/2019 - ...)
1101 1092 1202 72 1 FAN ASSEMBLY (23/04/2019 - ...)
1101 1092 0030 93 1 VANTILATION FAN 60HZ (23/04/2019 - ...)
1101 1092 0053 96 1 FAN (23/04/2019 - ...)
2020 1092 0050 22 1 BUSHING (23/04/2019 - ...)
Legend:
COOL:WATER - Cooling:Water cooled
22 - Regulation System - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
68 9829 3178 12
22 - Regulation System - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 69
Ref Part Number Qty Name Validity R.
1094 8055 00 1 C142 UNLOADER VALVE (19/04/2019 - ...)
Remarks: For more details of valve please see Unloader Assembly Chapter.
1020 0663 2114 23 1 O-RING (19/04/2019 - ...)
1030 0147 1363 03 4 BOLT M10*30 FZB (19/04/2019 - ...)
1040 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1060 0663 2106 09 2 O-RING (19/04/2019 - ...)
1070 0574 9917 14 1 HOSE ASSEMBLY (19/04/2019 - ...)
Substituted by: 0574 8002 69 - HOSE ASSEMBLY (quantity: 1)
1080 1619 5205 00 1 NIPPLE (19/04/2019 - ...)
1090 0661 1000 38 1 SEAL WASHER DOWTY 1/4" (19/04/2019 - ...)
1100 1094 8071 70 1 HOSE ASSY. (21/08/2019 - ...)
1100 1092 0039 00 1 HOSE ASSY (19/04/2019 - 20/08/2019)
1110 1092 0032 52 1 NIPPLE (19/04/2019 - ...)
1120 0661 1000 39 1 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1130 1079 5840 15 1 NIPPLE (19/04/2019 - ...)
1140 0661 1000 39 1 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1150 1092 1391 10 1 BRACKET (19/04/2019 - ...)
1160 0346 1000 15 1 PIPE CLAMP (19/04/2019 - ...)
1170 1619 2766 00 1 SCR.BOLT M8X20 (19/04/2019 - ...)
1623 1810 80 1 VALVE ASSEMBLY (19/04/2019 - ...)
2010 0663 2111 55 1 O-RING
2020 0301 2318 00 2 WASHER D5*10
2030 0160 0996 99 2 SCRAW SLOT
Substituted by: 0160 0996 86 - CROSS (quantity: 1)
1622 3694 80 1 BLOW-OFF VALVE
3005 0226 3300 18 4 SCREW
3010 0663 2112 69 1 O-RING
3015 1513 0477 00 1 PISTON RING
3020 1622 3694 00 1 HOUSING
Substituted by: 1622 3694 80 - BLOW-OFF VALVE (quantity: 1)
3025 1622 3694 01 1 COVER
3030 1622 3694 02 1 PISTON
3035 1622 3694 03 1 SEAL
3040 1622 3694 04 1 SEAL
3045 1622 3694 05 1 RIVET
3050 1622 3694 06 2 INSERT
3055 1622 3694 07 1 SEAL
Legend:
MODEL:G110W3 - Model:G110 MODEL:G132W3 - Model:G132 MODEL:G90W3 - Model:G90
23 - Regulation System - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
70 9829 3178 12
23 - Regulation System - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
9829 3178 12 71
Ref Part Number Qty Name Validity
1010 1094 8070 70 1 HOUSING INLET C142 (19/04/2019 - ...)
1020 0663 2114 23 1 O-RING (19/04/2019 - ...)
1030 0663 2108 13 1 O-RING (19/04/2019 - ...)
1040 0661 1000 43 1 SEAL WASHER (19/04/2019 - ...)
1050 0147 1363 03 4 BOLT M10*30 FZB (19/04/2019 - ...)
1060 0301 2344 00 4 PLAIN WASHER D10*20 FZB (19/04/2019 - ...)
1070 0686 3716 35 1 PLUG G3/4" HEX FZB (19/04/2019 - ...)
1080 0574 9917 14 1 HOSE ASSEMBLY (19/04/2019 - ...)
Substituted by: 0574 8002 69 - HOSE ASSEMBLY (quantity: 1)
1090 1619 5205 00 1 NIPPLE (19/04/2019 - ...)
1100 0661 1000 38 1 SEAL WASHER DOWTY 1/4" (19/04/2019 - ...)
1110 1092 0039 00 1 HOSE ASSY (19/04/2019 - 30/12/2020)
1110 0574 8845 22 1 HOSE ASSEMBLY (31/12/2020 - ...)
1120 1622 6611 00 1 NOZZLE (19/04/2019 - ...)
1130 1092 0030 66 1 NIPPLE (19/04/2019 - ...)
1140 0661 1000 40 1 SEAL WASHER DOWTY 3/8 (19/04/2019 - ...)
1150 0661 1000 39 1 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1160 1079 5840 15 1 NIPPLE (19/04/2019 - ...)
1170 0661 1000 39 1 SEAL WASHER 21*28*1.5 (19/04/2019 - ...)
1180 1092 1391 10 1 BRACKET (19/04/2019 - ...)
1190 0346 1000 15 1 PIPE CLAMP (19/04/2019 - ...)
1200 1619 2766 00 1 SCR.BOLT M8X20 (19/04/2019 - ...)
1210 1092 1388 06 1 PLATE COVER (19/04/2019 - ...)
1220 0603 4100 55 1 FITTING (19/04/2019 - ...)
1230 0581 0000 86 1 PIPE COUPLING (19/04/2019 - ...)
1240 0560 1305 03 1 ELBOW 1/2 (19/04/2019 - ...)
1250 1617 6173 00 1 SILENCER (19/04/2019 - ...)
1260 0147 1320 03 2 HEXAGON BOLT (19/04/2019 - ...)
1270 0301 2335 00 2 PLAIN WASHER D8*16 FZB (19/04/2019 - ...)
1280 0686 3716 30 1 PLUG G3/8" (19/04/2019 - ...)
Legend:
MODEL:G110VSDW2 - Model:G 110VSD MODEL:G132VSDW2 - Model:G 132 VSD
24 - Unloader Assembly - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
72 9829 3178 12
24 - Unloader Assembly - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 73
Ref Part Number Qty Name Validity
1010 1094 8055 01 1 C142 UNLOADER VALVE HOUSING (19/04/2019 - ...)
1020 1092 1400 05 8 GUIDE (19/04/2019 - ...)
1030 1092 1400 06 8 BUSHING (19/04/2019 - ...)
1040 1622 3183 00 1 SEAL (19/04/2019 - ...)
1050 1622 3185 00 1 SPRING (19/04/2019 - ...)
1060 1622 3689 00 1 GUIDANCE TAPE (19/04/2019 - ...)
1070 1092 1400 03 1 PISTON C146 (19/04/2019 - ...)
1080 1092 1400 02 1 COVER C146 (19/04/2019 - ...)
1090 0335 2182 00 1 INT.CIRCLIP (19/04/2019 - ...)
1100 0663 7151 00 1 O-RING (19/04/2019 - ...)
1110 1622 3691 00 1 QUADRING C146 (19/04/2019 - ...)
1120 0295 3101 10 1 NUT LOCK (19/04/2019 - ...)
1130 0333 6136 04 1 WASHER LOCK (19/04/2019 - ...)
1140 1622 3690 00 1 BUSHING (19/04/2019 - ...)
Substituted by: 1622 3690 02 - BUSHING (quantity: 1)
1150 1094 8055 03 1 VALVE (19/04/2019 - ...)
1160 1094 8055 02 1 ROD (19/04/2019 - ...)
Legend:
MODEL:G110W3 - Model:G110 MODEL:G132W3 - Model:G132 MODEL:G90W3 - Model:G90
25 - Control System - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
74 9829 3178 12
25 - Control System - G90/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 75
Ref Part Number Qty Name Validity
1010 1089 0574 70 1 TEMP SENSOR L=50 (19/04/2019 - ...)
1020 1089 9625 13 1 SENSOR PRESS (19/04/2019 - ...)
1030 1089 0637 16 1 TEMPERATURE SWITCH (19/04/2019 - ...)
1040 1089 0621 10 1 SOLENOID VALVE (19/04/2019 - ...) (MAPPR:AS121MOM , MAPPR:CHINA)
1040 1089 0621 11 1 SOLENOID VALVE (19/04/2019 - ...) MAPPR:ASME
Substituted by: 1089 0640 16 - SOLENOID VALVE (quantity: 1)
1050 1613 7912 01 1 INDICATOR (19/04/2019 - ...)
1060 1900 5200 13 1 MKV GRAPHIC CONTROLLER (19/04/2019 - ...)
1070 0147 1169 03 4 HEX.HEAD SCREW M4*8 (19/04/2019 - ...)
1080 1092 0050 02 7 CABLE TIE HOLDER (19/04/2019 - ...)
1090 1088 1301 03 14 CABLE TIE (19/04/2019 - ...)
Substituted by: 0348 0101 05 - CABLE TIE 186X4.8 (quantity: 1)
1100 0686 3716 01 1 PLUG 1/4 A A (19/04/2019 - ...)
1110 0661 1000 25 1 SEAL WASHER 13.74 X 20.57 X 2 (19/04/2019 - ...)
Substituted by: 0661 1000 38 - SEAL WASHER DOWTY 1/4" (quantity: 1)
Legend:
MAPPR:AS121MOM - Pressure Vessel Approval:AS1210/MOM
MODEL:G110W3 - Model:G110
MAPPR:ASME - Pressure Vessel Approval:ASME (U Stamp)
MODEL:G132W3 - Model:G132
MAPPR:CHINA - Pressure Vessel Approval:CHINA
MODEL:G90W3 - Model:G90
26 - Control System - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
76 9829 3178 12
26 - Control System - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
9829 3178 12 77
Ref Part Number Qty Name Validity
1010 1089 0574 70 1 TEMP SENSOR L=50 (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1020 1089 9625 13 1 SENSOR PRESS (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1030 1089 0637 16 1 TEMPERATURE SWITCH (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1040 1089 0580 03 1 SOLENOID VALVE (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1050 0603 4103 03 1 HEXAGON NIPPLE (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1060 1613 7912 01 1 INDICATOR (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1070 1900 5200 13 1 MKV GRAPHIC CONTROLLER (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1080 0147 1169 03 4 HEX.HEAD SCREW M4*8 (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1090 1092 0050 02 7 CABLE TIE HOLDER (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1100 1088 1301 03 14 CABLE TIE (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
Substituted by: 0348 0101 05 - CABLE TIE 186X4.8 (quantity: 1)
1110 0686 3716 01 1 PLUG 1/4 A A (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
1120 0661 1000 25 1 SEAL WASHER 13.74 X 20.57 X 2 (19/04/2019 - 30/12/2040) (MAPPR:ASME , MAPPR:CHINA)
(31/12/2040 - ...)
Substituted by: 0661 1000 38 - SEAL WASHER DOWTY 1/4" (quantity: 1)
Legend:
MAPPR:ASME - Pressure Vessel Approval:ASME (U Stamp)
MODEL:G132VSDW2 - Model:G 132 VSD
MAPPR:CHINA - Pressure Vessel Approval:CHINA MODEL:G110VSDW2 - Model:G 110VSD
27 - Safety Valve - CHINA
MAPPR:CHINA
78 9829 3178 12
27 - Safety Valve - CHINA
MAPPR:CHINA
9829 3178 12 79
Ref Part Number Qty Name Validity
1010 1092 0125 12 1 SAFETY VALVE (28/04/2019 - ...)
1010 1092 0124 13 1 SAFETY VALVE (19/04/2019 - 27/04/2019)
1020 0653 1189 00 1 FLAT GASKET (28/04/2019 - ...)
1020 0653 1227 00 1 FLAT GASKET (19/04/2019 - 27/04/2019)
Legend:
MAPPR:CHINA - Pressure Vessel Approval:CHINA
28 - Safety Valve - ASME
MAPPR:AS121MOM , MAPPR:ASME
80 9829 3178 12
28 - Safety Valve - ASME
MAPPR:AS121MOM , MAPPR:ASME
9829 3178 12 81
Ref Part Number Qty Name Validity
1010 0830 1010 52 1 VALVE SAFETY (23/04/2019 - ...)
1020 0653 1189 00 1 FLAT GASKET (23/04/2019 - ...)
Legend:
MAPPR:AS121MOM - Pressure Vessel Approval:AS1210/MOM MAPPR:ASME - Pressure Vessel Approval:ASME (U Stamp)
29 - Thermostatic Valve
82 9829 3178 12
29 - Thermostatic Valve
9829 3178 12 83
Ref Part Number Qty Name Validity
1005 1619 7560 00 1 THERMOSTATIC VALVE (19/04/2019 - ...) MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
1005 1202 5869 03 1 THERMOSTATIC VALVE (19/04/2019 - ...) MODEL:G110VSDW2 , MODEL:G132VSDW2
1202 5868 00 1 SPRING
Legend:
MODEL:G110VSDW2 - Model:G 110VSD
MODEL:G132W3 - Model:G132
MODEL:G110W3 - Model:G110
MODEL:G90W3 - Model:G90
MODEL:G132VSDW2 - Model:G 132 VSD
30 - Connection Water
84 9829 3178 12
30 - Connection Water
9829 3178 12 85
Ref Part Number Qty Name Validity
1010 1094 8051 80 1 PIPE (19/04/2019 - ...)
1020 0663 7138 00 1 O-RING 69.5 X 3 (19/04/2019 - ...)
1030 1619 2766 00 1 SCR.BOLT M8X20 (19/04/2019 - ...)
1040 0301 2358 00 4 WASHER D12*24 (19/04/2019 - ...)
1050 0147 1405 03 2 HEXAGON BOLT (19/04/2019 - ...)
1060 0266 2112 00 2 NUT M12 FZB (19/04/2019 - ...)
1070 1094 8051 90 1 PIPE (19/04/2019 - ...)
1080 0663 7138 00 1 O-RING 69.5 X 3 (19/04/2019 - ...)
1090 1619 2766 00 1 SCR.BOLT M8X20 (19/04/2019 - ...)
1100 0301 2358 00 4 WASHER D12*24 (19/04/2019 - ...)
1110 0147 1405 03 2 HEXAGON BOLT (19/04/2019 - ...)
1120 0266 2112 00 2 NUT M12 FZB (19/04/2019 - ...)
1130 1094 8052 90 1 PIPE (19/04/2019 - ...)
1140 0663 7138 00 2 O-RING 69.5 X 3 (19/04/2019 - ...)
1150 0301 2358 00 8 WASHER D12*24 (19/04/2019 - ...)
1160 0147 1405 03 4 HEXAGON BOLT (19/04/2019 - ...)
1170 0266 2112 00 4 NUT M12 FZB (19/04/2019 - ...)
31 - Bodywork - Aircooled
COOL:AIR
86 9829 3178 12
31 - Bodywork - Aircooled
COOL:AIR
9829 3178 12 87
Ref Part Number Qty Name Validity R.
1010 1094 8053 60 1 FRAME G90-132 (19/04/2019 - ...)
1020 1094 8053 90 1 NED PANEL (19/04/2019 - ...)
1 INSULATION SILENCING 1)
1 INSULATION SILENCING 1)
1 INSULATION SILENCING 1)
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1030 0147 1962 72 4 HEXAGON BOLT (19/04/2019 - ...)
1040 1094 8072 40 1 DOOR (29/07/2019 - ...)
1 INSULATION SILENCING 1)
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1 INSULATION SILENCING 1)
1040 1094 8054 10 1 DOOR (19/04/2019 - 28/07/2019)
1 INSULATION SILENCING 1)
1619 5188 00 1 SEAL
1092 1307 60 2 LOCK
1050 1094 8054 20 1 DOOR (BLUE BAR) (19/04/2019 - ...)
1 INSULATION SILENCING 1)
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1060 1094 8054 40 1 DOOR (19/04/2019 - ...)
1 INSULATION SILENCING 1)
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1070 1094 8054 30 1 DOOR (19/04/2019 - ...)
1 INSULATION SILENCING 1)
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1080 1094 8056 60 1 ROOF (19/04/2019 - ...)
1094 8056 62 1 PLATE
0298 0106 00 12 WELDING NUT
1090 0147 1962 72 8 HEXAGON BOLT (19/04/2019 - ...)
1100 1094 8072 10 1 PANEL (31/12/2020 - ...)
1 INSULATION SILENCING 1)
1110 0211 1326 03 8 HEX. SOCK. SCREW (31/12/2020 - ...)
Remarks:
1) Foam: 0395 6001 67 (AR) 30 x 2040 x 1650 (self-adhesive)
Legend:
COOL:AIR - Cooling:Air cooled
32 - Bodywork - Watercooled
COOL:WATER
88 9829 3178 12
32 - Bodywork - Watercooled
COOL:WATER
9829 3178 12 89
Ref Part Number Qty Name Validity R.
1010 1094 8053 60 1 FRAME G90-132 (19/04/2019 - ...)
1020 1094 8055 10 1 NED PANEL (19/04/2019 - ...)
1 INSULATION SILENCING 1)
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1030 0147 1962 72 4 HEXAGON BOLT (19/04/2019 - ...)
1040 1094 8054 10 1 DOOR (19/04/2019 - 28/07/2019)
1 INSULATION SILENCING 1)
1619 5188 00 1 SEAL
1092 1307 60 2 LOCK
1040 1094 8072 40 1 DOOR (29/07/2019 - ...)
1 INSULATION SILENCING
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1 INSULATION SILENCING
1050 1094 8054 70 1 DOOR (BLUE BAR) (19/04/2019 - 28/07/2019)
1 INSULATION SILENCING 1)
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1050 1094 8072 50 1 DOOR (29/07/2019 - ...)
1 INSULATION SILENCING
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1 INSULATION SILENCING
1060 1094 8054 30 2 DOOR (19/04/2019 - ...)
1 INSULATION SILENCING 1)
1092 1307 60 2 LOCK
1619 5188 00 1 SEAL
1 INSULATION SILENCING (31/12/2020 - ...) 1)
1070 1094 8054 80 1 ROOF (19/04/2019 - ...)
1080 0147 1962 72 8 HEXAGON BOLT (19/04/2019 - ...)
1100 1094 8072 30 1 PANEL (31/12/2020 - ...)
1 INSULATION SILENCING 1)
Remarks:
1) Foam: 0395 6001 67 (AR) 30 x 2040 x 1650 (self-adhesive)
Legend:
COOL:WATER - Cooling:Water cooled
33.1 - Cubicle - G0/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
90 9829 3178 12
33.1 - Cubicle - G0/110/132
MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3
9829 3178 12 91
Ref Part Number Qty Name Validity
1092 1372 99 1 CUBICLE ASSEMBLY (19/04/2019 - ...)
1020 1092 1372 20 1 CUBICLE (19/04/2019 - ...)
1060 1619 5337 01 6 HEXAGON BOLT (19/04/2019 - ...)
1070 1088 1001 04 3 WARNING LABEL (19/04/2019 - ...)
1080 1621 0478 00 1 LABEL (19/04/2019 - ...)
1090 1088 0019 01 2 CONTACT WASHER (19/04/2019 - ...)
1100 1619 2766 00 2 SCR.BOLT M8X20 (19/04/2019 - ...)
1110 1079 9901 67 1 LABEL (19/04/2019 - ...)
1120 1079 9923 72 6 LABEL (19/04/2019 - ...)
1130 1094 8054 50 1 DOOR CUBICLE LEFT (19/04/2019 - 27/04/2019)
1140 1623 0503 00 3 HINGE (19/04/2019 - 27/04/2019)
1150 1619 2766 00 6 SCR.BOLT M8X20 (19/04/2019 - 27/04/2019)
1160 1621 0607 00 3 PIN (19/04/2019 - 27/04/2019)
1170 1094 8054 60 1 DOOR CUBICLE RIGHT (19/04/2019 - 27/04/2019)
1180 1623 0503 00 3 HINGE (19/04/2019 - 27/04/2019)
1190 1619 2766 00 6 SCR.BOLT M8X20 (19/04/2019 - 27/04/2019)
1200 1621 0607 00 3 PIN (19/04/2019 - 27/04/2019)
Legend:
MODEL:G110W3 - Model:G110 MODEL:G132W3 - Model:G132 MODEL:G90W3 - Model:G90
33.2 - Cubicle - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
92 9829 3178 12
33.2 - Cubicle - G110/132 VSD
MODEL:G110VSDW2 , MODEL:G132VSDW2
9829 3178 12 93
Ref Part Number Qty Name Validity
1092 1439 98 1 CUBICLE ASSEMBLY (19/04/2019 - ...)
1092 1439 99 1 CUBICLE ASSEMBLY (19/04/2019 - ...)
1020 1092 1439 20 1 CUBICLE (19/04/2019 - ...)
1020 1092 1439 80 1 CUBICLE (19/04/2019 - ...)
1060 1619 5337 01 6 HEXAGON BOLT (19/04/2019 - ...)
1070 1088 1001 04 3 WARNING LABEL (19/04/2019 - ...)
1080 1621 0478 00 1 LABEL (19/04/2019 - ...)
1090 1088 0019 01 2 CONTACT WASHER (19/04/2019 - ...)
1100 1619 2766 00 2 SCR.BOLT M8X20 (19/04/2019 - ...)
1110 1079 9901 67 1 LABEL (19/04/2019 - ...)
1120 1079 9923 72 6 LABEL (19/04/2019 - ...)
1130 1094 8054 50 1 DOOR CUBICLE LEFT (19/04/2019 - 27/04/2019)
1140 1623 0503 00 3 HINGE (19/04/2019 - 27/04/2019)
1150 1619 2766 00 6 SCR.BOLT M8X20 (19/04/2019 - 27/04/2019)
1160 1621 0607 00 3 PIN (19/04/2019 - 27/04/2019)
1170 1094 8054 60 1 DOOR CUBICLE RIGHT (19/04/2019 - 27/04/2019)
1180 1623 0503 00 3 HINGE (19/04/2019 - 27/04/2019)
1190 1619 2766 00 6 SCR.BOLT M8X20 (19/04/2019 - 27/04/2019)
1200 1621 0607 00 3 PIN (19/04/2019 - 27/04/2019)
Legend:
MODEL:G110VSDW2 - Model:G 110VSD MODEL:G132VSDW2 - Model:G 132 VSD
33.3 - Control Panel - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
94 9829 3178 12
33.3 - Control Panel - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
9829 3178 12 95
Ref Part Number Qty Name Validity EL
1092 1372 01 1 CONTROL PANEL (19/04/2019 - ...) ((COOL:AIR + MODEL:G90W3 ,
MODEL:G110W3 , MODEL:G132W3) +
(IP:IP55 + MOVOL:400-415V , MOVOL:380V) ,
COOL:WATER + MODEL:G90W3 + MOVOL:380V)
+ FREQ:50HZ
1092 1372 31 (19/04/2019 - ...) (MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ + IP:IP55
1005 1092 1277 95 6 FUSE HOLDER (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
Electrical legend: F1,F2,F3,F4,F5,F6
1010 1092 1277 96 2 FUSE (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
F1,F2
1015 1092 1277 97 3 FUSE (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
F3,F5,F6
1020 1092 1277 98 1 FUSE (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
F4
1089 9476 06 1 RELAY (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
K30
1030 1089 9418 36 1 CONTACTOR (22/04/2019 - ...) ((COOL:AIR + MODEL:G90W3 ,
MODEL:G110W3 , MODEL:G132W3) +
(IP:IP55 + MOVOL:400-415V , MOVOL:380V) ,
COOL:WATER + MODEL:G90W3 + MOVOL:380V)
+ FREQ:50HZ
K11
1030 1089 9418 37 1 CONTACTOR (22/04/2019 - ...) (MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ + IP:IP55
K11
1035 1089 9245 61 1 RC SURGE SUPPRESSOR (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
K11
1040 1089 9422 19 1 BUTTON PUSH (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
S2
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:50HZ - Frequency:50 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
COOL:WATER - Cooling:Water cooled
FREQ:60HZ - Frequency:60 Hz
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
EAPPR:IEC - Electrical approval:IEC
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
33.3 - Control Panel - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
96 9829 3178 12
33.3 - Control Panel - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
9829 3178 12 97
Ref Part Number Qty Name Validity EL
1045 1089 9422 23 1 TERMINAL (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
S2
1050 1092 1277 57 1 TRANSFORMER JBK3-630VA (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
T1
1055 1089 9366 74 5 TERMINAL BLOCK (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1X3
1060 1089 9366 70 45 TERMINAL BLOCK (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
Electrical legend: 1X4,1X5,1X6,1X7
1089 9366 67 6 PLATE END (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1089 9366 69 5 PLATE END (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1089 9366 68 3 PLATE END (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1080 1079 9911 77 1 CONNECT.INFORM. LABEL (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1085 1079 9906 09 1 TIGHTENING TORQUES LABEL (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:50HZ - Frequency:50 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
COOL:WATER - Cooling:Water cooled
FREQ:60HZ - Frequency:60 Hz
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
EAPPR:IEC - Electrical approval:IEC
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
33.3 - Control Panel - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
98 9829 3178 12
33.3 - Control Panel - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
9829 3178 12 99
Ref Part Number Qty Name Validity EL
1090 1623 7216 00 1 LABEL (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1095 1079 9901 68 1 LABEL (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1100 1088 1001 04 2 WARNING LABEL (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1105 1088 0037 81 1 CONNECTOR 16POLE WAGO (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
2X27
1110 1088 0037 80 1 CONNECTOR (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
2X28
1115 1088 0031 32 1 CONNECTOR 12POLE WAGO (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
2X30
1120 1088 0031 26 1 CONNECTOR (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
2X31
1125 1092 1372 83 1 WIRE HARNESS (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
1092 1277 78 1 PROTECT SCREEN (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:50HZ - Frequency:50 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
COOL:WATER - Cooling:Water cooled
FREQ:60HZ - Frequency:60 Hz
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
EAPPR:IEC - Electrical approval:IEC
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
33.4 - Control Panel - CSA-UL - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:CSA-UL + MOVOL:440-460V
100 9829 3178 12
33.4 - Control Panel - CSA-UL - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:CSA-UL + MOVOL:440-460V
9829 3178 12 101
Ref Part Number Qty Name Validity EL
1092 1521 01 1 CONTROL PANEL (19/04/2019 - ...) FREQ:60HZ + IP:IP55
1005 1089 9536 92 6 HOLDER FUSE (22/04/2019 - ...) FREQ:60HZ + IP:IP55
Electrical legend: F1,F2,F3,F4,F5,F6
1010 1089 9168 34 2 FUSE (22/04/2019 - ...) FREQ:60HZ + IP:IP55 F1,F2
1015 1089 9168 26 3 FUSE LINK 4A (22/04/2019 - ...) FREQ:60HZ + IP:IP55 F3,F5,F6
1020 1089 9168 35 1 FUSE (22/04/2019 - ...) FREQ:60HZ + IP:IP55 F4
1089 9461 07 1 PHASE SEQ.RELAY (22/04/2019 - ...) FREQ:60HZ + IP:IP55 K30
1030 1089 9578 08 1 CONTACTOR LC1D09B7C 3P 1NO1NC (22/04/2019 - ...) FREQ:60HZ + IP:IP55 K11
1035 1089 9554 89 1 SURGE SUPPRESSOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 K11
1040 1089 9422 96 1 PUSH BUTTON (22/04/2019 - ...) FREQ:60HZ + IP:IP55 S2
1045 1089 0263 44 1 CONTACT BLOCK ZB4 BZ104 (22/04/2019 - ...) FREQ:60HZ + IP:IP55 S2
1050 1092 1277 58 1 TRANSFORMER (22/04/2019 - ...) FREQ:60HZ + IP:IP55 T1
1055 1089 9366 47 5 TERMINAL BLOCK (22/04/2019 - ...) FREQ:60HZ + IP:IP55 1X3
1060 1089 0577 28 47 TERMINAL (22/04/2019 - ...) FREQ:60HZ + IP:IP55
Electrical legend: 1X4,1X5,1X6,1X7
1089 0577 21 6 END SECTION (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1089 0577 52 5 SEPARATING PLATE TSK (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1089 9366 96 3 PLUG-IN BRIDGE (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1080 1079 9911 77 1 CONNECT.INFORM. LABEL (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1085 1079 9906 09 1 TIGHTENING TORQUES LABEL (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1090 1635 8949 01 1 UL DATA PLATE (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1095 1079 9901 68 1 LABEL (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1100 1088 1001 04 2 WARNING LABEL (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1105 1088 0037 81 1 CONNECTOR 16POLE WAGO (22/04/2019 - ...) FREQ:60HZ + IP:IP55 2X27
1110 1088 0037 80 1 CONNECTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 2X28
1115 1088 0031 32 1 CONNECTOR 12POLE WAGO (22/04/2019 - ...) FREQ:60HZ + IP:IP55 2X30
1120 1088 0031 26 1 CONNECTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 2X31
1125 1092 1372 86 1 WIRE HARNESS (22/04/2019 - ...) FREQ:60HZ + IP:IP55
1092 1277 79 1 PROTECT SCREEN/UL94-V2 (22/04/2019 - ...) FREQ:60HZ + IP:IP55
Legend:
EAPPR:CSA-UL - Electrical approval:CSA-UL
MODEL:G110W3 - Model:G110
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
FREQ:60HZ - Frequency:60 Hz
MODEL:G132W3 - Model:G132
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
33.5 - Control Panel - IEC - G110/132 VSD
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC + FREQ:50HZ + MOVOL:380V
102 9829 3178 12
33.5 - Control Panel - IEC - G110/132 VSD
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC + FREQ:50HZ + MOVOL:380V
9829 3178 12 103
Ref Part Number Qty Name Validity
1092 1439 71 1 CONTROL CIRCUIT (19/04/2019 - ...)
1005 1092 1621 07 5 HOLDER FUSE (24/04/2019 - ...)
1010 1089 9332 72 5 FUSE (24/04/2019 - ...)
1015 1089 9216 30 2 CONTACT (24/04/2019 - ...)
1020 1089 9422 19 1 BUTTON PUSH (24/04/2019 - ...)
1025 1089 9422 23 2 TERMINAL (24/04/2019 - ...)
1030 1089 0398 38 1 CONTACT (24/04/2019 - ...)
1035 1092 1122 30 1 SWITCH SELECTOR XB5AD21C (24/04/2019 - ...)
1040 1092 1122 31 2 TERMINAL ZBEE101C (24/04/2019 - ...)
1045 1092 1277 55 1 TRANSMITTER JBK3-550VA (24/04/2019 - ...)
1050 1089 9366 74 4 TERMINAL BLOCK (24/04/2019 - ...)
1055 1089 9366 70 47 TERMINAL BLOCK (24/04/2019 - ...)
1060 1089 9366 67 4 PLATE END (24/04/2019 - ...)
1065 1089 9366 69 10 PLATE END (24/04/2019 - ...)
1070 1089 9366 68 3 PLATE END (24/04/2019 - ...)
1075 1079 9906 09 1 TIGHTENING TORQUES LABEL (24/04/2019 - ...)
1080 1623 7216 00 1 LABEL (24/04/2019 - ...)
1085 1079 9901 68 1 LABEL (24/04/2019 - ...)
1090 1088 1001 04 2 WARNING LABEL (24/04/2019 - ...)
1095 1088 0031 02 1 CONNECTOR (24/04/2019 - ...)
1100 1088 0031 32 1 CONNECTOR 12POLE WAGO (24/04/2019 - ...)
1105 1088 0031 26 1 CONNECTOR (24/04/2019 - ...)
1110 1092 1372 83 1 WIRE HARNESS (24/04/2019 - ...)
1092 1122 71 6 FILTER 204*204MM (24/04/2019 - ...)
1092 1122 80 1 CABLE COMM (24/04/2019 - ...)
Legend:
EAPPR:IEC - Electrical approval:IEC
MODEL:G132VSDW2 - Model:G 132 VSD
FREQ:50HZ - Frequency:50 Hz
MOVOL:380V - Supply voltage:380 V
MODEL:G110VSDW2 - Model:G 110VSD
33.6 - Starter Module - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
104 9829 3178 12
33.6 - Starter Module - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
9829 3178 12 105
Ref Part Number Qty Name Validity EL
1092 1372 52 1 CONTROL PANEL (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G110W3 + MOVOL:440-460V
1092 1372 16 (19/04/2019 - ...) (COOL:AIR + IP:IP55 +
MOVOL:400-415V , MOVOL:380V) + FREQ:50HZ
+ MODEL:G90W3
1092 1372 32 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G110W3 + MOVOL:380V
1092 1372 03 (19/04/2019 - ...) (IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ + MODEL:G132W3
1092 1372 33 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3 + MOVOL:380V
1092 1372 53 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3 + MOVOL:440-460V
1092 1372 17 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G90W3 + MOVOL:380V
1092 1372 18 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G90W3 + MOVOL:440-460V
1092 1372 02 (19/04/2019 - ...) (IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ + MODEL:G110W3
1005 1089 9496 68 2 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G90W3 + MOVOL:440-460V
K21,K23
1005 1089 9496 76 2 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3 + MOVOL:380V
K21,K23
1005 1089 9496 72 2 CONTACTOR (22/04/2019 - ...) ((MODEL:G110W3 ,
MODEL:G132W3) + MOVOL:440-460V ,
(MODEL:G110W3 , MODEL:G90W3) +
MOVOL:380V) + FREQ:60HZ + IP:IP55
K21,K23
1005 1089 9496 75 2 CONTACTOR (22/04/2019 - ...) (IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ + MODEL:G132W3
K21,K23
1005 1089 9496 71 2 CONTACTOR (22/04/2019 - ...) ((COOL:AIR + MODEL:G90W3 ,
MODEL:G110W3) + IP:IP55 + MOVOL:400-415V ,
(MODEL:G110W3 , MODEL:G90W3) +
MOVOL:380V) + FREQ:50HZ
K21,K23
1010 1089 9496 51 1 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G90W3 + MOVOL:440-460V
K22
1010 1089 9496 68 1 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3 + MOVOL:380V
K22
1010 1089 9496 63 1 CONTACTOR (22/04/2019 - ...) (MODEL:G110W3
+ MOVOL:380V , MODEL:G132W3 +
MOVOL:440-460V) + FREQ:60HZ + IP:IP55
K22
1010 1089 9496 57 1 CONTACTOR (22/04/2019 - ...) (MODEL:G110W3 +
MOVOL:440-460V , MODEL:G90W3 +
MOVOL:380V) + FREQ:60HZ + IP:IP55
K22
1010 1089 9496 67 1 CONTACTOR (22/04/2019 - ...) (IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ + MODEL:G132W3
K22
1010 1089 9496 56 1 CONTACTOR (22/04/2019 - ...) (COOL:AIR + IP:IP55 +
MOVOL:400-415V , MOVOL:380V) + FREQ:50HZ
+ MODEL:G90W3
K22
1010 1089 9496 62 1 CONTACTOR (22/04/2019 - ...) (IP:IP55 + MOVOL:400-415V ,
MOVOL:380V) + FREQ:50HZ + MODEL:G110W3
K22
1089 9463 65 1 RELAY OVERLOAD (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) + IP:IP55 ,
FREQ:50HZ + MOVOL:380V) + MODEL:G90W3 ,
FREQ:60HZ + IP:IP55 + MODEL:G110W3 +
MOVOL:440-460V
F21
1089 9463 66 1 RELAY OVERLOAD (22/04/2019 - ...) ((FREQ:50HZ +
MOVOL:400-415V , FREQ:60HZ + MOVOL:380V)
+ IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3) ,
FREQ:60HZ + IP:IP55 + MODEL:G132W3 +
MOVOL:440-460V
F21
1020 1089 9245 59 1 AUX. CONTACT (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
K21
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:50HZ - Frequency:50 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
COOL:WATER - Cooling:Water cooled
FREQ:60HZ - Frequency:60 Hz
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
EAPPR:IEC - Electrical approval:IEC
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
33.6 - Starter Module - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
106 9829 3178 12
33.6 - Starter Module - IEC - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:IEC
9829 3178 12 107
Ref Part Number Qty Name Validity EL
1025 1089 9245 57 1 AUX. CONTACT (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
K21
1030 1089 9245 58 1 AUX. CONTACT (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
K22
1035 1089 9245 58 1 AUX. CONTACT (22/04/2019 - ...) (((MOVOL:380V ,
MOVOL:440-460V) + FREQ:60HZ , COOL:AIR
+ FREQ:50HZ + MOVOL:400-415V) +
IP:IP55 , FREQ:50HZ + MOVOL:380V)
+ (MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110W3 ,
MODEL:G132W3) + COOL:WATER + FREQ:50HZ
+ IP:IP55 + MOVOL:400-415V
K23
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:50HZ - Frequency:50 Hz
MODEL:G110W3 - Model:G110
MOVOL:380V - Supply voltage:380 V
COOL:WATER - Cooling:Water cooled
FREQ:60HZ - Frequency:60 Hz
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
EAPPR:IEC - Electrical approval:IEC
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
33.7 - Starter Module - CSA-UL - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:CSA-UL + MOVOL:440-460V
108 9829 3178 12
33.7 - Starter Module - CSA-UL - G90/110/132
(MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + EAPPR:CSA-UL + MOVOL:440-460V
9829 3178 12 109
Ref Part Number Qty Name Validity EL
1092 1521 18 1 CONTROL PANEL (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G90W3
1092 1521 02 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G110W3
1092 1521 03 (19/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3
1005 1089 9578 20 2 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3
K21,K23
1005 1081 0160 09 2 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G110W3
K21,K23
1005 1081 0160 08 2 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G90W3
K21,K23
1010 1081 0160 07 1 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3
K22
1010 1081 0160 06 1 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G110W3
K22
1010 1081 0160 05 1 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G90W3
K22
1089 0390 81 1 OVERLOAD RELAY (22/04/2019 - ...) FREQ:60HZ + IP:IP55 +
MODEL:G132W3
F21
1089 0390 80 1 OVERLOAD RELAY (22/04/2019 - ...) (MODEL:G110W3 ,
MODEL:G90W3) + FREQ:60HZ + IP:IP55
F21
1020 1089 9164 67 1 AUXILIARY CONTACT (22/04/2019 - ...) FREQ:60HZ + IP:IP55 K21
1025 1089 9164 60 1 CONTACTOR (22/04/2019 - ...) FREQ:60HZ + IP:IP55 K21
1030 1089 9164 65 1 AUXILIARY CONTACT (22/04/2019 - ...) FREQ:60HZ + IP:IP55 K22
1035 1089 9164 65 1 AUXILIARY CONTACT (22/04/2019 - ...) FREQ:60HZ + IP:IP55 K23
Legend:
EAPPR:CSA-UL - Electrical approval:CSA-UL
MODEL:G110W3 - Model:G110
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
FREQ:60HZ - Frequency:60 Hz
MODEL:G132W3 - Model:G132
IP:IP55 - Motor protection class:IP 55
MODEL:G90W3 - Model:G90
33.8 - Starter Module - IEC - G110/132 VSD
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC + MOVOL:380V
110 9829 3178 12
33.8 - Starter Module - IEC - G110/132 VSD
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC + MOVOL:380V
9829 3178 12 111
Ref Part Number Qty Name Validity EL
1092 1439 72 1 STARTER (19/04/2019 - 27/04/2019) (COOL:WATER +
MODEL:G132VSDW2 , MODEL:G110VSDW2) +
FREQ:50HZ + IP:IP55
(28/04/2019 - ...) FREQ:50HZ + IP:IP55 +
MODEL:G110VSDW2
1092 1439 63 (19/04/2019 - 27/04/2019) COOL:AIR +
FREQ:50HZ + IP:IP23 + MODEL:G132VSDW2
(28/04/2019 - ...) FREQ:50HZ + IP:IP23 +
MODEL:G132VSDW2
1092 1439 73 (19/04/2019 - 27/04/2019) COOL:AIR +
FREQ:50HZ + IP:IP55 + MODEL:G132VSDW2
(28/04/2019 - ...) FREQ:50HZ + IP:IP55 +
MODEL:G132VSDW2
1092 1439 62 (19/04/2019 - 27/04/2019) (COOL:WATER +
MODEL:G132VSDW2 , MODEL:G110VSDW2) +
FREQ:50HZ + IP:IP23
(28/04/2019 - ...) FREQ:50HZ + IP:IP23 +
MODEL:G110VSDW2
1089 9092 43 3 FUSE RSM03P51KN 450A/690V (24/04/2019 - ...) FREQ:50HZ F21
1010 1092 1413 74 1 CONVERTER 132KW (24/04/2019 - 27/04/2019) (COOL:WATER +
MODEL:G132VSDW2 , MODEL:G110VSDW2) +
FREQ:50HZ
(28/04/2019 - ...) FREQ:50HZ +
MODEL:G110VSDW2
A11
1010 1092 1413 75 1 CONVERTER 160KW (24/04/2019 - 27/04/2019) COOL:AIR +
FREQ:50HZ + MODEL:G132VSDW2
(28/04/2019 - ...) FREQ:50HZ +
MODEL:G132VSDW2
A11
1092 1413 51 1 FILTER HP1-H117/80/23C (24/04/2019 - ...) FREQ:50HZ F3
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:50HZ - Frequency:50 Hz
MODEL:G110VSDW2 - Model:G 110VSD
COOL:WATER - Cooling:Water cooled
IP:IP23 - Motor protection class:IP 23
MODEL:G132VSDW2 - Model:G 132 VSD
EAPPR:IEC - Electrical approval:IEC
IP:IP55 - Motor protection class:IP 55
MOVOL:380V - Supply voltage:380 V
33.9 - Cooler Control Panel - IEC - Aircooled - 50/60Hz - 380/440-460V
((MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + MOVOL:440-460V , MOVOL:380V , MOVOL:400-415V) + COOL:AIR + EAPPR:IEC
112 9829 3178 12
33.9 - Cooler Control Panel - IEC - Aircooled - 50/60Hz - 380/440-460V
((MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + MOVOL:440-460V , MOVOL:380V , MOVOL:400-415V) + COOL:AIR + EAPPR:IEC
9829 3178 12 113
Ref Part Number Qty Name Validity EL
1092 1372 25 1 G 200 A COOLER CONTROL PANEL (19/04/2019 - 30/12/2040) (MODEL:G110W3 ,
MODEL:G132W3 , MODEL:G90W3) +
(MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ
(31/12/2040 - ...) ((MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + MOVOL:400-415V ,
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) + (MOVOL:380V ,
MOVOL:400-415V)) + FREQ:50HZ
1092 1372 63 (19/04/2019 - ...) ((MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + MOVOL:380V ,
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) + (MOVOL:380V ,
MOVOL:440-460V)) + FREQ:60HZ
1092 1439 82 (19/04/2019 - ...) (MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + FREQ:50HZ +
MOVOL:380V
1005 1081 0420 03 1 CIRCUIT BREAKER (19/04/2019 - 23/04/2019) (FREQ:50HZ
+ MOVOL:400-415V , FREQ:60HZ +
MOVOL:440-460V , MOVOL:380V) +
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + FREQ:60HZ +
MOVOL:380V
(24/04/2019 - 30/12/2040) (FREQ:50HZ
+ MOVOL:400-415V , FREQ:60HZ +
MOVOL:440-460V , MOVOL:380V) +
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + MOVOL:380V
(31/12/2040 - ...) (MODEL:G110W3 ,
MODEL:G132W3 , MODEL:G90W3) +
FREQ:60HZ + MOVOL:440-460V , FREQ:50HZ +
MOVOL:400-415V , MOVOL:380V
Q25
Substituted by: 1089 9551 19 - CIRCUIT BREAK. (quantity: 1)
1010 1089 9418 39 1 CONTACTOR (19/04/2019 - 30/12/2040) (MODEL:G110W3 ,
MODEL:G132W3 , MODEL:G90W3) +
(MOVOL:380V , MOVOL:400-415V) + FREQ:50HZ
(31/12/2040 - ...) ((MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + MOVOL:400-415V ,
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) + (MOVOL:380V ,
MOVOL:400-415V)) + FREQ:50HZ
K25
1010 1089 9418 40 1 CONTACTOR (19/04/2019 - ...) ((MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + MOVOL:380V ,
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) + (MOVOL:380V ,
MOVOL:440-460V)) + FREQ:60HZ
K25
1010 1089 9216 21 1 CONTACTOR (24/04/2019 - ...) (MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + FREQ:50HZ +
MOVOL:380V
K25
1015 1081 0420 31 1 CIRCUIT BREAKER (19/04/2019 - 23/04/2019) (FREQ:50HZ
+ MOVOL:400-415V , FREQ:60HZ +
MOVOL:440-460V , MOVOL:380V) +
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + FREQ:60HZ +
MOVOL:380V
(24/04/2019 - 30/12/2040) (FREQ:50HZ
+ MOVOL:400-415V , FREQ:60HZ +
MOVOL:440-460V , MOVOL:380V) +
(MODEL:G110W3 , MODEL:G132W3 ,
MODEL:G90W3) , (MODEL:G110VSDW2 ,
MODEL:G132VSDW2) + MOVOL:380V
(31/12/2040 - ...) (MODEL:G110W3 ,
MODEL:G132W3 , MODEL:G90W3) +
FREQ:60HZ + MOVOL:440-460V , FREQ:50HZ +
MOVOL:400-415V , MOVOL:380V
Q25
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:60HZ - Frequency:60 Hz
MODEL:G132VSDW2 - Model:G 132 VSD
MOVOL:380V - Supply voltage:380 V
EAPPR:IEC - Electrical approval:IEC
MODEL:G110VSDW2 - Model:G 110VSD
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
FREQ:50HZ - Frequency:50 Hz
MODEL:G110W3 - Model:G110
MODEL:G90W3 - Model:G90
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
33.10 - Cooler Control Panel - CSA-UL - Aircooled - 60Hz - 440-460V
((MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC , EAPPR:CSA-UL) + COOL:AIR + FREQ:60HZ + MOVOL:440-460V
114 9829 3178 12
33.10 - Cooler Control Panel - CSA-UL - Aircooled - 60Hz - 440-460V
((MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC , EAPPR:CSA-UL) + COOL:AIR + FREQ:60HZ + MOVOL:440-460V
9829 3178 12 115
Ref Part Number Qty Name Validity EL
1092 1521 23 1 CONTROL PANEL (19/04/2019 - 22/04/2019) EAPPR:CSA-UL
(23/04/2019 - ...)
1005 1089 9551 19 1 CIRCUIT BREAK. Q25
1010 1089 9578 23 1 CONTACTOR K25
1015 1089 9551 97 1 CIRCUIT BREAK Q25
Legend:
COOL:AIR - Cooling:Air cooled
FREQ:60HZ - Frequency:60 Hz
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
EAPPR:CSA-UL - Electrical approval:CSA-UL
MODEL:G110VSDW2 - Model:G 110VSD
EAPPR:IEC - Electrical approval:IEC
MODEL:G132VSDW2 - Model:G 132 VSD
33.11 - Cooler Control Panel - IEC - Watercooled - 380/440-460V - 60Hz
((MODEL:G110VSDW2 , MODEL:G132VSDW2) + MOVOL:380V , (MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + (MOVOL:380V ,
MOVOL:440-460V)) + COOL:WATER + EAPPR:IEC + FREQ:60HZ
116 9829 3178 12
33.11 - Cooler Control Panel - IEC - Watercooled - 380/440-460V - 60Hz
((MODEL:G110VSDW2 , MODEL:G132VSDW2) + MOVOL:380V , (MODEL:G110W3 , MODEL:G132W3 , MODEL:G90W3) + (MOVOL:380V ,
MOVOL:440-460V)) + COOL:WATER + EAPPR:IEC + FREQ:60HZ
9829 3178 12 117
Ref Part Number Qty Name Validity EL
1092 1372 41 1 G 110-250 W COOLER CONTROL (19/04/2019 - ...)
1005 1081 0420 18 1 CIRCUIT BREAK Q16
Substituted by: 1089 9551 16 - CIRCUIT BREAK. (quantity: 1)
1010 1089 9418 40 1 CONTACTOR K16
1015 1081 0420 31 1 CIRCUIT BREAKER Q16
Legend:
COOL:WATER - Cooling:Water cooled
MODEL:G110VSDW2 - Model:G 110VSD
MODEL:G132W3 - Model:G132
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
EAPPR:IEC - Electrical approval:IEC
MODEL:G110W3 - Model:G110
MODEL:G90W3 - Model:G90
FREQ:60HZ - Frequency:60 Hz
MODEL:G132VSDW2 - Model:G 132 VSD
MOVOL:380V - Supply voltage:380 V
33.12 - Cooler Control Panel - IEC - Watercooled - 380/400-415V - 50Hz
((MODEL:G110W3 , MODEL:G132W3) + (MOVOL:380V , MOVOL:400-415V) , MODEL:G110VSDW2 + MOVOL:400-415V , MODEL:G90W3 +
MOVOL:380V) + COOL:WATER + EAPPR:IEC + FREQ:50HZ
118 9829 3178 12
33.12 - Cooler Control Panel - IEC - Watercooled - 380/400-415V - 50Hz
((MODEL:G110W3 , MODEL:G132W3) + (MOVOL:380V , MOVOL:400-415V) , MODEL:G110VSDW2 + MOVOL:400-415V , MODEL:G90W3 +
MOVOL:380V) + COOL:WATER + EAPPR:IEC + FREQ:50HZ
9829 3178 12 119
Ref Part Number Qty Name Validity EL
1092 1372 21 1 G 110-355 W COOLER CONTROL (19/04/2019 - 27/04/2019) (MODEL:G110W3 ,
MODEL:G132W3) + (MOVOL:380V ,
MOVOL:400-415V) , MODEL:G132VSDW2
+ MOVOL:400-415V , MODEL:G90W3 +
MOVOL:380V
(28/04/2019 - 30/12/2040) (MODEL:G110W3 ,
MODEL:G132W3) + (MOVOL:380V ,
MOVOL:400-415V) , MODEL:G90W3 +
MOVOL:380V
(31/12/2040 - ...)
1005 1081 0420 18 1 CIRCUIT BREAK Q16
Substituted by: 1089 9551 16 - CIRCUIT BREAK. (quantity: 1)
1010 1089 9418 39 1 CONTACTOR K16
1015 1081 0420 31 1 CIRCUIT BREAKER Q16
Legend:
COOL:WATER - Cooling:Water cooled
MODEL:G110VSDW2 - Model:G 110VSD
MODEL:G132W3 - Model:G132
MOVOL:400-415V - Supply voltage:400-415 V
EAPPR:IEC - Electrical approval:IEC
MODEL:G110W3 - Model:G110
MODEL:G90W3 - Model:G90
FREQ:50HZ - Frequency:50 Hz
MODEL:G132VSDW2 - Model:G 132 VSD
MOVOL:380V - Supply voltage:380 V
33.13 - Cooler Control Panel - IEC - G 110/132 VSD Watercooled - 380V - 50Hz
(19/04/2019 - 22/04/2019)
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + COOL:WATER + EAPPR:IEC + FREQ:50HZ + MOVOL:380V
120 9829 3178 12
33.13 - Cooler Control Panel - IEC - G 110/132 VSD Watercooled - 380V - 50Hz
(19/04/2019 - 22/04/2019)
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + COOL:WATER + EAPPR:IEC + FREQ:50HZ + MOVOL:380V
9829 3178 12 121
Ref Part Number Qty Name Validity EL
1092 1439 81 1 WATER COOLER CONTROL (19/04/2019 - 22/04/2019)
1005 1081 0420 18 1 CIRCUIT BREAK Q16
Substituted by: 1089 9551 16 - CIRCUIT BREAK. (quantity: 1)
1010 1089 9418 39 1 CONTACTOR K16
1015 1081 0420 31 1 CIRCUIT BREAKER Q16
Legend:
COOL:WATER - Cooling:Water cooled
MODEL:G110VSDW2 - Model:G 110VSD
EAPPR:IEC - Electrical approval:IEC
MODEL:G132VSDW2 - Model:G 132 VSD
FREQ:50HZ - Frequency:50 Hz
MOVOL:380V - Supply voltage:380 V
33.14 - Cooler Control Panel - IEC - G 110/132 VSD Watercooled - 380V - 50Hz
(23/04/2019 - ...)
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + COOL:WATER + EAPPR:IEC + FREQ:50HZ + MOVOL:380V
122 9829 3178 12
33.14 - Cooler Control Panel - IEC - G 110/132 VSD Watercooled - 380V - 50Hz
(23/04/2019 - ...)
(MODEL:G110VSDW2 , MODEL:G132VSDW2) + COOL:WATER + EAPPR:IEC + FREQ:50HZ + MOVOL:380V
9829 3178 12 123
Ref Part Number Qty Name Validity EL
1092 1439 85 1 CONTROL PANEL (23/04/2019 - ...)
1005 1081 0420 18 1 CIRCUIT BREAK (24/04/2019 - ...) Q16
Substituted by: 1089 9551 16 - CIRCUIT BREAK. (quantity: 1)
1010 1089 9216 30 1 CONTACT (24/04/2019 - ...) K16
1015 1081 0420 31 1 CIRCUIT BREAKER (24/04/2019 - ...) Q16
1092 1122 72 1 CUBICLE FAN (24/04/2019 - ...) M5
1092 1122 73 1 CIRCUIT BREAKER (24/04/2019 - ...) F7
Legend:
COOL:WATER - Cooling:Water cooled
MODEL:G110VSDW2 - Model:G 110VSD
EAPPR:IEC - Electrical approval:IEC
MODEL:G132VSDW2 - Model:G 132 VSD
FREQ:50HZ - Frequency:50 Hz
MOVOL:380V - Supply voltage:380 V
33.15 - Cooler Control Panel - CSA-UL - Watercooled - 440-460V - 60Hz
((MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC , EAPPR:CSA-UL) + COOL:WATER + FREQ:60HZ + MOVOL:440-460V
124 9829 3178 12
33.15 - Cooler Control Panel - CSA-UL - Watercooled - 440-460V - 60Hz
((MODEL:G110VSDW2 , MODEL:G132VSDW2) + EAPPR:IEC , EAPPR:CSA-UL) + COOL:WATER + FREQ:60HZ + MOVOL:440-460V
9829 3178 12 125
Ref Part Number Qty Name Validity EL
1092 1521 21 1 CONTROL PANEL (19/04/2019 - 22/04/2019) EAPPR:CSA-UL
(23/04/2019 - ...)
1005 1089 9551 16 1 CIRCUIT BREAK. Q16
1010 1089 9578 23 1 CONTACTOR K16
1015 1089 9551 97 1 CIRCUIT BREAK Q16
Legend:
COOL:WATER - Cooling:Water cooled
FREQ:60HZ - Frequency:60 Hz
MOVOL:440-460V - Supply voltage:440-460 V (3 ph)
EAPPR:CSA-UL - Electrical approval:CSA-UL
MODEL:G110VSDW2 - Model:G 110VSD
EAPPR:IEC - Electrical approval:IEC
MODEL:G132VSDW2 - Model:G 132 VSD
33.16 - Smartbox
126 9829 3178 12
33.16 - Smartbox
9829 3178 12 127
Ref Part Number Qty Name Validity
1005 2230 1600 10 1 KIT CONNECTIVITY SMARTBOX 3G (19/04/2019 - ...)
1010 1088 1301 03 4 CABLE TIE (19/04/2019 - ...)
Substituted by: 0348 0101 05 - CABLE TIE 186X4.8 (quantity: 1)
34 - Marking
128 9829 3178 12
34 - Marking
9829 3178 12 129
Ref Part Number Qty Name Validity
1005 1088 1001 02 2 WARNING MARK (19/04/2019 - ...)
1010 1613 3431 00 2 LABEL (19/04/2019 - ...)
1013 1088 1001 04 4 WARNING LABEL (19/04/2019 - ...)
1020 1079 9901 67 1 LABEL (19/04/2019 - ...)
1025 1079 9923 72 2 LABEL (19/04/2019 - ...)
1033 1088 1001 01 3 WARNING MARK (19/04/2019 - ...)
1035 1092 0010 55 1 INSUTRIAL PRODUCT LICENSE LOGO (19/04/2019 - ...)
1045 1503 0786 00 2 ROTATION ARROW (19/04/2019 - ...)
1050 1079 9901 09 6 LABEL (19/04/2019 - ...)
1055 1079 9913 79 1 LABEL WATER INLET (19/04/2019 - ...)
1060 1079 9913 69 1 LABEL WATER OUTLET (19/04/2019 - ...)
2240 1092 1449 18 1 LABEL G132 VSD (19/04/2019 - ...) MODEL:G132VSDW2
2240 1092 1449 01 1 LABEL G110 (19/04/2019 - ...) MODEL:G110W3
2240 1092 1449 25 1 LABEL G110 VSD (19/04/2019 - 27/04/2019) MODEL:G110VSDW2 ,
MODEL:G132VSDW2
(28/04/2019 - ...) MODEL:G110VSDW2
2240 1092 1449 38 1 LABEL G90 (19/04/2019 - ...) MODEL:G90W3
2240 1092 1449 02 1 LABEL G132 (19/04/2019 - ...) MODEL:G132W3
Legend:
MODEL:G110VSDW2 - Model:G 110VSD
MODEL:G132W3 - Model:G132
MODEL:G110W3 - Model:G110
MODEL:G90W3 - Model:G90
MODEL:G132VSDW2 - Model:G 132 VSD
35 - Option - Safety Valve
MODEL:G110VSDW2 , MODEL:G110W3 , MODEL:G132VSDW2 , MODEL:G132W3
130 9829 3178 12
35 - Option - Safety Valve
MODEL:G110VSDW2 , MODEL:G110W3 , MODEL:G132VSDW2 , MODEL:G132W3
9829 3178 12 131
Ref Part Number Qty Name Validity
1010 0830 1008 12 1 VALVE SAFETY (14/08/2019 - ...)
1020 0653 1189 00 1 FLAT GASKET (14/08/2019 - ...)
Legend:
MODEL:G110VSDW2 - Model:G 110VSD
MODEL:G132W3 - Model:G132
MODEL:G110W3 - Model:G110 MODEL:G132VSDW2 - Model:G 132 VSD
16/09/2019
No. 9829 3178 12
www.atlascopco.com
In order to be First in Mind—
First in Choice® for all your quality
compressed air needs, Atlas Copco
delivers the products and services
that help to increase your business’
efficiency and profitability.
Atlas Copco's pursuit of innovation
never ceases, driven by our need
for reliability and efficiency. Always
working with you, we are committed to
providing you the customized quality
air solution that is the driving force
behind your business.
(1616869380)
| SKU | 1616869380 |
| Brand | Atlas Copco |
| Shipping Weight | 90.0000kg |
Be The First To Review This Product!
Help other Screw Compressor Spares users shop smarter by writing reviews for products you have purchased.
More From This Category
