1621 1491 00 / 1621149100
Atlas Copco Stationary Air Compressors
No. 2930 1370 00
Registration code: APC GA³ 90 / 39 / 989
2004-01
GA315 - GA355 - GA400 - GA450 - GA500
www.atlascopco.com
Parts list
• Copyright 2004, Atlas Copco Airpower n.v., Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited. This applies in particular
to trademarks, model denominations, part numbers and drawings.
• Use only authorized parts. Any damage or malfunction caused by the use of unauthorized parts is not
covered by Warranty or Product Liability.
2 2930 1370 00
Parts list
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Índice
Indholdsfortegnelse
Sisällysluettelo
Drive arrangement
Aandrijfuitvoering
Drivarrangemang
Antriebsanordnung
Dispositif d’entraînement
Disposición de accionamiento
Disposizione di azionamento
Arrangement
Disposição de accionamento
Drivarrangement
Rakenne ..............................................................................1
Unloading valve
Ontlastventiel
Avlastningsventil
Entlastungsventil
Soupape de décharge
Válvula de descarga
Valvola di messa a vuoto
Aflastningsventil
Válvula de descarga
Avlastningsventil
Kevennysventtiili ................................................................2
Air inlet
Luchtinlaat
Luftintag
Lufteinlaß
Admission d’air
Entrada de aire
Presa d’aria
Luftindsug
Admissão de ar
Luftinnløp
Tuloilma..............................................................................3
Air receiver
Luchtketel
Luftbehållare
Luftbehälter
Réservoir d’air
Depósito de aire
Serbatoio dell’aria
Luftbeholder
Reservatório de ar
Luftbeholder
Ilmasäiliö ............................................................................4
Air flow
Luchtstroming
Luftflöde
Luftstrom
Flux d’air
Flujo de aire
Flusso d’aria
Luftflow
Fluxo de ar
Luftstrøm
Ilman virtaus .......................................................................5
Air outlet
Luchtuitlaat
Luftutlopp
Luftauslaß
Sortie d’air
Salida de aire
Mandata dell’aria
Luftafgang
Saida de ar
Luftutløp
Paineilmaputki ....................................................................6
Oil system
Oliesysteem
Oljesystem
Ölsystem
Système d’huile
Sistema de aceite
Sistema dell’olio
Oliesystem
Sistema de óleo
Oljesystem
Voitelujärjestelmä ...............................................................7
Cooler(s)
Koeler(s)
Kylare
Kühler
Refroidisseur(s)
Refrigerador(es)
Refrigeratore(i)
Kølere
Refrigerador(es)
Kjøler(e)
Jäähdyttimet ........................................................................8
Water system
Watersysteem
Vattensystem
Wassersystem
Système d’eau
Sistema de agua
Sistema dell’acqua
Vandsystem
Sistema de água
Vannsystem
Vesijärjestelmä ...................................................................9
Frame
Frame
Ram
Rahmen
Châssis
Bastidor
Telaio
Ramme
Base
Ramme
Runko .............................................................................10
2930 1370 00 3
Parts list
Start cubicle - star/delta
Startkast - ster/driehoek
Startskåp - stjärn/triangel
Anlaßschrank - Stern/Dreieck
Armoire de démarrage - étoile/triangle
Cubículo de arranque - estrella/triángulo
Armadio apparecch. di avviamento - stella/triangolo
Starterskab - stjerne/trekant
Cubículo-arranque estrela/triângulo
Startskap - stjerne-trekant
Käynnistinkotelo - Y/D
- IEC - GA315 400-500V/50Hz,
GA355 380V/60Hz, GA355 400-500V/50Hz,
GA400 460V/60Hz, GA400 500V/50Hz,
GA450 500V/50Hz ...................................................17
- IEC - GA355 460V/60Hz, GA400 380V/60Hz,
GA400 400V/50Hz, GA450 400V/50Hz,
GA450 460V/60Hz ...................................................18
- CSA/UL - GA355 460-575V/60Hz,
GA400 460-575V/60Hz, GA450 575V/60Hz .........19
- CSA/UL - GA450 460V/60Hz .................................20
Start cubicle - without starter
Startkast - zonder starter
Startskåp - utan startutrustning
Anlaßschrank - ohne Starter
Armoire de démarrage - sans démarreur
Cubículo de arranque - sin arrancador
Armadio apparecch. di avviamento - senza
apparecchiatura di avviamento
Starterskab - uden starter
Cubículo-arranque - sem arrancador
Startskap - uten starter
Käynnistinkotelo - ilman käynnistintä
- 3-3.3-6-6.6kV/50Hz IEC,
2.3 -3.3-4.16-6.6kV/60Hz CSA/UL .........................21
Regulating system
Regelsysteem
Reglersystem
Regelsystem
Système de régulation
Sistema de regulación
Sistema di regolazione
Reguleringssystem
Sistema de regulação
Reguleringssystem
Säätöjärjestelmä .............................................................11
Drain system
Aftapsysteem
Avtappningssystem
Ablaßsystem
Système de vidange
Sistema de drenaje
Sistema di scarico
Drænsystem
Sistema de drenagem de condensados
Avtappingssystem
Lauhteenpoistojärjestelmä
- Basic drain ................................................................12
- Electronic Drain system ............................................13
- Oil Separator Condensate drain ................................14
Bodywork
Carrosserie
Karosseri
Karosserie
Capotage
Carrocería
Cappottatura
Karosseri
Carroceria
Kabinett
Kotelo .............................................................................15
Cubicle
Kast
Skåp
Schaltschrank
Armoire
Armario
Armadio elettrico
Elskab
Quadro
Skap
Kotelo .............................................................................16
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Índice
Indholdsfortegnelse
Sisällysluettelo
4 2930 1370 00
Parts list
62206_01
1 Drive arrangement
2930 1370 00 5
Parts list
Ref. Part number Qty Name Remarks
1005 1616 7066 92 2 Service stage
1010 1619 6032 00 4 Nipple
2005 1 Gear casing
1621 2118 00 Flange 900 mm
1621 2118 01 Flange 1000 mm
2007 1621 2202 00 1 Bushing
2009 1621 2207 00 1 Bushing
2010 0663 2106 16 1 O-ring
2012 1621 2121 00 2 Spacer
2013 1614 9100 00 2 Washer
2014 0211 1409 00 6 Cap screw
2015 1621 2119 00 1 Adapter
Flange 1000 mm
2020 0147 1557 03 8 Bolt
Flange 1000 mm
2025 0101 1626 00 4 Pin
2030 0663 2111 65 2 O-ring
2032 0663 2106 10 3 O-ring
2035 0147 1963 88 30 Bolt
2040 1621 2122 00 1 Drive shaft
2045 0506 0100 15 1 Bearing
2050 0211 1482 00 10 Cap screw
2055 0506 0100 16 1 Bearing
2060 1621 1303 00 1 Cover
2061 1621 2124 00 1 Seal
2065 0663 2107 24 1 O-ring
2070 0147 1364 03 4 Bolt
2075 1621 2123 00 1 Bushing
2076 0663 2106 16 1 O-ring
2085 1621 1302 00 1 Bearing housing
2090 0663 2109 74 1 O-ring
2095 0147 1365 03 8 Bolt
2105 0337 0009 46 2 Parallel key
2120 0686 3716 02 1 Plug
2125 0661 1000 27 1 Seal washer
2135 1621 2620 00 1 Pipe
2136 0663 2107 82 1 O-ring
2140 0147 1330 03 2 Bolt
2160 0580 0014 66 2 Pipe coupling
2165 1621 2127 00 1 Pipe
2170 1621 2209 00 1 Cover
2175 1621 2210 00 1 Gasket
2180 0211 1328 00 11 Cap screw
2185 0301 2335 00 11 Washer
2190 1621 0424 00 1 Seal
3010 1 Coupling
1621 1446 00 Motor diameter shaft 95 mm
1621 1442 00 Motor diameter shaft 100
mm
1621 1444 00 Motor diameter shaft 110
mm
1621 2247 00 Motor diameter shaft 95 mm
(GA500)
1621 2204 00 Motor diameter shaft 110
mm (GA500)
1621 1445 00 Without motor (GA315-
450)
1621 2205 00 Without motor (GA500)
3015 0337 0009 54 1 Parallel key
3020 1 Coupling
1621 2203 00 GA500
1621 1443 00 Others
4005 1 Gear wheel
1621 2417 00 GA315-7,5bar
1621 2413 00 GA315-8,5bar
1621 2409 00 GA315-10bar
1621 2398 00 GA315-13bar
1621 2411 00 GA355-6,9bar
1621 2425 00 GA355-7,5bar
1621 2421 00 GA355-8,5bar
Ref. Part number Qty Name Remarks
1621 2407 00 GA355-8,6bar
1621 2415 00 GA355-10bar
1621 2403 00 GA355-10,4bar
1621 2405 00 GA355-13bar
1621 2396 00 GA355-13,8bar
1621 2419 00 GA400-6,9bar
1621 2435 00 GA400-7,5bar
1621 2429 00 GA400-8,5bar
1621 2413 00 GA400-8,6bar
1621 2423 00 GA400-10bar
1621 2407 00 GA400-10,4bar
1621 2411 00 GA400-13bar
1621 2400 00 GA400-13,8bar
1621 2429 00 GA450-6,9bar
1621 2440 00 GA450-7,5bar
1621 2436 00 GA450-8,5bar
1621 2423 00 GA450-8,6bar
1621 2432 00 GA450-10bar
1621 2419 00 GA450-10,4bar
1621 2421 00 GA450-13bar
1621 2409 00 GA450-13,8bar
1621 2438 00 GA500-6,9bar
1621 2444 00 GA500-7,5bar
1621 2442 00 GA500-8,5bar
1621 2435 00 GA500-8,6bar
1621 2438 00 GA500-10bar
1621 2428 00 GA500-10,4bar
1621 2428 00 GA500-13bar
1621 2419 00 GA500-13,8bar
4010 2 Gear wheel
1621 2418 00 GA315-7,5bar
1621 2414 00 GA315-8,5bar
1621 2410 00 GA315-10bar
1621 2399 00 GA315-13bar
1621 2412 00 GA355-6,9bar
1621 2426 00 GA355-7,5bar
1621 2422 00 GA355-8,5bar
1621 2408 00 GA355-8,6bar
1621 2416 00 GA355-10bar
1621 2404 00 GA355-10,4bar
1621 2406 00 GA355-13bar
1621 2397 00 GA355-13,8bar
1621 2420 00 GA400-6,9bar
1621 2434 00 GA400-7,5bar
1621 2430 00 GA400-8,5bar
1621 2414 00 GA400-8,6bar
1621 2424 00 GA400-10bar
1621 2408 00 GA400-10,4bar
1621 2412 00 GA400-13bar
1621 2401 00 GA400-13,8bar
1621 2430 00 GA450-6,9bar
1621 2441 00 GA450-7,5bar
1621 2437 00 GA450-8,5bar
1621 2424 00 GA450-8,6bar
1621 2433 00 GA450-10bar
1621 2420 00 GA450-10,4bar
1621 2422 00 GA450-13bar
1621 2410 00 GA450-13,8bar
1621 2439 00 GA500-6,9bar
1621 2445 00 GA500-7,5bar
1621 2443 00 GA500-8,5bar
1621 2434 00 GA500-8,6bar
1621 2439 00 GA500-10bar
1621 2427 00 GA500-10,4bar
1621 2427 00 GA500-13bar
1621 2420 00 GA500-13,8bar
1
6 2930 1370 00
Parts list
2
62220_20
2930 1370 00 7
Parts list
Unloading valve 2
Ref. Part number Qty Name Remarks
1621 1297 80 2 Unloader assembly
1005 1621 1299 00 • 1 Valve housing
1010 1621 2221 00 • 1 Seal
1015 1621 2222 00 • 1 Bearing
1020 1621 1298 00 • 1 Piston
1025 1621 2224 00 • 1 Piston rod
1030 1621 2225 00 • 1 Seal
1035 1621 2226 00 • 1 Seal
1040 1621 2227 00 • 1 Bearing
1045 1621 2228 00 • 1 Nozzle
1050 1621 2229 00 • 1 Valve
1060 0661 1000 31 • 1 Seal washer
1065 1621 1297 00 • 1 Housing
Ref. Part number Qty Name Remarks
1070 0663 2103 22 • 1 O-ring
1075 0301 2358 00 • 12 Washer
1080 0147 1403 03 • 12 Bolt
1085 1079 5840 03 • 1 Nipple
1090 0661 1000 26 • 1 Seal washer
2010 0663 2103 22 1 O-ring
2015 0147 1480 03 6 Bolt
2020 0301 2378 00 6 Washer
2025 1079 5840 03 1 Nipple
2030 0661 1000 26 1 Seal washer
2035 0574 8234 31 1 Hose assembly
2040 0663 2111 54 3 O-ring
2045 0211 1251 03 4 Bolt
3250 1089 0590 24 2 Solenoid valve
8 2930 1370 00
Parts list
3
62208_02
2930 1370 00 9
Parts list
Air inlet 3
Ref. Part number Qty Name Remarks
1010 1621 1455 80 1 Baffle 3)
1020 1079 1472 06 5 Bolt
1025 1621 1457 80 1 Baffle 1)
1035 1079 1472 06 6 Bolt
1040 1621 1458 80 1 Baffle 1)
1050 1079 1472 06 16 Bolt
1055 1621 1459 80 1 Baffle 2)
2252 7237 00 • 2 Doorlock
1056 2255 2148 00 2 Stud
1057 0147 1244 03 2 Bolt
1058 0301 2321 00 2 Washer
1061 2255 2148 00 2 Stud
1062 0147 1244 03 2 Bolt
1063 0301 2321 00 2 Washer
1065 1079 1472 06 4 Bolt
1070 1621 1461 00 1 Collector
1075 1079 1472 06 12 Bolt
1080 1621 0547 00 3 Filter element
1085 0248 9980 25 3 Threaded rod
Ref. Part number Qty Name Remarks
1090 0301 2344 00 3 Washer
1095 0296 1111 02 3 Wing nut
1110 1621 1463 00 1 Pipe
1115 1621 1464 00 1 Pipe
1116 0686 4209 00 2 Plug
1117 0661 1000 31 2 Seal washer
1120 1621 1465 00 2 Pipe
1125 1621 1466 00 6 Hump hose
1130 1030 1005 03 12 Hose clamp
Lined with / Bekleed met / Beklädd med /
Ausgekleidet mit / Garnir de / Rivestido de / Allineato con /
Foret med / Revestido com / Kledd med / Vuorattu :
1) Foam : 0395 6001 66 (AR) 25 x 2040 x 1650 selfadhesive
2) Foam : 0395 6001 67 (AR) 30 x 2040 x 1650 selfadhesive
3) Foam : 0395 6001 69 (AR) 50 x 2040 x 1650 selfadhesive
10 2930 1370 00
Parts list
4
62209_03
2930 1370 00 11
Parts list
Air receiver 4
Ref. Part number Qty Name Remarks
2 Air receiver
1621 9361 80 CE
1621 9361 85 As, D, CHINA,
SINGAPORE
1005 • 2 Vessel
1621 9361 08 CE
1621 9361 05 As, D, CHINA,
SINGAPORE
1010 • 2 Valve housing
1621 9365 08 CE
1621 9365 05 As, D, CHINA,
SINGAPORE
1015 0663 2109 45 • 1 O-ring
1020 0663 2109 45 • 1 O-ring
1025 1614 9089 00 • 1 Pivot pin
1030 0301 2394 00 • 12 Washer
1035 0147 1962 38 • 12 Bolt
2005 1614 9541 00 3 Spacer
2010 1614 9542 00 3 Buffer
2015 0333 3232 00 3 Lock washer
2020 0147 1364 03 3 Bolt
2035 0663 2106 58 1 O-ring
2040 0147 1365 03 6 Bolt
2060 1614 9816 00 1 Shield
2065 1614 9520 00 1 Bushing
2070 1621 9386 00 1 Oil sep.element
2075 0147 1479 03 1 Bolt
2080 1614 9184 00 1 Level gauge
2085 0661 1038 00 1 Sealing washer
2090 1619 6249 00 1 Nipple
2095 1621 9144 00 1 Hose assembly
2100 1614 9146 00 1 Plug
Ref. Part number Qty Name Remarks
2105 0661 1000 29 1 Seal washer
2110 1614 9525 00 1 Suction pipe
1614 9523 80 2 Minimum pressure valve
3020 1614 7277 00 • 1 Piston
3025 1619 6199 00 • 1 Sealring
3030 1614 7276 00 • 1 Check valve
3035 1614 7279 00 • 1 Washer
3040 1614 7281 00 • 1 Washer
3045 2254 9215 00 • 1 Lockplate
3050 0147 1322 03 • 3 Bolt
3055 1614 7280 00 • 1 Compr.spring
3060 1614 9523 00 • 1 Cover
3065 0147 1958 97 • 2 Bolt
3066 0301 2335 00 • 2 Washer
3070 1614 9524 00 • 1 Sleeve
4010 2 Hexagon nipple
0603 4108 03 11bar
0603 4108 03 15bar (1'’1/2 thread)
0603 5125 03 15bar (1'’ thread)
4015 2 Elbow
0560 0200 56 11bar
0560 0200 56 15bar (1'’1/2 thread)
0560 0200 24 15bar (1'’ thread)
4020 2 Flat gasket
0653 1254 00 11bar
0653 1254 00 15bar (1'’1/2 thread)
0653 1189 00 15bar (1'’ thread)
4025 2 Safety valve
0830 1008 14 11bar
0830 1008 19 15bar (1'’1/2 thread)
0830 1008 18 15bar (1'’ thread)
12 2930 1370 00
Parts list
5
62225_02
2930 1370 00 13
Parts list
Air flow 5
Ref. Part number Qty Name Remarks
1010 1621 2143 00 1 Hose assembly
1015 0663 2106 58 1 O-ring
1020 0147 1479 03 4 Bolt
1025 0301 2378 00 4 Washer
1030 0663 2106 20 1 O-ring
1035 0147 1403 03 4 Bolt
1040 0301 2358 00 4 Washer
1045 1621 2144 00 1 Hose assembly
1046 0663 2106 58 1 O-ring
1050 0147 1479 03 4 Bolt
1055 0301 2378 00 4 Washer
1060 0663 2106 20 1 O-ring
1065 0147 1403 03 4 Bolt
1070 0301 2358 00 4 Washer
1075 1614 8997 00 2 Pipe
1080 0663 2106 19 2 O-ring
1085 0147 1404 03 8 Bolt
1090 0301 2358 00 8 Washer
1095 1614 9512 00 2 Pipe
1100 1614 9509 00 4 Connection
1614 9513 00 • 1 Seal
Ref. Part number Qty Name Remarks
1105 0147 1367 03 8 Bolt
1110 0301 2344 00 8 Washer
1115 0306 2000 10 8 Washer
1120 0291 1114 00 8 Locknut
1125 1614 8926 00 8 Absorber
1130 0147 1503 03 4 Bolt
1135 1621 2145 00 1 Pipe
1140 0663 2106 17 1 O-ring
1145 0147 1363 03 4 Bolt
1150 0301 2344 00 4 Washer
1155 1621 1439 00 1 Pipe
1160 0663 2106 17 1 O-ring
1165 0147 1363 03 4 Bolt
1170 0301 2344 00 4 Washer
1175 1621 2147 00 2 Pipe
1180 0663 2106 17 2 O-ring
1185 0147 1363 03 8 Bolt
1190 0301 2344 00 8 Washer
1195 0663 2106 19 2 O-ring
1200 0147 1403 03 8 Bolt
1205 0301 2358 00 8 Washer
14 2930 1370 00
Parts list
6
62227_02
2930 1370 00 15
Parts list
Air outlet 6
Ref. Part number Qty Name Remarks
1010 1621 1496 00 1 Pipe
1015 0634 1000 56 1 Victaulic coupling
1020 1621 1496 00 1 Pipe
1025 0634 1000 56 1 Victaulic coupling
1030 1621 1497 00 1 Pipe
1035 0634 1000 56 2 Victaulic coupling
1040 1619 6607 04 1 U-bolt
1045 0266 2112 00 2 Nut
1050 0301 2358 00 2 Washer
2005 1621 1498 00 1 Adapter
2010 0650 1000 90 1 Gasket
2015 0147 1482 03 8 Bolt
2020 0301 2378 00 16 Washer
2025 0266 2114 00 8 Nut
1614 9139 80 2 Water separator
With float valve
3005 1614 9139 00 • 1 Head
3010 0663 6142 00 • 1 O-ring
3015 1621 0461 00 • 1 Pipe
3020 1621 0462 00 • 3 Rod
3025 1621 0463 00 • 1 Disc
3030 0301 2118 01 • 3 Washer
3035 0291 1107 00 • 3 Lock nut
3045 0663 2133 00 • 1 O-ring
3050 0663 2111 27 • 1 O-ring
3055 1613 9381 00 • 1 Nut
3060 1613 9464 00 • 1 Bowl
Ref. Part number Qty Name Remarks
3065 0663 2108 01 • 1 O-ring
3070 1621 0465 01 • 1 Label
1613 9378 93 • 1 Drain valve assembly
4005 1613 9380 00 •• 1 Cover
4010 1613 9379 00 •• 1 Housing
4015 1613 9378 00 •• 1 Drain
4017 0663 9287 00 •• 1 O-ring
4020 1613 9397 01 •• 1 Insert
4025 1613 9398 00 •• 1 Valve disc
4030 1613 9385 80 •• 1 Float assy
1613 9385 00 ••• 1 Float half
1613 9386 00 ••• 1 Support
1614 9139 81 2 Water separator
For electronic waterdrain
5005 1614 9139 00 • 1 Head
5010 0663 6142 00 • 1 O-ring
5015 1621 0461 00 • 1 Pipe
5020 1621 0462 00 • 3 Rod
5025 1621 0463 00 • 1 Disc
5030 0301 2118 01 • 3 Washer
5035 0291 1107 00 • 3 Lock nut
5040 1613 9946 00 • 1 Connection
5050 0663 2111 27 • 1 O-ring
5055 0261 2118 00 • 1 Nut
5060 1613 9464 00 • 1 Bowl
5065 0663 2108 01 • 1 O-ring
5070 1621 0465 02 • 1 Label
16 2930 1370 00
Parts list
7
62232_05
2930 1370 00 17
Parts list
Oil system 7
Ref. Part number Qty Name Remarks
1005 1614 8980 00 1 Valve housing
1010 1614 8976 00 1 Plug
1015 0661 1000 30 1 Seal washer
1020 1614 8978 00 1 Spring
1025 1614 8977 00 1 Check valve
1030 1614 8974 00 1 Piston
1035 1614 8973 00 1 Valve
1040 0663 2111 67 1 O-ring
1045 1614 8979 00 1 Spring
1050 1614 8972 00 1 Cover
1055 0663 2106 18 1 O-ring
1060 0147 1363 03 4 Bolt
1065 1614 8975 00 1 Flange
1070 0663 2106 57 1 O-ring
1075 0147 1363 03 4 Bolt
1080 0301 2344 00 4 Washer
1085 0663 2102 89 1 O-ring
1090 0663 2111 58 1 O-ring
1095 0663 2111 66 3 O-ring
1100 0211 1960 28 6 Cap screw
1105 0686 3716 01 2 Plug
1110 0661 1000 25 2 Seal washer
2010 1614 9006 01 2 Oil filter housing
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2025 0147 1363 03 6 Bolt
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2035 0301 2335 00 8 Washer
2040 0147 1325 03 8 Bolt
2045 6 Nipple
1614 8076 00 13bar, 13,8bar
1614 7062 00 Others
2050 6 Oil filter
1614 8065 00 13bar, 13,8bar
1614 7273 00 Others
2060 0686 3716 01 2 Plug
2065 1621 1440 00 1 Hose assembly
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt
2080 0301 2344 00 4 Washer
2085 1621 1499 00 1 Hose assembly
Ref. Part number Qty Name Remarks
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1362 03 2 Bolt
2100 0301 2344 00 4 Washer
3020 2 Thermostatic valve
1202 5869 01 GA315-10bar,
GA355-10,4bar,
GA400-10,4bar,
GA500-13bar,
GA500-13,8bar
1202 5869 02 GA315-7,5bar,
GA355-6,9bar,
GA355-7,5bar,
GA355-8,5bar,
GA400-6,9bar,
GA400-7,5bar,
GA400-8,5bar,
GA400-8,6bar,
GA450-6,9bar,
GA450-7,5bar,
GA450-8,5bar,
GA450-8,6bar,
GA450-10bar,
GA500-6,9bar,
GA500-7,5bar,
GA500-8,5bar,
GA500-8,6bar,
GA500-10bar,
GA500-10,4bar
1202 5869 03 GA355-8,6bar,
GA355-10bar,
GA400-10bar,
GA450-10,4bar,
GA315-8,5bar,
1202 5869 04 GA315-13bar,
GA355-13bar,
GA355-13,8bar,
GA400-13bar
GA400-13,8bar,
GA450-13bar,
GA450-13,8bar
1202 5868 00 • 1 Spring
18 2930 1370 00
Parts list
8
62240_04
2930 1370 00 19
Parts list

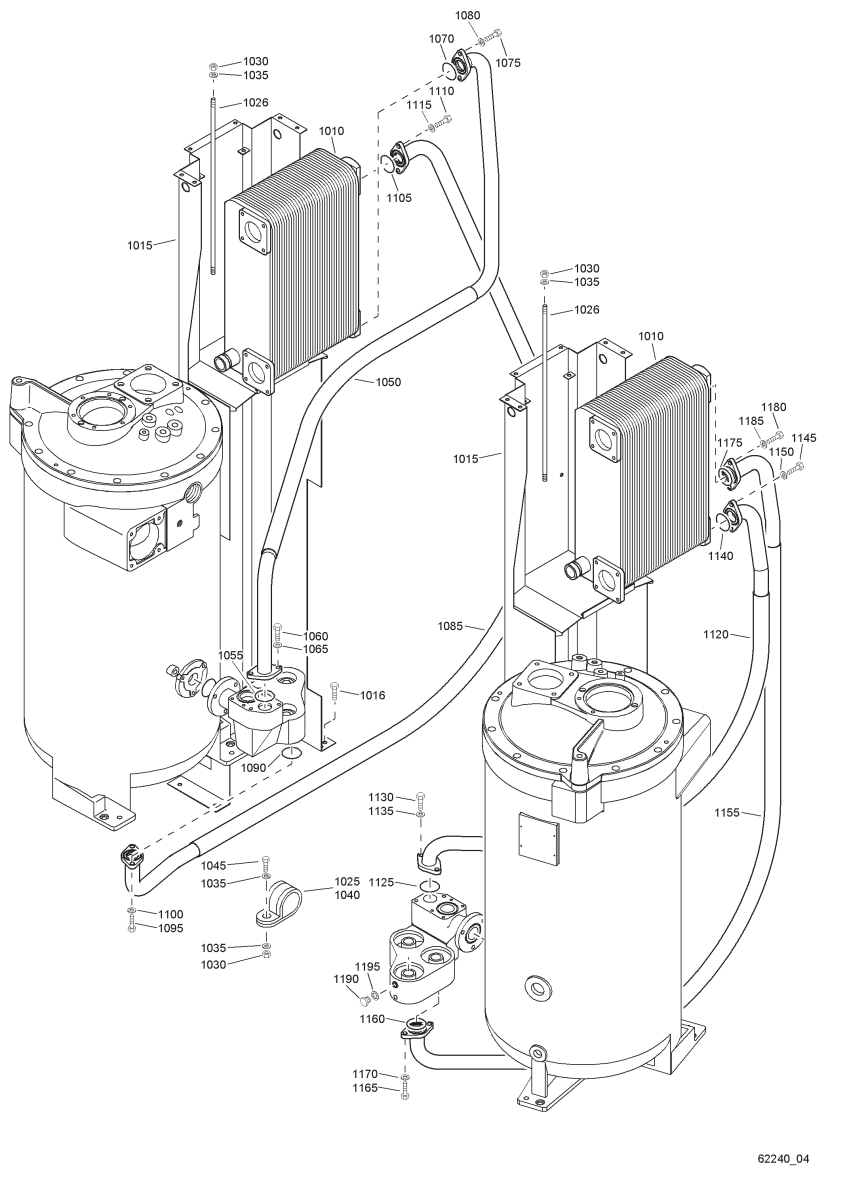

Coolers 8

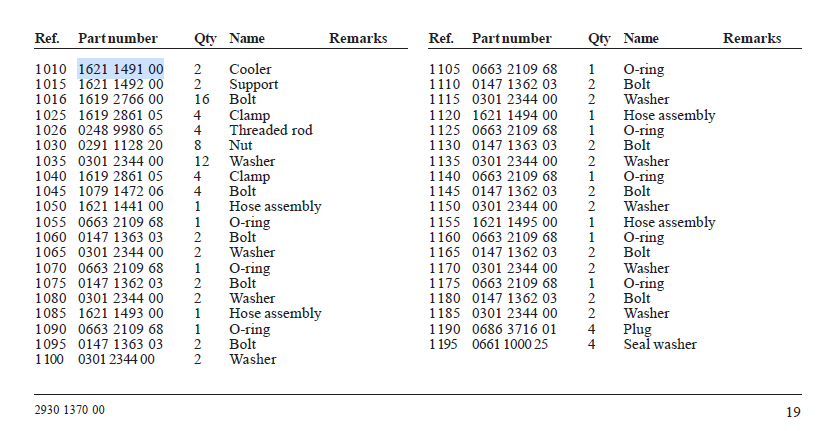

Ref. Part number Qty Name Remarks

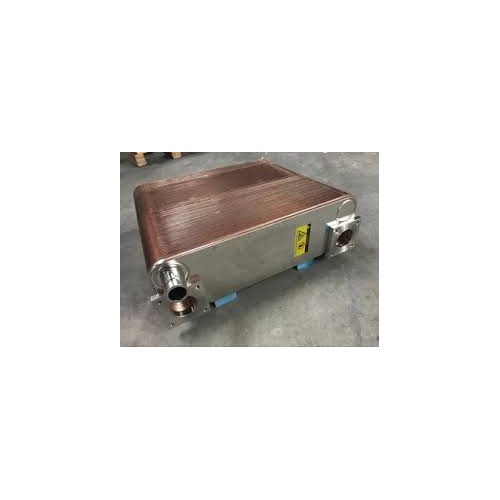

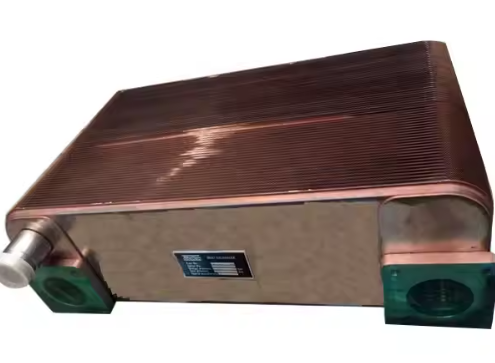

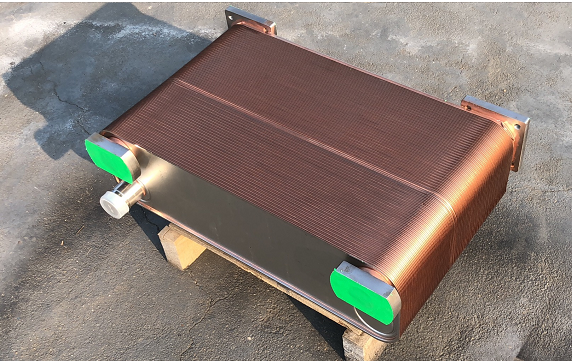

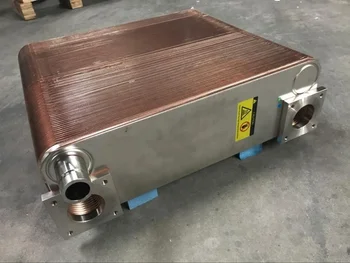

1010 1621 1491 00 2 Cooler
1015 1621 1492 00 2 Support
1016 1619 2766 00 16 Bolt
1025 1619 2861 05 4 Clamp
1026 0248 9980 65 4 Threaded rod
1030 0291 1128 20 8 Nut
1035 0301 2344 00 12 Washer
1040 1619 2861 05 4 Clamp
1045 1079 1472 06 4 Bolt
1050 1621 1441 00 1 Hose assembly
1055 0663 2109 68 1 O-ring
1060 0147 1363 03 2 Bolt
1065 0301 2344 00 2 Washer
1070 0663 2109 68 1 O-ring
1075 0147 1362 03 2 Bolt
1080 0301 2344 00 2 Washer
1085 1621 1493 00 1 Hose assembly
1090 0663 2109 68 1 O-ring
1095 0147 1363 03 2 Bolt
1100 0301 2344 00 2 Washer
Ref. Part number Qty Name Remarks
1105 0663 2109 68 1 O-ring
1110 0147 1362 03 2 Bolt
1115 0301 2344 00 2 Washer
1120 1621 1494 00 1 Hose assembly
1125 0663 2109 68 1 O-ring
1130 0147 1363 03 2 Bolt
1135 0301 2344 00 2 Washer
1140 0663 2109 68 1 O-ring
1145 0147 1362 03 2 Bolt
1150 0301 2344 00 2 Washer
1155 1621 1495 00 1 Hose assembly
1160 0663 2109 68 1 O-ring
1165 0147 1362 03 2 Bolt
1170 0301 2344 00 2 Washer
1175 0663 2109 68 1 O-ring
1180 0147 1362 03 2 Bolt
1185 0301 2344 00 2 Washer
1190 0686 3716 01 4 Plug
1195 0661 1000 25 4 Seal washer
20 2930 1370 00
Parts list
9
62237_06
2930 1370 00 21
Parts list
Water system 9
Ref. Part number Qty Name Remarks
1010 1621 2100 00 1 Pipe
1015 1621 2101 00 1 Pipe
1020 1619 6153 10 1 Ball valve
1040 1621 2102 00 1 Pipe
1045 0634 1000 27 2 Victaulic coupling
1050 1621 2103 00 1 Pipe
1055 0634 1000 27 2 Victaulic coupling
1060 1621 2104 00 1 Pipe
1065 1621 2105 00 2 Pipe
1070 1621 2106 00 2 Pipe
1075 0634 1000 27 6 Victaulic coupling
Ref. Part number Qty Name Remarks
1080 1621 2107 00 1 Support
1085 0147 1364 03 4 Bolt
1090 0301 2344 00 4 Washer
1095 1619 2861 01 4 Clamp
1096 1079 1472 06 4 Bolt
1100 0346 2900 23 2 U-bolt
1105 0301 2335 00 4 Washer
1110 0291 1128 18 4 Lock nut
1115 1621 2108 00 1 Support
1120 1079 1472 06 2 Bolt
2005 0605 8350 29 2 Bushing
22 2930 1370 00
Parts list
10
62207_08
2930 1370 00 23
Parts list
Frame 10
Ref. Part number Qty Name Remarks
1005 1621 1447 00 1 Frame
1010 1614 9851 00 2 Pin
1012 0147 1555 03 8 Bolt
1013 0300 0274 13 8 Washer
1015 1 Support
1621 1448 00 GA400-450 ABB motors
1621 1450 00 IP23 motors
1621 1451 00 IP55 + WEG motors
1621 1452 00 GA315-355 ABB motors
1020 0147 1630 03 1 Bolt
1025 0301 2405 00 1 Washer
1030 1614 6366 03 1 Antivibr.pad
1035 0147 1475 03 4 Bolt
1040 0301 2378 00 4 Washer
1045 0147 1630 03 1 Bolt
1050 0301 2405 00 1 Washer
1070 1621 2335 00 1 Support
1071 0147 1632 03 2 Bolt
1072 0301 2405 00 2 Washer
1075 0147 1630 03 2 Bolt
1080 0301 2405 00 2 Washer
1085 1614 6366 03 2 Antivibr.pad
1090 0147 1475 03 8 Bolt
1095 0301 2378 00 8 Washer
2255 1 Motor
ABB motoren (IEC)
1080 4195 01 GA315 400V/50Hz
1080 4195 02 GA315 400V/50Hz 1)
1080 4195 03 GA315 500V/50Hz
1080 4195 04 GA315 500V/50Hz 1)
1080 4196 01 GA355 400V/50Hz
1080 4196 02 GA355 400V/50Hz 1)
1080 4196 03 GA355 500V/50Hz
1080 4196 04 GA355 500V/50Hz 1)
1080 4196 21 GA355 380V/60Hz
1080 4196 22 GA355 380V/60Hz 1)
1080 4196 23 GA355 440-460V/60Hz
1080 4196 24 GA355 440-460V/60Hz
1)
1080 4197 01 GA400 400V/50Hz
1080 4197 02 GA400 400V/50Hz 1)
1080 4197 03 GA400 500V/50Hz
1080 4197 04 GA400 500V/50Hz 1)
1080 4198 01 GA450 400V/50Hz
1080 4198 02 GA450 400V/50Hz 1)
1080 4198 03 GA450 500V/50Hz
1080 4198 04 GA450 500V/50Hz 1)
1080 4198 21 GA400 380V/60Hz
1080 4198 22 GA400 380V/60Hz 1)
1080 4198 23 GA400 440-460V/60Hz
1080 4198 24 GA400 440-460V/60Hz
1)
1080 4198 27 GA450 440-460V/60Hz
1080 4198 28 GA450 440-460V/60Hz
1)
WEG motoren (CSA-UL)
1080 4199 02 GA355 440-460V/60Hz
1080 4199 04 GA355 575V/60Hz
1080 4199 12 GA400 440-460V/60Hz
1080 4199 14 GA400 575V/60Hz
1080 4199 22 GA450 440-460V/60Hz
1080 4199 24 GA450 575V/60Hz
IP55 SIEMENS motoren
1080 2955 61 GA315 3kV/50Hz IEC
Ref. Part number Qty Name Remarks
1080 2955 62 GA315 3,3kV/50Hz IEC
1080 2955 65 GA315 6kV/50Hz IEC
1080 2955 66 GA315 6,6kV/50Hz IEC
1080 2929 71 GA355 3kV/50Hz IEC
1080 2929 72 GA355 3,3kV/50Hz IEC
1080 2929 75 GA355 6kV/50Hz IEC
1080 2929 76 GA355 6,6kV/50Hz IEC
1080 2929 81 GA400 3kV/50Hz IEC
1080 2929 82 GA400 3,3kV/50Hz IEC
1080 2929 85 GA400 6kV/50Hz IEC
1080 2929 86 GA400 6,6kV/50Hz IEC
1080 2930 51 GA450 3kV/50Hz IEC
1080 2930 52 GA450 3,3kV/50Hz IEC
1080 2930 55 GA450 6kV/50Hz IEC
1080 2930 56 GA450 6,6kV/50Hz IEC
1080 2930 61 GA500 3kV/50Hz IEC
1080 2930 62 GA500 3,3kV/50Hz IEC
1080 2930 65 GA500 6kV/50Hz IEC
1080 2930 66 GA500 6,6kV/50Hz IEC
1080 2955 71 GA355 2,3kV/60Hz CSAUL
1080 2955 73 GA355 3,3kV/60Hz CSAUL
1080 2955 74 GA355 4,16kV/60Hz CSAUL
1080 2955 76 GA355 6,6kV/60Hz CSAUL
1080 2929 91 GA400 2,3kV/60Hz CSAUL
1080 2929 93 GA400 3,3kV/60Hz CSAUL
1080 2929 94 GA400 4,16kV/60Hz CSAUL
1080 2929 96 GA400 6,6kV/60Hz CSAUL
1080 2929 61 GA450 2,3kV/60Hz CSAUL
1080 2929 63 GA450 3,3kV/60Hz CSAUL
1080 2929 64 GA450 4,16kV/60Hz CSAUL
1080 2929 66 GA450 6,6kV/60Hz CSAUL
1080 2930 71 GA500 2,3kV/60Hz CSAUL
1080 2930 73 GA500 3,3kV/60Hz CSAUL
1080 2930 74 GA500 4,16kV/60Hz CSAUL
1080 2930 76 GA500 6,6kV/60Hz CSAUL
IP23 SIEMENS motoren
1080 4077 01 GA315 3kV/50Hz IEC
1080 4077 02 GA315 3,3kV/50Hz IEC
1080 4077 05 GA315 6kV/50Hz IEC
1080 4077 06 GA315 6,6kV/50Hz IEC
1080 4077 11 GA355 3kV/50Hz IEC
1080 4077 12 GA355 3,3kV/50Hz IEC
1080 4077 15 GA355 6kV/50Hz IEC
1080 4077 16 GA355 6,6kV/50Hz IEC
1080 4077 21 GA400 3kV/50Hz IEC
1080 4077 22 GA400 3,3kV/50Hz IEC
1080 4077 25 GA400 6kV/50Hz IEC
1080 4077 26 GA400 6,6kV/50Hz IEC
24 2930 1370 00
Parts list
10
62207_08
2930 1370 00 25
Parts list
Frame 10
Ref. Part number Qty Name Remarks
1080 2946 81 GA450 3kV/50Hz IEC
1080 2946 82 GA450 3,3kV/50Hz IEC
1080 2946 85 GA450 6kV/50Hz IEC
1080 2946 86 GA450 6,6kV/50Hz IEC
1080 2946 61 GA500 3kV/50Hz IEC
1080 2946 62 GA500 3,3kV/50Hz IEC
1080 2946 65 GA500 6kV/50Hz IEC
1080 2946 66 GA500 6,6kV/50Hz IEC
1080 4077 31 GA355 2,3kV/60Hz CSAUL
1080 4077 33 GA355 3,3kV/60Hz CSAUL
1080 4077 34 GA355 4,16kV/60Hz CSAUL
1080 4077 36 GA355 6,6kV/60Hz CSAUL
1080 4077 41 GA400 2,3kV/60Hz CSAUL
1080 4077 43 GA400 3,3kV/60Hz CSAUL
1080 4077 44 GA400 4,16kV/60Hz CSAUL
1080 4077 46 GA400 6,6kV/60Hz CSAUL
1080 4077 51 GA450 2,3kV/60Hz CSAUL
1080 4077 53 GA450 3,3kV/60Hz CSAUL
1080 4077 54 GA450 4,16kV/60Hz CSAUL
1080 4077 56 GA450 6,6kV/60Hz CSAUL
1080 2946 71 GA500 2,3kV/60Hz CSAUL
1080 2946 73 GA500 3,3kV/60Hz CSAUL
1080 2946 74 GA500 4,16kV/60Hz CSAUL
1080 2946 76 GA500 6,6kV/60Hz CSAUL
1) With Anti Condensation Heaters (ACON)
(PT1000_WB)
26 2930 1370 00
Parts list
11
62262_09
2930 1370 00 27
Parts list
Regulating system 11
Ref. Part number Qty Name Remarks
1010 1 Regulator
1900 0710 82 Full option motor
Module PT1000
1900 0710 62 PT100 + heaters
Module PT100
1020 1622 0661 02 1 Cable
1030 1 Wire harness
2000 0214 21 Full option motor
2000 0214 22 PT100 + heaters
1621 2355 00 SPM module
1050 0348 0102 06 10 Cable tie
2040 0574 9874 05 1 Hose assembly
2045 2250 4983 00 1 Nipple
2050 0661 1000 30 1 Seal washer
2055 0661 1000 24 1 Seal washer
2060 1615 3624 00 1 Nozzle
2065 0661 1000 24 1 Seal washer
2070 1079 5840 01 1 Nipple
2075 0661 1000 25 1 Seal washer
2080 0580 0400 03 1 Str.coupling
2085 0575 0361 18 1 Hose assembly
2090 0661 1000 24 1 Seal washer
2095 1079 5840 01 1 Nipple
2100 0574 9841 23 1 Hose assembly
Ref. Part number Qty Name Remarks
2105 1619 5205 00 1 Nipple
2110 0661 1000 25 1 Seal washer
3010 1089 0574 40 1 Temp. sensor
3015 1089 0574 40 1 Temp. sensor
3020 1089 0574 40 1 Temp. sensor
3025 1089 0574 40 1 Temp. sensor
3030 1089 0574 40 1 Temp. sensor
3035 1089 0574 40 1 Temp. sensor
3040 1089 0575 28 1 Press.transducer
3045 1089 0575 28 1 Press.transducer
3050 1089 0575 28 1 Press.transducer
3055 1089 0575 73 1 Press.transducer
3060 1089 0575 20 1 Dp transducer
3065 1089 0575 20 1 Dp transducer
3070 1621 2098 00 1 Wire harness
3080 0266 2110 00 2 Nut
3085 0301 2335 00 2 Washer
3095 0348 0102 08 14 Cable tie
3100 1900 0710 31 1 Regulator
3105 0160 6039 00 4 Screw
3110 0301 2315 00 4 Washer
3130 1900 0710 41 1 Regulator
3140 1622 0661 04 1 Cable
28 2930 1370 00
Parts list
12
62267_06
2930 1370 00 29
Parts list
Drain system - Basic drain 12
Ref. Part number Qty Name Remarks
1010 0661 1000 25 1 Seal washer
1015 0581 0000 45 1 Pipe coupling
1020 0070 6002 06 AR Plastic tube
1025 0348 0102 08 1 Cable tie
1030 0581 0000 86 1 Pipe coupling
1035 0653 1124 00 1 Flat gasket
1040 0581 0000 53 1 Pipe coupling
1045 0653 1062 00 1 Flat gasket
1050 0581 0000 45 1 Pipe coupling
1055 0070 6002 06 AR Plastic tube
1060 0581 0000 86 1 Pipe coupling
1065 0653 1124 00 1 Flat gasket
1070 0581 0000 53 1 Pipe coupling
1075 0852 0010 33 1 Ball valve
Ref. Part number Qty Name Remarks
1110 0661 1000 25 1 Seal washer
1115 0581 0000 45 1 Pipe coupling
1120 0070 6002 06 AR Plastic tube
1125 0348 0102 08 1 Cable tie
1130 0581 0000 86 1 Pipe coupling
1135 0653 1124 00 1 Flat gasket
1140 0581 0000 53 1 Pipe coupling
1145 0653 1062 00 1 Flat gasket
1150 0581 0000 45 1 Pipe coupling
1155 0070 6002 06 AR Plastic tube
1160 0581 0000 86 1 Pipe coupling
1165 0653 1124 00 1 Flat gasket
1170 0581 0000 53 1 Pipe coupling
1175 0852 0010 33 1 Ball valve
30 2930 1370 00
Parts list
13
62268_06
2930 1370 00 31
Parts list
Drain system - Electronic drain system 13
Ref. Part number Qty Name Remarks
1005 1 Drain valve
8102 0425 80 230V 50-60Hz IEC
8102 0425 98 110V 50-60Hz CSA-UL
1010 1617 1768 00 1 Support
1015 1619 2766 00 3 Bolt
1020 0661 1000 29 1 Seal washer
1025 0605 8700 84 1 Bushing
1030 0661 1000 29 1 Seal washer
1035 0605 8820 05 1 Bushing
1040 0581 0000 71 1 Pipe coupling
1045 0661 1000 27 1 Seal washer
1050 0661 1000 25 1 Seal washer
1055 1613 8084 00 1 Pipe coupling
1060 0070 6002 13 AR Plastic tube
1065 0661 1000 27 1 Seal washer
1070 0581 0000 71 1 Pipe coupling
1075 0070 6002 05 AR Plastic tube
1080 0661 1000 25 1 Seal washer
1085 0581 0000 35 1 Pipe coupling
1095 0581 0001 04 1 Pipe coupling
1100 0070 6002 13 AR Plastic tube
1105 0581 0000 71 1 Pipe coupling
1110 0581 0000 86 1 Pipe coupling
1115 0661 1000 27 1 Seal washer
1130 0348 0102 08 4 Cable tie
Ref. Part number Qty Name Remarks
1155 1 Drain valve
8102 0425 80 230V 50-60Hz IEC
8102 0425 98 110V 50-60Hz CSA-UL
1160 1617 1768 00 1 Support
1165 1619 2766 00 3 Bolt
1170 0661 1000 29 1 Seal washer
1175 0605 8700 84 1 Bushing
1180 0661 1000 29 1 Seal washer
1185 0605 8820 05 1 Bushing
1190 0581 0000 71 1 Pipe coupling
1195 0661 1000 27 1 Seal washer
1200 0661 1000 25 1 Seal washer
1205 1613 8084 00 1 Pipe coupling
1210 0070 6002 13 AR Plastic tube
1215 0661 1000 27 1 Seal washer
1220 0581 0000 71 1 Pipe coupling
1225 0070 6002 05 AR Plastic tube
1230 0661 1000 25 1 Seal washer
1235 0581 0000 35 1 Pipe coupling
1245 0581 0001 04 1 Pipe coupling
1250 0070 6002 13 AR Plastic tube
1255 0581 0000 71 1 Pipe coupling
1260 0581 0000 86 1 Pipe coupling
1265 0661 1000 27 1 Seal washer
32 2930 1370 00
Parts list
14
62269_06
2930 1370 00 33
Parts list
Drain system - Oil Separator Condensate drain 14
Ref. Part number Qty Name Remarks
1010 1621 2303 00 1 Support
1015 1619 2766 00 4 Bolt
1020 0147 1322 03 3 Bolt
1025 0301 2335 00 3 Washer
1030 1613 9735 00 1 Oil can
1045 1613 7335 00 1 Hose nipple
1050 0070 6002 14 AR Flexible
1055 0560 0200 61 1 Elbow
1060 0070 6002 03 AR Flexible
1065 0581 0000 35 1 Pipe coupling
1070 0661 1000 25 2 Seal washer
1075 1614 9706 00 1 Hose nipple
1080 0070 6002 28 AR Plastic tube
1085 0347 6110 00 2 Hose clip
1090 1614 9876 00 1 Hose nipple
1095 0661 1000 31 1 Seal washer
1100 1614 9881 00 1 Bushing
1110 0348 0102 06 4 Cable tie
1115 1079 9910 97 1 Label
1120 0581 0000 45 1 Pipe coupling
1125 0661 1000 25 1 Seal washer
1130 0070 6002 06 AR Plastic tube
1135 0581 0000 53 1 Pipe coupling
1140 0653 1124 00 1 Flat gasket
1145 0581 0000 86 1 Pipe coupling
1150 0852 0010 33 1 Ball valve
1215 1619 2766 00 4 Bolt
1220 0147 1322 03 3 Bolt
1225 0301 2335 00 3 Washer
1230 1613 9735 00 1 Oil can
1245 1613 7335 00 1 Hose nipple
1250 0070 6002 14 AR Flexible
1255 0560 0200 61 1 Elbow
1260 0070 6002 03 AR Flexible
1265 0581 0000 35 1 Pipe coupling
1270 0661 1000 25 2 Seal washer
1275 1614 9706 00 1 Hose nipple
1280 0070 6002 28 AR Plastic tube
1285 0347 6110 00 2 Hose clip
1290 1614 9876 00 1 Hose nipple
1295 0661 1000 31 1 Seal washer
1300 1614 9881 00 1 Bushing
Ref. Part number Qty Name Remarks
1310 0348 0102 06 4 Cable tie
1315 1079 9910 97 1 Label
1320 0581 0000 45 1 Pipe coupling
1325 0661 1000 25 1 Seal washer
1330 0070 6002 06 AR Plastic tube
1335 0581 0000 53 1 Pipe coupling
1340 0653 1124 00 1 Flat gasket
1345 0581 0000 86 1 Pipe coupling
1350 0852 0010 33 1 Ball valve
2005 1614 9351 00 1 Housing
2006 1613 7299 00 1 Strainer
2007 9125 6295 00 1 Seal washer
2008 1613 7297 00 1 Check valve
2010 1614 9352 00 1 Oil filter
2015 1614 9707 00 1 Cover
2020 0661 1000 25 1 Seal washer
2025 1614 9363 00 1 Pipe coupling
2030 1079 9913 69 1 Inform.label
2035 1079 9912 28 1 Information lab
2040 1079 9912 07 1 Information lab
2045 1079 9920 17 1 Information lab
2050 0686 3716 45 1 Hexagon plug
2055 0661 1000 27 1 Seal washer
2060 0686 3716 44 1 Hexagon plug
2065 0661 1000 25 1 Seal washer
3005 1614 9351 00 1 Housing
3006 1613 7299 00 1 Strainer
3007 9125 6295 00 1 Seal washer
3008 1613 7297 00 1 Check valve
3010 1614 9352 00 1 Oil filter
3015 1614 9707 00 1 Cover
3020 0661 1000 25 1 Seal washer
3025 1614 9363 00 1 Pipe coupling
3030 1079 9913 69 1 Inform.label
3035 1079 9912 28 1 Information lab
3040 1079 9912 07 1 Information lab
3045 1079 9920 17 1 Information lab
3050 0686 3716 45 1 Hexagon plug
3055 0661 1000 27 1 Seal washer
3060 0686 3716 44 1 Hexagon plug
3065 0661 1000 25 1 Seal washer
34 2930 1370 00
Parts list
15
62210_10
2930 1370 00 35
Parts list
Bodywork 15
Ref. Part number Qty Name Remarks
1010 1614 9502 80 2 Stay 1)
1015 1619 2766 00 4 Bolt
1020 1621 2129 80 1 Stay 1)
1025 1619 2766 00 3 Bolt
1030 1621 0426 80 4 Stay 1)
1079 9901 09 • 1 Label
1035 1619 2766 00 10 Bolt
1085 1621 2135 80 1 Stay 1)
1614 9592 80 8 Door 1)
2005 1614 9592 00 • 8 Door
2015 2252 7237 00 • 4 Doorlock
2020 1619 5188 00 • AR Seal
1614 9593 80 1 Door 1)
3005 1614 9593 00 • 1 Door
3015 2252 7237 00 • 4 Doorlock
3020 1619 5188 00 • AR Seal
1621 2131 80 2 Door 1)
4005 1621 2131 00 • 1 Door
4010 0690 1140 01 • 1 House mark
4015 2252 7237 00 • 5 Doorlock
4020 1619 5188 00 • AR Seal
4025 1613 1312 34 • 2 Strip
1621 2133 80 1 Door 1)
5005 1621 2133 00 • 1 Door
5015 2252 7237 00 • 2 Doorlock
6015 1079 1472 06 17 Bolt
Ref. Part number Qty Name Remarks
6025 1079 1472 06 10 Bolt
6030 1621 1473 80 1 Roof
6040 1079 1472 06 15 Bolt
6045 1621 1462 00 1 Support
1621 1468 80 1 Roof 2)
7005 1621 1468 00 • 1 Roof
7020 1613 1312 30 • 4 Strip
1621 1470 80 1 Roof 2)
8005 1621 1470 00 • 1 Roof
8020 1613 1312 30 • 4 Strip
1621 1476 80 1 Roof 1)
9005 1621 1476 00 • 1 Roof
9020 1613 1312 15 • 4 Strip
10295 1 Label
1614 9425 28 GA315 W
1614 9425 53 GA355 W
1614 9425 54 GA400 W
1614 9425 55 GA450 W
1614 9425 56 GA500 W
Lined with / Bekleed met / Beklädd med / Ausgekleidet mit /
Garnir de / Rivestido de / Allineato con / Foret med /
Revestido com / Kledd med / Vuorattu :
1) Foam : 0395 6001 69 (AR) 50 x 2040 x 1650 self-adhesive
2) Foam : 0395 6001 60 (AR) 50 x 2040 x 1650
36 2930 1370 00
Parts list
16
62223_12
2930 1370 00 37
Parts list
Cubicle 16
Ref. Part number Qty Name Remarks
1621 2272 80 1 Cubicle ass’y
1005 1621 2272 00 • 1 Cubicle
1010 1621 2273 00 • 1 Door
1015 1619 7704 00 • 1 Lock
1020 1614 9106 03 • 3 Pin
1025 1202 6584 00 • AR Seal
1035 1621 2357 00 • 1 Raceway
1040 0301 2335 00 • 5 Washer
1045 0277 1310 00 • 5 Cap nut
1050 1621 2358 00 • 1 Raceway
Ref. Part number Qty Name Remarks
1055 1079 9901 09 • 1 Label
2015 1619 2766 00 7 Bolt
2020 1079 1472 06 6 Bolt
2035 1089 9154 02 2 Key
2040 1621 0478 00 1 Label
2045 1088 1001 01 1 Warning mark
2080 1621 3192 00 1 Support
2085 1621 4089 00 1 Screen
2090 1614 6596 00 4 Knurled nut
2095 1088 1001 04 1 Warning mark
38 2930 1370 00
Parts list
17
62247_12
2930 1370 00 39
Parts list
Start cubicle - star/delta
- IEC - GA315 400-500V/50Hz, GA355 380V/60Hz, GA355 400-500V/50Hz,
GA400 460V/60Hz, GA400 500V/50Hz, GA450 500V/50Hz
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3147 15 GA315 400V/50Hz
1900 3147 14 GA315 500V/50Hz
1900 3147 50 GA355 380V/60Hz
1900 3147 15 GA355 400V/50Hz
1900 3147 14 GA355 500V/50Hz
1900 3147 50 GA400 460V/60Hz
1900 3147 50 GA400 500V/50Hz
1900 3147 50 GA450 500V/50Hz
1010 1079 9906 09 • 1 Label
1020 9823 1897 31 • 1 Label
1030 1613 6639 00 • 1 Data plate
1040 1079 9901 68 • 1 Label
1050 1089 0506 06 • 6 Terminal
1060 1088 0031 03 • 1 Connector
1070 1088 0031 10 • 1 Connector
1080 1088 0031 02 • 1 Connector
1090 1089 0506 27 • 7 Terminal
1100 1089 9398 11 • 31 Terminal
1110 1088 0031 49 • 1 Connector
1120 1088 0031 29 • 1 Connector
1130 1088 0031 30 • 1 Connector
1140 1088 0031 13 • 1 Connector
1150 1089 0612 25 • 2 Fuse
1160 1089 0612 01 • 2 Fuse holder
1170 1089 9446 23 • 1 Overload relay
17
Ref. Part number Qty Name Remarks
1180 1089 9203 11 • 1 Circuit breaker
1190 1089 9203 04 • 2 Circuit breaker
1200 1089 9203 10 • 1 Circuit breaker
1210 1089 9203 23 • 2 Circuit breaker
1220 1089 9415 17 • 1 Contactor
1230 • 2 Contactor
1089 9415 74 GA315 500V/50Hz, GA355
500V/50Hz
1089 9415 74 GA355 400V/50Hz, GA315
400V/50Hz
1089 9415 75 GA400-450 500V/50Hz,
GA355 380V/60Hz, GA400
460V/60Hz
1240 1089 9415 09 • 2 Contact block
1250 • 1 Contactor
1089 9415 78 GA315 500V/50Hz, GA355
500V/50Hz
1089 9415 79 GA355 400V/50Hz, GA315
400V/50Hz
1089 9415 80 GA400-450 500V/50Hz,
GA355 380V/60Hz, GA400
460V/60Hz
1260 1089 0362 51 • 1 Emergency stop button
1270 1089 0362 50 • 2 Contact block
1280 1089 9436 08 • 1 Trafo
1290 1089 9436 11 • 1 Trafo
1320 1621 4047 00 • 1 Mounting plate
40 2930 1370 00
Parts list
18
62249_12
2930 1370 00 41
Parts list
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3147 51 GA355 460V/60Hz
1900 3147 51 GA400 380V/60Hz
1900 3147 51 GA400 400V/50Hz
1900 3147 52 GA450 400V/50Hz
1900 3147 52 GA450 460V/60Hz
1010 1079 9906 09 • 1 Label
1020 9823 1897 31 • 1 Label
1030 1613 6639 00 • 1 Data plate
1040 1079 9901 68 • 1 Label
1050 1089 0506 06 • 6 Terminal
1060 1088 0031 03 • 1 Connector
1070 1088 0031 10 • 1 Connector
1080 1088 0031 02 • 1 Connector
1090 1089 0506 27 • 7 Terminal
1100 1089 9398 11 • 31 Terminal
1110 1088 0031 49 • 1 Connector
1120 1088 0031 29 • 1 Connector
1130 1088 0031 30 • 1 Connector
1140 1088 0031 13 • 1 Connector
1150 1089 0612 25 • 2 Fuse
1160 1089 0612 01 • 2 Fuse
1170 1089 9446 24 • 1 Overload relay
Start cubicle - star/delta 18
- IEC - GA355 460V/60Hz, GA400 380V/60Hz, GA400 400V/50Hz,
GA450 400V/50Hz, GA450 460V/60Hz
Ref. Part number Qty Name Remarks
1180 1089 9203 04 • 1 Circuit breaker
1190 1089 9203 04 • 2 Circuit breaker
1200 1089 9203 10 • 1 Circuit breaker
1210 1089 9203 23 • 2 Circuit breaker
1220 1089 9415 17 • 1 Contactor
1230 • 2 Contactor
1089 9221 13 GA355 460V/60Hz, GA400
380V/60Hz, GA400 400V/
50Hz
1089 9221 15 GA450 400V/50Hz, GA450
460V/60Hz
1240 • 1 Contactor
1089 9415 74 GA355 460V/60Hz, GA400
380V/60Hz, GA400 400V/
50Hz
1089 9415 75 GA450 400V/50Hz, GA450
460V/60Hz
1250 1089 0362 51 • 1 Emergency stop button
1260 1089 0362 50 • 2 Contact block
1270 1089 9436 09 • 1 Trafo
1280 1089 9436 11 • 1 Trafo
1310 1621 4049 00 • 1 Mounting plate
42 2930 1370 00
Parts list
19
62248_12
2930 1370 00 43
Parts list
Ref. Part number Qty Name Remarks
1900 3148 18 GA355 460V/60Hz
1900 3148 16 GA355 575V/60Hz
1900 3148 18 GA400 460V/60Hz
1900 3148 17 GA400 575V/60Hz
1900 3148 18 GA450 575V/60Hz
1010 1079 9906 09 • 1 Label
1020 9823 1897 31 • 1 Label
1030 1614 8949 00 • 1 Data plate
1040 1079 9901 68 • 1 Label
1050 1079 9911 01 • 1 Label type 1
1060 1079 9922 70 • 1 Fuse label
1070 1089 0506 06 • 6 Terminal
1080 1088 0031 03 • 1 Connector
1090 1088 0031 10 • 1 Connector
1100 1088 0031 02 • 1 Connector
1110 1089 0506 27 • 7 Terminal
1120 1089 9398 11 • 31 Terminal
1130 1088 0031 49 • 1 Connector
1140 1088 0031 29 • 1 Connector
1150 1088 0031 30 • 1 Connector
1160 1088 0031 13 • 1 Connector
1170 1089 9168 26 • 2 Connector
1180 1089 0612 01 • 2 Connector
1190 1089 9446 23 • 1 Overload relay
1200 1089 9203 38 • 1 Circuit breaker
1210 1089 9203 36 • 2 Circuit breaker
Ref. Part number Qty Name Remarks
1220 1089 9203 34 • 1 Circuit breaker
1230 1089 9203 31 • 2 Circuit breaker
1240 1089 9415 17 • 1 Contactor
1250 • 2 Contactor
1089 9415 83 GA355 575V/60Hz
1089 9415 77 GA355-400 460V/60Hz,
GA450 575V/60Hz
1089 9415 76 GA400 575V/60Hz
1260 1089 9415 09 • 2 Contact block
1270 • 1 Contactor
1089 9415 62 GA355 575V/60Hz
1089 9415 82 GA355-400 460V/60Hz,
GA450 575V/60Hz
1089 9415 63 GA400 575V/60Hz
1280 1089 9415 91 • 1 Mechanical interlock
1290 1089 0362 51 • 1 Emergency stop button
1300 1089 0362 50 • 2 Contact block
1310 • 1 Trafo
1089 9436 07 GA355 575V/60Hz
1089 9436 08 GA355-400 460V/60Hz ,
GA450 575V/60Hz
1089 9436 08 GA400 575V/60Hz
1320 1089 9436 11 • 1 Trafo
1350 1621 4047 00 • 1 Mounting plate
Start cubicle - star/delta 19
- CSA/UL - GA355 460-575V/60Hz, GA400 460-575V/60Hz,
GA450 575V/60Hz
44 2930 1370 00
Parts list
20
62250_12
2930 1370 00 45
Parts list
Start cubicle - star/delta - CSA/UL - GA450 460V/60Hz 20
Ref. Part number Qty Name Remarks
1900 3148 20 1 Cubicle
1010 1079 9906 09 • 1 Label
1020 9823 1897 31 • 1 Label
1030 1614 8949 00 • 1 Data plate
1040 1079 9901 68 • 1 Label
1050 1079 9911 01 • 1 Label type 1
1060 1079 9922 98 • 1 Fuse label
1070 1089 0506 03 • 6 Terminal
1080 1088 0031 03 • 1 Connector
1090 1088 0031 10 • 1 Connector
1100 1088 0031 02 • 1 Connector
1110 1089 0506 27 • 7 Terminal
1120 1089 9398 11 • 31 Terminal
1130 1088 0031 49 • 1 Connector
1140 1088 0031 29 • 1 Connector
1150 1088 0031 30 • 1 Connector
1160 1088 0031 13 • 1 Connector
Ref. Part number Qty Name Remarks
1170 1089 9168 41 • 2 Fuse
1180 1089 0612 01 • 2 Fuse holder
1190 1089 9446 24 • 1 Overload relay
1200 1089 9203 39 • 1 Circuit breaker
1210 1089 9203 36 • 2 Circuit breaker
1220 1089 9203 34 • 1 Circuit breaker
1230 1089 9203 31 • 2 Circuit breaker
1240 1089 9415 17 • 1 Contactor
1250 1089 9221 39 • 2 Contactor
1260 1089 9221 40 • 1 Contactor
1270 1089 9216 08 • 1 Interlock
1280 1089 0362 51 • 1 Emergency stop button
1290 1089 0362 50 • 2 Contact block
1300 1089 9436 10 • 1 Trafo
1310 1089 9436 11 • 1 Trafo
1340 1621 4049 00 • 1 Mounting plate
46 2930 1370 00
Parts list
21
62251_12
2930 1370 00 47
Parts list
Ref. Part number Qty Name Remarks
1 Cubicle
1900 3147 01 3kV/50Hz IEC
1900 3147 01 3.3kV/50Hz IEC
1900 3147 01 6kV/50Hz IEC
1900 3147 01 6.6kV/50Hz IEC
1900 3147 01 Without motor
1900 3148 01 2.3kV/60Hz CSA/UL
1900 3148 01 3.3kV/60Hz CSA/UL
1900 3148 01 4.16kV/60Hz CSA/UL
1900 3148 01 6.6kV/60Hz CSA/UL
1900 3148 01 Without motor
1010 1079 9906 09 • 1 Label
1020 9823 1897 32 • 1 Label
1030 1613 6639 00 • 1 Data plate
1040 1079 9901 68 • 1 Label
1042 • 1 Label type 1
1079 9911 01 CSA/UL
1044 • 1 Fuse label
1079 9922 74 CSA/UL
1050 1089 0506 06 • 6 Terminal
1060 1088 0031 03 • 1 Connector
1070 1088 0031 10 • 1 Connector
1080 1088 0031 02 • 1 Connector
1090 1089 0506 27 • 7 Terminal
1100 1089 9398 11 • 31 Terminal
1110 1088 0031 49 • 1 Connector
1120 1088 0031 29 • 1 Connector
1130 1088 0031 30 • 1 Connector
1140 1088 0031 13 • 1 Connector
Start cubicle - without starter 21
- Without motor - 3-3.3-6-6.6kV/50Hz IEC,
2.3 -3.3-4.16-6.6kV/60Hz CSA/UL
Ref. Part number Qty Name Remarks
1150 • 2 Fuse
1089 0612 25 50Hz IEC
1089 9168 27 60Hz CSA/UL
1160 1089 0612 01 • 2 Fuse holder
1170 • 1 Circuit breaker
1089 9203 11 50Hz IEC
1089 9203 38 60Hz CSA/UL
1180 • 2 Circuit breaker
1089 9203 04 50Hz IEC
1089 9203 36 60Hz CSA/UL
1190 • 1 Circuit breaker
1089 9203 10 50Hz IEC
1089 9203 34 60Hz CSA/UL
200 • 2 Circuit breaker
1089 9203 23 50Hz IEC
1089 9203 31 60Hz CSA/UL
1210 1089 9415 17 • 1 Contactor
1220 1089 9415 02 • 1 Contact block
1230 • 1 Relay
1089 9438 02 50Hz IEC
1089 9438 03 60Hz CSA/UL
1240 1089 0362 51 • 1 Emergency stop button
1250 1089 0362 50 • 2 Contact block
1260 • 1 Trafo
1089 9436 07 50Hz IEC
1089 9436 08 60Hz CSA/UL
1270 1089 9436 11 • 1 Trafo
1300 1621 4047 00 • 1 Mounting plate
48 2930 1370 00
Parts list
Notes:
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Atlas Copco Stationary Air Compressors
GA315 - GA355 - GA400 - GA450 - GA500
Parts list
No. 2930 1370 00 / DC 2004-01
What sets Atlas Copco apart as a company is our
conviction that we can only excel in what we do if we
provide the best possible know-how and technology to
really help our customers produce, grow and succeed.
There is a unique way of achieving that - we simply
call it the Atlas Copco way. It builds on interaction, on
long-term relationships and involvement in the customers’
process, needs and objectives. It means having the
flexibility to adapt to the diverse demands of the people
we cater for.
It’s the commitment to our customers’ business that
drives our effort towards increasing their productivity
through better solutions. It starts with fully supporting
existing products and continuously doing things better, but
it goes
(1621149100)
SKU | 1621149100 |
Brand | Atlas Copco |
Shipping Weight | 64.0000kg |
Be The First To Review This Product!
Help other Screw Compressor Spares users shop smarter by writing reviews for products you have purchased.
