1621054700 Atlas Copco Replacement Air filter
1621054700

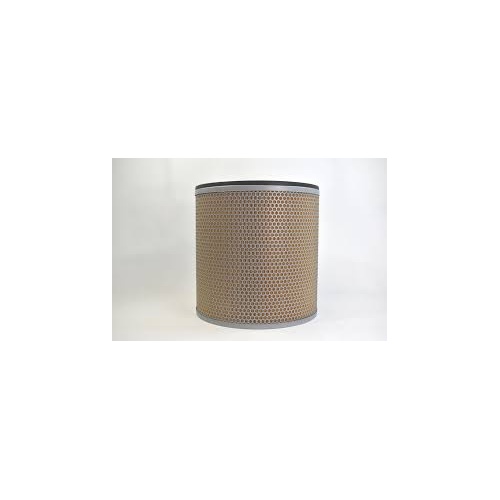

1621054700 Atlas Copco Replacement Air filter.
Note, this is per filter (one). Large compressors may have multiple filters installed. Please ensure you select corrct quantity, based on machine specifications.
.png)
- HIFI-FILTER SA10939 replacement filters
- AGCO 1495490M91
- AIR-PN A1F037
- AIR-TEC SP120001
- AIRFIL AFA577
- AIRPUR F4645A
- alco MD716
- ALDAIR AE60898
- ALUP 17200322
- ATLAS-COPCO 1030097900
- ATLAS-COPCO 1030097999
- ATLAS-COPCO 1614936700
- ATLAS-COPCO 1619378400
- ATLAS-COPCO 1621054700
- ATLAS-COPCO 1621054799
- ATLAS-COPCO 1621574199
- ATLAS-COPCO 1621574200
- ATLAS-COPCO 1621574299
- ATLAS-COPCO 1630040699
- ATLAS-COPCO 1635040600
- ATLAS-COPCO 2906020000
- ATLAS-COPCO 1030 0979 00
- ATLAS-COPCO 1030 0979 99
- ATLAS-COPCO 1614 9367 00
- ATLAS-COPCO 1619 3784 00
- ATLAS-COPCO 1621 0547 00
- ATLAS-COPCO 1621 0547 99
- ATLAS-COPCO 1621 5741 99
- ATLAS-COPCO 1621 5742 00
- ATLAS-COPCO 1621 5742 99
- ATLAS-COPCO 1630 0406 99
- ATLAS-COPCO 1635 0406 00
- ATLAS-COPCO 2906 0200 00
- BALDWIN PA16302
- BALDWIN PA1706
- BECKER 909520
- BECKER 90952000000
- CARQUEST 87130
- CLARK-FILTER 1420020LR
- CLARK-FILTER 1420029LR
- COMPAIR 1262A01570
- COOPERS AZA030T
- DEMAG 1262A01570
- DONALDSON P181031
- DONALDSON P500928
- DONALDSON P771526
- DONALDSON P772526
- FIAAM FLI6583
- FIAAM FLI6584
- FIAAM FLI6854
- FIAT 4379069
- FIAT 4379238
- FIAT 74055695
- FIAT 74379069
- FIAT 74379238
- FIAT 74388647
- FILTO K2163
- FLEETGUARD AF989
- Fram CA2701
- GARDNER DENVER 85067179
- GPC FC758
- HASTINGS AF203
- IMPREFIL IA8742
- INGERSOLL-RAND 50245950
- INGERSOLL-RAND 50249550
- INGERSOLL-RAND 50335124
- INGERSOLL-RAND 9095100800
- MANN 4584055104
- MANN C368401
- MANN C368403
- MISFAT R789
- NOITECH NA003760
- NOITECH NK000108
- OXFIL AF4008
- PERMATIC FA3270
- PURFLUX A790
- PUROLATOR A67482
- SDMO 330560175
- SF-FILTER SL8578
- SIBILIA 02000016
- STEP-FILTERS AE60898
- TAMROTOR NT0548
- TECNOCAR A999
- UFI 2778900
- UNICO AE343481
- UNIFLUX XA1259
- UNIFLUX XA1260
- VIRGIS 8001226100
- VIRGIS CH12261
- WATSUN-FILTERS K840
- WISMET WAI1315
- WISMET WAI40907
Atlas Copco Stationary Air Compressors
No. 2930 1370 03
Registration code : APC GA 90 / 39
Replaces No. 2930 1370 02
2013-01
GA 315, GA 355, GA 400, GA 450, GA 500
GA 315 W, GA 355 W, GA 400 W, GA 450 W,
GA 500 W
Parts list
Copyright 2013, Atlas Copco Airpower n.v., Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and
drawings.
Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.
www.atlascopco.com
From following serial No. onwards:
APF 178 175
2
Parts list
2930 1370 03
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Drive arrangement
Aandrijfuitvoering
Drivarrangemang
Antriebsanordnung
Dispositif dentraînement
Disposición de accionamiento
Disposizione di azionamento
Arrangement
Disposição de accionamento
Drivarrangement
Rakenne ............................................................................. 1
Unloading valve
Ontlastventiel
Avlastningsventil
Entlastungsventil
Soupape de décharge
Válvula de descarga
Valvola di messa a vuoto
Aflastningsventil
Válvula de descarga
Avlastningsventil
Kevennysventtiili .............................................................. 2

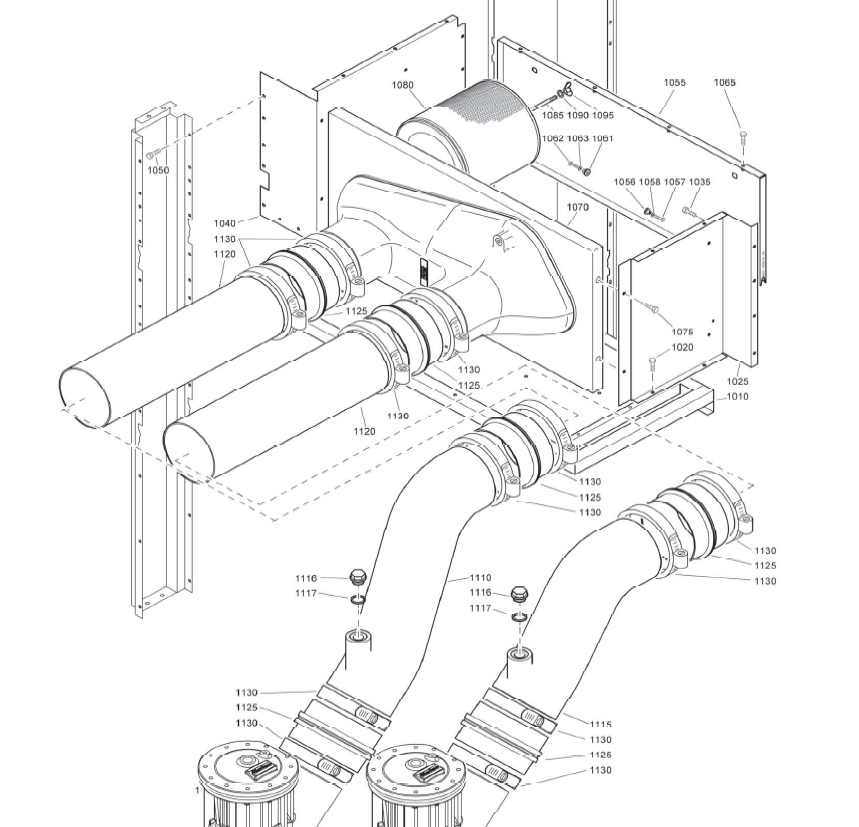

Air inlet
Luchtinlaat
Luftintag
Lufteinlaß
Admission dair
Entrada de aire
Presa daria
Luftindsug
Admissão de ar
Luftinnløp
Tuloilma
- Basic ................................................................................ 3
- Heavy duty filter .............................................................. 4
Air receiver
Luchtketel
Luftbehållare
Luftbehälter
Réservoir dair
Depósito de aire
Serbatoio dellaria
Luftbeholder
Reservatório de ar
Luftbeholder
Ilmasäiliö ............................................................................ 5
Air flow
Luchtstroming
Luftflöde
Luftstrom
Flux dair
Flujo de aire
Flusso daria
Luftflow
Fluxo de ar
Luftstrøm
Ilman virtaus
- GA (A) .............................................................................. 6
- GA (W) ............................................................................. 7
Air outlet
Luchtuitlaat
Luftutlopp
Luftauslaß
Sortie dair
Salida de aire
Mandata dellaria
Luftafgang
Saida de ar
Luftutløp
Paineilmaputki
- GA (A) .............................................................................. 8
- GA (W) ............................................................................. 9
Oil system
Oliesysteem
Oljesystem
Ölsystem
Système dhuile
Sistema de aceite
Sistema dellolio
Oliesystem
Sistema de óleo
Oljesystem
Voitelujärjestelmä ........................................................... 10
Cooler(s)
Koeler(s)
Kylare
Kühler
Refroidisseur(s)
Refrigerador(es)
Refrigeratore(i)
Kølere
Refrigerador(es)
Kjøler(e)
Jäähdyttimet
- GA (A) ...........................................................................11
- GA (A) - Fan and cooling duct plates .......................... 12
- GA (W) - Plate coolers ................................................. 13
- GA (W) - Tube coolers ................................................ 14
Water system
Watersysteem
Vattensystem
Wassersystem
Système deau
Sistema de agua
Sistema dellacqua
3
Parts list
2930 1370 03
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Vandsystem
Sistema de água
Vannsystem
Vesijärjestelmä
- Plate coolers ................................................................ 15
- Tube coolers ................................................................ 16
Energy recovery system
Energierecuperatiesysteem
Energiåtervinningssystem
Energierückgewinnungssystem
Système de récupération dénergie
Sistema de recuperación de energía
Sistema di recupero energia
Energigenvinding
Sistema de recuperação de energia
Energigjenvinningssystem
Energian talteenottojärjestelmä
- GA (W) ......................................................................... 17
Frame and motor
Frame en motor
Ram och Motor
Rahmen und
Châssis et motor
Bastidor y motor
Telaio e motore elettrico
Ramme og motor
Base e motor
Ramme og Motor
Runko ja Moottori
- (A) GA 315 ................................................................... 18
- (A) GA 355 ................................................................... 19
- (A) GA 400 ................................................................... 20
- (A) GA 450 ................................................................... 21
- (A) GA 500 ................................................................... 22
- (W) 315 ........................................................................ 23
- (W) GA 355 .................................................................. 24
- (W) GA 400 .................................................................. 25
- (W) 450 ........................................................................ 26
- (W) GA 500 .................................................................. 27
Regulating system
Regelsysteem
Reglersystem
Regelsystem
Système de régulation
Sistema de regulación
Sistema di regolazione
Reguleringssystem
Sistema de regulação
Reguleringssystem
Säätöjärjestelmä
- GA (A) .......................................................................... 28
- GA (W) ......................................................................... 29
Drain system
Aftapsysteem
Avtappningssystem
Ablaßsystem
Système de vidange
Sistema de drenaje
Sistema di scarico
Drænsystem
Sistema de drenagem de condensados
Avtappingssystem
Lauhteenpoistojärjestelmä
- Basic drain ................................................................... 30
- Electronic Drain system ............................................... 31
- Oil Separator Condensate drain ................................... 32
Bodywork
Carrosserie
Karosseri
Karosserie
Capotage
Carrocería
Cappottatura
Karosseri
Carroceria
Kabinett
Kotelo
- GA (A) .......................................................................... 33
- GA (W) ......................................................................... 34
- Motor extension IP55 medium voltage ........................ 35
- Motor baffles ............................................................... 36
- Cubicle box .................................................................. 37
Cubicle(s)
Kast(en)
Skåp
Schaltschrank(en)
Armoire(s)
Armario
Armadio elettrico
Elskab
Quadro
Skap
Kotelo ............................................................................ 38
4
Parts list
2930 1370 03
1
63131_01
5
Parts list
2930 1370 03
Drive Arrangement 1
Ref. Part number Qty Name Remarks
Compr element
GA 315
GA 355
GA 400
GA 450
GA 500
Without SPM
1005 1616 7540 80 1 Stage
1010 1619 6032 00 5 Nipple
1030 0661 1000 30 1 Seal washer
1040 0686 3716 07 1 Plug
1050 0661 1000 29 1 Seal washer
1060 0686 3716 35 1 Plug
Without SPM
1005 1616 7540 80 1 Stage
1010 1619 6032 00 4 Nipple
1030 0661 1000 30 1 Seal washer
1040 0686 3716 07 1 Plug
1050 0661 1000 29 1 Seal washer
1060 0686 3716 35 1 Plug
With SPM monitoring
equipment
1005 1616 7540 80 1 Stage
1030 0661 1000 30 1 Seal washer
1040 0686 3716 07 1 Plug
1050 0661 1000 29 1 Seal washer
1060 0686 3716 35 1 Plug
Gear casing
GA 315
Siemens motor
Without main motor IEC FF
840-flange
GA 355
60 Hz Siemens motor IP 55
MV
Weg motor
ABB_M3BP
Weg motor IP 23
ABB_M3BP IP 23
Siemens motor IP 23
Without main motor IEC FF
840-flange
GA 400
Weg motor
ABB_M3BP motor
Weg motor IP 23
ABB_M3BP IP 23
Siemens motor IP 23
Without main motor IEC FF
840-flange
GA 500
Weg motor IP 23
ABB_M3BP IP 23
Siemens motor IP 23
Siemens motor IP 55
Without main motor IEC FF
840-flange
2005 1621 2118 00 1 Gearbox
2007 1621 2202 00 1 Bushing
2009 1621 2207 00 1 Bushing
2010 0663 2106 16 1 O-ring
2012 1621 2121 00 2 Spacer
2013 1614 9100 00 2 Washer
2014 0211 1409 00 6 Cap screw
Ref. Part number Qty Name Remarks
2025 0101 1626 00 4 Pin
2030 0663 2111 65 2 O-ring
2032 0663 2106 10 3 O-ring
2034 0147 1964 28 2 Hex.bolt
2035 0147 1963 88 28 Bolt
2040 1621 2122 00 1 Drive shaft
2045 0506 0100 15 1 Bearing
2050 0211 1480 00 10 Cap screw
2055 0506 0100 16 1 Bearing
2060 1621 1303 00 1 Cover
2061 1621 4835 00 1 Seal
2065 0663 2107 24 1 O-ring
2070 0147 1364 03 4 Bolt
2075 1621 7416 00 1 Bushing
2076 0663 2106 16 1 O-ring
2078 1621 9915 00 1 Ring
2085 1621 1302 00 1 Bearing housing
2090 0663 2109 74 1 O-ring
2095 0147 1364 03 8 Bolt
2105 0337 0009 46 2 Parallel key
2120 1079 5840 15 1 Nipple
2125 0661 1000 27 1 Seal washer
2126 0574 8235 32 1 Hose assembly
2127 0346 1002 10 1 Pipe clamp
2128 0147 1325 03 1 Bolt
2129 0266 2110 00 1 Hexagon nut m8
2130 0301 2335 00 1 Plain washer
2131 1614 9252 00 1 Plug
2135 1621 2620 00 1 Pipe
2136 0663 2107 82 1 O-ring
2140 0147 1332 03 2 Bolt
2160 0580 0014 66 2 Pipe coupling
2165 1621 2127 00 1 Pipe
2170 1623 2877 00 1 Cover
2175 1623 3154 00 1 Gasket
2180 0211 1328 00 11 Cap screw
2185 0301 2335 00 11 Plain washer
2190 1621 4845 00 1 Seal
GA 315
Without main motor IEC FF
940-flange
GA 355
50 Hz Siemens motor IP 55
MV
Without main motor IEC FF
940-flange
GA 400
Siemens motor IP 55 MV
Without main motor IEC FF
940-flange
GA 450
Siemens motor IP 55 MV
Without main motor IEC FF
940-flange
GA 500
Siemens motor IP 55 MV
Without main motor IEC FF
940-flange
2005 1621 2118 01 1 Gearbox
2015 1621 2119 00 1 Adapter
2020 0147 1557 03 8 Bolt
2007 1621 2202 00 1 Bushing
2009 1621 2207 00 1 Bushing
2010 0663 2106 16 1 O-ring
6
Parts list
2930 1370 03
1
63131_01
7
Parts list
2930 1370 03
Drive Arrangement 1
Ref. Part number Qty Name Remarks
2012 1621 2121 00 2 Spacer
2013 1614 9100 00 2 Washer
2014 0211 1409 00 6 Cap screw
2025 0101 1626 00 4 Pin
2030 0663 2111 65 2 O-ring
2032 0663 2106 10 3 O-ring
2034 0147 1964 28 2 Hex.bolt
2035 0147 1963 88 28 Bolt
2040 1621 2122 00 1 Drive shaft
2045 0506 0100 15 1 Bearing
2050 0211 1480 00 10 Cap screw
2055 0506 0100 16 1 Bearing
2060 1621 1303 00 1 Cover
2061 1621 4835 00 1 Seal
2065 0663 2107 24 1 O-ring
2070 0147 1364 03 4 Bolt
2075 1621 7416 00 1 Bushing
2076 0663 2106 16 1 O-ring
2078 1621 9915 00 1 Ring
2085 1621 1302 00 1 Bearing housing
2090 0663 2109 74 1 O-ring
2095 0147 1364 03 8 Bolt
2105 0337 0009 46 2 Parallel key
2120 1079 5840 15 1 Nipple
2125 0301 2335 00 1 Plain washer
2126 1614 9252 00 1 Plug
2127 0661 1000 27 1 Seal washer
2128 0574 8235 32 1 Hose assembly
2129 0346 1002 10 1 Pipe clamp
2130 0147 1325 03 1 Bolt
2131 0266 2110 00 1 Hexagon nut
2135 1621 2620 00 1 Pipe
2136 0663 2107 82 1 O-ring
2140 0147 1332 03 2 Bolt
2160 0580 0014 66 2 Pipe coupling
2165 1621 2127 00 1 Pipe
2170 1623 2877 00 1 Cover
2175 1623 3154 00 1 Gasket
2180 0211 1328 00 11 Cap screw
2185 0301 2335 00 11 Plain washer
2190 1621 4845 00 1 Seal
Coupling
GA 315
GA 355
GA 400
GA 450
GA 500
ABB_M3BP
3010 1621 1442 00 1 Coupling
3015 0337 0009 54 1 Parallel key
3020 1621 1443 00 1 Coupling
Weg motor
3010 1621 1444 00 1 Coupling
3015 0337 0009 54 1 Parallel key
3020 1621 1443 00 1 Coupling
Without main motor
3010 1621 1445 00 1 Coupling
3015 0337 0009 54 1 Parallel key
3020 1621 1443 00 1 Coupling
50 Hz Siemens motor IP 55
MV
Siemens motor IP 23
3010 1621 1446 00 1 Coupling
Ref. Part number Qty Name Remarks
3015 0337 0009 54 1 Parallel key
3020 1621 1443 00 1 Coupling
GA 500
Siemens motor IP 55 MV
3010 1621 2204 00 1 Coupling
3015 0337 0009 54 1 Parallel key
3020 1621 2203 00 1 Coupling
Without main motor
3010 1621 2205 00 1 Coupling
3015 0337 0009 54 1 Parallel key
3020 1621 2203 00 1 Coupling
Siemens motor IP 23
3010 1621 2247 00 1 Coupling
3015 0337 0009 54 1 Parallel key
3020 1621 2203 00 1 Coupling
Gears
GA 315
7.5 bar
4005 1621 2417 00 1 Gear wheel
4010 1621 2418 00 2 Gear wheel
8.5 bar
4005 1621 2413 00 1 Gear wheel
4010 1621 2414 00 2 Gear wheel
10 bar
4005 1621 2409 00 1 Gear wheel
4010 1621 2410 00 2 Gear wheel
13 bar
4005 1621 2398 00 1 Gear wheel
4010 1621 2399 00 2 Gear wheel
GA 355
6.9 bar
4005 1621 2411 00 1 Gear wheel
4010 1621 2412 00 2 Gear wheel
7.5 bar
4005 1621 2425 00 1 Gear wheel
4010 1621 2426 00 2 Gear wheel
8.5 bar
4005 1621 2421 00 1 Gear wheel
4010 1621 2422 00 2 Gear wheel
8.6 bar
4005 1621 2407 00 1 Gear wheel
4010 1621 2408 00 2 Gear wheel
10 bar
4005 1621 2415 00 1 Gear wheel
4010 1621 2416 00 2 Gear wheel
10.4 bar
4005 1621 2403 00 1 Gear wheel
4010 1621 2404 00 2 Gear wheel
13 bar
4005 1621 2405 00 1 Gear wheel
4010 1621 2406 00 2 Gear wheel
13.8 bar
4005 1621 2396 00 1 Gear wheel
4010 1621 2397 00 2 Gear wheel
GA 400
6.9 bar
4005 1621 2419 00 1 Gear wheel
4010 1621 2420 00 2 Gear wheel
7.5 bar
4005 1621 2435 00 1 Gear wheel
4010 1621 2434 00 2 Gear wheel
8.5 bar
4005 1621 2429 00 1 Gear wheel
8
Parts list
2930 1370 03
1
63131_01
9
Parts list
2930 1370 03
Drive Arrangement 1
Ref. Part number Qty Name Remarks
4010 1621 2430 00 2 Gear wheel
8.6 bar
4005 1621 2413 00 1 Gear wheel
4010 1621 2414 00 2 Gear wheel
10 bar
4005 1621 2423 00 1 Gear wheel
4010 1621 2424 00 2 Gear wheel
10.4 bar
4005 1621 2407 00 1 Gear wheel
4010 1621 2408 00 2 Gear wheel
13 bar
4005 1621 2411 00 1 Gear wheel
4010 1621 2412 00 2 Gear wheel
13.8 bar
4005 1621 2400 00 1 Gear wheel
4010 1621 2401 00 2 Gear wheel
GA 450
6.9 bar
4005 1621 2429 00 1 Gear wheel
4010 1621 2430 00 2 Gear wheel
7.5 bar
4005 1621 2440 00 1 Gear wheel
4010 1621 2441 00 2 Gear wheel
8.5 bar
4005 1621 2436 00 1 Gear wheel
4010 1621 2437 00 2 Gear wheel
8.6 bar
4005 1621 2423 00 1 Gear wheel
4010 1621 2424 00 2 Gear wheel
10 bar
4005 1621 2432 00 1 Gear wheel
Ref. Part number Qty Name Remarks
4010 1621 2433 00 2 Gear wheel
10.4 bar
4005 1621 2419 00 1 Gear wheel
4010 1621 2420 00 2 Gear wheel
13 bar
4005 1621 2421 00 1 Gear wheel
4010 1621 2422 00 2 Gear wheel
13.8 bar
4005 1621 2409 00 1 Gear wheel
4010 1621 2410 00 2 Gear wheel
GA 500
7.5 bar
4005 1621 2444 00 1 Gear wheel
4010 1621 2445 00 2 Gear wheel
8.5 bar
4005 1621 2442 00 1 Gear wheel
4010 1621 2443 00 2 Gear wheel
8.6 bar
4005 1621 2435 00 1 Gear wheel
4010 1621 2434 00 2 Gear wheel
10 bar
6.9 bar
4005 1621 2438 00 1 Gear wheel
4010 1621 2439 00 2 Gear wheel
13 bar
10.4 bar
4005 1621 2428 00 1 Gear wheel
4010 1621 2427 00 2 Gear wheel
13.8 bar
4005 1621 2419 00 1 Gear wheel
4010 1621 2420 00 2 Gear wheel
10
Parts list
2930 1370 03
2
72896
11
Parts list
2930 1370 03
Unloader Valve 2
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
1621 1299 81 1 Unloader assy
1005 1621 1299 00 1 Valve housing
1010 1621 2221 00 1 Seal
1015 1621 2222 00 1 Bearing
1020 1621 4208 00 1 Piston
1025 1621 4209 00 1 Piston rod
1030 1621 2225 00 1 Seal
1035 1621 2226 00 1 Seal
1040 1621 2227 00 1 Bearing
1045 1621 2635 00 1 Nozzle
1050 1621 5973 00 1 Valve
Ref. Part number Qty Name Remarks
1060 0661 1000 31 1 Seal washer
1065 1621 2631 00 1 Valve cover
1070 0663 2103 22 1 O-ring
1075 0301 2358 00 12 Washer
1080 0147 1403 03 12 Bolt
1085 1079 5840 03 1 Nipple
1090 0661 1000 26 1 Seal washer
2010 0663 2103 22 1 O-ring
2015 0147 1480 03 6 Hex. head screw
2020 0301 2378 00 6 Washer
2025 1079 5840 03 1 Nipple
2030 0661 1000 26 1 Seal washer
2035 0574 8234 31 1 Hose assembly
2040 0663 2111 54 3 O-ring
2045 0211 1251 03 4 Bolt
12
Parts list
2930 1370 03
3
63140_02
13
Parts list
2930 1370 03
Air inlet - Basic 3
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
Without Heavy Duty Filter
1010 1621 1455 80 1 Baffle Assy
1 Baffle
1020 1079 1472 06 5 Bolt
1025 1621 1457 80 1 Baffle Assy
1 Baffle
1035 1079 1472 06 6 Bolt
1040 1621 1458 80 1 Baffle Assy
0298 1000 25 16 Blind rivet nut
1050 1079 1472 06 16 Bolt
1055 1621 1459 80 1 Baffle Assy
1 Baffle
2252 7237 00 2 Doorlock
1056 2255 2148 00 2 Stud
1057 0147 1244 03 2 Bolt
Ref. Part number Qty Name Remarks
1058 0301 2321 00 2 Washer
1061 2255 2148 00 2 Stud
1062 0147 1244 03 2 Bolt
1063 0301 2321 00 2 Washer
1065 1079 1472 06 4 Bolt
1070 1621 1461 00 1 Collector
1075 1079 1472 06 12 Bolt
1076 0301 2335 00 4 Plain washer
1077 0266 2110 00 4 Hexagon nut
1080 1621 5742 00 3 Filter element
1085 0248 9979 08 3 Threaded rod
1090 0301 2344 00 3 Washer
1095 0296 1111 02 3 Wing nut
1110 1621 1463 00 1 Pipe
1115 1621 1464 00 1 Pipe
1116 0686 4209 00 2 Plug
1117 0661 1000 31 2 Seal washer
1120 1621 1465 00 2 Pipe
1125 1621 1466 00 6 Hump hose
1130 0347 6100 50 12 Hose clamp
14
Parts list
2930 1370 03
4
63249_s0e2lf-adhesive
15
Parts list
2930 1370 03
Air inlet - HDF 4
Ref. Part number Qty Name Remarks
1055 0347 6100 51 3 Hose clamp
1060 0347 6100 47 3 Hose clamp
1065 1614 9368 00 3 Clamp
1070 0147 1328 03 6 Bolt
1075 1621 2236 00 1 Support
1080 1079 1472 06 2 Bolt
1085 1621 1463 00 1 Pipe
1090 1621 1464 00 1 Pipe
1095 1621 1465 00 2 Pipe
1105 1621 1466 00 6 Hump hose
1115 0347 6100 50 12 Hose clamp
1120 1619 6449 00 AR Seal
1-2) Lined with / Bekleed met / Beklädd med /
Ausgekleidet mit / Garnir de / Rivestido de /
Allineato
con / Foret med / Revestido com / Kledd med /
Vuorattu :
1) Foam : 0395 6004 94 (AR) 720 X 110 X 50 TYPE 2
2) Foam : 0395 6004 40 (AR) 600 X 335 X 25 - TYPE 2
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
With Heavy duty air inlet
filter
1005 1621 1455 80 1 Baffle 1)
1 Baffle
1010 1079 1472 06 5 Bolt
1015 1621 1457 80 1 Baffle 2)
1 Baffle
1020 1079 1472 06 6 Bolt
1025 1621 1458 80 1 Baffle 2)
1 Baffle
1030 1079 1472 06 16 Bolt
1035 1621 1461 00 1 Collector
1040 1079 1472 06 12 Bolt
1041 0301 2335 00 4 Plain washer
1042 0266 2110 00 4 Hexagon nut
1045 1614 9367 00 3 Air filter
1050 1621 2235 00 3 Hump hose
16
Parts list
2930 1370 03
5
73797
17
Parts list
2930 1370 03
Air Receiver 5
Ref. Part number Qty Name Remarks
1015 0663 2109 45 1 O-ring
1020 0663 2109 45 1 O-ring
1025 1614 9089 00 1 Pivot pin
1030 0301 2394 00 12 Washer
1035 0147 1106 15 12 Bolt
1611 6413 60 2 Vessel assy
2005 1614 9541 00 3 Spacer
2010 1623 5777 00 3 Buffer
2015 0333 3232 00 3 Lock washer
2020 0211 1364 03 3 Cap screw
2025 0661 1000 31 3 Seal washer
2035 0663 2106 58 1 O-ring
2040 0147 1365 03 6 Bolt
2045 0211 1418 00 3 Cap screw
2050 0301 2358 00 3 Washer
2060 1621 9374 00 1 Shield
2062 0663 2109 45 1 O-ring
2065 1614 9520 00 1 Bushing
2070 1621 9386 00 1 Oil sep.element
2075 0147 1479 03 1 Bolt
2080 1614 9184 00 1 Level gauge
2085 0661 1038 00 1 Sealing washer
2090 1619 6249 00 1 Nipple
2095 1621 9144 00 1 Hose assembly
2100 1614 9146 00 1 Plug
2105 0661 1000 29 1 Seal washer
2110 1614 9525 00 1 Suction pipe
1614 9523 80 2 Min.press.valve
3020 1621 4952 00 1 Piston
3025 1619 6199 00 1 Sealring
3030 1623 2037 00 1 Shaft
3035 1614 7279 00 1 Washer
3040 1621 4326 00 1 Ring
3045 1621 4325 00 1 Nut
3050 9125 7289 00 1 Set screw
3055 1614 7280 00 1 Compr.spring
3060 1614 9523 00 1 Cover
3065 0147 1958 97 2 Bolt
3066 0301 2335 00 2 Plain washer
3070 1614 9524 00 1 Sleeve
Safety valve
GA 315
7.5 bar
GA 355
GA 400
GA 450
GA 500
CE
7.5 bar
8.5 bar
4010 0603 4108 03 2 Hexagon nipple
4015 0560 0200 56 2 Elbow
4020 0653 1254 00 2 Flat gasket
4025 0830 1008 14 2 Safety valve
6.9 bar
7.5 bar ASME (U Stamp)
7.5 bar CHINA
7.5 bar DIR
7.5 bar Singapore
8.5 bar ASME (U Stamp)
8.5 bar CHINA
8.5 bar DIR
8.5 bar Singapore
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
ASME (U Stamp)
CHINA
DIR
Singapore
1621 9361 85 2 Air receiver
1005 1621 9361 05 1 Vessel
1010 1621 9365 05 1 Valve housing
1015 0663 2109 45 1 O-ring
1020 0663 2109 45 1 O-ring
1025 1614 9089 00 1 Pivot pin
1030 0301 2394 00 12 Washer
1035 0147 1106 15 12 Bolt
1611 6413 60 2 Vessel assy
2005 1614 9541 00 3 Spacer
2010 1623 5777 00 3 Buffer
2015 0333 3232 00 3 Lock washer
2020 0211 1364 03 3 Cap screw
2025 0661 1000 31 3 Seal washer
2035 0663 2106 58 1 O-ring
2040 0147 1365 03 6 Bolt
2045 0211 1418 00 3 Cap screw
2050 0301 2358 00 3 Washer
2060 1621 9374 00 1 Shield
2062 0663 2109 45 1 O-ring
2065 1614 9520 00 1 Bushing
2070 1621 9386 00 1 Oil sep.element
2075 0147 1479 03 1 Bolt
2080 1614 9184 00 1 Level gauge
2085 0661 1038 00 1 Sealing washer
2090 1619 6249 00 1 Nipple
2095 1621 9144 00 1 Hose assembly
2100 1614 9146 00 1 Plug
2105 0661 1000 29 1 Seal washer
2110 1614 9525 00 1 Suction pipe
2120 0661 1000 27 1 Seal washer
2130 0686 3716 02 1 Plug
1614 9523 80 2 Min.press.valve
3020 1621 4952 00 1 Piston
3025 1619 6199 00 1 Sealring
3030 1623 2037 00 1 Shaft
3035 1614 7279 00 1 Washer
3040 1621 4326 00 1 Ring
3045 1621 4325 00 1 Nut
3050 9125 7289 00 1 Set screw
3055 1614 7280 00 1 Compr.spring
3060 1614 9523 00 1 Cover
3065 0147 1958 97 2 Bolt
3066 0301 2335 00 2 Plain washer
3070 1614 9524 00 1 Sleeve
GA 315
GA 355
GA 400
GA 450
GA 500
CE
1621 9361 80 2 Air receiver
1005 1621 9361 08 1 Vessel
1010 1621 9365 08 1 Valve housing
18
Parts list
2930 1370 03
5
73797
19
Parts list
2930 1370 03
Air Receiver 5
Ref. Part number Qty Name Remarks
8.6 bar
10 bar
10.4 bar
13.8 bar
13 bar
4010 0603 5125 03 2 Hexagon nipple
4015 0560 0200 24 2 Elbow
4020 0653 1189 00 2 Flat gasket
4025 0830 1008 18 2 Safety valve
GA 315
CE
8.5 bar
4010 0603 5125 03 2 Hexagon nipple
4015 0560 0200 24 2 Elbow
4020 0653 1189 00 2 Flat gasket
4025 0830 1008 12 2 Safety valve
GA 450
GA 500
6.9 bar
7.5 bar ASME (U Stamp)
7.5 bar CHINA
7.5 bar DIR
7.5 bar Singapore
8.5 bar ASME (U Stamp)
8.5 bar CHINA
8.5 bar DIR
8.5 bar Singapore
4010 0603 4108 03 2 Hexagon nipple
Ref. Part number Qty Name Remarks
4015 0560 0200 56 2 Elbow
4020 0653 1254 00 2 Flat gasket
4025 0830 1008 19 2 Safety valve
Oil
Water cooled
Without Energy RECovery
Roto inject fluid oil
5015 2901 0245 01 2 Oil can 5l roto-injectfluid
5020 1079 9909 57 2 Label
Roto-Xtend Duty Fluid
5015 1623 0504 00 2 Can
5020 1079 9925 87 2 Label
With Energy RECovery
Roto inject fluid oil
5015 2901 0245 01 2 Oil can 5l roto-injectfluid
5020 1079 9909 57 2 Label
Roto-Xtend Duty Fluid
5015 1623 0504 00 2 Can
5020 1079 9925 87 2 Label
Air cooled
Without Energy RECovery
Roto inject fluid oil
5015 2901 0245 01 2 Oil can 5l roto-injectfluid
5020 1079 9909 57 2 Label
Roto-Xtend Duty Fluid
5015 1623 0504 00 2 Can
5020 1079 9925 87 2 Label
20
Parts list
2930 1370 03
6
63143_02
21
Parts list
2930 1370 03
Air Flow - Aircooled 6
Ref. Part number Qty Name Remarks
1120 0291 1114 00 4 Locknut
1125 1614 8926 00 8 Absorber
1130 0147 1503 03 4 Bolt
1135 1621 4770 00 1 Pipe
1 Flange
2 Bracket
1140 0663 2106 19 1 O-ring
1145 0147 1403 03 4 Bolt
1150 0301 2358 00 4 Washer
1155 1621 4773 00 1 Pipe
1 Pipe
2 Bracket
1 Plate
1160 0634 1000 56 1 Victaulic coupling
1165 1619 6607 03 1 U-bolt
1167 0301 2358 00 4 Washer
1170 1621 4772 00 1 Pipe
1 Pipe
1 Flange
1 Plate
1175 0663 2106 19 1 O-ring
1180 0147 1403 03 4 Bolt
1185 0301 2358 00 4 Washer
1190 1619 6607 03 1 U-bolt
Ref. Part number Qty Name Remarks
Air cooled
1010 1621 2143 00 1 Hose assembly
1015 0663 2106 58 1 O-ring
1020 0147 1479 03 4 Bolt
1025 0301 2378 00 4 Washer
1030 0663 2106 20 1 O-ring
1035 0147 1403 03 4 Bolt
1040 0301 2358 00 4 Washer
1045 1621 2144 00 1 Hose assembly
1046 0663 2106 58 1 O-ring
1050 0147 1479 03 4 Bolt
1055 0301 2378 00 4 Washer
1060 0663 2106 20 1 O-ring
1065 0147 1403 03 4 Bolt
1070 0301 2358 00 4 Washer
1075 1621 5014 00 2 Pipe
1080 0663 2106 19 2 O-ring
1085 0147 1404 03 8 Bolt
1090 0301 2358 00 8 Washer
1095 1614 9512 00 2 Pipe
1100 1614 9509 00 4 Connection
1614 9513 00 1 Seal
1105 0147 1367 03 8 Bolt
1110 0301 2344 00 8 Washer
1115 0306 2000 10 8 Washer
22
Parts list
2930 1370 03
7
63142_02
23
Parts list
2930 1370 03
Air Flow - Watercooled 7
Ref. Part number Qty Name Remarks
With Tube Coolers
1005 1621 2143 00 1 Hose assembly
1010 0663 2106 58 1 O-ring
1015 0147 1479 03 4 Bolt
1020 0301 2378 00 4 Washer
1025 0663 2106 20 1 O-ring
1030 0147 1403 03 4 Bolt
1035 0301 2358 00 4 Washer
1040 1621 2144 00 1 Hose assembly
1045 0663 2106 58 1 O-ring
1050 0147 1479 03 4 Bolt
1055 0301 2378 00 4 Washer
1060 0663 2106 20 1 O-ring
1065 0147 1403 03 4 Bolt
1070 0301 2358 00 4 Washer
1075 1621 5112 00 2 Pipe
1080 0663 2106 19 2 O-ring
1085 0147 1404 03 8 Bolt
1090 0301 2358 00 8 Washer
1095 1614 9512 00 2 Pipe
1100 1614 9509 00 4 Connection
1614 9513 00 1 Seal
1105 0147 1367 03 8 Bolt
1110 0301 2344 00 8 Washer
1115 0306 2000 10 8 Washer
1120 0291 1114 00 4 Locknut
1125 1614 8926 00 8 Absorber
1130 0147 1503 03 4 Bolt
1135 1621 2682 00 1 Pipe
1140 0663 2106 20 1 O-ring
1145 0147 1403 03 4 Bolt
1150 0301 2358 00 4 Washer
1155 1621 2683 00 1 Pipe
1160 0663 2106 20 1 O-ring
1165 0147 1403 03 4 Bolt
1170 0301 2358 00 4 Washer
1175 1621 2684 00 2 Pipe
1180 0663 2106 20 2 O-ring
1185 0147 1403 03 8 Bolt
1190 0301 2358 00 8 Washer
1195 0663 2106 19 2 O-ring
1200 0147 1403 03 8 Bolt
1205 0301 2358 00 8 Washer
Ref. Part number Qty Name Remarks
Without Tube Coolers
1005 1621 2143 00 1 Hose assembly
1010 0663 2106 58 1 O-ring
1015 0147 1479 03 4 Bolt
1020 0301 2378 00 4 Washer
1025 0663 2106 20 1 O-ring
1030 0147 1403 03 4 Bolt
1035 0301 2358 00 4 Washer
1040 1621 2144 00 1 Hose assembly
1045 0663 2106 58 1 O-ring
1050 0147 1479 03 4 Bolt
1055 0301 2378 00 4 Washer
1060 0663 2106 20 1 O-ring
1065 0147 1403 03 4 Bolt
1070 0301 2358 00 4 Washer
1075 1621 5013 00 2 Pipe
1080 0663 2106 19 2 O-ring
1085 0147 1404 03 8 Bolt
1090 0301 2358 00 8 Washer
1095 1614 9512 00 2 Pipe
1100 1614 9509 00 4 Connection
1614 9513 00 1 Seal
1105 0147 1367 03 8 Bolt
1110 0301 2344 00 8 Washer
1115 0306 2000 10 8 Washer
1120 0291 1114 00 8 Locknut
1125 1614 8926 00 8 Absorber
1130 0147 1503 03 4 Bolt
1135 1621 2145 00 1 Pipe
1140 0663 2106 17 1 O-ring
1145 0147 1363 03 4 Bolt
1150 0301 2344 00 4 Washer
1155 1621 1439 00 1 Pipe
1160 0663 2106 17 1 O-ring
1165 0147 1363 03 4 Bolt
1170 0301 2344 00 4 Washer
1175 1621 2147 00 2 Pipe
1180 0663 2106 20 2 O-ring
1185 0147 1363 03 8 Bolt
1190 0301 2358 00 8 Washer
1195 0663 2106 19 2 O-ring
1200 0147 1403 03 8 Bolt
1205 0301 2358 00 8 Washer
24
Parts list
2930 1370 03
8
73798
25
Parts list
2930 1370 03
Air Outlet - Aircooled 8
Ref. Part number Qty Name Remarks
1170 1621 4771 00 1 Pipe
2 Flange
1180 0663 2106 19 2 O-ring
1190 0147 1403 03 8 Bolt
1200 0301 2358 00 8 Washer
2005 1621 1498 00 1 Adapter
2010 0650 1000 90 1 Gasket
2015 0147 1482 03 8 Bolt
2020 0301 2378 00 16 Washer
2025 0266 2114 00 8 Nut
Without Electronic
condensate drain
3005 1614 9139 00 1 Head
3010 0663 6142 00 1 O-ring
3015 1621 0461 00 1 Pipe
3020 1621 0462 00 3 Rod
3025 1621 0463 00 1 Disc
3030 0301 2118 01 3 Washer
3035 0291 1107 00 3 Lock nut
3040 1613 9378 93 1 Drain
3045 0663 2133 00 1 O-ring
3050 0663 2111 27 1 O-ring
3055 1613 9381 00 1 Nut
3060 1613 9464 00 1 Bowl
3065 0663 2108 01 1 O-ring
3070 1621 0465 01 1 Label
With Electronic condensate
drain
4005 1614 9139 00 1 Head
4010 0663 6142 00 1 O-ring
4015 1621 0461 00 1 Pipe
4020 1621 0462 00 3 Rod
4025 1621 0463 00 1 Disc
4030 0301 2118 01 3 Washer
4035 0291 1107 00 3 Lock nut
4040 1613 9946 00 1 Connection
4050 0663 2111 27 1 O-ring
4055 0261 2118 00 1 Nut
4060 1613 9464 00 1 Bowl
4065 0663 2108 01 1 O-ring
4070 1621 0465 02 1 Label
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
1010 1621 4774 00 1 Pipe
2 Flange
2 Pipe
1020 0663 2106 19 1 O-ring
1030 0147 1403 03 4 Bolt
1035 0301 2358 00 4 Washer
1040 0634 1000 56 1 Victaulic coupling
1042 1621 4774 00 1 Pipe
2 Flange
2 Pipe
1044 0663 2106 19 1 O-ring
1046 0147 1403 03 4 Bolt
1048 0301 2358 00 4 Washer
1050 1621 4832 00 1 Support
2 Blind rivet nut
1060 1619 6607 03 1 U-bolt
1065 0301 2358 00 4 Washer
1070 1079 1472 06 2 Bolt
1080 1621 4768 00 3 Support
1 Blind rivet nut
1090 1619 5337 01 6 Bolt
1100 0634 1000 56 1 Victaulic coupling
1110 1621 4775 00 1 Pipe
2 Pipe
1 Plate
1120 1619 6607 03 2 U-bolt
1125 0301 2358 00 8 Washer
1130 0634 1000 56 1 Victaulic coupling
1140 1621 4776 00 1 Pipe
2 Nut
2 Pipe
1 Plate
1 Reducing pipe
1145 0634 1000 56 1 Victaulic coupling
1150 1619 6607 03 1 U-bolt
1155 0301 2358 00 4 Washer
1160 1079 1472 06 2 Bolt
26
Parts list
2930 1370 03
9
63146_02
27
Parts list
2930 1370 03
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
1010 1 Pipe
1621 1496 00 Without Tube Coolers
1621 2686 00 With Tube Coolers
1015 0634 1000 56 1 Victaulic coupling
1020 1 Pipe
1621 1496 00 Without Tube Coolers
1621 2686 00 With Tube Coolers
1025 0634 1000 56 1 Victaulic coupling
1030 1621 1497 00 1 Pipe
1035 0634 1000 56 2 Victaulic coupling
1040 1619 6607 04 2 U-bolt
1045 0266 2112 00 8 Nut
1050 0301 2358 00 8 Washer
2005 1621 1498 00 1 Adapter
2010 0650 1000 90 1 Gasket
2015 0147 1482 03 8 Bolt
2020 0301 2378 00 16 Washer
2025 0266 2114 00 8 Nut
Without Electronic
condensate drain
3005 1614 9139 00 1 Head
3010 0663 6142 00 1 O-ring
Air Flow - Watercooled 9
Ref. Part number Qty Name Remarks
3015 1621 0461 00 1 Pipe
3020 1621 0462 00 3 Rod
3025 1621 0463 00 1 Disc
3030 0301 2118 01 3 Washer
3035 0291 1107 00 3 Lock nut
3040 1613 9378 93 1 Drain
3045 0663 2133 00 1 O-ring
3050 0663 2111 27 1 O-ring
3055 1613 9381 00 1 Nut
3060 1613 9464 00 1 Bowl
3065 0663 2108 01 1 O-ring
3070 1621 0465 01 1 Label
With Electronic condensate
drain
4005 1614 9139 00 1 Head
4010 0663 6142 00 1 O-ring
4015 1621 0461 00 1 Pipe
4020 1621 0462 00 3 Rod
4025 1621 0463 00 1 Disc
4030 0301 2118 01 3 Washer
4035 0291 1107 00 3 Lock nut
4040 1613 9946 00 1 Connection
4050 0663 2111 27 1 O-ring
4055 0261 2118 00 1 Nut
4060 1613 9464 00 1 Bowl
4065 0663 2108 01 1 O-ring
4070 1621 0465 02 1 Label
28
Parts list
2930 1370 03
10
73799
29
Parts list
2930 1370 03
Oil System 10
Ref. Part number Qty Name Remarks
Valves on Element
1005 1614 8980 00 1 Valve housing
1010 1614 8976 00 1 Plug
1015 0661 1000 30 1 Seal washer
1020 1614 8978 00 1 Spring
1025 1614 8977 00 1 Check valve
1030 1614 8974 00 1 Piston
1035 1623 4597 00 1 Valve oil stop
1045 1614 8979 00 1 Spring
1050 1614 8972 00 1 Cover
1055 0663 2106 18 1 O-ring
1060 0147 1363 03 4 Bolt
1065 1614 8975 00 1 Flange
1070 0663 2106 57 1 O-ring
1075 0147 1363 03 4 Bolt
1080 0301 2344 00 4 Washer
1085 0663 2102 89 1 O-ring
1090 0663 2111 58 1 O-ring
1095 0663 2111 66 3 O-ring
1100 0211 1960 28 6 Cap screw
1105 0686 3716 01 2 Plug
1110 0661 1000 25 2 Seal washer
Connect oil
Without Energy RECovery
With Heavy duty air inlet
filter
6.9 bar
7.5 bar
8.5 bar
8.6 bar
10 bar
10.4 bar
2010 1623 2875 00 2 Housing filter
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2025 0147 1363 03 6 Bolt
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2035 0301 2335 00 8 Plain washer
2040 0147 1325 03 8 Bolt
2045 1623 1451 00 6 Nipple
2050 1621 7378 00 6 Filter
2060 0686 3716 01 2 Plug
2065 1621 1440 00 1 Hose assembly
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt
2080 0301 2344 00 4 Washer
2085 1621 1499 00 1 Hose assembly
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1362 03 2 Bolt
2100 0301 2344 00 4 Washer
2105 0686 3716 01 1 Plug
2110 0661 1000 25 1 Seal washer
Water cooled
ENergy RECovery
With Heavy duty air inlet
filter
6.9 bar
7.5 bar
8.5 bar
8.6 bar
Ref. Part number Qty Name Remarks
10 bar
10.4 bar
2010 1623 2875 00 2 Housing filter
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2031 0246 1956 36 6 Stud
2032 0266 2111 00 6 Nut
2035 0301 2335 00 8 Plain washer
2040 0147 1325 03 8 Bolt
2045 1623 1451 00 6 Nipple
2050 1621 7378 00 6 Filter
2060 0686 3716 01 2 Plug
2065 1621 2092 00 1 Hose assembly
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt
2080 0301 2344 00 4 Washer
2085 1621 2097 00 1 Hose assembly
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1362 03 2 Bolt
2100 0301 2344 00 4 Washer
2105 0686 3716 01 1 Plug
2110 0661 1000 25 1 Seal washer
3020 1202 5869 01 2 Thermost.valve
1 Spring
1202 5869 02 2 Thermost.valve
1 Spring
1202 5869 04 2 Thermost.valve
1 Spring
Without ENergy RECovery
Without Heavy duty air inlet
filter
6.9 bar
7.5 bar
8.5 bar
8.6 bar
10 bar
10.4 bar
2010 1623 2875 00 2 Housing filter
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2025 0147 1363 03 6 Bolt
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2035 0301 2335 00 8 Plain washer
2040 0147 1325 03 8 Bolt
2045 1623 1451 00 6 Nipple
2050 1621 7378 00 6 Filter
2060 0686 3716 01 2 Plug
2065 1621 1440 00 1 Hose assembly
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt
2080 0301 2344 00 4 Washer
2085 1621 1499 00 1 Hose assembly
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1362 03 2 Bolt
2100 0301 2344 00 4 Washer
2105 0686 3716 01 1 Plug
30
Parts list
2930 1370 03
10
73799
31
Parts list
2930 1370 03
Oil System 10
Ref. Part number Qty Name Remarks
2110 0661 1000 25 1 Seal washer
Without ENergy RECovery
13 bar
13.8 bar
2010 1623 2875 00 2 Housing filter
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2025 0147 1363 03 6 Bolt
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2035 0301 2335 00 8 Plain washer
2040 0147 1325 03 8 Bolt
2045 1623 1451 00 6 Nipple
2050 1621 7378 00 6 Filter
2060 0686 3716 01 2 Plug
2065 1621 1440 00 1 Hose assembly
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt
2080 0301 2344 00 4 Washer
2085 1621 1499 00 1 Hose assembly
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1632 03 2 Bolt
2100 0301 2344 00 4 Washer
2105 0686 3716 01 1 Plug
2110 0661 1000 25 1 Seal washer
Water cooled
ENergy RECovery
6.9 bar
7.5 bar
8.5 bar
8.6 bar
10 bar
10.4 bar
2010 1623 2875 00 2 Housing filter
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2031 0246 1956 36 6 Stud
2032 0266 2111 00 6 Nut
2035 0301 2335 00 8 Plain washer
2040 0147 1325 03 8 Bolt
2045 1623 1451 00 6 Nipple
2050 1621 7378 00 6 Filter
2060 0686 3716 01 2 Plug
Ref. Part number Qty Name Remarks
2065 1621 2092 00 1 Hose assembly
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt
2080 0301 2344 00 4 Washer
2085 1621 2097 00 1 Hose assembly
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1362 03 2 Bolt
2100 0301 2344 00 4 Washer
2105 0686 3716 01 1 Plug
2110 0661 1000 25 1 Seal washer
3020 1202 5869 01 2 Thermost.valve
1 Spring
1202 5869 02 2 Thermost.valve
1 Spring
1202 5869 04 2 Thermost.valve
1 Spring
Water cooled
ENergy RECovery
13 bar
13.8 bar
2010 1623 2875 00 2 Housing filter
2015 0663 2107 77 2 O-ring
2020 0301 2344 00 6 Washer
2026 1614 9007 00 2 Cover
2030 0663 2107 77 2 O-ring
2031 0246 1956 36 6 Stud
2032 0266 2111 00 6 Nut
2035 0301 2335 00 8 Plain washer
2040 0147 1325 03 8 Bolt
2045 1623 1451 00 6 Nipple
2050 1621 7378 00 6 Filter
2060 0686 3716 01 2 Plug
2065 1621 2092 00 1 Hose assembly
2070 0663 2109 68 2 O-ring
2075 0147 1363 03 2 Bolt
2076 0147 1362 03 2 Bolt
2080 0301 2344 00 4 Washer
2085 1621 2097 00 1 Hose assembly
2090 0663 2109 68 2 O-ring
2095 0147 1363 03 2 Bolt
2096 0147 1362 03 2 Bolt
2100 0301 2344 00 4 Washer
2105 0686 3716 01 1 Plug
2110 0661 1000 25 1 Seal washer
32
Parts list
2930 1370 03
10
73799
33
Parts list
2930 1370 03
Oil System 10
Ref. Part number Qty Name Remarks
3020 1202 5869 01 2 Thermost.valve
1 Spring
1202 5869 02 2 Thermost.valve
1 Spring
1202 5869 04 2 Thermost.valve
1 Spring
Thermostatic valve
GA315
GA355
GA400
GA450
GA500
6.9 bar
7.5 bar
8.5 bar
8.6 bar
10 bar
10.4 bar
3020 1202 5869 02 1 Thermost.valve
1 Spring
GA315
GA355
GA400
GA500
Ref. Part number Qty Name Remarks
10 bar
10.4 bar
13 bar
13.8 bar
3020 1202 5869 01 1 Thermost.valve
1 Spring
GA315
GA355
GA400
GA450
8.5 bar
8.6 bar
10 bar
10.4 bar
3020 1202 5869 03 1 Thermost.valve
1 Spring
GA315
GA355
GA400
GA450
13 bar
13.8 bar
3020 1202 5869 04 1 Thermost.valve
1 Spring
34
Parts list
2930 1370 03
11
73800
35
Parts list
2930 1370 03
Coolers - Aircooled 11
Ref. Part number Qty Name Remarks
Air cooled
GA 315
GA 355
GA 400
1005 1614 9588 00 4 Oil cooler
1007 1621 4761 00 2 Support
1010 0395 6005 83 2 Silencing foam
1015 1614 8985 00 4 Bracket
1020 0147 1360 03 12 Bolt
1025 0301 2344 00 12 Washer
1030 0147 1360 03 16 Bolt
1035 0301 2344 00 16 Washer
1040 0147 1360 03 8 Bolt
1050 0574 8235 32 4 Hose assembly
1055 1079 5840 15 4 Nipple
1060 0661 1000 27 4 Seal washer
1075 1614 9252 00 4 Plug
1080 0686 3716 02 4 Plug
1085 0661 1000 27 4 Seal washer
1090 1621 0431 00 2 Hose assembly
1095 0663 2109 68 2 O-ring
1100 0663 2109 68 2 O-ring
1105 0147 1363 03 4 Bolt
1110 0147 1363 03 4 Bolt
1115 0301 2344 00 4 Washer
1120 0301 2344 00 4 Washer
1125 1621 5627 00 1 Hose
1130 1621 4759 00 1 Hose
1135 0663 2109 68 2 O-ring
1140 0147 1363 03 4 Bolt
1145 0301 2344 00 4 Washer
1150 0663 2109 68 2 O-ring
1155 0147 1362 03 4 Bolt
1160 0301 2344 00 4 Washer
1165 1621 5626 00 1 Hose
1170 1621 4749 00 1 Hose
1175 0663 2109 68 2 O-ring
1180 0147 1363 03 4 Bolt
1185 0301 2344 00 4 Washer
1190 0663 2109 68 2 O-ring
1195 0147 1362 03 4 Bolt
1200 0301 2344 00 4 Washer
1205 1619 2861 01 3 Clamp
1210 1619 5337 01 3 Bolt
1215 0686 3716 01 2 Plug
1216 0686 3716 01 2 Plug
1220 0661 1000 25 2 Seal washer
1221 0661 1000 25 2 Seal washer
1225 1614 8969 00 2 Aftercooler
1230 0147 1360 03 12 Bolt
1235 0300 0274 17 12 Washer
1240 1619 6449 00 2 Seal
1245 0147 1360 03 8 Bolt
1250 0301 2344 00 8 Washer
1265 1619 5337 01 16 Bolt
1270 1621 0459 00 1 Cover
1275 0147 1325 03 4 Bolt
1280 0300 0274 94 4 Plain washer
1285 1623 4862 00 2 Guard
1290 1623 4907 00 10 Bolt
1300 0333 3232 00 10 Lock washer
1310 1621 5583 00 4 Hinge
1315 1619 5337 01 8 Bolt
1320 0147 1401 03 8 Bolt
Ref. Part number Qty Name Remarks
1325 0301 2358 00 8 Washer
1330 0147 1325 03 8 Bolt
1335 0147 1363 03 10 Bolt
1345 1619 5337 01 16 Bolt
1350 1621 0459 00 1 Cover
1355 0147 1325 03 4 Bolt
1360 0300 0274 94 4 Plain washer
1365 1623 4862 00 2 Guard
1370 1623 4907 00 10 Bolt
1375 0333 3232 00 10 Lock washer
1385 1621 5584 00 4 Hinge
1390 1619 5337 01 8 Bolt
1395 0147 1401 03 8 Bolt
1400 0301 2358 00 8 Washer
1405 0147 1325 03 8 Bolt
1410 0147 1363 03 10 Bolt
1415 1621 5147 00 1 Baffle
1420 0147 1320 03 9 Bolt
1425 0301 2335 00 9 Plain washer
1621 0425 80 2 Fan cowl
2005 2 Fan cowl
2010 1619 2665 00 AR Seal
2020 1202 6584 00 AR Seal
2040 1619 2473 00 AR Seal
Air cooled
GA 450
GA 500
1005 1614 9589 00 4 Oil cooler
1010 0395 6002 56 2 Silencing foam
1015 1614 8985 00 4 Bracket
1020 0147 1360 03 12 Bolt
1025 0301 2344 00 12 Washer
1030 0147 1360 03 16 Bolt
1035 0301 2344 00 16 Washer
1040 0147 1360 03 8 Bolt
1050 0574 8235 32 4 Hose assembly
1055 1079 5840 15 4 Nipple
1060 0661 1000 27 4 Seal washer
1075 1614 9252 00 4 Plug
1080 0686 3716 02 4 Plug
1085 0661 1000 27 4 Seal washer
1090 1621 0431 00 2 Hose assembly
1095 0663 2109 68 2 O-ring
1100 0663 2109 68 2 O-ring
1105 0147 1363 03 4 Bolt
1110 0147 1363 03 4 Bolt
1115 0301 2344 00 4 Washer
1120 0301 2344 00 4 Washer
1125 1621 5627 00 1 Hose
1130 1621 4759 00 1 Hose
1135 0663 2109 68 2 O-ring
1140 0147 1363 03 4 Bolt
1145 0301 2344 00 4 Washer
1150 0663 2109 68 2 O-ring
1155 0147 1362 03 4 Bolt
1160 0301 2344 00 4 Washer
1165 1621 5626 00 1 Hose
1170 1621 4749 00 1 Hose
1175 0663 2109 68 2 O-ring
1180 0147 1363 03 4 Bolt
1185 0301 2344 00 4 Washer
1190 0663 2109 68 2 O-ring
1195 0147 1362 03 4 Bolt
1200 0301 2344 00 4 Washer
36
Parts list
2930 1370 03
11
73800
37
Parts list
2930 1370 03
Coolers - Aircooled 11
Ref. Part number Qty Name Remarks
1205 1619 2861 01 3 Clamp
1210 1619 5337 01 3 Bolt
1215 0686 3716 01 2 Plug
1216 0686 3716 01 2 Plug
1220 0661 1000 25 2 Seal washer
1221 0661 1000 25 2 Seal washer
1225 1614 8969 00 2 Aftercooler
1230 0147 1360 03 12 Bolt
1235 0300 0274 17 12 Washer
1240 1619 6449 00 2 Seal
1245 0147 1360 03 8 Bolt
1250 0301 2344 00 8 Washer
1265 1619 5337 01 16 Bolt
1270 1621 0459 00 1 Cover
1275 0147 1325 03 4 Bolt
1280 0300 0274 94 4 Plain washer
1285 1623 4862 00 2 Guard
1290 1623 4907 00 10 Bolt
1300 0333 3232 00 10 Lock washer
1310 1621 5583 00 4 Hinge
1315 1619 5337 01 8 Bolt
1320 0147 1401 03 8 Bolt
1325 0301 2358 00 8 Washer
1330 0147 1325 03 8 Bolt
Ref. Part number Qty Name Remarks
1335 0147 1363 03 10 Bolt
1345 1619 5337 01 16 Bolt
1350 1621 0459 00 1 Cover
1355 0147 1325 03 4 Bolt
1360 0300 0274 94 4 Plain washer
1365 1623 4862 00 2 Guard
1370 1623 4907 00 10 Bolt
1375 0333 3232 00 10 Lock washer
1385 1621 5584 00 4 Hinge
1390 1619 5337 01 8 Bolt
1395 0147 1401 03 8 Bolt
1400 0301 2358 00 8 Washer
1405 0147 1325 03 8 Bolt
1410 0147 1363 03 10 Bolt
1415 1621 5147 00 1 Baffle
1420 0147 1320 03 9 Bolt
1425 0301 2335 00 9 Plain washer
1621 0425 80 2 Fan cowl
2005 2 Fan cowl
2010 1619 2665 00 AR Seal
2020 1202 6584 00 AR Seal
2040 1619 2473 00 AR Seal
2050 1202 6584 00 AR Seal
38
Parts list
2930 1370 03
12
73804
39
Parts list
2930 1370 03
Coolers - GA (A) - Fan and cooling duct plates 12
Ref. Part number Qty Name Remarks
GA 315 400V 50Hz IEC
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60Hz
CSA-UL
GA 500 575 V 60 Hz CSAUL
1010 1080 4034 14 4 Motor
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60Hz
CSA-UL
GA 500 575 V 60 Hz CSAUL
1015 1614 6453 00 4 Washer
Ref. Part number Qty Name Remarks
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60 Hz
CSA-UL
GA 500 575 V 60 Hz CSAUL
1020 1614 9287 00 4 Fan
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60 Hz
CSA-UL
GA 500 575 V 60 Hz
CSA-UL
1022 1614 6456 00 4 Washer
GA 315 400V 50Hz IEC
40
Parts list
2930 1370 03
12
73804
41
Parts list
2930 1370 03
Coolers - GA (A) - Fan and cooling duct plates 12
Ref. Part number Qty Name Remarks
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60 Hz
CSA-UL
GA 500 575 V 60 Hz
CSA-UL
1025 0147 1363 03 4 Bolt
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60 Hz
CSA-UL
GA 500 575 V 60 Hz
CSA-UL
1030 1088 1001 01 4 Warning mark
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
Ref. Part number Qty Name Remarks
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60 Hz
CSA-UL
GA 500 575 V 60 Hz
CSA-UL
1040 1503 0786 00 4 Rotation arrow
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460 V 60 Hz
CSA-UL
GA 500 575 V 60 Hz
CSA-UL
1050 1621 4823 00 1 Wiring
GA 315 400V 50Hz IEC
GA 315 500V 50Hz IEC
GA 355 380V 60Hz IEC
42
Parts list
2930 1370 03
12
73804
43
Parts list
2930 1370 03
Coolers - GA (A) - Fan and cooling duct plates 12
Ref. Part number Qty Name Remarks
GA 355 400V 50Hz IEC
GA 355 440-460V 60Hz IEC
GA 355 440-460V 60Hz
CSA-UL
GA 355 500V 50Hz IEC
GA 355 575V 60Hz CSA-UL
GA 400 400V 50Hz IEC
GA 400 500V 50Hz IEC
GA 400 380V 60Hz IEC
GA 400 440-460V 60Hz IEC
GA 400 440-460V 60Hz
CSA-UL
GA 400 575V 60Hz CSA-UL
GA 450 400V 50Hz IEC
GA 450 500V 50Hz IEC
Ref. Part number Qty Name Remarks
GA 450 380V 60Hz IEC
GA 450 440-460V 60Hz IEC
GA 450 440-460V 60Hz
CSA-UL
GA 450 575V 60Hz CSA-UL
GA 500 400V 50Hz IEC
GA 500 500V 50Hz IEC
GA 500 440-460V 60 Hz
CSA-UL
GA 500 575V 60Hz CSA-UL
1060 1621 4824 00 1 Wiring
GA 450 400V 50Hz IEC
GA 450 380V 60Hz IEC
1070 0017 2317 11 AR Cable
44
Parts list
2930 1370 03
13
73805
45
Parts list
2930 1370 03
Coolers - GA (W) - Plate cooler 13
Ref. Part number Qty Name Remarks
1010 1621 1491 00 2 Cooler
1015 1621 1492 00 2 Support
1016 1619 2766 00 16 Bolt
1025 1619 2861 05 4 Clamp
1026 0248 9980 65 4 Threaded rod
1030 0291 1128 20 8 Nut
1035 0301 2344 00 8 Washer
1045 1079 1472 06 4 Bolt
1050 1621 1441 00 1 Hose assembly
1055 0663 2109 68 1 O-ring
1060 0147 1363 03 2 Bolt
1065 0301 2344 00 2 Washer
1070 0663 2109 68 1 O-ring
1075 0147 1362 03 2 Bolt
1080 0301 2344 00 2 Washer
1081 1619 2861 01 1 Clamp
1082 1079 1472 06 1 Bolt
1085 1621 1493 00 1 Hose assembly
1090 0663 2109 68 1 O-ring
1095 0147 1363 03 2 Bolt
1100 0301 2344 00 2 Washer
1105 0663 2109 68 1 O-ring
1110 0147 1362 03 2 Bolt
Ref. Part number Qty Name Remarks
1115 0301 2344 00 2 Washer
1117 1 Plug
0686 3716 01 Without Energy RECovery
0686 3716 02 Energy RECovery
1118 0661 1000 25 1 Seal washer
1120 1621 1494 00 1 Hose assembly
1125 0663 2109 68 1 O-ring
1130 0147 1363 03 2 Bolt
1135 0301 2344 00 2 Washer
1140 0663 2109 68 1 O-ring
1145 0147 1362 03 2 Bolt
1150 0301 2344 00 2 Washer
1155 1621 1495 00 1 Hose assembly
1160 0663 2109 68 1 O-ring
1165 0147 1363 03 2 Bolt
1170 0301 2344 00 2 Washer
1175 0663 2109 68 1 O-ring
1180 0147 1362 03 2 Bolt
1185 0301 2344 00 2 Washer
1190 4 Plug
0686 3716 01 Without Energy RECovery
1195 4 Seal washer
0661 1000 25 Without Energy RECovery
46
Parts list
2930 1370 03
14
73806
47
Parts list
2930 1370 03
Coolers - GA (W) - Tube cooler 14
Ref. Part number Qty Name Remarks
1005 1621 2692 00 2 Support
1010 1619 5337 01 16 Bolt
1015 1621 2677 08 2 Aftercooler
1020 0147 1362 03 8 Bolt
1025 0301 2344 00 8 Washer
1030 1614 8664 08 2 Oil cooler
1035 0147 1362 03 8 Bolt
1040 0301 2344 00 8 Washer
1045 1614 8665 08 2 Oil cooler
1050 0147 1362 03 8 Bolt
1055 0301 2344 00 8 Washer
1060 1614 6632 00 4 Plate
1065 0663 2106 12 8 O-ring
1070 0147 1407 03 8 Bolt
1075 0301 2358 00 16 Washer
1080 0266 2112 00 8 Nut
1085 1621 2678 00 1 Hose assembly
1086 0686 3716 01 1 Plug
1087 0653 1062 00 1 Flat gasket
1090 0663 2109 68 1 O-ring
1095 0147 1363 03 2 Bolt
1100 0301 2344 00 2 Washer
1105 0663 2106 11 1 O-ring
1110 0147 1402 03 2 Bolt
1115 0301 2358 00 2 Washer
1120 1621 2679 00 1 Hose assembly
1121 0686 3716 01 1 Plug
1122 0653 1062 00 1 Flat gasket
1125 0663 2109 68 1 O-ring
Ref. Part number Qty Name Remarks
1130 0147 1363 03 2 Bolt
1135 0301 2344 00 2 Washer
1140 0663 2106 11 1 O-ring
1145 0147 1402 03 2 Bolt
1150 0301 2358 00 2 Washer
1155 1621 2680 00 1 Hose assembly
1156 0686 3716 01 1 Plug
1157 0653 1062 00 1 Flat gasket
1160 0663 2109 68 1 O-ring
1165 0147 1362 03 2 Bolt
1170 0301 2344 00 2 Washer
1175 0663 2106 11 1 O-ring
1180 0147 1402 03 2 Bolt
1185 0301 2358 00 2 Washer
1190 1621 2681 00 1 Hose assembly
1191 0686 3716 01 1 Plug
1192 0653 1062 00 1 Flat gasket
1195 0663 2109 68 1 O-ring
1200 0147 1363 03 2 Bolt
1205 0301 2344 00 2 Washer
1210 0663 2106 11 1 O-ring
1215 0147 1402 03 2 Bolt
1220 0301 2358 00 2 Washer
1235 1614 6634 00 2 Pipe
1237 0661 1000 27 1 Seal washer
1238 0686 3716 02 1 Plug
1240 0663 2106 11 4 O-ring
1245 0147 1402 03 8 Bolt
1250 0301 2358 00 8 Washer
48
Parts list
2930 1370 03
15
7623849889_04
49
Parts list
2930 1370 03
Water System - Plate Coolers 15
Ref. Part number Qty Name Remarks
Water cooled
Without Tube Cooler
1010 1621 2100 00 1 Pipe
1015 1621 2101 00 1 Pipe
1020 1619 6153 10 1 Ball valve
1040 1621 4238 00 1 Pipe
1045 0634 1000 27 2 Victaulic coupling
1050 1621 2666 00 1 Pipe
1055 0634 1000 27 2 Victaulic coupling
1060 1621 2104 00 1 Pipe
1065 1621 2105 00 2 Pipe
1070 1621 2106 00 2 Pipe
1075 0634 1000 27 6 Victaulic coupling
Ref. Part number Qty Name Remarks
1080 1621 2107 00 1 Support
1085 0147 1364 03 4 Bolt
1090 0301 2344 00 4 Washer
1095 1619 2861 01 2 Clamp
1096 1079 1472 06 4 Bolt
1100 0346 2900 23 4 U-bolt
1105 0301 2344 00 8 Washer
1106 0301 2335 00 4 Plain washer
1107 0291 1128 18 4 Lock nut
1110 0266 2111 00 16 Nut
Water cooled
ANSI flanges
2005 0605 8350 29 2 Bushing
50
Parts list
2930 1370 03
16
73807
51
Parts list
2930 1370 03
Water System - Tube Coolers 16
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
With Tube Coolers
1005 1621 2100 00 1 Pipe
1010 1621 2101 00 1 Pipe
1015 1619 6153 10 1 Ball valve
1016 1079 5840 01 2 Nipple
1017 0653 1046 00 2 Flat gasket
1020 1621 2687 00 1 Pipe
1021 0663 2106 12 1 O-ring
1022 0147 1407 03 2 Bolt
1023 0301 2358 00 4 Washer
1024 0266 2112 00 2 Nut
1025 0634 1000 27 1 Victaulic coupling
1030 1621 2689 00 1 Pipe
1031 0663 2106 12 1 O-ring
1032 0147 1407 03 2 Bolt
1033 0301 2358 00 4 Washer
1034 0266 2112 00 2 Nut
1035 0634 1000 27 1 Victaulic coupling
1037 1621 2104 00 1 Pipe
Ref. Part number Qty Name Remarks
1040 1621 2691 00 1 Pipe
1045 1621 2690 00 1 Pipe
1050 1621 2685 00 2 Pipe
1051 0663 2106 12 2 O-ring
1052 0147 1407 03 4 Bolt
1053 0301 2358 00 8 Washer
1054 0266 2112 00 8 Nut
1055 0634 1000 27 4 Victaulic coupling
1060 1621 2107 00 1 Support
1065 0147 1364 03 4 Bolt
1070 0301 2344 00 4 Washer
1075 1619 2861 01 2 Clamp
1080 1079 1472 06 4 Bolt
1085 0346 2900 23 4 U-bolt
1090 0301 2335 00 4 Plain washer
1095 0266 2110 00 4 Hexagon nut
1100 0653 1046 00 4 Flat gasket
1105 1615 3624 00 2 Nozzle
1110 0581 0025 01 2 Pipe coupling
1115 1619 5205 00 2 Nipple
1120 0653 1062 00 2 Flat gasket
1125 0574 8231 16 2 Hose assembly
ANSI flanges
2005 0605 8350 29 2 Bushing
52
Parts list
2930 1370 03
17
73821
53
Parts list
2930 1370 03
ENergy RECovery 17
Ref. Part number Qty Name Remarks
1005 1621 1487 80 2 Stay
1 Stay
1010 1079 1472 06 8 Bolt
1015 1621 2137 80 1 Stay
1 Stay
1079 9913 79 2 Inform.label
1079 9913 69 2 Inform.label
1020 1079 1472 06 4 Bolt
2005 1621 1485 80 1 Roofs 1)
2010 1079 1472 06 6 Bolt
3005 1621 2583 00 1 Pipe
3010 1621 2110 00 1 Pipe
3015 0663 2109 68 1 O-ring
3020 0147 1400 03 2 Bolt
3025 0301 2358 00 2 Washer
3030 0634 1000 27 2 Victaulic coupling
3035 1621 2109 00 1 Pipe
3040 0634 1000 27 2 Victaulic coupling
3045 1619 2861 01 2 Clamp
3050 0147 1325 03 2 Bolt
3055 0301 2335 00 2 Plain washer
3060 0266 2110 00 2 Hexagon nut
ANSI flanges
4005 0605 8350 29 1 Bushing
4010 0605 8350 40 1 Bushing
5005 1621 2457 00 1 Frame
5010 0147 1401 03 6 Bolt
5015 0301 2358 00 6 Washer
5020 0147 1475 03 4 Bolt
5025 0301 2378 00 4 Washer
5030 1621 0470 00 2 Support
5035 1619 2766 00 8 Bolt
5045 1621 2582 00 2 Cooler
5055 1621 0471 00 4 Bracket
5060 0301 2335 00 8 Plain washer
5065 0291 1128 18 8 Lock nut
5070 1621 2177 00 1 Hose assembly
5075 0663 2107 77 1 O-ring
5080 0634 1000 28 1 Victaulic
5085 1621 2459 00 1 Pipe
5086 0686 3716 01 1 Plug
Ref. Part number Qty Name Remarks
5087 0661 1000 25 1 Seal washer
5090 0663 2109 68 1 O-ring
5095 0147 1362 03 2 Bolt
5100 0301 2344 00 2 Washer
5101 0634 1000 28 1 Victaulic
5105 1621 2461 00 1 Pipe
5106 0686 3716 01 1 Plug
5107 0661 1000 25 1 Seal washer
5110 0663 2108 00 1 O-ring
5115 0147 1402 03 2 Bolt
5120 0301 2358 00 2 Washer
5125 0634 1000 28 1 Victaulic
5130 1621 2176 00 1 Hose assembly
5135 0663 2108 00 2 O-ring
5140 0147 1362 03 2 Bolt
5145 0301 2344 00 2 Washer
5146 0246 1956 36 2 Stud
5147 0266 2111 00 2 Nut
5150 1621 2175 00 1 Hose assembly
5155 0663 2107 77 1 O-ring
5160 0634 1000 28 1 Victaulic
5165 1621 2458 00 1 Pipe
5166 0686 3716 01 1 Plug
5167 0661 1000 25 1 Seal washer
5170 0663 2109 68 1 O-ring
5175 0147 1362 03 2 Bolt
5180 0301 2344 00 2 Washer
5181 0634 1000 28 1 Victaulic
5185 1621 2460 00 1 Pipe
5186 0686 3716 01 1 Plug
5187 0661 1000 25 1 Seal washer
5190 0663 2108 00 1 O-ring
5195 0147 1402 03 2 Bolt
5200 0301 2358 00 2 Washer
5205 0634 1000 28 1 Victaulic
5210 1621 2174 00 1 Hose assembly
5215 0663 2108 00 1 O-ring
5220 0147 1362 03 2 Bolt
5225 0301 2344 00 2 Washer
5250 1614 6028 00 2 Therm.valv.hsng
5255 0147 1363 03 4 Bolt
54
Parts list
2930 1370 03
7
17
55
Parts list
2930 1370 03
Ref. Part number Qty Name Remarks
5260 0301 2344 00 4 Washer
5265 1619 7560 00 2 Thermost.valve
5270 0686 3716 07 2 Plug
5275 0661 1000 30 2 Seal washer
5280 1621 0483 00 2 Plug
5285 0661 1000 33 2 Seal washer
5290 1621 0482 00 2 Regulator
5295 1621 0603 00 2 Label
5300 0663 2109 73 2 O-ring
5305 0266 2108 00 2 Nut
5310 0301 2321 00 2 Washer
6010 1621 1491 00 2 Cooler
6015 1621 1492 00 2 Support
6016 1619 2766 00 16 Bolt
6025 1619 2861 05 4 Clamp
6026 0248 9980 65 4 Threaded rod
6030 0291 1128 20 8 Nut
6035 0301 2344 00 12 Washer
6045 1619 2861 05 4 Clamp
6046 1079 1472 06 4 Bolt
6050 1621 1441 00 1 Hose assembly
6051 1619 2861 01 1 Clamp
6052 1079 1472 06 1 Bolt
6055 0663 2109 68 1 O-ring
6060 0147 1363 03 2 Bolt
6065 0301 2344 00 2 Washer
6070 0663 2109 68 1 O-ring
6075 0147 1362 03 2 Bolt
6080 0301 2344 00 2 Washer
6085 1621 1493 00 1 Hose assembly
6090 0663 2109 68 1 O-ring
Ref. Part number Qty Name Remarks
6095 0147 1363 03 2 Bolt
6100 0301 2344 00 2 Washer
6105 0663 2109 68 1 O-ring
6110 0147 1362 03 2 Bolt
6115 0301 2344 00 2 Washer
6155 1621 1495 00 1 Hose assembly
6160 0663 2109 68 1 O-ring
6165 0147 1363 03 2 Bolt
6170 0301 2344 00 2 Washer
6175 0663 2109 68 1 O-ring
6180 0147 1362 03 2 Bolt
6185 0301 2344 00 2 Washer
6190 0686 3716 02 4 Plug
6195 0661 1000 27 4 Seal washer
6200 1621 2173 00 1 Hose assembly
6205 0663 2109 68 1 O-ring
6210 0246 1956 36 2 Stud
6215 0266 2111 00 2 Nut
6220 0663 2109 68 1 O-ring
6225 0147 1362 03 2 Bolt
6230 0301 2344 00 2 Washer
7280 1621 2356 00 1 Wire harness
1) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato con / Foret
med / Revestido com / Kledd med / Vuorattu :
1) Foam : 0395 6001 69 (AR) 50 x 2040 x 1650
self-adhesive
ENergy RECovery 17
56
Parts list
2930 1370 03
18
73808
57
Parts list
2930 1370 03
Frame & Motor GA 315 (A) 18
Ref. Part number Qty Name Remarks
3 kV 50 Hz (3 ph)
IEC IP 55 MV
1010 1080 2955 61 Motor
3.3 Kv 50 Hz (3 ph)
IEC IP 55 MV
1010 1080 2955 62 Motor
6 Kv 50Hz (3 ph)
IEC IP 55 MV
1010 1080 2955 65 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2955 66 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 01 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 02 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 05 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 06 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 01 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 02 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 11 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 12 Motor
Frame
GA 315
Air cooled
Siemens motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
Ref. Part number Qty Name Remarks
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
ABB_M3BP
2005 1621 1447 80 1 Frame
1621 1447 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1448 00 1 Support
2016 1623 8878 00 1 Stud
2018 0266 2118 00 1 Nut
58
Parts list
2930 1370 03
18
73808
59
Parts list
2930 1370 03
Frame & Motor GA 315 (A) 18
Ref. Part number Qty Name Remarks
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 2 Lock washer
2145 0333 3232 00 2 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
Ref. Part number Qty Name Remarks
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
60
Parts list
2930 1370 03
19
73808
61
Parts list
2930 1370 03
Frame & Motor GA 355 (A) 19
Ref. Part number Qty Name Remarks
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 71 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 72 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 75 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 76 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2955 71 Motor
3 kV 60 Hz (3 ph)
CSA-UL IP 55 MV
1010 1080 2955 72 Motor
3.3kV 60 Hz (3 ph)
CSA-UL IP 55 MV
1010 1080 2955 73 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2955 74 Motor
6kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2955 75 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2955 76 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 11 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 12 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 15 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 16 Motor
2.3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 31 Motor
3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 32 Motor
3.3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 33 Motor
4.16 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 34 Motor
6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 4077 35 Motor
6.6 kV 60 Hz (3 ph)
IEC IP 23
1010 1080 4077 36 Motor
440-460 V 60 Hz(3 ph)
Weg motor CSA-UL
Weg motor IEC With PT
Ref. Part number Qty Name Remarks
1000s in the windings and
bearings
Weg motor IEC
1010 1080 4199 02 Motor
575 V 60 Hz(3 ph)
Weg motor CSA-UL
1010 1080 4199 04 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 03 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 04 Motor
380V 60 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 05 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC With PT
1000s in the windings and
bearings Anti-condensation
heaters
1010 1623 8118 13 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC With PT
1000s in the windings and
bearings Anti-condensation
heaters
1010 1623 8118 14 Motor
380 V 60 Hz(3 ph)
ABB_M3BP IEC With PT
1000s in the windings and
bearings Anti-condensation
heaters
1010 1623 8118 15 Motor
Frame
Air cooled
50 Hz Siemens motor IP 23
60 Hz Siemens motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
62
Parts list
2930 1370 03
19
73808
63
Parts list
2930 1370 03
Frame & Motor GA 355 (A) 19
Ref. Part number Qty Name Remarks
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
50 Hz Siemens motor IP 55
MV
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
ABB_M3BP motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
Ref. Part number Qty Name Remarks
2015 1621 1448 00 1 Support
2016 1623 8878 00 1 Stud
2018 0266 2118 00 1 Nut
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
64
Parts list
2930 1370 03
20
73808
65
Parts list
2930 1370 03
Frame & Motor GA 400 (A) 20
Ref. Part number Qty Name Remarks
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 81 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 82 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 85 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 86 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 91 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 92 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 93 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 94 Motor
6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 95 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 96 Motor
3 kV 50 Hz(3 ph)
IEC IP 24
1010 1080 4077 21 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 22 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 25 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 24
1010 1080 4077 26 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 41 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 42 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 43 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 44 Motor
6 kV 60 Hz(3 ph)
IEC IP 24
1010 1080 4077 45 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 24
1010 1080 4077 46 Motor
440-460 V 60 Hz (3 ph)
Weg motor IEC
Weg motor IEC With PT
Ref. Part number Qty Name Remarks
1000s in the windings and
bearings Anti-condensation
heaters
Weg motor CSA-UL
1010 1080 4199 12 Motor
575 V 60 Hz (3 ph)
Weg motor CSA-UL
1010 1080 4199 14 Motor
400 V 50 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 06 Motor
500 V 50 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 07 Motor
380 V 60 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 08 Motor
400 V 50 Hz (3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 16 Motor
500 V 50 Hz(3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 17 Motor
380 V 60 Hz (3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 18 Motor
Frame
Air cooled
Siemens motor IP 23
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
66
Parts list
2930 1370 03
20
73808
67
Parts list
2930 1370 03
Ref. Part number Qty Name Remarks
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
Siemens motor IP 55 MV
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
ABB_M3BP motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
Ref. Part number Qty Name Remarks
2015 1621 1448 00 1 Support
2016 1623 8878 00 1 Stud
2018 0266 2118 00 1 Nut
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 4733 80 1 Frame
1621 4733 00 1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Frame & Motor GA 400 (A) 20
68
Parts list
2930 1370 03
21
73808
69
Parts list
2930 1370 03
Frame & Motor GA 450 (A) 21
Ref. Part number Qty Name Remarks
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 61 Motor
3 kV 60 Hz(3 ph) CSA-UL IP
55 MV
CSA-UL IP 55 MV
1010 1080 2929 62 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 63 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 64 Motor
6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 65 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 66 Motor
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 51 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 52 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 55 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 56 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 81 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 82 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 85 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 86 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 51 Motor
3kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 52 Motor
3.3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 53 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 54 Motor
6 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 55 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 4077 56 Motor
440-460 V 60 Hz (3 ph)
Weg motor IEC
Weg motor IEC With PT
Ref. Part number Qty Name Remarks
1000s in the windings and
bearings Anti-condensation
heaters
Weg motor CSA-UL
1010 1080 4199 22 Motor
575 V 60 Hz (3 ph)
Weg motor CSA-UL
1010 1080 4199 24 Motor
400 V 50 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 21 Motor
500 V 50 Hz(3 ph)
ABB_M3BP motor IEC
1010 1623 8118 22 Motor
400V 50 Hz(3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 31 Motor
500 V 50 Hz(3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 32 Motor
Frame
Air cooled
ABB_M3BP motor
2005 1621 4733 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1448 00 1 Support
2016 1623 8878 00 1 Stud
2018 0266 2118 00 1 Nut
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
70
Parts list
2930 1370 03
21
73808
71
Parts list
2930 1370 03
Frame & Motor GA 450 (A) 21
Ref. Part number Qty Name Remarks
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Siemens motor IP 23
2005 1621 4733 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
Siemens motor IP 55 MV
2005 1621 4733 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
Ref. Part number Qty Name Remarks
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 4733 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
72
Parts list
2930 1370 03
22
73808
73
Parts list
2930 1370 03
Frame & Motor GA 500 (A) 22
Ref. Part number Qty Name Remarks
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 61 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 62 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 65 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 66 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 71 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 72 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 73 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 74 Motor
6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 75 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 76 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 61 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 62 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 65 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 24
1010 1080 2946 66 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 71 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 72 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 73 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 74 Motor
6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 2946 75 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 2946 76 Motor
Frame
Air cooled
Ref. Part number Qty Name Remarks
Siemens motor IP 23
2005 1621 4733 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
Siemens motor IP 55 MV
2005 1621 4733 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
74
Parts list
2930 1370 03
22
73808
75
Parts list
2930 1370 03
Frame & Motor GA 500 (A) 22
Ref. Part number Qty Name Remarks
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 4733 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
Ref. Part number Qty Name Remarks
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2010 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
76
Parts list
2930 1370 03
23
73808
77
Parts list
2930 1370 03
Frame & Motor GA 315 (W) 23
Ref. Part number Qty Name Remarks
3 kV 50 Hz (3 ph)
IEC IP 55 MV
1010 1080 2955 61 Motor
3.3 Kv 50 Hz (3 ph)
IEC IP 55 MV
1010 1080 2955 62 Motor
6 Kv 50Hz (3 ph)
IEC IP 55 MV
1010 1080 2955 65 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2955 66 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 01 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 02 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 05 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 06 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 01 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 02 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 11 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 12 Motor
Frame
Water cooled
Siemens motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
Ref. Part number Qty Name Remarks
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
ABB_M3BP motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1448 00 1 Support
2016 1623 8878 00 1 Stud
78
Parts list
2930 1370 03
23
73808
79
Parts list
2930 1370 03
Frame & Motor GA 315 (W) 23
Ref. Part number Qty Name Remarks
2018 0266 2118 00 1 Nut
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 2 Lock washer
2145 0333 3232 00 2 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
Ref. Part number Qty Name Remarks
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
80
Parts list
2930 1370 03
24
73808
81
Parts list
2930 1370 03
Frame & Motor GA 355 (W) 24
Ref. Part number Qty Name Remarks
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 71 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 72 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 75 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 76 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2955 71 Motor
3 kV 60 Hz (3 ph)
CSA-UL IP 55 MV
1010 1080 2955 72 Motor
3.3kV 60 Hz (3 ph)
CSA-UL IP 55 MV
1010 1080 2955 73 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2955 74 Motor
6kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2955 75 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2955 76 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 11 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 12 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 15 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 16 Motor
2.3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 31 Motor
3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 32 Motor
3.3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 33 Motor
4.16 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 34 Motor
6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 4077 35 Motor
6.6 kV 60 Hz (3 ph)
IEC IP 23
1010 1080 4077 36 Motor
440-460 V 60 Hz(3 ph)
Weg motor CSA-UL
Weg motor IEC With PT
1000s in the windings and
Ref. Part number Qty Name Remarks
bearings
Weg motor IEC
1010 1080 4199 02 Motor
575 V 60 Hz(3 ph)
Weg motor CSA-UL
1010 1080 4199 04 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 03 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 04 Motor
380V 60 Hz(3 ph)
ABB_M3BP IEC
1010 1623 8118 05 Motor
400 V 50 Hz(3 ph)
ABB_M3BP IEC With PT
1000s in the windings and
bearings Anti-condensation
heaters
1010 1623 8118 13 Motor
500 V 50 Hz(3 ph)
ABB_M3BP IEC With PT
1000s in the windings and
bearings Anti-condensation
heaters
1010 1623 8118 14 Motor
380 V 60 Hz(3 ph)
ABB_M3BP IEC With PT
1000s in the windings and
bearings Anti-condensation
heaters
1010 1623 8118 15 Motor
Frame
Water cooled
50Hz Siemens motor IP 23
60Hz Siemens motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
82
Parts list
2930 1370 03
24
73808
83
Parts list
2930 1370 03
Frame & Motor GA 355 (W) 24
Ref. Part number Qty Name Remarks
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
50 Hz Siemens motor IP 55
MV
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
ABB_M3BP motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1448 00 1 Support
Ref. Part number Qty Name Remarks
2016 1623 8878 00 1 Stud
2018 0266 2118 00 1 Nut
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 2 Lock washer
2145 0333 3232 00 2 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
84
Parts list
2930 1370 03
25
73808
85
Parts list
2930 1370 03
Frame & Motor GA 400 (W) 25
Ref. Part number Qty Name Remarks
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 81 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 82 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 85 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 86 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 91 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 92 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 93 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 94 Motor
6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 95 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 96 Motor
3 kV 50 Hz(3 ph)
IEC IP 24
1010 1080 4077 21 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 22 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 4077 25 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 24
1010 1080 4077 26 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 41 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 42 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 43 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 24
1010 1080 4077 44 Motor
6 kV 60 Hz(3 ph)
IEC IP 24
1010 1080 4077 45 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 24
1010 1080 4077 46 Motor
440-460 V 60 Hz (3 ph)
Weg motor IEC
Weg motor IEC With PT
Ref. Part number Qty Name Remarks
1000s in the windings and
bearings Anti-condensation
heaters
Weg motor CSA-UL
1010 1080 4199 12 Motor
575 V 60 Hz (3 ph)
Weg motor CSA-UL
1010 1080 4199 14 Motor
400 V 50 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 06 Motor
500 V 50 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 07 Motor
380 V 60 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 08 Motor
400 V 50 Hz (3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 16 Motor
500 V 50 Hz(3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 17 Motor
380 V 60 Hz (3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 18 Motor
Frame
Water cooled
ABB_M3BP motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1448 00 1 Support
2016 1623 8878 00 1 Stud
2018 0266 2118 00 1 Nut
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
86
Parts list
2930 1370 03
25
73808
87
Parts list
2930 1370 03
Ref. Part number Qty Name Remarks
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 2 Lock washer
2145 0333 3232 00 2 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Siemens motor IP 23
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
Siemens motor IP 55 MV
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
Ref. Part number Qty Name Remarks
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
1) With Anti Condensation Heaters and PT1000s in
the windings and bearings
Frame & Motor GA 400 (W) 25
88
Parts list
2930 1370 03
26
73808
89
Parts list
2930 1370 03
Frame & Motor GA 450 (W) 26
Ref. Part number Qty Name Remarks
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 61 Motor
3 kV 60 Hz(3 ph) CSA-UL IP
55 MV
CSA-UL IP 55 MV
1010 1080 2929 62 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 63 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2929 64 Motor
6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 65 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2929 66 Motor
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 51 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 52 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 55 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 56 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 81 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 82 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 85 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 86 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 51 Motor
3kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 52 Motor
3.3 kV 60 Hz (3 ph)
CSA-UL IP 23
1010 1080 4077 53 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 54 Motor
6 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 4077 55 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 4077 56 Motor
440-460 V 60 Hz (3 ph)
Weg motor IEC
Weg motor IEC With PT
Ref. Part number Qty Name Remarks
1000s in the windings and
bearings Anti-condensation
heaters
Weg motor CSA-UL
1010 1080 4199 22 Motor
575 V 60 Hz (3 ph)
Weg motor CSA-UL
1010 1080 4199 24 Motor
400 V 50 Hz (3 ph)
ABB_M3BP motor IEC
1010 1623 8118 21 Motor
500 V 50 Hz(3 ph)
ABB_M3BP motor IEC
1010 1623 8118 22 Motor
400V 50 Hz(3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 31 Motor
500 V 50 Hz(3 ph)
ABB_M3BP motor IEC With
PT 1000s in the windings
and bearings Anticondensation
heaters
1010 1623 8118 32 Motor
Frame
Water cooled
ABB_M3BP motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1448 00 1 Support
2016 1623 8878 00 1 Stud
2018 0266 2118 00 1 Nut
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1630 03 1 Bolt
2050 0301 2405 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 2 Lock washer
2145 0333 3232 00 2 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
90
Parts list
2930 1370 03
26
73808
91
Parts list
2930 1370 03
Frame & Motor GA 450 (W) 26
Ref. Part number Qty Name Remarks
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Siemens motor IP 23
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
Siemens motor IP 55 MV
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
Ref. Part number Qty Name Remarks
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
92
Parts list
2930 1370 03
27
73808
93
Parts list
2930 1370 03
Frame & Motor GA 500 (W) 27
Ref. Part number Qty Name Remarks
3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 61 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 62 Motor
6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 65 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 66 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 71 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 72 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 73 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 55 MV
1010 1080 2930 74 Motor
6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 75 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 55 MV
1010 1080 2930 76 Motor
3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 61 Motor
3.3 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 62 Motor
6 kV 50 Hz(3 ph)
IEC IP 23
1010 1080 2946 65 Motor
6.6 kV 50 Hz(3 ph)
IEC IP 24
1010 1080 2946 66 Motor
2.3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 71 Motor
3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 72 Motor
3.3 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 73 Motor
4.16 kV 60 Hz(3 ph)
CSA-UL IP 23
1010 1080 2946 74 Motor
6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 2946 75 Motor
6.6 kV 60 Hz(3 ph)
IEC IP 23
1010 1080 2946 76 Motor
Ref. Part number Qty Name Remarks
Frame
Water cooled
Siemens motor IP 23
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1450 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Weg motor
Siemens motor IP 55 MV
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
2012 0147 1555 03 8 Bolt
2013 0300 0274 13 8 Washer
2015 1621 1451 00 1 Support
2020 0147 1630 03 1 Bolt
2025 0301 2405 00 1 Washer
2030 1614 6366 03 1 Antivibr.pad
2035 0147 1475 03 4 Bolt
2040 0301 2378 00 4 Washer
2045 0147 1962 86 1 Bolt
2050 0301 2434 00 1 Washer
2055 1621 1449 00 2 Spacer
2060 0147 1495 03 2 Bolt
2065 0301 2378 00 2 Washer
94
Parts list
2930 1370 03
27
73808
95
Parts list
2930 1370 03
Frame & Motor GA 500 (W) 27
Ref. Part number Qty Name Remarks
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
Without main motor
2005 1621 1447 80 1 Frame
1 Frame
1614 9851 00 2 Pin
Ref. Part number Qty Name Remarks
2070 1623 7174 00 1 Support
2071 0147 1632 03 2 Bolt
2072 0301 2405 00 2 Washer
2075 0147 1630 03 2 Bolt
2080 0301 2405 00 2 Washer
2085 1614 6366 03 2 Antivibr.pad
2090 0147 1475 03 8 Bolt
2095 0301 2378 00 8 Washer
2100 1621 1449 00 2 Spacer
2105 0147 1646 03 2 Bolt
2110 0301 2405 00 2 Washer
2120 0017 2071 00 2 Cable
2125 1088 0010 25 2 Cable lug
2130 0147 1360 03 1 Bolt
2135 0147 1360 03 1 Bolt
2140 0333 3232 00 1 Lock washer
2145 0333 3232 00 1 Lock washer
2150 0017 2071 00 2 Cable
2155 1088 0010 25 2 Cable lug
2160 0147 1360 03 1 Bolt
2165 0147 1360 03 1 Bolt
2170 0333 3232 00 1 Lock washer
2175 0333 3232 00 1 Lock washer
96
Parts list
2930 1370 03
28
73809
97
Parts list
2930 1370 03
Regulating System (A) 28
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
1010 Regulator
1900 0710 82 1 With PT 1000s in the
windings and bearings Anti-
Condensation heaters
1900 0710 62 1 With PT 100s in the
windings Anti-Condensation
heaters
1020 1622 0661 02 1 Cable
Option Anti Condensation
Heater in Motor
1900 3151 04 1 Control panel
With PT 1000 Options In
Windings
1900 3151 17 1 Control panel
1900 3151 02 1 Control panel
IP 55 SPM monitoring
equipment
1080 1621 2355 00 1 Wire harness
1090 0348 0102 06 10 Cable tie
1100 1089 0457 77 1 Alarm unit
1900 3151 15 1 Control panel
1120 1089 0457 04 7 Shock transducer
IP 23 SPM monitoring
equipment
IP 55 MV SPM monitoring
equipment
1080 1621 2355 00 1 Wire harness 1)
1090 0348 0102 06 1 Cable tie
1100 1089 0457 77 1 Alarm unit
1110 1622 0661 02 1 Cable
1900 3151 15 1 Control panel
1130 1089 0457 04 6 Shock transducer
1140 1089 0457 64 1 Shock pulse transducer
Regulating System
2040 0574 9874 05 1 Hose assembly
2045 2250 4983 00 1 Nipple
2050 0661 1000 30 2 Seal washer
2055 0661 1000 24 1 Seal washer
2060 1615 3624 00 1 Nozzle
2065 0661 1000 24 1 Seal washer
2070 1079 5840 01 1 Nipple
2075 0661 1000 25 1 Seal washer
2080 0580 0400 03 1 Str.coupling
2085 0575 0361 18 1 Hose assembly
Ref. Part number Qty Name Remarks
2090 0661 1000 24 1 Seal washer
2095 1079 5840 01 1 Nipple
2100 0574 9917 14 1 Hose assembly
2105 1619 5205 00 1 Nipple
2110 0661 1000 25 1 Seal washer
2115 0686 3716 07 1 Plug
Control System
Air cooled
3010 1089 0637 24 1 Switch temp.
3015 1089 0637 24 1 Switch temp.
3020 1089 0574 70 1 Sensor
3025 1089 0574 70 1 Sensor
3030 1089 0574 70 1 Sensor
3035 1089 0574 70 1 Sensor
3040 1089 9625 13 1 Sensor press
3045 1089 9625 13 1 Sensor press
3050 1089 9625 13 1 Sensor press
3055 1089 9625 18 1 Sensor press
3060 1089 9625 01 1 Dp transducer
3065 1089 9625 01 1 Dp transducer
3070 1623 8640 00 1 Wire harness
3080 0266 2110 00 2 Hexagon nut
3085 0301 2335 00 2 Plain washer
3095 0348 0102 08 17 Cable tie
3100 1 Regulator elektronikon iiid
1900 0710 32 Without High Resolution
Display
1900 0712 92 With High Resolution
display for Elektronikon
MkIV
3105 0160 6039 00 4 Screw
3110 0301 2315 00 4 Washer
3130 1900 0710 41 1 Regulator
3140 1622 0661 04 1 Cable
3150 2250 4983 00 2 Nipple
3155 0661 1000 30 2 Seal washer
3160 0661 1000 26 2 Seal washer
3165 0686 3716 30 2 Plug
10 bar
10.4 bar
13 bar
13.8 bar
4005 0603 4106 03 1 Hexagon nipple
4010 1621 4241 00 1 Valve
1) SPM vibration monitoring / SPM trillingskontrole /
SPM vibrationskontroll // Supervisión de vibraciones
SPM / Monitorraggio delle vibrazioni SPM
98
Parts list
2930 1370 03
29
73810
99
Parts list
2930 1370 03
Regulating System (W) 29
Ref. Part number Qty Name Remarks
GA 315
GA 355
GA 400
GA 450
GA 500
1010 Regulator
1900 0710 82 1 With PT 1000s in the
windings and bearings Anti-
CONDensation heaters
1900 0710 62 1 With PT 100s in the
windings Anti-
CONDensation heaters
1020 1622 0661 02 1 Cable
Option Anti Condensation
Heater in Motor
1900 3151 04 1 Control panel
With PT 1000 Options In
Windings
1900 3151 17 1 Control panel
1900 3151 02 1 Control panel
IP 55 SPM monitoring
equipment
1080 1621 2355 00 1 Wire harness 1)
1090 0348 0102 06 10 Cable tie
1100 1089 0457 77 1 Alarm unit
1110 1622 0661 02 1 Cable
1900 3151 15 1 Control panel
1120 1089 0457 04 7 Shock transducer
IP 23 SPM monitoring
equipment
IP 55 MV SPM monitoring
equipment
1080 1621 2355 00 1 Wire harness
1090 0348 0102 06 1 Cable tie
1100 1089 0457 77 1 Alarm unit
1110 1622 0661 02 1 Cable
1900 3151 15 1 Control panel
1130 1089 0457 04 6 Shock transducer
1140 1089 0457 64 1 Shock pulse transducer
Regulating System
2040 0574 9874 05 1 Hose assembly
2045 2250 4983 00 1 Nipple
2050 0661 1000 30 2 Seal washer
2055 0661 1000 24 1 Seal washer
2060 1615 3624 00 1 Nozzle
2065 0661 1000 24 1 Seal washer
2070 1079 5840 01 1 Nipple
2075 0661 1000 25 1 Seal washer
2080 0580 0400 03 1 Str.coupling
2085 0575 0361 18 1 Hose assembly
2090 0661 1000 24 1 Seal washer
Ref. Part number Qty Name Remarks
2095 1079 5840 01 1 Nipple
2100 0574 9917 14 1 Hose assembly
2105 1619 5205 00 1 Nipple
2110 0661 1000 25 1 Seal washer
2115 0686 3716 07 1 Plug
Control System
Water cooled
3010 1089 0637 24 1 Switch temp.
3015 1089 0637 24 1 Switch temp.
3020 1089 0574 70 1 Sensor
3025 1089 0574 70 1 Sensor
3030 1089 0574 70 1 Sensor
3035 1089 0574 70 1 Sensor
3040 1089 9625 13 1 Sensor press
3045 1089 9625 13 1 Sensor press
3050 1089 9625 13 1 Sensor press
3055 1089 9625 18 1 Sensor press
3060 1089 9625 01 1 Dp transducer
3065 1089 9625 01 1 Dp transducer
3070 1623 1438 00 1 Wire harness
3080 0266 2110 00 2 Hexagon nut
3085 0301 2335 00 2 Plain washer
3095 0348 0102 08 14 Cable tie
3100 1 Regulator elektronikon
1900 0710 32 Without High Resolution
Display
0160 6039 00 High Resolution display for
Elektronikon MkIV
3105 0160 6039 00 4 Screw
3110 0301 2315 00 4 Washer
3130 1900 0710 41 1 Regulator
3140 1622 0661 04 1 Cable
3150 2250 4983 00 2 Nipple
3155 0661 1000 30 2 Seal washer
Without High Resolution
Display
3160 0661 1000 26 2 Seal washer
3165 0686 3716 30 2 Plug
10 bar
10.4 bar
13 bar
13.8 bar
4005 0603 4106 03 1 Hexagon nipple
4010 1621 4241 00 1 Valve
1) SPM vibration monitoring / SPM trillingskhahahaontrole /
SPM vibrationskontroll / SPM Vibrationsüberwachung /
Contrôle de vibrations SPM / Supervisión de vibraciones
SPM /Monitorraggio delle vibrazioni SPM
100
Parts list
2930 1370 03
30
73801
101
Parts list
2930 1370 03
Drains - Basic 30
Ref. Part number Qty Name Remarks
Water cooled
Without Electronic
condensate drain
Without OSD
1010 0661 1000 25 1 Seal washer
1015 0581 0000 45 1 Pipe coupling
1020 0070 6002 06 AR Plastic tube
1025 0348 0102 08 1 Cable tie
1026 0348 0102 08 1 Cable tie
1030 0581 0000 86 1 Pipe coupling
1035 0653 1124 00 1 Flat gasket
1040 0581 0000 53 1 Pipe coupling
1045 0653 1062 00 1 Flat gasket
1050 0581 0000 45 1 Pipe coupling
1051 0661 1000 25 1 Seal washer
1055 0070 6002 06 AR Plastic tube
1060 0581 0000 86 1 Pipe coupling
1065 0653 1124 00 1 Flat gasket
1070 0581 0000 53 1 Pipe coupling
1075 0852 0010 33 1 Ball valve
1110 0661 1000 25 1 Seal washer
1115 0581 0000 45 1 Pipe coupling
1120 0070 6002 06 AR Plastic tube
1125 0348 0102 08 1 Cable tie
1126 0348 0102 08 1 Cable tie
1130 0581 0000 86 1 Pipe coupling
1135 0653 1124 00 1 Flat gasket
1140 0581 0000 53 1 Pipe coupling
1145 0653 1062 00 1 Flat gasket
1150 0581 0000 45 1 Pipe coupling
1151 0661 1000 25 1 Seal washer
1155 0070 6002 06 AR Plastic tube
1160 0581 0000 86 1 Pipe coupling
1165 0653 1124 00 1 Flat gasket
1170 0581 0000 53 1 Pipe coupling
1175 0852 0010 33 1 Ball valve
Ref. Part number Qty Name Remarks
Air cooled
Without Electronic
condensate drain
Without OSD
1010 0661 1000 25 1 Seal washer
1015 0581 0000 45 1 Pipe coupling
1020 0070 6002 06 AR Plastic tube
1025 0348 0102 08 1 Cable tie
1026 0348 0102 08 1 Cable tie
1030 0581 0000 86 1 Pipe coupling
1035 0653 1124 00 1 Flat gasket
1040 0581 0000 53 1 Pipe coupling
1045 0653 1062 00 1 Flat gasket
1050 0581 0000 45 1 Pipe coupling
1051 0661 1000 25 1 Seal washer
1055 0070 6002 06 AR Plastic tube
1060 0581 0000 86 1 Pipe coupling
1065 0653 1124 00 1 Flat gasket
1070 0581 0000 53 1 Pipe coupling
1075 0852 0010 33 1 Ball valve
1110 0661 1000 25 1 Seal washer
1115 0581 0000 45 1 Pipe coupling
1120 0070 6002 06 AR Plastic tube
1125 0348 0102 08 1 Cable tie
1126 0348 0102 08 1 Cable tie
1130 0581 0000 86 1 Pipe coupling
1135 0653 1124 00 1 Flat gasket
1140 0581 0000 53 1 Pipe coupling
1145 0653 1062 00 1 Flat gasket
1150 0581 0000 45 1 Pipe coupling
1151 0661 1000 25 1 Seal washer
1155 0070 6002 06 AR Plastic tube
1160 0581 0000 86 1 Pipe coupling
1165 0653 1124 00 1 Flat gasket
1170 0581 0000 53 1 Pipe coupling
1175 0852 0010 33 1 Ball valve
102
Parts list
2930 1370 03
31
73802
103
Parts list
2930 1370 03
Drains - EWD 31
Ref. Part number Qty Name Remarks
Water cooled
1005 1 Drain valve
8102 0425 80 IEC
8102 0425 98 CSA-UL
1010 1617 1768 00 1 Support
1015 1619 2766 00 3 Bolt
1020 0661 1000 29 1 Seal washer
1025 0605 8700 84 1 Bushing
1030 0661 1000 29 1 Seal washer
1035 0605 8820 05 1 Bushing
1040 0581 0000 71 1 Pipe coupling
1045 0661 1000 27 1 Seal washer
1050 0661 1000 25 1 Seal washer
1055 1613 8084 00 1 Pipe coupling
1060 0070 6002 13 AR Plastic tube
1065 0661 1000 27 1 Seal washer
1070 0581 0000 71 1 Pipe coupling
1075 0070 6002 05 AR Plastic tube
1080 0661 1000 25 1 Seal washer
1085 0581 0000 35 1 Pipe coupling
1095 0581 0001 04 1 Pipe coupling
1100 0070 6002 13 AR Plastic tube
1105 0581 0000 71 1 Pipe coupling
1110 0581 0000 86 1 Pipe coupling
1115 0661 1000 27 1 Seal washer
1125 1623 7050 00 1 Wiring
1155 1 Drain valve
8102 0425 80 IEC
8102 0425 98 CSA-UL
1160 1617 1768 00 1 Support
1165 1619 2766 00 3 Bolt
1170 0661 1000 29 1 Seal washer
1175 0605 8700 84 1 Bushing
1180 0661 1000 29 1 Seal washer
1185 0605 8820 05 1 Bushing
1190 0581 0000 71 1 Pipe coupling
1195 0661 1000 27 1 Seal washer
1200 0661 1000 25 1 Seal washer
1205 1613 8084 00 1 Pipe coupling
1210 0070 6002 13 AR Plastic tube
1215 0661 1000 27 1 Seal washer
1220 0581 0000 71 1 Pipe coupling
1225 0070 6002 05 AR Plastic tube
1230 0661 1000 25 1 Seal washer
1235 0581 0000 35 1 Pipe coupling
1245 0581 0001 04 1 Pipe coupling
1250 0070 6002 13 AR Plastic tube
1255 0581 0000 71 1 Pipe coupling
1260 0581 0000 86 1 Pipe coupling
1265 0661 1000 27 1 Seal washer
Air cooled
1005 1 Drain valve
8102 0425 80 IEC
8102 0425 98 CSA-UL Electronic
condensate drain
1010 1617 1768 00 1 Support
1015 1619 2766 00 3 Bolt
1020 0661 1000 29 1 Seal washer
Ref. Part number Qty Name Remarks
1025 0605 8700 84 1 Bushing
1030 0661 1000 29 1 Seal washer
1035 0605 8820 05 1 Bushing
1040 0581 0000 71 1 Pipe coupling
1045 0661 1000 27 1 Seal washer
1050 0661 1000 25 1 Seal washer
1055 1613 8084 00 1 Pipe coupling
1060 0070 6002 13 AR Plastic tube
1065 0661 1000 27 1 Seal washer
1070 0581 0000 71 1 Pipe coupling
1075 0070 6002 05 AR Plastic tube
1080 0661 1000 25 1 Seal washer
1085 0581 0000 35 1 Pipe coupling
1095 0581 0001 04 1 Pipe coupling
1100 0070 6002 13 AR Plastic tube
1105 0581 0000 71 1 Pipe coupling
1110 0581 0000 86 1 Pipe coupling
1115 0661 1000 27 1 Seal washer
1120 0686 9252 58 1 Protection plug
1125 1623 7050 00 1 Wiring
1155 1 Drain valve
8102 0425 80 IEC
8103 0425 98 CSA-UL
1160 1617 1768 00 1 Support
1165 1619 2766 00 3 Bolt
1170 0661 1000 29 1 Seal washer
1175 0605 8700 84 1 Bushing
1180 0661 1000 29 1 Seal washer
1185 0605 8820 05 1 Bushing
1190 0581 0000 71 1 Pipe coupling
1195 0661 1000 27 1 Seal washer
1200 0661 1000 25 1 Seal washer
1205 1613 8084 00 1 Pipe coupling
1210 0070 6002 13 AR Plastic tube
1215 0661 1000 27 1 Seal washer
1220 0581 0000 71 1 Pipe coupling
1225 0070 6002 05 AR Plastic tube
1230 0661 1000 25 1 Seal washer
1235 0581 0000 35 1 Pipe coupling
1245 0581 0001 04 1 Pipe coupling
1250 0070 6002 13 AR Plastic tube
1255 0581 0000 71 1 Pipe coupling
1260 0581 0000 86 1 Pipe coupling
1265 0661 1000 27 1 Seal washer
1195 0661 1000 27 1 Seal washer
1200 0661 1000 25 1 Seal washer
1205 1613 8084 00 1 Pipe coupling
1210 0070 6002 13 AR Plastic tube
1215 0661 1000 27 1 Seal washer
1220 0581 0000 71 1 Pipe coupling
1225 0070 6002 05 AR Plastic tube
1230 0661 1000 25 1 Seal washer
1235 0581 0000 35 1 Pipe coupling
1245 0581 0001 04 1 Pipe coupling
1250 0070 6002 13 AR Plastic tube
1255 0581 0000 71 1 Pipe coupling
1260 0581 0000 86 1 Pipe coupling
1265 0661 1000 27 1 Seal washer
104
Parts list
2930 1370 03
32
73803
105
Parts list
2930 1370 03
Drains - OSD 32
Ref. Part number Qty Name Remarks
Water cooled
IP 23 Integrated oil/water
separator drain (OSD)
IP 55 MV Integrated oil/
water separator drain (OSD)
1010 1621 2303 00 1 Support
1012 1621 7892 00 1 Support
1015 1619 2766 00 4 Bolt
1020 0147 1322 03 3 Bolt
1025 0301 2335 00 3 Plain washer
1030 1623 0030 00 1 Can
1045 1613 7335 00 1 Hose nipple
1050 0070 6002 14 15 Flexible
1055 0560 0200 61 1 Elbow
1060 0070 6002 03 AR Flexible
1065 0581 0000 35 1 Pipe coupling
1070 0661 1000 25 2 Seal washer
1075 1614 9706 00 1 Hose nipple
1080 0070 6002 65 AR Plastic tube
1085 0347 6110 00 2 Hose clip
1090 1614 9876 00 1 Nipple
1095 0661 1000 31 1 Seal washer
1100 1614 9881 00 1 Bushing
1110 0348 0102 06 4 Cable tie
1115 1079 9910 97 1 Label
1120 0581 0000 45 1 Pipe coupling
1125 0661 1000 25 1 Seal washer
1130 0070 6002 06 AR Plastic tube
1135 0581 0000 53 1 Pipe coupling
1140 0653 1124 00 1 Flat gasket
1145 0581 0000 86 1 Pipe coupling
1150 0852 0010 33 1 Ball valve
1215 1619 2766 00 4 Bolt
1220 0147 1322 03 3 Bolt
1225 0301 2335 00 3 Plain washer
1230 1623 0030 00 1 Can
1245 1613 7335 00 1 Hose nipple
1250 0070 6002 14 AR Flexible
1255 0560 0200 61 1 Elbow
1260 0070 6002 03 AR Flexible
1265 0581 0000 35 1 Pipe coupling
1270 0661 1000 25 2 Seal washer
1275 1614 9706 00 1 Hose nipple
1280 0070 6002 65 AR Plastic tube
1285 0347 6110 00 2 Hose clip
1290 1614 9876 00 1 Nipple
1295 0661 1000 31 1 Seal washer
1300 1614 9881 00 1 Bushing
1310 0348 0102 06 4 Cable tie
1315 1079 9910 97 1 Label
1320 0581 0000 45 1 Pipe coupling
1325 0661 1000 25 1 Seal washer
1330 0070 6002 06 AR Plastic tube
1335 0581 0000 53 1 Pipe coupling
1340 0653 1124 00 1 Flat gasket
1345 0581 0000 86 1 Pipe coupling
1350 0852 0010 33 1 Ball valve
1355 0686 9130 00 1 Protecting plug
1360 0686 9252 58 1 Protection plug
2005 1614 9351 00 1 Housing
2006 1613 7299 00 1 Strainer
2007 9125 6295 00 1 Seal washer
2008 1613 7297 00 1 Check valve
2010 1614 9352 00 1 Oil filter
Ref. Part number Qty Name Remarks
2015 1614 9707 00 1 Cover
2020 0661 1000 25 1 Seal washer
2025 1614 9363 00 1 Pipe coupling
2030 1079 9913 69 1 Inform.label
2035 1079 9912 28 1 Information label
2040 1079 9912 07 1 Information label
2045 1079 9920 17 1 Information label
2050 0686 3716 45 1 Hexagon plug
2055 0661 1000 27 1 Seal washer
2060 0686 3716 44 1 Hexagon plug
2065 0661 1000 25 1 Seal washer
3005 1614 9351 00 1 Housing
3006 1613 7299 00 1 Strainer
3007 9125 6295 00 1 Seal washer
3008 1613 7297 00 1 Check valve
3010 1614 9352 00 1 Oil filter
3015 1614 9707 00 1 Cover
3020 0661 1000 25 1 Seal washer
3025 1614 9363 00 1 Pipe coupling
3030 1079 9913 69 1 Inform.label
3035 1079 9912 28 1 Information label
3040 1079 9912 07 1 Information label
3045 1079 9920 17 1 Information label
3050 0686 3716 45 1 Hexagon plug
3055 0661 1000 27 1 Seal washer
3060 0686 3716 44 1 Hexagon plug
3065 0661 1000 25 1 Seal washer
IP 55 Integrated oil/water
separator drain (OSD)
1010 1621 2303 00 1 Support
1012 1621 7892 00 1 Support
1015 1619 2766 00 4 Bolt
1020 0147 1322 03 3 Bolt
1025 0301 2335 00 3 Plain washer
1030 1623 0030 00 1 Can
1045 1613 7335 00 1 Hose nipple
1050 0070 6002 14 AR Flexible
1055 0560 0200 61 1 Elbow
1060 0070 6002 03 AR Flexible
1065 0581 0000 35 1 Pipe coupling
1070 0661 1000 25 2 Seal washer
1075 1614 9706 00 1 Hose nipple
1080 0070 6002 28 AR Plastic tube
1085 0347 6110 00 2 Hose clip
1090 1614 9876 00 1 Nipple
1095 0661 1000 31 1 Seal washer
1100 1614 9881 00 1 Bushing
1110 0348 0102 06 4 Cable tie
1115 1079 9910 97 1 Label
1120 0581 0000 45 1 Pipe coupling
1125 0661 1000 25 1 Seal washer
1130 0070 6002 06 AR Plastic tube
1135 0581 0000 53 1 Pipe coupling
1140 0653 1124 00 1 Flat gasket
1145 0581 0000 86 1 Pipe coupling
1150 0852 0010 33 1 Ball valve
1215 1619 2766 00 4 Bolt
1220 0147 1322 03 3 Bolt
1225 0301 2335 00 3 Plain washer
1230 1623 0030 00 1 Can
1245 1613 7335 00 1 Hose nipple
1250 0070 6002 14 AR Flexible
1255 0560 0200 61 1 Elbow
1260 0070 6002 03 AR Flexible
106
Parts list
2930 1370 03
32
73803
107
Parts list
2930 1370 03
Drains - OSD 32
Ref. Part number Qty Name Remarks
1265 0581 0000 35 1 Pipe coupling
1270 0661 1000 25 2 Seal washer
1275 1614 9706 00 1 Hose nipple
1280 0070 6002 65 AR Plastic tube
1285 0347 6110 00 2 Hose clip
1290 1614 9876 00 1 Nipple
1295 0661 1000 31 1 Seal washer
1300 1614 9881 00 1 Bushing
1310 0348 0102 06 4 Cable tie
1315 1079 9910 97 1 Label
1320 0581 0000 45 1 Pipe coupling
1325 0661 1000 25 1 Seal washer
1330 0070 6002 06 AR Plastic tube
1335 0581 0000 53 1 Pipe coupling
1340 0653 1124 00 1 Flat gasket
1345 0581 0000 86 1 Pipe coupling
1350 0852 0010 33 1 Ball valve
2005 1614 9351 00 1 Housing
2006 1613 7299 00 1 Strainer
2007 9125 6295 00 1 Seal washer
2008 1613 7297 00 1 Check valve
2010 1614 9352 00 1 Oil filter
2015 1614 9707 00 1 Cover
2020 0661 1000 25 1 Seal washer
2025 1614 9363 00 1 Pipe coupling
2030 1079 9913 69 1 Inform.label
2035 1079 9912 28 1 Information label
2040 1079 9912 07 1 Information label
2045 1079 9920 17 1 Information label
2050 0686 3716 45 1 Hexagon plug
2055 0661 1000 27 1 Seal washer
2060 0686 3716 44 1 Hexagon plug
2065 0661 1000 25 1 Seal washer
3005 1614 9351 00 1 Housing
3006 1613 7299 00 1 Strainer
3007 9125 6295 00 1 Seal washer
3008 1613 7297 00 1 Check valve
3010 1614 9352 00 1 Oil filter
3015 1614 9707 00 1 Cover
3020 0661 1000 25 1 Seal washer
3025 1614 9363 00 1 Pipe coupling
3030 1079 9913 69 1 Inform.label
3035 1079 9912 28 1 Information label
3040 1079 9912 07 1 Information label
3045 1079 9920 17 1 Information label
3050 0686 3716 45 1 Hexagon plug
3055 0661 1000 27 1 Seal washer
3060 0686 3716 44 1 Hexagon plug
3065 0661 1000 25 1 Seal washer
Air cooled
IP 23 Integrated oil/water
separator drain (OSD)
IP 55 MV Integrated oil/
water separator drain (OSD)
1010 1621 2303 00 1 Support
1012 1621 7892 00 1 Support
1015 1619 2766 00 4 Bolt
1020 0147 1322 03 3 Bolt
1025 0301 2335 00 3 Plain washer
1030 1623 0030 00 1 Can
1045 1613 7335 00 1 Hose nipple
1050 0070 6002 14 AR Flexible
1055 0560 0200 61 1 Elbow
1060 0070 6002 03 AR Flexible
Ref. Part number Qty Name Remarks
1065 0581 0000 35 1 Pipe coupling
1070 0661 1000 25 2 Seal washer
1075 1614 9706 00 1 Hose nipple
1080 0070 6002 65 AR Plastic tube
1085 0347 6110 00 2 Hose clip
1090 1614 9876 00 1 Nipple
1095 0661 1000 31 1 Seal washer
1100 1614 9881 00 1 Bushing
1110 0348 0102 06 4 Cable tie
1115 1079 9910 97 1 Label
1120 0581 0000 45 1 Pipe coupling
1125 0661 1000 25 1 Seal washer
1130 0070 6002 06 AR Plastic tube
1135 0581 0000 53 1 Pipe coupling
1140 0653 1124 00 1 Flat gasket
1145 0581 0000 86 1 Pipe coupling
1150 0852 0010 33 1 Ball valve
1215 1619 2766 00 4 Bolt
1220 0147 1322 03 3 Bolt
1225 0301 2335 00 3 Plain washer
1230 1623 0030 00 1 Can
1245 1613 7335 00 1 Hose nipple
1250 0070 6002 14 AR Flexible
1255 0560 0200 61 1 Elbow
1260 0070 6002 03 AR Flexible
1265 0581 0000 35 1 Pipe coupling
1270 0661 1000 25 2 Seal washer
1275 1614 9706 00 1 Hose nipple
1280 0070 6002 65 AR Plastic tube
1285 0347 6110 00 2 Hose clip
1290 1614 9876 00 1 Nipple
1295 0661 1000 31 1 Seal washer
1300 1614 9881 00 1 Bushing
1310 0348 0102 06 4 Cable tie
1315 1079 9910 97 1 Label
1320 0581 0000 45 1 Pipe coupling
1325 0661 1000 25 1 Seal washer
1330 0070 6002 06 AR Plastic tube
1335 0581 0000 53 1 Pipe coupling
1340 0653 1124 00 1 Flat gasket
1345 0581 0000 86 1 Pipe coupling
1350 0852 0010 33 1 Ball valve
2005 1614 9351 00 1 Housing
2006 1613 7299 00 1 Strainer
2007 9125 6295 00 1 Seal washer
2008 1613 7297 00 1 Check valve
2010 1614 9352 00 1 Oil filter
2015 1614 9707 00 1 Cover
2020 0661 1000 25 1 Seal washer
2025 1614 9363 00 1 Pipe coupling
2030 1079 9913 69 1 Inform.label
2035 1079 9912 28 1 Information label
2040 1079 9912 07 1 Information label
2045 1079 9920 17 1 Information label
2050 0686 3716 45 1 Hexagon plug
2055 0661 1000 27 1 Seal washer
2060 0686 3716 44 1 Hexagon plug
2065 0661 1000 25 1 Seal washer
3005 1614 9351 00 1 Housing
3006 1613 7299 00 1 Strainer
3007 9125 6295 00 1 Seal washer
3008 1613 7297 00 1 Check valve
3010 1614 9352 00 1 Oil filter
3015 1614 9707 00 1 Cover
108
Parts list
2930 1370 03
32
73803
109
Parts list
2930 1370 03
Drains - OSD 32
Ref. Part number Qty Name Remarks
3020 0661 1000 25 1 Seal washer
3025 1614 9363 00 1 Pipe coupling
3030 1079 9913 69 1 Inform.label
3035 1079 9912 28 1 Information label
3040 1079 9912 07 1 Information label
Ref. Part number Qty Name Remarks
3045 1079 9920 17 1 Information label
3050 0686 3716 45 1 Hexagon plug
3055 0661 1000 27 1 Seal washer
3060 0686 3716 44 1 Hexagon plug
3065 0661 1000 25 1 Seal washer
110
Parts list
2930 1370 03
33
73811
111
Parts list
2930 1370 03
Bodywork (A) 33
Ref. Part number Qty Name Remarks
Doors
Air cooled
IP 55
1010 1614 9502 80 1 Stay 1)
1 Stay
1012 1202 6584 00 AR Seal
1015 1619 2766 00 2 Bolt
1020 1621 2129 80 1 Stay 1)
1 Stay
1079 9910 95 2 Label
1079 9910 96 2 Label
1025 1619 2766 00 3 Bolt
1030 1621 0426 80 5 Stay 1)
1 Stay
1079 9901 09 1 Label
1035 1619 2766 00 10 Bolt
1040 1614 9592 80 7 Door
1 Door
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1045 1614 9592 81 1 Door 1)
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1050 1614 9593 81 2 Door 1)
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1055 1621 2131 80 1 Door 1)
1 Door
2252 7237 00 5 Doorlock
1619 5188 00 AR Seal
1613 1312 34 2 Strip
1060 1621 2133 80 1 Door 1)
1 Door
2252 7237 00 2 Doorlock
0690 1140 01 1 House mark
1065 1614 9886 80 1 Stay 1)
1 Stay
1079 9901 09 1 Label
1070 1619 2766 00 4 Bolt
1100 1089 9068 01 1 Key
1105 1621 4769 80 2 Stay 1)
1 Stay
1079 9901 09 1 Label
1110 1619 2766 00 4 Bolt
1115 1621 4791 80 1 Stay 1)
1 Stay
1079 9901 09 1 Label
1619 2473 00 AR Seal
1120 1619 2766 00 2 Bolt
1125 1621 4792 80 1 Stay
1 Stay
1079 9901 09 1 Label
1126 0147 1320 03 9 Bolt
1127 0301 2335 00 9 Plain washer
1130 1619 2766 00 3 Bolt
1135 1621 4765 80 4 Panel
1621 4765 00 1 Panel
1614 8988 00 1 Pin
2252 7237 00 4 Doorlock
IP 55 MV
Ref. Part number Qty Name Remarks
IP 23
1010 1614 9502 80 1 Stay
1 Stay
1012 1202 6584 00 AR Seal
1015 1619 2766 00 2 Bolt
1020 1621 2234 80 1 Stay
1 Stay
1025 1619 2766 00 3 Bolt
1030 1621 0426 80 5 Stay
1 Stay
1079 9901 09 1 Label
1035 1619 2766 00 10 Bolt
1040 1614 9592 80 7 Door
1 Door
2252 7237 00 4 Doorlock 1)
1619 5188 00 AR Seal
1045 1614 9592 81 1 Door 1)
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock 2)
1619 5188 00 AR Seal
1050 1614 9593 81 2 Door
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1055 1621 2131 80 1 Door
1 Door
2252 7237 00 5 Doorlock
1619 5188 00 AR Seal
1613 1312 34 2 Strip
1060 1621 2133 80 1 Door
1 Door
2252 7237 00 5 Doorlock
1619 5188 00 AR Seal
1613 1312 34 2 Strip
1065 1614 9886 80 1 Stay
1 Stay
1079 9901 09 1 Label
1070 1619 2766 00 4 Bolt
1075 1088 0412 06 1 Flange
1080 0147 1325 03 4 Bolt
1085 0301 2335 00 4 Plain washer
1090 0266 2110 00 4 Hexagon nut
1100 1089 9068 01 1 Key
1105 1621 4769 80 2 Stay
1 Stay
1079 9901 09 1 Label
1110 1619 2766 00 4 Bolt
1115 1621 4791 80 1 Stay
1 Stay
1079 9901 09 1 Label
1619 2473 00 AR Seal
1120 1619 2766 00 2 Bolt
1125 1621 4792 80 1 Stay
1 Stay
1079 9901 09 1 Label
1126 0147 1320 03 9 Bolt
1127 0301 2335 00 9 Plain washer
1130 1619 2766 00 3 Bolt
1135 1621 4765 80 4 Panel
1 Panel
1614 8988 00 1 Pin
2252 7237 00 4 Doorlock
112
Parts list
2930 1370 03
33
73811
113
Parts list
2930 1370 03
Bodywork (A) 33
Ref. Part number Qty Name Remarks
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
Baffles
Air cooled
IP 23
IP 55 MV
IP 55
2010 1621 2111 80 1 Baffle
1 Baffle
1619 6449 00 22 Seal
2015 1621 2112 80 1 Baffle
1 Baffle
1619 6449 00 16 Seal
2025 1079 1472 06 17 Bolt
2030 1621 2113 00 1 Baffle
2035 1621 2114 00 1 Baffle
2040 1079 1472 06 32 Bolt
2050 1503 1056 00 AR Seal
Roof
Air cooled
3010 1621 5116 00 1 Roof
3015 1079 1472 06 10 Bolt
3020 1621 5116 00 1 Roof
3025 1079 1472 06 10 Bolt
3030 1621 1473 80 1 Roof 1)
1 Roof
3033 1079 1472 06 15 Bolt
3035 1621 1476 80 1 Roof 1)
1 Roof
1613 1312 15 4 Strip
Ref. Part number Qty Name Remarks
3040 1079 1472 06 10 Bolt
3045 1621 5117 80 1 Roof 2)
1 Roof
3047 1621 4768 00 1 Support
3048 1619 5337 01 2 Bolt
3050 1079 1472 06 11 Bolt
3055 1621 5118 80 1 Roof
1 Roof
3060 1079 1472 06 7 Bolt
3070 0348 0101 26 2 Cable tie
3075 0348 0111 06 2 Hose clip
Data plate
ASME (U Stamp)
CHINA
DIR
Singapore
4005 1614 8057 05 1 Data plate
4010 0129 3104 00 4 Rivet blind
CE
4005 1614 8057 08 1 Data plate
4010 0129 3104 00 4 Rivet blind
1..3) Lined with / Bekleed met / Beklädd med /
Ausgekleidet mit / Garnir de / Rivestido de / Allineato
con / Foret med / Revestido com / Kledd med /
Vuorattu :
1) Foam : 0395 6001 69 (AR) 50 x 2040 x 1650
self-adhesive
2) Foam : 0395 6001 60 (AR) 50 x 2040 x 1650
114
Parts list
2930 1370 03
34
73812
115
Parts list
2930 1370 03
Bodywork (W) 34
Ref. Part number Qty Name Remarks
Doors
IP 55
Without ENergy RECovery
1010 1614 9502 80 2 Stay 1)
1 Stay
1015 1619 2766 00 4 Bolt
1020 1621 2129 80 1 Stay 1)
1 Stay
1079 9910 95 2 Label
1079 9910 96 2 Label
1025 1619 2766 00 3 Bolt
1030 1621 0426 80 5 Stay 1)
1 Stay
1079 9901 09 1 Label
1035 1619 2766 00 8 Bolt
1040 1614 9592 80 6 Door 1)
1 Door
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1041 1614 9592 81 2 Door 1)
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1045 1614 9593 81 1 Door 1)
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1050 1621 2131 80 1 Door 1)
1 Door
2252 7237 00 5 Doorlock
1619 5188 00 AR Seal
1613 1312 34 2 Strip
1055 1621 2133 80 1 Door 1)
1 Door
2252 7237 00 2 Doorlock
0690 1140 01 1 House mark
1065 1621 2135 80 1 Stay 1)
1 Stay
1079 9913 69 1 Inform.label
1079 9913 79 1 Inform.label
1079 9901 09 1 Label
1070 1619 2766 00 4 Bolt
1075 1089 9068 01 1 Key
IP 55 MV
IP 23
1010 1614 9502 80 2 Stay 1)
1 Stay
1015 1619 2766 00 4 Bolt
1020 1621 2234 80 1 Stay
1 Stay
1025 1619 2766 00 3 Bolt
1030 1621 0426 80 5 Stay 1)
1 Stay
1079 9901 09 1 Label
1035 1619 2766 00 8 Bolt
Ref. Part number Qty Name Remarks
1040 1614 9592 80 6 Door
1 Door
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1041 1614 9592 81 2 Door
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1045 1614 9593 81 1 Door
1 Door
0690 1140 01 1 House mark
2252 7237 00 4 Doorlock
1619 5188 00 AR Seal
1050 1621 2131 80 1 Door
1 Door
2252 7237 00 5 Doorlock
1619 5188 00 AR Seal
1613 1312 34 2 Strip
1055 1621 2133 80 1 Door
1 Door
2252 7237 00 2 Doorlock
0690 1140 01 1 House mark
1065 1621 2135 80 1 Stay
1 Stay
1079 9913 69 1 Inform.label
1079 9913 79 1 Inform.label
1079 9901 09 1 Label
1070 1619 2766 00 4 Bolt
1075 1089 9068 01 1 Key
1076 1088 0412 06 1 Flange
1085 0147 1325 03 4 Bolt
1090 0301 2335 00 4 Plain washer
1095 0266 2110 00 4 Hexagon nut
Roof
IP 23
2010 1621 1468 80 1 Roof 2)
1 Roof
1613 1312 30 4 Strip
2015 1079 1472 06 17 Bolt
2020 1621 1470 80 1 Roof 2)
1 Roof
1613 1312 30 4 Strip
2025 1079 1472 06 10 Bolt
2030 1621 1473 80 1 Roof 1)
1 Roof
2035 1621 1476 80 1 Roof 1)
1 Roof
1613 1312 15 4 Strip
2040 1079 1472 06 15 Bolt
IP 55 MV
IP 55
2010 1621 1468 80 1 Roof
1 Roof
1613 1312 30 4 Strip
2015 1079 1472 06 17 Bolt
116
Parts list
2930 1370 03
34
73812
117
Parts list
2930 1370 03
Bodywork (W) 34
Ref. Part number Qty Name Remarks
2020 1621 1470 80 1 Roof
1 Roof
1613 1312 30 4 Strip
2025 1079 1472 06 10 Bolt
2030 1621 1473 80 1 Roof
1 Roof
2035 1621 1488 80 1 Roof
1 Roof
1613 1312 15 4 Strip
2040 1079 1472 06 18 Bolt
2050 1621 1462 00 1 Support
Baffle
3040 1079 1472 06 19 Bolt
4045 1621 2213 00 1 Baffle
4050 1621 2116 00 1 Baffle
4055 1619 2766 00 10 Bolt
Data plate
ASME (U Stamp)
Ref. Part number Qty Name Remarks
CHINA
DIR
Singapore
5005 1614 8057 05 1 Data plate
5010 0129 3104 00 4 Rivet blind
CE
5005 1614 8057 08 1 Data plate
5010 0129 3104 00 4 Rivet blind
1-2) Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Garnir de / Rivestido de / Allineato
con / Foret med / Revestido com / Kledd med /
Vuorattu :
1) Foam : 0395 6001 69 (AR) 50 x 2040 x 1650
self-adhesive
2) Foam : 0395 6001 60 (AR) 50 x 2040 x 1650
118
Parts list
2930 1370 03
35
73833
119
Parts list
2930 1370 03
Bodywork - Motor extension- IP55 Medium Voltage 35
Ref. Part number Qty Name Remarks
GA 450 ABB_M3BP
IP 55 Medium voltage
1005 1621 2139 80 2 Panel 1)
1 Panel
1010 1079 1472 06 18 Bolt
1015 1621 2141 80 2 Panel 1)
1 Panel
1020 1079 1472 06 8 Bolt
1022 1614 9851 01 4 Pin
1025 1621 2131 80 1 Door 1)
1 Door
2252 7237 00 5 Doorlock
Ref. Part number Qty Name Remarks
1619 5188 00 AR Seal
1613 1312 34 2 Strip
1045 1079 1472 06 4 Bolt
1..3) Lined with / Bekleed met / Beklädd med /
Ausgekleidet mit / Garnir de / Rivestido de / Allineato
con / Foret med / Revestido com / Kledd med /
Vuorattu :
1) Foam : 0395 6001 69 (AR) 50 x 2040 x 1650
self-dhesive
120
Parts list
2930 1370 03
36
73813
121
Parts list
2930 1370 03
Bodywork - Motor Baffle 36
Ref. Part number Qty Name Remarks
GA 315
Siemens motor
1005 1621 1484 00 1 Baffle
1010 1619 6449 00 AR Seal
ABB_M3BP motor
1005 1623 8879 00 1 Baffle
1010 1619 6449 00 AR Seal
Weg motor
1005 1621 5990 00 1 Baffle
1010 1619 6449 00 AR Seal
GA 355
ABB_M3BP motor
1005 1623 8880 00 1 Baffle
1010 1619 6449 00 AR Seal
50 Hz Siemens motor IP 55
MV
1005 1621 1483 00 1 Baffle
1010 1619 6449 00 AR Seal
50 Hz Siemens motor IP 23
60 Hz Siemens motor
1005 1621 1484 00 1 Baffle
1010 1619 6449 00 AR Seal
Weg motor
1005 1621 5990 00 1 Baffle
1010 1619 6449 00 AR Seal
GA 400
ABB_M3BP motor
1005 1623 8880 00 1 Baffle
1010 1619 6449 00 AR Seal
Siemens motor IP 55 MV
1005 1621 1483 00 1 Baffle
Ref. Part number Qty Name Remarks
1010 1619 6449 00 AR Seal
Siemens motor IP 23
1005 1621 1484 00 1 Baffle
1010 1619 6449 00 AR Seal
Weg motor
1005 1621 5990 00 1 Baffle
1010 1619 6449 00 AR Seal
GA 450
ABB_M3BP motor
1005 1623 8881 00 1 Baffle
1010 1619 6449 00 AR Seal
Siemens motor IP 55 MV
1005 1621 1483 00 1 Baffle
1010 1619 6449 00 AR Seal
Siemens motor IP 23
1005 1621 1484 00 1 Baffle
1010 1619 6449 00 AR Seal
Weg motor
1005 1621 5990 00 1 Baffle
1010 1619 6449 00 AR Seal
GA 500
Siemens motor IP 55 MV
1005 1621 1483 00 1 Baffle
1010 1619 6449 00 AR Seal
Siemens motor IP 23
1005 1621 1484 00 1 Baffle
1010 1619 6449 00 AR Seal
Weg motor
1005 1621 5990 00 1 Baffle
1010 1619 6449 00 AR Seal
122
Parts list
2930 1370 03
37
72907
123
Parts list
2930 1370 03
Cubicle - Box 37
Ref. Part number Qty Name Remarks
GA 315
GA 355
IEC IP 54
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1080 1623 4897 00 1 Support
1085 1621 2673 01 1 Screen
1090 0147 1251 12 4 Bolt
1095 1088 1001 04 3 Warning mark
1100 1621 1235 00 1 Cable box
1115 0697 9810 40 4 Plug
1125 1614 6567 00 1 Seal
1130 0147 1322 03 6 Bolt
1135 0301 2335 00 6 Plain washer
1142 1621 1309 00 1 Plate
1145 0147 1322 03 2 Bolt
1150 0301 2335 00 2 Plain washer
1155 1614 6562 00 4 Clamp
1160 1614 6563 00 4 Clamp
1175 0147 1961 27 8 Bolt
1180 0301 2321 00 8 Washer
1185 0266 2108 00 8 Nut
1200 1079 9901 29 1 Label
1210 1079 9901 67 1 Label
CSA-UL IP 55
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1080 1623 4897 00 1 Support
1085 1621 2673 01 1 Screen
1090 0147 1251 12 4 Bolt
1095 1088 1001 04 1 Warning mark
1097 1613 3431 00 1 Label
1110 1614 7146 00 1 Flange
1120 1614 7145 00 1 Gasket
1130 0147 1325 03 6 Bolt
1140 0266 2110 00 6 Hexagon nut
1200 1079 9901 29 1 Label
1210 1079 9901 67 1 Label
1220 1613 3431 00 1 Label
1225 1613 5330 10 1 Listing mark
IEC IP 23
IEC IP 55 MV
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
Ref. Part number Qty Name Remarks
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1098 1079 9905 49 1 Label
1110 1614 7146 00 1 Flange
1120 1614 7145 00 1 Gasket
1130 0147 1325 03 6 Bolt
1140 0266 2110 00 6 Hexagon nut
CSA-UL IP 23
CSA-UL IP 55 MV
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1098 1079 9905 49 1 Label
1110 1614 7146 00 1 Flange
1120 1614 7145 00 1 Gasket
1130 0147 1325 03 6 Bolt
1140 0266 2110 00 6 Hexagon nut
1220 1613 3431 00 1 Label
1225 1613 5330 10 1 Listing mark
GA 400
GA 450
IEC IP 23
IEC IP 55 MV
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1098 1079 9905 49 1 Label
1110 1614 7146 00 1 Flange
1120 1614 7145 00 1 Gasket
1130 0147 1325 03 6 Bolt
1140 0266 2110 00 6 Hexagon nut
CSA-UL IP 23
CSA-UL IP 55 MV
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
124
Parts list
2930 1370 03
37
72907
125
Parts list
2930 1370 03
Cubicle - Box 37
Ref. Part number Qty Name Remarks
1070 0147 1360 03 2 Bolt
1098 1079 9905 49 1 Label
1110 1614 7146 00 1 Flange
1120 1614 7145 00 1 Gasket
1130 0147 1325 03 6 Bolt
1140 0266 2110 00 6 Hexagon nut
1220 1613 3431 00 1 Label
1225 1613 5330 10 1 Listing mark
IEC IP 55
1010 1623 4931 80 1 Cubicle
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1080 1623 4897 00 1 Support
1085 1621 2673 01 1 Screen
1090 0147 1251 12 4 Bolt
1100 1621 1235 00 1 Cable box
1115 0697 9810 40 4 Plug
1125 1614 6567 00 1 Seal
1130 0147 1322 03 6 Bolt
1135 0301 2335 00 6 Plain washer
1142 1621 1309 00 1 Plate
1145 0147 1322 03 2 Bolt
1150 0301 2335 00 2 Plain washer
1155 1614 6562 00 4 Clamp
1160 1614 6563 00 4 Clamp
1175 0147 1961 27 8 Bolt
1180 0301 2321 00 8 Washer
1185 0266 2108 00 8 Nut
1200 1079 9901 29 1 Label
1210 1079 9901 67 1 Label
2000 0211 16 1 Fan+filter
3010 1089 0598 01 1 Fan
3020 1089 0598 03 1 Filter
CSA-UL IP 55
1010 1623 4931 80 1 Cubicle
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
Ref. Part number Qty Name Remarks
1080 1623 4897 00 1 Support
1085 1621 2673 01 1 Screen
1090 0147 1251 12 4 Bolt
1097 1613 3431 00 1 Label
1100 1614 7146 00 1 Flange
1110 1614 7145 00 1 Gasket
1120 0147 1325 03 6 Bolt
1130 0266 2110 00 6 Hexagon nut
1200 1079 9901 29 1 Label
1210 1079 9901 67 1 Label
2000 0211 17 1 Fan+filter
3010 1089 0598 02 1 Fan
3020 1089 0598 03 1 Filter
GA 500
IEC IP 23
IEC IP 55 MV
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1110 1079 9905 49 1 Label
1120 1614 7146 00 1 Flange
1130 1614 7145 00 1 Gasket
1131 0147 1325 03 6 Bolt
1140 0266 2110 00 6 Hexagon nut
CSA-UL IP 23
CSA-UL IP 55 MV
1010 1623 4930 80 1 Cubicle assy
1015 1619 2766 00 7 Bolt
1020 1619 2766 00 6 Bolt
1035 1089 9154 02 2 Key
1040 1621 0478 00 1 Label
1045 1088 1001 01 1 Warning mark
1050 0697 9810 18 2 Plug
1055 0697 9809 07 2 Nut
1060 0697 9810 20 2 Plug
1065 0697 9809 03 2 Nut
1070 0147 1360 03 2 Bolt
1098 1079 9905 49 1 Label
1110 1614 7146 00 1 Flange
1120 1614 7145 00 1 Gasket
1130 0147 1325 03 6 Bolt
1140 0266 2110 00 6 Hexagon nut
1220 1613 3431 00 1 Label
1225 1613 5330 10 1 Listing mark
126
Parts list
2930 1370 03
38
73845
127
Parts list
2930 1370 03
Cubicle(s) 38
Ref. Part number Qty Name Remarks
IECIP23
IECIP55MV
WithoutmainmotorIEC
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 35 1 Servicediagram
1040 1613 6639 00 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 01 2 Fuse holder
1170 1089 9415 06 1 Contactblock
1190 1089 0362 51 1 Stop button
1200 1089 9436 11 1 Transformer
1210 1089 9621 07 2 Circuitbreak.
1220 1088 0031 13 1 Connector
1230 1089 9436 07 1 Transformer
1240 1089 9621 06 1 Circuitbreak.
1250 1089 9438 02 1 Relaysiem.
1260 1089 0612 25 2 Fuse
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
CSA-ULIP23
CSA-ULIP55MV
WithoutmainmotorCSA-UL
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 35 1 Servicediagram
1040 1614 8949 23 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 02 2 Fuseholder
1170 1089 9415 06 1 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1220 1088 0031 13 1 Connector
1230 1089 9436 08 1 Transformer
1250 1089 9438 03 1 Relay
1260 1089 9168 27 2 Fuselink
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1330 1079 9911 01 1 Label
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1430 1079 9922 74 1 Fuselabel
Ref. Part number Qty Name Remarks
400V(3ph)
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1613 6639 00 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 31 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 01 2 Fuseholder
1170 1089 9415 09 3 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1210 1089 9621 06 1 Circuitbreak.
1220 1088 0031 13 1 Connector
1230 1089 9436 08 1 Transformer
1240 1089 9621 07 2 Circuitbreak.
1260 1089 0612 25 2 Fuse
1280 1089 9415 17 1 Contactor
1300 1089 9446 73 1 Overloadrelay
1290 1623 4005 00 2 Strap earthing
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1450 1089 9415 74 2 Contactor
1460 1089 9415 79 1 Contactor
500V(3ph)
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1613 6639 00 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 01 2 Fuseholder
1170 1089 9415 09 3 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1210 1089 9621 07 2 Circuitbreak.
1220 1088 0031 13 1 Connector
1230 1089 9436 08 1 Transformer
1240 1089 9621 06 1 Circuitbreak.
1260 1089 0612 25 2 Fuse
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1450 1089 9415 74 2 Contactor
1460 1089 9415 78 1 Contactor
128
Parts list
2930 1370 03
38
73845
129
Parts list
2930 1370 03
Cubicle(s) 38
Ref. Part number Qty Name Remarks
440-460V(3ph)CSA-UL
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1614 8949 23 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 02 2 Fuseholder
1170 1089 9415 09 2 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1220 1088 0031 13 1 Connector
1230 1089 9436 08 1 Transformer
1260 1089 9168 27 2 Fuselink
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1310 1089 9415 77 2 Contactor
1320 1089 9415 82 1 Contactor
1330 1079 9911 01 1 Label
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
575V(3ph)
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1614 8949 23 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 02 2 Fuseholder
1170 1089 9415 09 2 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1220 1088 0031 13 1 Connector
1230 1089 9436 07 1 Transformer
1260 1089 9168 26 2 Fuselink
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overload relay
1320 1089 9415 83 2 Contactor
1330 1079 9911 01 1 Label
1410 1089 9337 13 1 Contact block
1420 1089 9337 15 1 Contact block
1460 1089 9415 62 1 Contactor
440-460V(3ph)CSA-UL
1010 1621 4049 00 1 Mountingpanel
Ref. Part number Qty Name Remarks
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1614 8949 23 1 Data plate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 03 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal (pe)
1120 1089 9398 11 32 Terminal
1160 1089 0612 02 2 Fuse holder
1190 1089 0362 51 1 Stopbutton
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1200 1089 9436 11 1 Transformer
1220 1088 0031 13 1 Connector
1230 1089 9436 09 1 Transformer
1260 1089 9168 27 2 Fuselink
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1310 1089 9221 39 2 Contactor
1320 1089 9415 83 1 Contactor
1330 1079 9911 01 1 Label
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1430 1079 9922 74 1 Fuselabel
IP55
1900 3151 90 Controlpanel
575V(3ph)
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1614 8949 23 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 02 2 Fuseholder
1170 1089 9415 09 2 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1220 1088 0031 13 1 Connector
1230 1089 9436 08 1 Transformer
1260 1089 9168 27 2 Fuselink
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1330 1079 9911 01 1 Label
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1430 1079 9922 74 1 Fuselabel
1450 1089 9415 63 1 Contactor
1460 1089 9415 76 2 Contactor
130
Parts list
2930 1370 03
38
73845
131
Parts list
2930 1370 03
Ref. Part number Qty Name Remarks
1900 3151 16 Controlpanel
380V(3ph)
500V(3ph)
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1613 6639 00 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 31 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 01 2 Fuseholder
1170 1089 9415 09 3 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1210 1089 9621 07 2 Circuitbreak.
1220 1088 0031 13 1 Connector
1230 1089 9436 08 1 Transformer
1240 1089 9621 06 1 Circuitbreak.
1260 1089 0612 25 2 Fuse
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1450 1089 9415 75 2 Contactor
1460 1089 9415 80 1 Contactor
380V(3ph)
400V(3ph)
440-460V(3ph)IEC
1010 1621 4049 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1613 6639 00 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 01 2 Fuseholder
1170 1088 0031 13 1 Connector
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1210 1089 9621 07 3 Circuitbreak.
1260 1089 0612 25 2 Fuse
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1440 1089 9221 13 2 Contactor
1450 1089 9415 74 1 Contactor
Ref. Part number Qty Name Remarks
1470 1089 9436 09 1 Transformer
440-460V(3ph)IEC
500V(3ph)
1010 1621 4047 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1613 6639 00 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 01 2 Fuseholder
1170 1089 9415 09 2 Contactblock
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1210 1089 9621 07 2 Circuitbreak.
1220 1088 0031 13 1 Connector
1240 1089 9621 06 1 Circuitbreak.
1260 1089 0612 25 2 Fuse
1270 1089 9436 08 1 Transformer
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1450 1089 9415 74 2 Contactor
1460 1089 9415 80 1 Contactor
400V(3ph)
440-460V(3ph)IEC
1010 1621 4049 00 1 Mountingpanel
1020 1079 9906 09 1 Label
1030 9823 1897 34 1 Servicediagram
1040 1613 6639 00 1 Dataplate
1050 1088 0031 12 1 Connector
1060 1088 0031 07 1 Connector
1070 1079 9901 68 1 Label
1080 1089 0506 06 6 Terminal
1090 1088 0037 31 2 Connector
1100 1088 0037 30 1 Connector
1110 1089 0506 27 7 Terminal(pe)
1120 1089 9398 11 32 Terminal
1130 1088 0031 49 1 Connector
1140 1088 0031 29 1 Connector
1150 1088 0031 30 1 Connector
1160 1089 0612 01 2 Fuseholder
1190 1089 0362 51 1 Stopbutton
1200 1089 9436 11 1 Transformer
1210 1089 9621 07 3 Circuitbreak.
1220 1088 0031 13 1 Connector
1230 1089 9436 09 1 Transformer
1260 1089 0612 25 2 Fuse
1280 1089 9415 17 1 Contactor
1290 1623 4005 00 2 Strap earthing
1300 1089 9446 73 1 Overloadrelay
1410 1089 9337 13 1 Contactblock
1420 1089 9337 15 1 Contactblock
1440 1089 9221 15 2 Contactor
1450 1089 9415 75 1 Contactor
Cubicle(s) 38
132
Parts list
2930 1370 03
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
133
Parts list
2930 1370 03
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
Atlas Copco Stationary Air Compressors
GA 315 50 Hz, GA 355, GA 400, GA 450, GA 500,
GA 315 W 50 Hz, GA 355 W, GA 400 W, GA 450 W,
GA 500
Parts list
No. 2930 1370 03 / DC 2013.01
What sets Atlas Copco apart as a company is our conviction
that we can only excel in what we do if we provide the best
possible know-how and technology to really help our customers
produce, grow and succeed.
There is a unique way of achieving that - we simply call it
the Atlas Copco way. It builds on interaction, on long-term
relationships and involvement in the customers process, needs
and objectives. It means having the
flexibility to adapt to the diverse demands of the people
we cater for.
Its the commitment to our customers business that drives
our effort towards increasing their productivity through better
solutions. It starts with fully supporting existing products and
continuously doing things better, but it goes much further,
creating advances in technology through innovation. Not for the
sake of technology, but for the sake of our customers bottom
line and peace-of-mind.
That is how Atlas Copco will strive to remain the first
choice, to succeed in attracting new business and to maintain
our position as the industry leader.
*2930137003*
(1621054700)
| SKU | 1621054700 |
| Brand | Atlas Copco |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.080m |
| Shipping Height | 0.200m |
| Shipping Length | 0.080m |
Be The First To Review This Product!
Help other Screw Compressor Spares users shop smarter by writing reviews for products you have purchased.
Others Also Bought
