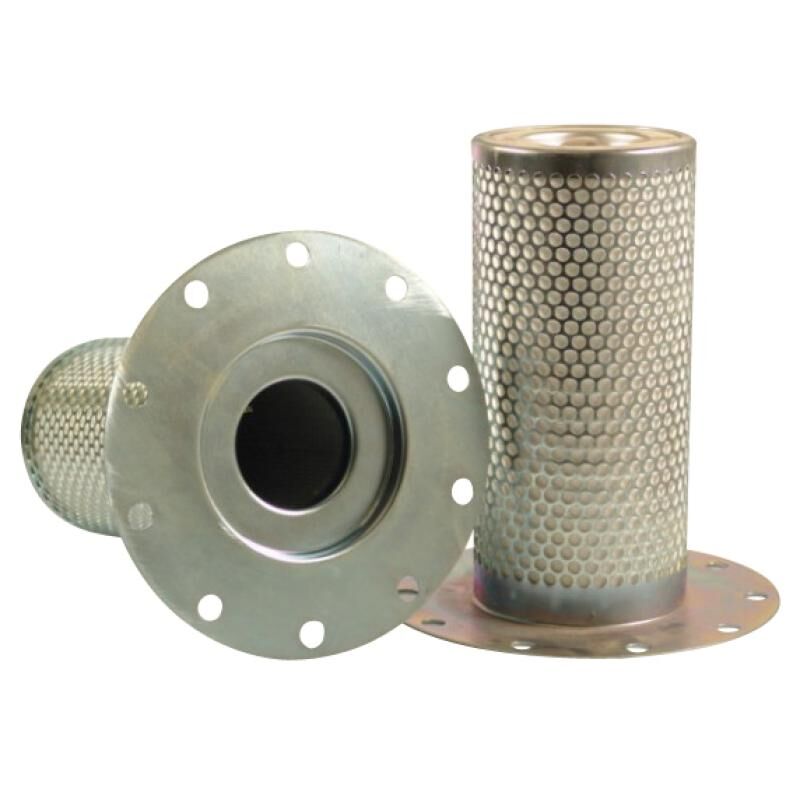

1623 0514 99 Separator Replacement Atlas Copco

• HIFI-FILTER OT2113 replacement filters
• ATLAS-COPCO 1623051400
• ATLAS-COPCO 1623051499
• ATLAS-COPCO 2906095600
• ATLAS-COPCO 1623 0514 00
• ATLAS-COPCO 1623 0514 99
• ATLAS-COPCO 2906 0956 00
• MANN 4930752141
• KV840-024 (KV840024)
• NOITECH NS100024
• OXFIL SP3280

• D1 (mm) 550.0 mm

• D2 (mm) 500.0 mm

• D3 (mm) 400.0 mm

• H1 (mm) 620.0 mm

• Gencod 3661200395425

• Volume (m3) 0.25116 m3

• Weight (kg) 25.62 kg













































Atlas Copco Stationary Air Compressors
GA 160+, GA 200, GA 250, GA 280
GA 160+W, GA 200W, GA 250W, GA 280W
www.atlascopco.com
• Copyright 2014, Atlas Copco Wuxi, China.
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and
drawings.
• Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.
Parts list
No. 9829 3109 10 ed.01
Registration code : APC GA>90
2014-06
9829 3109 11.pmd
2 9829 3109 10
Parts list
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Element gears .....................................................................1
Coupling housing-1 ...........................................................2
Coupling housing-1 ...........................................................3
Air inlet
- Aircooled-1 ..................................................................4
- Aircooled-2 ..................................................................5
- Watercooled .................................................................6
Air Flow
- Aircooled-Small vessel.................................................7
- Aircooled-Large vessel ................................................8
- Watercooled-Small Vessel ............................................9
- Watercooled-Large Vessel ...................................... 10
Air receiver
- Small vessel ..............................................................11
- Large vessel ............................................................ 12
- Blow off-1 ................................................................ 13
- Blow off-2 ................................................................ 14
- Blow off-3 ................................................................ 15
- Oil ............................................................................ 16
Air outlet
- Aircooled ................................................................ 17
- Watercooled-Pack ................................................... 18
Drain assembly
- Aircooled ................................................................ 19
- Watercooled-Pack ................................................... 20
Water system - Watercooled ........................................ 21
Oil system
- Aircooled-Without ER-1 ........................................22
- Aircooled-Without ER-2 ........................................23
- Watercooled-Without ER-1 ....................................24
- Watercooled-Without ER-2 ....................................25
9829 3109 10 3
Parts list
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Cooler assembly
- Aircooled ................................................................ 26
- Aircooled-GA160 .................................................... 27
- Aircooled-GA200 .................................................... 28
- Aircooled-GA250 .................................................... 29
- Aircooled-GA280 .................................................... 30
- Watercooled ............................................................ 31
Fan assembly
- Aircooled-1 ............................................................. 32
- Aircooled-2 ............................................................. 33
- Watercooled ............................................................ 34
Control System
- Aircooled ................................................................ 35
- Watercooled ...........................................................36
Frame assembly
- 1............................................................................... 37
- 2............................................................................... 38
Motor arrangement
- 1............................................................................... 39
- 2............................................................................... 40
- 3............................................................................... 41
- 4............................................................................... 42
- 5............................................................................... 43
- 6............................................................................... 44
Regulation .................................................................... 45
Cubicle box ..................................................................46
Bodywork
- Baffling-Aircooled-1 ..............................................47
- Baffling-Aircooled-2 ..............................................48
- Aircooled-1 ............................................................49
- Aircooled-2 ............................................................50
- Watercooled-1 ........................................................51
- Watercooled-2 ........................................................52
Service kits ..................................................................53
4 9829 3109 10
Parts list
1
9829 3109 10 5
Parts list
Element gears 1
Ref. Part number Qty Name Remarks
GA160+ -7.5 CHN 380/50
GA160+ W-5.5 CHN 380/50
Gears
1005 1635 0378 00 1 Gear
1010 1635 0379 00 1 Gear
GA160+ -8.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
Gears
1005 1623 7637 00 1 Gear
1010 1623 7638 00 1 Gear
GA160+ -10 CHN 380/50
GA160+ W-8.5 CHN 380/50
Gears
1005 1635 0384 00 1 Gear
1010 1635 0385 00 1 Gear
GA160+ -5.5 CHN 380/50
GA160+ W-10 CHN 380/50
Gears
1005 1635 0368 00 1 Gear
1010 1635 0369 00 1 Gear
GA200+ -5.5 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ W-5.5 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
Gears
1005 1635 0358 00 1 Gear
1010 1635 0359 00 1 Gear
GA200+ -7.5 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 380/50
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
Gears
1005 1635 0362 00 1 Gear
1010 1635 0363 00 1 Gear
GA200+ -8.5 CHN 380/50
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 380/50
GA200+ W-8.5 CHN 3KV/50
IP23
Ref. Part number Qty Name Remarks
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
Gears
1005 1635 0366 00 1 Gear
1010 1635 0367 00 1 Gear
GA200+ -10 CHN 380/50
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ W-10 CHN 380/50
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
Gears
1005 1635 0374 00 1 Gear
1010 1635 0375 00 1 Gear
GA200+ -14 CHN 380/50
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA200+ W-14 CHN 380/50
GA200+ W-14 CHN 3KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
Gears
1005 1635 0384 00 1 Gear
1010 1635 0385 00 1 Gear
GA250+ -7.5 CHN 380/50
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 380/50
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
Gears
1005 1623 8216 00 1 Gear
1010 1623 8217 00 1 Gear
GA250+ -8.5 CHN 380/50
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
6 9829 3109 10
Parts list
1
9829 3109 10 7
Parts list
1
Ref. Part number Qty Name Remarks
GA250+ W-8.5 CHN 380/50
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
Gears
1005 1635 0356 00 1 Gear
1010 1635 0357 00 1 Gear
GA250+ -10 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
Gears
1005 1635 0360 00 1 Gear
1010 1635 0361 00 1 Gear
GA250+ -14 CHN 380/50
GA250+ -10 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ W-14 CHN 380/50
GA250+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
Gears
1005 1635 0374 00 1 Gear
1010 1635 0375 00 1 Gear
GA280 -7.5 CHN 380/50
GA280 -7.5 CHN 3KV/50 IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 W-7.5 CHN 380/50
GA280 W-7.5 CHN 3KV/50
IP23
Ref. Part number Qty Name Remarks
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
Gears
1005 1092 1065 05 1 Gear
1010 1092 1066 05 1 Gear
GA280 -8.5 CHN 380/50
GA280 -8.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 380/50
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
Gears
1005 1092 1065 06 1 Gear
1010 1092 1066 06 1 Gear
GA280 -10 CHN 380/50
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -10 CHN 10KV/50 IP23
GA280 W-10 CHN 380/50
GA280 W-10 CHN 3KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
Gears
1005 1092 1065 07 1 Gear
1010 1092 1066 07 1 Gear
GA280 -14 CHN 380/50
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 -14 10KV 50HZ IP23
CHN
GA280 W-14 CHN 380/50
GA280 W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
Gears
1005 1092 1065 08 1 Gear
1010 1092 1066 08 1 Gear
Element gears
8 9829 3109 10
Parts list
2
9829 3109 10 9
Parts list
Coupling housing-1 2
Ref. Part number Qty Name Remarks
Element air end
1005 1616 7540 80 1 Stage
1010 1623 6002 00 1 Housing bearing
1015 0101 1951 53 2 Pin
1020 0101 2411 00 2 Pin
1025 0211 1328 03 9 Hex. sock. screw
1030 0508 1101 13 1 Bearing roller
1035 0335 2184 00 1 Int.circlip
1040 1621 2121 00 1 Spacer
1045 1623 6236 00 1 Bushing
1050 0337 0009 46 1 Parallel key
1055 1614 9100 00 1 Washer
1060 0211 1409 00 3 Screw
1065 0663 2111 65 1 O-ring
1070 0147 1964 28 1 Hexagon bolt
1075 0147 1963 88 14 Hexagon bolt
1080 0663 2106 10 1 O-ring
1085 0686 3716 07 1 Plug
1090 0661 1000 30 1 Seal washer
1095 0686 3716 35 1 Plug
1100 0661 1000 29 1 Seal washer
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
Gearbox
2005 1623 7528 00 1 Gearbox
2010 0661 1000 29 2 Seal washer
2015 0686 3716 35 1 Plug
2020 1619 5509 00 1 Nipple
2025 0574 8066 26 1 Flexible
2030 1614 9252 00 1 Plug
2035 0147 1552 03 2 Hexagon bolt
2040 0300 0274 13 2 Washer
2045 0663 2107 82 1 O-ring
2050 1614 6366 02 2 Antivibration pad
2055 0301 2358 00 8 Plain washer
2060 0147 1401 03 8 Hexagon bolt
2065 0147 1403 03 8 Hexagon bolt
2070 1623 3562 00 2 Support
2085 0663 2107 82 1 O-ring
2090 1623 6013 00 1 Shaft drive
2095 0506 0100 08 1 Roller bearing
2100 1616 5518 00 1 Washer
2105 1616 5519 00 1 Bushing
2110 0337 0010 08 1 Key parallel
2115 1616 5515 00 1 Retainer
2120 1621 4840 00 1 Seal
2125 0663 2107 76 1 O-ring
2130 0147 1364 03 4 Hexagon bolt
2135 0211 1481 00 10 Scr cap soc
2 140 1635 0992 00 1 Coupling elem.
0196 1401 00 • 1 Screw set
2145 1635 0996 00 1 Absorber
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
10 9829 3109 10
Parts list
2
9829 3109 10 11
Parts list
2
Ref. Part number Qty Name Remarks
GA280 W-10 CHN 10KV/50
IP23
Gearbox
2005 1623 7528 00 1 Gearbox
2010 0661 1000 29 2 Seal washer
2015 0686 3716 35 1 Plug
2020 1619 5509 00 1 Nipple
2025 0574 8066 26 1 Flexible
2030 1614 9252 00 1 Plug
2035 0147 1552 03 2 Hexagon bolt
2040 0300 0274 13 2 Washer
2045 0663 2107 82 1 O-ring
2050 1614 6366 02 2 Antivibration pad
2055 0301 2358 00 8 Plain washer
2060 0147 1401 03 8 Hexagon bolt
2065 0147 1403 03 8 Hexagon bolt
2070 1623 3562 00 2 Support
2085 0663 2107 82 1 O-ring
2090 1623 7661 00 1 Shaft drive
2095 0506 0100 08 1 Roller bearing
2100 1616 5518 00 1 Washer
2105 1616 5519 00 1 Bushing
2110 0337 0010 08 1 Key parallel
2115 1616 5515 00 1 Retainer
2120 1621 4840 00 1 Seal
2125 0663 2107 76 1 O-ring
2130 0147 1364 03 4 Hexagon bolt
2135 0211 1481 00 10 Scr cap soc
2 140 1635 0992 00 1 Coupling elem.
0196 1401 00 • 1 Screw set
2145 1635 0996 00 1 Absorber
GA160+ -10 CHN 380/50
GA280 -14 CHN 380/50
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 -14 10KV 50HZ IP23
CHN
GA160+ W-8.5 CHN 380/50
GA280 W-14 CHN 380/50
GA280 W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
Gearbox
2005 1623 7545 00 1 Gearbox
2010 0661 1000 29 2 Seal washer
2015 0686 3716 35 1 Plug
2020 1619 5509 00 1 Nipple
2025 0574 8066 26 1 Flexible
2030 1614 9252 00 1 Plug
2035 0147 1552 03 2 Hexagon bolt
2040 0300 0274 13 2 Washer
2045 0663 2107 82 1 O-ring
2050 1614 6366 02 2 Antivibration pad
2055 0301 2358 00 8 Plain washer
2060 0147 1401 03 8 Hexagon bolt
2065 0147 1403 03 8 Hexagon bolt
2070 1623 3562 00 2 Support
2085 0663 2107 82 1 O-ring
2090 1623 7661 00 1 Shaft drive
2095 0506 0100 08 1 Roller bearing
2100 1616 5518 00 1 Washer
2105 1616 5519 00 1 Bushing
2110 0337 0010 08 1 Key parallel
2115 1616 5515 00 1 Retainer
2120 1621 4840 00 1 Seal
2125 0663 2107 76 1 O-ring
2130 0147 1364 03 4 Hexagon bolt
2135 0211 1481 00 10 Scr cap soc
2 140 1635 0992 00 1 Coupling elem.
0196 1401 00 • 1 Screw set
2145 1635 0996 00 1 Absorber
Air system valve
3005 1623 7491 00 1 Housing valve
3010 0663 2111 58 1 O-ring
3015 0663 2102 89 1 O-ring
3020 0663 2111 66 3 O-ring
3025 1614 8977 00 1 Check valve
3030 1614 8978 00 1 Spring
3035 1614 8974 00 1 Piston
3040 1614 8979 00 1 Spring
3045 1623 4597 00 1 Valve oil stop
3050 0663 2106 15 2 O-ring
3055 1635 0859 00 2 Cover valve
3060 0335 2165 00 2 Circlip
3065 0686 3716 01 1 Plug
3070 0661 1000 25 1 Seal washer
3075 0211 1960 28 4 Hex. sock. screw
3080 0147 1478 03 2 Hexagon bolt
Coupling housing-1
12 9829 3109 10
Parts list
3
9829 3109 10 13
Parts list
Coupling housing-2 3
Ref. Part number Qty Name Remarks
Element air end
1005 1616 7540 80 1 Stage
1010 1623 6002 00 1 Housing bearing
1015 0101 1951 53 2 Pin
1020 0101 2411 00 2 Pin
1025 0211 1328 03 9 Hex. sock. screw
1030 0508 1101 13 1 Bearing roller
1035 0335 2184 00 1 Int.circlip
1040 1621 2121 00 1 Spacer
1045 1623 6236 00 1 Bushing
1050 0337 0009 46 1 Parallel key
1055 1614 9100 00 1 Washer
1060 0211 1409 00 3 Screw
1065 0663 2111 65 1 O-ring
1070 0147 1964 28 1 Hexagon bolt
1075 0147 1963 88 14 Hexagon bolt
1080 0663 2106 10 1 O-ring
1085 0686 3716 07 1 Plug
1090 0661 1000 30 1 Seal washer
1095 0686 3716 35 1 Plug
1100 0661 1000 29 1 Seal washer
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA200+ -5.5 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -14 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -14 CHN 10KV/50
IP23
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-10 CHN 380/50
GA200+ W-5.5 CHN 380/50
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA250+ W-14 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
Gearbox
2005 1623 7545 00 1 Gearbox
2010 0661 1000 29 2 Seal washer
2011 0301 2358 00 4 Plain washer
2015 0686 3716 35 1 Plug
2020 1619 5509 00 1 Nipple
2021 0147 1401 03 8 Hexagon bolt
2025 0574 8066 26 1 Flexible
2030 1614 9252 00 1 Plug
2035 0147 1552 03 2 Hexagon bolt
2040 0300 0274 13 2 Washer
2041 1623 3562 00 2 Support
2045 0663 2107 82 1 O-ring
2050 1635 0991 00 1 Spacer
2055 0147 1553 03 8 Hexagon bolt
2060 0300 0274 13 8 Washer
2065 1614 6366 02 2 Antivibration pad
14 9829 3109 10
Parts list
3
9829 3109 10 15
Parts list
Coupling housing-2 3
Ref. Part number Qty Name Remarks
2075 0147 1403 03 12 Hexagon bolt
2095 1623 6013 00 1 Shaft drive
2100 0506 0100 08 1 Roller bearing
2105 1616 5518 00 1 Washer
2110 1616 5519 00 1 Bushing
2115 0337 0010 08 1 Key parallel
2120 1616 5515 00 1 Retainer
2125 1621 4840 00 1 Seal
2130 0663 2107 76 1 O-ring
2135 0147 1364 03 4 Hexagon bolt
2140 0211 1481 00 10 Scr cap soc
2 145 1635 0992 00 1 Coupling elem.
0196 1401 00 • 1 Screw set
2150 1635 0996 00 1 Absorber
Air system valve
3005 1623 7491 00 1 Housing valve
Ref. Part number Qty Name Remarks
3010 0663 2111 58 1 O-ring
3015 0663 2102 89 1 O-ring
3020 0663 2111 66 3 O-ring
3025 1614 8977 00 1 Check valve
3030 1614 8978 00 1 Spring
3035 1614 8974 00 1 Piston
3040 1614 8979 00 1 Spring
3045 1623 4597 00 1 Valve oil stop
3050 0663 2106 15 2 O-ring
3055 1635 0859 00 2 Cover valve
3060 0335 2165 00 2 Circlip
3065 0686 3716 01 1 Plug
3070 0661 1000 25 1 Seal washer
3075 0211 1960 28 4 Hex. sock. screw
3080 0147 1478 03 2 Hexagon bolt
16 9829 3109 10
Parts list
4
9829 3109 10 17
Parts list
Air inlet - Aircooled-1 4
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA200+ -5.5 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
Air inlet-AC-1
1001 1092 1167 77 1 Pipe
1005 0301 2335 00 5 Plain washer
1010 0147 1323 03 5 Hexagon bolt
1020 0301 2335 00 5 Plain washer
1021 1092 1167 83 1 Support
1025 0147 1323 03 5 Hexagon bolt
1 030 1635 0408 80 2 Filter air
1621 7377 00 • 1 Housing
1635 0408 00 • 1 Filter air
1035 0301 2344 00 8 Plain washer
1040 0147 1360 00 8 Scr cap hex
1041 0211 1360 03 2 Hex. sock. screw
1045 1092 1200 60 2 Hose air inlet
1050 1092 0002 55 4 Hose clamp
1055 0686 3115 58 2 Plug
1060 0663 7168 00 2 O-ring
1065 0147 1327 03 3 Hexagon bolt
1070 0300 0276 21 3 Plain washer
1075 0686 4209 00 1 Plug
1080 0661 1000 31 1 Seal washer
1085 0147 1412 03 3 Hexagon bolt
Ref. Part number Qty Name Remarks
1090 0301 2358 00 3 Plain washer
1 095 1635 1437 80 1 Baffle
1635 1437 00 • 1 Baffle
1202 6584 00 • AR Seal
1100 0147 1963 08 4 Screw
1105 1619 5337 01 4 Hexagon bolt
1623 7483 80 1 Valve throttle
2005 1623 7484 00 • 1 Piston
2010 1623 7483 00 • 1 Housing valve
2015 1623 7986 00 • 1 Cover valve
2020 0663 2103 22 • 1 O-ring
2025 0147 1403 03 • 12 Hexagon bolt
2030 0301 2358 00 • 12 Plain washer
2035 1621 2227 00 • 1 Bearing
2040 1621 2226 00 • 1 Seal
2045 1621 2222 00 • 1 Bearing
2050 1621 2221 00 • 1 Seal
2055 1623 7485 01 • 1 Rod piston
2060 1623 8674 00 • 1 Valve throttle
1623 1810 80 1 Valve assembly
3010 0663 2111 55 • 1 O-ring
3020 0301 2318 00 • 2 Plain washer
3030 0160 0996 99 • 2 Scraw slot
3 040 1622 3694 80 • 1 Blow-off valve
0226 3300 18 •• 4 Screw
0663 2112 69 •• 1 O-ring
1513 0477 00 •• 1 Piston ring
1622 3694 00 •• 1 Housing
1622 3694 01 •• 1 Cover
1622 3694 02 •• 1 Piston
1622 3694 03 •• 1 Seal
1622 3694 04 •• 1 Seal
1622 3694 05 •• 1 Rivet
1622 3694 06 •• 2 Insert
1622 3694 07 •• 1 Seal
3050 1623 9279 00 1 Hose
3060 1092 1166 50 1 Support
3070 1092 1166 40 1 Support
18 9829 3109 10
Parts list
5
9829 3109 10 19
Parts list
Air inlet - Aircooled-2 5
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 -14 3KV 50HZ IP23
CHN
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -14 6KV 50HZ IP23
CHN
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -10 CHN 10KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -14 10KV 50HZ IP23
CHN
Air inlet-AC-2
1001 0301 2335 00 5 Plain washer
1002 1092 1167 77 1 Pipe
1003 1092 1167 96 1 Support
1005 1092 1166 50 1 Support
1010 0301 2335 00 5 Plain washer
1011 0147 1323 03 5 Hexagon bolt
1015 0147 1323 03 5 Hexagon bolt
1021 1092 1167 83 1 Support
1025 0301 2335 00 5 Plain washer
1030 0147 1323 03 5 Hexagon bolt
1 035 1635 0408 80 2 Filter air
1621 7377 00 • 1 Housing
1635 0408 00 • 1 Filter air
1040 0301 2344 00 8 Plain washer
1041 0211 1360 03 2 Hex. sock. screw
1045 0147 1360 00 8 Scr cap hex
1050 1092 1200 60 2 Hose air inlet
1055 1092 0002 55 4 Hose clamp
1060 0686 3115 58 2 Plug
1070 0663 7168 00 2 O-ring
1075 0147 1327 03 3 Hexagon bolt
1080 0300 0276 21 3 Plain washer
1085 0686 4209 00 1 Plug
1090 0661 1000 31 1 Seal washer
1095 0147 1412 03 3 Hexagon bolt
1100 0301 2358 00 3 Plain washer
1 105 1635 1437 80 1 Baffle
1635 1437 00 • 1 Baffle
1202 6584 00 • AR Seal
1110 0147 1963 08 4 Screw
1120 1619 5337 01 4 Hexagon bolt
1623 7483 80 1 Valve throttle
2005 1623 7484 00 • 1 Piston
2010 1623 7483 00 • 1 Housing valve
2015 1623 7986 00 • 1 Cover valve
2020 0663 2103 22 • 1 O-ring
2025 0147 1403 03 • 12 Hexagon bolt
2030 0301 2358 00 • 12 Plain washer
2035 1621 2227 00 • 1 Bearing
2040 1621 2226 00 • 1 Seal
2045 1621 2222 00 • 1 Bearing
2050 1621 2221 00 • 1 Seal
2055 1623 7485 01 • 1 Rod piston
2060 1623 8674 00 • 1 Valve throttle
1623 1810 80 1 Valve assembly
3010 0663 2111 55 • 1 O-ring
3020 0301 2318 00 • 2 Plain washer
3030 0160 0996 99 • 2 Scraw slot
20 9829 3109 10
Parts list
5
9829 3109 10 21
Parts list
Air inlet - Aircooled-2 5
Ref. Part number Qty Name Remarks
3 040 1622 3694 80 • 1 Blow-off valve
0226 3300 18 •• 4 Screw
0663 2112 69 •• 1 O-ring
1513 0477 00 •• 1 Piston ring
1622 3694 00 •• 1 Housing
1622 3694 01 •• 1 Cover
1622 3694 02 •• 1 Piston
Ref. Part number Qty Name Remarks
1622 3694 03 •• 1 Seal
1622 3694 04 •• 1 Seal
1622 3694 05 •• 1 Rivet
1622 3694 06 •• 2 Insert
1622 3694 07 •• 1 Seal
3060 1623 9279 00 1 Hose
3070 1092 1166 40 1 Support
22 9829 3109 10
Parts list
6
9829 3109 10 23
Parts list
Air inlet - Watercooled 6
Ref. Part number Qty Name Remarks
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-8.5 CHN 380/50
GA160+ W-10 CHN 380/50
GA200+ W-5.5 CHN 380/50
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-14 CHN 380/50
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA280 W-14 CHN 380/50
Air inlet
1005 1092 1166 50 1 Support
1010 0301 2335 00 5 Plain washer
1015 0147 1323 03 5 Hexagon bolt
1025 0301 2335 00 5 Plain washer
1030 0147 1323 03 5 Hexagon bolt
1 035 1635 0408 80 2 Filter air
1621 7377 00 • 1 Housing
1635 0408 00 • 1 Filter air
1040 0301 2344 00 8 Plain washer
1045 0147 1360 00 8 Scr cap hex
1050 1623 4704 00 2 Hose hump
1055 0347 6100 49 4 Clamp
1060 1623 4702 00 1 Collector
1065 0147 1320 03 12 Hexagon bolt
1070 0301 2335 00 12 Plain washer
1075 1623 4704 00 1 Hose hump
1080 0347 6100 49 2 Clamp
1085 1623 7825 00 1 Pipe
1090 1092 1166 85 1 Hose
1095 1030 1005 03 2 Hose clamp
1100 0661 1000 49 1 Seal washer
1105 0686 3716 01 1 Plug
1110 1092 1166 40 1 Support
1623 7483 80 1 Valve throttle
2005 1623 7484 00 • 1 Piston
2010 1623 7483 00 • 1 Housing valve
2015 1623 7986 00 • 1 Cover valve
2020 0663 2103 22 • 1 O-ring
2025 0147 1403 03 • 12 Hexagon bolt
2030 0301 2358 00 • 12 Plain washer
2035 1621 2227 00 • 1 Bearing
2040 1621 2226 00 • 1 Seal
2045 1621 2222 00 • 1 Bearing
2050 1621 2221 00 • 1 Seal
2055 1623 7485 01 • 1 Rod piston
2060 1623 8674 00 • 1 Valve throttle
1623 1810 80 1 Valve assembly
3010 0663 2111 55 • 1 O-ring
3020 0301 2318 00 • 2 Plain washer
3030 0160 0996 99 • 2 Scraw slot
3 040 1622 3694 80 • 1 Blow-off valve
0226 3300 18 •• 4 Screw
0663 2112 69 •• 1 O-ring
1513 0477 00 •• 1 Piston ring
1622 3694 00 •• 1 Housing
1622 3694 01 •• 1 Cover
1622 3694 02 •• 1 Piston
Ref. Part number Qty Name Remarks
1622 3694 03 •• 1 Seal
1622 3694 04 •• 1 Seal
1622 3694 05 •• 1 Rivet
1622 3694 06 •• 2 Insert
•• 1 Seal
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
24 9829 3109 10
Parts list
6
9829 3109 10 25
Parts list
Air inlet - Watercooled 6
Ref. Part number Qty Name Remarks
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
GA280 W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
Air inlet
1001 1092 1167 96 1 Support
1005 1092 1166 50 1 Support
1010 0301 2335 00 5 Plain washer
1011 0301 2335 00 5 Plain washer
1015 0147 1323 03 5 Hexagon bolt
1021 0147 1323 03 5 Hexagon bolt
1025 0301 2335 00 5 Plain washer
1030 0147 1323 03 5 Hexagon bolt
1 035 1635 0408 80 2 Filter air
1621 7377 00 • 1 Housing
1635 0408 00 • 1 Filter air
1040 0301 2344 00 8 Plain washer
1045 0147 1360 00 8 Scr cap hex
1050 1623 4704 00 2 Hose hump
1055 0347 6100 49 4 Clamp
1060 1623 4702 00 1 Collector
1065 0147 1320 03 12 Hexagon bolt
1070 0301 2335 00 12 Plain washer
Ref. Part number Qty Name Remarks
1075 1623 4704 00 1 Hose hump
1080 0347 6100 49 2 Clamp
1085 1623 7825 00 1 Pipe
1090 1092 1166 85 1 Hose
1095 1030 1005 03 2 Hose clamp
1100 0661 1000 49 1 Seal washer
1105 0686 3716 01 1 Plug
1110 1092 1166 40 1 Support
1623 7483 80 1 Valve throttle
2005 1623 7484 00 • 1 Piston
2010 1623 7483 00 • 1 Housing valve
2015 1623 7986 00 • 1 Cover valve
2020 0663 2103 22 • 1 O-ring
2025 0147 1403 03 • 12 Hexagon bolt
2030 0301 2358 00 • 12 Plain washer
2035 1621 2227 00 • 1 Bearing
2040 1621 2226 00 • 1 Seal
2045 1621 2222 00 • 1 Bearing
2050 1621 2221 00 • 1 Seal
2055 1623 7485 01 • 1 Rod piston
2060 1623 8674 00 • 1 Valve throttle
1623 1810 80 1 Valve assembly
3010 0663 2111 55 • 1 O-ring
3020 0301 2318 00 • 2 Plain washer
3030 0160 0996 99 • 2 Scraw slot
3 040 1622 3694 80 • 1 Blow-off valve
0226 3300 18 •• 4 Screw
0663 2112 69 •• 1 O-ring
1513 0477 00 •• 1 Piston ring
1622 3694 00 •• 1 Housing
1622 3694 01 •• 1 Cover
1622 3694 02 •• 1 Piston
1622 3694 03 •• 1 Seal
1622 3694 04 •• 1 Seal
1622 3694 05 •• 1 Rivet
1622 3694 06 •• 2 Insert
1622 3694 07 •• 1 Seal
26 9829 3109 10
Parts list
7
9829 3109 10 27
Parts list
Air Flow-Aircooled-Small vessel 7
Ref. Part number Qty Name Remarks
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -14 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA280 -14 3KV 50HZ IP23
CHN
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -14 6KV 50HZ IP23
CHN
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA280 -14 10KV 50HZ IP23
CHN
Connect. air
1005 1623 8139 00 1 Pipe
1010 1635 1074 00 1 Pipe
1015 1092 1167 60 1 Pipe
1020 0634 1000 55 2 Victaulic coupling
1025 0634 1001 45 2 Coupline
1030 1623 9853 00 1 Pipe
1035 0663 2106 17 1 O-ring
1040 0301 2344 00 4 Plain washer
1045 0147 1364 03 4 Hexagon bolt
1050 1623 9854 00 1 Pipe
1055 0634 1000 29 1 Victaulic coupling
1060 0634 1000 40 1 Victaulic coupling
28 9829 3109 10
Parts list
8
9829 3109 10 29
Parts list
Air Flow-Aircooled-Large vessel 8
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA200+ -5.5 CHN 380/50
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA200+ -5.5 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
1005 0634 1000 56 1 Victaulic coupling
1010 0663 2106 19 1 O-ring
1015 0301 2358 00 4 Plain washer
1020 0147 1404 03 4 Hexagon bolt
1025 0663 2106 20 1 O-ring
1030 0301 2358 00 4 Plain washer
1035 0147 1403 03 4 Hexagon bolt
1050 1623 8128 00 1 Pipe
1055 1635 0475 00 1 Pipe
1060 0634 1001 84 1 Coupling
1065 1092 1164 10 1 Pipe
1070 0634 1001 84 1 Coupling
1075 1623 8145 00 1 Pipe
1080 0634 1001 84 1 Coupling
1085 1092 1164 13 1 Pipe
1090 0634 1001 84 1 Coupling
30 9829 3109 10
Parts list
9
9829 3109 10 31
Parts list
Air Flow-Watercooled-Small Vessel 9
Ref. Part number Qty Name Remarks
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-8.5 CHN 380/50
GA160+ W-10 CHN 380/50
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-14 CHN 380/50
GA280 W-14 CHN 380/50
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ W-14 CHN 6KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
Connect. air
1005 1623 9853 00 1 Pipe
1010 0663 2106 17 1 O-ring
1015 0147 1364 03 4 Hexagon bolt
1020 0301 2344 00 4 Plain washer
1025 1623 9857 00 1 Pipe
1030 1623 9858 00 1 Pipe
1035 0663 2106 19 1 O-ring
1040 0147 1404 03 4 Hexagon bolt
1045 0301 2358 00 4 Plain washer
1050 0634 1000 29 2 Victaulic coupling
1055 1623 8139 00 1 Pipe
1060 1635 1074 00 1 Pipe
1065 1092 1167 60 1 Pipe
1070 0634 1000 55 2 Victaulic coupling
1075 0634 1001 45 2 Coupline
32 9829 3109 10
Parts list
10
9829 3109 10 33
Parts list
Air Flow-Watercooled-Large Vessel 10
Ref. Part number Qty Name Remarks
GA200+ W-5.5 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
Connect. air
1005 0634 1001 84 1 Coupling
1010 1092 1164 13 1 Pipe
1015 0634 1001 84 1 Coupling
1020 1623 8145 00 1 Pipe
1025 0634 1001 84 1 Coupling
1030 1092 1164 10 1 Pipe
1035 0634 1001 84 1 Coupling
1040 1635 0475 00 1 Pipe
1045 0147 1403 03 4 Hexagon bolt
1050 0663 2106 20 1 O-ring
1055 1623 8219 00 1 Pipe
1060 0663 2106 19 1 O-ring
1065 0301 2358 00 4 Plain washer
1070 0147 1404 03 4 Hexagon bolt
1075 0634 1000 40 1 Victaulic coupling
1080 1623 8350 00 1 Pipe
1085 0663 2106 19 1 O-ring
1090 0301 2358 00 4 Plain washer
1095 0147 1404 03 4 Hexagon bolt
34 9829 3109 10
Parts list
11
9829 3109 10 35
Parts list
Air receiver-Small Vessel 11
Ref. Part number Qty Name Remarks
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA200+ -10 CHN 10KV/50
IP23
GA200+ -10 CHN 380/50
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 380/50
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-10 CHN 380/50
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 380/50
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 380/50
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -10 CHN 380/50
GA250+ -10 CHN 3KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-10 CHN 380/50
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
Air receiver
1005 1092 1129 00 1 Vessel air
1010 1623 0027 10 1 Cover
1020 1623 0514 00 1 Filter elem.
1025 0663 2107 36 2 O-ring
Ref. Part number Qty Name Remarks
1030 1623 6821 00 1 Bushing
1035 1623 6822 00 1 Screw
1040 0147 1400 03 4 Hex. head screw
1045 0301 2358 00 4 Plain washer
1050 1623 0519 00 1 Pipe suction
1055 0661 1000 26 1 Seal washer
1065 0663 2107 77 1 O-ring
1080 0686 3716 02 2 Plug
1085 0661 1000 27 2 Seal washer
1090 1614 9184 00 1 Level gauge
1095 0560 0200 74 1 Elbow
1100 1079 5840 29 1 Nipple
1105 0575 0056 35 1 Flexible
1110 0661 1000 29 1 Seal washer
1115 1614 9252 00 1 Plug
1125 1623 8246 00 1 Plate bottom
1130 0301 2344 00 4 Plain washer
1135 0147 1360 03 4 Hexagon bolt
1140 1623 5777 00 4 Buffer
1145 1614 9541 00 4 Spacer
1150 0333 3232 00 4 Lock washer
1155 0147 1362 03 4 Hexagon bolt
1165 0211 1418 00 4 Hex. sock. screw
1170 0301 2358 00 4 Plain washer
1185 1088 0010 25 2 Cable lug
1190 0017 2071 00 AR Cable
1200 0147 1564 12 1 Screw
1210 0515 8000 12 1 Cage
1220 1623 6844 00 1 Washer
1230 0300 0274 13 1 Washer
1240 0266 2116 00 1 Nut
1625 0227 02 1 MPV parts
2005 1623 0456 06 • 1 Spring compression
2010 1623 4457 03 • 1 Valve press
2015 0665 0800 78 • 1 Seal
2020 0665 0800 79 • 1 Seal
2030 1092 1257 16 • 1 Insert
2035 1623 0344 00 • 1 Nut
2040 1623 0345 00 • 1 Shaft
2045 1621 4326 00 • 1 Ring
2050 1614 7279 00 • 1 Washer
2055 0663 2103 22 • 1 O-ring
2060 0663 2109 49 • 1 O-ring
2065 0663 7126 00 • 1 O-ring
2070 0211 1102 16 • 2 Screw
2075 0663 7126 00 • 2 O-ring
2080 0686 3716 02 • 2 Plug
2085 0661 1000 27 • 2 Seal washer
2090 0803 5012 11 • 1 Silencer
2095 0147 1406 03 • 4 Hexagon bolt
2100 0301 2358 00 • 4 Plain washer
GA160+ -10 CHN 380/50
GA160+ W-8.5 CHN 380/50
Air receiver
1005 1092 1129 00 1 Vessel air
1010 1623 0027 10 1 Cover
1020 1623 0515 00 1 Filter elem.
1025 0663 2107 36 2 O-ring
1030 1623 6821 00 1 Bushing
1035 1623 6822 00 1 Screw
1040 0147 1400 03 4 Hex. head screw
1045 0301 2358 00 4 Plain washer
1050 1623 0518 00 1 Pipe suction
1055 0661 1000 26 1 Seal washer
1065 0663 2107 77 1 O-ring
36 9829 3109 10
Parts list
11
9829 3109 10 37
Parts list

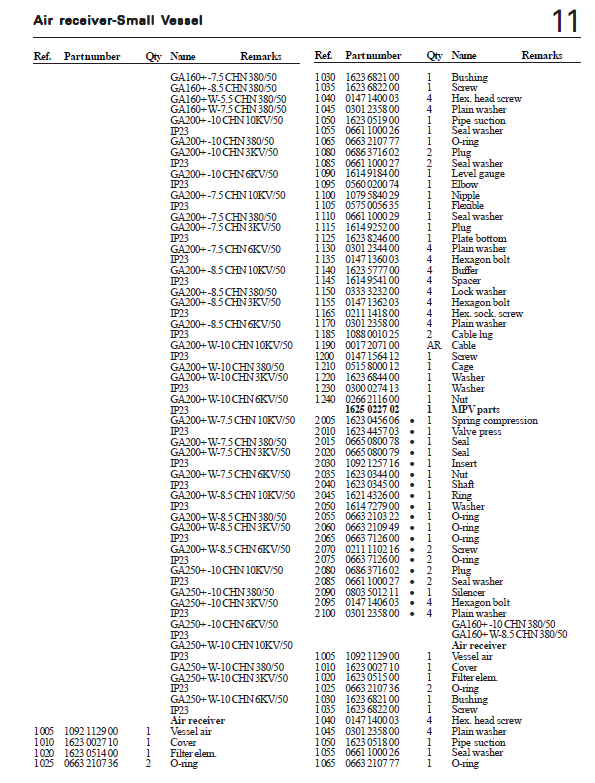

Air receiver-Small Vessel 11
Ref. Part number Qty Name Remarks
1080 0686 3716 02 2 Plug
1085 0661 1000 27 2 Seal washer
1090 1614 9184 00 1 Level gauge
1095 0560 0200 74 1 Elbow
1100 1079 5840 29 1 Nipple
1105 0575 0056 35 1 Flexible
1110 0661 1000 29 1 Seal washer
1115 1614 9252 00 1 Plug
1125 1623 8246 00 1 Plate bottom
1130 0301 2344 00 4 Plain washer
1135 0147 1360 03 4 Hexagon bolt
1140 1623 5777 00 4 Buffer
1145 1614 9541 00 4 Spacer
1150 0333 3232 00 4 Lock washer
1155 0147 1362 03 4 Hexagon bolt
1165 0211 1418 00 4 Hex. sock. screw
1170 0301 2358 00 4 Plain washer
1185 1088 0010 25 2 Cable lug
1190 0017 2071 00 AR Cable
1200 0147 1564 12 1 Screw
1210 0515 8000 12 1 Cage
1220 1623 6844 00 1 Washer
1230 0300 0274 13 1 Washer
1240 0266 2116 00 1 Nut
1625 0227 02 1 MPV parts
2005 1623 0456 06 • 1 Spring compression
2010 1623 4457 03 • 1 Valve press
2015 0665 0800 78 • 1 Seal
2020 0665 0800 79 • 1 Seal
2030 1092 1257 16 • 1 Insert
2035 1623 0344 00 • 1 Nut
2040 1623 0345 00 • 1 Shaft
2045 1621 4326 00 • 1 Ring
2050 1614 7279 00 • 1 Washer
2055 0663 2103 22 • 1 O-ring
2060 0663 2109 49 • 1 O-ring
2065 0663 7126 00 • 1 O-ring
2070 0211 1102 16 • 2 Screw
2075 0663 7126 00 • 2 O-ring
2080 0686 3716 02 • 2 Plug
2085 0661 1000 27 • 2 Seal washer
2090 0803 5012 11 • 1 Silencer
2095 0147 1406 03 • 4 Hexagon bolt
2100 0301 2358 00 • 4 Plain washer
GA200+ -14 CHN 10KV/50
IP23
GA200+ -14 CHN 380/50
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
GA200+ W-14 CHN 380/50
GA200+ W-14 CHN 3KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 380/50
GA250+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ W-14 CHN 10KV/50
IP23
GA250+ W-14 CHN 380/50
GA250+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 -14 10KV 50HZ IP23
CHN
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 -14 CHN 380/50
GA280 W-14 CHN 10KV/50
IP23
GA280 W-14 CHN 380/50
GA280 W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23

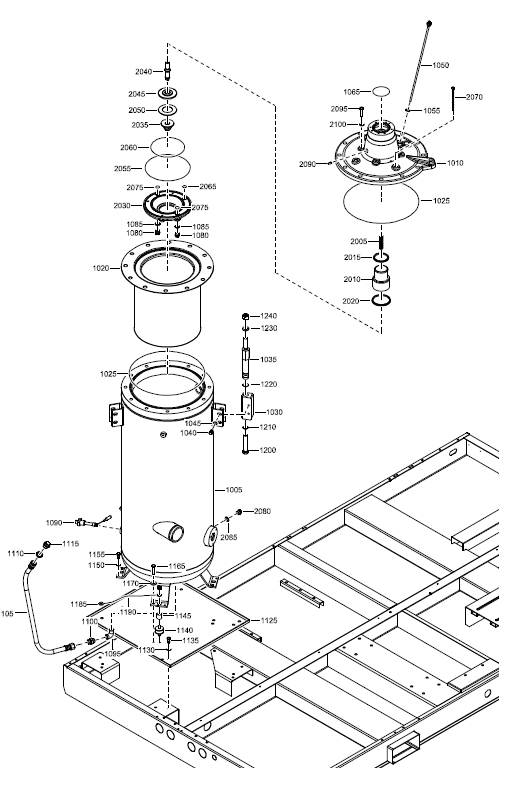

Air receiver
1005 1092 1129 00 1 Vessel air
1010 1623 0027 10 1 Cover
1020 1623 0515 00 1 Filter elem.
1025 0663 2107 36 2 O-ring
1030 1623 6821 00 1 Bushing
1035 1623 6822 00 1 Screw
1040 0147 1400 03 4 Hex. head screw
1045 0301 2358 00 4 Plain washer
1050 1623 0518 00 1 Pipe suction
1055 0661 1000 26 1 Seal washer
1065 0663 2107 77 1 O-ring
1080 0686 3716 02 2 Plug
1085 0661 1000 27 2 Seal washer
1090 1614 9184 00 1 Level gauge
1095 0560 0200 74 1 Elbow
1100 1079 5840 29 1 Nipple
1105 0575 0056 35 1 Flexible
1110 0661 1000 29 1 Seal washer
1115 1614 9252 00 1 Plug
1125 1623 8246 00 1 Plate bottom
1130 0301 2344 00 4 Plain washer
1135 0147 1360 03 4 Hexagon bolt
1140 1623 5777 00 4 Buffer
1145 1614 9541 00 4 Spacer
1150 0333 3232 00 4 Lock washer
1155 0147 1362 03 4 Hexagon bolt
1165 0211 1418 00 4 Hex. sock. screw
1170 0301 2358 00 4 Plain washer
1185 1088 0010 25 2 Cable lug
1190 0017 2071 00 AR Cable
1200 0147 1564 12 1 Screw
1210 0515 8000 12 1 Cage
1220 1623 6844 00 1 Washer
1230 0300 0274 13 1 Washer
1240 0266 2116 00 1 Nut
1625 0227 48 1 MPV parts
2005 1623 0456 02 • 1 Spring
2010 1623 4457 03 • 1 Valve press
2015 0665 0800 78 • 1 Seal
2020 0665 0800 79 • 1 Seal
2030 1092 1257 16 • 1 Insert
2035 1623 0344 00 • 1 Nut
2040 1623 0345 00 • 1 Shaft
38 9829 3109 10
Parts list
11
9829 3109 10 39
Parts list
Air receiver-Small Vessel 11
Ref. Part number Qty Name Remarks
2045 1621 4326 00 • 1 Ring
2050 1614 7279 00 • 1 Washer
2055 0663 2103 22 • 1 O-ring
2060 0663 2109 49 • 1 O-ring
2065 0663 7126 00 • 1 O-ring
2070 0211 1102 16 • 2 Screw
Ref. Part number Qty Name Remarks
2075 0663 7126 00 • 2 O-ring
2080 0686 3716 02 • 2 Plug
2085 0661 1000 27 • 2 Seal washer
2091 0803 5012 11 • 1 Silencer
2095 0147 1406 03 • 4 Hexagon bolt
2100 0301 2358 00 • 4 Plain washer
40 9829 3109 10
Parts list
12
9829 3109 10 41
Parts list
Air receiver-Large Vessel 12
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA200+ -5.5 CHN 380/50
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA200+ -5.5 CHN 10KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA160+ W-10 CHN 380/50
GA200+ W-5.5 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA280 W-10 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
Air receiver
1005 0301 2358 00 8 Plain washer
1006 1092 1126 04 1 Vessel oil
1010 0147 1403 03 8 Hexagon bolt
1011 1623 8014 10 1 Cover vessel
1015 0108 1290 00 1 Pin
1016 0663 2111 65 2 O-ring
1020 0663 2109 45 2 O-ring
1021 1614 9520 00 1 Bushing
1025 0147 1479 03 1 Hexagon bolt
1026 1092 1164 05 1 Shield separator
1030 1614 9089 00 1 Pivot pin
1031 1623 8012 00 1 Separator oil
1035 0661 1000 26 1 Seal washer
1036 1623 9646 00 1 Ring internal
1040 0301 2321 00 6 Washer
1041 1623 3672 00 1 Pipe
1045 0147 1249 03 6 Hex. head screw
1046 0661 1000 26 1 Seal washer
1050 0663 2109 71 1 O-ring
1051 1614 9184 00 1 Level gauge
1055 2250 2528 00 1 Plug
1060 0661 1000 31 1 Seal washer
1065 0575 0056 35 1 Flexible
1070 1614 9252 00 1 Plug
1075 1623 5777 00 4 Buffer
1080 0301 2344 00 4 Plain washer
1085 0266 2111 00 4 Nut
1090 1623 0839 00 4 Spacer
1095 0147 1368 03 4 Hexagon bolt
1100 0348 0101 12 4 Cable tie
1105 0147 1360 03 2 Hexagon bolt
1110 0333 3232 00 2 Lock washer
1115 0017 2071 00 AR Cable
1120 1088 0010 25 2 Cable lug
1625 0220 13 1 Air system min. valve
2005 0686 3716 02 • 2 Plug
2010 0803 5012 11 • 1 Silencer
2015 0663 7126 00 • 3 O-ring
2020 0665 0701 53 • 1 Seal
2025 0665 0701 54 • 1 Seal
2030 1623 0345 00 • 1 Shaft
2035 0211 1102 16 • 2 Screw
2040 1623 4287 00 • 1 Ring internal
2045 1623 0344 00 • 1 Nut
2050 1623 4288 00 • 1 Washer plain
2055 0300 0129 28 • 2 Washer
2060 0665 0701 56 • 1 Seal
2065 1623 4286 00 • 1 Valve press
2070 1623 8016 00 • 1 Housing valve
2075 1623 8402 00 • 1 Spring compression
42 9829 3109 10
Parts list
13
9829 3109 10 43
Parts list
Air receiver-blow off-1 13
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA200+ -5.5 CHN 380/50
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA200+ -5.5 CHN 10KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA160+ W-10 CHN 380/50
GA200+ W-5.5 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA280 W-7.5 CHN 380/50
Ref. Part number Qty Name Remarks
GA280 W-8.5 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
Blow-off-1
1005 1092 0001 75 1 Safety valve
1010 0560 0200 56 1 Elbow
1015 0603 4108 03 1 Nipple
1050 0661 1000 32 1 Seal washer
44 9829 3109 10
Parts list
14
9829 3109 10 45
Parts list
14
Ref. Part number Qty Name Remarks
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
Air receiver-blow off-2
Ref. Part number Qty Name Remarks
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA250+ -10 CHN 380/50
GA250+ -10 CHN 3KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ W-10 CHN 380/50
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
Blow-off-2
1005 0603 4107 03 1 Nipple
1010 0661 1000 32 1 Seal washer
1015 1092 1123 03 1 Valve safety
46 9829 3109 10
Parts list
15
9829 3109 10 47
Parts list
15
Ref. Part number Qty Name Remarks
GA160+ -10 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -14 CHN 380/50
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA280 -14 3KV 50HZ IP23
CHN
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -14 6KV 50HZ IP23
CHN
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA280 -14 10KV 50HZ IP23
CHN
GA160+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA250+ W-14 CHN 380/50
GA280 W-14 CHN 380/50
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
Air receiver-blow off-3
Ref. Part number Qty Name Remarks
GA280 W-14 CHN 3KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
Blow-off-3
1005 0603 5120 03 1 Hexagon nipple
1010 0560 0200 24 1 Elbow
1015 0661 1000 30 1 Seal washer
1020 1092 0125 18 1 Safety valve
GA280 -10 CHN 380/50
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -10 CHN 10KV/50 IP23
GA280 W-10 CHN 380/50
GA280 W-10 CHN 3KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
Blow-off
1005 0603 4108 03 1 Nipple
1010 0560 0200 56 1 Elbow
1015 0661 1000 32 1 Seal washer
1020 1092 1123 03 1 Valve safety
48 9829 3109 10
Parts list
16
9829 3109 10 49
Parts list
Air receiver-Oil 16
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -5.5 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-5.5 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -7.5 CHN 380/50
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 380/50
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 380/50
GA280 -7.5 CHN 3KV/50 IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 380/50
GA280 -8.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -10 CHN 380/50
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
Oil
1005 0017 5201 20 AR Oil roto
1010 0017 5201 20 AR Oil roto
1015 1079 9909 57 1 Label
1 020 1613 6532 01 1 Oil can
0017 5200 48 • AR Oil
1055 2901 0768 00 1 Oil can
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 380/50
GA200+ -8.5 CHN 3KV/50
IP23
Ref. Part number Qty Name Remarks
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -10 CHN 380/50
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA200+ -14 CHN 380/50
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -10 CHN 380/50
GA250+ -10 CHN 3KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 380/50
GA250+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -14 10KV 50HZ IP23
CHN
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 -14 CHN 380/50
GA160+ W-10 CHN 380/50
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 380/50
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 380/50
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-7.5 CHN 380/50
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 380/50
GA280 W-8.5 CHN 3KV/50
IP23
50 9829 3109 10
Parts list
16
9829 3109 10 51
Parts list
16
Ref. Part number Qty Name Remarks
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
GA280 W-10 CHN 380/50
GA280 W-10 CHN 3KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-8.5 CHN 380/50
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 380/50
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 380/50
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-10 CHN 380/50
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
Air receiver-Oil
Ref. Part number Qty Name Remarks
GA200+ W-14 CHN 10KV/50
IP23
GA200+ W-14 CHN 380/50
GA200+ W-14 CHN 3KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-10 CHN 380/50
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA250+ W-14 CHN 380/50
GA250+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
GA280 W-14 CHN 380/50
GA280 W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
Oil
1005 0017 5201 20 AR Oil roto
1010 0017 5201 20 AR Oil roto
1015 1079 9925 87 1 Label roto
1020 2901 0768 00 1 Oil can
52 9829 3109 10
Parts list
17
9829 3109 10 53
Parts list
Air outlet-Aircooled 17
Ref. Part number Qty Name Remarks
Air outlet-Aircooled
1005 1623 9385 00 1 Pipe
1010 0634 1000 56 2 Victaulic coupling
1015 1635 0661 00 1 Pipe
1020 0663 2106 19 1 O-ring
1025 0147 1403 03 4 Hexagon bolt
1030 0301 2358 00 4 Plain washer
1035 0147 1963 08 4 Screw
1040 0686 9010 27 1 Plug
AA 0686 3716 30 2 Plug
AB 0653 1122 00 2 Seal washer
Air system water separation
2005 1092 1166 06 • 1 Pipe
2010 1623 4281 00 • 1 Separator water
2015 0211 1959 32 • 3 Screw
2020 1623 4317 00 • 1 Pipe
2025 0211 1244 01 • 3 Screw
2030 1623 6556 00 • 3 Stud
Ref. Part number Qty Name Remarks
2035 0300 0275 37 • 3 Washer
2040 0291 1128 03 • 3 Lock nut
2045 1623 6555 00 • 1 Plate cover
2050 1092 1061 00 • 1 Bowl
2055 0663 2111 96 • 1 O-ring
2060 0147 1961 80 • 4 Screw hexagon
2065 0663 2133 00 • 1 O-ring
2070 0663 2111 27 • 1 O-ring
2075 1613 9381 00 • 1 Nut
2 080 1613 9378 93 • 1 Assembly drawing
0663 9287 00 •• 1 O-ring
1613 9378 00 •• 1 Drain
1613 9379 00 •• 1 Housing
1613 9380 00 •• 1 Cover
1613 9385 80 •• 1 Float assembly
1613 9397 01 •• 1 Insert
1613 9398 00 •• 1 Valve disc
54 9829 3109 10
Parts list
18
9829 3109 10 55
Parts list
Air outlet-Watercooled 18
Ref. Part number Qty Name Remarks
Air outlet general
Watercooled
1005 1092 1165 86 1 Pipe
1010 0634 1000 56 1 Victaulic coupling
1015 0663 2106 19 1 O-ring
1020 0147 1403 03 4 Hexagon bolt
1025 0301 2358 00 4 Plain washer
1030 1092 1165 89 1 Pipe
1035 0634 1000 56 2 Victaulic coupling
1040 1092 1165 87 1 Pipe
Ref. Part number Qty Name Remarks
1045 1635 0661 00 1 Pipe
1050 0663 2106 19 1 O-ring
1055 0147 1407 03 4 Hexagon bolt
1060 0301 2358 00 8 Plain washer
1065 0266 2112 00 4 Nut
1070 0147 1963 08 4 Screw
1075 1092 1165 92 2 Support
1080 0147 1963 08 4 Screw
1085 1614 9139 80 1 Water separator
56 9829 3109 10
Parts list
19
Ref. Part number Qty Name Remarks
Drain assembly
Aircooled
1005 0661 1000 25 1 Seal washer
1010 0581 0000 45 1 Pipe coupling
1015 0070 6002 06 AR Plastic tube
1020 0581 0000 53 1 Pipe coupling
1025 0653 1124 00 1 Flat gasket
1030 0581 0000 86 1 Pipe coupling
Drain assembly-Aircooled
Ref. Part number Qty Name Remarks
1035 0661 1000 25 1 Seal washer
1040 0852 0010 14 1 Ball valve
1050 0581 0000 45 1 Pipe coupling
1055 0070 6002 06 AR Plastic tube
1060 0581 0000 53 1 Pipe coupling
1065 0653 1124 00 1 Flat gasket
1070 0581 0000 86 1 Pipe coupling
9829 3109 10 57
Parts list
Drain assembly-Watercooled 20
Ref. Part number Qty Name Remarks
Drain assembly
Watercooled
1005 0661 1000 25 1 Seal washer
1010 0581 0000 45 1 Pipe coupling
1015 0070 6002 06 AR Plastic tube
1020 0581 0000 53 1 Pipe coupling
1025 0653 1124 00 1 Flat gasket
1030 0581 0000 86 1 Pipe coupling
Ref. Part number Qty Name Remarks
1035 0661 1000 25 1 Seal washer
1040 0852 0010 14 1 Ball valve
1050 0581 0000 45 1 Pipe coupling
1055 0070 6002 06 AR Plastic tube
1060 0581 0000 53 1 Pipe coupling
1065 0653 1124 00 1 Flat gasket
1070 0581 0000 86 1 Pipe coupling
58 9829 3109 10
Parts list
21
9829 3109 10 59
Parts list
Water system-Watercooled 21
Ref. Part number Qty Name Remarks
Connect. water
1005 1079 9913 69 1 Inform. label
1010 1623 7773 00 1 Pipe
1015 0147 1963 08 1 Screw
1020 0634 1000 27 1 Victaulic coupling
1025 1623 7844 00 1 Pipe
1030 0634 1000 27 1 Victaulic coupling
1035 1623 7846 00 1 Pipe
1040 0661 1000 32 1 Seal washer
1045 0686 3716 10 1 Plug
1050 0634 1000 27 1 Victaulic coupling
1055 1623 7848 00 1 Pipe
1060 0634 1000 27 1 Victaulic coupling
1065 1621 0392 00 1 Nipple
1070 0661 1000 32 1 Seal washer
1075 1619 6153 08 1 Ball valve
1080 0661 1000 32 1 Seal washer
1085 1621 0392 00 1 Nipple
1090 0634 1000 27 1 Victaulic coupling
1095 1623 8867 00 1 Pipe
1100 0663 2106 12 1 O-ring
Ref. Part number Qty Name Remarks
1105 0301 2358 00 2 Plain washer
1110 0147 1404 03 2 Hexagon bolt
1115 1623 8868 00 1 Pipe
1120 0663 2106 12 1 O-ring
1125 0147 1406 03 2 Hexagon bolt
1130 0301 2358 00 2 Plain washer
1135 0301 2358 00 2 Plain washer
1140 0266 2112 00 2 Nut
1145 0634 1000 27 1 Victaulic coupling
1150 1623 7848 00 1 Pipe
1155 0634 1000 27 1 Victaulic coupling
1160 1623 7846 00 1 Pipe
1165 0661 1000 32 1 Seal washer
1170 0686 3716 10 1 Plug
1175 0634 1000 27 1 Victaulic coupling
1180 1623 7845 00 1 Pipe
1185 0634 1000 27 1 Victaulic coupling
1190 1623 7773 00 1 Pipe
1195 0147 1963 08 1 Screw
1200 1079 9913 79 1 Inform. label
60 9829 3109 10
Parts list
22
9829 3109 10 61
Parts list
22
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -5.5 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 380/50
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -7.5 CHN 380/50
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 380/50
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -14 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -7.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 380/50
GA280 -7.5 CHN 3KV/50 IP23
Ref. Part number Qty Name Remarks
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 380/50
GA280 -8.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
Oil system complete
1005 1623 7683 00 1 Hose assembly
1010 0147 1363 03 6 Hex. head screw
1015 0301 2344 00 4 Plain washer
1020 0663 2109 68 4 O-ring
1025 0301 2344 00 2 Plain washer
1030 1623 7394 00 1 Hose assembly
1035 0147 1363 03 4 Hex. head screw
1040 0301 2344 00 4 Plain washer
1045 0346 1000 53 1 Clamp
1050 0147 1246 03 1 Hexagon bolt
1055 1623 7682 00 1 Hose assembly
1060 0147 1363 03 2 Hex. head screw
1065 0301 2344 00 2 Plain washer
1070 0663 2109 68 1 O-ring
1075 0147 1363 03 2 Hex. head screw
1080 0301 2344 00 2 Plain washer
1085 0663 2109 68 1 O-ring
1090 1623 9363 00 1 Hose assembly
1095 0147 1363 03 2 Hex. head screw
1100 0301 2344 00 2 Plain washer
1105 0663 2109 68 1 O-ring
1110 0147 1363 03 2 Hex. head screw
1115 0301 2344 00 2 Plain washer
1120 0663 2109 68 1 O-ring
1 Filter assembly
2005 1623 7494 00 • 1 Housing filter
2010 0211 1363 03 • 2 Hex. sock. screw
2015 1623 1451 00 • 2 Nipple
2020 1621 7378 00 • 2 Glass fiber oil filter
2025 0603 4102 03 • 1 Nipple
2030 0852 0010 36 • 1 Ball valve
2035 0661 1000 25 • 1 Seal washer
2040 0686 4202 03 • 1 Plug
1 Thermostat
3005 0663 2102 89 • 1 O-ring
3010 0663 2109 68 • 1 O-ring
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0147 1363 03 • 2 Hex. head screw
3030 0301 2344 00 • 2 Plain washer
3035 1623 7565 00 • 1 Housing valve
3040 1623 9925 00 • 1 Thermostat
Oil system-Aircooled-Without ER-1
62 9829 3109 10
Parts list
23
9829 3109 10 63
Parts list
Oil system-Aircooled-Without ER-2 23
Ref. Part number Qty Name Remarks
Oil system complete
1015 1623 7683 00 1 Hose assembly
1020 0147 1363 03 6 Hex. head screw
1025 0301 2344 00 4 Plain washer
1030 0663 2109 68 4 O-ring
1035 0301 2344 00 2 Plain washer
1040 1623 7394 00 1 Hose assembly
1045 0147 1363 03 4 Hex. head screw
1050 0301 2344 00 4 Plain washer
1055 0346 1000 53 1 Clamp
1060 0147 1246 03 1 Hexagon bolt
1065 1623 7682 00 1 Hose assembly
1070 0147 1363 03 2 Hex. head screw
1075 0301 2344 00 2 Plain washer
1080 0663 2109 68 1 O-ring
1085 0147 1363 03 2 Hex. head screw
1090 0301 2344 00 2 Plain washer
1095 0663 2109 68 1 O-ring
1100 1623 9363 00 1 Hose assembly
1105 0147 1363 03 2 Hex. head screw
1110 0301 2344 00 2 Plain washer
1115 0663 2109 68 1 O-ring
1120 0147 1363 03 2 Hex. head screw
1125 0301 2344 00 2 Plain washer
1130 0663 2109 68 1 O-ring
1 Filter assembly
2005 1623 7494 00 • 1 Housing filter
2010 0211 1363 03 • 2 Hex. sock. screw
2015 1623 1451 00 • 2 Nipple
2020 1621 7378 00 • 2 Glass fiber oil filter
2025 0603 4102 03 • 1 Nipple
2030 0852 0010 36 • 1 Ball valve
2035 0661 1000 25 • 1 Seal washer
2040 0686 4202 03 • 1 Plug
GA160+ -10 CHN 380/50
GA200+ -10 CHN 10KV/50
IP23
GA200+ -10 CHN 380/50
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -10 CHN 380/50
GA250+ -10 CHN 3KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -10 CHN 6KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -10 CHN 380/50
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
Regulation thermal valve
3005 1623 7565 00 • 1 Housing valve
3010 1623 9926 00 • 1 Thermostat
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0663 2102 89 • 1 O-ring
3030 0663 2109 68 • 1 O-ring
3035 0147 1363 03 • 2 Hex. head screw
3040 0301 2344 00 • 2 Plain washer
GA200+ -14 CHN 10KV/50
IP23
GA200+ -14 CHN 380/50
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 380/50
GA250+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -14 10KV 50HZ IP23
CHN
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 -14 CHN 380/50
Regulation thermal valve
3005 1623 7565 00 • 1 Housing valve
3010 1623 9997 00 • 1 Thermostat
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0663 2102 89 • 1 O-ring
3030 0663 2109 68 • 1 O-ring
3035 0147 1363 03 • 2 Hex. head screw
3040 0301 2344 00 • 2 Plain washer
64 9829 3109 10
Parts list
24
9829 3109 10 65
Parts list
Oil system-Watercooled- Without ER-1 24
Ref. Part number Qty Name Remarks
GA160+ W-10 CHN 380/50
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA200+ W-14 CHN 380/50
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-5.5 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 380/50
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 380/50
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-14 CHN 380/50
GA250+ W-14 CHN 380/50
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 380/50
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 380/50
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-7.5 CHN 380/50
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 380/50
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
Connect. oil
1025 0301 2344 00 10 Plain washer
1030 0663 2109 68 4 O-ring
1035 1623 9679 00 1 Pipe
1040 0634 1000 28 1 Victaulic coupling
1045 1635 0236 00 1 Pipe
1050 1635 0237 00 1 Pipe
1055 0147 1365 03 2 Hexagon bolt
1060 0266 2111 00 2 Nut
1065 0634 1001 51 1 Coupling
1070 1623 9681 00 1 Hose assembly
1075 0147 1363 03 2 Hex. head screw
1080 0301 2344 00 2 Plain washer
1085 0663 2109 68 1 O-ring
1090 0147 1363 03 2 Hex. head screw
1095 0301 2344 00 2 Plain washer
1100 0663 2109 68 1 O-ring
1105 1623 9268 00 1 Hose assembly
1110 0147 1363 03 2 Hex. head screw
1115 0301 2344 00 2 Plain washer
1120 0663 2109 68 1 O-ring
1125 0147 1363 03 2 Hex. head screw
1130 0301 2344 00 2 Plain washer
1135 0663 2109 68 1 O-ring
1140 1623 9680 00 1 Pipe
1145 0147 1363 03 6 Hex. head screw
1 Filter assembly
2005 1623 7494 00 • 1 Housing filter
2010 0211 1363 03 • 2 Hex. sock. screw
2015 1623 1451 00 • 2 Nipple
2020 1621 7378 00 • 2 Glass fiber oil filter
2025 0603 4102 03 • 1 Nipple
2030 0852 0010 36 • 1 Ball valve
2035 0661 1000 25 • 1 Seal washer
2040 0686 4202 03 • 1 Plug
1 Thermostat
3005 0663 2102 89 • 1 O-ring
3010 0663 2109 68 • 1 O-ring
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0147 1363 03 • 2 Hex. head screw
3030 0301 2344 00 • 2 Plain washer
3035 1623 7565 00 • 1 Housing valve
3040 1623 9925 00 • 1 Thermostat
66 9829 3109 10
Parts list
25
9829 3109 10 67
Parts list
Oil system-Watercooled-Without ER-2 25
Ref. Part number Qty Name Remarks
Oil system complete
1015 1623 9680 00 1 Pipe
1020 0147 1363 03 6 Hex. head screw
1025 0301 2344 00 10 Plain washer
1030 0663 2109 68 4 O-ring
1035 1623 9679 00 1 Pipe
1040 0634 1000 28 1 Victaulic coupling
1045 1635 0236 00 1 Pipe
1050 1635 0237 00 1 Pipe
1055 0147 1365 03 2 Hexagon bolt
1060 0266 2111 00 2 Nut
1065 0634 1001 51 1 Coupling
1070 1623 9681 00 1 Hose assembly
1075 0147 1363 03 2 Hex. head screw
1080 0301 2344 00 2 Plain washer
1085 0663 2109 68 1 O-ring
1090 0147 1363 03 2 Hex. head screw
1095 0301 2344 00 2 Plain washer
1100 0663 2109 68 1 O-ring
1105 1623 9268 00 1 Hose assembly
1120 0663 2109 68 1 O-ring
1125 0147 1363 03 2 Hex. head screw
1130 0301 2344 00 2 Plain washer
1135 0663 2109 68 1 O-ring
1 Filter assembly
2005 1623 7494 00 • 1 Housing filter
2010 0211 1363 03 • 2 Hex. sock. screw
2015 1623 1451 00 • 2 Nipple
2020 1621 7378 00 • 2 Glass fiber oil filter
2025 0603 4102 03 • 1 Nipple
2030 0852 0010 36 • 1 Ball valve
2035 0661 1000 25 • 1 Seal washer
2040 0686 4202 03 • 1 Plug
GA160+ W-8.5 CHN 380/50
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-10 CHN 380/50
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-10 CHN 380/50
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA280 W-10 CHN 10KV/50
IP23
GA280 W-10 CHN 380/50
GA280 W-10 CHN 3KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
1 Regulation thermal valve
3005 1623 7565 00 • 1 Housing valve
3010 1623 9926 00 • 1 Thermostat
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0663 2102 89 • 1 O-ring
3030 0663 2109 68 • 1 O-ring
3035 0147 1363 03 • 2 Hex. head screw
3040 0301 2344 00 • 2 Plain washer
GA200+ W-14 CHN 10KV/50
IP23
GA200+ W-14 CHN 380/50
GA200+ W-14 CHN 3KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA250+ W-14 CHN 380/50
GA250+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
GA280 W-14 CHN 380/50
GA280 W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
1 Regulation thermal valve
3005 1623 7565 00 • 1 Housing valve
3010 1623 9997 00 • 1 Thermostat
3015 1623 7816 00 • 1 Cover valve
3020 0335 2154 00 • 1 Circlip
3025 0663 2102 89 • 1 O-ring
3030 0663 2109 68 • 1 O-ring
3035 0147 1363 03 • 2 Hex. head screw
3040 0301 2344 00 • 2 Plain washer
68 9829 3109 10
Parts list
26
9829 3109 10 69
Parts list
Cooler assembly-Aircooled 26
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -14 10KV 50HZ IP23
CHN
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
Cooler assy
1005 0697 9809 05 1 Locknut
1010 0347 6112 00 2 Hose clamp
1015 0697 9810 39 1 Plug
1020 0653 0500 81 4 Seal
1025 0686 9250 31 4 Plug
1030 0571 0021 20 2 Nipple
1035 0263 3104 14 2 Nut
1040 0686 5103 01 2 Plug
1045 0075 4030 15 AR Hose
70 9829 3109 10
Parts list
27
9829 3109 10 71
Parts list
Cooler assembly-Aircooled-GA160 27
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
Cooler assy
1015 1503 0786 00 2 Rotation arrow
Cooler support
2010 0147 1963 08 • 4 Screw
2015 1623 8099 00 • 1 Baffle
2020 0147 1963 08 • 11 Screw
2025 1623 8097 00 • 1 Profile
2030 1619 5188 00 • AR Seal
2035 1619 5188 00 • AR Seal
2040 1619 5188 00 • AR Seal
2045 1619 5188 00 • AR Seal
2050 0147 1963 08 • 5 Screw
2055 1092 1167 00 • 2 Cooler oil
2060 0661 1000 27 • 2 Seal washer
2065 1635 1410 00 • 2 Nipple hexagon
2070 0574 8235 42 • 2 Hose assembly
2075 1614 9252 00 • 2 Plug
2080 0147 1360 03 • 8 Hexagon bolt
2085 0300 0274 93 • 8 Plain washer
2090 1092 1167 30 • 1 Cooler after
2095 0147 1360 03 • 4 Hexagon bolt
2100 0300 0274 93 • 4 Plain washer
2105 1623 8098 00 • 2 Support
2110 0147 1360 03 • 4 Hexagon bolt
2115 0301 2344 00 • 4 Plain washer
2120 1623 8095 00 • 2 Block mounting
2125 0147 1327 03 • 4 Hexagon bolt
2130 0301 2335 00 • 4 Plain washer
2135 0291 1110 00 • 4 Locknut
2140 1623 4350 00 • 2 Grating
2145 1092 1164 34 • 12 Washer lock
2150 0277 1310 00 • 12 Cap nut
2155 0147 1327 12 • 12 Hexagon bolt
2160 0346 1000 15 • 2 Pipe clamp
2170 0291 1110 00 • 2 Locknut
2175 1619 2861 04 • 1 Clamp
• 1 Bodywork cooler support
3000 1092 1167 84 •• 1 Baffle
3 001 1635 0960 80 •• 1 Support
0216 1957 26 ••• 13 Hex sock. screw
0698 0154 00 ••• 1 Grommet
1623 8093 00 ••• 1 Strip
1623 8092 00 ••• 2 Strip
1623 8091 00 ••• 1 Strip
3010 0147 1963 08 •• 15 Screw
3011 1092 1167 85 •• 1 Baffle
3020 0147 1963 08 •• 15 Screw
3030 0147 1963 08 •• 4 Screw
Ref. Part number Qty Name Remarks
3 035 1623 7237 80 •• 1 Panel
••• 1 Panel
1619 5188 00 ••• AR Seal
3045 1623 8082 00 •• 1 Support
3050 0147 1963 08 •• 5 Screw
3 055 1623 9319 80 •• 1 Stay
••• 1 Stay
1623 9320 00 ••• 1 Stay
0147 1963 08 ••• 3 Screw
0147 1320 03 ••• 6 Hexagon bolt
1623 0503 00 ••• 3 Hinge
3060 0147 1963 08 •• 4 Screw
3 065 1623 8447 80 •• 1 Stay
••• 1 Stay
1623 8448 00 ••• 1 Stay
0147 1963 08 ••• 3 Screw
0147 1320 03 ••• 6 Hexagon bolt
1623 0503 00 ••• 3 Hinge
3070 0147 1963 08 •• 4 Screw
3071 1092 1167 86 •• 1 Stay
3 075 1623 8083 80 •• 1 Support
••• 1 Support
1623 8092 00 ••• 2 Strip
1623 8093 00 ••• 1 Strip
0216 1957 26 ••• 7 Hex sock. screw
1619 2665 00 ••• AR Seal
3080 1092 1164 31 •• 1 Support
3081 1092 1167 90 •• 1 Stay
3085 0147 1963 08 •• 5 Screw
3090 1092 1164 31 •• 1 Support
3095 0147 1963 08 •• 5 Screw
3 100 1623 8088 80 •• 2 Support
••• 2 Support
1619 2758 00 ••• AR Seal
1619 2758 00 ••• AR Seal
3105 0147 1963 08 •• 10 Screw
3111 1092 1164 30 •• 1 Support
3120 0211 1250 03 •• 4 Screw
3125 0277 1308 00 •• 4 Hexagon domed cap nut
3 130 1623 8086 80 •• 2 Panel
••• 2 Panel
3135 0147 1963 08 •• 4 Screw
3 140 1635 1441 80 •• 1 Baffle
••• 1 Baffle
1088 0803 10 ••• 4 Grommet
1202 6584 00 ••• AR Seal
3145 0147 1963 08 •• 9 Screw
3150 1623 9316 00 •• 1 Strip
3155 0211 1325 03 •• 5 Hex. sock. screw
3 160 1623 8111 80 •• 2 Door
••• 2 Door
1623 4687 00 ••• 4 Lock
3165 1621 0607 00 •• 6 Pin
72 9829 3109 10
Parts list
28
9829 3109 10 73
Parts list
28
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -5.5 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 380/50
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -10 CHN 380/50
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA200+ -14 CHN 380/50
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
Cooler assy
1015 1503 0786 00 2 Rotation arrow
Cooler support
2 010 1623 8089 80 • 1 Plate function
•• 1 Baffle
1202 6584 00 •• AR Seal
2015 0147 1963 08 • 4 Screw
2020 1623 8099 00 • 1 Baffle
2025 0147 1963 08 • 11 Screw
2030 1623 8097 00 • 1 Profile
2035 1619 5188 00 • AR Seal
2040 1619 5188 00 • AR Seal
2045 1619 5188 00 • AR Seal
2050 1619 5188 00 • AR Seal
2055 0147 1963 08 • 5 Screw
2060 1092 1167 00 • 1 Cooler oil
2065 1092 1167 10 • 1 Cooler oil
2070 0661 1000 27 • 2 Seal washer
2075 1635 1410 00 • 2 Nipple hexagon
2080 0574 8235 42 • 2 Hose assembly
2085 1614 9252 00 • 2 Plug
2090 0147 1360 03 • 8 Hexagon bolt
2095 0300 0274 93 • 8 Plain washer
2100 1092 1167 30 • 1 Cooler after
2105 0147 1360 03 • 4 Hexagon bolt
2110 0300 0274 93 • 4 Plain washer
2115 1623 8098 00 • 2 Support
2120 0147 1360 03 • 4 Hexagon bolt
2125 0301 2344 00 • 4 Plain washer
Cooler assembly-Aircooled-GA200
Ref. Part number Qty Name Remarks
2130 1623 8095 00 • 2 Block mounting
2135 0147 1327 03 • 4 Hexagon bolt
2140 0301 2335 00 • 4 Plain washer
2145 0291 1110 00 • 4 Locknut
2150 1623 4350 00 • 2 Grating
2155 1092 1164 34 • 12 Washer lock
2160 0277 1310 00 • 12 Cap nut
2165 0147 1327 12 • 12 Hexagon bolt
2170 0346 1000 15 • 2 Pipe clamp
2175 0147 1963 08 • 2 Screw
2180 0291 1110 00 • 2 Locknut
2185 1619 2861 04 • 1 Clamp
2190 0147 1963 08 • 1 Screw
2195 0291 1110 00 • 1 Locknut
• 1 Bodywork cooler support
3000 1092 1167 84 •• 1 Baffle
3 001 1635 0960 80 •• 1 Support
0216 1957 26 ••• 13 Hex sock. screw
0698 0154 00 ••• 1 Grommet
1623 8093 00 ••• 1 Strip
1623 8092 00 ••• 2 Strip
1623 8091 00 ••• 1 Strip
3010 0147 1963 08 •• 15 Screw
3011 1092 1167 85 •• 1 Baffle
3020 0147 1963 08 •• 15 Screw
3030 0147 1963 08 •• 4 Screw
3 035 1623 7237 80 •• 1 Panel
••• 1 Panel
1619 5188 00 ••• AR Seal
3045 1623 8082 00 •• 1 Support
3050 0147 1963 08 •• 5 Screw
3 055 1623 9319 80 •• 1 Stay
••• 1 Stay
1623 9320 00 ••• 1 Stay
0147 1963 08 ••• 3 Screw
0147 1320 03 ••• 6 Hexagon bolt
1623 0503 00 ••• 3 Hinge
3060 0147 1963 08 •• 4 Screw
3 065 1623 8447 80 •• 1 Stay
••• 1 Stay
1623 8448 00 ••• 1 Stay
0147 1963 08 ••• 3 Screw
0147 1320 03 ••• 6 Hexagon bolt
1623 0503 00 ••• 3 Hinge
1623 8131 00 ••• 1 Insulation silencing
3070 0147 1963 08 •• 4 Screw
3071 1092 1167 86 •• 1 Stay
3 075 1623 8083 80 •• 1 Support
••• 1 Support
1623 8092 00 ••• 2 Strip
1623 8093 00 ••• 1 Strip
0216 1957 26 ••• 7 Hex sock. screw
1619 2665 00 ••• AR Seal
3080 1092 1164 31 •• 1 Support
3081 1092 1167 90 •• 1 Stay
3085 0147 1963 08 •• 5 Screw
3090 1092 1164 31 •• 1 Support
3095 0147 1963 08 •• 5 Screw
3 100 1623 8088 80 •• 2 Support
••• 2 Support
1619 2758 00 ••• AR Seal
1619 2758 00 ••• AR Seal
3105 0147 1963 08 •• 10 Screw
3111 1092 1164 30 •• 1 Support
74 9829 3109 10
Parts list
28
9829 3109 10 75
Parts list
Cooler assembly-Aircooled-GA200 28
Ref. Part number Qty Name Remarks
3120 0211 1250 03 •• 4 Screw
3125 0277 1308 00 •• 4 Hexagon domed cap nut
3 130 1623 8086 80 •• 2 Panel
••• 2 Panel
1635 1196 00 ••• 2 Insulation silencing
3135 0147 1963 08 •• 4 Screw
3 140 1635 1441 80 •• 1 Baffle
••• 1 Baffle
1088 0803 10 ••• 4 Grommet
1202 6584 00 ••• AR Seal
Ref. Part number Qty Name Remarks
3145 0147 1963 08 •• 9 Screw
3150 1623 9316 00 •• 1 Strip
3155 0211 1325 03 •• 5 Hex. sock. screw
3 160 1623 8111 80 •• 2 Door
••• 2 Door
1623 8186 00 ••• 2 Insulation silencing
1623 4687 00 ••• 4 Lock
3165 1621 0607 00 •• 6 Pin
76 9829 3109 10
Parts list
29
9829 3109 10 77
Parts list
Cooler assembly-Aircooled-GA250 29
Ref. Part number Qty Name Remarks
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -7.5 CHN 380/50
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 380/50
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -10 CHN 380/50
GA250+ -10 CHN 3KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 380/50
GA250+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
Cooler assy
1015 1503 0786 00 2 Rotation arrow
Bodywork baffling
2 005 1623 8089 80 • 1 Plate function
•• 1 Baffle
1202 6584 00 •• AR Seal
2 010 1623 8090 80 • 1 Plate function
•• 1 Baffle
1202 6584 00 •• AR Seal
2015 0147 1963 08 • 4 Screw
2020 1623 8099 00 • 1 Baffle
2025 0147 1963 08 • 11 Screw
2030 1623 8097 00 • 1 Profile
2035 1619 5188 00 • AR Seal
2040 1619 5188 00 • AR Seal
2045 1619 5188 00 • AR Seal
2050 1619 5188 00 • AR Seal
2055 0147 1963 08 • 5 Screw
2060 1092 1167 10 • 2 Cooler oil
2065 0661 1000 27 • 2 Seal washer
2070 1635 1410 00 • 2 Nipple hexagon
2075 0574 8235 42 • 2 Hose assembly
2080 1614 9252 00 • 2 Plug
2085 0147 1360 03 • 8 Hexagon bolt
2090 0300 0274 93 • 8 Plain washer
2095 1092 1167 30 • 1 Cooler after
2100 0147 1360 03 • 4 Hexagon bolt
2105 0300 0274 93 • 4 Plain washer
2110 1623 8098 00 • 2 Support
2115 0147 1360 03 • 4 Hexagon bolt
2120 0301 2344 00 • 4 Plain washer
2125 1623 8095 00 • 2 Block mounting
2130 0147 1327 03 • 4 Hexagon bolt
2135 0301 2335 00 • 4 Plain washer
2140 0291 1110 00 • 4 Locknut
Ref. Part number Qty Name Remarks
2145 1623 4350 00 • 2 Grating
2150 1092 1164 34 • 12 Washer lock
2155 0277 1310 00 • 12 Cap nut
2160 0147 1327 12 • 12 Hexagon bolt
2170 0346 1000 15 • 2 Pipe clamp
2180 0291 1110 00 • 2 Locknut
2185 1619 2861 04 • 1 Clamp
• 1 Bodywork cooler support
3000 1092 1167 84 •• 1 Baffle
3 001 1635 0960 80 •• 1 Support
0216 1957 26 ••• 13 Hex sock. screw
0698 0154 00 ••• 1 Grommet
1623 8093 00 ••• 1 Strip
1623 8092 00 ••• 2 Strip
1623 8091 00 ••• 1 Strip
3010 0147 1963 08 •• 15 Screw
3011 1092 1167 85 •• 1 Baffle
3020 0147 1963 08 •• 15 Screw
3030 0147 1963 08 •• 4 Screw
3 035 1623 7237 80 •• 1 Panel
••• 1 Panel
1619 5188 00 ••• AR Seal
3045 1623 8082 00 •• 1 Support
3050 0147 1963 08 •• 5 Screw
3 055 1623 9319 80 •• 1 Stay
••• 1 Stay
1623 9320 00 ••• 1 Stay
0147 1963 08 ••• 3 Screw
0147 1320 03 ••• 6 Hexagon bolt
1623 0503 00 ••• 3 Hinge
3060 0147 1963 08 •• 4 Screw
1623 2829 00 ••• 2 Lock
••• 1 Baffle
3 065 1623 8447 80 •• 1 Stay
••• 1 Stay
1623 8448 00 ••• 1 Stay
0147 1963 08 ••• 3 Screw
0147 1320 03 ••• 6 Hexagon bolt
1623 0503 00 ••• 3 Hinge
3070 0147 1963 08 •• 4 Screw
3071 1092 1167 86 •• 1 Stay
3 075 1623 8083 80 •• 1 Support
••• 1 Support
1623 8092 00 ••• 2 Strip
1623 8093 00 ••• 1 Strip
0216 1957 26 ••• 7 Hex sock. screw
1619 2665 00 ••• AR Seal
3080 1092 1164 31 •• 1 Support
3081 1092 1167 90 •• 1 Stay
3085 0147 1963 08 •• 5 Screw
3090 1092 1164 31 •• 1 Support
3095 0147 1963 08 •• 5 Screw
3 100 1623 8088 80 •• 2 Support
••• 2 Support
1619 2758 00 ••• AR Seal
1619 2758 00 ••• AR Seal
3105 0147 1963 08 •• 10 Screw
3111 1092 1164 30 •• 1 Support
3120 0211 1250 03 •• 4 Screw
3125 0277 1308 00 •• 4 Hexagon domed cap nut
3 130 1623 8086 80 •• 2 Panel
••• 2 Panel
3135 0147 1963 08 •• 4 Screw
78 9829 3109 10
Parts list
29
9829 3109 10 79
Parts list
Ref. Part number Qty Name Remarks
3 140 1635 1441 80 •• 1 Baffle
••• 1 Baffle
1088 0803 10 ••• 4 Grommet
1202 6584 00 ••• AR Seal
3145 0147 1963 08 •• 9 Screw
3150 1623 9316 00 •• 1 Strip
Cooler assembly-Aircooled-GA250 29
Ref. Part number Qty Name Remarks
3155 0211 1325 03 •• 5 Hex. sock. screw
3 160 1623 8111 80 •• 2 Door
••• 2 Door
1623 4687 00 ••• 4 Lock
3165 1621 0607 00 •• 6 Pin
80 9829 3109 10
Parts list
30
9829 3109 10 81
Parts list
30
Ref. Part number Qty Name Remarks
GA280 -7.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 380/50
GA280 -7.5 CHN 3KV/50 IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 380/50
GA280 -8.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -10 CHN 380/50
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -14 10KV 50HZ IP23
CHN
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 -14 CHN 380/50
Cooler assy
1005 1623 8089 80 1 Plate function
1010 1623 8090 80 1 Plate function
1015 0147 1963 08 4 Screw
1020 1623 8099 00 1 Baffle
1025 0147 1963 08 11 Screw
1030 1623 8097 00 1 Profile
1035 1619 5188 00 15.5 Seal
Cooler assembly-Aircooled-GA280
Ref. Part number Qty Name Remarks
1040 1619 5188 00 15.5 Seal
1045 1619 5188 00 5.8 Seal
1050 1619 5188 00 5.8 Seal
1055 0147 1963 08 5 Screw
1060 1092 1167 20 2 Cooler oil
1065 0661 1000 27 2 Seal washer
1070 1635 1410 00 2 Nipple hexagon
1075 0574 8235 42 2 Hose assembly
1080 1614 9252 00 2 Plug
1085 0147 1360 03 8 Bolt
1090 0300 0274 93 8 Plain washer
1095 1092 1167 40 1 Cooler after
1100 0147 1360 03 4 Bolt
1105 0300 0274 93 4 Plain washer
1110 1623 8098 00 2 Support
1115 0147 1360 03 4 Bolt
1120 0301 2344 00 4 Washer
1125 1623 8095 00 2 Block mounting
1130 0147 1327 03 4 Hex. Head screw
1135 0301 2335 00 4 Plain washer
1140 0291 1110 00 4 Locknut
1145 1623 4350 00 2 Grating
1150 1092 1164 34 12 Washer lock
1155 0277 1310 00 12 Cap nut
1160 0147 1327 12 12 Hex. Head screw
1165 0346 1000 15 2 Pipe clamp
1175 0291 1110 00 2 Locknut
1180 1619 2861 04 1 Clamp
1205 1503 0786 00 2 Rotation arrow
82 9829 3109 10
Parts list
31
9829 3109 10 83
Parts list
Cooler assembly-Watercooled 31
Ref. Part number Qty Name Remarks
Cooler assy
1005 1623 7851 00 1 Support
1010 0147 1400 03 6 Hex. head screw
1015 0301 2358 00 6 Plain washer
1020 1092 1164 60 1 Cooler after
1025 0147 1402 03 4 Hexagon bolt
1030 0301 2358 00 4 Plain washer
1035 1092 1164 61 1 Cooler oil
Ref. Part number Qty Name Remarks
1040 0147 1402 03 4 Hexagon bolt
1045 0301 2358 00 4 Plain washer
1050 0147 1404 03 4 Hexagon bolt
1055 0301 2358 00 4 Plain washer
1060 1614 6632 00 1 Plate
1065 0663 2106 12 4 O-ring
1070 0147 1365 03 2 Hexagon bolt
1075 0301 2344 00 2 Plain washer
84 9829 3109 10
Parts list
32
9829 3109 10 85
Parts list
Fan assembly-Aircooled-1 32
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA200+ -5.5 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -5.5 CHN 10KV/50
IP23
Fan assembly-1
1005 1092 1071 02 2 Fan motor
1010 1092 1167 95 2 Ring locking
Ref. Part number Qty Name Remarks
1015 0300 0274 60 2 Plain washer
1020 0147 1364 03 2 Hexagon bolt
1025 1092 1061 07 8 Support
1030 1092 1061 09 8 Support
1035 1092 1061 16 16 Washer lock
1040 1092 1061 08 16 Washer lock
1045 0147 1963 08 16 Screw
1050 0147 1401 03 16 Hexagon bolt
1055 1088 1001 01 2 Warning label
1060 0301 2358 00 16 Plain washer
1065 0300 0274 34 16 Washer
1070 1635 1531 00 1 Fan axial
1075 1635 1622 00 1 Fan axial
86 9829 3109 10
Parts list
33
9829 3109 10 87
Parts list
Fan assembly-Aircooled-2 33
Ref. Part number Qty Name Remarks
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA280 -14 CHN 380/50
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 -14 3KV 50HZ IP23
CHN
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -14 CHN 6KV/50
IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -14 6KV 50HZ IP23
CHN
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -14 10KV 50HZ IP23
CHN
Fan assembly-2
1001 1092 1071 00 2 Fan motor
1005 0147 1364 03 2 Hexagon bolt
1010 0147 1401 03 16 Hexagon bolt
1015 0147 1963 08 16 Screw
1030 1092 1061 09 8 Support
1035 1092 1061 16 16 Washer lock
1040 1092 1061 08 16 Washer lock
1045 0147 1963 08 16 Screw
1050 0147 1401 03 16 Hexagon bolt
1055 1088 1001 01 2 Warning label
1060 0301 2358 00 16 Plain washer
1065 0300 0274 34 16 Washer
1085 1623 6945 00 2 Ring locking
1090 0300 0274 60 2 Plain washer
1095 0147 1364 03 2 Hexagon bolt
1100 1092 1061 07 8 Support
88 9829 3109 10
Parts list
34
9829 3109 10 89
Parts list
Fan assembly-Watercooled 34
Ref. Part number Qty Name Remarks
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-8.5 CHN 380/50
GA160+ W-10 CHN 380/50
GA200+ W-5.5 CHN 380/50
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-14 CHN 380/50
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA280 W-14 CHN 380/50
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA280 W-14 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
Fan assembly
1005 0147 1250 03 4 Hexagon bolt
1010 0301 2321 00 4 Washer
1015 1088 1001 01 1 Warning label
1020 1503 0786 00 1 Rotation arrow
1025 1092 0042 74 1 Fan assembly
1 030 2000 0211 05 4 Fan wiring
1092 1200 14 • 2.9 Cable power
0698 5140 72 • 1 Cable gland
9139 6002 21 • 4 End socket
90 9829 3109 10
Parts list
35
Ref. Part number Qty Name Remarks
Control system
Aircooled
1005 1089 0574 70 3 Temp.sensor
1010 1089 9625 13 3 Sensor press
1015 1089 9625 18 1 Sensor press
1020 1089 0574 12 1 Sensor
1025 1089 9625 01 1 Dp transducer
1030 0661 1000 24 2 Seal washer
1035 1615 3624 00 1 Nozzle
1040 0580 0400 03 1 Str. coupling
Control system-Aircooled
Ref. Part number Qty Name Remarks
1045 0661 1000 25 2 Seal washer
1050 0560 4401 09 1 Tee
1055 1619 5205 00 1 Nipple
1060 1079 5840 01 1 Nipple
1065 0575 0361 18 1 Hose assembly
1080 1900 5200 22 1 Elektronikon
1085 1900 5200 32 1 Elektronikon
1090 0160 6038 00 4 Screw
1095 0301 2315 00 4 Plain washer
1100 1092 1167 59 1 Wire harness
9829 3109 10 91
Parts list
Control System - Watercooled 36
Ref. Part number Qty Name Remarks
Control system
Watercooled
1005 1089 0574 70 4 Temp.sensor
1010 1089 9625 13 3 Sensor press
1015 1089 9625 18 1 Sensor press
1020 1089 9625 01 1 Dp transducer
1025 0661 1000 24 2 Seal washer
1030 1615 3624 00 1 Nozzle
1035 0580 0400 03 1 Str. coupling
1040 0661 1000 25 3 Seal washer
1045 0560 4401 09 1 Tee
Ref. Part number Qty Name Remarks
1050 1619 5205 00 1 Nipple
1055 1079 5840 01 1 Nipple
1060 0575 0361 18 1 Hose assembly
1065 1089 0637 24 1 Switch temp.
1070 1900 5200 22 1 Elektronikon
1075 1900 5200 32 1 Elektronikon
1080 0160 6038 00 4 Screw
1085 0301 2315 00 4 Plain washer
1090 1092 1167 58 1 Wire harness
1100 0686 3716 01 1 Plug
92 9829 3109 10
Parts list
37
9829 3109 10 93
Parts list
Frame assembly-1 37
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA200+ -5.5 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA280 -14 CHN 380/50
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-8.5 CHN 380/50
GA160+ W-10 CHN 380/50
GA200+ W-5.5 CHN 380/50
Ref. Part number Qty Name Remarks
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-14 CHN 380/50
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA280 W-14 CHN 380/50
Frame assembly-1
1005 0697 9809 06 1 Locknut
1010 0697 9810 38 1 Plug
1 015 1092 1062 50 1 Frame
1092 1062 00 • 1 Frame
1623 6306 00 • 1 Plate bottom
1623 8170 00 • 2 Block mounting
1619 5337 01 • 6 Hexagon bolt
0147 1398 00 • 2 Screw
94 9829 3109 10
Parts list
38
9829 3109 10 95
Parts list
38
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
Frame assembly-2
Ref. Part number Qty Name Remarks
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -14 10KV 50HZ IP23
CHN
GA280 -14 3KV 50HZ IP23
CHN
GA280 -14 6KV 50HZ IP23
CHN
GA280 W-7.5 CHN 10KV/50
IP23
96 9829 3109 10
Parts list
38
9829 3109 10 97
Parts list
38
Ref. Part number Qty Name Remarks
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
Frame assembly-2
Ref. Part number Qty Name Remarks
GA280 W-14 CHN 3KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
Frame assembly-2
1 005 1092 1167 55 1 Frame
1092 1167 50 • 1 Frame
1623 8170 00 • 2 Block mounting
1092 1167 99 • 1 Plate bottom
0147 1398 00 • 2 Screw
1623 8358 00 • 1 Plate bottom
1619 5337 01 • 6 Hexagon bolt
1010 0697 9810 38 1 Plug
1015 0697 9809 06 1 Locknut
1020 1619 2861 01 1 Clamp
1025 0266 2110 00 1 Nut
1030 0147 1322 03 1 Hexagon bolt
98 9829 3109 10
Parts list
39
9829 3109 10 99
Parts list
Motor arrangement-1 39
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA200+ W-5.5 CHN 380/50
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
1001 1092 1132 21 1 Motor
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA250+ W-10 CHN 380/50
1001 1092 1132 41 1 Motor
GA250+ -14 CHN 380/50
GA250+ W-14 CHN 380/50
1001 1092 1132 11 1 Motor
Ref. Part number Qty Name Remarks
1005 1503 0786 00 1 Rotation arrow
1010 1088 1001 04 1 Warning label
1015 1079 9901 29 1 Label
1020 0697 9809 19 1 Locknut
1025 0697 9810 24 1 Plug
1030 1619 3941 00 1 Rubber damper
1035 0301 2358 00 4 Plain washer
1040 0147 1401 03 4 Hexagon bolt
1045 1623 8293 00 1 Support
1050 0147 1549 03 1 Hexagon bolt
1055 0300 0274 13 1 Washer
1060 1092 1167 64 1 Plate anchor
1065 0147 1404 03 4 Hexagon bolt
1070 0301 2358 00 4 Plain washer
1075 1092 1061 10 1 Stud
1080 0266 1136 01 1 Nut hexagon
1085 0301 2421 00 2 Washer
1 110 1623 7340 00 1 Coupling drive
0192 1398 00 • 1 Screw set
1115 0211 1403 00 16 Scr cap soc
100 9829 3109 10
Parts list
40
9829 3109 10 101
Parts list
Motor arrangement-2 40
Ref. Part number Qty Name Remarks
GA250+ -14 CHN 6KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
1005 1092 1131 13 1 Motor
GA250+ -14 CHN 3KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
1005 1092 1131 11 1 Motor
GA250+ -14 CHN 10KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
1005 1092 1131 15 1 Motor
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
1005 1092 1131 21 1 Motor
GA250+ -7.5 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
1005 1092 1131 25 1 Motor
1 010 1623 7340 00 1 Coupling drive
0192 1398 00 • 1 Screw set
1015 1092 1061 17 1 Stud
1020 0301 2421 00 1 Washer
1025 1092 1167 64 1 Plate anchor
1030 0301 2421 00 1 Washer
1035 1623 8293 00 1 Support
1040 0301 2358 00 4 Plain washer
1045 0147 1404 03 4 Hexagon bolt
1050 0147 1549 03 1 Hexagon bolt
1055 0300 0274 13 1 Washer
1080 1619 3941 00 1 Rubber damper
1085 0301 2358 00 4 Plain washer
1090 0147 1401 03 4 Hexagon bolt
1095 1503 0786 00 1 Rotation arrow
1100 1088 1001 04 1 Warning label
1105 1079 9901 29 1 Label
102 9829 3109 10
Parts list
41
9829 3109 10 103
Parts list
Motor arrangement-3 41
Ref. Part number Qty Name Remarks
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
1005 1092 1131 41 1 Motor
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
1005 1092 1131 43 1 Motor
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
1005 1092 1131 45 1 Motor
Ref. Part number Qty Name Remarks
GA280 -14 3KV 50HZ IP23
CHN
GA280 W-14 CHN 3KV/50
IP23
1005 1092 1131 31 1 Motor
GA280 -14 6KV 50HZ IP23
CHN
GA280 W-14 CHN 6KV/50
IP23
1005 1092 1131 33 1 Motor
GA280 -14 10KV 50HZ IP23
CHN
GA280 W-14 CHN 10KV/50
IP23
1005 1092 1131 35 1 Motor
1010 1635 0979 00 1 Coupling drive
1015 1092 1061 17 1 Stud
1020 0301 2421 00 1 Washer
1025 1092 1167 64 1 Plate anchor
1030 0301 2421 00 1 Washer
1035 1623 8293 00 1 Support
1040 0301 2358 00 4 Plain washer
1045 0147 1404 03 4 Hexagon bolt
1050 0147 1549 03 1 Hexagon bolt
1055 0300 0274 13 1 Washer
1080 1619 3941 00 1 Rubber damper
1085 0301 2358 00 4 Plain washer
1090 0147 1401 03 4 Hexagon bolt
1095 1503 0786 00 1 Rotation arrow
1100 1088 1001 04 1 Warning label
1105 1079 9901 29 1 Label
104 9829 3109 10
Parts list
42
9829 3109 10 105
Parts list
Motor arrangement-4 42
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-8.5 CHN 380/50
GA160+ W-10 CHN 380/50
1005 1092 1132 01 1 Motor
GA280 W-14 CHN 380/50
1005 1092 1132 31 1 Motor
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA280 -14 CHN 380/50
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
1005 1092 1132 81 1 Motor
1010 1503 0786 00 1 Rotation arrow
Ref. Part number Qty Name Remarks
1015 1088 1001 04 1 Warning label
1020 1079 9901 29 1 Label
1025 0697 9809 19 1 Locknut
1030 0697 9810 24 1 Plug
1035 1619 3941 00 1 Rubber damper
1040 0301 2358 00 4 Plain washer
1045 0147 1401 03 4 Hexagon bolt
1050 1623 8293 00 1 Support
1055 0147 1549 03 1 Hexagon bolt
1060 0300 0274 13 1 Washer
1065 1092 1167 64 1 Plate anchor
1070 0147 1404 03 4 Hexagon bolt
1075 0301 2358 00 4 Plain washer
1080 1092 1061 10 1 Stud
1085 0266 1136 01 1 Nut hexagon
1090 0301 2421 00 2 Washer
1 115 1623 7340 00 1 Coupling drive
0192 1398 00 • 1 Screw set
1120 0211 1403 00 16 Scr cap soc
106 9829 3109 10
Parts list
43
9829 3109 10 107
Parts list
Motor arrangement-5 43
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
1005 1092 1131 01 1 Motor
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
1005 1092 1131 03 1 Motor
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
1005 1092 1131 05 1 Motor
1010 1503 0786 00 1 Rotation arrow
1015 1088 1001 04 1 Warning label
1020 1079 9901 29 1 Label
1025 0697 9809 19 1 Locknut
1030 0697 9810 24 1 Plug
1035 1619 3941 00 1 Rubber damper
1040 0301 2358 00 4 Plain washer
1045 0147 1401 03 4 Hexagon bolt
1050 1623 8293 00 1 Support
1055 0147 1549 03 1 Hexagon bolt
1060 0300 0274 13 1 Washer
1065 1092 1167 64 1 Plate anchor
1070 0147 1404 03 4 Hexagon bolt
1075 0301 2358 00 4 Plain washer
1080 1092 1061 17 1 Stud
1085 0266 1136 01 1 Nut hexagon
1090 0301 2421 00 2 Washer
1115 1635 0919 00 1 Coupling drive
1120 0211 1403 00 16 Scr cap soc
108 9829 3109 10
Parts list
44
9829 3109 10 109
Parts list
Motor arrangement-6 44
Ref. Part number Qty Name Remarks
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
1001 1092 1131 23 1 Motor
1 005 1623 7340 00 1 Coupling drive
0192 1398 00 • 1 Screw set
Ref. Part number Qty Name Remarks
1010 1092 1061 17 1 Stud
1015 0301 2421 00 1 Washer
1020 1092 1167 64 1 Plate anchor
1025 0301 2421 00 1 Washer
1030 1623 8293 00 1 Support
1035 0301 2358 00 4 Plain washer
1040 0147 1404 03 4 Hexagon bolt
1045 0147 1549 03 1 Hexagon bolt
1050 0300 0274 13 1 Washer
1075 1619 3941 00 1 Rubber damper
1080 0301 2358 00 4 Plain washer
1085 0147 1401 03 4 Hexagon bolt
1090 1503 0786 00 1 Rotation arrow
1095 1088 1001 04 1 Warning label
1100 1079 9901 29 1 Label
110 9829 3109 10
Parts list
45
9829 3109 10 111
Parts list
Regulation 45
Ref. Part number Qty Name Remarks
Regulation
1010 0663 2103 22 1 O-ring
1015 0147 1480 03 6 Hexagon bolt
1020 0301 2378 00 6 Washer
1025 0661 1000 25 3 Seal washer
1030 1619 5205 00 1 Nipple
1035 0661 1000 26 1 Seal washer
1040 1079 5840 07 1 Nipple
1045 0574 8231 26 1 Hose assembly
1055 1089 0668 21 1 Solenoid valve
1060 0160 6045 00 2 Scr mach chshd
1065 0661 1000 26 1 Seal washer
1070 0571 0036 25 1 Nipple hexagon
1075 0661 1000 25 1 Seal washer
1080 1079 5840 02 1 Nipple
1085 0603 4105 00 1 Nipple
1090 1089 0641 14 1 Valve solenoid
Ref. Part number Qty Name Remarks
1095 0560 4400 87 1 Fitting
1100 0661 1000 29 1 Seal washer
1105 0571 0035 25 2 Nipple
1110 0661 1000 29 1 Seal washer
1115 1079 5840 16 1 Fitting
1120 1635 0577 00 1 Nozzle
1125 0661 1000 30 1 Seal washer
1130 0560 4400 87 1 Fitting
1135 0661 1000 29 1 Seal washer
1140 1619 5509 00 1 Nipple
1145 0661 1000 29 1 Seal washer
1150 1635 1099 00 1 Nipple hexagon
1155 0575 0784 38 1 Flexible
1160 0574 9871 15 1 Hose assembly
1165 0574 9917 14 1 Hose assembly
1170 0686 3716 01 1 Plug
1175 0575 0128 24 1 Flexible
112 9829 3109 10
Parts list
46
9829 3109 10 113
Parts list
Cubicle box 46
Ref. Part number Qty Name Remarks
Control panel GA160+-280
LV pack
GA160+ 380V 50HZ
1000 1092 0060 92 1 Contactor K21
1005 1092 0060 90 1 Contactor K22
1010 1092 0060 92 1 Contactor K23
1015 1091 6376 26 1 Thermorelay F21
GA200 380V 50HZ
1000 1089 9602 65 1 Contactor K21
1005 1092 0057 55 1 Contactor K22
1010 1089 9602 65 1 Contactor K23
1015 1091 6376 23 1 Thermorelay F21
GA250 380V 50HZ
1000 1089 9602 66 1 Contactor K21
1005 1089 9602 63 1 Contactor K22
1010 1089 9602 66 1 Contactor K23
1015 1092 0002 15 1 Thermorelay F21
GA280 380V 50HZ
1000 1089 9602 66 1 Contactor K21
1005 1089 9602 63 1 Contactor K22
1010 1089 9602 66 1 Contactor K23
1015 1092 0002 15 1 Thermorelay F21
GA160+-280 380V 50HZ
1020 1089 9437 79 1 Transformer T1
1025 1088 0031 46 1 Connector 3X31-1
1030 1088 0031 26 1 Connector X0.2a
1035 1088 0031 86 1 Connector X0.2a'
GA160+-280 380V 50HZ
Water cooled
2000 1088 0031 81 5 Fixture
2005 1089 9427 06 1 Connector
2010 1091 6378 28 1 Contactor K11
2015 1091 6365 01 5 Fuse holder
F1,F2,F4,F5,F6
2020 1092 0755 40 1 Contactor K16
2025 1091 6372 22 1 Breaker Q16
2030 1089 9427 06 1 Connector 1X3
2035 1091 6365 25 2 Fuse
2040 1091 6365 24 1 Fuse
2045 1089 9332 91 2 Fuse
GA160+ 380V 50HZ Air
cooled
2000 1088 0031 81 5 Fixture
Ref. Part number Qty Name Remarks
2010 1091 6378 28 1 Contactor K11
2015 1091 6365 01 5 Fuse holder
F1,F2,F4,F5,F6
2030 1089 9427 06 1 Connector 1X3
2035 1091 6365 25 2 Fuse
2040 1091 6365 24 1 Fuse
2045 1089 9332 91 2 Fuse
2050 1092 0755 40 1 Contactor K26
2055 1091 6372 26 1 Breaker Q26
2060 1092 0755 40 1 Contactor K25
2065 1091 6372 26 1 Breaker Q25
GA200-280 380V 50HZ Air
cooled
2000 1088 0031 81 4 Fixture
2010 1091 6378 28 1 Contactor K11
2015 1091 6365 01 5 Fuse holder
F1,F2,F4,F5,F6
2030 1089 9427 06 1 Connector 1X3
2035 1091 6365 25 2 Fuse
2040 1091 6365 24 1 Fuse
2045 1089 9332 91 2 Fuse
2050 1092 0755 40 1 Contactor K26
2055 1091 6372 29 1 Breaker Q26
2060 1092 0755 40 1 Contactor K25
2065 1091 6372 29 1 Breaker Q25
GA160+-280 380V 50HZ
3005 1089 9427 06 2 Connector 1X0
3010 1088 0039 94 6 Connector 1X4
3010 1088 0039 94 4 Connector 1X5
3015 1088 0039 93 5 Connector 1X4
3015 1088 0039 93 11 Connector 1X6
3015 1088 0039 93 5 Connector 1X7
3025 1088 0061 05 1 Connector 1X5
3025 1088 0061 05 1 Connector 1X6
3025 1088 0061 05 1 Connector 1X7
3030 1088 0037 16 11 Connector 1X9
3035 1088 0037 15 3 Connector 1X9
3040 1088 0038 18 2 Connector 1X9
GA160+-280 380V 50HZ
4000 1900 5200 32 1 I/O
4005 1622 5099 05 1 Comunication cable
4010 1900 5200 22 1 ELEKTRONIKON MK5 GR
4015 1091 6363 51 1 Emergacy stop S2
114 9829 3109 10
Parts list
46
9829 3109 10 115
Parts list
Cubicle box 46
Ref. Part number Qty Name Remarks
GA160+-280 MV Control
pannel
GA160+-280
1000 1089 9437 79 1 Transformer T1
GA160+-280 Water cooled
2000 1088 0031 81 5 Fixture
2005 1089 9427 06 1 Connector
2010 1091 6378 28 1 Contactor K11
2015 1091 6365 01 5 Fuse holder
F1,F2,F4,F5,F6
2020 1092 0755 40 1 Contactor K16
2025 1091 6372 22 1 Breaker Q16
2030 1089 9427 06 1 Connector 1X3
2035 1091 6365 25 2 Fuse
2040 1091 6365 24 1 Fuse
2045 1089 9332 91 2 Fuse
GA160+ Air cooled
2000 1088 0031 81 5 Fixture
2010 1091 6378 28 1 Contactor K11
2015 1091 6365 01 5 Fuse holder
F1,F2,F4,F5,F6
2030 1089 9427 06 1 Connector 1X3
2035 1091 6365 25 2 Fuse
2040 1091 6365 24 1 Fuse
2045 1089 9332 91 2 Fuse
2050 1092 0755 40 1 Contactor K26
2055 1091 6372 26 1 Breaker Q26
2060 1092 0755 40 1 Contactor K25
2065 1091 6372 26 1 Breaker Q25
GA200-280 Air cooled
2000 1088 0031 81 4 Fixture
Ref. Part number Qty Name Remarks
2010 1091 6378 28 1 Contactor K11
2015 1091 6365 01 5 Fuse holder
F1,F2,F4,F5,F6
2030 1089 9427 06 1 Connector 1X3
2035 1091 6365 25 2 Fuse
2040 1091 6365 24 1 Fuse
2045 1089 9332 91 2 Fuse
2050 1092 0755 40 1 Contactor K26
2055 1091 6372 29 1 Breaker Q26
2060 1092 0755 40 1 Contactor K25
2065 1091 6372 29 1 Breaker Q25
GA160+-280
3005 1089 9427 06 2 Connector 1X0
3010 1088 0039 94 6 Connector 1X4
3010 1088 0039 94 4 Connector 1X5
3015 1088 0039 93 5 Connector 1X4
3015 1088 0039 93 11 Connector 1X6
3015 1088 0039 93 5 Connector 1X7
3025 1088 0061 05 1 Connector 1X5
3025 1088 0061 05 1 Connector 1X6
3025 1088 0061 05 1 Connector 1X7
3030 1088 0037 16 11 Connector 1X9
3035 1088 0037 15 3 Connector 1X9
3040 1088 0038 18 2 Connector 1X9
GA160+-280
4000 1900 5200 32 1 I/O
4005 1622 5099 05 1 Comunication cable
4010 1900 5200 22 1 Elektronikon MK5 GR
4015 1091 6363 51 1 Emergacy stop S2
116 9829 3109 10
Parts list
46
9829 3109 10 117
Parts list
Cubicle box 46
Ref. Part number Qty Name Remarks
GA160+-280 Cubicle
2001 1092 1167 68 • 1 Cubicle
2011 1092 1167 67 • 1 Right plate
2021 1623 5592 00 • 1 Door
2031 1621 2358 00 • 3 Hinge
2041 1621 0607 00 • 3 Pin
2051 1623 4687 00 • 3 Lock
2060 1088 1001 04 1 Warning mark
2200 1614 6567 00 1 Seal
2270 1092 0042 34 1 Gasket
2280 1614 7146 00 1 Flange
2290 0147 1325 03 6 Hex.Head screw
Ref. Part number Qty Name Remarks
5010 1621 1235 00 1 Cable box
5020 0697 9810 31 4 Plug
5040 1621 1309 00 1 Plate
5050 1614 6562 00 2 Clamp
5060 1614 6563 00 2 Clamp
5065 1614 6564 00 2 Clamp
5070 1614 6565 00 2 Clamp
5080 0301 2321 00 8 Washer
5090 0266 2108 00 8 Nut
5100 0147 1250 03 8 Hex. Bolt
5110 0147 1322 00 8 Hex. Bolt
5120 0301 2335 00 8 Plain washer
118 9829 3109 10
Parts list
47
9829 3109 10 119
Parts list
Bodywork baffling-Aircooled-1 47
Ref. Part number Qty Name Remarks
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA280 -7.5 CHN 6KV/50 IP23
Ref. Part number Qty Name Remarks
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
Bodywork baffling
1005 0147 1963 08 10 Screw
1 010 1623 7472 80 1 Baffle
1623 7472 00 • 1 Baffle
1 015 1623 7471 80 1 Baffle
1623 7471 00 • 1 Baffle
1088 0803 10 • 2 Grommet
1202 6584 00 • AR Seal
1202 6584 00 • AR Seal
120 9829 3109 10
Parts list
48
9829 3109 10 121
Parts list
48
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA200+ -5.5 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -14 CHN 380/50
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA280 -14 3KV 50HZ IP23
CHN
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
Bodywork baffling-Aircooled-2
Ref. Part number Qty Name Remarks
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -14 6KV 50HZ IP23
CHN
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
GA280 -14 10KV 50HZ IP23
CHN
Bodywork baffling
1 005 1623 7469 80 1 Baffle
1623 7469 00 • 1 Baffle
1088 0803 10 • 2 Grommet
1202 6584 00 • AR Seal
1202 6584 00 • AR Seal
1 010 1623 7470 80 1 Baffle
1623 7470 00 • 1 Baffle
1202 6584 00 • AR Seal
1015 0147 1963 08 10 Screw
122 9829 3109 10
Parts list
49
9829 3109 10 123
Parts list
Bodywork-Aircooled-1 49
Ref. Part number Qty Name Remarks
GA160+ -5.5 CHN 380/50
GA160+ -7.5 CHN 380/50
GA160+ -8.5 CHN 380/50
GA160+ -10 CHN 380/50
GA200+ -5.5 CHN 380/50
GA200+ -7.5 CHN 380/50
GA200+ -8.5 CHN 380/50
GA200+ -10 CHN 380/50
GA200+ -14 CHN 380/50
GA250+ -7.5 CHN 380/50
GA250+ -8.5 CHN 380/50
GA250+ -10 CHN 380/50
GA250+ -14 CHN 380/50
GA280 -7.5 CHN 380/50
GA280 -8.5 CHN 380/50
GA280 -10 CHN 380/50
GA280 -14 CHN 380/50
Bodywork complete-
Aircooled
1005 1092 1061 05 2 Stay
1010 1619 5337 01 4 Hexagon bolt
1011 1092 1167 70 2 Panel
1015 1092 1061 04 4 Hinge
1020 1621 0607 00 8 Pin
1025 0147 1320 03 8 Hexagon bolt
1030 1092 1061 03 1 Stay
1035 1619 5337 01 2 Hexagon bolt
1040 1635 0946 00 1 Panel
1045 1619 5337 01 2 Hexagon bolt
1 050 1623 8948 80 1 Panel
• 1 Panel
1623 6924 00 • 2 Lock
1055 1614 9851 01 2 Pin
1 060 1623 3671 80 1 Panel
• 1 Panel
Ref. Part number Qty Name Remarks
1065 1619 5337 01 1 Hexagon bolt
1070 0147 1963 08 3 Screw
1075 1614 9851 01 3 Pin
1 080 1623 3670 80 1 Panel
1623 3670 00 • 1 Panel
1085 0147 1963 08 3 Screw
1 090 1623 7298 80 1 Panel
• 1 Panel
1095 0147 1963 08 6 Screw
1 100 1623 9943 80 1 Panel
• 1 Panel
1105 0147 1963 08 6 Screw
1115 0147 1963 08 12 Screw
1 120 1623 7968 80 1 Panel
1623 7968 00 • 1 Panel
1 125 1635 0663 80 1 Panel
1635 0663 00 • 1 Panel
1130 0147 1963 08 1 Screw
1135 1623 7301 00 1 Roof
1140 0147 1963 08 6 Screw
1145 1623 8108 00 1 Roof
1150 0147 1963 08 2 Screw
1155 1623 7302 00 1 Roof
1160 0147 1963 08 4 Screw
1 165 1623 8630 80 1 Panel
• 1 Panel
1 175 1623 8633 80 1 Door
• 1 Panel
1623 4687 00 • 2 Lock
1 180 1621 6879 80 3 Door
• 3 Door
2252 7237 00 • 6 Door lock
1190 1623 7303 00 1 Roof
1195 0147 1963 08 4 Screw
124 9829 3109 10
Parts list
50
9829 3109 10 125
Parts list
Bodywork-Aircooled-2 50
Ref. Part number Qty Name Remarks
GA200+ -5.5 CHN 3KV/50
IP23
GA200+ -7.5 CHN 3KV/50
IP23
GA200+ -8.5 CHN 3KV/50
IP23
GA200+ -10 CHN 3KV/50
IP23
GA200+ -14 CHN 3KV/50
IP23
GA250+ -7.5 CHN 3KV/50
IP23
GA250+ -8.5 CHN 3KV/50
IP23
GA250+ -10 CHN 3KV/50
IP23
GA250+ -14 CHN 3KV/50
IP23
GA280 -7.5 CHN 3KV/50 IP23
GA280 -8.5 CHN 3KV/50 IP23
GA280 -10 CHN 3KV/50 IP23
GA280 -14 3KV 50HZ IP23
CHN
GA200+ -5.5 CHN 6KV/50
IP23
GA200+ -7.5 CHN 6KV/50
IP23
GA200+ -8.5 CHN 6KV/50
IP23
GA200+ -10 CHN 6KV/50
IP23
GA200+ -14 CHN 6KV/50
IP23
GA250+ -7.5 CHN 6KV/50
IP23
GA250+ -8.5 CHN 6KV/50
IP23
GA250+ -10 CHN 6KV/50
IP23
GA250+ -14 CHN 6KV/50
IP23
GA280 -7.5 CHN 6KV/50 IP23
GA280 -8.5 CHN 6KV/50 IP23
GA280 -10 CHN 6KV/50 IP23
GA280 -14 6KV 50HZ IP23
CHN
GA200+ -5.5 CHN 10KV/50
IP23
GA200+ -7.5 CHN 10KV/50
IP23
GA200+ -8.5 CHN 10KV/50
IP23
GA200+ -10 CHN 10KV/50
IP23
GA200+ -14 CHN 10KV/50
IP23
GA250+ -7.5 CHN 10KV/50
IP23
GA250+ -8.5 CHN 10KV/50
IP23
GA250+ -10 CHN 10KV/50
IP23
GA250+ -14 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
GA280 -7.5 CHN 10KV/50
IP23
GA280 -8.5 CHN 10KV/50
IP23
GA280 -10 CHN 10KV/50 IP23
GA280 -14 10KV 50HZ IP23
CHN
Bodywork complete-
Aircooled
1005 1092 1061 05 2 Stay
1010 1619 5337 01 4 Hexagon bolt
1015 1092 1061 04 4 Hinge
1020 1621 0607 00 8 Pin
1025 0147 1320 03 8 Hexagon bolt
1030 1092 1061 03 1 Stay
1035 1619 5337 01 2 Hexagon bolt
1040 1635 0946 00 1 Panel
1045 1619 5337 01 2 Hexagon bolt
1 050 1623 8948 80 1 Panel
• 1 Panel
• 2 Lock
1055 1614 9851 01 2 Pin
1 060 1623 3671 80 1 Panel
• 1 Panel
1065 1619 5337 01 1 Hexagon bolt
1070 0147 1963 08 3 Screw
1075 1614 9851 01 3 Pin
1 080 1623 3670 80 1 Panel
• 1 Panel
1085 0147 1963 08 3 Screw
1 100 1623 9943 80 1 Panel
• 1 Panel
1105 0147 1963 08 6 Screw
1110 1623 8930 80 2 Panel
1115 0147 1963 08 12 Screw
1 120 1623 7968 80 1 Panel
• 1 Panel
1 125 1635 0663 80 1 Panel
• 1 Panel
1130 0147 1963 08 1 Screw
1135 1623 7301 00 1 Roof
1140 0147 1963 08 6 Screw
1145 1623 8108 00 1 Roof
1150 0147 1963 08 2 Screw
1155 1623 7302 00 1 Roof
1160 0147 1963 08 4 Screw
1165 1623 8617 80 1 Panel
1170 1619 5337 01 2 Hexagon bolt
1175 0147 1963 08 2 Screw
1 180 1623 8633 80 1 Door
• 1 Panel
1623 4687 00 • 2 Lock
1 185 1621 6879 80 3 Door
• 3 Door
2252 7237 00 • 6 Door lock
1190 1616 2987 00 4 Plug
1195 1623 8727 00 1 Roof
1200 0147 1963 08 8 Screw
1205 1635 0945 00 1 Panel
1210 1619 5337 01 2 Hexagon bolt
1215 0147 1963 08 2 Screw
1220 1088 0497 06 1 Gasket
1225 1088 0412 06 1 Cover flange
1230 0147 1963 08 4 Screw
126 9829 3109 10
Parts list
51
9829 3109 10 127
Parts list
Bodywork-Watercooled-1 51
Ref. Part number Qty Name Remarks
GA160+ W-5.5 CHN 380/50
GA160+ W-7.5 CHN 380/50
GA160+ W-8.5 CHN 380/50
GA160+ W-10 CHN 380/50
GA200+ W-5.5 CHN 380/50
GA200+ W-7.5 CHN 380/50
GA200+ W-8.5 CHN 380/50
GA200+ W-10 CHN 380/50
GA200+ W-14 CHN 380/50
GA250+ W-7.5 CHN 380/50
GA250+ W-8.5 CHN 380/50
GA250+ W-10 CHN 380/50
GA250+ W-14 CHN 380/50
GA280 W-7.5 CHN 380/50
GA280 W-8.5 CHN 380/50
GA280 W-10 CHN 380/50
GA280 W-14 CHN 380/50
Bodywork completewatercooled
1 005 1623 8630 80 1 Panel
• 1 Panel
1010 0147 1963 08 2 Screw
1011 1092 1167 70 1 Panel
1015 1092 1061 03 6 Stay
1020 1619 5337 01 12 Hexagon bolt
1021 1092 1167 54 1 Support
1025 1621 2538 00 12 Hinge
1030 1621 0607 00 12 Pin
1035 0147 1320 03 24 Hexagon bolt
1 040 1635 0843 80 1 Panel
• 1 Panel
1 045 1635 0842 80 1 Panel
• 1 Panel
1050 1619 5337 01 5 Hexagon bolt
1051 1092 1167 75 1 Support
1055 0147 1963 08 8 Screw
1 060 1623 3671 80 1 Panel
• 1 Panel
1065 1619 5337 01 1 Hexagon bolt
Ref. Part number Qty Name Remarks
1070 1614 9851 01 3 Pin
1 075 1623 3670 80 1 Panel
• 1 Panel
1 080 1623 8948 80 1 Panel
• 1 Panel
1623 6924 00 • 2 Lock
1085 1614 9851 01 2 Pin
1 100 1623 7296 80 2 Panel
• 1 Panel
1105 0147 1963 08 12 Screw
1 110 1623 7865 80 2 Panel
• 1 Panel
1115 0147 1963 08 12 Screw
1120 0147 1963 08 4 Screw
1125 0301 2335 00 4 Plain washer
1130 0266 2110 00 4 Nut
1135 1092 1130 00 1 Roof
1140 0147 1963 08 3 Screw
1145 1623 7863 00 1 Roof
1150 0147 1963 08 4 Screw
1155 1623 7864 00 1 Roof
1160 0147 1963 08 4 Screw
1 165 1623 8633 80 1 Door
• 1 Panel
1623 4687 00 • 2 Lock
1 170 1621 6879 80 5 Door
• 3 Door
2252 7237 00 • 6 Door lock
1 175 1623 7968 80 1 Panel
• 1 Panel
1 180 1635 0663 80 1 Panel
• 1 Panel
1185 0147 1963 08 1 Screw
1190 1616 2987 00 16 Plug
1195 1092 1167 51 1 Roof
1200 0147 1963 08 4 Screw
128 9829 3109 10
Parts list
52
9829 3109 10 129
Parts list
Bodywork-Watercooled-2 52
Ref. Part number Qty Name Remarks
GA200+ W-5.5 CHN 3KV/50
IP23
GA200+ W-7.5 CHN 3KV/50
IP23
GA200+ W-8.5 CHN 3KV/50
IP23
GA200+ W-10 CHN 3KV/50
IP23
GA200+ W-14 CHN 3KV/50
IP23
GA250+ W-7.5 CHN 3KV/50
IP23
GA250+ W-8.5 CHN 3KV/50
IP23
GA250+ W-10 CHN 3KV/50
IP23
GA250+ W-14 CHN 3KV/50
IP23
GA280 W-7.5 CHN 3KV/50
IP23
GA280 W-8.5 CHN 3KV/50
IP23
GA280 W-10 CHN 3KV/50
IP23
GA280 W-14 CHN 3KV/50
IP23
GA200+ W-5.5 CHN 6KV/50
IP23
GA200+ W-7.5 CHN 6KV/50
IP23
GA200+ W-8.5 CHN 6KV/50
IP23
GA200+ W-10 CHN 6KV/50
IP23
GA200+ W-14 CHN 6KV/50
IP23
GA250+ W-7.5 CHN 6KV/50
IP23
GA250+ W-8.5 CHN 6KV/50
IP23
GA250+ W-10 CHN 6KV/50
IP23
GA250+ W-14 CHN 6KV/50
IP23
GA280 W-7.5 CHN 6KV/50
IP23
GA280 W-8.5 CHN 6KV/50
IP23
GA280 W-10 CHN 6KV/50
IP23
GA280 W-14 CHN 6KV/50
IP23
GA200+ W-5.5 CHN 10KV/50
IP23
GA200+ W-7.5 CHN 10KV/50
IP23
GA200+ W-8.5 CHN 10KV/50
IP23
GA200+ W-10 CHN 10KV/50
IP23
GA200+ W-14 CHN 10KV/50
IP23
Ref. Part number Qty Name Remarks
GA250+ W-7.5 CHN 10KV/50
IP23
GA250+ W-8.5 CHN 10KV/50
IP23
GA250+ W-10 CHN 10KV/50
IP23
GA250+ W-14 CHN 10KV/50
IP23
GA280 W-7.5 CHN 10KV/50
IP23
GA280 W-8.5 CHN 10KV/50
IP23
GA280 W-10 CHN 10KV/50
IP23
GA280 W-14 CHN 10KV/50
IP23
Bodywork completewatercooled
1005 1623 8617 80 1 Panel
1010 1619 5337 01 2 Hexagon bolt
1011 1092 1167 65 1 Roof
1011 1092 1167 70 1 Panel
1020 1092 1061 03 6 Stay
1021 1092 1167 54 1 Support
1025 1619 5337 01 12 Hexagon bolt
1030 1621 2538 00 12 Hinge
1035 1621 0607 00 12 Pin
1040 0147 1320 03 24 Hexagon bolt
1 045 1635 0843 80 1 Panel
• 1 Panel
1 050 1635 0842 80 1 Panel
• 1 Panel
1051 1092 1167 75 1 Support
1055 1619 5337 01 5 Hexagon bolt
1060 0147 1963 08 8 Screw
1 065 1623 3671 80 1 Panel
• 1 Panel
1070 1619 5337 01 1 Hexagon bolt
1075 1614 9851 01 3 Pin
1 080 1623 3670 80 1 Panel
• 1 Panel
1081 0147 1963 08 1 Screw
1 085 1623 8948 80 1 Panel
• 1 Panel
1623 6924 00 • 2 Lock
1090 1614 9851 01 2 Pin
1100 0147 1963 08 2 Screw
1105 1623 8930 80 2 Panel
1110 0147 1963 08 12 Screw
1 115 1623 7865 80 2 Panel
• 1 Panel
1120 0147 1963 08 12 Screw
1125 0147 1963 08 4 Screw
1130 0301 2335 00 4 Plain washer
1135 0266 2110 00 4 Nut
1140 1092 1130 00 1 Roof
1145 0147 1963 08 3 Screw
1150 1623 7863 00 1 Roof
1155 0147 1963 08 4 Screw
1160 1623 7864 00 1 Roof
1165 0147 1963 08 4 Screw
130 9829 3109 10
Parts list
52
9829 3109 10 131
Parts list
52
Ref. Part number Qty Name Remarks
1 170 1623 8633 80 1 Door
• 1 Panel
1623 4687 00 • 2 Lock
1 175 1621 6879 80 5 Door
• 3 Door
2252 7237 00 • 6 Door lock
1 180 1623 7968 80 1 Panel
• 1 Panel
1 185 1635 0663 80 1 Panel
• 1 Panel
Bodywork-Watercooled-2
Ref. Part number Qty Name Remarks
1190 0147 1963 08 1 Screw
1195 1616 2987 00 16 Plug
1205 0147 1963 08 4 Screw
1210 1635 0945 00 1 Panel
1215 1619 5337 01 2 Hexagon bolt
1220 0147 1963 08 2 Screw
1225 1088 0497 06 1 Gasket
1230 1088 0412 06 1 Cover flange
1235 0147 1963 08 4 Screw
132 9829 3109 10
Parts list
53 Service kits
Ref. Part number Qty Name Remarks
GA160+ 5.5 bar(e) 50HZ
GA160+W 5.5 bar(e) 50HZ
GA160+ 5,2 bar(e) 60 HZ
GA160+ W 5,2 bar(e) 60 HZ
GA160+ 5.5 bar(e) 50 HZ
GA200 W 5.5 bar(e) 50HZ
GA200 7.5 bar(e) 50 HZ
GA200 W 7.5 bar(e) 50HZ
GA200 5,2 bar(e) 60 HZ
GA200 W 5,2 bar(e) 60 HZ
GA200 6,9 bar(e) 60 HZ
GA200 W 6,9 bar(e) 60 HZ
GA250 7.5 bar(e) 50 HZ
GA250 W 7.5 bar(e) 50HZ
GA250 8.5 bar(e) 50 HZ
GA250 W 8.5 bar(e) 50 HZ
GA250 6,9 bar(e) 60 HZ
GA250 W 6,9 bar(e) 60 HZ
GA250 8,6 bar(e) 60 HZ
GA250 W 8,6 bar(e) 60 HZ
GA280 7.5 bar(e) 50 HZ
GA280 W 7.5 bar(e) 50 HZ
GA280 8.5 bar(e) 50 HZ
GA280 W 8.5 bar(e) 50 HZ
GA280 10 bar(e) 50 HZ
GA280 W 10 bar(e) 50 HZ
GA280 6,9 bar(e) 60 HZ
GA280 W 6,9 bar(e) 60 HZ
GA280 8,6 bar(e) 60 HZ
GA280 W 8,6 bar(e) 60 HZ
GA280 10,4 bar(e) 60 HZ
GA280 W 10,4 bar(e) 60 HZ
3001 5311 09 Oil separator kit
1630 8012 99 • 1 Filter element
0663 2109 45 • 2 O-ring
0663 2111 65 • 1 O-ring
0663 2106 19 • 1 O-ring
0634 1000 99 • 1 Seal Victaulic coupling
0661 1000 26 • 1 Seal Washer
0300 0129 28 • 2 Plain Washer
0663 7126 00 • 3 O-ring
GA160+ 7.5 bar(e) 50 HZ
GA160+ W 7.5 bar(e) 50HZ
GA160+ 8.5 bar(e) 50 HZ
GA160+ W 8.5 bar(e) 50 HZ
GA160+ 6,9 bar(e) 60 HZ
GA160+ W 6,9 bar(e) 60 HZ
GA160+ 8,6 bar(e) 60 HZ
GA160+ W 8,6 bar(e) 60 HZ
GA200 8.5 bar(e) 50 HZ
GA200 W 8.5 bar(e) 50 HZ
GA200 10 bar(e) 50 HZ
GA200 W 10 bar(e) 50 HZ
GA200 8,6 bar(e) 60 HZ
GA200 W 8,6 bar(e) 60 HZ
GA200 10,4 bar(e) 60 HZ
GA200 W 10,4 bar(e) 60 HZ
GA250 10 bar(e) 50 HZ
GA250 W 10 bar(e) 50 HZ
GA250 10,4 bar(e) 60 HZ
GA250 W 10,4 bar(e) 60 HZ
3001 5311 06 Oil separator kit
1630 0514 99 • 1 Filter element
0663 2107 36 • 2 O-ring
0663 2106 17 • 1 O-ring
Ref. Part number Qty Name Remarks
0634 1002 12 • 1 Seal Victaulic coupling
0661 1000 26 • 1 Seal Washer
GA160+ 10 bar(e) 50 HZ
GA160+ W 10 bar(e) 50 HZ
GA160+ 10,4 bar(e) 60 HZ
GA160+ W 10,4 bar(e) 60 HZ
GA200 14 bar(e) 50 HZ
GA200 W 14 bar(e) 50 HZ
GA200 13,8 bar(e) 60 HZ
GA200 W 13,8 bar(e) 60 HZ
GA250 14 bar(e) 50 HZ
GA250 W 14 bar(e) 50 HZ
GA250 13,8 bar(e) 60 HZ
GA250 W 13,8 bar(e) 60 HZ
GA280 14 bar(e) 50 HZ
GA280 W 14 bar(e) 50 HZ
GA280 13,8 bar(e) 60 HZ
GA280 W 13,8 bar(e) 60 HZ
3001 5311 07 Oil separator kit
1630 0515 99 • 1 Filter element
0663 2107 36 • 2 O-ring
0663 2106 17 • 1 O-ring
0634 1002 12 • 1 Seal Victaulic coupling
0661 1000 26 • 1 Seal Washer
3001 5311 16 Kit gearbox
0506 0100 08 • 1 Bearing
0337 0010 08 • 1 Parallel key
0211 1481 00 • 10 Hexagon bolt
0661 1000 29 • 1 Seal washer
0663 2107 82 • 1 O-ring
3001 5311 18 • 1 Element exchange kit
0508 1101 13 • • 1 Bearing
0663 2106 10 • • 1 O-ring
0663 2107 82 • • 1 O-ring
0663 2111 65 • • 1 O-ring
0663 2103 22 • • 1 O-ring
0663 2111 58 • • 1 O-ring
0663 2102 89 • • 1 O-ring
0663 2111 66 • • 3 O-ring
0661 1000 25 • • 1 Seal Washer
3001 5311 17 • 1 Shaft seal kit
1616 5519 00 • • 1 Bushing
1621 4840 00 • • 1 Seal
0663 2107 76 • • 1 O-ring
GA160+ 7.5 bar(e) 50 HZ
GA160+ 8.5 bar(e) 50 HZ
GA160+ 10 bar(e) 50 HZ
GA160+ 6,9 bar(e) 60 HZ
GA160+ 8,6 bar(e) 60 HZ
GA160+ 10,4 bar(e) 60 HZ
GA200 8.5 bar(e) 50 HZ
GA200 10 bar(e) 50 HZ
GA200 14 bar(e) 50 HZ
GA200 8,6 bar(e) 60 HZ
GA200 10,4 bar(e) 60 HZ
GA200 13,8 bar(e) 60 HZ
GA250 10 bar(e) 50 HZ
GA250 14 bar(e) 50 HZ
GA250 10,4 bar(e) 60 HZ
GA250 13,8 bar(e) 60 HZ
GA280 14 bar(e) 50 HZ
GA280 13,8 bar(e) 60 HZ
3001 5311 00 Victaulic coupling kit
0634 1002 13 • 3 Victaulic coupling
0634 1001 63 • 1 Victaulic coupling
9829 3109 10 133
Parts list
Service kits 53
Ref. Part number Qty Name Remarks
0634 1002 12 • 1 Victaulic coupling
0634 1000 99 • 3 Victaulic coupling
0634 1000 49 • 6 Victaulic coupling
GA160+ 5.5 bar(e) 50HZ
GA160+ 5,2 bar(e) 60 HZ
GA160+ 5.5 bar(e) 50 HZ
GA200 7.5 bar(e) 50 HZ
GA200 5,2 bar(e) 60 HZ
GA200 6,9 bar(e) 60 HZ
GA250 7.5 bar(e) 50 HZ
GA250 8.5 bar(e) 50 HZ
GA250 6,9 bar(e) 60 HZ
GA250 8,6 bar(e) 60 HZ
GA280 7.5 bar(e) 50 HZ
GA280 8.5 bar(e) 50 HZ
GA280 10 bar(e) 50 HZ
GA280 6,9 bar(e) 60 HZ
GA280 8,6 bar(e) 60 HZ
GA280 10,4 bar(e) 60 HZ
3001 5311 01 Victaulic coupling kit
0634 1002 13 • 4 Victaulic coupling
0634 1000 99 • 3 Victaulic coupling
0634 1000 49 • 6 Victaulic coupling
GA160+ W 7.5 bar(e) 50HZ
GA160+ W 8.5 bar(e) 50 HZ
GA160+ W 10 bar(e) 50 HZ
GA160+ W 6,9 bar(e) 60 HZ
GA160+ W 8,6 bar(e) 60 HZ
GA160+ W 10,4 bar(e) 60 HZ
GA200 W 8.5 bar(e) 50 HZ
GA200 W 10 bar(e) 50 HZ
GA200 W 14 bar(e) 50 HZ
GA200 W 8,6 bar(e) 60 HZ
GA200 W 10,4 bar(e) 60 HZ
GA200 W 13,8 bar(e) 60 HZ
GA250 W 10 bar(e) 50 HZ
GA250 W 14 bar(e) 50 HZ
GA250 W 10,4 bar(e) 60 HZ
GA250 W 13,8 bar(e) 60 HZ
GA280 W 14 bar(e) 50 HZ
GA280 W 13,8 bar(e) 60 HZ
3001 5311 02 Victaulic coupling kit
0634 1002 13 • 3 Victaulic coupling
0634 1001 63 • 1 Victaulic coupling
0634 1002 12 • 1 Victaulic coupling
0634 1000 99 • 6 Victaulic coupling
0634 1000 49 • 15 Victaulic coupling
0634 1000 98 • 1 Victaulic coupling
0634 1001 62 • 1 Victaulic coupling
GA160+W 5.5 bar(e) 50HZ
GA160+ W 5,2 bar(e) 60 HZ
GA200 W 5.5 bar(e) 50HZ
GA200 W 7.5 bar(e) 50HZ
GA200 W 5,2 bar(e) 60 HZ
GA200 W 6,9 bar(e) 60 HZ
GA250 W 7.5 bar(e) 50HZ
GA250 W 8.5 bar(e) 50 HZ
GA250 W 6,9 bar(e) 60 HZ
GA250 W 8,6 bar(e) 60 HZ
GA280 W 7.5 bar(e) 50 HZ
GA280 W 8.5 bar(e) 50 HZ
GA280 W 10 bar(e) 50 HZ
GA280 W 6,9 bar(e) 60 HZ
GA280 W 8,6 bar(e) 60 HZ
GA280 W 10,4 bar(e) 60 HZ
Ref. Part number Qty Name Remarks
3001 5311 03 Victaulic coupling kit
0634 1002 13 • 4 Victaulic coupling
0634 1000 99 • 7 Victaulic coupling
0634 1000 49 • 15 Victaulic coupling
0634 1000 98 • 1 Victaulic coupling
0634 1001 62 • 1 Victaulic coupling
3001 5311 11 Air-oil filter kit
1630 7783 99 • 1 Air Filter Element
3001 5311 12 • 1 Oil Filter Kit
1621 7378 90 • • 2 Oil Filter Element
0661 1000 25 • • 1 Seal Washer
0661 1000 25 • • 1 Seal Washer
0661 1000 29 • • 1 Seal Washer
0661 1000 27 • • 1 Seal Washer
3001 5311 10 Unloader
9823 9209 00 • 0 Instr. Assembly
0663 2103 22 • 1 O-ring
1621 2227 00 • 1 Bearing
1621 2226 00 • 1 Seal
1621 2222 00 • 1 Bearing
1621 2221 00 • 1 Seal
0663 2103 22 • 1 O-ring
1623 1810 80 • 1 Blow off valve ass’y
0661 1000 26 • 1 Seal Washer
0663 2111 55 • 1 O-ring
0663 7168 00 • 2 O-ring
3001 5311 15 CV-OSV
0663 2111 58 • 1 O-ring
0663 2102 89 • 1 O-ring
0663 2111 66 • 3 O-ring
0663 2106 15 • 1 O-ring
1614 8979 00 • 1 Spring
1614 8978 00 • 1 Spring
1614 8977 00 • 1 Check Valve
0335 2165 00 • 1 Circlips
0661 1000 25 • 1 Seal Washer
1635 0715 00 • 1 Valve Oil Stop
GA160+ 8.5 bar(e) 50 HZ
GA160+ W 8.5 bar(e) 50 HZ
GA160+ 10 bar(e) 50 HZ
GA160+ W 10 bar(e) 50 HZ
GA160+ 6,9 bar(e) 60 HZ
GA160+ W 6,9 bar(e) 60 HZ
GA160+ 8,6 bar(e) 60 HZ
GA160+ W 8,6 bar(e) 60 HZ
GA160+ 10,4 bar(e) 60 HZ
GA160+ W 10,4 bar(e) 60 HZ
GA160+ 7.5 bar(e) 50 HZ
GA160+ W 7.5 bar(e) 50HZ
GA200 8.5 bar(e) 50 HZ
GA200 W 8.5 bar(e) 50 HZ
GA200 10 bar(e) 50 HZ
GA200 W 10 bar(e) 50 HZ
GA200 14 bar(e) 50 HZ
GA200 W 14 bar(e) 50 HZ
GA200 8,6 bar(e) 60 HZ
GA200 W 8,6 bar(e) 60 HZ
GA200 10,4 bar(e) 60 HZ
GA200 W 10,4 bar(e) 60 HZ
GA200 13,8 bar(e) 60 HZ
GA200 W 13,8 bar(e) 60 HZ
GA250 10 bar(e) 50 HZ
GA250 W 10 bar(e) 50 HZ
GA250 14 bar(e) 50 HZ
GA250 W 14 bar(e) 50 HZ
134 9829 3109 10
Parts list
Ref. Part number Qty Name Remarks
GA250 10,4 bar(e) 60 HZ
GA250 W 10,4 bar(e) 60 HZ
GA250 13,8 bar(e) 60 HZ
GA250 W 13,8 bar(e) 60 HZ
GA280 14 bar(e) 50 HZ
GA280 W 14 bar(e) 50 HZ
GA280 13,8 bar(e) 60 HZ
GA280 W 13,8 bar(e) 60 HZ
3001 5311 13 Kit MPV (D vessel)
0665 9301 49 • 1 Guide Ring
0665 0800 78 • 1 Seal
0665 0800 79 • 1 Seal
0665 0701 56 • 1 Seal
0663 2106 17 • 1 O-ring
0663 7126 00 • 3 O-ring
0663 2109 49 • 1 O-ring
0663 2103 22 • 1 O-ring
0663 2107 36 • 1 O-ring
0634 1000 61 • 1 Seal Victaulic coupling
1614 7279 00 • 1 Plain Washer
0211 1102 16 • 2 Screw
0661 1000 27 • 2 Seal Washer
0661 1000 26 • 1 Seal Washer
GA160+ 5.5 bar(e) 50HZ
GA160+W 5.5 bar(e) 50HZ
GA160+ 5,2 bar(e) 60 HZ
GA160+ W 5,2 bar(e) 60 HZ
GA160+ 5.5 bar(e) 50 HZ
GA200 W 5.5 bar(e) 50HZ
GA200 7.5 bar(e) 50 HZ
GA200 W 7.5 bar(e) 50HZ
GA200 5,2 bar(e) 60 HZ
GA200 W 5,2 bar(e) 60 HZ
GA200 6,9 bar(e) 60 HZ
GA200 W 6,9 bar(e) 60 HZ
GA250 7.5 bar(e) 50 HZ
GA250 W 7.5 bar(e) 50HZ
GA250 8.5 bar(e) 50 HZ
GA250 W 8.5 bar(e) 50 HZ
GA250 6,9 bar(e) 60 HZ
GA250 W 6,9 bar(e) 60 HZ
GA250 8,6 bar(e) 60 HZ
GA250 W 8,6 bar(e) 60 HZ
GA280 7.5 bar(e) 50 HZ
Ref. Part number Qty Name Remarks
GA280 W 7.5 bar(e) 50 HZ
GA280 8.5 bar(e) 50 HZ
GA280 W 8.5 bar(e) 50 HZ
GA280 10 bar(e) 50 HZ
GA280 W 10 bar(e) 50 HZ
GA280 6,9 bar(e) 60 HZ
GA280 W 6,9 bar(e) 60 HZ
GA280 8,6 bar(e) 60 HZ
GA280 W 8,6 bar(e) 60 HZ
GA280 10,4 bar(e) 60 HZ
GA280 W 10,4 bar(e) 60 HZ
3001 5311 14 Kit MPV (H vessel)
0665 0701 53 • 1 Seal
0665 0701 54 • 1 Seal
0665 0701 56 • 1 Seal
1623 4288 00 • 1 Plain Washer
0663 7126 00 • 3 O-ring
0211 1102 16 • 2 Screw
0300 0129 28 • 2 Plain Washer
0661 1000 26 • 1 Seal Washer
0663 2103 20 • 1 O-ring
0663 2106 19 • 1 O-ring
0634 1000 99 • 1 Seal Victaulic coupling
Watercooled
3001 5311 21 Cooler kit
0663 2106 12 • 4 O-ring
0661 1000 25 • 2 Seal washer
1635 0513 00 • 4 O-ring
1635 0512 00 • 1 Ring
1635 0515 00 • 1 Seal
1635 0514 00 • 1 Profile
0663 2106 19 • 1 O-ring
0634 1000 99 • 1 Victaulic
0661 1000 25 • 2 Seal washer
0661 1000 26 • 2 Seal washer
1635 0558 00 • 4 O-ring
1635 0557 00 • 1 Ring
1635 0560 00 • 1 Seal
1635 0559 00 • 1 Profile
0663 2109 68 • 2 O-ring
3001 5311 18 Element exchange kit
0508 1101 13 • 1 Bearing
0663 2106 10 • 1 O-ring
53 Service kits
9829 3109 10 135
Parts list
Ref. Part number Qty Name Remarks
0663 2107 82 • 1 O-ring
0663 2111 65 • 1 O-ring
0663 2103 22 • 1 O-ring
0663 2111 58 • 1 O-ring
0663 2102 89 • 1 O-ring
0663 2111 66 • 3 O-ring
0661 1000 25 • 1 Seal Washer
2230 0020 00 Element overhaul kit
0101 1951 67 • 2 Parallel pin
0147 1963 84 • 15 Screw
0211 1328 00 • 10 Cap screw
0211 1407 00 • 3 Hexagon socket screw
0508 1100 87 • 2 Bearing
0663 2107 82 • 1 O-ring
0663 2111 41 • 1 O-ring
0686 9124 00 • 1 Plug
0686 9144 00 • 1 Protecting plug
0686 9152 00 • 1 Protecting plug
1616 7072 00 • 2 Wave spring
1616 7538 00 • 1 Spacer
1616 7546 00 • 2 Set
3002 6033 40 Kit 8000 hrs
3001 5311 11 • 1 Air-oil filter kit
1630 7783 99 • • 1 Air Filter Element
3001 5311 12 • • 1 Oil Filter Kit
1621 7378 90 • • • 2 Oil Filter Element
0661 1000 25 • • • 1 Seal Washer
0661 1000 25 • • • 1 Seal Washer
0661 1000 29 • • • 1 Seal Washer
0661 1000 27 • • • 1 Seal Washer
3001 5311 10 • 1 Unloader C242 kit
9823 9209 00 • • 0 Instr. Assembly
0663 2103 22 • • 1 O-ring
1621 2227 00 • • 1 Bearing
1621 2226 00 • • 1 Seal
1621 2222 00 • • 1 Bearing
1621 2221 00 • • 1 Seal
0663 2103 22 • • 1 O-ring
1623 1810 80 • • 1 Blow off valve ass’y
0661 1000 26 • • 1 Seal Washer
0663 2111 55 • • 1 O-ring
0663 7168 00 • • 2 O-ring
3002 6033 50 Kit 16000 hrs
3002 6033 40 • Kit 8000 hrs
Service kits 53
Ref. Part number Qty Name Remarks
3001 5311 11 • • 1 Air-oil filter kit
1630 7783 99 • • • 1 Air Filter Element
3001 5311 12 • • • 1 Oil Filter Kit
1621 7378 90• • • •2 Oil Filter Element
0661 1000 25• • • •1 Seal Washer
0661 1000 25• • • •1 Seal Washer
0661 1000 29• • • •1 Seal Washer
0661 1000 27• • • •1 Seal Washer
3001 5311 10 • • 1 Unloader C242 kit
9823 9209 00 • • • 0 Instr. Assembly
0663 2103 22 • • • 1 O-ring
1621 2227 00 • • • 1 Bearing
1621 2226 00 • • • 1 Seal
1621 2222 00 • • • 1 Bearing
1621 2221 00 • • • 1 Seal
0663 2103 22 • • • 1 O-ring
1623 1810 80 • • • 1 Blow off valve ass’y
0661 1000 26 • • • 1 Seal Washer
0663 2111 55 • • • 1 O-ring
0663 7168 00 • • • 2 O-ring
3001 5311 15 • Kit CV-OSV Q-05
0663 2111 58 • • 1 O-ring
0663 2102 89 • • 1 O-ring
0663 2111 66 • • 3 O-ring
0663 2106 15 • • 1 O-ring
1614 8979 00 • • 1 Spring
1614 8978 00 • • 1 Spring
1614 8977 00 • • 1 Check Valve
0335 2165 00 • • 1 Circlips
0661 1000 25 • • 1 Seal Washer
1635 0715 00 • • 1 Valve Oil Stop
3001 5311 14 • Kit MPV (H vessel)
0665 0701 53 • • 1 Seal
0665 0701 54 • • 1 Seal
0665 0701 56 • • 1 Seal
1623 4288 00 • • 1 Plain Washer
0663 7126 00 • • 3 O-ring
0211 1102 16 • • 2 Screw
0300 0129 28 • • 2 Plain Washer
0661 1000 26 • • 1 Seal Washer
0663 2103 20 • • 1 O-ring
0663 2106 19 • • 1 O-ring
0634 1000 99 • • 1 Seal Victaulic coupling
136 9829 3109 10
Parts list
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
9829 3109 10 137
Parts list
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
138 9829 3109 10
Parts list
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
Atlas Copco Stationary Air Compressors
Parts list
GA 160+, GA 200, GA 250, GA 280
GA 160+W, GA 200W, GA 250W, GA 280W
No. 9829 3109 10 / DC 2014-06
What sets Atlas Copco apart as a company is our
conviction that we can only excel in what we do if we
provide the best possible know-how and technology to
really help our customers produce, grow and succeed.
There is a unique way of achieving that - we simply
call it the Atlas Copco way. It builds on interaction, on
long-term relationships and involvement in the customers’
process, needs and objectives. It means having the
flexibility to adapt to the diverse demands of the people
we cater for.
It’s the commitment to our customers’ business that
drives our effort towards increasing their productivity
through better solutions. It starts with fully supporting
existing products and continuously doing things better, but
it goes much further, creating advances in technology
through innovation. Not for the sake of technology, but for
the sake of our customer’s bottom line and peace-of-mind.
That is how Atlas Copco will strive to remain the first
choice, to succeed in attracting new business and to
maintain our position as the industry leader.
*9829310910*
