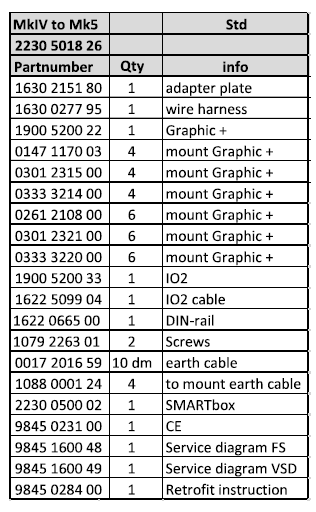

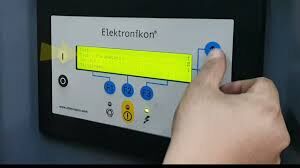

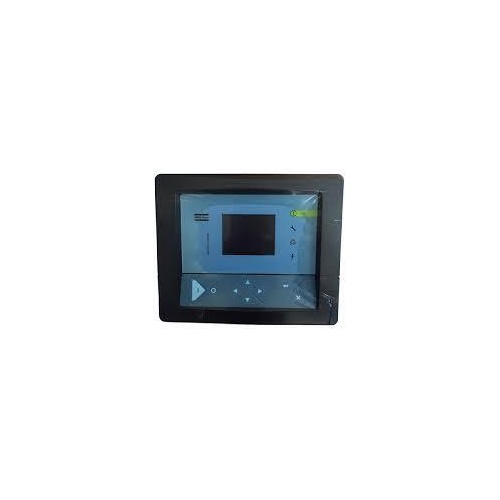

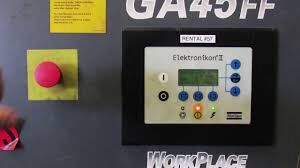

2230 5018 26 MkIV to MkV upgrade kit Atlas Copco

2230501826 MkIV to MkV upgrade kit Atlas Copco

Controller would have to be programmed to suit specific machine. Contact us for more info.

2230 5015 91

7. Upgrade kits and content
The following table gives an overview of the kits: AC partnumber Description
2230 5015 90
upgrade Mk3 to Mk5 GA 5-90 Fixed Speed
2230 5015 91
upgrade Mk4 to Mk5 GA 5-90 Fixed Speed & VSD
2230 5015 92
upgrade Mk3 to Mk5 GA 30-90 VSD
2230 5015 93
optional kit IO2 for GA 11-90 Fixed Speed & VSD
2230 5015 98
upgrade Mk1/2 to Mk5 GA 45-75 Fixed speed
7.1. Parts list 2230 5015 90 - Mk3 to Mk5 GA 5-90 Fixed speed AC partnumber Description # drwg / family info extra info
1900 5200 11
controller
1
Graphic
0147 1169 03
bolt
4
M4 x 8
0301 2315 00
washer
4
M4
0333 3214 00
lockwasher
4
M4
0261 2108 00
nut
6
M6
0301 2321 00
washer
6
M6
0333 3220 00
lockwasher
6
M6
1622 1290 00
label
1
for cut out
1622 1297 80
adapter
1
for mounting module
1088 0031 14
tool small
1
for cage clamp
1088 0031 15
tool big
1
for cage clamp
1088 0037 80
connector
1
1088 0037 00
input
2X28
1088 0037 81
connector
1
1088 0037 00
input
2X27
1088 0031 32
connector
1
1088 0031 00
output
2X30
1088 0031 26
connector
1
1088 0031 00
output
2X31
2230 0500 0x
Modem kit
1
SMARTbox
9845 0215 00
instruction
1
GBP instruction 2946 1255 XX
7.2. Parts list 2230 5015 91 - Mk4 to Mk5 GA 5-90 Fixed speed & VSD AC partnumber Description # drwg / family info extra info
1900 5200 11
controller
1
Graphic
1088 0037 80
connector
1
1088 0037 00
input
2X28
1088 0037 81
connector
1
1088 0037 00
input
2X27
1088 0031 32
connector
1
1088 0031 00
output
2X30
1088 0031 26
connector
1
1088 0031 00
output
2X31
9845 0215 00
instruction
1
GA 5 - 90
18/03/2015
9845 0215 00 ed03 Page 9 of 40
7.3. Parts list 2230 5015 92 - Mk3 to Mk5 GA 30-90 VSD AC partnumber Description # drwg / family info extra info
1900 5200 11
controller
1
Graphic
0147 1169 03
bolt
4
M4 x 8
0301 2315 00
washer
4
M4
0333 3214 00
lockwasher
4
M4
0261 2108 00
nut
6
M6
0301 2321 00
washer
6
M6
0333 3220 00
lockwasher
6
M6
1622 1290 00
label
1
for cut out
1622 1297 80
adapter
1
for mounting module
1088 0031 14
tool small
1
for cage clamp
1088 0031 15
tool big
1
for cage clamp
1088 0037 80
connector
1
1088 0037 00
input
2X28
1088 0037 81
connector
1
1088 0037 00
input
2X27
1088 0031 32
connector
1
1088 0031 00
output
2X30
1088 0031 26
connector
1
1088 0031 00
output
2X31
1089 0574 75
temperature sensor
2
sensor
TT 90 & TT 91
1622 3056 10
temperature cable
1
cable
cable for TT 11
2230 0500 0x
Modem kit
1
SMARTbox
9845 0215 00
instruction
1
GBP instruction 2946 1255 XX
7.4. Parts list 2230 5015 93 - Optional kit IO2 for GA 11-90 Fixed speed & VSD
To be ordered when extra in/outputs are required. AC partnumber Description # drwg / family info extra info
1088 0037 83
connector
1
1088 0037 00
3X33
1088 0037 84
connector
1
1088 0037 00
3X35
1088 0031 32
connector
1
1088 0031 00
3X30
1088 0037 82
connector
1
1088 0037 00
3X34
1900 5200 30
IO2
1
regulator
expansion module
1622 5099 03
IO2 cable
1
controller to IO2
communication cable
1622 0665 04
DIN rail
1
IO2
mounting rail
18/03/2015
9845 0215 00 ed03 Page 10 of 40
7.5. Parts list 2230 5015 98 - Mk1/2 to Mk5 GA 45-75 Fixed speed AC partnumber Description # drwg / family info extra info
1900 5200 11
controller
1
Graphic
0147 1169 03
bolt
4
M4 x 8
0301 2315 00
washer
4
M4
0333 3214 00
lockwasher
4
M4
0261 2108 00
nut
6
M6
0301 2321 00
washer
6
M6
0333 3220 00
lockwasher
6
M6
1622 1290 00
label
1
For cut out
1622 1287 00
label
1
For cut out without adapter
1622 1297 80
adapter
1
For mounting module
1088 0031 14
tool small
1
For cage clamp
1088 0031 15
tool big
1
For cage clamp
1089 0574 70
temperature sensor
1
Element outlet TT11
1089 0575 54
pressure sensor
2
El./compressor outlet PT11, 20
1622 3072 80
support
1
To mount PT11
0571 0035 82
nipple
1
To mount PT11
0574 8231 21
hose
1
To mount PT11
1079 5840 08
nipple
1
To mount PT11
0605 8350 62
nipple
1
To mount PT11
1622 3056 00
cable
2
cable for pressure sensor
1622 3056 10
cable
1
cable for temperature sensor
1088 0037 80
connector
1
1088 0037 00
input
2x28
1088 0037 81
connector
1
1088 0037 00
input
2x27
1088 0031 32
connector
1
1088 0031 00
output
2x30
1088 0031 26
connector
1
1088 0031 00
output
2x31
2230 0500 0x
Modem kit
1
SMARTbox
9823 0215 00
instruction
1
GBP instruction 2946 1255 XX
