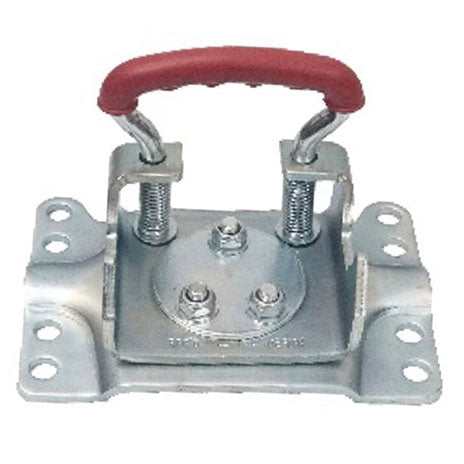

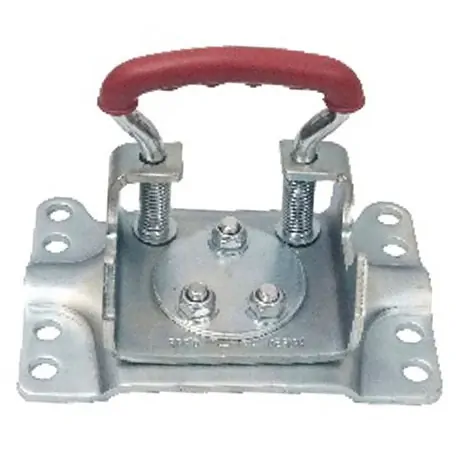

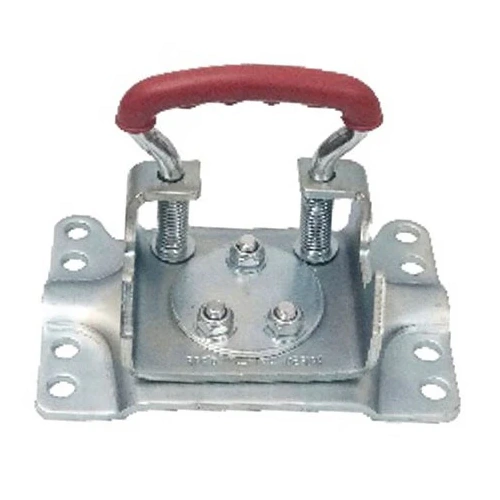

3 BOLT SWIVEL BRACKET LARGE 629923

Product Information

Adjustable clamp and swivel jockey wheel bracket for Al-Ko, Manutec, ARK and other makes with 48mm OD jockey wheel shafts.

This unique swivel and clamp bracket is designed to fit 48mm outer tubes. The clamp allows you to adjust the height position and the pull out locking handle also enables you to swivel the jockey-wheel for travel.

Can be U-bolted, bolted or welded to trailer chassis. Bracket is designed for 50mm, 75mm and 100mm u-bolts. U-bolts sold separately.

ALKO Jockey Stand & Jockey Wheel Alternate Mounting Swivel Bracket

Features:

• Genuine AL-KO Product
• No welding required
• Fits all 48-mm tube OD jockey wheels
• Dimensions H 150 mm x W 210 mm
• This unique swivel bracket is designed to fit 48mm outer tubes, allowing you to adjust the height position and also enables you to swivel the jockey wheel for travel
• This unique design is covered by Registered Design in Australia and New Zealand

Mounting Details:

• Spacings:
  • 185mm x 50mm
  • 185mm x 75mm
  • 185mx 100mm
• Diameter: 13mm
• Weight 3.3kg









































629900 Jockey wheel clamp. Suits all AL-KO 48mm O.D. tube clamp type jockey wheels Mounting detail:  Spacings: 150mm  Diameter: 13mm 629935 SBLPA - Adjustable swivel clamp. suits all AL-KO 48mm O.D. tube clamp type jockey wheels. Mounting detail:  Spacings: 185mm x 50mm, 185mm x 75mm 185mx 100mm  Diameter: 13mm 629915 Jockey wheel double clamp suits all AL-KO 48mm O.D. tube clamp type jockey wheels Mounting detail:  Spacings: 150mm x 50mm 150mm x 100mm Diameter: 13mm JW with SL type of bracket JW with SLS type of bracket 150mm 185mm 75mm 50mm 100mm JW250 with SL type bracket JW with SL type of bracket JW with Weld on Swivel Plate JW with SLS type of bracket 185mm 75mm 50mm 100mm 622200 C - Clamp weld on, bolt on. suits all AL-KO 48mm O.D. tube clamp type jockey wheels. Mounting detail:  Spacings:  105mm x 50mm Diameter: 10mm 629923 3 Bolt swivel bracket large locking pin bracket only Mounting detail:  Spacings: 185mm x 50mm, 185mm x 75mm 185mx 100mm  Diameter: 13mm JOCKEY WHEEL CLAMPS & SWIVELS 629920 SBLP - Swivel bracket locking pin. suits all AL-KO 48mm O.D. tube jockey wheels. Mounting detail:  Spacings: 185mm x 50mm, 185mm x 75mm 185mx 100mm  Diameter: 13mm 629944 SBLPS - Small swivel bracket locking pin. suits all AL-KO 48mm O.D. tube jockey wheels. Mounting detail:  Spacings: 185mm x 63mm Diameter: 13mm 91 629951 JRCH jockey wheel clamp handle&wash including washer with plastic gripJOCKEY WHEEL SERVICE PARTS 1 4 2 3 1 629625 Jockey wheel handle, roll pin type. 3 1 629601 JRH6 - Jockey wheel handle grub screw style. 3 2 629602SP Jockey wheel thrust bearing kit, skin pack. Suits all AL-KO jockey wheels. 3 629888 629850 629455 Jockey Wheel - 200mm solid tyre c/w steel wheel. Suits 628200, 622330 W250S - Wheel steel type solid 250mm. suits 621805 4 4 629607 Axle bolt & nyloc nut suits 150mm wheel 92 www.alko.com.au 629910 Jockey wheel grip handle for manouvering Jockey Wheel - 200mm solid tyre c/w steel wheel. Suits 622455 3 629600 Spare wheel, 150mm solid tyre. Suits 626190, 622600 3 629880 Jockey Wheel - 260mm solid tyre c/w steel wheel. Suits 622800
