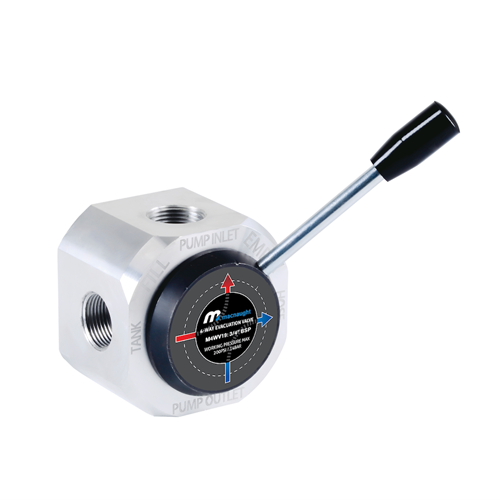

4 WAY EVACUATION VALVE-3/4"BSP

4 WAY EVACUATION VALVE - 3/4"BSP

Product Code: M4WV19

Description

4 Way Evacuation Valve is used for extraction and discharge of fluids which reduces the necessity of multiple valves controlling the fluid. The Fluids mainly can be waste oil, hydraulic, gear and engine oil, ATF, coolants. The valve makes the operation easier for the transfer of fluid by just shifting the lever which reverses the flow of the fluid from filling to discharging the waste oil/fluids or vice versa. This valve requires only one pump for both the operation and is simplified without the hose/pipe connections being bothered.

Technical Specifications

  • Max Working Pressure – 200psi (14bar)
  • Inlet/Outlet Connections (BSP) - 3/4”
  • Bolt Holes Spec – M8x12

Features & Benefits

  • Easy Operation - The 4 Way evacuation valve makes operation easy for the transfer of fluid by reducing the necessity for multiple valves.
  • Easy Installation – Four threaded bolts with spec of M8x1.25 is been provided for convenient installation.
  • Reverse Flow – Extraction and Discharge of fluids can be controlled by just repositioning the handle to the desired requirement.
  • Single Pump – One pump is sufficient for both the operations (discharge and extraction of fluid) which simplifies the plumbing.
  • No Flow restriction – There will be no pressure or volume loss during the flow in either direction.

Package Includes

  • 1 x 4 Way Valve  3/4"

Recommended Use With

  • DDP19 Diaphragm Pump
  • L-DDP19 Diaphragm Pump
  • MOTP1920-01 Metal Reel
  • L-OTP1920 Metal Reel
  • FHO1915-01 Metal Reel
  • TR205 Trolley



SKU M4WV19
Brand Macnaught
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
