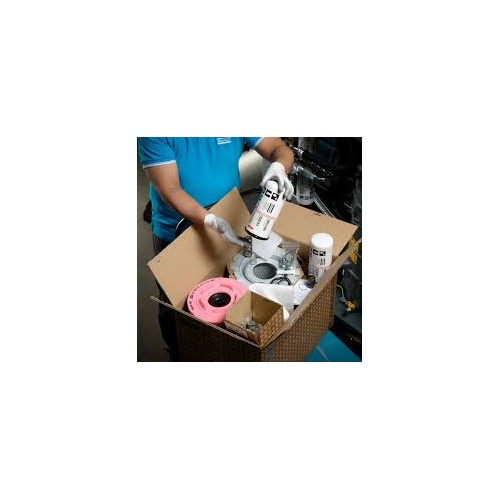

2906 0549 00 4000 HRS SERVICE KIT.

4000HRS SERVICE KIT.



2906 0549 00 1 Maintenance kit
Yearly

2906 0545 00 · 1 Air/oil filter kit
2900 1017 00 · 1 Drain valve kit

Contents of Kit

1613 7408 00 · 1 Air filter element

1030 0882 00 · 1 Oil filter element

1202 6255 01 · 1 Breather filter element





































Ref. Part number Qty Name Remarks
1621 1004 80 1 Air inlet valve
1010 1613 5715 00 · 1 Valve housing
1020 0686 3716 01 · 1 Plug
1030 0653 1062 00 · 1 Flat gasket
1040 1613 5716 00 · 1 Connection
1050 0147 1325 03 · 6 Bolt
1060 1613 5718 00 · 1 Valve
1070 1621 1004 00 · 1 Valve
1080 0335 3114 00 · 1 Retaining ring
1090 0500 4510 27 · 1 Bearing
1100 0500 4510 01 · 1 Bushing
Ref. Part number Qty Name Remarks
1110 1613 5721 00 · 1 Spring
1120 1621 1005 00 · 1 Diaphragm
1130 1613 5717 00 · 1 Valve cover
1140 0147 1325 03 · 6 Bolt
1150 1613 5722 00 · 1 Valve base
1160 1613 5723 00 · 1 Gasket
1170 1613 4036 00 · 1 Membrane
1180 0147 1331 03 · 2 Bolt
1190 0147 1364 03 · 1 Bolt
1200 0653 1046 00 · 1 Flat gasket
1210 0266 2111 00 · 1 Nut
Air inlet casing 1
6 2930 1228 02
Parts list
2
60173_01
2930 1228 02 7
Parts list
Ref. Part number Qty Name Remarks
1010 1616 6484 00 1 Gear casing
1020 1616 6485 00 1 Drive shaft
1030 0337 8229 00 1 Parallel key
1040 0663 6177 00 1 O-ring
1050 0147 1364 03 8 Bolt
1060 0101 1621 00 2 Pin
1070 0502 2111 00 1 Ball bearing
1080 0335 2165 00 1 Int.circlip
1090 1616 6486 00 1 Bushing
1100 1202 5245 00 1 Sealring
1110 0502 2107 00 1 Ball bearing
1120 1613 4119 00 1 Ring
1130 1613 4120 00 1 Eccentric ring
1140 0102 0242 00 1 Pin
1150 1613 4121 00 1 Oil pump
1160 1616 6294 00 1 Key
1170 1616 6487 00 1 Pump cover
1180 0663 6143 00 1 O-ring
1190 0147 1327 03 3 Bolt
2020 0663 2104 77 1 O-ring
2030 0147 1325 03 8 Bolt
2040 0101 1621 00 1 Pin L = 30 mm
2045 0101 1626 00 1 Pin L = 40 mm
2060 0663 2104 76 1 O-ring
2070 0147 1325 03 6 Bolt
2080 0101 1621 00 2 Pin
2100 1613 4132 00 1 Support
2110 0663 2107 78 1 O-ring
2120 0147 1325 03 2 Bolt
2140 1404 1664 00 1 Nipple
2150 1030 0882 00 1 Oil filter
2160 1202 5424 00 1 Valve
2170 1202 5180 00 1 Spring
2180 0653 1124 00 1 Flat gasket
2190 1202 5181 00 1 Plug
2200 0560 0200 59 1 Elbow
2210 0686 3716 07 1 Plug
2220 0653 1189 00 1 Flat gasket
2230 1503 0202 00 1 Oil sight
2240 0603 4104 03 1 Hexagon nipple
2250 1619 6153 04 1 Ball valve
2260 9000 0243 00 1 Hose nipple
2270 0075 4005 51 AR Hose
2280 0347 6105 00 1 Hose clip
2290 1613 2685 00 1 Hose support
2300 0603 4104 03 1 Hexagon nipple
2305 0560 0200 23 1 Elbow
2310 1614 8399 00 1 Flange
2320 0663 2107 81 1 O-ring
2330 0211 1335 03 2 Cap screw
2350 0581 1200 23 2 Elbow
2360 0070 6002 05 AR Plastic tube
3000 2989 0118 00 1 Service stage
3300 1613 5513 00 · 1 Gear cover
3305 0653 1112 00 · 2 Gasket
Ref. Part number Qty Name Remarks
3310 0686 4239 00 · 2 Hexagon plug
3315 1613 5516 00 · 1 Gasket
3320 0301 2335 00 · 8 Washer
3325 0211 1334 00 · 8 Cap screw
4000 2989 0148 00 1 Service stage
4330 1613 5512 00 · 1 Gear cover
4335 0653 1112 00 · 2 Gasket
4340 0686 4239 00 · 2 Hexagon plug
4345 1613 5517 00 · 1 Gasket
4350 0301 2335 00 · 8 Washer
4355 0211 1334 00 · 8 Cap screw
5010 2 Gear wheel
1616 6489 07 ZT18-7.5/50Hz,
ZT22-8.6/60Hz
1616 6489 04 ZT18-7.5/60Hz
1616 6489 05 ZT18-8.6/50Hz
1616 6489 03 ZT18-8.6/60Hz
1616 6489 12 ZT22-7.5/50Hz
1616 6489 09 ZT22-7.5/60Hz
1616 6489 11 ZT22-8.6/50Hz
1616 6489 23 ZT30-7.5/50Hz
1616 6489 19 ZT30-7.5/60Hz
1616 6489 21 ZT30-8.6/50Hz,
ZT37-8.6/60Hz
1616 6489 17 ZT30-8.6/60Hz
1616 6489 28 ZT37-7.5/50Hz
1616 6489 22 ZT37-7.5/60Hz
1616 6489 26 ZT37-8.6/50Hz
5020 0339 1000 02 4 Ring spring
5030 1202 8364 00 2 Washer
5040 0211 1406 00 2 Cap screw
5050 1 Gear wheel
1616 6488 07 ZT18-7.5/50Hz,
ZT22-8.6/60Hz
1616 6488 04 ZT18-7.5/60Hz
1616 6488 05 ZT18-8.6/50Hz
1616 6488 03 ZT18-8.6/60Hz
1616 6488 12 ZT22-7.5/50Hz
1616 6488 09 ZT22-7.5/60Hz
1616 6488 11 ZT22-8.6/50Hz
1616 6488 23 ZT30-7.5/50Hz
1616 6488 19 ZT30-7.5/60Hz
1616 6488 21 ZT30-8.6/50Hz,
ZT37-8.6/60Hz
1616 6488 17 ZT30-8.6/60Hz
1616 6488 28 ZT37-7.5/50Hz
1616 6488 22 ZT37-7.5/60Hz
1616 6488 26 ZT37-8.6/50Hz
5060 0211 1327 00 6 Cap screw
1621 0158 80 1 Breather pot
6010 1621 0158 00 · 1 Housing
6015 1202 6255 01 · 1 Filter element
6020 0663 2107 84 · 1 O-ring
6025 1614 8222 00 · 1 Cover
6030 0211 1247 03 · 2 Cap screw
Gear casing and drive gear 2
8 2930 1228 02
Parts list
60174_20
3
2930 1228 02 9
Parts list
Ref. Part number Qty Name Remarks
1020 1613 5728 00 1 Compressor spring
1030 1614 7207 00 1 Valve
1040 1613 5727 00 1 Valve seat
1050 0663 6138 00 1 O-ring
1060 0147 1326 03 4 Bolt
1070 1621 1001 00 1 Hose assembly
1080 0663 2107 77 1 O-ring
1090 0147 1365 03 2 Bolt
1100 0266 2111 00 2 Nut
1110 0663 2107 77 2 O-ring
1120 0147 1962 29 4 Bolt
1130 1613 6894 00 1 Pipe
1140 1621 1010 00 1 Support
1150 0147 1962 29 2 Bolt
1160 1619 6153 08 1 Ball valve
1170 1619 2766 00 7 Bolt
1613 5726 80 1 Check valve
2020 1613 5726 00 · 1 Valve housing
2025 0500 4510 28 · 1 Bearing
3010 1621 1014 00 1 Pipe
3020 0663 2107 77 1 O-ring
3030 0147 1326 03 3 Bolt
3040 0663 9870 00 1 O-ring
3050 0147 1326 03 4 Bolt
3055 0301 2335 00 4 Washer
3060 1621 1060 00 1 Pipe
3070 0634 1000 23 1 Pipe coupling
3080 1621 1061 00 1 Pipe
3090 0663 2107 77 1 O-ring
3100 0147 1326 03 3 Bolt
3110 0663 9870 00 1 O-ring
3120 0147 1326 03 4 Bolt
3125 0301 2335 00 4 Washer
Connection parts, excl. HAT version 3
Ref. Part number Qty Name Remarks
3130 0686 3716 01 1 Plug
3140 0653 1062 00 1 Flat gasket
3150 0562 0400 20 1 Bend
3160 0653 1162 00 1 Flat gasket
3170 0830 1007 93 1 Safety valve T
3180 1 Pipe
0075 5551 39 · AR Pipe
1079 5831 10 · 2 Soldering cone
0584 3013 00 · 2 Nut
3190 0663 2108 05 2 O-ring
3200 0653 1124 00 2 Flat gasket
3210 0582 0000 11 2 Body
3220 1614 6819 00 1 Muffler
4010 1 Safety valve
0830 1007 91 7.5bar/50Hz T
0830 1007 92 8.6bar/50Hz T
0830 1006 76 7.5bar/60Hz As
1310 0161 00 8.6bar/60Hz As
4020 0653 1133 00 1 Flat gasket (As)
4025 1 Water separator
1613 5456 00 ZT18, ZT22
1614 7899 00 ZT30, ZT37
2900 1017 00 · 1 Drain valve
4026 0663 2101 71 · 1 O-ring
4030 0070 6002 05 AR Plastic tube
4040 0070 6002 05 AR Plastic tube
4050 0653 1062 00 2 Flat gasket
4060 0581 0000 35 2 Pipe coupling
4070 1619 7336 00 1 Cock
4080 1 Data plate
1614 8057 01 50Hz CE
1614 8057 05 60Hz
4085 0129 3104 00 4 Blind rivet
10 2930 1228 02
Parts list
4
60620_20
2930 1228 02 11
Parts list
Ref. Part number Qty Name Remarks
1020 1613 5728 00 1 Compressor spring
1030 1614 7207 00 1 Valve
1040 1613 5727 00 1 Valve seat
1050 0663 6138 00 1 O-ring
1060 0147 1326 03 4 Bolt
1070 1621 1122 00 1 Hose assembly
1080 0663 2107 77 1 O-ring
1090 0147 1365 03 2 Bolt
1100 0266 2111 00 2 Nut
1110 0663 2107 77 2 O-ring
1120 0147 1962 29 4 Bolt
1130 1613 6894 00 1 Pipe
1140 1621 1103 00 1 Support
1150 0147 1962 29 2 Bolt
1160 1619 6153 08 1 Ball valve
1170 1619 2766 00 7 Bolt
1613 5726 80 1 Check valve
2020 1613 5726 00 · 1 Valve housing
2025 0500 4510 28 · 1 Bearing
3010 1621 1203 00 1 Pipe
3020 0663 2107 77 1 O-ring
3030 0147 1326 03 3 Bolt
3050 0147 1326 03 4 Bolt
3055 0301 2335 00 3 Washer
3056 0663 2107 77 1 O-ring
3057 0147 1481 03 1 Bolt
3058 0301 2378 00 3 Washer
3059 0266 2114 00 2 Nut
3060 1621 1204 00 1 Pipe
3070 0634 1000 23 1 Pipe coupling
3080 1621 1216 00 1 Pipe
3090 0663 2107 77 1 O-ring
3100 0147 1326 03 3 Bolt
3120 0147 1326 03 4 Bolt
3125 0301 2335 00 4 Washer
3130 0663 2107 94 1 O-ring
3135 0147 1477 03 2 Bolt
3140 0301 2378 00 2 Washer
3145 1619 7474 01 1 Water separator
0663 6136 00 · 1 O-ring
0663 6147 00 · 1 O-ring
3146 0663 2107 94 1 O-ring
Ref. Part number Qty Name Remarks
3147 0147 1479 03 1 Bolt
3150 0301 2378 00 1 Washer
3151 0686 3716 02 1 Plug
3152 0653 1124 00 1 Flat gasket
3153 0852 0010 29 1 Ball valve
3160 0653 1162 00 1 Flat gasket
3170 0830 1008 32 1 Safety valve T,As
3180 1 Pipe
0075 5551 39 · AR Pipe
1079 5831 10 · 2 Soldering cone
0584 3013 00 · 2 Nut
3190 0663 2101 87 2 O-ring
3200 0653 1124 00 2 Flat gasket
3210 0582 0000 11 2 Body
3220 1614 6819 00 1 Muffler
3230 0653 1033 00 2 Flat gasket
3240 0581 0034 01 1 Pipe coupling
3250 0653 1062 00 2 Flat gasket
3260 8204 0940 18 1 Valve
3270 0581 1200 27 1 Pipe coupling
3280 0607 2900 20 1 Reducing socket
3290 0581 1200 27 1 Pipe coupling
3300 0070 6002 06 AR Plastic tube
4010 1 Safety valve
0830 1007 92 9.3bar(e) T
1310 0161 00 135psig As
4020 0661 1000 27 1 Flat gasket
4025 1614 7899 00 1 Water separator
2900 1017 00 · 1 Drain valve
4026 0663 2101 71 · 1 O-ring
4030 0070 6002 06 AR Plastic tube
4040 0070 6002 06 AR Plastic tube
4050 0607 2900 20 1 Reducing socket
4060 0581 1200 27 2 Pipe coupling
4070 0852 0010 29 1 Ball valve
4080 1 Data plate
1614 8057 01 50Hz CE
1614 8057 05 60Hz
4085 0129 3104 00 4 Blind rivet
4300 3455 0401 07 1 Joint nipple
4305 0661 1000 32 1 Seal washer
Connection parts, HAT version 4
12 2930 1228 02
Parts list
60175_02
5
2930 1228 02 13
Parts list
Ref. Part number Qty Name Remarks
1010 1621 1085 00 1 Silencer
1015 0347 6117 00 1 Hose clip
1030 1613 7401 00 1 Support
1040 0147 1327 03 2 Bolt
1050 0301 2335 00 2 Washer
1060 1621 1086 00 1 Hose
1070 0347 6117 00 2 Hose clip
1080 1613 7912 01 1 Indicator
1621 1093 00 1 Air filter
2025 1613 7408 00 · 1 Element
3010 <<< >>> 1 Air inlet valve
3020 1613 5724 00 1 Stud
3030 0108 1192 00 1 Spring pin
3035 0653 1046 00 1 Flat gasket
3040 0291 1111 00 1 Locknut
3050 1621 1063 00 1 Pulsation damper
Ref. Part number Qty Name Remarks
3060 0686 3716 39 1 Plug
3070 0653 1254 00 1 Flat gasket
3080 0686 3716 33 1 Plug
3090 0653 1189 00 1 Flat gasket
3100 0663 9870 00 1 O-ring
3110 0663 9832 00 1 O-ring
3120 0147 1326 03 7 Bolt
3130 0653 1189 00 2 Flat gasket
3140 0686 3716 33 2 Plug
3150
0653 1062 00 2 Flat gasket HAT version
0653 1062 00 1 Flat gasket
3160
0686 3716 01 2 Plug HAT version
0686 3716 01 1 Plug
Air inlet 5
14 2930 1228 02
Parts list
60176_08
6
2930 1228 02 15
Parts list
Ref. Part number Qty Name Remarks
1010
1621 1209 00 1 Frame HAT version
1621 1009 00 1 Frame
1020 1619 5502 01 2 Rubber buffer
1030 0147 1325 03 4 Bolt
1040 0333 3227 00 4 Lock washer
1050 0147 1958 77 2 Bolt
1055 0266 2111 00 2 Nut
1070 1619 5189 01 1 Rubber buffer
1080 0147 1962 30 3 Bolt
1090 0333 3237 00 3 Lock washer
1100 0147 1958 78 1 Bolt
1105 0266 2114 00 1 Nut
1110 0301 2378 00 1 Washer
1120
2255 2148 00 10 Stud HAT version
2255 2148 00 6 Stud
1130
0147 1244 03 10 Bolt HAT version
0147 1244 03 6 Bolt
2010 1 Coupling half 1)
2020 1613 8280 00 1 Coupling sleeve
2030 1621 1094 00 1 Coupling half
Ref. Part number Qty Name Remarks
2040 1613 4128 00 1 Washer
2050
0147 1962 34 1 Bolt HAT version
0147 1410 03 1 Bolt
2060 1 Coupling housing 1)
2070 1613 5472 00 2 Guard
2080 1 Motor support 1)
2090
0147 1962 30 3 Bolt HAT version
0147 1401 03 3 Bolt
2100 0333 3237 00 3 Lock washer
3010 1 Motor 1)
3030
0147 1962 36 4 Bolt HAT version
0147 1480 03 4 Bolt
3040 0266 2114 00 4 Nut
3050 1619 6032 00 1 Nipple
3060 1619 6032 05 1 Nipple
1) See page 16-17 / Zie bladzijde 16-17 / Se sidan 16-17 /
Siehe Seite 16-17 / Voir page 16-17 /
Véase pág. 16-17 / Vedere pagina 16-17 / Se side 16-17 /
Ver página 16-17 / Se side 16-17 / Katso sivu 16-17
Motor, frame and coupling 6
16 2930 1228 02
Parts list
Compressor Motor Designation Support Coupling Coupling
Type half motor housing
Ref. 3010 Ref. 2080 Ref. 2010 Ref. 2060
ZT18 HAT Siemens 1 LA5 183 - 2
ZT18-8.6/50Hz 1080 2910 02 400V/50Hz 1621 1099 00 1615 4183 17 1616 6479 00
ZT18 HAT Siemens 1 LA5 183 - 2 326 TSD
ZT18-8.6/60Hz 1080 2914 07 220-230V/60Hz 1621 1100 00 1615 4183 06 1616 6483 00
ZT18-8.6/60Hz 1080 2914 09 440-460V/60Hz 1621 1100 00 1615 4183 06 1616 6483 00
ZT18 Siemens 1 LA5 166 - 2
ZT18-7.5/50Hz 1080 2909 01 230V/50Hz 1621 1007 00 1202 6431 07 1616 6479 00
ZT18-7.5/50Hz 1080 2909 02 400V/50Hz 1621 1007 00 1202 6431 07 1616 6479 00
ZT18-7.5/50Hz 1080 2909 04 500V/50Hz 1621 1007 00 1202 6431 07 1616 6479 00
ZT18-8.6/50Hz 1080 2909 01 230V/50Hz 1621 1007 00 1202 6431 07 1616 6479 00
ZT18-8.6/50Hz 1080 2909 02 400V/50Hz 1621 1007 00 1202 6431 07 1616 6479 00
ZT18-8.6/50Hz 1080 2909 04 500V/50Hz 1621 1007 00 1202 6431 07 1616 6479 00
ZT18 Siemens 1 LA5 166 - 2 256 TD
ZT18-7.5/60Hz 1080 2913 07 220-230V/60Hz 1621 1007 00 1202 6431 08 1616 6481 00
ZT18-7.5/60Hz 1080 2913 09 440-460V/60Hz 1621 1007 00 1202 6431 08 1616 6481 00
ZT18-8.6/60Hz 1080 2913 07 220-230V/60Hz 1621 1007 00 1202 6431 08 1616 6481 00
ZT18-8.6/60Hz 1080 2913 09 440-460V/60Hz 1621 1007 00 1202 6431 08 1616 6481 00
ZT18-7.5/60Hz 1080 2913 10 575V/60Hz 1621 1007 00 1202 6431 08 1616 6481 00
ZT18-8.6/60Hz 1080 2913 10 575V/60Hz 1621 1007 00 1202 6431 08 1616 6481 00
ZT22 HAT Siemens 1 LA5 206 - 2
ZT22-8.6/50Hz 1080 2911 02 400V/50Hz 1621 1099 00 1615 4183 05 1616 6480 00
6
2930 1228 02 17
Parts list
Motor, frame and coupling 6
Compressor Motor Designation Support Coupling Coupling
Type half motor housing
Ref. 3010 Ref. 2080 Ref. 2010 Ref. 2060
ZT22 HAT Siemens 1 LA5 206 - 2 364 TSD
ZT22-8.6/60Hz 1080 2915 07 220-230V/60Hz 1621 1100 00 1615 4183 06 1616 6483 00
ZT22-8.6/60Hz 1080 2915 09 440-460V/60Hz 1621 1100 00 1615 4183 06 1616 6483 00
ZT22 Siemens 1 LA5 183 - 2
ZT22-7.5/50Hz 1080 2910 01 230V/50Hz 1621 1007 00 1615 4183 17 1616 6479 00
ZT22-7.5/50Hz 1080 2910 02 400V/50Hz 1621 1007 00 1615 4183 17 1616 6479 00
ZT22-7.5/50Hz 1080 2910 04 500V/50Hz 1621 1007 00 1615 4183 17 1616 6479 00
ZT22-8.6/50Hz 1080 2910 01 230V/50Hz 1621 1007 00 1615 4183 17 1616 6479 00
ZT22-8.6/50Hz 1080 2910 02 400V/50Hz 1621 1007 00 1615 4183 17 1616 6479 00
ZT22-8.6/50Hz 1080 2910 04 500V/50Hz 1621 1007 00 1615 4183 17 1616 6479 00
ZT22 Siemens 1 LA5 183 - 2 326 TSD
ZT22-7.5/60Hz 1080 2914 07 220-230V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT22-7.5/60Hz 1080 2914 09 440-460V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT22-8.6/60Hz 1080 2914 07 220-230V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT22-8.6/60Hz 1080 2914 09 440-460V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT22-7.5/60Hz 1080 2914 10 575V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT22-8.6/60Hz 1080 2914 10 575V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT30 HAT Siemens 1 LA5 207 - 2
ZT30-8.6/50Hz 1080 2912 02 400V/50Hz 1621 1099 00 1615 4183 05 1616 6480 00
ZT30 HAT Siemens 1 LA5 207 - 2 364 TSD
ZT30-8.6/60Hz 1080 2916 07 220-230V/60Hz 1621 1100 00 1615 4183 06 1616 6483 00
ZT30-8.6/60Hz 1080 2916 09 440-460V/60Hz 1621 1100 00 1615 4183 06 1616 6483 00
ZT30 Siemens 1 LA5 206 - 2
ZT30-7.5/50Hz 1080 2911 01 230V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT30-7.5/50Hz 1080 2911 02 400V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT30-7.5/50Hz 1080 2911 04 500V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT30-8.6/50Hz 1080 2911 01 230V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT30-8.6/50Hz 1080 2911 02 400V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT30-8.6/50Hz 1080 2911 04 500V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT30 Siemens 1 LA5 206 - 2 364 TSD
ZT30-7.5/60Hz 1080 2915 07 220-230V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT30-7.5/60Hz 1080 2915 09 440-460V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT30-8.6/60Hz 1080 2915 07 220-230V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT30-8.6/60Hz 1080 2915 09 440-460V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT30-7.5/60Hz 1080 2915 10 575V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT30-8.6/60Hz 1080 2915 10 575V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT37 Siemens 1 LA5 207 - 2
ZT37-7.5/50Hz 1080 2912 01 230V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT37-7.5/50Hz 1080 2912 02 400V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT37-7.5/50Hz 1080 2912 04 500V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT37-8.6/50Hz 1080 2912 01 230V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT37-8.6/50Hz 1080 2912 02 400V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT37-8.6/50Hz 1080 2912 04 500V/50Hz 1621 1007 00 1615 4183 05 1616 6480 00
ZT37 Siemens 1 LA5 207 - 2 364 TSD
ZT37-7.5/60Hz 1080 2916 07 220-230V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT37-7.5/60Hz 1080 2916 09 440-460V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT37-8.6/60Hz 1080 2916 07 220-230V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT37-8.6/60Hz 1080 2916 09 440-460V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT37-7.5/60Hz 1080 2916 10 575V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
ZT37-8.6/60Hz 1080 2916 10 575V/60Hz 1621 1008 00 1615 4183 06 1616 6483 00
18 2930 1228 02
Parts list
60177_05
7
2930 1228 02 19
Parts list
Ref. Part number Qty Name Remarks
1010 1621 1068 00 1 Oil cooler
1020 1 Intercooler
1621 1065 00 ZT18
1621 1066 00 ZT22, ZT30
1621 1067 00 ZT37
1030 1 Aftercooler
1621 1069 00 ZT18, ZT22
1621 1070 00 ZT30, ZT37
1040 1 Plate
1621 1080 00 ZT18, ZT22, ZT30
1621 1079 00 ZT37
1050 1088 0801 31 1 Rubber ring
1060 1 Plate
1621 1073 00 ZT18, ZT22
1621 1078 00 ZT30, ZT37
1070 1621 1078 00 1 Plate
1075 1 Plate
1621 1074 00 ZT18
1080 1 Plate
1621 1071 00 ZT18, ZT22, ZT30
1621 1076 00 ZT37
1090 1 Plate
1621 1072 00 ZT18, ZT22, ZT30
1621 1077 00 ZT37
1110 0147 1322 03 39 Bolt
1120 0301 2335 00 48 Washer
1125 0266 2110 00 4 Nut
1130 0147 1325 03 1 Bolt
1150 1619 2766 00 5 Bolt
1170 0129 3104 00 2 Blind rivet
1190 1614 7867 00 1 Support ZT37
1200 0147 1331 03 2 Bolt ZT37
1210 0147 1328 03 2 Bolt ZT37
1220 0301 2335 00 2 Washer ZT37
1621 1075 80 1 Cover
2010 1621 1075 00 · 1 Cover
2020 1079 9901 18 · 1 Label
2030 1079 9901 09 · 1 Label
3010 1 Panel 1)
1621 1025 80 ZT18, ZT22, ZT30
1621 1081 80 ZT37
1 Fan assembly
1621 1088 01 ZT18 220V/50Hz,
ZT18 380-415V/50Hz,
ZT22 220V/50Hz,
ZT22 380-415V/50Hz
1621 1088 03 ZT30 220V/50Hz,
ZT30 380-415V/50Hz,
ZT37 220V/50Hz,
ZT37 380-415V/50Hz
1621 1088 06 ZT18 500V/50Hz,
ZT22 500V/50Hz
1621 1088 08 ZT30 500V/50Hz,
ZT37 500V/50Hz
1621 1088 02 ZT18 220-230V/60Hz,
ZT18 440-460V/60Hz,
ZT22 220-230V/60Hz,
ZT22 380V/60Hz,
ZT22 440-460V/60Hz
1621 1088 04 ZT30 220-230V/60Hz,
ZT30 380V/60Hz,
ZT30 440-460V/60Hz,
Ref. Part number Qty Name Remarks
ZT37 220-230V/60Hz,
ZT37 380V/60Hz,
ZT37 440-460V/60Hz
1621 1088 07 ZT18 575V/60Hz,
ZT22 575V/60Hz
1621 1088 09 ZT30 575V/60Hz,
ZT37 575V/60Hz
4010 0147 1324 03 · 1 Bolt
4020 1613 5646 00 · 1 Washer
4030 · 1 Fan
1614 5645 04 ZT18/50Hz, ZT22/50Hz
1614 5645 02 ZT30/50Hz, ZT37/50Hz
1614 5645 05 ZT18/60Hz, ZT22/60Hz
1614 5645 03 ZT30/60Hz, ZT37/60Hz
4040 1613 5645 00 · 1 Washer
4050 · 1 Fan cowl
1621 1087 02 ZT18, ZT22
1621 1087 01 ZT30, ZT37
4060 0226 9915 13 · 4 Sq.neck bolt
4070 1613 5647 00 · 4 Washer
4080 0291 1111 00 · 4 Locknut
4090 1613 5634 00 · 1 Fan guard
4100 · 1 Fan motor
1080 2653 11 ZT18 220V/50Hz,
ZT18 380-415V/50Hz,
ZT22 220V/50Hz,
ZT22 380-415V/50Hz,
ZT30 220V/50Hz,
ZT30 380-415V/50Hz,
ZT37 220V/50Hz,
ZT37 380-415V/50Hz,
ZT18 220-230V/60Hz,
ZT18 440-460V/60Hz,
ZT22 220-230V/60Hz,
ZT22 380V/60Hz,
ZT22 440-460V/60Hz,
ZT30 220-230V/60Hz,
ZT30 380V/60Hz,
ZT30 440-460V/60Hz,
ZT37 220-230V/60Hz,
ZT37 380V/60Hz,
ZT37 440-460V/60Hz
1080 2653 33 ZT18 500V/50Hz,
ZT22 500V/50Hz,
ZT30 500V/50Hz,
ZT37 500V/50Hz,
ZT18 575V/60Hz,
ZT22 575V/60Hz,
ZT30 575V/60Hz,
ZT37 575V/60Hz
4110 0333 3127 00 · 6 Lock washer
4120 0147 1961 84 · 6 Bolt
5010 1613 5676 00 1 Flexible
5020 0580 0201 25 2 Str.coupling
5030 0661 1000 27 2 Seal washer
5040 0574 8235 34 1 Hose assembly
5050 0580 0201 25 2 Str.coupling
5060 0661 1000 27 2 Seal washer
5080 1621 1011 00 1 Flexible
5090 0627 4200 06 1 Pressure screw
5100 1621 1006 00 1 Nipple
5110 0661 1025 00 4 Sealing washer
Oil system and fan, excl. HAT version 7
20 2930 1228 02
Parts list
60177_05
7
2930 1228 02 21
Parts list
Ref. Part number Qty Name Remarks
5120 0686 3716 01 1 Plug
5130 0653 1062 00 1 Flat gasket
5140 1621 1012 00 1 Flexible
5150 0627 4200 06 2 Pressure screw
5160 0653 1092 00 4 Flat gasket
5170 1 Pipe
0075 5551 39 · AR Pipe
1079 5831 10 · 1 Soldering cone
0584 3013 00 · 1 Nut
5180 0582 0000 11 1 Body
5190 0663 2108 05 1 O-ring
5200 1619 3443 00 1 Seal ring
5210 1202 8446 00 1 Seal ring
5220 0653 1165 00 1 Flat gasket
1) To be lined with / Te bekleden met / Skall bekläs med /
Auskleiden mit / A garnir avec / Revestir de / Rivestire con
/ Skal beklædes med / Forrar com / Skal fôres med /
Vuorataan: Foam : 1079 0003 32 (AR) 30 x 2000 x 1500
Oil system and fan, excl. HAT version 7
22 2930 1228 02
Parts list
60624_05
8
2930 1228 02 23
Parts list
Ref. Part number Qty Name Remarks
1020 1621 1200 00 1 Oilcooler
1025 1621 1201 00 1 Support
1055 0147 1360 03 4 Bolt
1060 0333 3232 00 4 Lock washer
1140 1621 1070 00 1 Aftercooler
1145 1621 1079 00 1 Plate
1150 1088 0801 31 1 Rubber ring
1155 1621 1078 00 1 Plate
1160 1621 1078 00 1 Plate
1165 1621 1076 00 1 Panel
1170 1621 1077 00 1 Panel
1180 0147 1322 03 41 Bolt
1185 0301 2335 00 4 Washer
1190 0266 2110 00 4 Nut
1195 0147 1325 03 1 Bolt
1200 0129 3104 00 2 Blind rivet
1621 1075 80 1 Cover
2010 1621 1075 00 1 Cover
2020 1079 9901 18 1 Label
2030 1079 9901 09 1 Label
1 Fan assembly
1621 1088 01 ZT18 380-415V/50Hz
1621 1088 03 ZT22 380-415V/50Hz,
ZT30 380-415V/50Hz
1621 1088 02 ZT18 220-230V/60Hz,
ZT18 440-460V/60Hz
1621 1088 04 ZT22 220-230V/60Hz,
ZT30 220-230V/60Hz,
ZT22 440-460V/60Hz,
ZT30 440-460V/60Hz
3010 0147 1324 03 · 1 Bolt
3020 1613 5646 00 · 1 Washer
3030 · 1 Fan
1614 5645 04 ZT18 380-415V/50Hz
1614 5645 02 ZT22 380-415V/50Hz,
ZT30 380-415V/50Hz
1614 5645 05 ZT18 220-230V/60Hz,
ZT18 440-460V/60Hz
1614 5645 03 ZT22 220-230V/60Hz,
ZT30 220-230V/60Hz,
ZT22 440-460V/60Hz,
ZT30 440-460V/60Hz
Ref. Part number Qty Name Remarks
3040 1613 5645 00 · 1 Washer
3050 · 1 Fan cowl
1621 1087 02 ZT18 380-415V/50Hz,
ZT18 220-230V/60Hz,
ZT18 440-460V/60Hz
1621 1087 01 ZT22 380-415V/50Hz,
ZT30 380-415V/50Hz,
ZT22 220-230V/60Hz,
ZT30 220-230V/60Hz,
ZT22 440-460V/60Hz,
ZT30 440-460V/60Hz
3060 0226 9915 13 · 4 Sq.neck bolt
3070 1613 5647 00 · 4 Washer
3080 0291 1111 00 · 4 Locknut
3090 1613 5634 00 · 1 Fan guard
3100 1080 2653 11 · 1 Fan motor
3110 0333 3127 00 · 6 Lock washer
3120 0147 1961 84 · 6 Bolt
4010 1613 5676 00 1 Flexible
4020 0580 0201 25 2 Str.coupling
4030 0661 1000 27 2 Seal washer
4040 0574 8235 34 1 Hose assembly
4050 0580 0201 25 2 Str.coupling
4060 0661 1000 27 2 Seal washer
4080 1621 1011 00 1 Flexible
4090 0627 4200 06 1 Pressure screw
4100 1621 1006 00 1 Nipple
4110 0661 1025 00 4 Sealing washer
4120 0686 3716 01 1 Plug
4130 0653 1062 00 1 Flat gasket
4140 1621 1012 00 1 Flexible
4150 0627 4200 06 2 Pressure screw
4160 0661 1025 00 4 Sealing washer
4170 1 Pipe
0075 5551 39 · AR Pipe
1079 5831 10 · 1 Soldering cone
0584 3013 00 · 1 Nut
4180 0582 0000 11 1 Body
4190 0663 2101 87 1 O-ring
4200 1619 3443 00 1 Seal ring
4210 1202 8446 00 1 Seal ring
4220 0653 1165 00 1 Flat gasket
Oil system and fan, HAT version 8
24 2930 1228 02
Parts list
60178_09
Ref. Part number Qty Name Remarks
1010 1900 0701 23 1 Electr.regulat.
1300 1089 0575 12 2 Pressure sensor
1310 1089 0575 11 1 Pressure sensor
1350 1089 0574 07 3 Temp. sensor
1360 1089 0428 14 1 Solenoid valve
0663 2104 83 · 2 O-ring
1370 1621 1089 00 1 Wire harness
1375 1621 1091 00 3 Clamp
1380 0697 9807 00 1 Nut
1400 1613 0801 06 1 Clamp
9 Regulating system, excl. HAT version
Ref. Part number Qty Name Remarks
1405 0147 1246 03 1 Bolt
1410 1614 8164 00 1 Label
2010 0160 6059 00 4 Screw
2020 1503 2467 00 AR Seal cord
2030 0574 8401 10 1 Hose assembly
2040 0581 0000 52 1 Pipe coupling
2050 0653 1062 00 1 Flat gasket
2060 0581 0000 47 1 Pipe coupling
2070 0574 8401 05 1 Hose assembly
2080 0581 0000 46 1 Pipe coupling
2090 0581 0000 47 1 Pipe coupling
2930 1228 02 25
Parts list
60630_09
Ref. Part number Qty Name Remarks
1010 1900 0701 24 1 Regulator
1300 1089 0575 34 2 Pressure transducer
1310 1089 0575 35 1 Pressure transducer
1350 1089 0574 07 3 Temp. sensor
1360 1089 0428 14 1 Solenoid valve
0663 2104 83 · 2 O-ring
1370 1621 1095 00 1 Wire harness
1375 1621 1091 00 3 Clamp
1380 0697 9807 00 1 Nut
1400 1613 0801 06 1 Clamp
Regulating system, HAT version 10
Ref. Part number Qty Name Remarks
1401 0147 1246 03 1 Bolt
1402 0266 2108 00 1 Nut
1510 1614 8071 00 1 Label
2010 0160 6059 00 4 Screw
2020 1503 2467 00 AR Seal cord
2040 0581 0000 52 1 Pipe coupling
2050 0653 1062 00 1 Flat gasket
2070 1616 0877 00 3 Hose assembly
2080 0581 0000 46 1 Pipe coupling
2090 0581 0000 47 4 Pipe coupling
2120 1621 1202 00 1 Pressure vessel
26 2930 1228 02
Parts list
60179_10
11
2930 1228 02 27
Parts list
Ref. Part number Qty Name Remarks
1010 1621 1028 80 1 Panel 1)
0581 0000 38 · 2 Pipe coupling
0653 1100 00 · 2 Flat gasket
0661 1000 26 · 2 Seal washer
0581 0000 43 · 2 Pipe coupling
1619 2758 00 · AR Seal
1079 9919 90 · 1 Decal
1050 1621 1041 00 1 Stay
1079 9901 09 · 1 Label
1070 1621 1040 00 1 Stay
1079 9901 09 · 1 Label
1090 1621 1054 80 1 Panel 2)
1619 6989 00 · 1 Door lock
1619 2665 00 · AR Seal
1100 1621 1032 80 1 Door 2)
1619 2665 00 · AR Seal
1621 6107 00 · 1 Decal
0690 1116 01 · 1 House mark
1619 6989 00 · 2 Door lock
1110 1621 1030 80 1 Door 2)
1619 2665 00 · AR Seal
0690 1116 01 · 1 House mark
1619 6989 00 · 2 Door lock
1120 1621 1034 80 1 Door 2)
1621 1036 00 · 2 Foam holder
1621 1035 00 · 2 Foam holder
Ref. Part number Qty Name Remarks
1619 2665 00 · AR Seal
1619 6989 00 · 2 Door lock
1130 1621 1016 80 1 Roof 1)
1621 1019 00 · AR Seal
1140 1089 9068 01 2 Key
1150 1613 5702 00 4 Cover 3)
1170 1621 1042 80 1 Silencer 1)
2010 1088 0257 30 1 Elbow
2020 0697 9910 01 1 Nipple
2030 1088 0301 10 1 Nut
3520 1613 5330 00 1 Listing mark
60Hz
4100 1 Decal
1621 1059 02 ZT18
1621 1059 03 ZT22
1621 1059 04 ZT30
1621 1059 05 ZT37
1)...3) Lined with / Bekleed met / Beklädd med /
Ausgekleidet mit / Garni de / Revestido de /
Allineato con / Foret med / Revestido com /
Kledd med / Vuorattu :
1) Foam: 1079 0003 32 (AR) 30 x 2000 x 1500
2) Foam: 1079 0003 31 (AR) 25 x 2000 x 1500
3) Foam: 1079 0003 33 (AR) 50 x 2000 x 1500
Bodywork, excl. HAT version 11
28 2930 1228 02
Parts list
60635_10
12
2930 1228 02 29
Parts list
Bodywork, HAT version 12
Ref. Part number Qty Name Remarks
1010 1621 1102 80 1 Panel 1)
0581 0000 45 · 4 Pipe coupling
0653 1124 00 · 4 Flat gasket
0581 0000 87 · 4 Pipe coupling
0661 1000 27 · 4 Seal washer
1619 2758 00 · AR Seal
1614 7293 00 · 1 Decal
1050 1621 1041 00 1 Stay
1079 9901 09 · 1 Label
1070 1621 1040 00 1 Stay
1079 9901 09 · 1 Label
1090 1621 1054 80 1 Panel 2)
1619 6989 00 · 1 Door lock
1619 2665 00 · AR Seal
1100 1621 1032 80 1 Door 2)
1619 2665 00 · AR Seal
1621 6107 00 · 1 Decal
0690 1116 01 · 1 House mark
1619 6989 00 · 2 Door lock
1110 1621 1030 80 1 Door 2)
1619 2665 00 · AR Seal
0690 1116 01 · 1 House mark
1619 6989 00 · 2 Door lock
1120 1621 1034 80 1 Door 2)
1621 1036 00 · 2 Foam holder
1621 1035 00 · 2 Foam holder
1619 2665 00 · AR Seal
1619 6989 00 · 2 Door lock
1130 1621 1220 80 1 Roof 1)
1621 1019 00 · AR Seal
1140 1089 9068 01 2 Key
1150 1613 5702 00 4 Cover 3)
Ref. Part number Qty Name Remarks
1170 1621 1042 80 1 Silencer 1)
1200 1621 1210 80 1 Panel 1)
0690 1116 01 · 1 House mark
1220 1621 1215 00 2 Stay
1079 9901 09 · 1 Label
1240 1621 1213 80 1 Door 2)
0690 1116 01 · 1 House mark
1619 6989 00 · 2 Door lock
1619 2665 00 · AR Seal
1250 1621 1213 81 1 Door 2)
1619 2665 00 · AR Seal
1619 6989 00 · 2 Door lock
0690 1116 01 · 1 House mark
2010 1088 0257 30 1 Elbow
2020 0697 9910 01 1 Nipple
2030 1088 0301 10 2 Nut
3520 1613 5330 00 1 Listing mark
60Hz
4100 1 Decal
1621 1059 02 ZT18
1621 1059 03 ZT22
1621 1059 04 ZT30
1621 1059 05 ZT37
1)...3) Lined with / Bekleed met / Beklädd med /
Ausgekleidet mit / Garni de / Revestido de /
Allineato con / Foret med / Revestido com /
Kledd med / Vuorattu :
1) Foam: 1079 0003 32 (AR) 30 x 2000 x 1500
2) Foam: 1079 0003 31 (AR) 25 x 2000 x 1500
3) Foam: 1079 0003 33 (AR) 50 x 2000 x 1500
30 2930 1228 02
Parts list
60180_12
13
2930 1228 02 31
Parts list
Ref. Part number Qty Name Remarks
1 Cubicle
1900 0415 32 ZT18 380-415V,
ZT22 380-415V
1900 0415 34 ZT30 380-415V
1900 0415 35 ZT37 380-415V
1900 0415 36 ZT18 220V, ZT22 220V
1900 0415 37 ZT30 220V
1900 0415 38 ZT37 220V
1900 0415 31 ZT18 500V, ZT22 500V
1900 0415 33 ZT30 500V, ZT37 500V
1010 1621 1056 00 · 1 Cubicle
1020 1621 1057 00 · 1 Door
1200 1621 1090 00 · 1 Mounting panel
1210 1079 9901 68 · 1 Label
1220 1079 9906 09 · 1 Label
1230 1613 6639 00 · 1 Data plate
1270 · 1 Transformer
1089 9136 95 ZT18 220V, ZT22 220V,
ZT30 220V, ZT37 220V,
ZT18 380-415V,
ZT22 380-415V,
ZT30 380-415V,
ZT37 380-415V
1089 9436 01 ZT18 500V, ZT22 500V
1089 9436 02 ZT30 500V, ZT37 500V
1280 1089 9136 93 · 1 Transformer
1290 1089 0612 01 · 2 Fuse holder
1300 1089 0612 23 · 2 Fuse
1310 1089 9203 23 · 1 Circuit breaker
1320 1089 9203 11 · 2 Circuit breaker
1330 · 2 Contactor
1089 9221 06 ZT18 220V, ZT22 220V,
ZT37 380-415V
1089 9221 07 ZT30 220V, ZT37 220V
1089 9319 27 ZT18 380-415V,
ZT22 380-415V,
ZT30 380-415V, ZT30 500V,
ZT37 500V
1089 9319 51 ZT18 500V, ZT22 500V
1340 · 1 Contactor
1089 9221 06 ZT30 220V
1089 9221 07 ZT37 220V
1089 9319 27 ZT18 220V, ZT22 220V,
ZT30 380-415V,
ZT37 380-415V,
ZT30 500V, ZT37 500V
1089 9319 51 ZT18 380-415V,
ZT22 380-415V,
ZT18 500V, ZT22 500V
Ref. Part number Qty Name Remarks
1350 · 1 Overload relay
1089 9169 32 ZT18 500V, ZT22 500V
1089 9169 54 ZT18 220V, ZT22 220V,
ZT37 380-415V
1089 9169 56 ZT30 220V
1089 9169 58 ZT37 220V
1089 9169 62 ZT18 380-415V,
ZT22 380-415V
1089 9169 63 ZT30 380-415V, ZT30 500V,
ZT37 500V
1370 · 1 Circuit breaker
1089 9267 03 ZT18 380-415V,
ZT22 380-415V,
ZT30 380-415V,
ZT37 380-415V
1089 9267 04 ZT18 220V, ZT22 220V,
ZT30 220V, ZT37 220V
1089 9336 02 ZT18 500V, ZT22 500V,
ZT30 500V, ZT37 500V
1380 1089 0506 62 · 43 Terminal
1400 1089 0506 27 · 4 Terminal
1410 1088 1001 02 · 1 Warning label
1430 1088 0024 02 · 1 Connector
1440 1088 0024 04 · 1 Connector
1450 1088 0024 10 · 1 Connector
1460 1088 0024 18 · 1 Connector
1470 1088 0000 06 · 1 Connector
1480 1089 0362 51 · 1 Push button
1490 1089 0362 58 · 1 Contact block
1500 1089 0362 50 · 1 Contact block
1510 1089 9082 24 · 1 Key switch
1560 1089 0506 15 · 4 Terminal
1570 1089 0426 03 · 3 Barrier
1580 1089 9388 01 · 1 Interface relay
1590 · Contact block
1089 9319 02 1 ZT18 220V, ZT22 220V,
ZT37 380-415V
1089 9319 02 3 ZT18 380-415V,
ZT22 380-415V,
ZT30 380-415V,
ZT18 500V, ZT22 500V,
ZT30 500V, ZT37 500V
1600 · Contact block
1089 9319 01 2 ZT18 220V, ZT22 220V,
ZT37 380-415V
1089 9319 01 5 ZT18 380-415V,
ZT22 380-415V,
ZT30 380-415V,
ZT18 500V, ZT22 500V,
ZT30 500V, ZT37 500V
1610 9820 1826 11 · 1 Service diagram
Start cubicle - star/delta 13
Control Voltage 220V/50Hz, excl. HAT version
32 2930 1228 02
Parts list
60645_12
14
2930 1228 02 33
Parts list
Start cubicle - star/delta 14
Control Voltage 220V/50Hz, HAT version
Ref. Part number Qty Name Remarks
1 Cubicle
1900 0415 42 ZT18 380-415V
1900 0415 44 ZT22 380-415V
1900 0415 45 ZT30 380-415V
1010 1621 1231 00 · 1 Cubicle
1020 1621 1057 00 · 1 Door
1200 1621 1090 00 · 1 Mounting panel
1210 1079 9901 68 · 1 Label
1220 1079 9906 09 · 1 Label
1230 1613 6639 00 · 1 Data plate
1270 1089 9136 95 · 1 Transformer
1280 1089 9436 11 · 1 Transformer
1290 1089 0612 01 · 2 Fuse holder
1300 1089 0612 23 · 2 Fuse
1310 1089 9203 10 · 1 Circuit breaker
1320 1089 9203 04 · 2 Circuit breaker
1330 · 2 Contactor
1089 9221 06 ZT30 380-415V
1089 9319 27 ZT18 380-415V,
ZT22 380-415V
1340 · 1 Contactor
1089 9319 27 ZT22 380-415V,
ZT30 380-415V
1089 9319 51 ZT18 380-415V
1350 · 1 Overload relay
1089 9169 54 ZT30 380-415V
1089 9169 62 ZT18 380-415V
1089 9169 63 ZT22 380-415V
Ref. Part number Qty Name Remarks
1370 1089 9267 03 · 1 Circuit breaker
1375 1089 9267 02 · 1 Circuit breaker
1380 1089 0506 62 · 44 Terminal
1400 1089 0506 27 · 4 Terminal
1410 1088 1001 02 · 1 Warning label
1430 1088 0024 02 · 1 Connector
1440 1088 0024 04 · 1 Connector
1450 1088 0024 10 · 1 Connector
1460 1088 0024 18 · 1 Connector
1470 1088 0000 06 · 1 Connector
1480 1089 0362 51 · 1 Push button
1490 1089 0362 58 · 1 Contact block
1500 1089 0362 50 · 1 Contact block
1510 1089 9082 24 · 1 Key switch
1560 1089 0506 15 · 4 Terminal
1570 1089 0426 03 · 3 Barrier
1580 1089 9415 17 · 1 Contactor
1590 · Contact block
1089 9319 02 1 ZT30 380-415V
1089 9319 02 3 ZT18 380-415V,
ZT22 380-415V
1600 · Contact block
1089 9319 01 2 ZT30 380-415V
1089 9319 01 5 ZT18 380-415V,
ZT22 380-415V
1610 9820 1826 16 · 1 Service diagram
1620 1089 0598 05 · 1 Fan motor
1630 1089 0598 06 · 1 Filter
34 2930 1228 02
Parts list
60181_12
15
2930 1228 02 35
Parts list
Start cubicle - star/delta 15
Control Voltage 115V/60Hz-CSA/UL, excl. HAT version
Ref. Part number Qty Name Remarks
1 Cubicle
1900 0416 31 ZT18 575V, ZT22 575V
1900 0416 32 ZT18 440-460V,
ZT22 440-460V
1900 0416 33 ZT30 575V, ZT37 575V
1900 0416 34 ZT30 440-460V,
ZT37 440-460V
1900 0416 35 ZT18 220-230V
1900 0416 36 ZT22 220-230V
1900 0416 37 ZT30 220-230V
1900 0416 38 ZT37 220-230V
1010 1621 1056 00 · 1 Cubicle
1020 1621 1057 00 · 1 Door
1030 1089 9049 04 · 5 Fuse holder
1040 1089 9168 24 · 2 Fuse link
1050 · 1 Fuse link
1089 9168 02 ZT30 220-230V,
ZT37 220-230V
1089 9168 07 Others
1060 1089 9168 02 · 2 Fuse link
1200 1621 1090 00 · 1 Mounting panel
1210 1079 9901 68 · 1 Label
1220 1079 9906 09 · 1 Label
1230 1613 3046 00 · 1 Data plate
1240 1613 3431 00 · 1 Label
1270 · 1 Transformer
1089 9436 04 ZT30 220-230V,
ZT37 220-230V
1089 9436 02 Others
1280 1089 9136 27 · 1 Transformer
1320 · 1 Label
1079 9918 88 ZT30 220-230V,
ZT37 220-230V
1079 9918 87 Others
1330 · 2 Contactor
1089 9221 87 ZT18 575V, ZT22 575V,
ZT18 440-460V,
ZT22 440-460V
1089 9221 45 ZT30 575V, ZT37 575V,
ZT30 440-460V,
ZT37 440-460V,
ZT18 220-230V
1089 9221 46 ZT22 220-230V
1089 9221 47 ZT30 220-230V
1089 9221 44 ZT37 220-230V
1340 · 1 Contactor
1089 9221 87 ZT18 575V, ZT22 575V,
ZT18 440-460V,
ZT22 440-460V,
ZT30 575V, ZT37 575V,
ZT30 440-460V,
ZT37 440-460V,
Ref. Part number Qty Name Remarks
1089 9221 89 ZT18 220-230V,
ZT22 220-230V
1089 9221 45 ZT30 220-230V
1089 9221 46 ZT37 220-230V
1350 · 1 Overload relay
1089 9169 62 ZT18 575V, ZT22 575V
1089 9169 60 ZT18 440-460V,
ZT22 440-460V
1089 9169 53 ZT30 575V, ZT37 575V
1089 9169 54 ZT30 440-460V,
ZT37 440-460V,
ZT18 220-230V
1089 9169 55 ZT22 220-230V
1089 9169 58 ZT30 220-230V
1089 9205 13 ZT37 220-230V
1360 1089 9216 03 · 1 Interlock
1370 · 1 Circuit breaker
1089 9267 02 ZT18 575V, ZT22 575V,
ZT30 575V, ZT37 575V
1089 9267 03 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V,
ZT37 440-460V
1089 9267 04 ZT18 220-230V,
ZT22 220-230V,
ZT30 220-230V,
ZT37 220-230V
1380 1089 0506 62 · 43 Terminal
1400 1089 0506 27 · 4 Terminal
1410 1089 0506 30 · 4 End bracket
1430 1088 0024 02 · 1 Connector
1440 1088 0024 04 · 1 Connector
1450 1088 0024 10 · 1 Connector
1460 1088 0024 18 · 1 Connector
1470 1088 0000 06 · 1 Connector
1480 1089 0362 51 · 1 Push button
1490 1089 0362 58 · 1 Contact block
1500 1089 0362 50 · 1 Contact block
1510 1089 9082 24 · 1 Key switch
1560 1089 0506 15 · 4 Terminal
1570 1089 0426 03 · 3 Barrier
1580 1089 9388 01 · 1 Interface relay
1610 9820 1826 13 · 1 Service diagram
1630 1079 9911 01 · 1 Label
36 2930 1228 02
Parts list
60646_12
16
2930 1228 02 37
Parts list
Ref. Part number Qty Name Remarks
1 Cubicle
1900 0416 42 ZT18 440-460V
1900 0416 44 ZT22 440-460V,
ZT30 440-460V
1900 0416 46 ZT18 220-230V
1900 0416 47 ZT22 220-230V
1900 0416 48 ZT30 220-230V
1010 1621 1231 00 · 1 Cubicle
1020 1621 1057 00 · 1 Door
1030 1089 9049 04 · 5 Fuse holder
1040 · 2 Fuse link
1089 9168 38 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V,
ZT18 220-230V
1089 9168 24 ZT22 220-230V,
ZT30 220-230V
1050 · 1 Fuse link
1089 9168 05 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V,
ZT18 220-230V
1089 9168 02 ZT22 220-230V,
ZT30 220-230V
1060 1089 9168 02 · 2 Fuse link
1200 1621 1090 00 · 1 Mounting panel
1210 1079 9901 68 · 1 Label
1220 1079 9906 09 · 1 Label
1230 1613 3046 00 · 1 Data plate
1240 1613 3431 00 · 1 Label
1270 · 1 Transformer
1089 9436 02 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V,
ZT18 220-230V
1089 9436 04 ZT22 220-230V,
ZT30 220-230V
1280 1089 9436 11 · 1 Transformer
1320 · 1 Label
1079 9910 15 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V,
ZT18 220-230V
1079 9918 88 ZT22 220-230V,
ZT30 220-230V
1330 · 2 Contactor
1089 9221 87 ZT18 440-460V
1089 9221 45 ZT22 440-460V,
ZT30 440-460V
1089 9221 46 ZT18 220-230V
1089 9221 47 ZT22 220-230V
1089 9221 44 ZT30 220-230V
Ref. Part number Qty Name Remarks
1340 · 1 Contactor
1089 9221 87 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V
1089 9221 89 ZT18 220-230V
1089 9221 45 ZT22 220-230V
1089 9221 46 ZT30 220-230V
1350 · 1 Overload relay
1089 9169 60 ZT18 440-460V
1089 9169 54 ZT22 440-460V,
ZT30 440-460V
1089 9169 55 ZT18 220-230V
1089 9169 58 ZT22 220-230V
1089 9205 13 ZT30 220-230V
1360 1089 9216 03 · 1 Interlock
1370 · 1 Circuit breaker
1089 9267 03 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V
1089 9267 04 ZT18 220-230V,
ZT22 220-230V,
ZT30 220-230V
1375 · 1 Circuit breaker
1089 9267 02 ZT18 440-460V,
ZT22 440-460V,
ZT30 440-460V
1089 9267 03 ZT18 220-230V,
ZT22 220-230V,
ZT30 220-230V
1380 1089 0506 62 · 44 Terminal
1400 1089 0506 27 · 4 Terminal
1430 1088 0024 02 · 1 Connector
1440 1088 0024 04 · 1 Connector
1450 1088 0024 10 · 1 Connector
1460 1088 0024 18 · 1 Connector
1470 1088 0000 06 · 1 Connector
1480 1089 0362 51 · 1 Push button
1490 1089 0362 58 · 1 Contact block
1500 1089 0362 50 · 1 Contact block
1510 1089 9082 24 · 1 Key switch
1560 1089 0506 15 · 4 Terminal
1570 1089 0426 03 · 3 Barrier
1580 1089 9415 17 · 1 Contactor
1610 9820 1826 16 · 1 Service diagram
1630 1079 9911 01 · 1 Label
1640 1089 0598 04 · 1 Fan motor
1650 1089 0598 06 · 1 Filter
Start cubicle - star/delta 16
Control Voltage 115V/60Hz-CSA/UL, HAT version
38 2930 1228 02
Parts list
60626_04
Ref. Part number Qty Name Remarks
1010 1621 1205 00 1 Intercooler
1020 1621 1207 00 1 Support
1030 1621 1208 00 1 Support
1040 0147 1481 03 2 Bolt
1050 0301 2378 00 2 Washer
1060 0147 1360 03 4 Bolt
1070 1619 7548 00 1 Fan
1075 1 Fan motor
1080 2642 01 ZT18 380-415V/50Hz,
ZT22 380-415V/50Hz,
ZT30 380-415V/50Hz,
ZT18 440-460V/60Hz,
ZT22 440-460V/60Hz,
ZT30 440-460V/60Hz
17 Intercooler, HAT version
Ref. Part number Qty Name Remarks
1080 2646 10 ZT18 220-230V/60Hz,
ZT22 220-230V/60Hz,
ZT30 220-230V/60Hz
1080 1619 7520 04 1 Fan guard
1090 1621 1206 00 1 Fan cowl
1100 0266 2111 00 8 Nut
1110 0147 1360 03 8 Bolt
1120 0333 3232 00 16 Lock washer
1130 0147 1325 03 4 Bolt
1140 0303 1274 01 4 Washer
1150 0147 1249 03 1 Bolt
1160 1202 3895 00 1 Washer
2930 1228 02 39
Parts list
Part number Qty Name Remarks
2906 0005 00 1 LP element exchange kit
0653 1092 00 · 4 Gasket
0663 2104 77 · 1 O-ring
0663 2107 77 · 1 O-ring
0663 9870 00 · 1 O-ring
2906 0006 00 1 Oil pump kit
0102 0242 00 · 1 Pin
0653 1124 00 · 3 Gasket
0653 1128 00 · 1 Gasket
0653 1165 00 · 1 Gasket
0663 2101 87 · 1 O-ring
0663 6143 00 · 1 O-ring
0663 9276 00 · 1 O-ring
1613 4119 00 · 1 Ring
1613 4120 00 · 1 Ring
1613 4121 00 · 1 Oil pump
1615 4084 00 · 1 Ring
1616 6294 00 · 1 Key
2906 0009 00 1 Check valve kit
0500 4510 28 · 1 Bush
0663 2106 12 · 1 O-ring
0663 2107 77 · 1 O-ring
1613 5727 00 · 1 Valve seat
1613 5728 00 · 1 Spring
1614 7207 00 · 1 Check valve
2906 0011 00 1 Inter / after cooler kit
0653 1124 00 · 2 Gasket
0661 1000 27 · 2 Seal washer
0663 2101 87 · 2 O-ring
0663 2106 12 · 1 O-ring
0663 2107 97 · 1 O-ring
0663 9870 00 · 3 O-ring
2906 0224 00 1 Inlet valve service kit
1613 4036 00 · 1 Membrane
1613 5719 00 · 1 Diaphragm
1613 5723 00 · 1 Gasket
2906 0225 00 1 Inlet valve overhaul kit
0108 1192 00 · 1 Spring pin
0335 3114 00 · 1 Ring
0500 4510 01 · 1 Bush
0500 4510 27 · 1 Bush
0653 1046 00 · 3 Gasket
0653 1062 00 · 2 Gasket
0653 1124 00 · 1 Gasket
1613 5721 00 · 1 Spring
1613 5720 00 · 1 Valve
Service kits 18
Part number Qty Name Remarks
2906 0545 00 1 Air/oil filter kit
0653 1189 00 · 1 Gasket filler plug
0663 2107 84 · 1 O-ring
1030 0882 00 · 1 Oil filter element
1202 6255 01 · 1 Breather filter element
1614 8673 00 · 1 Safety filter element
1613 7408 00 · 1 Air filter element
2906 0546 00 1 HP element exchange kit
0634 1000 36 · 1 Pipe coupling rubber
0653 1092 00 · 4 Gasket
0663 2104 76 · 1 O-ring
0663 2107 77 · 1 O-ring
0663 9832 00 · 1 O-ring
0663 9870 00 · 2 O-ring
2906 0547 00 1 Drive shaft seal kit
0663 6177 00 · 1 O-ring
1202 5245 00 · 1 Sealring
1616 6486 00 · 1 Bushing
2906 0548 00 1 Drive shaft bearing kit
0335 2165 00 · 1 Circlip
0502 2111 00 · 1 Bearing
0502 2107 00 · 1 Bearing
0663 6177 00 · 1 O-ring
0663 6143 00 · 1 O-ring
2906 0549 00 1 Maintenance kit
Yearly
0653 1062 00 · 2 Gasket drain connection
2906 0545 00 · 1 Air/oil filter kit
2900 1017 00 · 1 Drain valve kit
2906 0550 00 1 Maintenance kit
8000h or every 2 years
0663 2106 12 · 1 O-ring
0663 2107 77 · 1 O-ring
1613 5728 00 · 1 Spring
2906 0224 00 · 1 Inlet valve service kit
2906 0549 00 · 1 Maintenance kit
2906 0551 00 1 Maintenance kit
16000 h or every 4 years
1614 6819 00 · 1 Muffler
2906 0009 00 · 1 Check valve kit
2906 0224 00 · 1 Inlet valve service kit
2906 0225 00 · 1 Inlet valve overhaul kit
2906 0549 00 · 1 Maintenance kit - Yearly
