5:1 'T' SERIES RATIO OIL PUMP KIT - WITH HOSE & GUN

Oil Dispensing Kit 5:1 - Unmetered Oil Gun

Product Code: T512THG-01

Description

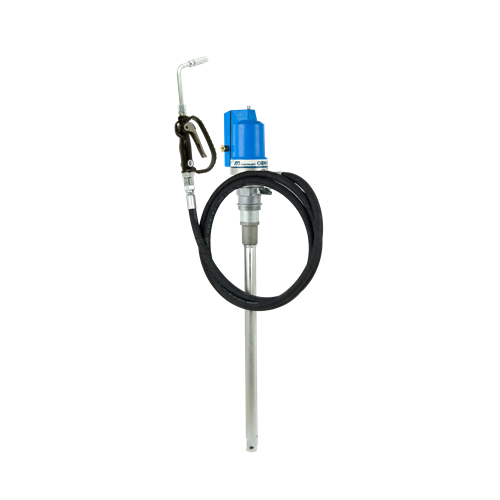

The T512THG-01 pump kit includes a premium quality T512T-01 (5:1) ratio air-operated oil drum pump c/w 3m x 1/2" oil hose, HG20R-01 oil control gun with rigid extension and non-drip nozzle. The kit has an approximate flow rate 8L/min with SAE10 oil and is suitable for oils up to SAE 140, pre-mix coolants.
Technical Specifications
  • T512T-01 – 5:1 ratio oil pump (air operated) – using SAE10 oil
  • HG20R-01 oil control gun with rigid extension and automatic non-drip nozzle
  • 1/2” x 3M long oil hose with fittings to connect the pump to gun
  • Max air pressure – 120psi (827 kPa)
  • Min air pressure – 60psi (400 kPa)
  • Typical air consumption – 5cfm
  • Air inlet – ¼” NPT (F) swivel type
  • Oil outlet –1/2" BSP (F)
  • Oil inlet – 1” BSP (F)
  • Max static head – 10m
  • Fluid types – Mineral based oils (engine oil, gear oil, hydraulic oil, transmission fluid up to SAE140)
  • Wetted materials – Zinc, Hard Chrome, Plated steel, Aluminium, Brass, Nitrile rubber, Polyurethane rubber

Features & Benefits

  • T512T (5:1) ratio drum pump – proven reliability and peace of mind
  • HG20R-01 oil control gun with rigid extension and non-drip nozzle – reliable oil delivery with no leak
  • Suitable for oils to SAE140, coolants
  • 3m x 1/2" I/D. oil delivery hose including fittings

Package Includes

  • T512T-01 (5:1) ratio oil pump (205ltr)
  • HG20R-01 Oil control gun with automatic non-drip nozzle
  • TD-25K -1/2”x 3m oil hose with fittings
  • Instruction manual



SKU T512THG-01
Brand Macnaught
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.080m
