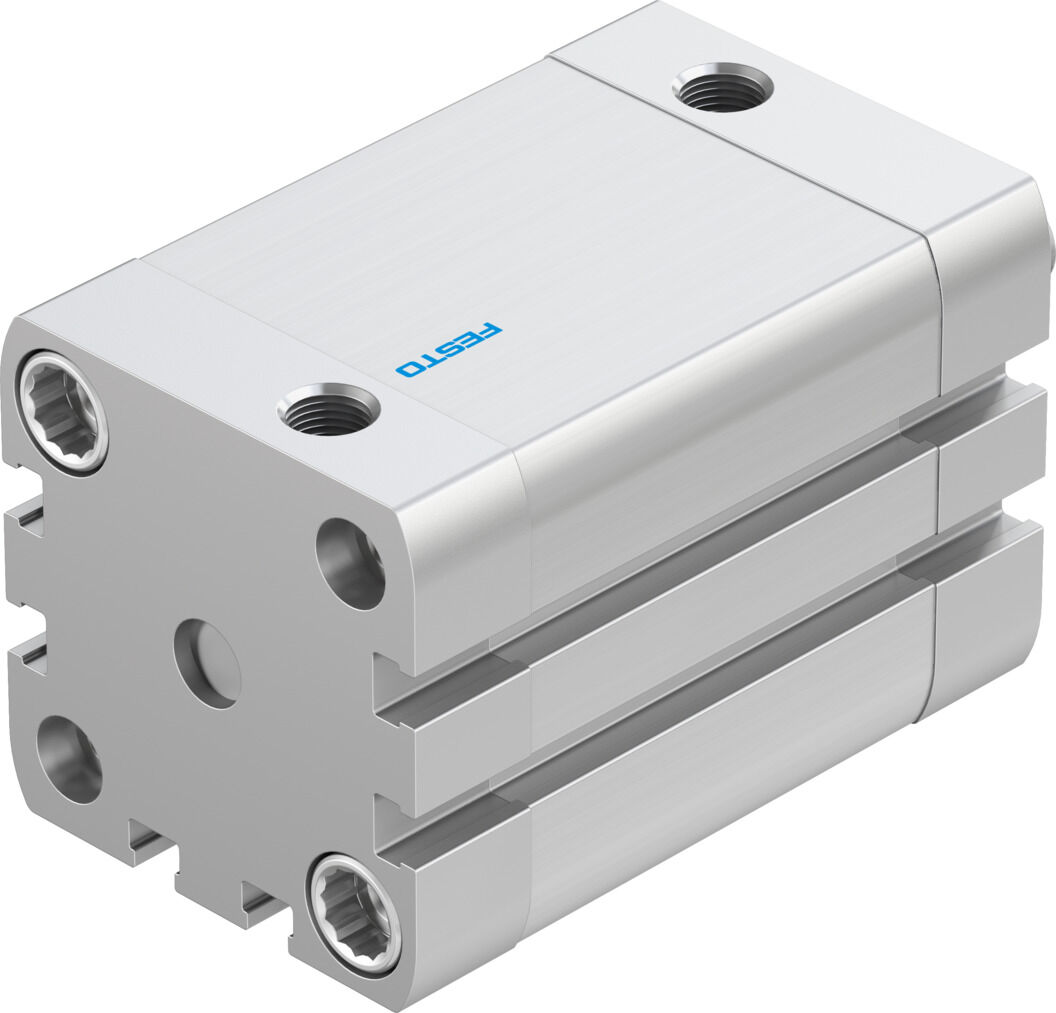

Compact cylinder

ADN-40-40-A-PPS-A

572678



Mode of operation
Double-acting
Piston diameter
40 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
754 N
Stroke
40 mm
Cushioning
Self-adjusting pneumatic end-position cushioning

GTIN: 4052568218997

Technical Data

  • Stroke40 mm
  • Piston diameter40 mm
  • Piston rod threadM10x1.25
  • CushioningSelf-adjusting pneumatic end-position cushioning
  • Mounting positionoptional
  • Conforms to standardISO 21287
  • Piston-rod endMale thread
  • Position detectionVia proximity switch
  • Symbol00992970
  • VariantsPiston rod at one end
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions1.7 J
  • Cushioning length5 mm
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke686 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
  • Moving mass150 g
  • Product weight525 g
  • Type of mountingWith through-hole Via female thread With accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Material collar screwsSteel
  • Material coverAnodised wrought aluminium alloy
  • Material sealsTPE-U(PUR)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelSmooth-anodised wrought aluminium alloy
