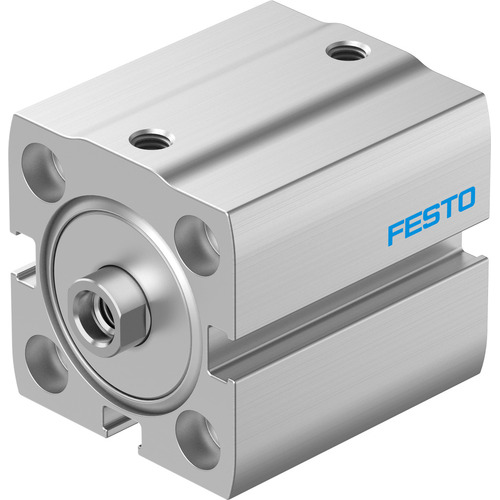

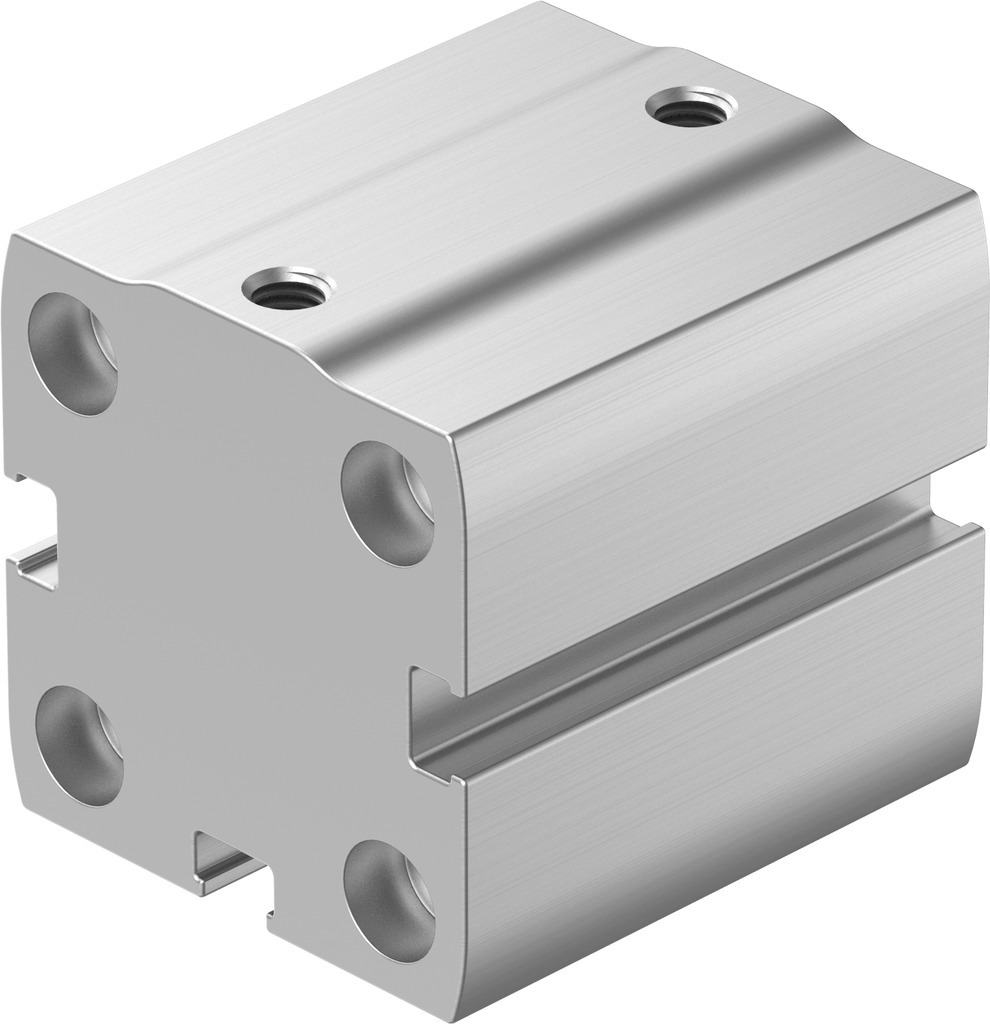

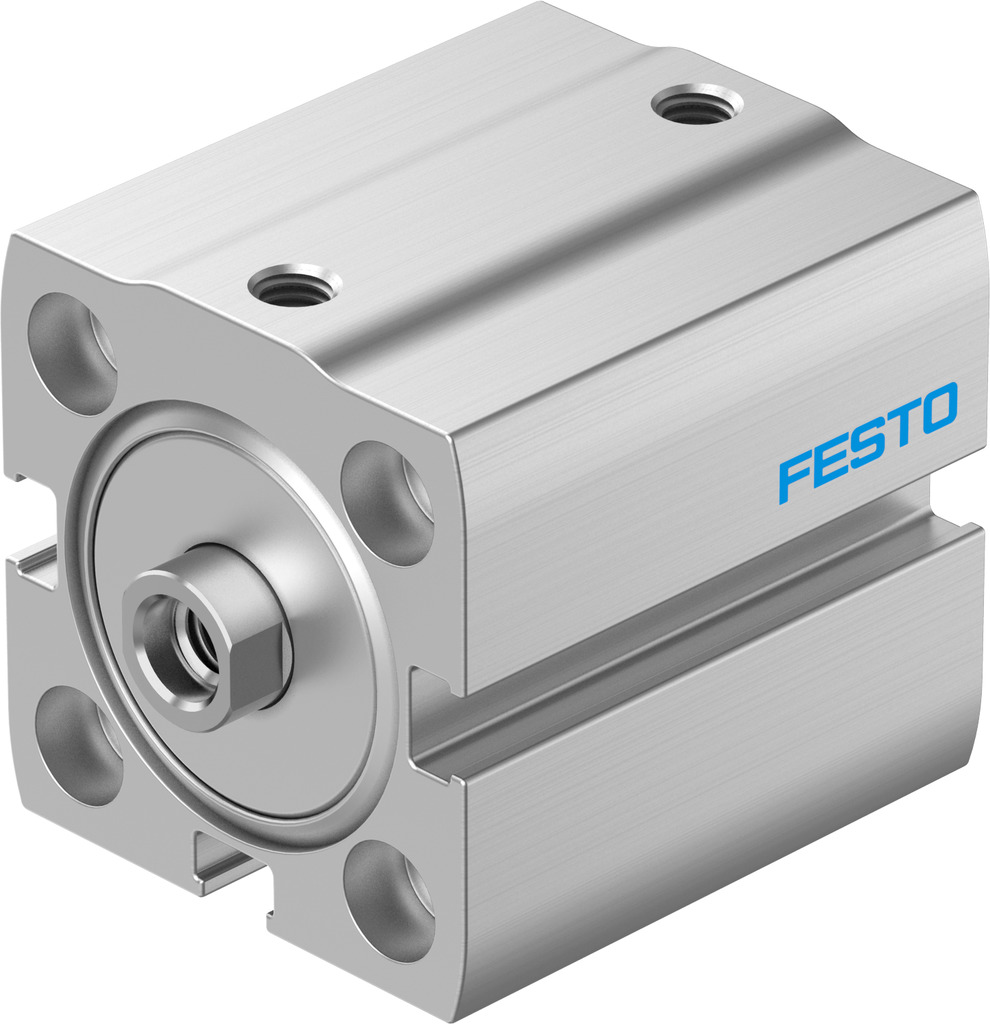

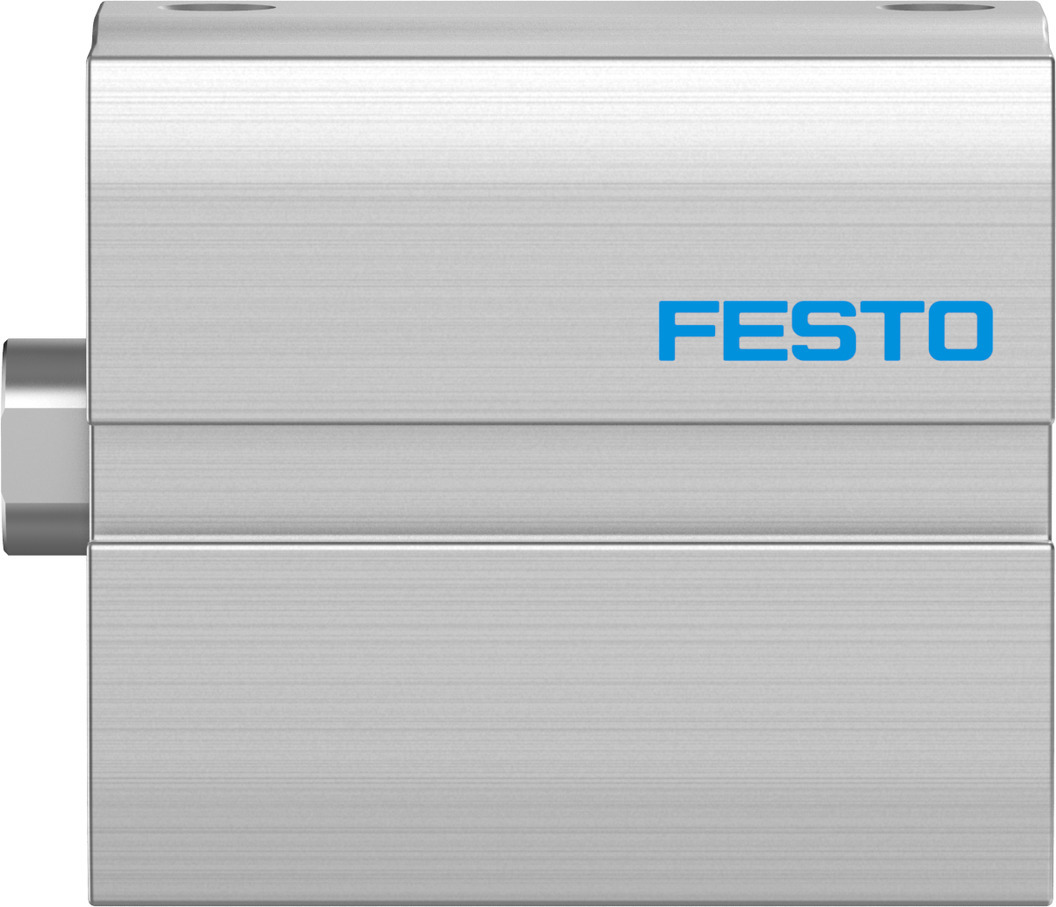

ADN-S-25-5-I-P Compact cylinder

ADN-S-25-5-I-P

$101.00
RRP $120.00
SAVE $19.00 (16%)


Compact cylinder

Compact cylinder

ADN-S-25-5-I-P

8076343

GTIN: 4052568460709

Downloads

ADN-S_EN.PDF

Technical data

Links

Spare parts



Mode of operation Double-acting

Piston diameter 25 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 295 N

Stroke 5 mm

Cushioning Elastic cushioning rings/plates at both ends



  • Stroke 5 mm
  • Piston diameter 25 mm
  • Cushioning Elastic cushioning rings/plates at both ends
  • Mounting position optional
  • Mode of operation Double-acting
  • Piston-rod end Female thread
  • Design Piston Piston rod

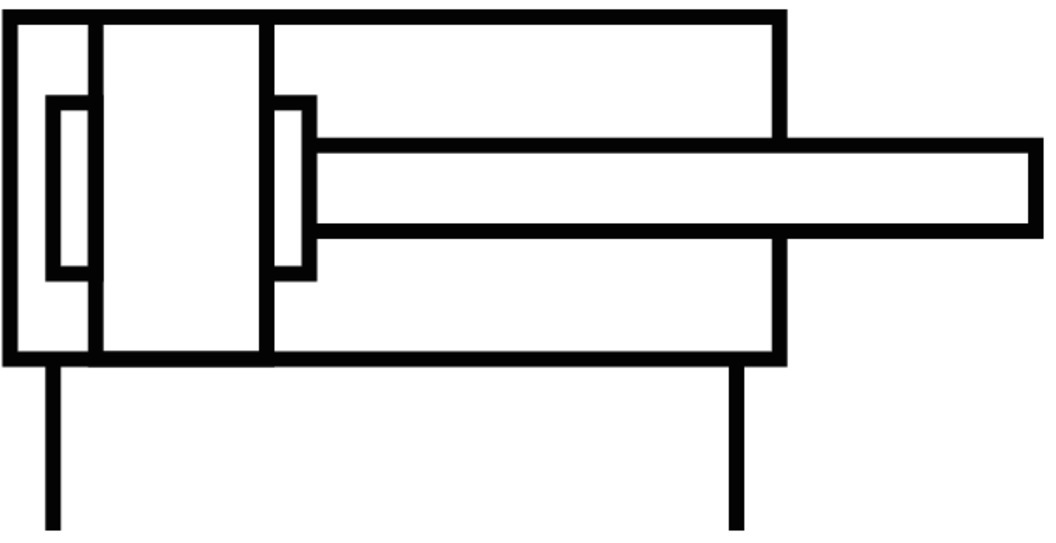

  • Symbol 00991227
  • Variants Piston rod at one end
  • Operating pressure 0.06 MPa ... 1 MPa
  • Operating pressure 0.6 bar ... 10 bar
  • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformity VDMA24364-B2-L
  • Cleanroom class Class 6 according to ISO 14644-1
  • Ambient temperature 0 °C ... 60 °C
  • Impact energy in end positions 0.18 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 295 N
  • Moving mass for 0 mm stroke 17 g
  • Additional moving mass per 10 mm stroke 6 g
  • Basic weight for 0 mm stroke 70 g
  • Additional weight per 10 mm stroke 30 g
  • Type of mounting Either: With through-hole Via female thread With accessories
  • Pneumatic connection M5
  • Note on materials RoHS-compliant
  • Material cover Anodised wrought aluminium alloy
  • Material dynamic seals NBR
  • Material housing Anodised wrought aluminium alloy
  • Material piston rod High-alloy stainless steel

(8076343)

SKU 8076343
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
