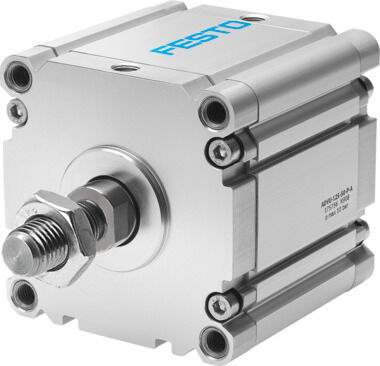

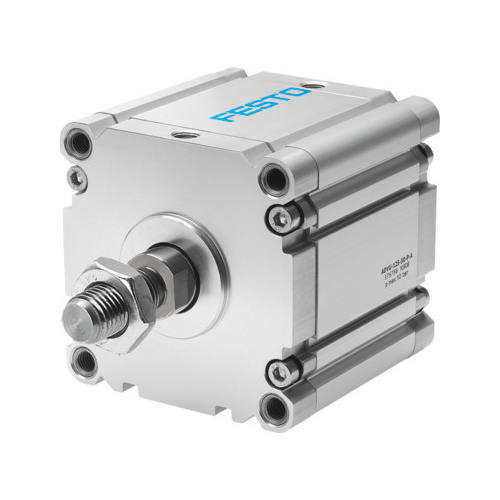

Compact cylinderADVU-125-10-A-P-A

175762

GTIN: 4052568143329

Mode of operation
Double-acting
Piston diameter
125 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
7363 N
Stroke
10 mm
Cushioning
Elastic cushioning rings/plates at both ends



Technical Data Compact cylinder ADVU-125-10-A-P-A

  • Stroke10 mm
  • Piston diameter125 mm
  • Piston rod threadM27x2
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionAny
  • Mode of operationDouble-acting
  • Piston-rod endMale thread
  • DesignPiston Piston rod
  • Position detectionVia proximity switch
  • Symbol00991217
  • VariantsPiston rod at one end
  • Operating pressure0.05 MPa ... 1 MPa
  • Operating pressure0.5 bar ... 10 bar
  • Operating pressure7.25 psi ... 145 psi
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions3.3 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke6881 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke7363 N
  • Moving mass for 0 mm stroke1317 g
  • Additional moving mass per 10 mm stroke63 g
  • Basic weight for 0 mm stroke3426 g
  • Additional weight per 10 mm stroke168 g
  • Type of mountingWith through-hole With accessories
  • Pneumatic connectionG1/4
  • Material collar screwsGalvanised steel
  • Material coverPainted die-cast aluminium
  • Material dynamic sealsNBR TPE-U(PU)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelWrought aluminium alloy



SKU 175762
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
