Repair Kit ADVUL-40-60-P-A Compact cylinder 121120

ADVUL-40-60-P-A

$91.67
RRP $101.00
SAVE $9.33 (9%)


Compact cylinder REPAIR KIT

INFO / TECHNICL DETAILS

ADVUL-40-60-P-A

156892-Repair Kit 121120

https://www.festo.com/spc/en_au/SparePartsCatalogue/?lngId=EN&search=156892&yB=ADVUL40B01358&yP=156892

Set of Wearing Parts KIT includes:

Item 8: 338265  -WIFC4-12X19X4,8-TPE-U Wiper seal

Item 13: PEFC1-40-TPE-U Piston seal - Not available separately, see position A

Item 15: B-7,65X1,78-N-NBR70 O-ring ISO3601 - Not available separately, see position A

Item 20: B-40X1,2-N-NBR75 O-ring ISO3601

Item 23: 684474 LUB-KC1 SILIKONFREI 20ML Lubricating grease

Item 24: 8181256 CYBERBOND TM44 TB1ML Adhesive bonding agent





Technical Data

  • Stroke60 mm
  • Piston diameter40 mm
  • CushioningElastic cushioning rings/plates at both ends
  • Mounting positionoptional
  • DesignPiston Piston rod
  • Position detectionVia proximity switch

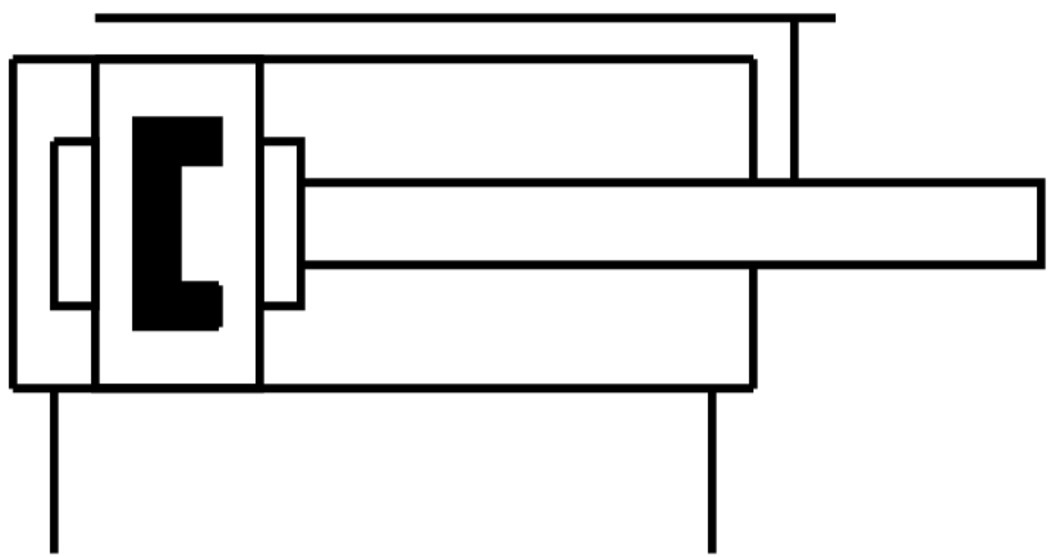

  • Symbol00991737
  • VariantsPiston rod at one end
  • Protection against torque/guideGuide rod with yoke
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-20 °C ... 80 °C
  • Impact energy in end positions0.52 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke686 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke754 N
  • Type of mountingEither: With through-hole With accessories
  • Pneumatic connectionG1/8
  • Material collar screwsGalvanised steel
  • Material coverWrought aluminium alloy
  • Material dynamic sealsNBR TPE-U(PU)
  • Material piston rodHigh-alloy steel
  • Material cylinder barrelWrought aluminium alloy

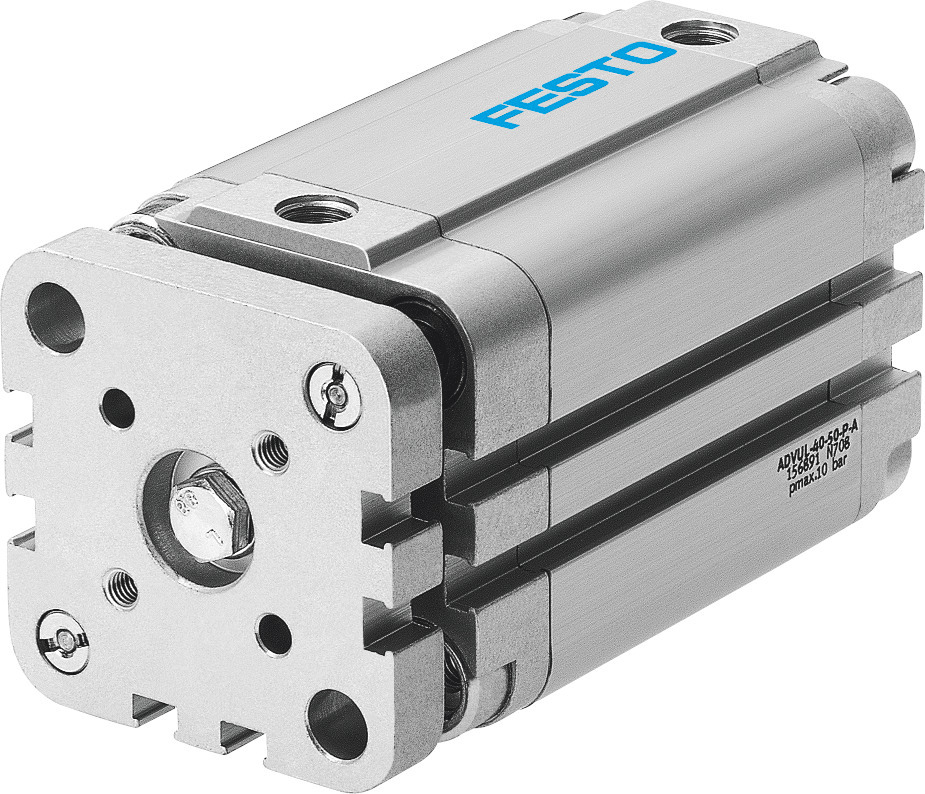

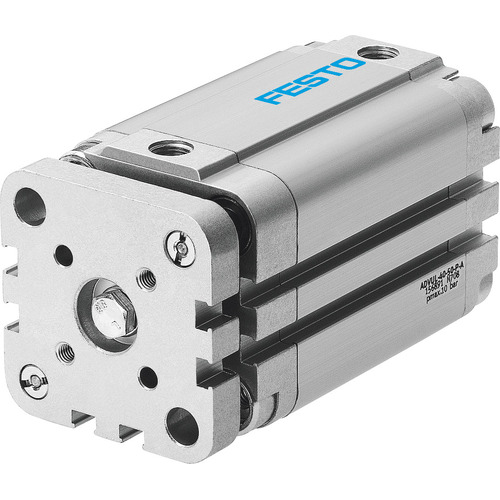

Compact cylinder

(156892-Repair-KIT)

SKU 156892-Repair-KIT
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
