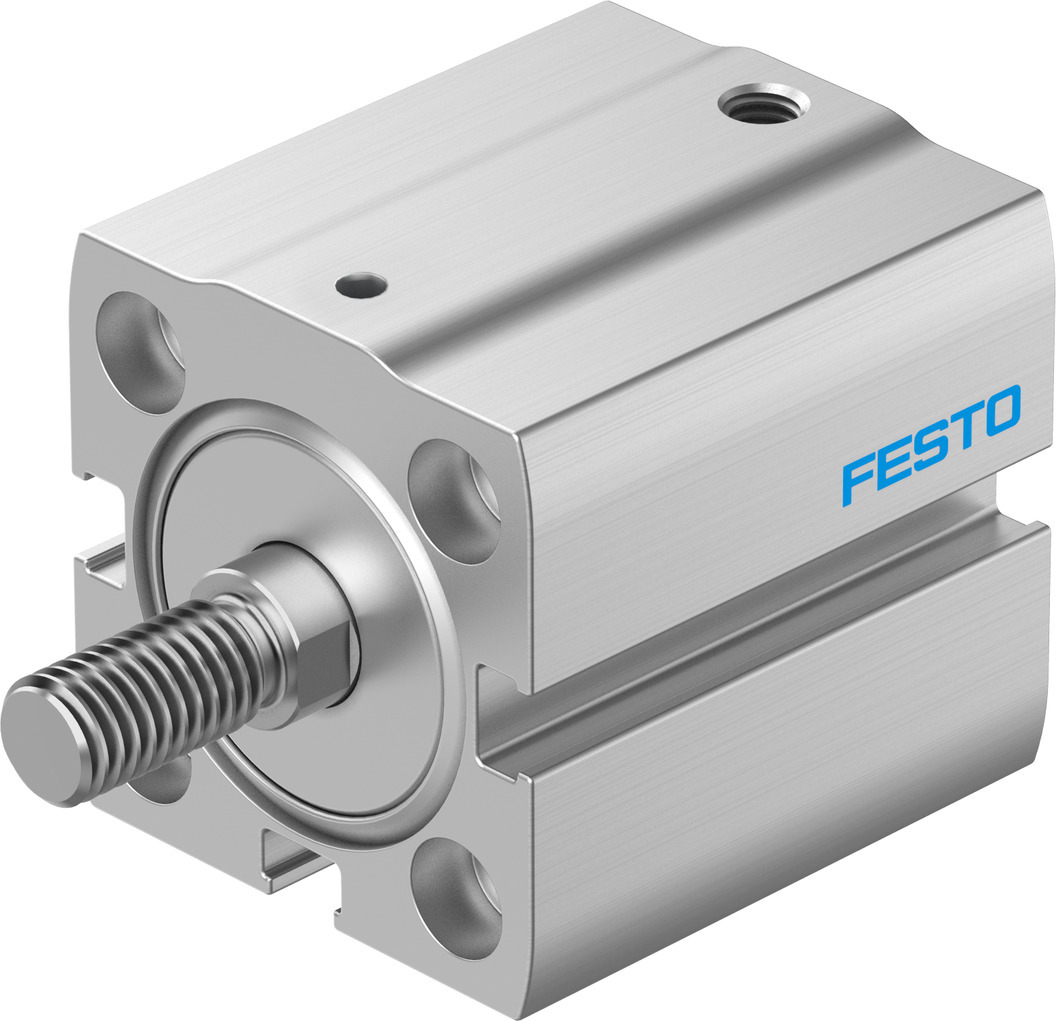

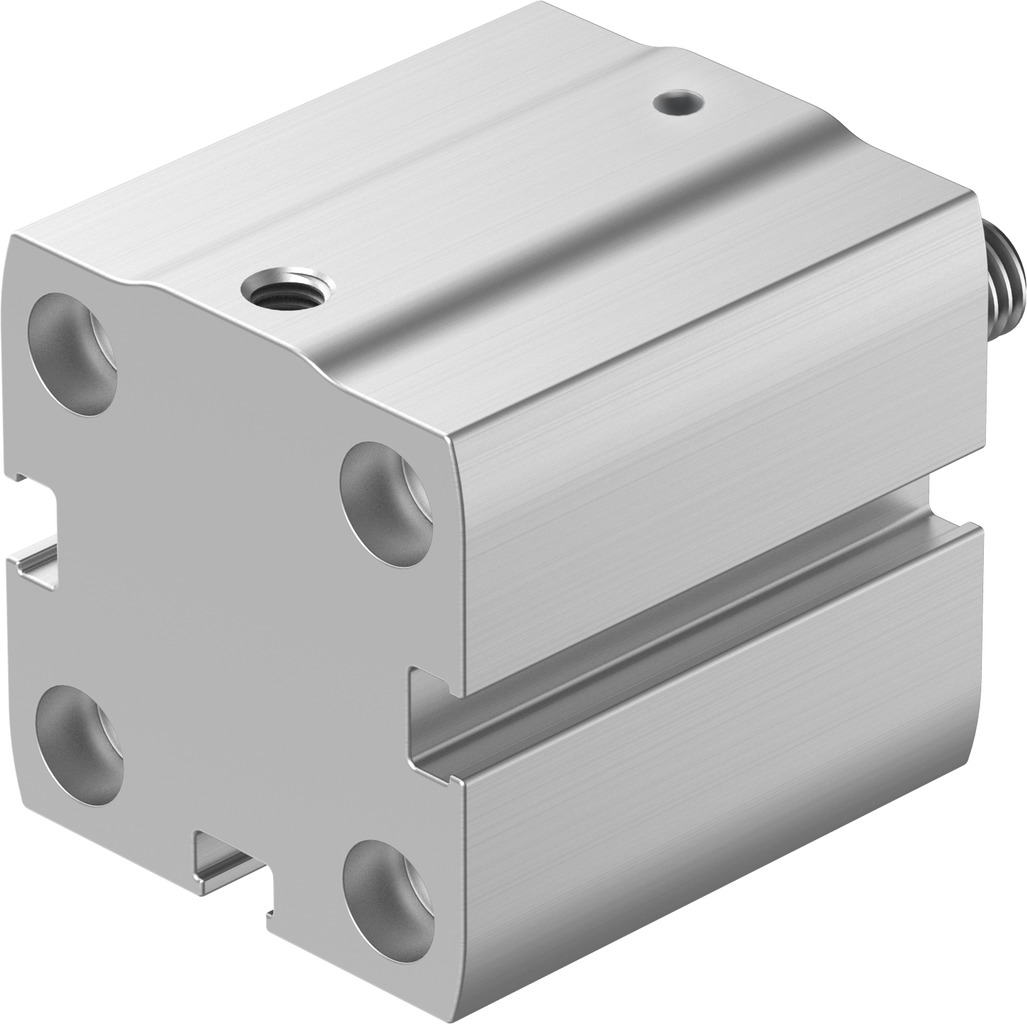

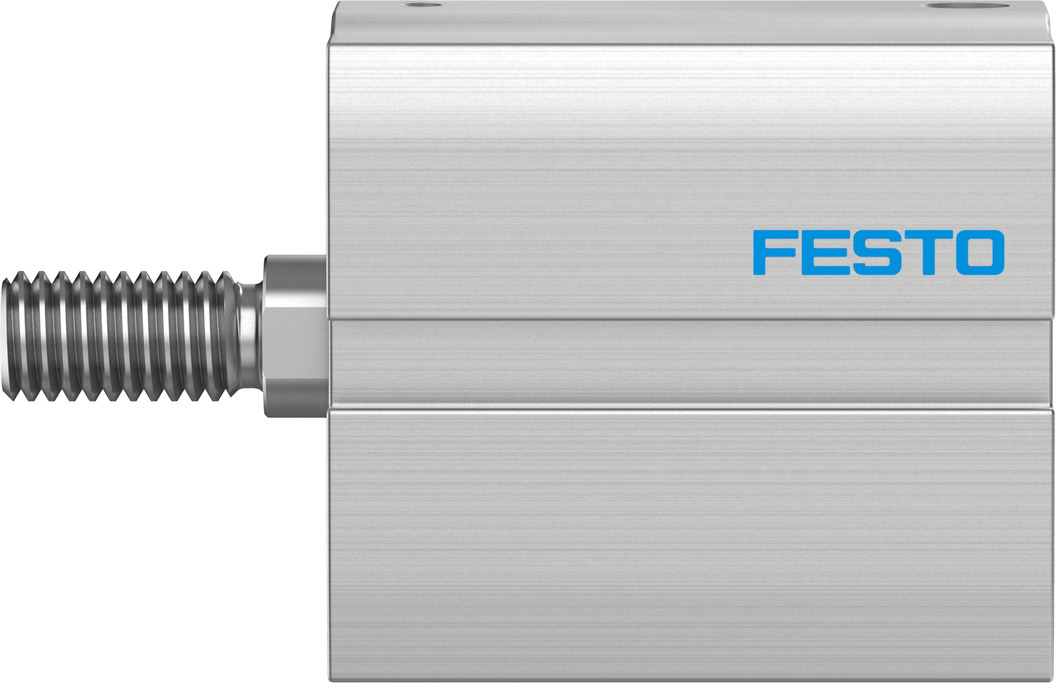

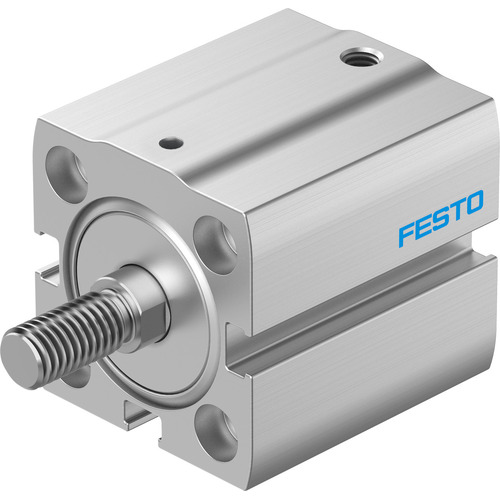

Compact cylinder

AEN-S-25-25-A-P

8092180

GTIN: 4052568461973

Technical Data

• Stroke25 mm
• Piston diameter25 mm
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionoptional
• Mode of operationPushing
• Piston-rod endMale thread
• DesignPiston Piston rod

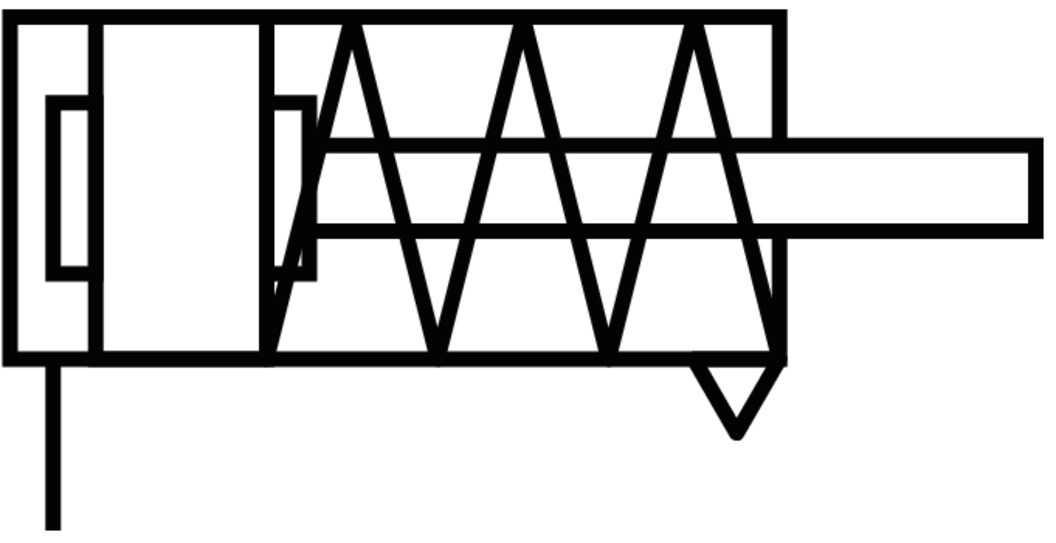

• Symbol00991730
• VariantsPiston rod at one end
• Operating pressure0.1 MPa ... 1 MPa
• Operating pressure1 bar ... 10 bar
• Operating pressure14.5 psi ... 145 psi
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Ambient temperature0 °C ... 80 °C
• Impact energy in end positions0.09 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke35 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke259 N
• Moving mass for 0 mm stroke17 g
• Additional moving mass per 10 mm stroke6 g
• Basic weight for 0 mm stroke70 g
• Additional weight per 10 mm stroke30 g
• Type of mountingWith through-hole Via female thread With accessories
• Pneumatic connectionM5
• Note on materialsRoHS-compliant
• Material coverAnodised wrought aluminium alloy
• Material dynamic sealsNBR
• Material housingAnodised wrought aluminium alloy
• Material piston rodHigh-alloy stainless steel

Downloads

AEN-S_EN.PDF

Technical data

CAD data

Spare parts

Pieces

Mode of operation Pushing

Piston diameter  25 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke  259 N

Stroke 25 mm

Cushioning  Elastic cushioning rings/plates at both ends

Technical Data

• Stroke25 mm
• Piston diameter25 mm
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionoptional
• Mode of operationPushing
• Piston-rod endMale thread
• DesignPiston Piston rod
• Symbol00991730
• VariantsPiston rod at one end
• Operating pressure0.06 MPa ... 1 MPa
• Operating pressure0.6 bar ... 10 bar
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B2-L
• Ambient temperature0 °C ... 60 °C
• Impact energy in end positions0.09 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke35 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke259 N
• Moving mass for 0 mm stroke17 g
• Additional moving mass per 10 mm stroke6 g
• Basic weight for 0 mm stroke70 g
• Additional weight per 10 mm stroke30 g
• Type of mountingEither: With through-hole Via female thread With accessories
• Pneumatic connectionM5
• Note on materialsRoHS-compliant
• Material coverAnodised wrought aluminium alloy
• Material dynamic sealsNBR
• Material housingAnodised wrought aluminium alloy
• Material piston rodHigh-alloy stainless steel
