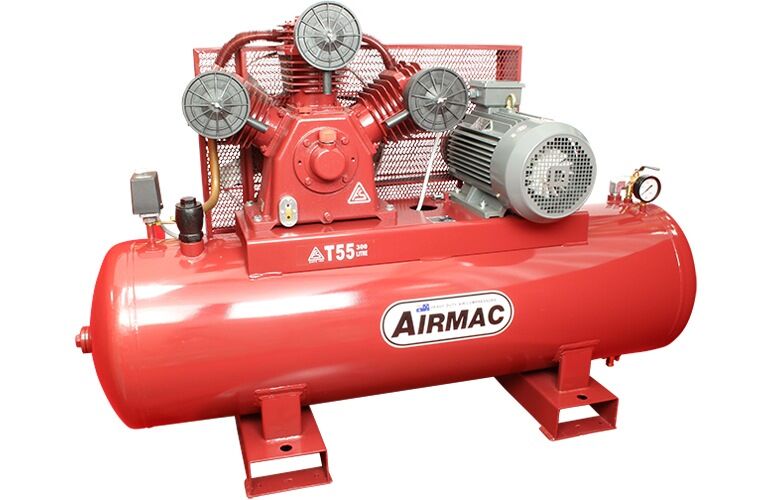

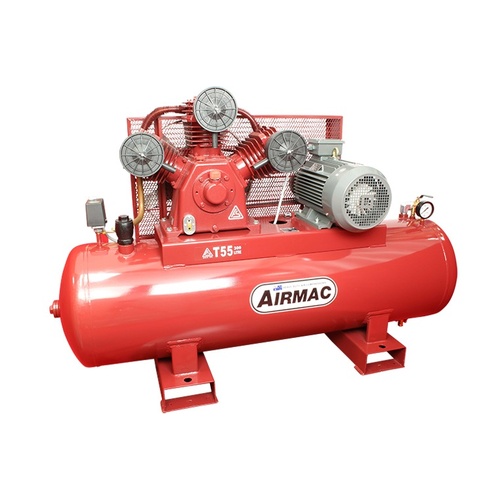

AIRMAC 415V 10hp 300l 1,245 L/Min Air Compressor AM T55 415V

AIRMAC 415V 10hp 300l 1,245 L/Min Air Compressor AM T55 415V

Description

Airmac belt-driven, reciprocating air compressors are uniquely designed and manufactured to provide a lifetime of reliable service. Proudly made for Australia since 1989, they continually exceed the highest standards. The product philosophy behind Airmac’s success has remained unchanged. Start with a heavy duty design using a low speed compressor pump and oversized air tank. Then add a premium selection of genuine brand name components to build the best possible compressor set. Today there are thousands of Airmacs in service across the country - working proof they are the finest quality air compressors available in Australia. You can purchase an Airmac with confidence that it will never need replacing if properly used and maintained. Domestic, trade and small industrial users can choose from ten models in the 240 Volt range. With two or four-wheel mounted, stationary and twin-pump variants, there’s an Airmac compressor to suit every application.

• Oversized Air Receiver...Its oversized capacity maintains a larger air energy reserve that also reduces pressure fluctuation and compressor on / off cycling.
• Teco 240 Volt Motor...The Australian-designed motor incorporates a heavy-duty steel frame and high-efficiency copper windings. Its reliability is enhanced by superior grade capacitors and long-life bearings.
• Dual V-Belts..For extended service life, the larger 2.2 and 2.4 kW models fitted with Fusheng TA-65 or HTA-65 compressor pumps have two V-belts. Other makes cut costs by using only one V-belt.
• Condor Pressure Switch...Founded on German engineering since 1893, Condor pressure switches are world leading. Their superior design and manufacture yields an impressive working life in excess of 100,000 cycles.
• Filter-Regulator ...The 5 micron filter removes dirt, oil and water from the compressed air while the adjustable regulator controls output air pressure. A Nitto-style hose coupling is fitted to the air outlet port. (Not included on HT20 & TT40 models).
• Metal Safety Guard...The all-steel safety guard securely protects the rotating V-belt drive components. Airmac’s traditional metal guard is impact and UV resistant, unlike plastic guards as used by other makes.
• Two or Four Wheels...Airmac two-wheel mounted compressors with xtra-long, easygrip handles are intended for use on soft or uneven ground. The fourwheel models are best suited for use on firm, level surfaces.
• Puncture Proof Tyres...All wheel-mounted models are fitted with sturdy puncture proof tyres that require no maintenance. Zinc-plated axles and nylon sleeve or ball bearing hubs minimise rolling friction resistance.
• Dual Position Foot Mounts...An innovative and unique wheel mounting bracket design lets you base-mount the compressor for fixed stationary or mobile vehicle applications if required.
• Electrical Safety...All Airmac electric compressors are fully compliant with the Australian and New Zealand Wiring Rules to protect users against electric shock, fire and physical injury.
• Motor Power: 7.5kw (10HP)
• Pump Displacement: 1,510L/min 53.4 (cfm)
• Maximum Pressure: 1,000kps (145psi)
• Tank Volume: 300 Litres

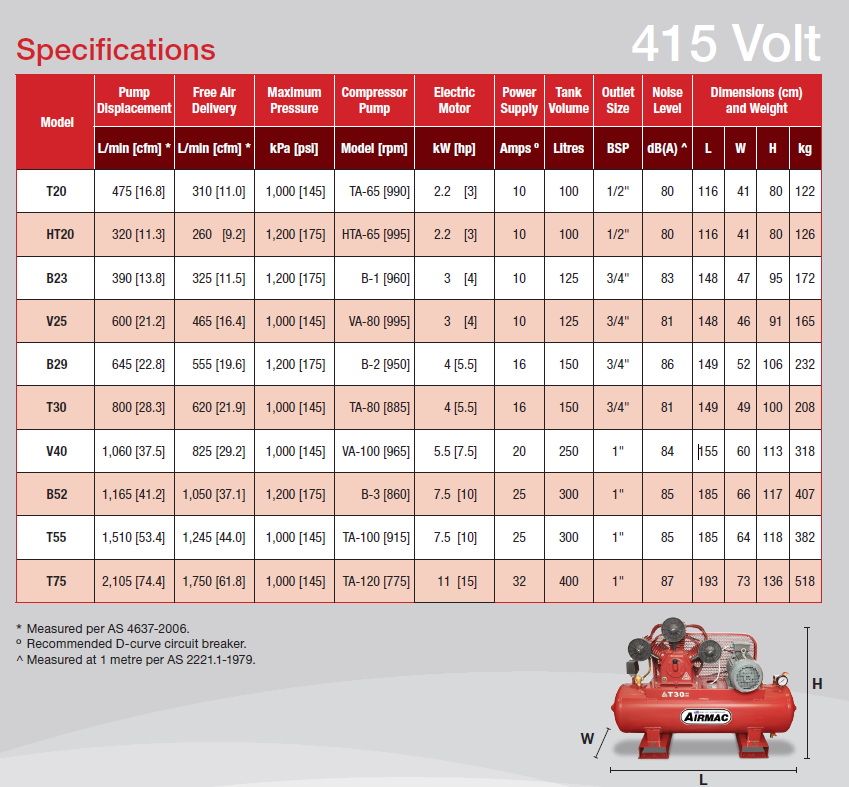

Specifications

• Pump Model: TA-100
• Pump Speed: 915rpm
• Electricity Supply: 415 Volts, 25 Amps
• Outlet Size: 1"
