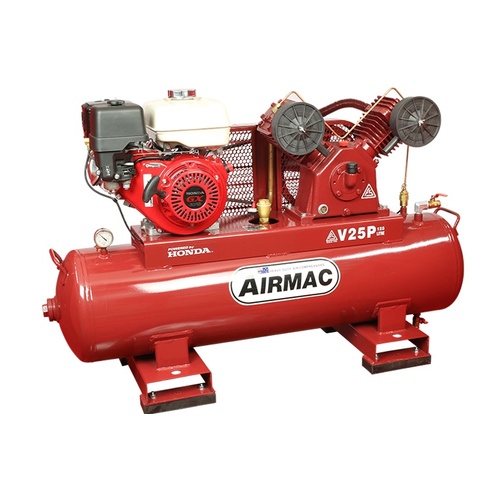

Airmac V25P

Description

Airmac belt-driven, reciprocating air compressors are uniquely designed and manufactured to provide a lifetime of reliable service. Proudly made for Australia since 1989, they continually exceed the highest standards. The product philosophy behind Airmac’s success has remained unchanged. Start with a heavy duty design using a low speed compressor pump and oversized air tank. Then add a premium selection of genuine brand name components to build the best possible compressor set. Today there are thousands of Airmacs in service across the country - working proof they are the finest quality air compressors available in Australia. You can purchase an Airmac with confidence that it will never need replacing if properly used and maintained. No electricity? No problem. Airmac’s market-leading range of Honda petrol engine-powered compressors is ideal for use out in the field. The genuine Honda GX Series engines perfectly complement these superior portable units.

• Honda Petrol Engine...The powerful Honda 4-stroke engine guarantees superior reliability, easy starting and fuel-efficient performance. You can always depend on a Honda to get the job done.
• Automatic Throttle Control...Engine speed and compressor pump operation are both automatically regulated to match air demand. The engine returns to idle when possible to minimise fuel use, noise and wear.
• Oversized Air Receiver...Its oversized capacity maintains a larger air energy reserve that also reduces pressure fluctuation and compressor load / unload cycling.
• Metal Safety Guard...The all-steel safety guard securely protects the rotating V-belt drive components. Airmac’s traditional metal guard is impact and UV resistant, unlike plastic guards as used by other makes.
• High Pressure...Applications requiring higher-thannormal air pressure of up to 1,200 kPa (175 psi) can select from five Airmac models specially equipped with efficient two-stage Fusheng compressor pumps.
• Puncture Proof Tyres...All wheel-mounted models arefitted with sturdy puncture proof tyres that require no maintenance. Zinc-plated axles and nylon sleeve or ball bearing hubs minimise rolling friction resistance.
• Vibration Isolators...Foot-mounted models are thoughtfully supplied with two sets of vibration isolators and fasteners to suit portable freestanding, fixed stationary or mobile vehicle-mounted applications (pictured).
• 12 Volt Battery Kit Option...Convert your electric key-start compressor into a self-contained unit by adding a 12 V battery kit. It includes a maintenance-free battery, special mounting bracket and colour-coded battery leads.
• Filter-Regulator ...The 5 micron filter removes dirt, oil and water from the compressed air while the adjustable regulator controls output air pressure. A Nitto-style hose coupling is fitted to the air outlet port. (Fitted to VA-65 & TA-65 models only).
• Honda Engine Model: GX200, 6.5HP
• Honda Engine Starter: Electric Start
• Pump Displacement: 490L/min (17.3 cfm)
• Free Air Delivery: 320L/min (11.3 cfm)

Specification

• Maximum Pressure: 1,000 (145 psi)
• Tank Volume: 120 Litre
• Pump Model: TA-65
• Pump Speed: 1,025 rpm
