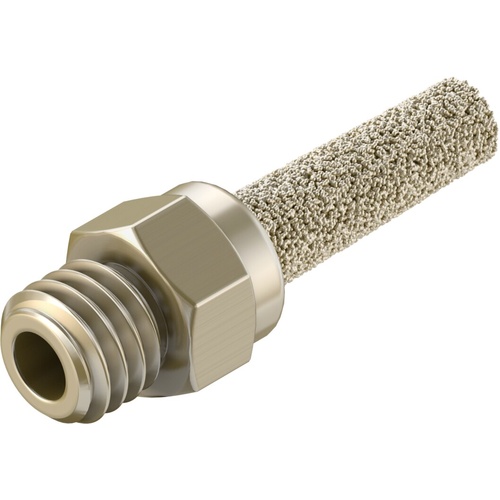

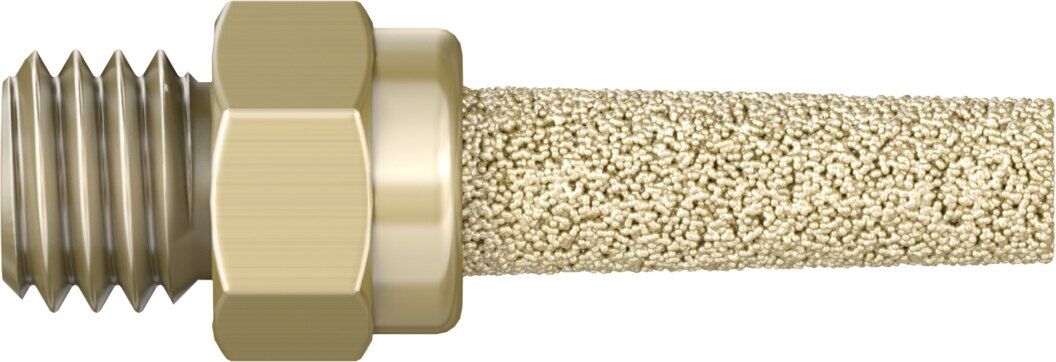

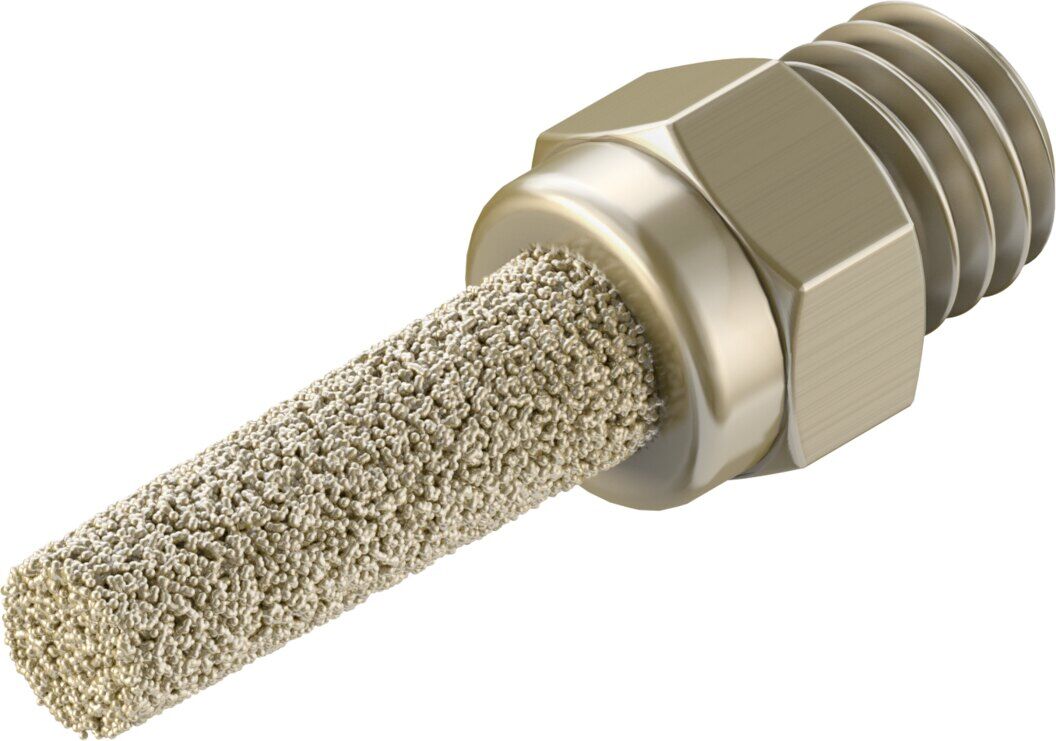

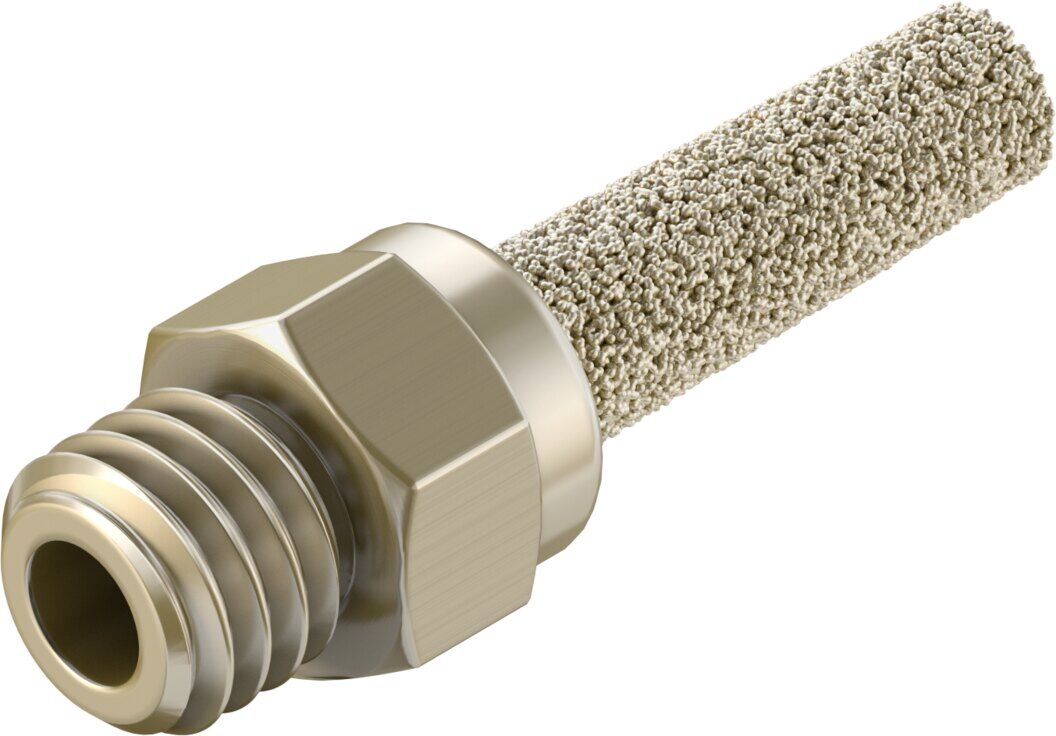

Silencer (x10 pack)

AMTE-M-LH-M3

1231120





GTIN: 4052568061784

Material shock absorber insert
Bronze
Pneumatic connection
M3
Sound pressure level
55 dB(A)



Technical Data

  • Mounting positionoptional
  • Size of pack20
  • Symbol00991473
  • Operating pressure0 MPa ... 1 MPa
  • Operating pressure0 bar ... 10 bar
  • Flow rate to atmosphere95 l/min
  • Explosion protectionZone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Sound pressure level55 dB(A)
  • Ambient temperature-40 °C ... 80 °C
  • Product weight0.4 g
  • Pneumatic connectionM3
  • Material shock absorber insertBronze
  • Material screwed plugBrass
  • Note on materialsRoHS-compliant
SKU 1231120
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
