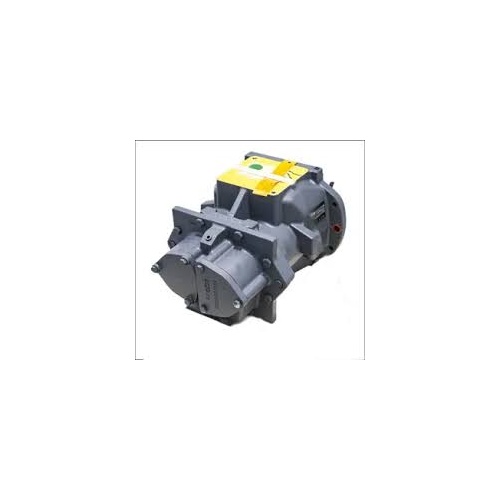

ATLAS COPCO C190 AIR END Oil Flood Screw air compressor 1616734580 1616734581

1616 7345 80 - 1616 7345 81 -

Atlas Copco Stationary Air Compressors
No.9829 3083 20
Ed.
Registration code : APC G>90
2010-05
G 110 - G 132 - G 160
G 110W - G 132W -G 160W
Parts list
• Copyright 2010, Atlas Copco Airpower n.v., Antwerp, Belgium.
Any unauthorized use or copying of the contents or any part thereof is prohibited.
This applies in particular to trademarks, model denominations, part numbers and
drawings.
• Use only authorized parts. Any damage or malfunction caused by the use
of unauthorized parts is not covered by Warranty or Product Liability.
www.atlascopco.com
2
Parts list
9829 3083 20
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Element and connections - C146*.........................................1
Element and connections - C190*................................. ........2
Gearbox - C146........................................................................3
Gearbox - C190.........................................................................4
Valves on elements - C146.....................................................5
Valves on elements - C190.....................................................6
Gears - C146............................................................................7
Gears -C190............................................................................8
Air inlet ..............................................................................9
Unloader - C146............................................................... 10
Unloader - C190.................................. ...............................11
Air receiver ................................................................... 12
Air and oil system
- C 146 ....................................................................... 13
- C 190 ....................................................................... 14
3
Parts list
9829 3083 20
Contents
Inhoud
Innehåll
Inhaltsverzeichnis
Table des matières
Indice
Indice
Innholdsfortegnelse
Indice
Indholdsfortegnelse
Sisällysluettelo
Air oulet ........................................................................ 15
Coolers
- Aircooled ................................................................ 16
- Watercooled - G 110 ................................................ 17
- Watercooled - G 132, G 160 ..................................... 18
Fan and cooling duct plates - Aircooled - G 110 .......... 19
Fan and cooling duct plates - Aircooled - G 132, G 160
20
Frame and motor ........................................................... 21
Regulating system - C146............................................... 22
Regulating system - C190................................................. 23
Drain system ................................................................. 24
Bodywork
- Aircooled ................................................................ 25
- Watercooled ............................................................ 26
Cubicle box ................................................................... 27
Control panel ................................................................ 28
Service kits .................................................................. 29
* C146: 60Hz G 110/100/125/150/200psi,G 132/200psi .
50Hz G 110/7.5/8.5/10/14bar, G 132/14bar.
*C190: 60Hz G 132/100/125/150psi, G 160 100/125/150/200psi.
50Hz G 132/7.5/8.5/10bar, G 160/7.5/8.5/10/14bar.
4
Parts list
9829 3083 20
1
5
Parts list
9829 3083 20
Element and connections -C146 1
Ref. Part number Qty Name Remarks
1010 1616 7409 80 1 Service stage
1020 0508 1158 01 1 Bearing
1030 0335 2160 00 1 Int.circlip
1040 1623 1476 00 1 Spacer
1050 0337 0009 77 1 Key parallel
1060 1623 0367 00 1 Washer
1070 0211 1409 00 1 Screw
1080 0663 2109 78 1 O-ring
1090 0663 2111 46 1 O-ring
1100 0101 1626 00 2 Pin
1120 0661 1000 25 1 Seal washer
Ref. Part number Qty Name Remarks
1130 0686 3716 01 1 Plug
1140 0147 1365 03 3 Hexagon bolt
1150 0147 1366 03 3 Hexagon bolt
1160 0211 1366 03 2 Sock screw
1170 0663 2107 37 1 O-ring
1180 0147 1363 03 4 Hexagon bolt
1190 0301 2344 00 4 Washer
1210 0663 2111 46 1 O-ring
1230 1619 6032 00 5 Nipple
6
Parts list
9829 3083 20
2
7
Parts list
9829 3083 20

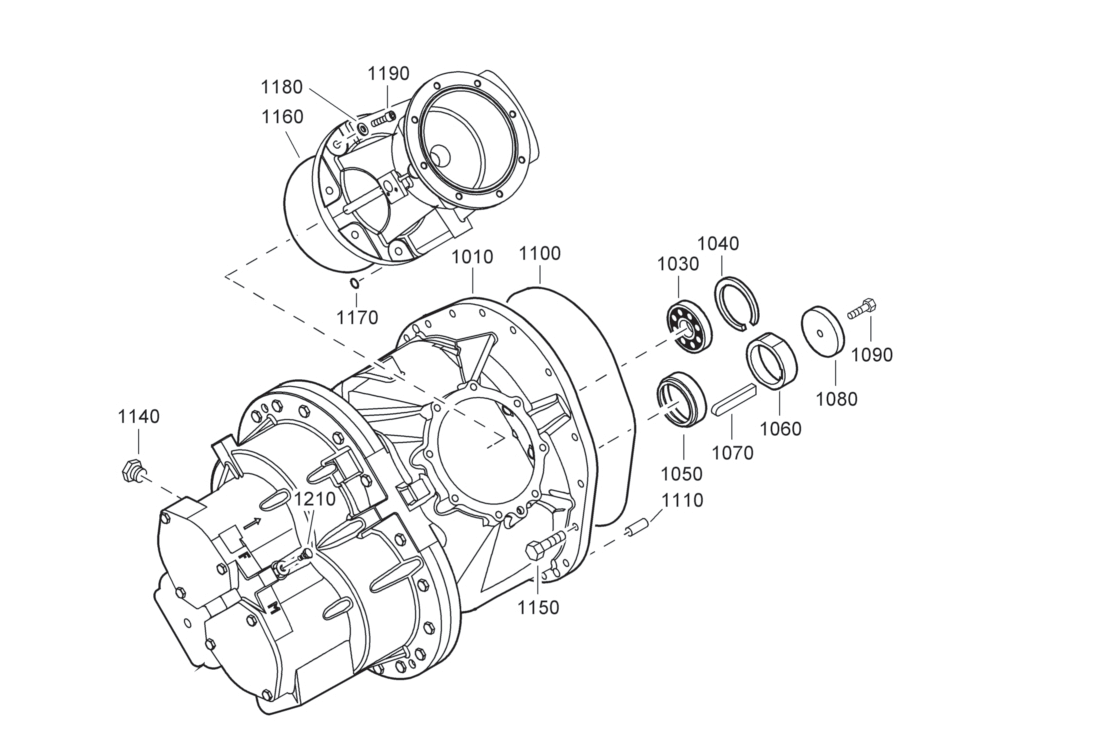

Element and connections - C190 2

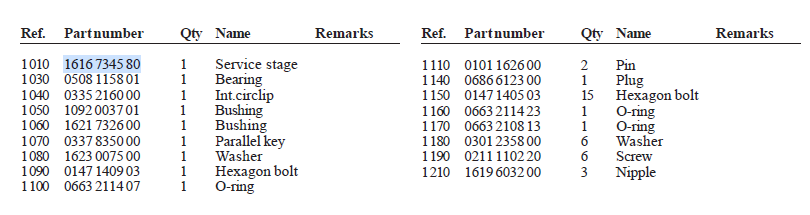

Ref. Part number Qty Name Remarks
1010 1616 7345 80 1 Service stage
1030 0508 1158 01 1 Bearing
1040 0335 2160 00 1 Int.circlip
1050 1092 0037 01 1 Bushing
1060 1621 7326 00 1 Bushing
1070 0337 8350 00 1 Parallel key
1080 1623 0075 00 1 Washer
1090 0147 1409 03 1 Hexagon bolt
1100 0663 2114 07 1 O-ring
Ref. Part number Qty Name Remarks
1110 0101 1626 00 2 Pin
1140 0686 6123 00 1 Plug
1150 0147 1405 03 15 Hexagon bolt
1160 0663 2114 23 1 O-ring
1170 0663 2108 13 1 O-ring
1180 0301 2358 00 6 Washer
1190 0211 1102 20 6 Screw
1210 1619 6032 00 3 Nipple

9
Parts list
9829 3083 20
Gearbox - C146 3
Ref. Part number Qty Name Remarks
1 010 Gear box
1621 7939 00 1 C146
1020 0661 1000 27 1 Seal washer
1030 1623 0972 00 1 Shaft
1040 0211 1480 00 1 Spacer
1080 0504 0110 01 1 Bearing
1090 1616 5518 00 1 Washer
1100 1616 5519 00 1 Bushing
1110 1623 0611 00 1 Bushing
1120 1616 5515 00 1 Retainer
1130 1621 4840 00 1 Seal
Ref. Part number Qty Name Remarks
1140 0663 2107 76 1 O-ring
1150 0147 1366 03 4 Hexagon bolt
1160 0337 0009 91 1 Key parallel
1170 0147 1557 03 8 Hexagon bolt
1180 0147 1411 03 2 Hexagon bolt
1190 1088 0019 02 2 Washer
1200 1202 6668 07 2 Spacer
1220 0147 1479 03 1 Hexagon bolt
1230 0333 3244 00 1 Lock washer
1240 0574 8235 32 1 Hose assembly
1250 1079 5840 15 1 Nipple
1260 1614 9252 00 1 Plug
1270 0266 2116 00 8 Nut
10
Parts list
9829 3083 20
4
11
Parts list
9829 3083 20
Gearbox - C190 4
Ref. Part number Qty Name Remarks
1010 1 Gearbox
1621 7397 01 G 132/6.9/8.6/10.4, 60Hz
1621 7335 01 G 160
1020 0661 1000 27 1 Seal washer
1030 1623 3920 00 1 Shaft
1040 0211 1480 00 8 Hex.Sock.Screw
1060 1 Bearing
0504 0110 01 1 C190
1070 1 Washer
1616 5518 00 C190
1080 1616 5519 00 1 Bushing
1090 1 Bushing
1623 0611 00 C190
Ref. Part number Qty Name Remarks
1100 1616 5515 00 1 Retainer
1110 1621 4840 00 1 Seal
1120 0663 2107 76 1 O-ring
1130 0147 1366 03 4 Hexagon bolt
1170 0337 0009 91 1 Key parallel
1180 0147 1411 03 2 Hexagon bolt
1190 1088 0019 02 2 Washer
1200 0147 1479 03 1 Hexagon bolt
1210 1619 6032 00 1 Plug
1220 1202 6668 07 2 Spacer
1230 0333 3244 00 1 Lock washer
1240 0266 2116 00 8 Nut
1250 0211 1480 00 8 Hex. Sock. Screw
1260 0574 8235 32 1 Hose assembly
1270 1079 5840 15 1 Nipple
1280 1614 9252 00 1 Plug
G 132/7.5/8.5/10,50Hz
12
Parts list
9829 3083 20
5
13
Parts list
9829 3083 20
Valves on element - C146 5
Ref. Part number Qty Name Remarks
1010 1622 0795 00 1 Valve housing
1020 1622 0977 00 1 Gasket
1030 1622 9639 00 1 Check valve
1040 1622 0796 00 1 Spring
1050 1622 1041 00 1 Piston
1060 0661 1000 44 1 Seal washer
1070 0686 3716 07 1 Plug
1080 1623 1362 00 1 Valve oil stop
Ref. Part number Qty Name Remarks
1090 1622 5662 00 1 Spring
1100 0661 1000 44 1 Seal washer
1110 1623 0798 00 1 Nipple
1120 0686 3716 01 1 Plug
1130 0661 1000 25 1 Seal washer
1140 1079 5840 19 1 Nipple
1150 0661 1000 27 1 Seal washer
1160 0211 1964 75 4 Hex. Sock. Screw
14
Parts list
9829 3083 20
6
15
Parts list
9829 3083 20
Valves on element - C190 6
Ref. Part number Qty Name Remarks
1010 1623 0385 00 1 Valve check
1020 2254 8075 00 1 Compr.spring
1030 1623 1354 00 1 Valve stop
1040 1623 1767 00 1 Spring
1050 2252 6269 00 1 Spring guide
1060 0335 2145 00 1 Int.circlip
1070 0663 2108 12 2 O-ring
1080 0663 2106 20 1 O-ring
1090 0663 2106 15 1 O-ring
1100 0663 3116 00 1 O-ring
1110 0301 2358 00 4 Washer
1120 0147 1421 03 4 Hexagon bolt
1130 0301 2358 00 2 Washer
Ref. Part number Qty Name Remarks
1140 0147 1413 03 2 Hexagon bolt
1150 2255 2813 00 1 Piston
1160 0686 3716 01 1 Plug
1170 0661 1000 25 1 Seal washer
1180 0686 3716 10 1 Plug
1190 0661 1000 32 1 Seal washer
1200 0686 6441 00 1 Plug
1210 0686 3101 00 1 Plug
1250 1623 3082 00 1 Nozzle
16
Parts list
9829 3083 20
7
17
Parts list
9829 3083 20
Gears - C146 7
Ref. Part number Qty Name Remarks
G 110 - 6.9bar(e)
1010 1623 4060 00 1 Gear
1020 1623 4059 00 1 Gear
G 110 - 8.6bar(e)
1010 1623 4069 00 1 Gear
1020 1623 4068 00 1 Gear
G 110 - 10.4bar(e)
1010 1623 4072 00 1 Gear
Ref. Part number Qty Name Remarks
1020 1623 4071 00 1 Gear
G 110 - 13.8bar(e)
1010 1623 4074 00 1 Gear
1020 1623 4073 00 1 Gear
G 132 - 13.8bar(e)
1010 1623 4072 00 1 Gear
1020 1623 4071 00 1 Gear
60Hz
G 110 - 7.5bar(e)
1010 1092 1069 00 1 Gear
1020 1092 1068 00 1 Gear
G 110 - 8.5bar(e)
1010 1092 1081 00 1 Gear
1020 1092 1080 00 1 Gear
G 110 - 10bar(e)
1010 1092 1037 00 1 Gear
1020 1092 1036 00 1 Gear
G 110 - 14bar(e)
1010 1092 1055 00 1 Gear
1020 1092 1054 00 1 Gear
G 132 - 14bar(e)
1010 1092 1037 00 1 Gear
1020 1092 1036 00 1 Gear
50Hz
18
Parts list
9829 3083 20
8
19
Parts list
9829 3083 20
Gears - C190 8
Ref. Part number Qty Name Remarks
G 132 - 100psi(e)
1010 1623 3954 00 1 Gear
1020 1623 3953 00 1 Gear
G 132 - 125psi(e)
1010 1623 3977 00 1 Gear
1020 1623 3976 00 1 Gear
G 132 - 150psi(e)
1010 1623 4088 00 1 Gear
1020 1623 7087 00 1 Gear
G 160 - 100psi(e)
1010 1623 3949 00 1 Gear
Ref. Part number Qty Name Remarks
1020 1623 3948 00 1 Gear
G 160 - 125psibar(e)
1010 1623 3952 00 1 Gear
1020 1623 3951 00 1 Gear
G 160 - 150psibar(e)
1010 1623 3954 00 1 Gear
1020 1623 3953 00 1 Gear
G 160 - 200psibar(e)
1010 1623 3953 00 1 Gear
1020 1623 3952 00 1 Gear
60Hz
G 132 - 7.5bar(e)
1010 1092 1033 00 1 Gear
1020 1092 1032 00 1 Gear
G 132 - 8.5bar(e)
1010 1092 1109 00 1 Gear
1020 1092 1108 00 1 Gear
G 132 - 10bar(e)
1010 1092 1067 00 1 Gear
1020 1092 1066 00 1 Gear
G 160 - 7.5bar(e)
1010 1092 1097 00 1 Gear
1020 1092 1096 00 1 Gear
G 160 - 8.5bar(e)
1010 1092 1099 00 1 Gear
1020 1092 1098 00 1 Gear
G 160 - 10bar(e)
1010 1092 1103 00 1 Gear
1020 1092 1102 00 1 Gear
G 160 - 14bar(e)
1010 1092 1549 00 1 Gear
1020 1092 1548 00 1 Gear
50Hz
20
Parts list
9829 3083 20
9
21
Parts list
9829 3083 20
Air inlet 9
Ref. Part number Qty Name Remarks
1020 0301 2344 00 2 Washer
1030 1621 5012 00 2 Support
1040 1079 1472 06 8 Hexagon bolt
1050 0147 1362 03 4 Hexagon bolt
1060 0301 2344 00 4 Washer
1070 1 Hose
1092 0030 27 G 110, GA132/13.8
1092 0035 05 G 132/6.9/8.6/10.4 ,G 160
1080 1092 0002 55 1 Hose clamp
1090 0347 6100 43 1 Hose clip
1100 1614 9625 00 1 Support
1110 1621 5690 00 1 Support
Ref. Part number Qty Name Remarks
1120 0147 1326 03 2 Hexagon bolt
1140 1079 1472 06 1 Hexagon bolt
1150 0346 1000 26 2 Pipe clamp
1180 1 Support
1614 9772 00 Watercooled
1621 7377 80 1 Air filter
2010 1621 7376 00 • 1 Air filter
2020 1621 7377 00 • 1 Housing
22
Parts list
9829 3083 20
10
23
Parts list
9829 3083 20
Unloader - C146 10
Ref. Part number Qty Name Remarks
1623 1786 80 1 Unloader assy
1010 1622 3778 00 • 1 Housing
1020 1622 3688 00 • 1 Rod
1030 0335 2182 00 • 1 Int.circlip
1040 0663 7151 00 • 1 O-ring
1050 1622 3691 00 • 1 Quadring c146
1060 1622 3690 00 • 1 Bushing
1070 1623 1785 00 • 1 Valve
Ref. Part number Qty Name Remarks
1080 1622 3687 00 • 1 Piston
1090 1622 3689 00 • 1 Guidance tape
1100 0261 1099 32 • 1 Nut
1110 1622 3182 00 • 1 Guide
1120 1622 3183 00 • 1 Seal
1130 1622 3184 00 • 1 Bushing
1140 1622 3185 00 • 1 Spring
1150 1622 3649 00 • 1 Cover
24
Parts list
9829 3083 20
11
25
Parts list
9829 3083 20
Unloader - C190 11
Ref. Part number Qty Name Remarks
1623 0794 80 1 Housing valve
1010 1623 0794 00 • 1 Housing valve
1020 1623 0904 00 • 1 Bushing
1030 1623 0335 00 • 1 Valve regulator
1040 0663 2114 22 • 1 O-ring
1050 1623 0508 00 • 1 Rod
1060 1623 0540 00 • 1 Tape
1070 1623 0334 00 • 1 Piston
1080 1623 0539 00 • 1 Seal
1090 0663 2109 49 • 1 O-ring
Ref. Part number Qty Name Remarks
1100 1623 0796 00 • 1 Cover valve
1110 0661 1000 29 • 1 Seal washer
1120 0686 3716 35 • 1 Plug
1130 0301 2358 00 • 8 Washer
1140 0147 1403 03 • 8 Hexagon bolt
1150 0517 1424 00 • 1 Bearing ball
1160 1623 0881 00 • 1 Pin
1170 0663 2111 66 • 1 O-ring
1180 0335 2126 00 • 1 Circlip
26
Parts list
9829 3083 20
12
27
Parts list
9829 3083 20
Air receiver 12
Ref. Part number Qty Name Remarks
1614 6478 80 1 Min. Press valve
2010 9125 7289 00 • 1 Set screw
2020 0147 1365 03 • 6 Hexagon bolt
2030 0147 1958 97 • 2 Hexagon bolt
2040 0301 2335 00 • 2 Washer
2050 0663 2106 58 • 1 O-ring
2060 0665 0701 39 • 1 Back-up ring
2070 1614 6477 00 • 1 Sleeve
2080 1614 6478 00 • 1 Cover
2090 1621 4977 00 • 1 Piston
2100 1614 6957 00 • 1 Washer
2110 1623 2037 00 • 1 Shaft
2120 2253 1860 00 • 1 Spring
2130 1621 4975 00 • 1 Ring
2140 1621 4976 00 • 1 Nut
Air receiver
Vessel
3010 • 1 Asme vessel
1092 0024 02 G 110
1092 0024 03 G 132, G 160
3020 0147 1555 03 • 15 Hexagon bolt
3030 0301 2394 00 • 15 Washer
4020 1 Valve housing
1092 0033 08 G 110
1092 0033 08 G 110
5010 0147 1479 03 1 Hexagon bolt
5020 0147 1962 29 11 Hexagon bolt
5090 0661 1000 31 1 Seal washer
5100 0663 2109 45 1 O-ring
5110 0663 2109 45 1 O-ring
5120 1092 0112 00 1 Pipe
5130 1 Oil separator element
1614 9054 00 G 110
1614 9056 00 G 132, G 160
5140 1614 9089 00 1 Pivot pin
Ref. Part number Qty Name Remarks
5150 1 Bushing
1614 9090 00 G 110
1614 9094 00 G 132, G 160
5160 1 Scavenge line
1614 9142 00 G 110
1614 9141 00 G 132, G 160
5170 1614 9146 00 1 Plug
5180 1614 9184 00 1 Level gauge
5190 1 Shield
1614 9223 00 G 110
1092 0041 97 G 132, G 160
5200 1621 9144 00 1 Hose assembly
5210 2250 2528 00 1 Plug
5220 0663 2106 20 1 O-ring
G 110, G 132/8.6/10.4/13.8
G 160 10.4/13.8
6010 0830 1008 95 1 Safety valve
6020 0603 4106 03 1 Nipple
6030 0560 0200 73 1 Elbow
6040 0653 1165 00 2 Flat gasket
G 132/6.9
G 160/6.9/8.6
6010 0830 1008 92 1 Safety valve
6020 0603 4107 03 1 Nipple
6030 0564 0000 81 1 Elbow
6040 0653 1189 00 2 Flat gasket
Oil - Roto Xtend duty
7010 1092 0012 07 1 Label
7020 1092 0050 00 1 Oil can
• 1 CE vessel
1092 005125 G 110
1092 005128 G 132, G 160
CE
1092 0050 98 G 110
1092 0050 99 G 132, G 160
ASME
G 110/8.5/10/14
Safety valve
ASME
CE
G 132,G160
G 110/7.5
ASME
CE
28
Parts list
9829 3083 20
13
29
Parts list
9829 3083 20
Air and oil system - C146 13
Ref. Part number Qty Name Remarks
Oil connection
1010 0147 1362 03 2 Hexagon bolt
1020 0147 1370 03 3 Hexagon bolt
1030 0147 1401 03 2 Hexagon bolt
1040 0301 2344 00 5 Washer
1050 0301 2358 00 2 Washer
1060 0661 1000 24 2 Seal washer
1070 0661 1000 25 1 Seal washer
1080 0663 2107 77 2 O-ring
1090 0663 2106 11 1 O-ring
1100 0663 2109 68 1 O-ring
1110 0686 3716 01 1 Plug
1120 1079 5840 01 2 Nipple
1130 1621 7378 00 2 Glass fiber oil filter
1140 1092 0023 35 1 Oil filter housing
1150 1623 1451 00 2 Nipple
1160 1621 0399 00 1 Regul.valve
1170 1621 9635 00 1 Hose
1190 0266 2112 00 4 Nut
1200 1 Thermost.valve
1202 5869 03 13.8 60Hz
1619 7560 00 6.9/8.6/10.4 60Hz
2010 0147 1369 03 8 Hexagon bolt
2020 0147 1961 01 4 Hexagon bolt
2025 0147 1406 03 4 Hexagon bolt
2028 0147 1476 03 4 Hexagon bolt
2030 0147 1499 03 2 Hexagon bolt
Ref. Part number Qty Name Remarks
2050 0291 1114 00 4 Locknut
2060 0301 2378 00 8 Washer
2070 0301 2344 00 20 Washer
2080 0301 2358 00 8 Washer
2085 0300 0276 03 4 Washer
2090 0663 2106 15 1 O-ring
2100 0663 2106 17 1 O-ring
2110 0663 2106 17 1 O-ring
2120 0663 2106 18 2 O-ring
2130 0663 2107 94 1 O-ring
2135 0147 1363 03 2 Hexagon bolt
2138 0066 7138 00 1 O-ring
2140 1092 0020 29 1 Pipe
2160 1614 8926 00 8 Absorber
2165 1092 0020 30 1 Pipe
2185 03000276 03 4 Washer
2190 1614 9117 00 2 Pipe
2210 1614 9171 00 1 Pipe
2220 1614 9169 00 1 Pipe
2230 0147 1363 03 4 Hexagon bolt
2240 1614 9459 00 1 Pipe
2285 1092 0020 28 1 Pipe
2290 1092 0023 07 1 Elbow
2300 0346 1000 27 2 Pipe clamp
2310 1619 2766 00 1 Hexagon bolt
2320 0147 1500 03 2 Hexagon bolt
3010 1614 9114 00 4 Joint set
1614 9115 00 • 1 Joint
1614 9116 00 • 1 Ring
1614 9118 00 • 2 Bracket
14 50Hz
7.5/8.5/10 50Hz
30
Parts list
9829 3083 20
14
31
Parts list
9829 3083 20
Air and oil system - C190 14
Ref. Part number Qty Name Remarks
Oil connection
1010 0147 1362 03 2 Hexagon bolt
1020 0147 1370 03 3 Hexagon bolt
1030 0147 1401 03 2 Hexagon bolt
1040 0301 2344 00 7 Washer
1050 0301 2358 00 2 Washer
1060 0661 1000 24 2 Seal washer
1070 0661 1000 25 1 Seal washer
1080 0663 2107 77 2 O-ring
1090 0663 2106 11 1 O-ring
1100 0663 2109 68 1 O-ring
1110 0686 3716 01 1 Plug
1120 1079 5840 01 2 Nipple
1130 1621 7378 00 2 Glass fiber oil filter
1140 1092 0023 35 1 Oil filter housing
1150 1623 1451 00 2 Nipple
1160 1621 0399 00 1 Regul.valve
1170 1621 9635 00 1 Hose
1180 1092 0030 16 1 Pipe
1185 0663 2108 00 1 O-ring
1186 0147 1363 03 2 Hexagon bolt
1190 0266 2112 00 4 Nut
1200 1 Thermost.valve
1202 5869 03 13.8 60Hz
1619 7560 00 6.9/8.6/10.4 60Hz
Air connection
2010 0147 1369 03 8 Hexagon bolt
Ref. Part number Qty Name Remarks
2020 0147 1961 01 8 Hexagon bolt
2030 0147 1502 03 2 Hexagon bolt
2040 0211 1401 03 4 Hex. sock. screw
2050 0291 1114 00 4 Locknut
2060 0300 0276 03 8 Washer
2070 0301 2344 00 20 Washer
2080 0301 2358 00 12 Washer
2090 0663 2106 15 1 O-ring
2100 0663 2106 17 1 O-ring
2110 0663 2106 17 1 O-ring
2120 0663 2106 18 2 O-ring
2130 0663 2109 69 1 O-ring
2140 1092 0020 31 1 Pipe
2150 0634 1001 45 1 Coupline
2160 1614 8926 00 8 Absorber
2170 1614 9063 00 4 Joint set
2185 0300027603 4 Washer
2190 1614 9066 00 2 Pipe
2210 1092 0020 32 1 Pipe
2220 1614 9217 00 1 Pipe
2230 0147 1363 03 4 Hexagon bolt
2240 1614 9448 00 1 Pipe
2250 1614 9488 00 1 Pipe
2280 1092 0030 16 1 Pipe
2290 1092 0023 07 1 Elbow
2310 1619 2766 00 1 Hexagon bolt
2320 0147 1501 03 2 Hexagon bolt
3010 1614 9063 00 4 Joint set
1614 9064 00 • 8 Joint
1614 9065 00 • 8 Ring
1614 9067 00 • 16 Bracket
14 50Hz
7.5/8.5/10 50Hz
32
Parts list
9829 3083 20
15
33
Parts list
9829 3083 20
Air outlet 15
Ref. Part number Qty Name Remarks
1005 0147 1323 03 1 Hexagon bolt
1010 0147 1369 03 4 Hexagon bolt
1015 2 Hexagon bolt
0147 1499 03 G 110
0147 1501 03 G 132, G 160
1020 0211 1401 03 4 Hex. Sock. Screw
1025 0301 2344 00 1 Washer
1030 0291 1114 00 2 Locknut
1035 0300 0276 03 4 Washer
1040 0301 2344 00 4 Washer
1045 0301 2358 00 4 Washer
1050 0653 1062 00 1 Flat gasket
1055 1 O-ring
0663 2107 94 G 110
0663 2109 69 G 132, G 160
1060 0686 3716 01 1 Plug
1065 1092 0030 23 1 Support
1070 1614 8926 00 4 Absorber
1080 1 Pipe
1614 9117 00 G 110
1614 9066 00 G 132, G 160
1085 1619 2766 00 2 Hexagon bolt
Ref. Part number Qty Name Remarks
1090 1 Pipe
1092 0033 10 G 110
1092 0033 11 G 132, G 160
1095 1619 2766 00 2 Hexagon bolt
1096 1619 5337 01 5 Hexagon bolt
1097 0301 2344 00 1 Washer
1100 1619 5337 01 5 Hexagon bolt
2000 1 Pipe
1614 9461 00 G 110
1614 9450 00 G 132, G 160
2005 1 O-ring
0663 2107 94 G 110
0663 2109 69 G 132, G160
2 010 1614 9114 00 2 Joint set G 110
1614 9115 00 • 1 Joint
1614 9116 00 • 1 Ring
1614 9118 00 • 2 Bracket
2 010 1614 9063 00 2 Joint set G 132, G 160
1614 9064 00 • 1 Joint
1614 9065 00 • 1 Ring
1614 9067 00 • 2 Bracket
34
Parts list
9829 3083 20
16
35
Parts list
9829 3083 20
Coolers - Aircooled 16
Ref. Part number Qty Name Remarks
1010 0147 1323 03 12 Hexagon bolt
1020 0147 1362 03 12 Hexagon bolt
1040 0300 8019 00 12 Washer
1050 0301 2344 00 12 Washer
1065 0346 1012 44 1 Pipe clamp
1080 1 Hose assembly
0574 8235 32 G 110
0574 8235 37 G 132, G160
1090 1 Hose assembly
0574 8235 42 G 110
0574 8235 45 G 132, G160
1100 0661 1000 27 4 Seal washer
1110 0663 2109 68 4 O-ring
1120 0663 2109 68 2 O-ring
1130 0686 3716 02 2 Plug
1140 1079 5840 15 2 Nipple
1200 1 Cooler
Ref. Part number Qty Name Remarks
1210 2 Oil cooler
1621 4112 00 G 110, G 132
1621 4111 00 G 160/6.4/8.6/10.4 60Hz
1621 9489 00 G 160/13.8 60Hz
1160 1614 9252 00 2 Plug
1180 1619 2766 00 5 Hexagon bolt
1185 1619 2861 01 1 Clamp
1190 1619 5337 01 1 Hexagon bolt
1220 1 Hose assembly
1614 8959 00 G 110
1621 9139 00 G 132, G160
1230 1 Hose assembly
1092 0035 19 G 110
1621 9137 00 G 132, G160
1240 1 Hose
1621 9636 00 G 110
1621 9138 00 G 132, G160
1621 4112 00 G 110, G 132
1621 4110 00 G 160
G 160/7.5/8.5/10 50Hz
G 160/14 50Hz
36
Parts list
9829 3083 20
17
37
Parts list
9829 3083 20
Coolers - Watercooled G 110 17
Ref. Part number Qty Name Remarks
1010 0147 1362 03 12 Hexagon bolt
1020 0147 1401 03 4 Hexagon bolt
1030 0147 1407 03 2 Hexagon bolt
1040 0147 1474 03 2 Hexagon bolt
1050 0266 2112 00 2 Nut
1060 0301 2344 00 12 Washer
1070 0301 2358 00 8 Washer
1080 0301 2378 00 2 Washer
1090 0661 1000 25 1 Seal washer
1100 0663 2106 11 2 O-ring
1110 0663 2106 12 2 O-ring
1120 0663 2109 68 2 O-ring
1130 0686 3716 01 1 Plug
1140 1614 6632 00 1 Plate
1 150 1614 8661 08 1 Oil cooler
1160 1619 5337 01 7 Hexagon bolt
1170 1092 0018 14 1 Support
1 180 1621 2094 08 1 Aftercooler
1190 1621 4858 00 1 Hose assembly
1200 1621 4859 00 1 Hose assembly
1250 1621 2096 00 1 Support
Water connection
2010 0147 1405 03 4 Hexagon bolt
2020 0266 2112 00 4 Nut
2030 0301 2358 00 4 Washer
2040 0661 1000 24 1 Seal washer
2050 0661 1000 25 2 Seal washer
2060 0661 1000 29 2 Seal washer
Ref. Part number Qty Name Remarks
2070 0663 2106 12 2 O-ring
2130 1619 5337 01 2 Hexagon bolt
2140 1619 6153 08 1 Ball valve
2150 1092 0031 58 1 Pipe
2160 1092 0031 59 2 Pipe
2170 1092 0031 60 1 Pipe
2180 1092 0033 13 1 Pipe
2190 1092 0031 62 1 Pipe
2200 1092 0033 12 1 Pipe
2210 0634 1000 27 4 Victaulic coupling
2240 0686 3716 35 2 Plug
2250 0661 1000 29 2 Seal washer
3010 0663 2106 17 1 O-ring
3020 0147 1363 03 4 Hexagon bolt
3030 0301 2344 00 4 Seal washer
3040 1621 2328 00 1 Pipe
3050 1092 0005 79 1 Pipe
3060 0663 2106 20 1 O-ring
3070 0147 1402 03 4 Hexagon bolt
3080 0301 2344 00 4 Seal washer
4010 1621 2060 00 1 Pipe
4020 0147 1476 03 4 Hexagon bolt
4030 0301 2378 00 4 Seal washer
4040 0663 2107 94 2 O-ring
4050 1092 0005 80 1 Pipe
4060 0147 1402 03 4 Hexagon bolt
4070 0301 235800 4 Seal washer
4080 0663 2106 15 1 O-ring
38
Parts list
9829 3083 20
18
39
Parts list
9829 3083 20
Coolers - Watercooled G 132, G 160 18
Ref. Part number Qty Name Remarks
1010 0147 1362 03 16 Hexagon bolt
1020 0147 1401 03 4 Hexagon bolt
1030 0147 1402 03 4 Hexagon bolt
1040 0147 1407 03 2 Hexagon bolt
1050 0266 2112 00 2 Nut
1060 0301 2344 00 16 Washer
1070 0301 2358 00 12 Washer
1080 0661 1000 25 1 Seal washer
1090 0663 2106 11 4 O-ring
1100 0663 2106 12 2 O-ring
1110 0663 2109 68 2 O-ring
1120 0686 3716 01 1 Plug
1130 1614 6632 00 1 Plate
1140 1614 6634 00 1 Pipe
1150 1614 9299 00 1 Support
1160 1614 9583 00 1 Support
1170 1619 2766 00 4 Hexagon bolt
1180 1619 5337 01 4 Hexagon bolt
1190 1621 2039 00 1 Hose assembly
1200 1621 2040 00 1 Hose assembly
1230 1092 0018 13 1 Support
1270 1092 5690 00 1 Support
1280 1614 9299 00 1 Support
2010 1621 2048 00 1 Pipe
2020 0663 2106 15 1 O-ring
2030 0147 1364 03 4 Hexagon bolt
2040 0301 2344 00 4 seal washer
2050 0663 2109 69 2 O-ring
2060 0147 1401 03 8 Hexagon bolt
2070 0301 2358 00 8 seal washer
2080 1621 2060 00 1 Pipe
Ref. Part number Qty Name Remarks
3010 0663 2106 20 1 O-ring
3020 0147 1402 03 4 Hexagon bolt
3030 0301 2344 00 4 seal washer
3040 1621 2046 00 1 Pipe
3050 1621 2047 00 1 Pipe
3060 0663 2106 17 1 O-ring
3070 0147 1363 03 4 Hexagon bolt
3080 0663 2106 20 4 seal washer
1 210 1621 2050 08 1 Aftercooler
1 220 1621 4850 08 2 Oil cooler
Water connection
4010 0147 1405 03 8 Hexagon bolt
4020 0266 2112 00 8 Nut
4030 0301 2358 00 10 Washer
4040 0661 1000 24 1 Seal washer
4050 0661 1000 25 1 Seal washer
4060 0661 1000 25 1 Seal washer
4070 0661 1000 29 1 Seal washer
4080 0663 2106 12 4 O-ring
4150 1619 6153 08 1 Ball valve
4160 1092 0031 68 1 Pipe
4170 1092 0031 69 1 Pipe
4180 1092 0033 14 1 Pipe
4190 1092 0031 64 1 Pipe
4200 1092 0031 65 1 Pipe
4210 1092 0031 66 1 Pipe
4220 1092 0033 13 1 Pipe
4230 0634 1000 27 4 Victaulic coupling
4260 1621 4847 00 1 Pipe
4270 0686 3716 35 2 Plug
4280 0661 1000 29 2 Seal washer
40
Parts list
9829 3083 20
19
41
Parts list
9829 3083 20
Fan and cooling duct plates - Aircooled G 110 19
Ref. Part number Qty Name Remarks
Cooler plates
1010 0147 1360 03 4 Hexagon bolt
1020 0147 1360 03 10 Hexagon bolt
1030 1623 4907 00 5 Hexagon bolt
1040 0147 1401 03 4 Hexagon bolt
1050 0301 2344 00 14 Washer
1060 0301 2358 00 4 Washer
1070 1088 0019 02 5 Contact washer
1 140 1092 0024 29 1 Plate
1150 1092 0024 38 1 Support
1 160 1092 0024 39 1 Fan cowl
1170 1614 9762 00 2 Hinge
1180 1092 0051 56 1 Fan guard
1190 1619 2766 00 36 Hexagon bolt
1200 1619 5337 01 4 Hexagon bolt
1210 1619 6449 00 AR Seal
1220 0147 1320 03 8 Hexagon bolt
1092 0030 29 1 Baffle
2020 1503 1056 00 • 2 Seal
2030 1092 0030 30 • 1 Baffle
2040 1619 6449 00 • AR Seal
1092 0021 80 1 Baffle
3020 1202 6584 00 • AR Seal
3030 1092 0020 80 • 1 Baffle
3040 1619 6449 00 • AR Seal
Ref. Part number Qty Name Remarks
1092 0038 17 1 Beam 1)
4020 1092 0030 92 • 1 Warning label
4030 1092 0038 18 • 1 Beam
1092 0038 20 1 Beam 2)
5020 1092 0030 92 • 1 Warning label
5030 1092 0038 21 • 1 Beam
Fan arrangement
6010 0147 1363 03 1 Hexagon bolt
6020 1092 0050 21 2 Washer
6030 1614 6456 00 1 Washer
6040 1092 0050 09 1 Fan
7020 1088 1001 01 1 Warning label
7030 1503 0786 00 1 Rotation arrow
Fan motor
8010 1 Motor
1092 0916 09 460V 60Hz UL
1092 0916 31 400V 50Hz CE
Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Kledd med / Vuorattu :
Garnir de / Rivestido de / Allineato con /
Foret med / Revestido com /
Kledd med / Vuorattu :
1) Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
2) Foam: 0395 6001 69 (AR) 30 x 2040 x 1650
42
Parts list
9829 3083 20
20
43
Parts list
9829 3083 20
Fan and cooling duct plates - Aircooled G 132, G 160 20
Ref. Part number Qty Name Remarks
Cooler plates
1010 0147 1322 03 2 Hexagon bolt
1020 0147 1360 03 4 Hexagon bolt
1030 1623 4907 00 10 Hexagon bolt
1040 0147 1363 03 10 Hexagon bolt
1050 0147 1401 03 8 Hexagon bolt
1060 0291 1110 00 2 Locknut
1070 0301 2335 00 2 Washer
1080 0301 2344 00 14 Washer
1090 0301 2358 00 8 Washer
1100 1088 0019 02 10 Contact washer
1 150 1614 9216 80 1 Plate
1160 1092 0051 57 2 Fan guard
1170 1614 9405 00 4 Hinge
1200 1619 2766 00 35 Hexagon bolt
1210 1619 5337 01 8 Hexagon bolt
1220 1619 6449 00 AR Seal
1230 1621 9526 00 1 Plate
1240 1621 9527 00 1 Fan cowl
1250 1621 9528 00 1 Support
1260 0147 1320 03 8 Hexagon bolt
1092 0028 30 1 Baffle G 132/6.9/8.6/10.4,
G160/6.9/8.6
2020 1202 6584 00 • AR Seal
2030 1092 0028 20 • 1 Baffle
2040 1619 6449 00 • AR Seal
1092 0035 25 1 Baffle G 132/6.9/8.6/10.4,
G160/6.9/8.6
3010 1092 0035 26 • 1 Baffle
3020 1088 0803 26 • 1 Grommet
3030 1619 6449 00 • AR Seal
1092 0021 83 Baffle G 160/10.4/13.8
2010 1088 0803 26 • 2 Grommet
2020 1202 6584 00 • AR Seal
2030 1092 0020 83 • 1 Baffle
2040 1619 6449 00 • AR Seal
1092 0035 27 Baffle G 160/10.4/13.8
3010 1092 0040 00 • 1 Baffle
3030 1619 6449 00 • AR Seal
Ref. Part number Qty Name Remarks
1092 0021 80 Baffle G 132/13.8
2010 1088 0803 26 • 2 Grommet
2020 1202 6584 00 • AR Seal
2030 1092 0020 80 • 1 Baffle
2040 1619 6449 00 • AR Seal
1092 0035 23 Baffle G 132/13.8
3010 1092 0040 00 • 1 Baffle
3020 1088 0803 26 • 1 Grommet
3030 1619 6449 00 • AR Seal
1092 0038 17 1 Beam
4020 1092 0030 92 • 1 Warning label
4030 1092 0038 18 • 1 Beam
1092 0038 20 1 Beam
5020 1092 0030 92 • 1 Warning label
5030 1092 0038 21 • 1 Beam
Fan arrangement
6010 2 Hexagon bolt
0147 1362 03 G 132
0147 1363 03 G 160
6020 1092 0050 22 2 Washer
6030 1614 6456 00 2 Washer
6040 2 Fan
1092 0050 08 G 132
1092 0050 09 G 160
7020 1088 1001 01 2 Warning label
7030 1503 0786 00 2 Rotation arrow
Fan motor
8010 2 Motor
1092 0916 09 460V 60Hz UL
Lined with / Bekleed met / Beklädd med / Ausgekleidet
mit / Kledd med / Vuorattu :
Garnir de / Rivestido de / Allineato con / Foret med /
Revestido com / Kledd med / Vuorattu :
1) Foam: 0395 6001 69 (AR) 50 x 2040 x 1650
2) Foam: 0395 6001 69 (AR) 30 x 2040 x 1650
44
Parts list
9829 3083 20
21
45
Parts list
9829 3083 20
Frame and motor 21
Ref. Part number Qty Name Remarks
Frame
G 110
1020 0147 1322 03 1 Hexagon bolt
1025 0147 1358 03 1 Hexagon bolt
1030 0147 1400 03 6 Hexagon bolt
1035 0147 1401 03 4 Hexagon bolt
1040 0147 1411 03 2 Hexagon bolt
1055 0261 2114 00 1 Nut
1060 0291 1111 00 3 Nut
1070 0301 2358 00 18 Washer
1080 1088 0019 01 1 Contact washer
1085 1088 0019 02 1 Contact washer
1095 0346 1005 19 2 Pipe clamp
1100 2 Anti pad
3175 1782 00 G 110
1619 5189 01 G 132, G 160
1105 1020 5072 00 1 Rubber buffer
1110 1092 0043 00 1 Cable
1120 1 Support
1092 0022 22 G 110
1614 6599 00 G 132, G 160
1126 1092 0029 82 1 Stud G 132, G 160
1130 1614 6600 00 1 Disc G 132, G 160
1130 0301 2378 00 2 Washer
1135 0147 1491 03 2 Hexagon bolt
1145 1614 9542 00 3 Buffer
1150 1 Frame
1092 0038 33 G 110
Ref. Part number Qty Name Remarks
1092 0038 35 G 132, G160
1165 2 Spacer
1092 0023 13 G 110
1092 0023 15 G 132, G 160
1170 0147 1377 03 3 Hexagon bolt
1172 0301 2344 00 3 Washer
1175 1092 0178 00 3 Support
1180 0346 1012 44 1 Pipe clamp
1185 1619 5337 01 1 Hexagon bolt
1190 1092 0020 33 2 Support
2010 1 Motor
1092 0920 31 G 110
1092 0911 31 G 132
1092 0913 31 G 160
Coupling
G 110
3010 1623 0377 00 1 Coupling drive
3015 1623 0378 00 1 Absorber
3020 1623 0379 01 1 Coupling drive
G 132
3010 1623 0377 00 1 Coupling drive
3015 1623 0378 00 1 Absorber
3020 1623 0379 00 1 Coupling drive
G 160
3010 1623 0374 00 1 Coupling element
3015 1623 0375 00 1 Absorber
3020 1623 0376 00 1 Coupling drive
46
Parts list
9829 3083 20
22
47
Parts list
9829 3083 20
Regulating system - C146 22
Ref. Part number Qty Name Remarks
Control system
1010 0160 6038 00 4 Screw
1020 0301 2315 00 4 Washer
1050 1089 0574 70 4 Temperature sensor
1060 1089 9625 01 1 Dp transducer
1080 1089 9625 33 2 Pressure transducer
1100 1092 0150 00 1 Label
1110 1614 9406 00 1 Bracket
1120 1900 0712 92 1 Regulator
1130 1089 0637 16 1 Temperature switch
1140 1092 0051 49 1 Wire harness
Regulation
2020 0147 1364 03 4 Hexagon bolt
2040 0301 2344 00 4 Washer
2050 0574 8231 26 2 Hose assembly
2060 0574 9917 15 1 Hose assembly
2070 1 Hose
1092 0031 38 G 110 A, G 132/13.8 A
1092 0030 26 G 110 W, G 132/13.8 W
2080 1091 6006 00 1 Hose assembly
2090 0580 0013 32 1 Coupling
2100 0653 0500 02 1 Flat gasket
2110 0661 1000 24 2 Seal washer
2120 0661 1000 25 1 Seal washer
2130 0661 1000 27 1 Seal washer
2140 0661 1000 29 2 Seal washer
2150 0661 1000 30 1 Seal washer
2160 0663 2107 37 1 O-ring
2170 1079 5840 01 1 Nipple
2180 1079 5840 19 1 Nipple
2190 1079 5840 29 2 Nipple
2200 1092 0029 97 1 Flange Aircooled
2210 0663 2109 71 1 O-ring Aircooled
2220 0211 1362 03 4 Hex. Sock. Screw
Ref. Part number Qty Name Remarks
2230 0564 0000 34 1 Tee
2240 0571 0035 05 1 Nipple
2260 0603 4105 03 1 Nipple
2270 0653 1124 00 1 Flat gasket
3 200 <<< >>> 1 Unloader valve
3220 1614 9144 00 1 Nipple
3230 1092 0008 96 1 Nozzle
3240 1619 5205 00 1 Nipple
3250 1092 0030 66 1 Nipple
3260 0661 1000 26 1 Seal washer
3280 1092 2106 09 1 Flange
3290 1092 2106 10 1 Nipple
3300 0661 1000 49 1 Seal washer
3310 0663 2106 09 2 O-ring
3320 0160 6043 00 4 Screw
3330 0160 6043 00 4 Screw
1623 1810 80 1 Valve assembly
4010 0663 2111 55 • 1 O-ring
4020 0301 2318 00 • 2 Plain washer
4030 0160 0996 99 • 2 Scraw slot
1622 3694 80 • 1 Blow-off valve
5010 0226 3300 18 •• 4 Screw
5020 0663 2112 69 •• 1 O-ring
5030 1513 0477 00 •• 1 Piston ring
5040 1622 3694 00 •• 1 Housing
5050 1622 3694 01 •• 1 Cover
5060 1622 3694 02 •• 1 Piston
5070 1622 3694 03 •• 1 Seal
5080 1622 3694 04 •• 1 Seal
5090 1622 3694 05 •• 1 Rivet
5100 1622 3694 06 •• 2 Insert
5110 1622 3694 07 •• 1 Seal
Solenoid valve
6010 1089 0668 21 1 Solenoid valve
48
Parts list
9829 3083 20
23
49
Parts list
9829 3083 20
Regulating system - C190 23
Ref. Part number Qty Name Remarks
Control system
1010 0160 6038 00 4 Screw
1020 0301 2315 00 4 Washer
1050 1089 0574 70 4 Temperature sensor
1060 1089 9625 01 1 Dp transducer
1070 1089 063716 1 Temperature switch
1080 1089 9625 33 2 Pressure transducer
1120 1900 0712 92 1 Regulator
1130 1089 0574 70 1 Temperature sensor
1140 1092 0051 49 1 Wire harness
1150 1092 0030 31 1 Pipe Aircooled
1170 0663 2114 23 1 O-ring Aircooled
1180 0211 1362 03 4 Hex. Sock. Screw
1200 0564 0000 34 1 Tee
1210 0571 0035 05 1 Nipple
1220 0574 8236 35 1 Hose assembly
1230 0603 4105 03 1 Nipple
1240 0653 1124 00 1 Flat gasket
1250 0603 4200 36 2 Nipple
1260 0661 1000 26 2 Seal washer
1270 0575 0401 29 1 Hose
Regulation
2020 0147 1364 03 4 Hexagon bolt
2040 0301 2344 00 4 Washer
2050 1 Hose
1092 0039 06 Aircooled
1092 0039 02 Watercooled
2060 0574 9917 15 1 Hose
2180 1091 6006 00 1 Hose
2190 1092 0039 00 1 Hose
2220 0580 0013 32 1 Coupling
2230 0653 0500 02 1 Flat gasket
2240 0661 1000 24 2 Seal washer
Ref. Part number Qty Name Remarks
2250 0661 1000 25 1 Seal washer
2260 0661 1000 27 1 Seal washer
2270 0661 1000 29 2 Seal washer
2280 0661 1000 30 1 Seal washer
2290 0663 2114 23 1 O-ring
2300 1079 5840 01 1 Nipple
2310 1079 5840 19 1 Nipple
2320 1079 5840 29 2 Nipple
3 200 <<< >>> 1 Unloader valve
3220 1092 0030 31 1 Unloader flange
3230 0603 4200 36 2 Nipple
3240 1092 0032 52 1 Nipple
3250 1092 0031 54 1 Pipe
3260 1614 9144 00 1 Nipple
3270 1092 0008 96 1 Nozzle
3280 1619 5205 00 1 Nipple
3290 1092 0030 66 1 Nipple
3300 0661 1000 26 1 Seal washer
3310 1092 2106 10 1 Nipple
3320 1092 2106 10 1 Nipple
3330 0661 1000 49 1 Seal washer
3340 1092 2106 09 1 Flange
3350 0663 2106 09 2 O-ring
3360 0160 6043 00 4 Screw
1622 3694 80 • 1 Blow-off valve
4010 0226 3300 18 •• 4 Screw
4020 0663 2112 69 •• 1 O-ring
4030 1513 0477 00 •• 1 Piston ring
4040 1622 3694 00 •• 1 Housing
4050 1622 3694 01 •• 1 Cover
4060 1622 3694 02 •• 1 Piston
4070 1622 3694 03 •• 1 Seal
4080 1622 3694 04 •• 1 Seal
4090 1622 3694 05 •• 1 Rivet
4100 1622 3694 06 •• 2 Insert
4110 1622 3694 07 •• 1 Seal
Solenoid valve
5010 1089 0668 21 1 Solenoid valve
50
Parts list
9829 3083 20
24
51
Parts list
9829 3083 20
Drain system 24
Ref. Part number Qty Name Remarks
1010 0653 1062 00 2 Flat gasket
1020 0653 1124 00 1 Flat gasket
1030 0686 3716 01 2 Plug
1040 0686 3716 02 1 Plug
1613 9370 80 1 Water separator
2030 0663 2133 00 • 1 O-ring
2040 0663 6136 00 • 1 O-ring
2050 0663 6147 00 • 1 O-ring
2060 1613 9367 70 • 1 Head
2070 1613 9370 00 • 1 Head
2080 1613 9371 00 • 1 Bowl
2100 1613 9381 00 • 1 Nut
2110 1613 9389 00 • 1 Clamp
2120 1613 9390 00 • 1 Ring
2130 1613 9483 04 • 1 Label
2140 1613 9671 00 • 1 Stud
1613 9378 93 • 1 Drain
Ref. Part number Qty Name Remarks
3010 0663 9287 00 •• 1 O-ring
3020 1613 9378 00 •• 1 Drain
3030 1613 9379 00 •• 1 Housing
3040 1613 9380 00 •• 1 Cover
3060 1613 9397 01 •• 1 Insert
3070 1613 9398 00 •• 1 Valve disc
1613 9385 80 •• 1 Float assembly
4010 1613 9385 00 ••• 1 Float half
4020 1613 9386 00 ••• 1 Support
Connections
5010 0070 6002 06 AR Plastic tube
5020 0581 0000 45 2 Pipe coupling
5030 0581 0000 53 2 Pipe coupling
5040 0653 1062 00 1 Flat gasket
5050 0653 1124 00 2 Flat gasket
5060 0661 1000 25 1 Seal washer
5070 1092 0017 41 1 Ball valve
5080 1614 9934 00 2 Pipe coupling
52
Parts list
9829 3083 20
25
9010
53
Parts list
9829 3083 20
Bodywork - Aircooled 25
Ref. Part number Qty Name Remarks
Panels and stays
1010 1088 1301 03 1 Cable tie
1020 1089 9068 01 1 Key
1092 0025 76 1 Stay 1)
1040 1092 0025 77 1 Stay
1045 1092 0030 92 1 Warning label
1092 0038 31 1 Stay 1)
1060 1092 0038 32 1 Stay
1092 0038 06 2 Stay 1)
1070 1092 0038 07 1 Stay
1076 1621 2538 00 • 2 Hinge
1130 1619 2766 00 22 Hexagon bolt
1092 0038 37 1 Stay
1080 1092 0038 38 1 Stay
1085 1092 0030 92 • 1 Warning label
1086 1621 2538 00 • 2 Hinge
1092 0038 01 1 Door
1140 1092 0038 02 1 Door
1145 2252 7237 00 • 2 Door lock
1092 0038 04 2 Door
1160 1092 0038 05 1 Door
1165 2252 7237 00 • 2 Door lock
1170 1621 0607 00 12 Pin
1200 0147 1320 03 26 Hexagon bolt
1092 0038 22 1 Panel 1)
2010 1092 0038 23 1 Panel
1092 0038 14 1 Stay 1)
2020 1092 0038 15 Stay
1092 0038 08 1 Stay 1)
3010 1092 0038 09 • 1 Stay
3020 1092 0030 92 • 1 Warning label
3040 1621 2538 00 • 1 Hinge
3050 1092 0030 25 • 2 Hinge
1614 9017 80 1 Door 1)
4010 1614 9017 00 • 1 Door
4050 2252 7237 00 • 2 Door lock
1092 0038 27 1 Panel 1)
5010 1092 0038 28 • 1 Panel
5040 2252 7237 00 • 2 Door lock
1614 9018 80 1 Door 1)
6010 1614 9018 00 • 1 Door
6040 2252 7237 00 • 2 Door lock
1614 9161 80 2 Door G 110 1)
7010 1614 9161 00 • 1 Panel
7040 0690 1140 01 • 1 House mark
7050 2252 7237 00 • 2 Door lock
Ref. Part number Qty Name Remarks
1614 9017 81 2 Door G 132, G 160 1)
7010 1614 9017 00 • 8 Door
7040 0690 1140 01 • 1 House mark
7050 2252 7237 00 • 2 Door lock
1614 9767 80 1 Stay G 110 1)
8030 1079 9901 09 • 1 Label
8040 1079 9910 95 • 1 Label
8050 1079 9910 96 • 1 Label
8060 1092 0029 98 • 1 Stay
1614 9730 80 1 Stay G 132, G 160 1)
8030 1079 9901 09 • 1 Label
8040 1079 9910 95 • 1 Label
8050 1079 9910 96 • 1 Label
8060 1092 0029 99 • 1 Stay
1092 0038 41 2 Door 1)
9010 1092 0038 02 • 1 Door
9030 2252 7237 00 • 2 Door lock
9040 0690 1140 01 • 1 House mark
Roofs
G 110
10010 1092 0038 60 • 1 Roof 1)
10020 1092 0038 62 • 1 Roof 1)
10030 1092 0038 64 • 1 Roof 1)
10040 1619 2766 00 13 Hexagon bolt
G 132
G 160
10010 1092 0038 66 • 1 Roof 1)
10020 1092 0038 68 • 1 Roof 1)
10030 1092 0038 70 • 1 Roof 1)
10040 1619 2766 00 13 Hexagon bolt
Markings
G 110
11010 1614 9425 02 1 Label
12010 1092 0040 90 1 Data plate
12020 0129 3107 00 4 Blind rivet
G 132
11010 1614 9425 03 1 Label
12010 1092 0040 90 1 Data plate
12020 0129 3107 00 4 Blind rivet
G 160
11010 1614 9425 04 1 Label
12010 1092 0040 90 1 Data plate
12020 0129 3107 00 4 Blind rivet
54
Parts list
9829 3083 20
26
55
Parts list
9829 3083 20
Bodywork - Watercooled 26
Ref. Part number Qty Name Remarks
Panels and stays
1010 1088 1301 03 1 Cable tie
1020 1089 9068 01 1 Key
1092 0025 76 1 Stay 1)
1040 1092 0025 77 1 Stay
1045 1092 0030 92 1 Warning label
1092 0038 11 2 Stay 1)
1050 1092 0038 12 • 1 Stay
1055 1092 0030 92 • 1 Warning label
1056 1621 2538 00 • 2 Hinge
1092 0038 31 1 Stay 1)
1060 1092 0038 32 1 Stay
1092 0038 06 2 Stay 1)
1070 1092 0038 07 1 Stay
1076 1621 2538 00 • 2 Hinge
1092 0038 37 1 Stay
1080 1092 0038 38 1 Stay
1085 1092 0030 92 • 1 Warning label
1086 1621 2538 00 • 2 Hinge
1130 1619 2766 00 22 Hexagon bolt
1092 0038 01 1 Door
1140 1092 0038 02 1 Door
1145 2252 7237 00 • 2 Door lock
1092 0038 04 2 Door
1160 1092 0038 05 1 Door
1165 2252 7237 00 • 2 Door lock
1170 1621 0607 00 12 Pin
1180 0147 1320 03 26 Hexagon bolt
1092 0038 22 1 Panel 1)
2010 1092 0038 23 1 Panel
1092003814 1 Stay 1)
2020 1092 0038 15 1 Stay
1092 0038 08 1 Stay 1)
3010 1092 0038 09 • 1 Stay
3020 1092 0030 92 • 1 Warning label
3040 1621 2538 00 • 1 Hinge
3050 1092 0030 25 • 2 Hinge
1614 9017 80 1 Door 1)
4010 1614 9017 00 • 1 Door
4030 2252 7237 00 • 2 Door lock
1092 0038 27 1 Panel 1)
5010 1092 0038 28 • 1 Panel
5040 2252 7237 00 • 2 Door lock
1614 9018 80 1 Door 1)
6010 1614 9018 00 • 1 Door
6040 2252 7237 00 • 2 Door lock
1614 9161 80 2 Door G 110 1)
7010 1614 9161 00 • 2 Panel
7040 0690 1140 01 • 1 House mark
7050 2252 7237 00 • 4 Door lock
1614 9017 81 2 Door G 132, G 160 1)
7010 1614 9017 00 • 8 Door
7040 0690 1140 01 • 1 House mark
7050 2252 7237 00 • 2 Door lock
Ref. Part number Qty Name Remarks
1092 0032 33 1 Stay G 110 1)
8040 1092 0032 34 • 1 Stay
8050 1079 9901 09 • 1 Label
8060 1079 9910 95 • 1 Label
8070 1079 9910 96 • 1 Label
8090 1079 9913 69 • 1 Inform. label
8100 1079 9913 79 • 1 Inform. label
1092 0032 35 1 Stay G 132, G 160 1)
8040 1092 0032 36 • 1 Stay
8050 1079 9901 09 • 1 Label
8060 1079 9910 95 • 1 Label
8070 1079 9910 96 • 1 Label
8090 1079 9913 69 • 1 Inform. label
8100 1079 9913 79 • 1 Inform. label
1092 0038 41 2 Door 1)
9010 1092 0038 02 • 1 Door
9030 2252 7237 00 • 2 Door lock
9040 0690 1140 01 • 1 House mark
Roofs
G 110
10010 1092 0038 62 • 1 Roof 1)
10020 1092 0038 72 • 1 Roof 1)
10030 1092 0038 74 • 1 Roof 1)
10050 1619 2766 00 17 Hexagon bolt
10060 1621 0607 00 2 Pin
10070 0147 1320 03 8 Hexagon bolt
G 132
G 160
10010 1092 0038 68 • 1 Roof 1)
10020 1092 0038 76 • 1 Roof 1)
10030 1092 0038 78 • 1 Roof 1)
10050 1619 2766 00 17 Hexagon bolt
10060 1621 0607 00 2 Pin
10070 0147 1320 03 8 Hexagon bolt
Markings
G 110
11010 1614 9425 16 1 Label
12010 1092 0040 90 1 Data plate
12020 0129 3107 00 4 Blind rivet
G 132
11010 1614 9425 17 1 Label
12010 1092 0040 90 1 Data plate
12020 0129 3107 00 4 Blind rivet
G 160
11010 1614 9425 18 1 Label
12010 1092 0040 90 1 Data plate
12020 0129 3107 00 4 Blind rivet
Fan assembly
13010 0147 1250 03 3 Hexagon bolt
13020 0301 2321 00 3 Washer
13030 1088 1001 01 1 Warning label
13040 1503 0786 00 1 Rotation arrow
13050 1092 0030 93 1 Fan

57
Parts list
9829 3083 20
Cubicle box 27
Ref. Part number Qty Name Remarks
1092 0038 25 1 Cubicle
1010 1092 0038 26 • 1 Cubicle
1020 1202 6584 00 • AR Seal
1030 1614 9106 03 • 2 Pin
1040 1619 7704 00 • 2 Lock
2130 1079 9901 67 1 Label
2140 1079 9923 72 2 Label
2170 1088 1001 01 1 Warning label
2180 1088 1001 04 1 Warning label
2190 1089 9154 02 1 Key
2200 1614 6567 00 1 Seal
2210 1619 2766 00 11 Hexagon bolt
2230 1621 0478 00 1 Label
2270 1614 7145 00 1 Gasket
2280 1614 7146 00 1 Flange
2290 0147 1325 03 6 Hexagon bolt
2300 1613 5330 10 1 Listing mark
2310 1613 3431 00 1 Label
Screen
3010 1092 0018 76 1 Screen
Ref. Part number Qty Name Remarks
3020 1088 1001 04 1 Warning label
3030 1079 9901 67 1 Label
3040 1092 0019 06 1 Rod
3060 0296 1108 02 2 Wing nut
Filter & Fan
4010 1092 0030 84 1 Filter
4020 1092 0030 83 1 Filter+ Fan

59
Parts list
9829 3083 20
Control panel 28
Ref. Part number Qty Name Remarks
1000 1 Control panel
1092 0051 27 G 110
1092 0051 50 G 132
1092 0051 51 G 160
1092 0780 04 G 110 W
1092 0780 05 G 132 W
1092 0780 06 G 160 W
1001 2 Contactor
1091 6371 60 G 110, G132
1091 6371 77 G 160
1002 1 Contactor
1091 6371 42 G 110, G132
1091 6371 44 G 160
1003 1 Overload relay
1091 6376 20 G 110
1091 6376 21 G 132
1091 6376 22 G 160
1004 1 Transformer
1092 0030 81 G 110, G132
1092 0030 82 G 160
1005 1092 0030 80 Transformer
1007 1 Circuit breaker
1091 6372 29 G 110-160 A
1091 6372 22 G 110-160 W
1010 1091 6378 28 1 Contactor
Ref. Part number Qty Name Remarks
1011 1091 6371 11 1 Contactor
1014 1092 0033 05 5 Fuse holder
1015 2 Fuse ASME
1091 6365 24 G 110, G132
1091 6365 25 G 160
1016 1 Fuse
1092 0052 78 G 110-132
1092 0052 79 G 160
1017 1092 0033 07 2 Fuse
1018 1091 6364 27 5 Terminal(ground)
1019 1091 6364 62 38 Terminal
1020 1091 6371 13 1 Contact block
1022 1613 6639 00 1 Date plate
1023 1079 9911 77 1 Connect.Inform.Label
1024 1079 9906 09 1 Label
1025 1079 9901 68 1 Label
1026 1091 6363 51 1 Emergency buttom
1027 1091 6363 50 2 Contact block
1028 1091 6362 30 1 Connector
1029 1091 6362 29 1 Connector
1030 1091 6362 49 1 Connector
1031 1091 6362 13 1 Connector
1032 1091 6362 03 1 Connector
1033 1091 6262 03 1 Connector
1021 10916371 13 1 Contact block
1092 0780 01 G 110
1092 0780 02 G 132
1092 0780 03 G 160
1092 0780 04 G 110 W
1092 0780 05 G 132 W
1092 0780 06 G 160 W
CE
ASME
1016 1 Circuit breaker
1092 0040 91 G 110-160
60 9829 3083 20
Parts list
29 Service kits
Ref. Part number Qty Name Remarks
0653 1046 00 • 1 Flat gasket
0653 1100 00 • 1 Flat gasket
0653 1124 00 • 1 Flat gasket
0661 1000 25 • 2 Seal washer
0661 1000 27 • 3 Seal washer
0661 1000 31 • 1 Seal washer
1621 7376 00 • 1 Heavy duty air filter element
1621 7378 90 • 2 Oil filter
2906 0960 00 1 CV-OSV kit for C146
1622 0977 00 • 1 Gasket
3001 5006 26 1 Min. pressure valve kit
0663 2106 58 • 1 O-ring
1621 4976 00 • 1 Nut
1614 6957 00 • 1 Washer
9125 7289 00 • 3 Set screw
2901 1089 00 Element overhaul kit(C146)
0663 2111 77 • 1 O-ring
0508 1310 00 • 2 Bearing
0512 0510 12 • 1 Bearing
1616 7149 00 • 1 Wave spring
0512 0510 13 • 1 Bearing
1616 7148 00 • 1 Wave spring
1616 7266 00 • 1 Clamping ring
0147 1409 03 • 1 Cap screw
2906 0971 00 1 Element exchange kit (C146)
0663 2114 07 • 1 O-ring
0663 2114 23 • 1 O-ring
0663 2124 00 • 1 O-ring
0663 2109 68 • 1 O-ring
0663 2108 12 • 2 O-ring
0663 2106 20 • 1 O-ring
0663 2106 15 • 1 O-ring
0663 3116 00 • 1 O-ring
0661 1000 27 • 1 Seal washer
Ref. Part number Qty Name Remarks
2906 0957 00 1 Unloading valve kits C146
0663 7151 00 • 1 O-ring
1622 3694 80 • 1 Assembly Blow off valve
1622 3690 00 • 1 Bushing
1622 3689 00 • 1 Guidance tape
1622 3691 00 • 1 Quadring C146
1622 3182 00 • 1 Guide
1622 3183 00 • 1 Seal
3001 5006 24 1 Oil separator kit
G 110 (W)
0663 2106 17 • 1 O-ring
0663 2109 45 • 2 O-ring
1614 9054 99 • 1 Oil separator element
3001 5006 25 1 Oil separator kit
G 132 (W), G 160 (W)
0663 2106 17 • 1 O-ring
0663 2109 45 • 2 O-ring
1614 9056 99 • 1 Oil separator element
G110(W) 6.9bar/8.6bar/10.4bar/13.8bar
G132(W) 13.8bar
G160(W) 13.8bar
1622 9639 00 • 1 Check valve
0661 1000 44 • 1 Seal washer
1622 5662 00 • 1 Spring
1622 0796 00 • 1 Spring
0661 1000 44 • 1 Seal washer
0661 1000 25 • 1 Seal washer
0661 1000 27 • 1 Seal washer
2906 0961 00 1 CV-OSV kit for C190
G132(W) 6.9bar/8.6bar/10.4bar
G160(W) 6.9bar/8.6bar/10.4bar
1623 0385 00 • 1 Check valve
2254 8075 00 • 1 Spring
1623 1767 00 • 1 Spring
0663 2108 12 • 1 O-ring
0663 2106 20 • 1 O-ring
0663 2106 15 • 1 O-ring
0663 3116 00 • 1 O-ring
0661 1000 25 • 1 Seal washer
0661 1000 32 • 1 Seal washer
2906 0973 00 Element overhaul kit(C190)
0663 2103 25 • 1 O-ring
0663 2108 14 • 1 O-ring
0663 7135 00 • 1 O-ring
0508 1101 07 • 2 Bearing
0211 1362 00 • 2 Bolt
1616 7355 00 • 2 Bearing
0147 1409 03 • 2 Bolt
1616 7353 00 • 2 Wave spring
0663 2106 20 • 2 O-ring
G132(W) 6.9bar/8.6bar/10.4bar
G160(W) 6.9bar/8.6bar/10.4bar/13.8bar
G110(W) 6.9bar/8.6bar/10.4bar/13.8bar
G132(W) 13.8bar
2906 0972 00 1 Element exchange kit (C190)
G132(W) 6.9bar/8.6bar/10.4bar
G160(W) 6.9bar/8.6bar/10.4bar/13.8bar
0337 8350 00 • 1 Parallel key
0147 1407 03 • 1 Bolt
•
0663 2111 46 • 1 O-ring
0663 2107 37 • 1 O-ring
1622 0977 00 • 1 Gasket
0661 1000 27 • 1 Seal washer
0337 0009 77 • 1 Paralley key
0211 1409 00 • 1 Cap screw
0663 7138 00 • 1 O-ring
0663 2109 78 1 O-ring
3001 5006 21 1 Air/oil filter kit
G110(W) 6.9bar/8.6bar/10.4bar/13.8bar
G 132/(W) 13.8bar
1622 3185 00 • 1 Spring
0663 2107 37 • 2 O-ring
1623 1785 00 • 1 Valve
0663 7154 00 • 1 O-ring
0211 1957 79 • 1 Screw
0661 1000 40 • 1 Washer
0663 2111 46 • 1 O-ring
9829 3083 20 61
Parts list
Ref. Part number Qty Name Remarks
2906 0578 00 1 Seal washer kit
0653 0500 08 • 3 Flat Cu gasket
0653 1046 00 • 3 Flat Cu gasket
0653 1062 00 • 12 Flat Cu gasket
0653 1100 00 • 3 Flat Cu gasket
0653 1124 00 • 3 Flat Cu gasket
0653 1165 00 • 3 Flat Cu gasket
0653 1189 00 • 3 Flat Cu gasket
0653 1227 00 • 3 Flat Cu gasket
0653 9078 00 • 3 Flat Cu gasket
0661 1000 25 • 9 Seal ring
0661 1000 27 • 12 Seal ring
0661 1000 29 • 6 Seal ring
0661 1000 31 • 3 Seal ring
0661 1000 36 • 3 Seal ring
Ref. Part number Qty Name Remarks
2 9 0 6 1 0 0 0 0 0 1 Cooler kit
G 110 W - 110 W
1092 0147 00 • 4 O-Ring
2906 0969 00 1 Gearbox overhaul kit
0611 1000 27 • 1 Seal washer
0211 1325 00 • 4 Cap screw
0337 0009 74 • 1 Parallel key
0504 0110 01 • 1 Ball Bearing
0508 1158 01 • 1 Bearing
0337 8352 00 • 1 Paralel key
1092 0147 00 • 4 O-Ring
G 132 W - 160 W
1092 0147 00 • 8 O-Ring
1092 0147 00 • 4 O-Ring
2906 0566 00 1 Cooler kit
G 110 - 160
0663 2106 15 • 1 O-ring
0663 2106 17 • 1 O-ring
0663 2109 68 • 4 O-ring
0663 2106 19 • 1 O-ring
2906 0968 00 • 1 Shaft seal kit
3001 5006 29 Maintenance kit - 8000h or
every two years (C146)
0663 2107 77 • 1 O-ring
1619 7560 00 • 1 Thermostatic valve
2901 0749 00 • 1 Drain valve kit
• 1 Air/oil filter kit
2906 0960 00 • 1 CV-OSV kits
3001 5006 26 • 1 Min press valve kit
2906 0957 00 • 1 Unloading valve kit
3001 5006 24 • 1 Oil separator kit
3001 5006 22 • 1 Flexmaster joint kit
0663 2106 20 • 2 O-Ring
0663 2106 11 • 2 O-Ring
0663 2106 12 • 3 O-Ring
0663 2106 20 • 1 O-Ring
0663 2106 11 • 4 O-Ring
0663 2106 12 • 4 O-Ring
3001 5006 27 1 Maintenancekit 4000h or yearly
0661 1000 25 • 1 Seal washer
0663 2106 18 • 1 O-ring
0663 2106 20 • 1 O-ring
2254 8075 00 • 1 Spring
• 1 Air/Oil filter kit
2906 1001 00 1 Cooler kit
3001 5006 21
3001 5006 21
2906 0958 00 1 Unloading valve kits C190
0663 2114 23 • 1 O-ring
1622 3694 80 • 1 Assembly Blow off valve
0661 1000 29 • 1 Seal washer
0663 2109 49 • 1 O-ring
1623 0540 00 • 1 Guidance tape
1623 0904 00 • 1 Bushing
0663 2114 22 • 1 O-ring
0517 1424 00 • 1 Bearing ball
0663 2111 66 1 O-ring
G 110 (W)
3001 5006 28 1 Maintenancekit 4000h or yearly
0661 1000 25 • 1 Seal washer
0663 2106 18 • 1 O-ring
0663 2106 20 • 1 O-ring
2254 8075 00 • 1 Spring
3001 5006 21 • 1 Air/Oil filter kit
G 132 (W), G160 (W)
G 110(W) 6.9bar/8.6bar/10.4bar
3001 5006 22 1 Flexmaster joint
G 110 (W)
0291 1114 00 • 2 Locknut
0300 0276 03 • 4 Washer
1614 9115 00 • 4 Rubber joint
1614 8926 00 • 4 Absorber
3001 5006 23 1 Flexmaster joint
G 132 (W), G160 (W)
0291 1114 00 • 2 Locknut
0300 0276 03 • 4 Washer
1614 9064 00 • 4 Rubber joint
1614 8926 00 • 4 Absorber
9829 3083 20 62
Parts list
Ref. Part number Qty Name Remarks
Ref. Part number Qty Name Remarks
3001 5006 33 Maintenance kit - 8000h or
every two years (C190)
0663 2107 77 • 1 O-ring
1202 5869 03 • 1 Thermostatic valve
2901 0749 00 • 1 Drain valve kit
• 1 Air/oil filter kit
2906 0961 00 • 1 CV-OSV kits
3001 5006 26 • 1 Min press valve kit
2906 0958 00 • 1 Unloading valve kit
3001 5006 25 • 1 Oil separator kit
3001 5006 23 • 2 Flexmaster joint kit
G 160(W) 14bar
3001 5006 21
3001 5006 31 Maintenance kit - 8000h or
every two years (C146)
0663 2107 77 • 1 O-ring
1202 5869 03 • 1 Thermostatic valve
2901 0749 00 • 1 Drain valve kit
• 1 Air/oil filter kit
2906 0960 00 • 1 CV-OSV kits
3001 5006 26 • 1 Min press valve kit
2906 0957 00 • 1 Unloading valve kit
3001 5006 25 • 1 Oil separator kit
3001 5006 23 • 2 Flexmaster joint kit
G 132(W) 14bar
3001 5006 21
3001 5006 32 Maintenance kit - 8000h or
every two years (C190)
0663 2107 77 • 1 O-ring
1619 7560 00 • 1 Thermostatic valve
2901 0749 00 • 1 Drain valve kit
• 1 Air/oil filter kit
2906 0961 00 • 1 CV-OSV kits
3001 5006 26 • 1 Min press valve kit
2906 0958 00 • 1 Unloading valve kit
3001 5006 25 • 1 Oil separator kit
3001 5006 23 • 2 Flexmaster joint kit
G 132(W) 7.4bar/9.1bar/10.9bar
3001 5006 21
G 160(W) 7.4bar/9.1bar/10.9bar
3001 5006 30 Maintenance kit - 8000h or
every two years (C146)
0663 2107 77 • 1 O-ring
1202 5869 03 • 1 Thermostatic valve
2901 0749 00 • 1 Drain valve kit
• 1 Air/oil filter kit
2906 0960 00 • 1 CV-OSV kits
3001 5006 26 • 1 Min press valve kit
2906 0957 00 • 1 Unloading valve kit
3001 5006 24 • 1 Oil separator kit
3001 5006 22 • 1 Flexmaster joint kit
3001 5006 21
G 110(W) 14bar
63
Parts list
9829 3083 20
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
64
Parts list
9829 3083 20
Notes:
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
..........................................................................................................................................................................................................
Atlas Copco Stationary Air Compressors
Parts list
G 110 - G 132 - G 160 UL
G 110W - G 132W -G 160W UL
No. 9829 3083 20 / DC 2010.02
What sets Atlas Copco apart as a company is our conviction
that we can only excel in what we do if we provide the best
possible know-how and technology to really help our customers
produce, grow and succeed.
There is a unique way of achieving that - we simply call it
the Atlas Copco way. It builds on interaction, on long-term
relationships and involvement in the customers’ process, needs
and objectives. It means having the
flexibility to adapt to the diverse demands of the people
we cater for.
It’s the commitment to our customers’ business that drives
our effort towards increasing their productivity through better
solutions. It starts with fully supporting existing products and
continuously doing things better, but it goes much further,
creating advances in technology through innovation. Not for the
sake of
