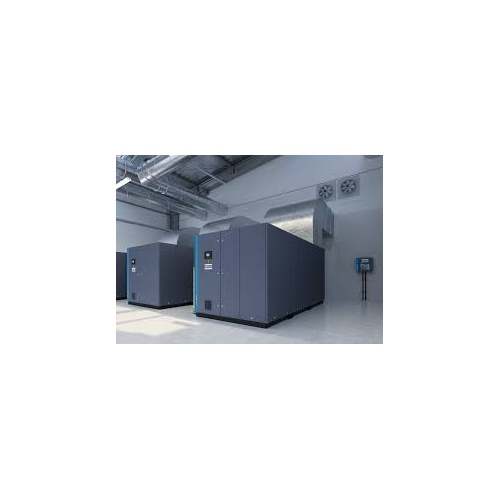

Atlas Copco GA200 Compressor and Spare Parts

Atlas Copco GA200 Oil-injected compressor delivers reliable compressed air for industrial applications with VSD technology for 30-50% energy savings. This robust 200-350 HP compressor features advanced cooling systems and durable components for maximum uptime.

Ensure optimal performance and longevity using only Genuine Atlas Copco Spare Parts – precision-engineered for direct replacement and full compatibility. Maintain factory-certified efficiency without compromise. Contact us for GA200 compressors and original spare parts today

Service Kits of Atlas Copco GA200 Air Compressor

Parts NO.	Name
2901990421	2901 9904 21 – AIR/OIL FILTER KIT
2901990564	2901 9905 64 – OIL SEPARATOR FILTER KIT
2901990565	2901 9905 65 – THERMOSTAT 55 DEGREE C KIT
2901990566	2901 9905 66 – THERMOSTAT 65 DEGREE C KIT
1837012146	1837 0121 46 – DRAIN KIT
1837012144	1837 0121 44 – UNLOADER KIT

Parts NO.	Name
1837012135	1837 0121 35 – MPV KIT
2901990600	2901 9906 00 – ELEMENT EXCHANGE KIT
2901990740	2901 9907 40 – ELEMENT OVERHAUL KIT
1837012153	1837 0121 53 – 8000 hrs KIT
2906057200	2906 0572 00 – KIT FLEXMASTER JOINT
2901063300	2901 0633 00 – SET OF WEARING PARTS

Element – Motel of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1616884190	1616 8841 90 – SERVICE STAGE
2901900600	2901 9006 00 – ELEMENT EXCHANGE KIT
0101195153	0101 1951 53 – PIN PARALLEL
0147140503	0147 1405 03 – HEX. HEAD SCREW M12 X 50
0337000992	0337 0009 92 – KEY PARALLEL

Parts NO.	Name
1635555000	1635 5550 00 – BUSHING
2252547000	2252 5470 00 – WASHER
0211140900	0211 1409 00 – SCREW
1635548600	1635 5486 00 – WASHER LOCK

Motor Assembly of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1635643421	1635 6434 21 – MOTOR
1830083239	1830 0832 39 – MOTOR
1830013451	1830 0134 51 – MOTOR
1830083267	1830 0832 67 – MOTOR

Parts NO.	Name
0017520120	0017 5201 20 – OIL ROTO-XTEND DUTY FLUID
1623050400	1623 0504 00 – CAN
2901170000	2901 1700 00 – OIL CAN 5L RS XD
1830027944	1830 0279 44 – FRAME

Gears of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1635754009	1635 7540 09 – GEAR
1635753809	1635 7538 09 – GEAR

Parts NO.	Name
1830039026	1830 0390 26 – PIPE
0634100254	0634 1002 54 – COUPLING

Support of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1830007975	1830 0079 75 – SUPPORT
0147140003	0147 1400 03 – HEX. HEAD SCREW M12 X 25
0301235800	0301 2358 00 – PLAIN WASHER(A) 13 X 24 X 2.5
1635871400	1635 8714 00 – BUFFER
0147147703	0147 1477 03 – HEX. HEAD SCREW M16 X 40
0301237800	0301 2378 00 – PLAIN WASHER(A) 17 X 30 X 3
1623690735	1623 6907 35 – SPACER
1623690703	1623 6907 03 – SPACER
0147141103	0147 1411 03 – HEX. HEAD SCREW M12 X 80
0301234400	0301 2344 00 – WASHER PLAIN

Parts NO.	Name
1635685600	1635 6856 00 – PLATE BOTTOM
1635606100	1635 6061 00 – STUD
0147140803	0147 1408 03 – SCR CAP HEX M12
1830000266	1830 0002 66 – SUPPORT
1830000268	1830 0002 68 – SUPPORT
1830011558	1830 0115 58 – SUPPORT
0147196308	0147 1963 08 – SCREW HEX. M8X25 WITH WASHER
0346100519	0346 1005 19 – CLAMP
0147136303	0147 1363 03 – SCREW HEXAGON

Air Inlet of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1830050426	1830 0504 26 – BEAM
1830001697	1830 0016 97 – BEAM
1830001702	1830 0017 02 – SUPPORT
0147136003	0147 1360 03 – HEX HEAD SCREW
0301234400	0301 2344 00 – WASHER PLAIN
1623778480	1623 7784 80 – FILTER AIR
1623778400	1623 7784 00 – FILTER AIR
2901990421	2901 9904 21 – AIROUL FILTER KIT
0347610049	0347 6100 49 – CLAMP

Parts NO.	Name
1635540781	1635 5407 81 – UNLOADER
2901906600	2901 9066 00 – ELEMENT EXCHANGE KIT
0147140703	0147 1407 03 – SCREW HEXAGON
0301235800	0301 2358 00 – PLAIN WASHER(A) 13 X 24 X 2.5
1635723000	1635 7230 00 – NOZZLE
0661100040	0661 1000 40 – SEAL WASHER M16
1635610500	1635 6105 00 – HOSE ASSEMBLY
1830006134	1830 0061 34 – HOSE
9090150800	9090 1508 00 – COUPLING STRAIGHT 1/4 – D.6 BS

Unloader Valve of Atlas Copco GA200 Air Compressor

Parts NO.	Name
0295310700	0295 3107 00 – NUT
0686371609	0686 3716 09 – PLUG
0661100106	0661 1001 06 – SEAL WASHER
0333610700	0333 6107 00 – WASHER LOCK
0147125503	0147 1255 03 – SCREW
0661100045	0661 1000 45 – WASHER CHANNEL
0661100042	0661 1000 42 – SEAL WASHER DOWTY 1/8″
0301235900	0301 2359 00 – PLAIN WASHER(4) 13 X 24 X 2.5
1635155200	1635 1552 00 – SCREW SET
1635594500	1635 5945 00 – BALL
0147140303	0147 1403 03 – HEX, HEAD SCREW M12 X 40
1635839400	1635 8394 00 – VALVE REGUL
1635683300	1635 6833 00 – PLUG SOCKET
0663211166	0663 2111 66 – O-RING
1623090400	1623 0904 00 – BUSHING

Parts NO.	Name
1635540101	1635 5401 01 – SEAL LIP
9823929900	9823 9299 00 – INSTR. ASSEMBLY
9823930600	9823 9306 00 – FUNCTIONAL
0335212600	0335 2126 00 – CIRCUP INTERNAL
1635633510	1635 6335 10 – COVER VALVE
0517142400	0517 1424 00 – BEARING BALL
1635540710	1635 5407 10 – HOUSING
1079584001	1079 5840 01 – FITTING
1635835310	1635 8353 10 – COVER VALVE
0517142400	0517 1424 00 – BEARING BALL
1635540710	1635 5407 10 – HOUSING
1079584001	1079 5840 01 – FITTING
1830028131	1830 0281 31 – PISTON ASSEMBLY
1635839000	1635 8390 00 – PISTON
1830000821	1830 0008 21 – PISTON

Air Receiver of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1635528608	1635 5286 08 – VESSEL AIR
1635528610	1635 5286 10 – VESSEL AIR
1635528670	1635 5286 70 – VESSEL AIR
1635603910	1635 6039 10 – COVER VESSEL
1635603970	1635 6039 70 – COVER VESSEL
0300027413	0300 0274 13 – PLAN WASHER(A) 21 X 37 X 3
1623065000	1623 0650 00 – FLANGE BLIND
0663210724	0663 2107 24 – O-RING
0147110765	0147 1107 65 – SCREW
0301235800	0301 2358 00 – PLAN WASHER(A) 13 X 24 X 2.5
1092000072	1092 0000 72 – SIGHT GLASS
1635606000	1635 6060 00 – SHIELD SEPARATOR
0686371610	0686 3716 10 – PLUG 1 1/2 AA
0663313000	0663 3130 00 – O-RING
0101262600	0101 2626 00 – PIN
2250252800	2250 2528 00 – PLUG SCREW
0852001210	0852 0012 10 – BALL VALVE
0661100039	0661 1000 39 – WASHER SEAL 1/2
8202125186	8202 1251 86 – FITTING PIPE

Parts NO.	Name
1830014868	1830 0148 68 – O-RING
0661100046	0661 1000 46 – SEAL WASHER
0571014012	0571 0140 12 – COUPLING
0661100042	0661 1000 42 – SEAL WASHER DOWTY 1/8″
0661100038	0661 1000 38 – SEAL WASHER DOWTY 1/4″
0580840015	0580 8400 15 – CONNECTOR
0661100038	0661 1000 38 – SEAL WASHER DOWTY 1/4 – 1
0580840015	0580 8400 15 – CONNECTOR – 1
1635830200	1635 8302 00 – BUFFER – 3
0300027417	0300 0274 17 – PLAIN WASHER(A)10.5 X 30 X 2.5 – 3
0266211100	0266 2111 00 – NUT HEXAGON – 3
1623690745	1623 6907 45 – SPACER – 3
0301235800	0301 2358 00 – PLAIN WASHER(A) 13 X 24 X 2.5 – 3
0147141103	0147 1411 03 – HEX. HEAD SCREW M12 X 80 – 3
1635293900	1635 2939 00 – WIRING – 2
0333323200	0333 3232 00 – LOCK WASHER(A) 10.5 X 18 X 0.9 – 4
0301234400	0301 2344 00 – WASHER PLAIN – 2
0147136003	0147 1360 03 – HEX HEAD SCREW – 2
1619276600	1619 2766 00 – SCR.BOLT M8X20 – 2

Filter Assembly of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1635646681	1635 6466 81 – ELEMENT AIF OSE WITH O-RING – 2
1635646682	1635 6466 82 – ELEMENT AIF OSE WITH O-RING – 1
1635665380	1635 6653 80 – PLUG PROTECT. – 1
1635604710	1635 6047 10 – COVER FILTER – 3
0663212007	0663 2120 07 – O-RING – 3

Parts NO.	Name
0663212271	0663 2122 71 – O-RING – 1
0301232100	0301 2321 00 – PLAIN WASHER(A) 6.4 X 12 X 1.6 – 3
0211124603	0211 1246 03 – HEX SOCK. SCREW M6 X 16 – 3
0301235800	0301 2358 00 – PLAIN WASHER(A) 13 X 24 X 2.5 – 12
0147110765	0147 1107 65 – SCREW – 12

Element to Vessel – Aircooled of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1635703100	1635 7031 00 – PIPE – 1
0301235800	0301 2358 00 – PLAIN WASHER(A) 13 X 24 x 2.5 – 4
0147140403	0147 1404 03 – HEX. HEAD SCREW M12 X 45 – 4
0661100039	0661 1000 39 – WASHER SEAL I/2 – 1
0686371602	0686 3716 02 – PLUG I/2 A A – 1
1830027570	1830 0275 70 – HOSE – 1
0663714400	0663 7144 00 – ORING ID 99.5MM – 1
0301234400	0301 2344 00 – WASHER PLAIN – 4
0147136403	0147 1364 03 – SCREW HEXAGON – 4

Parts NO.	Name
1830027581	1830 0275 81 – PIPE – 1
1613675231	1613 6752 31 – PAD ANTI VIBR. – 2
1079147206	1079 1472 06 – SCREW – 4
0330233400	0330 2334 00 – WASHER PLAIN – 1
1830025564	1830 0255 64 – HOSE ASSEMBLY – 1
1830036046	1830 0360 46 – HOSE ASSEMBLY – 1
0330234400	0330 2344 00 – WASHER PLAIN – 2
1830026565	1830 0265 65 – HOSE ASSEMBLY – 1
0147136203	0147 1362 03 – HEX. HEAD SCREW M10 X 25 – 4

Vessel to Cooler – Aircooled of Atlas Copco GA200 Air Compressor

Parts NO.	Name
1830027582	1830 0275 82 – PPE – 1
0663714400	0663 7144 00 – ORING ID 99.5MM – 1
0301234400	0301 2344 00 – WASHER PLAIN – 6
0147136403	0147 1364 03 – SCREW HEXAGON – 4
1830027584	1830 0275 84 – PPE – 1
0663210615	0663 2106 15 – ORING – 1
1830027583	1830 0275 83 – PPE – 1
1830027668	1830 0276 68 – PPE – 1
0663210619	0663 2106 19 – ORING – 1
1830027669	1830 0276 69 – PPE – 1
1635857285	1635 8572 85 – VALVE – 1
0500451011	0500 4510 11 – BUSHING – 1
0663210823	0663 2108 23 – ORING – 1
1635580900	1635 5809 00 – HANDLE – 1
1830001093	1830 0010 93 – COVER – 1
0101195178	0101 1951 78 – PIN PARALLEL – 2
0211124403	0211 1244 03 – SCREW – 2
0301235800	0301 2358 00 – PLAIN WASHER(A) 13 X 24 X 2.5 – 8
1635857200	1635 8572 00 – HOUSING VALVE – 1
1830012219	1830 0122 19 – VALVE – 1

Parts NO.	Name
1830024627	1830 0246 27 – PISTON – 1
0663210664	0663 2106 64 – D-RING – 1
0147140203	0147 1402 03 – HEX, HEAD SCREW M12 X 35 – 4
0147140403	0147 1404 03 – HEX, HEAD SCREW M12 X 45 – 4
1635873000	1635 8730 00 – PPE – 1
1830082294	1830 0822 94 – SEAL
1837012135	1837 0121 35 – MPV KIT
0147136303	0147 1363 03 – SCREW HEXAGON – 6
1830015972	1830 0159 72 – FLANGE – 1
0663210823	0663 2108 23 – O-RING – 1
0663210664	0663 2106 64 – O-RING – 1
1635873000	1635 8730 00 – PIPE – 1
1837007609	1837 0076 09 – CONNECTIONS – 2
0147150103	0147 1501 03 – SCREW – 2
0147136903	0147 1369 03 – HEX, HEAD SCREW M10 X 60 – 4
1614906600	1614 9066 00 – PIPE – 1
1614906300	1614 9063 00 – JOINT SET – 2
1614906700	1614 9067 00 – BRACKET – 2
1614906500	1614 9065 00 – RING – 1
