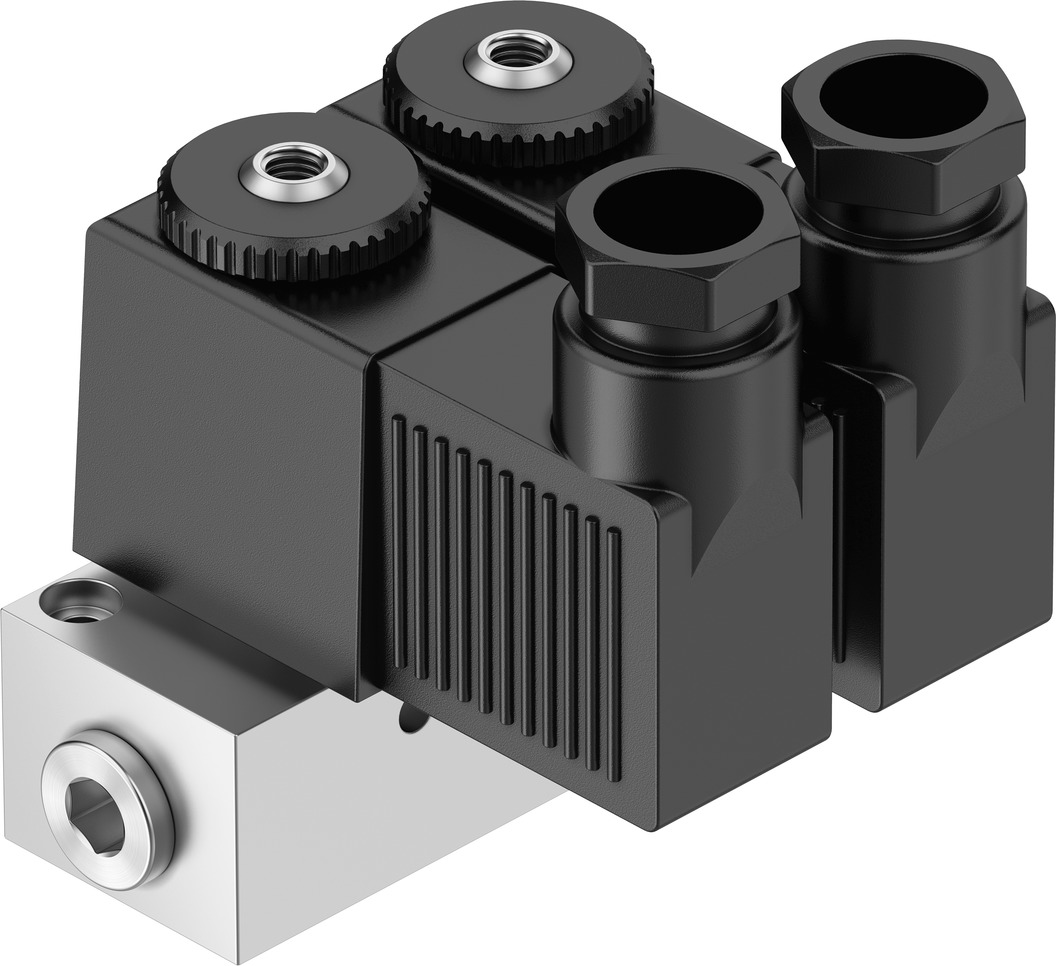

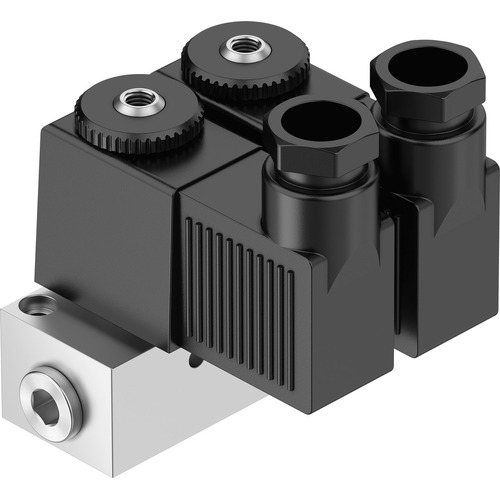

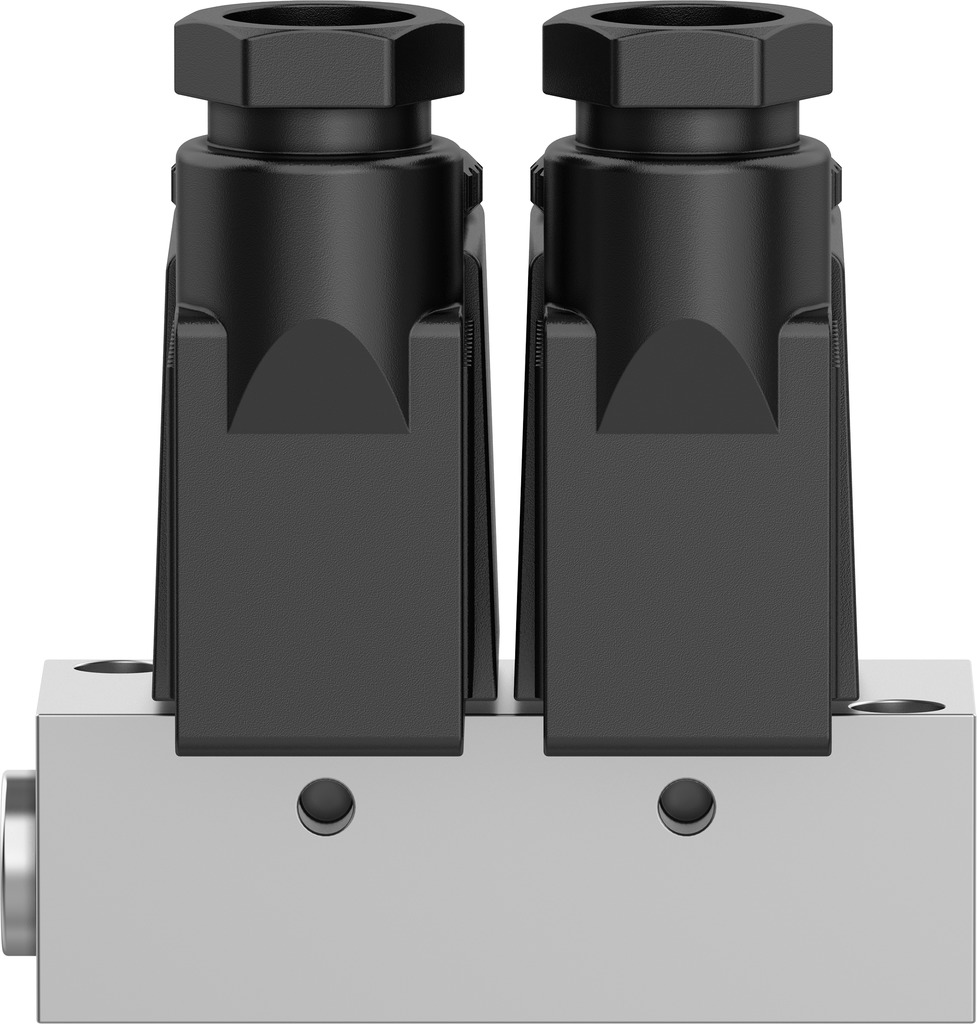

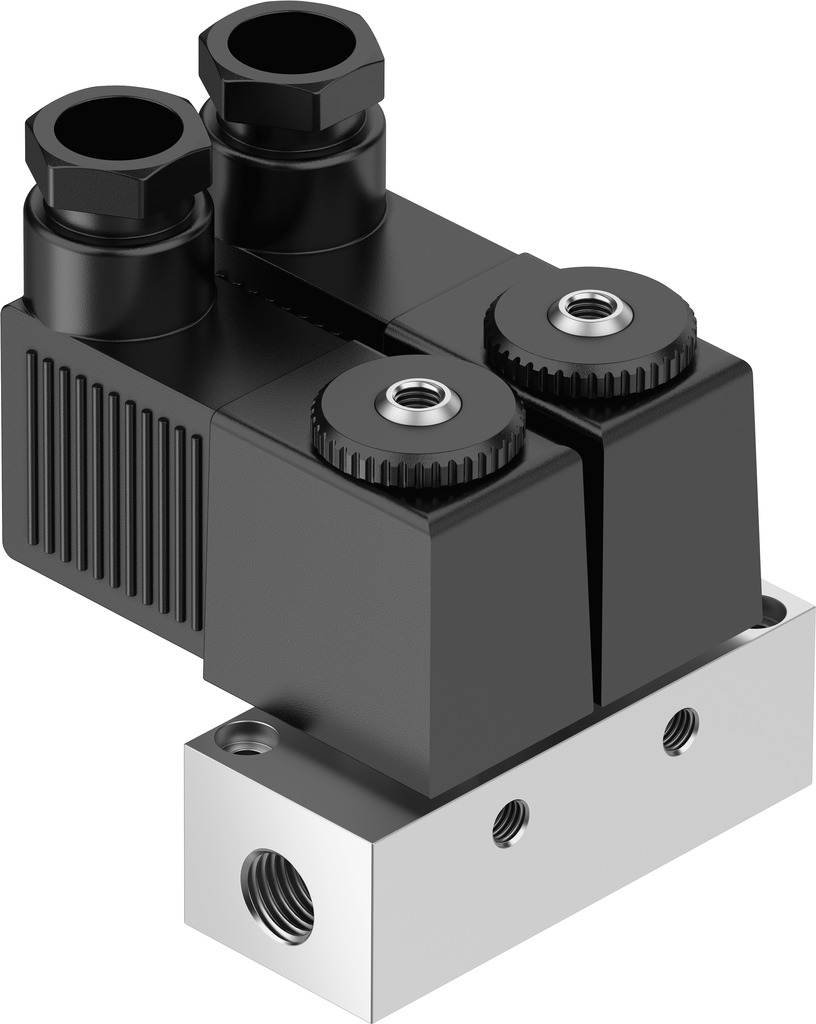

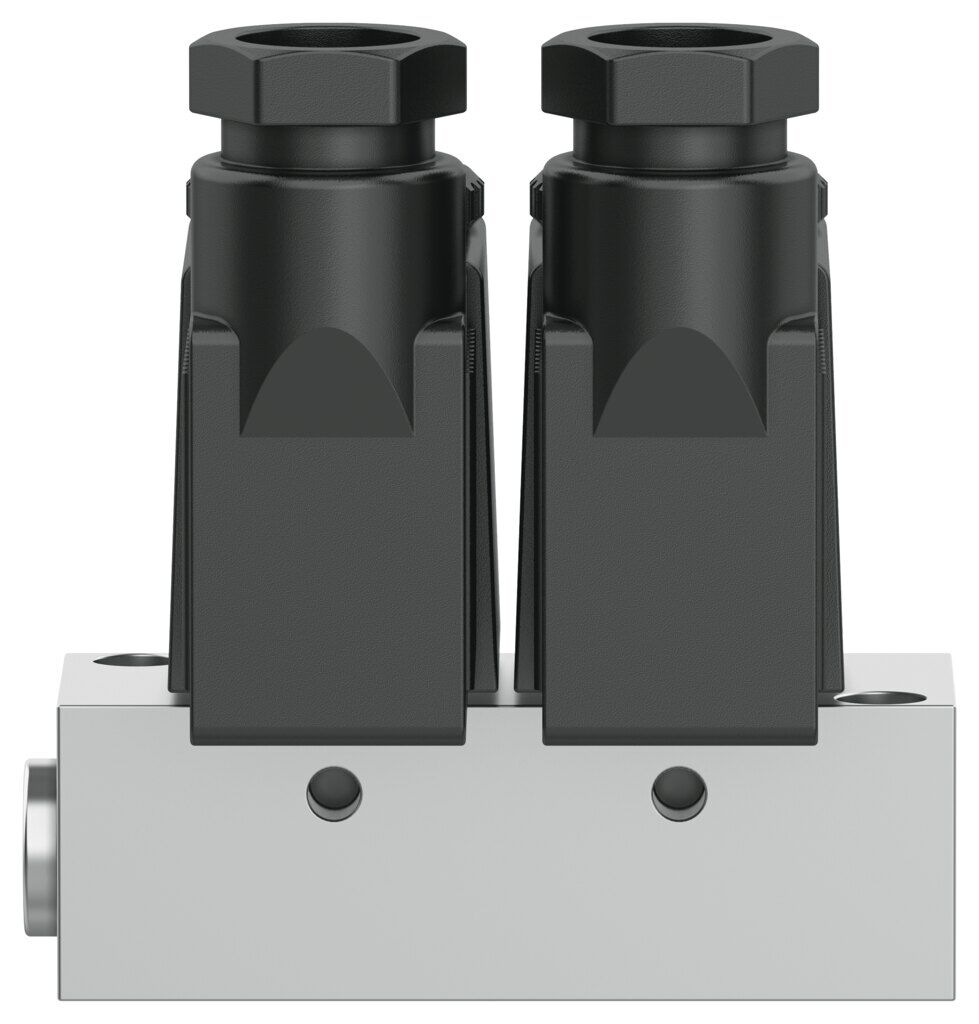

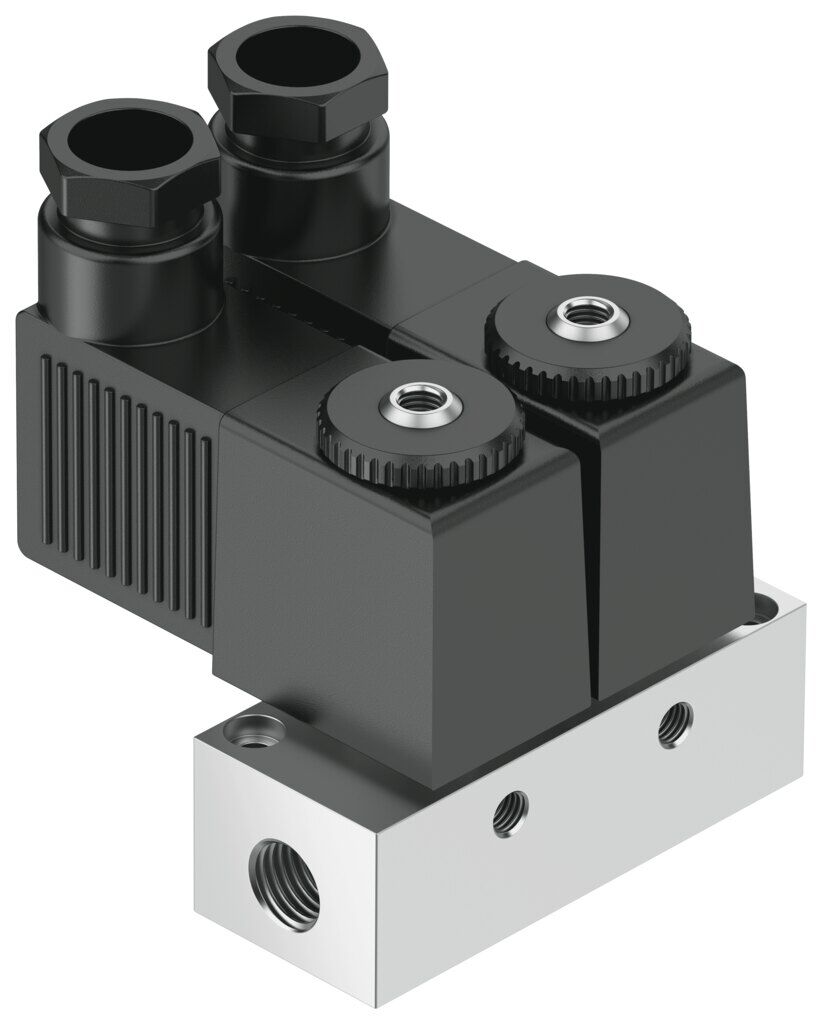

Solenoid valve

BMFH-2-3-M5

4522

Valve function
2x3/2-way, monostable, closed
Standard nominal flow rate (standardised to DIN 1343)
50 l/min
Pneumatic connection, port 1
G1/8
Type of actuation
Electric

GTIN: 4052568110512

Technical Data

  • Valve function2x3/2-way, monostable, closed
  • Type of actuationElectric
  • Standard nominal flow rate (standardised to DIN 1343)50 l/min
  • pneumatic working portM5
  • Operating pressure0 MPa ... 0.8 MPa
  • Operating pressure0 bar ... 8 bar
  • DesignPoppet valve with spring return
  • Type of resetMechanical spring
  • Degree of protectionIP65
  • Nominal size1.3 mm
  • Sealing principleSoft
  • Max. number of valve positions2
  • Type of pilotingDirect

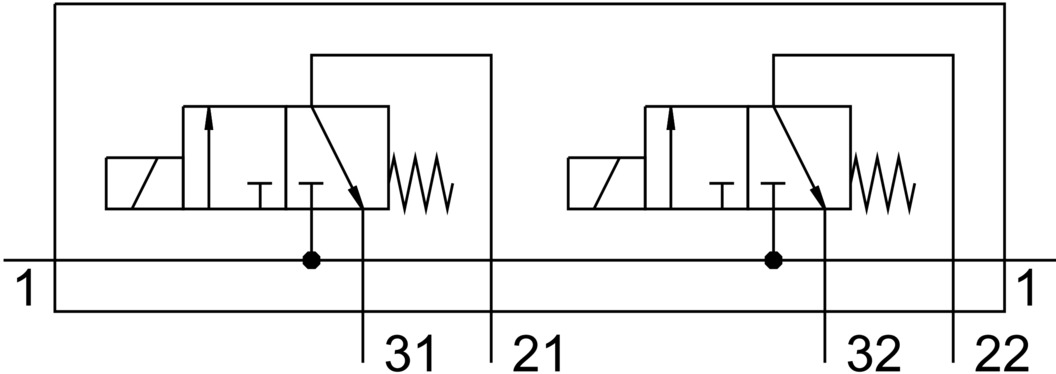

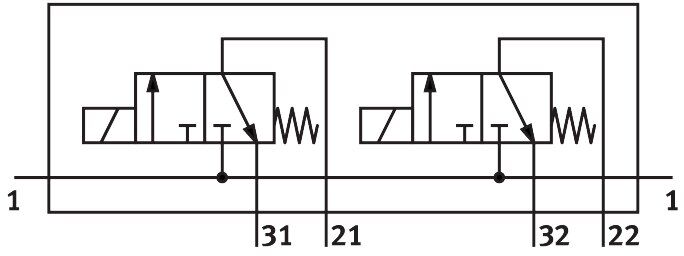

  • Symbol00991653
  • Power consumption, pull7.5 W
  • Power consumption, hold6 W
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-5 °C ... 40 °C
  • Product weight245 g
  • Electrical connectionPlugs
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1G1/8
  • Pneumatic connection, port 2M5
  • Pneumatic connection, port 3M5
  • Material housingAluminium

Downloads

Technical data

Links

Spare parts

Valve function - 2x3/2-way, monostable, closed

Standard nominal flow rate - 50 l/min

Pneumatic connection, port 1 - nG1/8

Type of actuation - Electric

Solenoid valveSolenoid valveSolenoid valveSolenoid valve

SKU 4522
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
