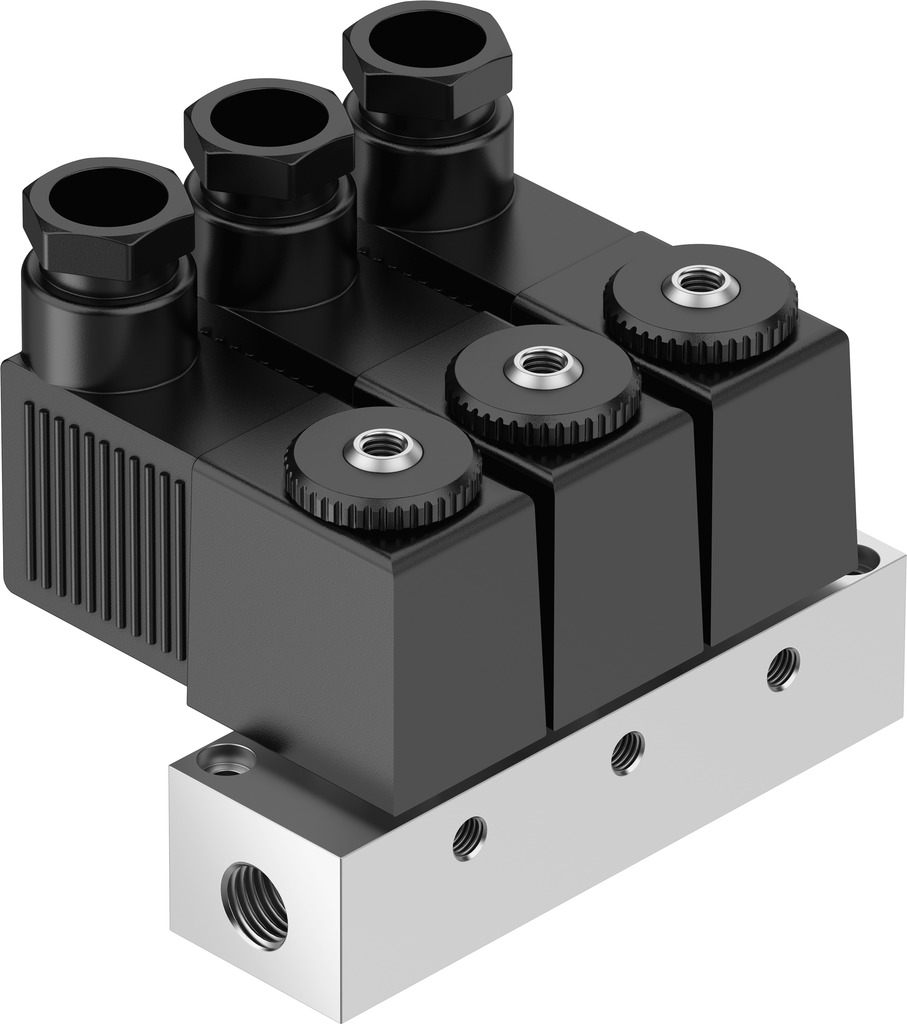

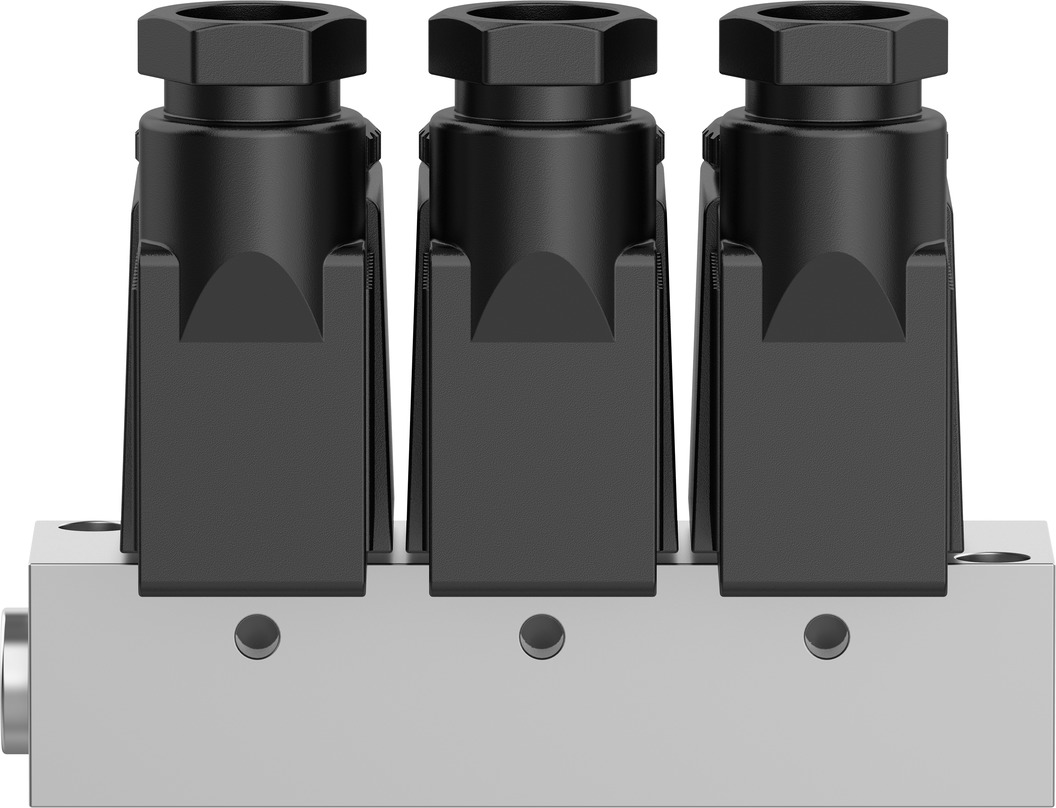

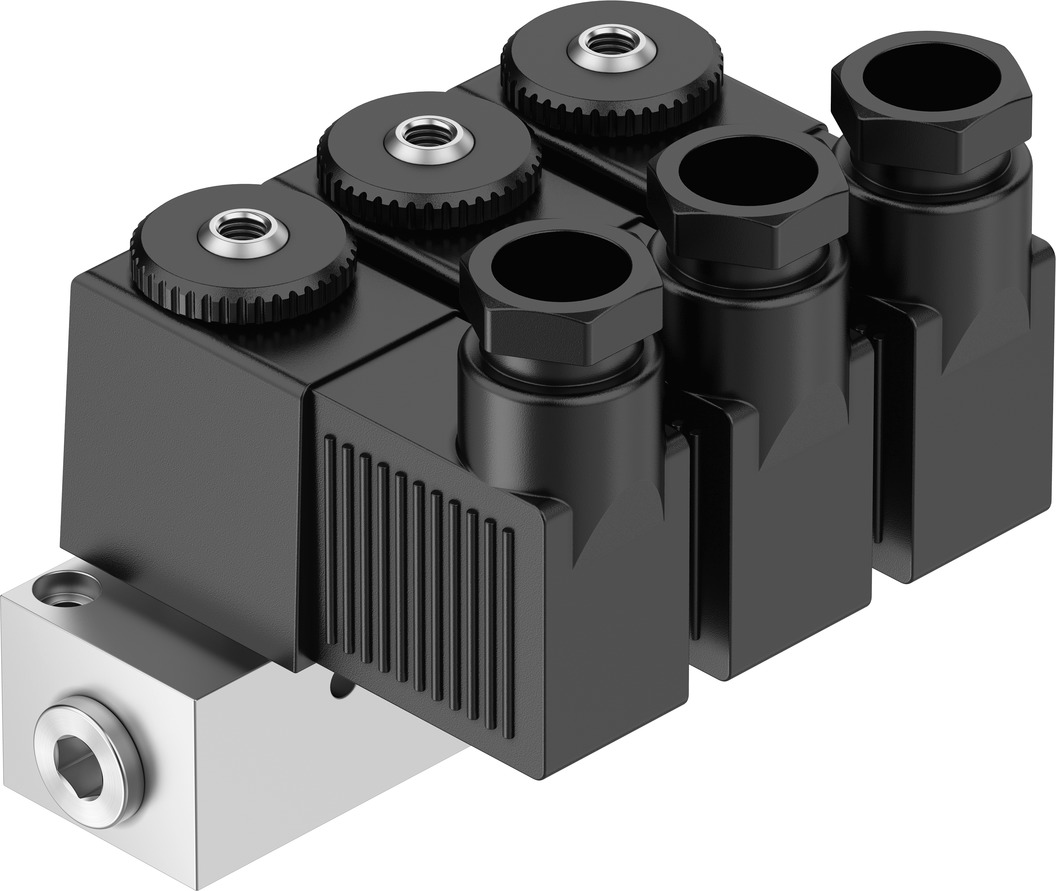

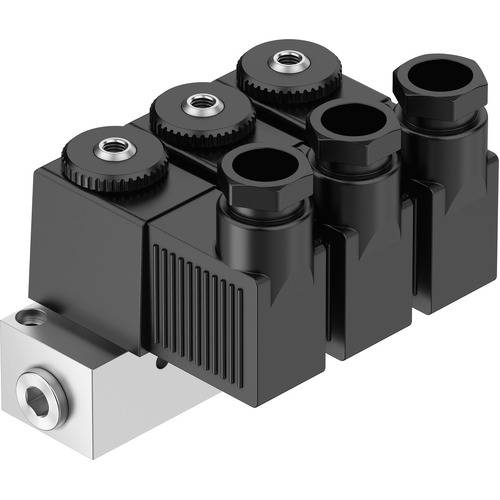

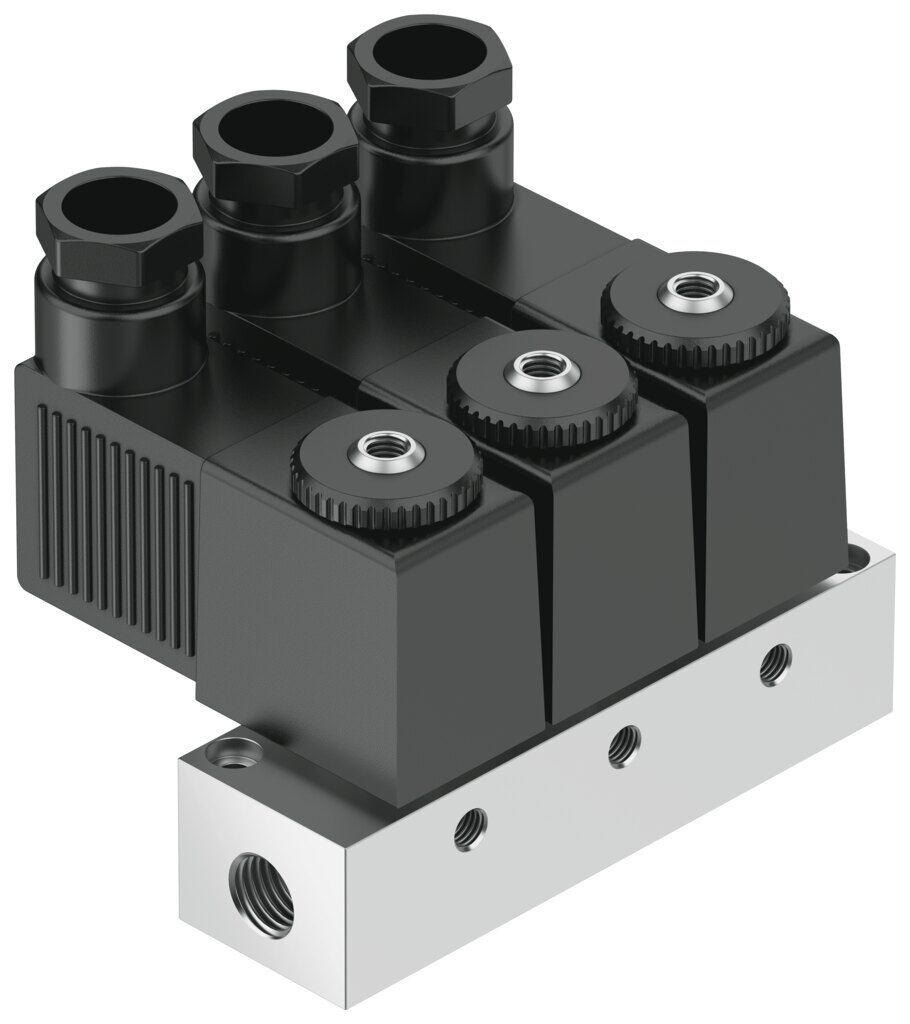

Solenoid valve

BMFH-3-3-M5

4523

GTIN: 4052568110529

Technical Data

• Valve function3x3/2-way, monostable, closed
• Type of actuationElectric
• Standard nominal flow rate (standardised to DIN 1343)50 l/min
• pneumatic working portM5
• Operating pressure0 MPa ... 0.8 MPa
• Operating pressure0 bar ... 8 bar
• DesignPoppet valve with spring return
• Type of resetMechanical spring
• Degree of protectionIP65
• Nominal size1.3 mm
• Sealing principleSoft
• Max. number of valve positions3
• Type of pilotingDirect

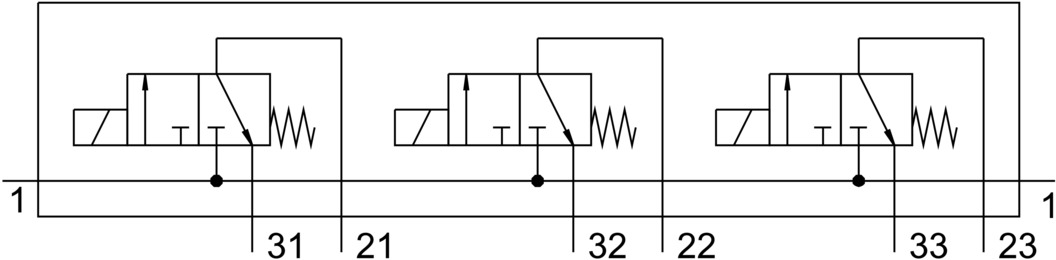

• Symbol00991652
• Power consumption, pull7.5 W
• Power consumption, hold6 W
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• LABS (PWIS) conformityVDMA24364-B2-L
• Media temperature-10 °C ... 60 °C
• Ambient temperature-5 °C ... 40 °C
• Product weight350 g
• Electrical connectionPlugs
• Type of mountingWith through-hole
• Pneumatic connection, port 1G1/8
• Pneumatic connection, port 2M5
• Pneumatic connection, port 3M5
• Material housingAluminium

Downloads

Product information

Technical data

CAD data

Links

Spare parts

Valve function

3x3/2-way, monostable, closed

Standard nominal flow rate 50 l/min

Pneumatic connection, port 1 G1/8

Type of actuation Electric

Technical Data

• Valve function 3x3/2-way, monostable, closed
• Type of actuationElectric
• Standard nominal flow rate50 l/min
• pneumatic working portM5
• Operating pressure0 MPa ... 0.8 MPa
• Operating pressure0 bar ... 8 bar
• DesignPoppet valve with spring return
• Type of resetMechanical spring
• Degree of protectionIP65
• Nominal size1.3 mm
• Sealing principle Soft
• Max. number of valve positions3
• Type of piloting Direct
• Symbol 00991652
• Power consumption, pull7.5 W
• Power consumption, hold6 W
• Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• LABS (PWIS) conformity VDMA24364-B2-L
• Media temperature-10 °C ... 60 °C
• Ambient temperature-5 °C ... 40 °C
• Product weight 350 g
• Electrical connectionPlugs
• Type of mountingWith through-hole
• Pneumatic connection, port 1G1/8
• Pneumatic connection, port 2M5
• Pneumatic connection, port 3M5
• Material housingAluminium
