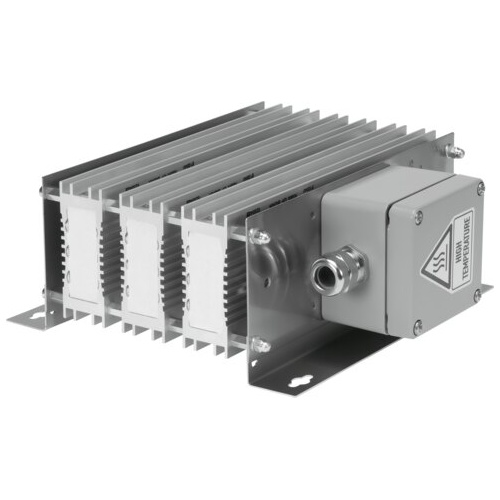

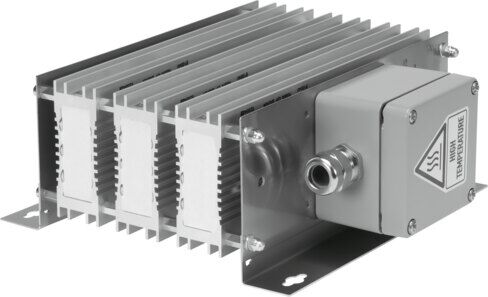

Braking resistor

CACR-KL2-67-W1800

1336617





GTIN: 4052568230753

Technical Data

  • Size600
  • Mounting positionFree convection Vertical
  • Pulse energy for braking resistor at 380 V10800 Ws
  • Pulse energy for braking resistor at 780 V10800 Ws
  • Performance at 35% duty cycle and 20°C1800 W
  • Brake resistance rating720 W
  • Nominal power braking resistor at 380 V720 W
  • Nominal power braking resistor at 780 V720 W
  • Resistance value67 Ohm
  • Approvalc CSA us (OL) c UL us - Recognized (OL)
  • LABS (PWIS) conformityVDMA24364 zone III
  • Degree of protectionIP65
  • Ambient temperature0 °C ... 50 °C
  • Product weight4000 g
  • Type of mountingWith through-hole With accessories
  • Note on materialsRoHS-compliant





SKU 1336617
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
