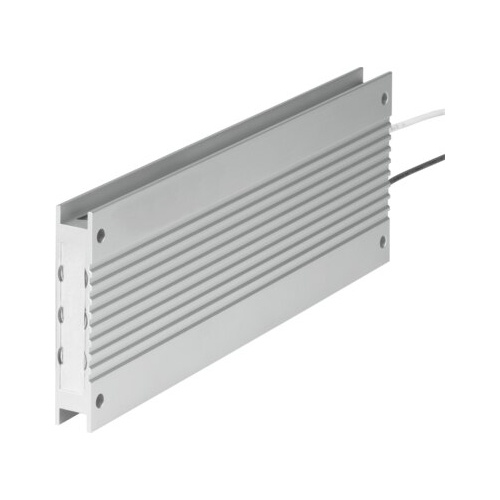

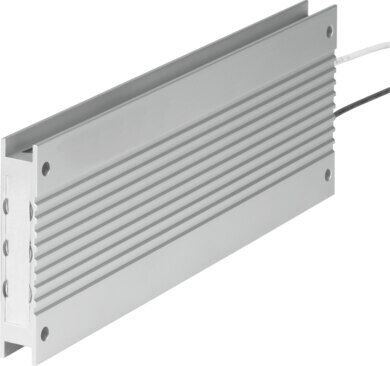

Braking resistor

CACR-LE2-100-W500

1336615





GTIN: 4052568230746

Technical Data

  • Size500
  • Mounting positionFree convection Vertical
  • Pulse energy for braking resistor at 380 V2000 Ws
  • Pulse energy for braking resistor at 780 V1800 Ws
  • Performance at 35% duty cycle and 20°C500 W
  • Brake resistance rating200 W
  • Nominal power braking resistor at 380 V150 W
  • Nominal power braking resistor at 780 V120 W
  • Resistance value100 Ohm
  • Approvalc CSA us (OL) c UL us - Recognized (OL)
  • LABS (PWIS) conformityVDMA24364 zone III
  • Degree of protectionIP65
  • Ambient temperature0 °C ... 50 °C
  • Product weight550 g
  • Type of mountingWith through-hole With accessories
  • Note on materialsRoHS-compliant





SKU 1336615
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
