Product Lifecycle Information




Product is planned to be discontinued. Do not use for new designs.



03/2026 - Product is being phased out. Do not use for new designs.




01/2027 - Product is discontinued. Products for replacement may be available while stocks permit.




12/2031 - Product is discontinued.

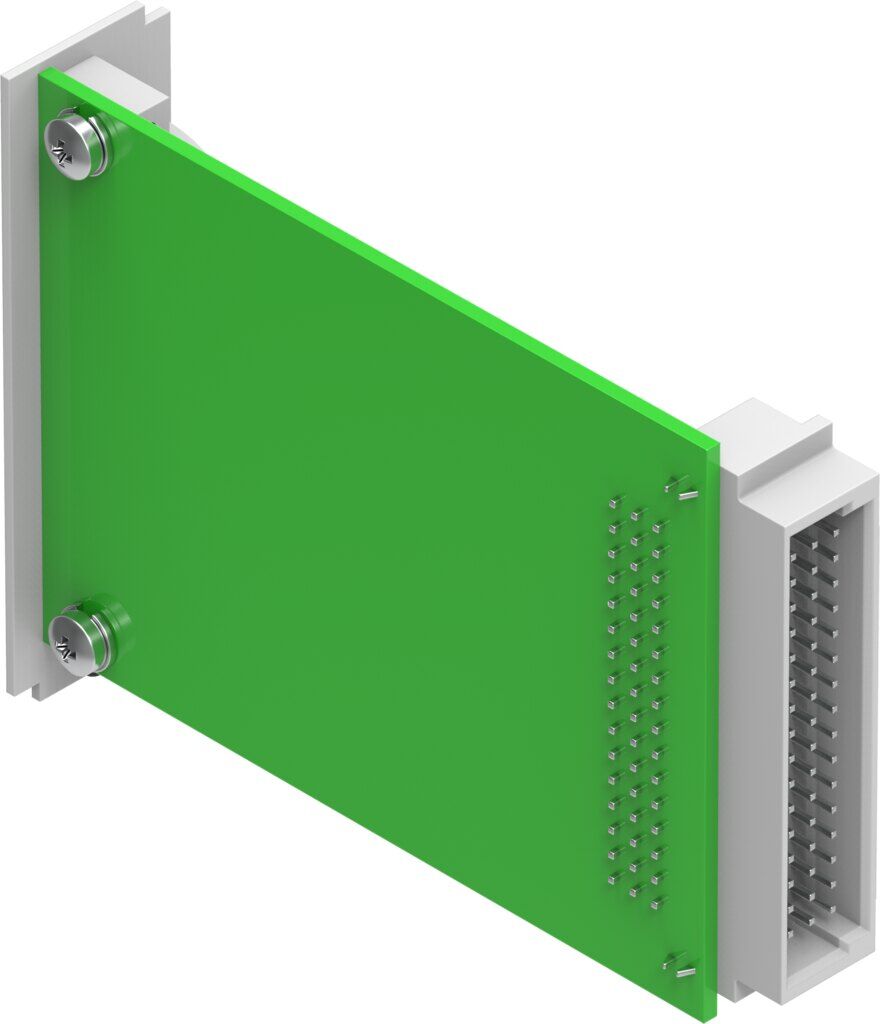

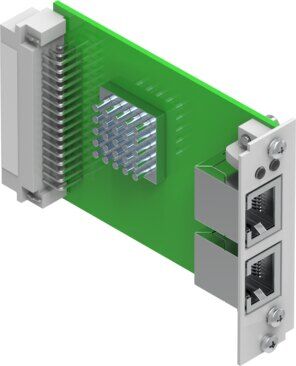

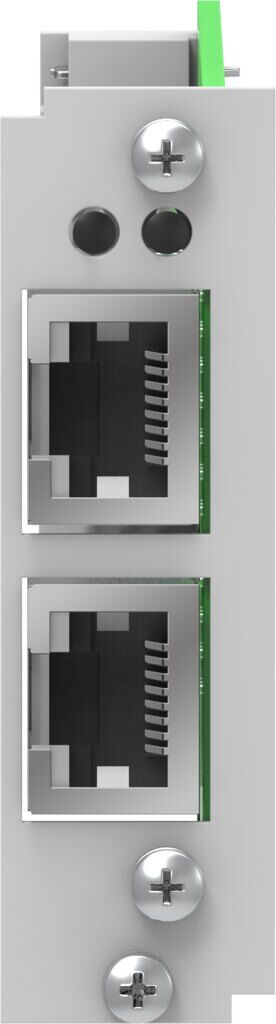

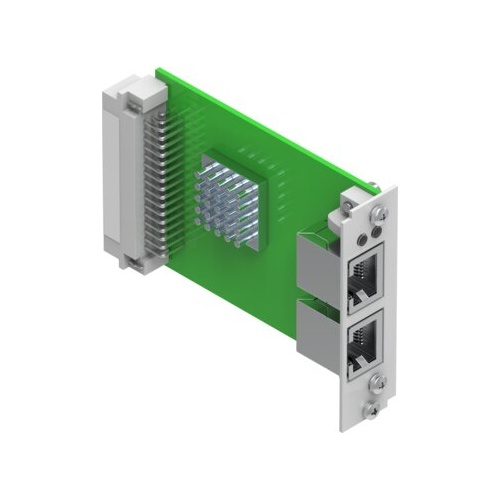

InterfaceCAMC-F-PN

1911916

GTIN: 4052568249311

Technical Data Interface CAMC-F-PN

  • Dimensions (W x L x H)19 mm x 90 mm x 65 mm
  • CE mark (see declaration of conformity)To EU EMC Directive
  • LABS (PWIS) conformityVDMA24364 zone III
  • Storage temperature-25 °C ... 70 °C
  • Relative air humidity5 - 95% Non-condensing
  • Degree of protectionIP20 In mounted state
  • Ambient temperature0 °C ... 50 °C
  • Product weight75 g
  • Type of mountingPlug-in module for CMMP-AS...-M3
  • Note on materialsRoHS compliant
  • Mounting positionAny
  • ProtocolPROFINET
  • Communication profileFHPP
  • Baud rate10/100 Mbps (full/half)
  • TopologiesStar Ring Line
  • Media redundancyManufacturing Resource Planning
  • IP address allocationFCT DCP
  • Field bus interface2x RJ45 socket
  • Min. cycle time1 ms
  • LED displayBus fault Ethernet communication activity Ethernet line monitoring System errors
  • Configuration supportGSDML
  • ParameterisationFCT
  • Additional functionsIRT-compatible LLDP Manufacturing Resource Planning PROFIenergy Real-time class 1 SNMP





SKU 1911916
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
