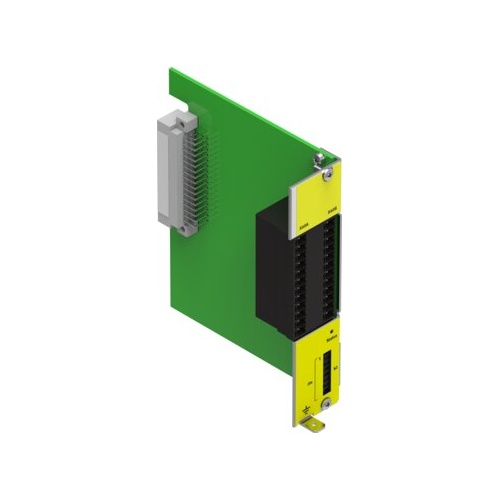

Safety module

Technical Data

• Nominal voltage for logic power supply DC24 V
• Nominal operating voltage DC24 V
• Nominal current logic power supply0.15 A
• Permissible range for logic voltage± 20 %
• Current consumption of logic power supply without clamping brake0.2 A
• Short circuit current ratingYes, exception: contact C1/C2
• Current rating at 40° C0.2 A
• Fuse protection (short circuit)no
• Digital output designPotential-free signal contact 3 safe, 2-channel semiconductor outputs
• Number of digital logic inputs10
• Digital outputs, switching logicSemiconductor outputs: parameterisable PNP (positive switching) 2-channel equivalent/antivalent
• Dimensions (W x L x H)112.2 x 99.1 x 28.7 mm
• LED display, product-specificError (red) Normal operation (green) Safe state (yellow)
• Safety functionSafe brake control (SBC) Safe Speed Range (SSR) Safe Speed Monitor (SSM) Safe torque off (STO) Safely limited speed (SLS) Safe Operating Stop (SOS) Safe Stop 1 (SS1) Safe Stop 2 (SS2)
• Probability of Failure per Hour (PFH)9.5E-9
• Proof test interval20 y
• Hardware fault tolerance1
• SFF Safe Failure Fraction99.5 %
• Certified for safety function to ISO 13849 and IEC 61508 (SIL)Product can be used in SRP/CS up to SIL 3 (high demand)
• Safety Integrity Level (SIL)Safe stop 2 (SS2)/SIL 3 Safe stop 1 (SS1)/SIL 3 Safe brake control (SBC)/SIL 3 Safely limited speed (SLS)/SIL 3 Safe operating stop (SOS)/SIL 3 Safe speed monitor (SSM)/SIL 3 Safe Speed Range (SSR)/SIL 3 Safe torque off (STO)/SIL 3
• Performance Level (PL)Safe brake control (SBC)/category 4, Performance Level e Safely limited speed (SLS)/category 3, performance level e Safe operating stop (SOS)/category 3, performance level e Safe stop 1 (SS1)/category 3, Performance Level e Safe stop 2 (SS2)/category 3, Performance Level e Safe speed monitor (SSM)/category 3, Performance Level e Safe speed range (SSR)/category 3, Performance Level e Safe Torque Off (STO)/category 4, performance level e
• Diagnostic coverage97.5 %
• Certified for safety functions to ISO 13849 (PL)Product can be used in SRP/CS up to category 4, PL e
• ApprovalGerman Technical Control Board (TÜV)
• CE mark (see declaration of conformity)To EU EMC Directive To EC Machinery Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK regulations for machines To UK RoHS instructions
• Certificate issuing authorityTÜV Rheinland 01/205/5165.03/24
• LABS (PWIS) conformityVDMA24364 zone III
• Storage temperature-25 °C ... 55 °C
• Relative air humidity5 - 90% Non-condensing
• Degree of protectionIP20 In assembled state
• Ambient temperature0 °C ... 40 °C
• Product weight220 g
• Type of mountingPlug-in module for CMMP-AS...-M3
• Note on materialsRoHS-compliant
• Mounting positionoptional
• Wire endsWire ferrule
• Connection cross section0.25 mm² ... 0.5 mm²
• Electrical connectionScrew terminal Straight plug
• DisplayGreen/yellow/red LED
• Operator controlsDIP switch
• Specification logic inputIEC 61131-2, type 3
• Features of logic input4 safe, 2-channel inputs Equivalent/antivalent switching Test pulses configurable Function configurable 6 safe, 1-channel inputs Test pulses configurable
• Working range of logic input13 V ... 28.8 V
• Max. nominal input current0.015 A
• Debounce time for inputs0.3 ms
• Current rating per output50 mA
• Max. current digital logic outputs50 mA
• Fuse capacity of outputsShort-circuit and cross-circuit monitoring
• Min. cycle time2 ms
• ParameterisationVia SafetyTool
