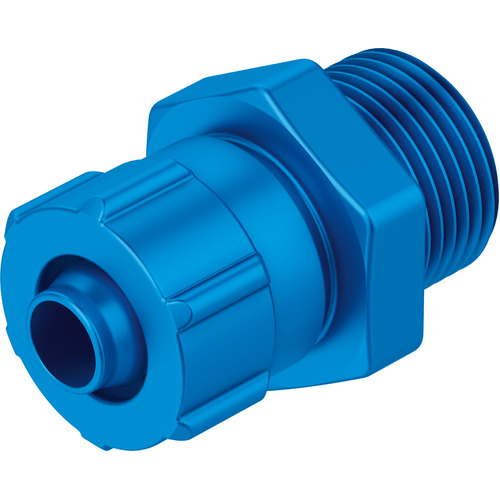

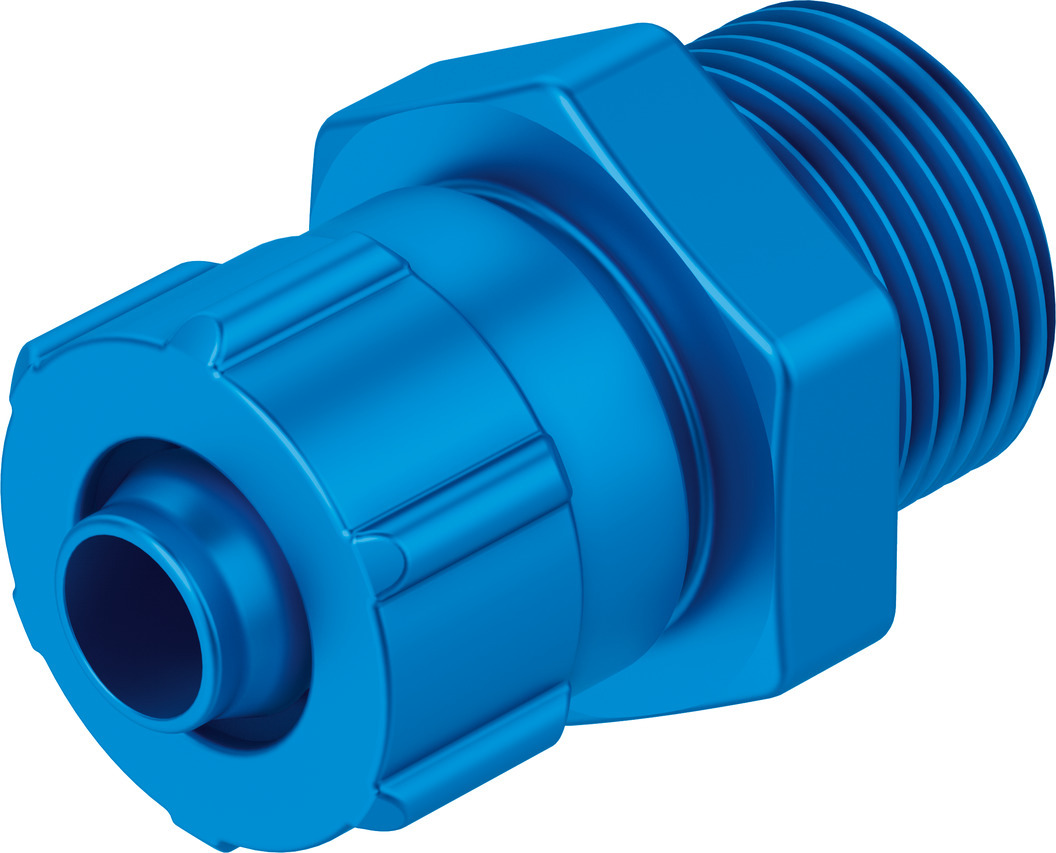

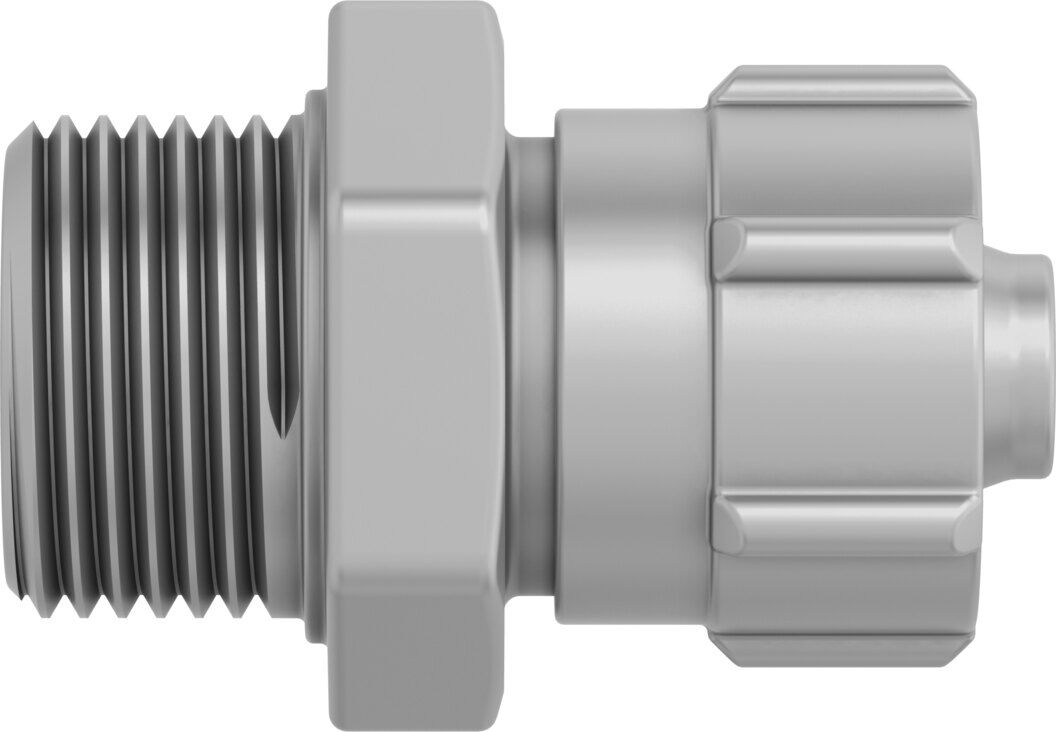

Quick connector

CK-1/8-PK-4

2027 x100 pack

Pneumatic connection, port 1
Male thread G1/8
Pneumatic connection, port 2
For tubing outside diameter of 6 mm - For barbed fitting inside diameter of 4 mm with nut
Ambient temperature
-10 °C - 60 °C

Technical Data

  • Nominal size2.9 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack100
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible Water: G-thread only possible with sealing ring type OL as additional accessory
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque3.5 Nm
  • Tolerance for nominal tightening torque± 20%
  • Pneumatic connection, port 1Male thread G1/8
  • Pneumatic connection, port 2For tubing outside diameter of 6 mm For barbed fitting inside diameter of 4 mm with nut
  • Material union nutWrought aluminium alloy, anodised
  • Material screwed plugAnodised wrought aluminium alloy
  • Note on materialsRoHS-compliant
  • Material sealing ringReinforced PA TPE-U(PU)

GTIN: 4052568008130

https://www.festo.com/media/pim/852/D15000100121852.PDF



Quick connector

Quick connector



Quick connector



SKU 2027
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
