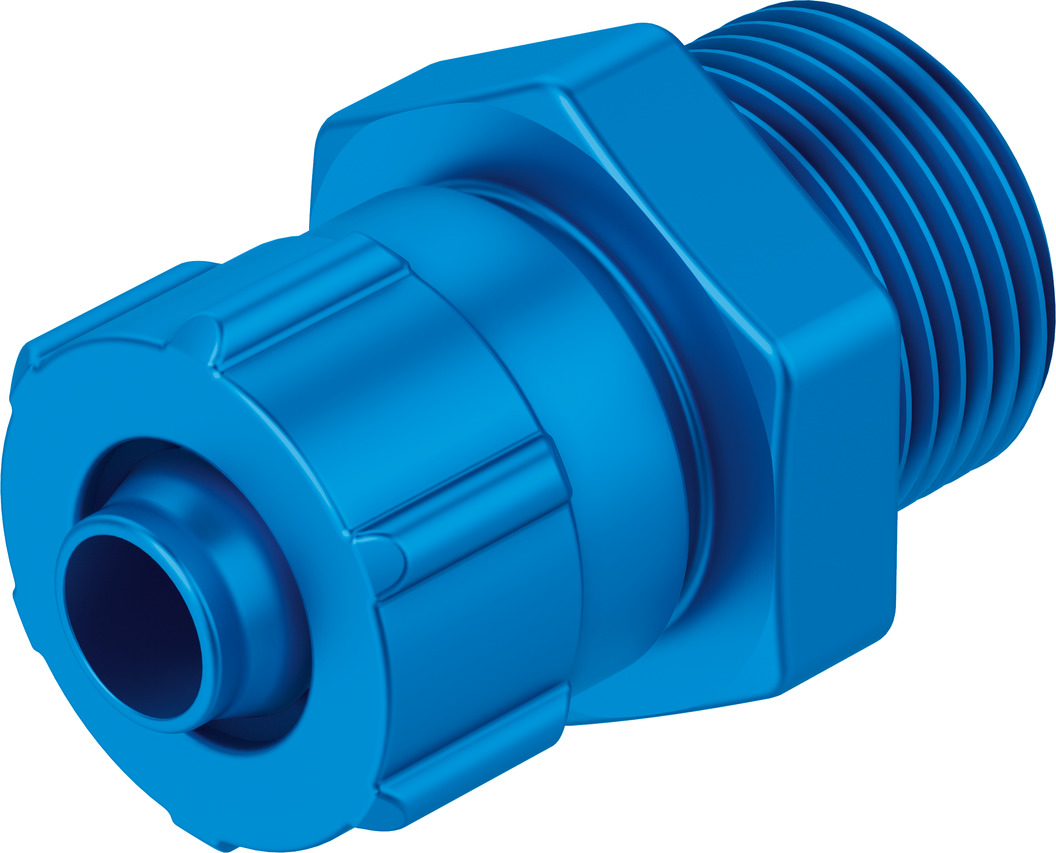

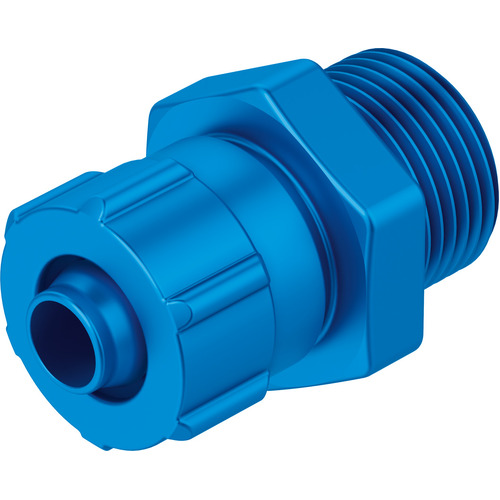

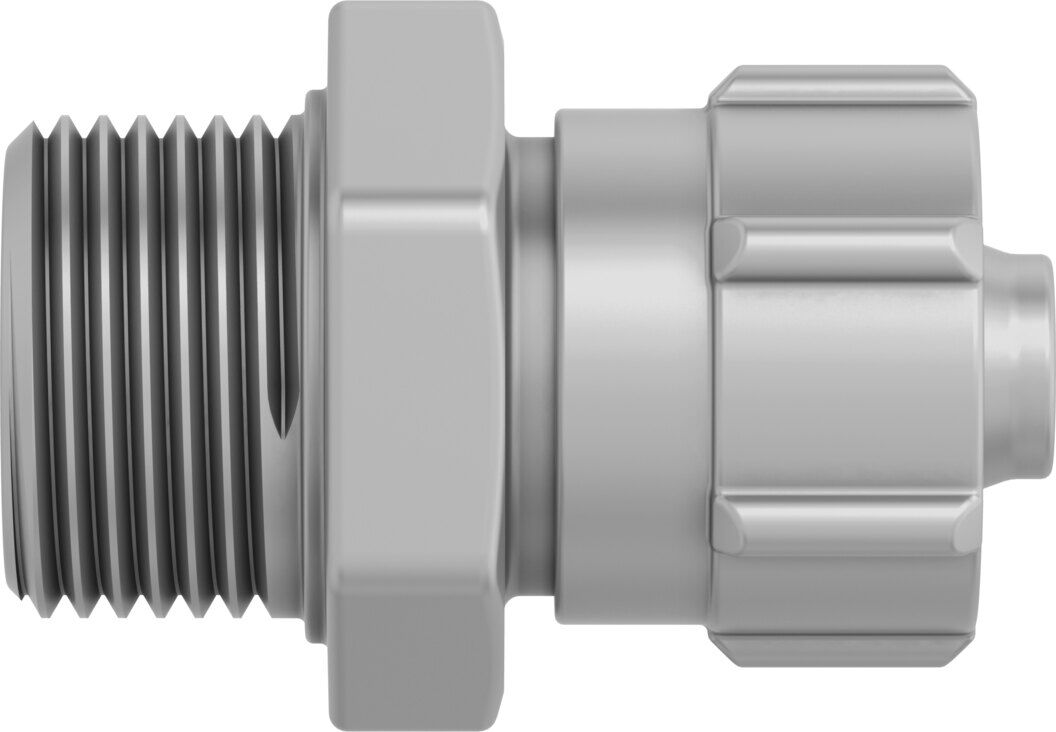

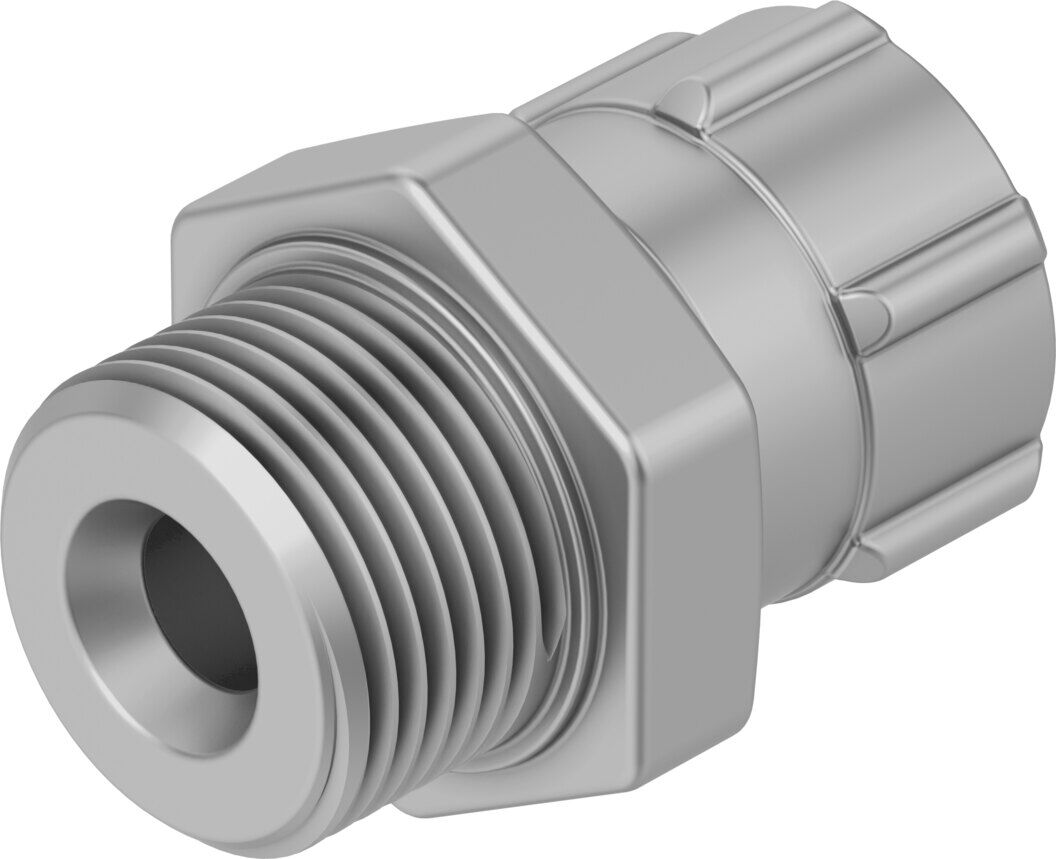

Quick connector (x100 pack)

CK-M5-PK-3

3561

Pneumatic connection, port 1
Male thread M5
Pneumatic connection, port 2
For tubing outside diameter of 4 mm - For barbed fitting I.D. 3 mm with nut
Ambient temperature
-10 °C - 60 °C

GTIN: 4052568000417

Technical Data

  • Nominal size2 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack10
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature-10 °C ... 60 °C
  • Nominal torque1.33 Nm
  • Tolerance for nominal tightening torque± 20%
  • Pneumatic connection, port 1Male thread M5
  • Pneumatic connection, port 2For tubing outside diameter of 4 mm For barbed fitting I.D. 3 mm with nut
  • Material union nutWrought aluminium alloy, anodised
  • Material screwed plugGalvanised steel
  • Note on materialsRoHS-compliant
  • Material sealing ringNBR High-alloy stainless steel

Downloads

Technical data

Links

Spare parts

Quick connectorQuick connectorQuick connector

SKU 3561
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
