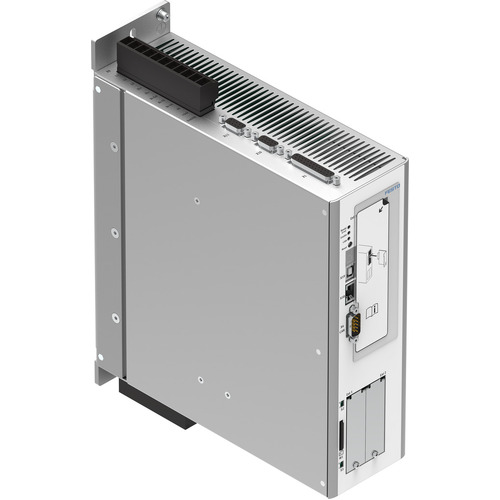

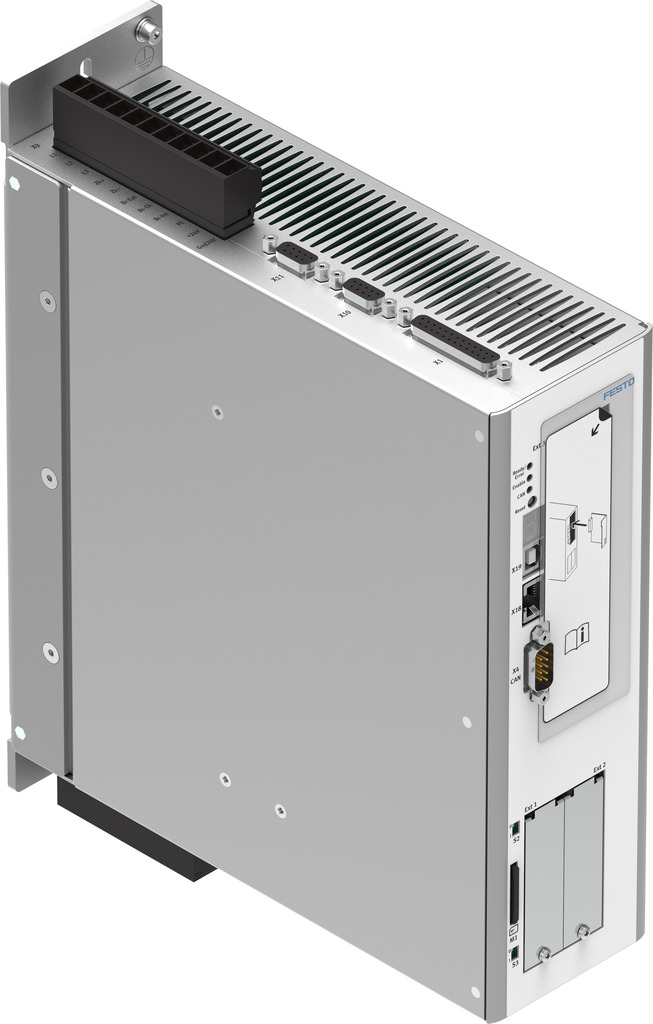

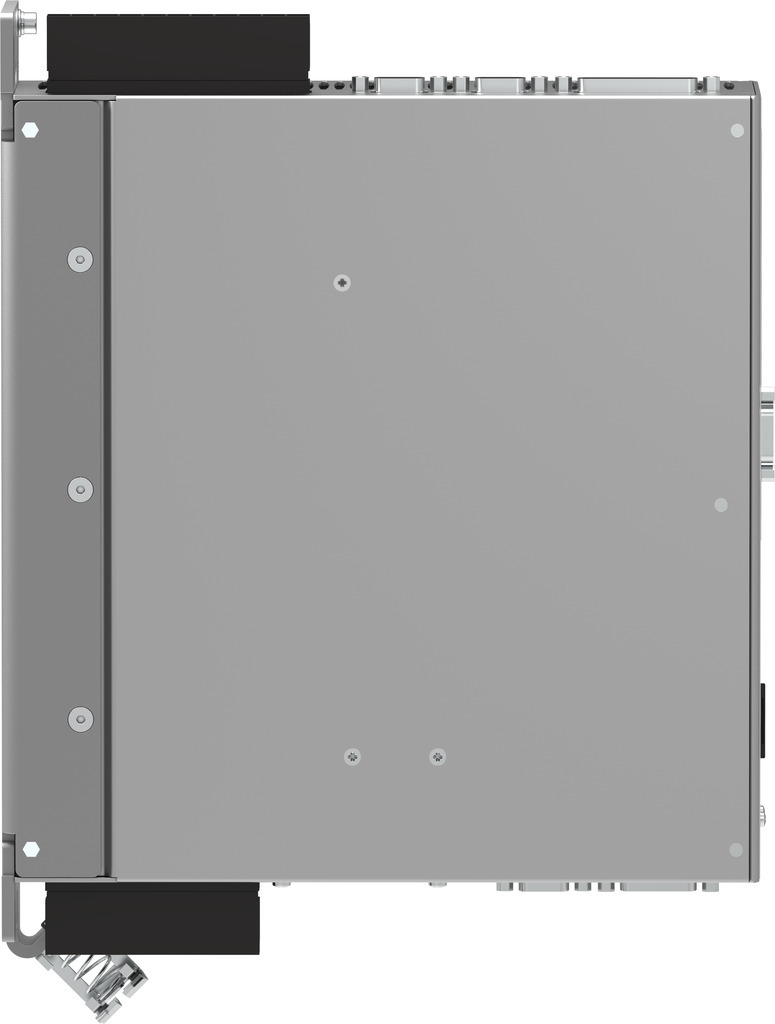

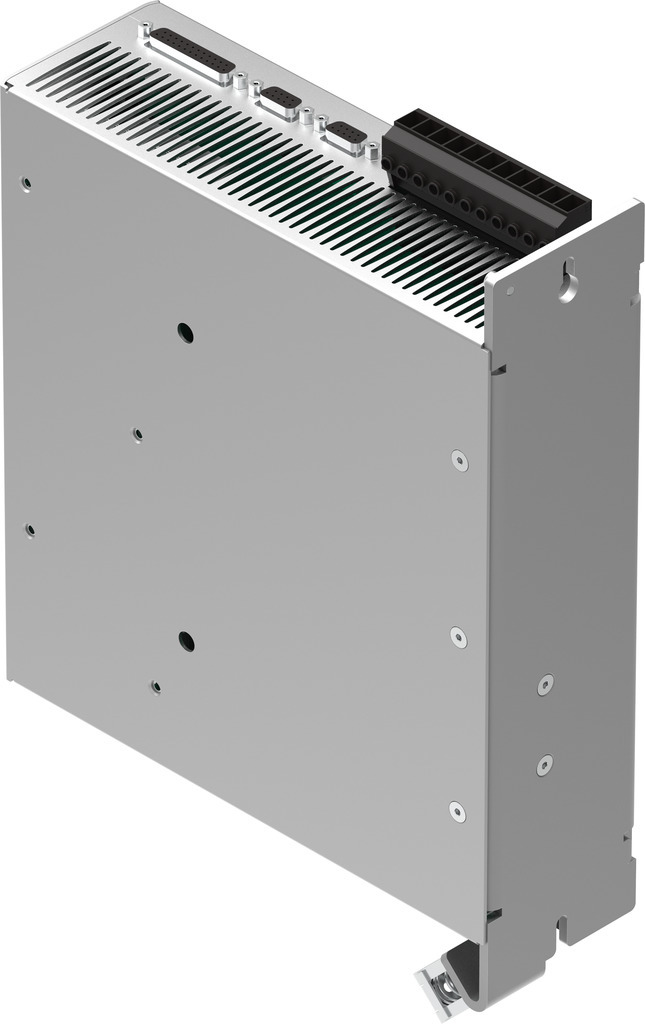

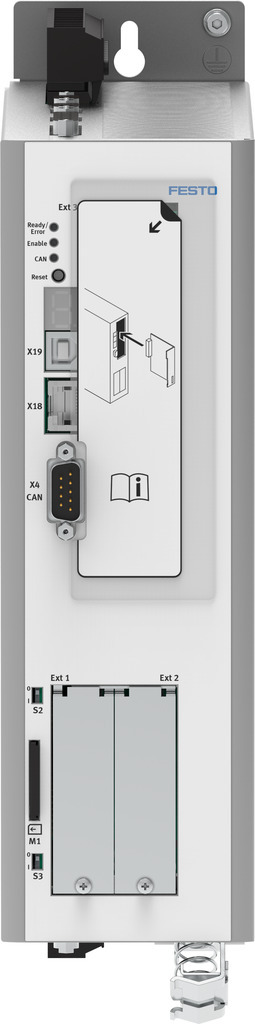

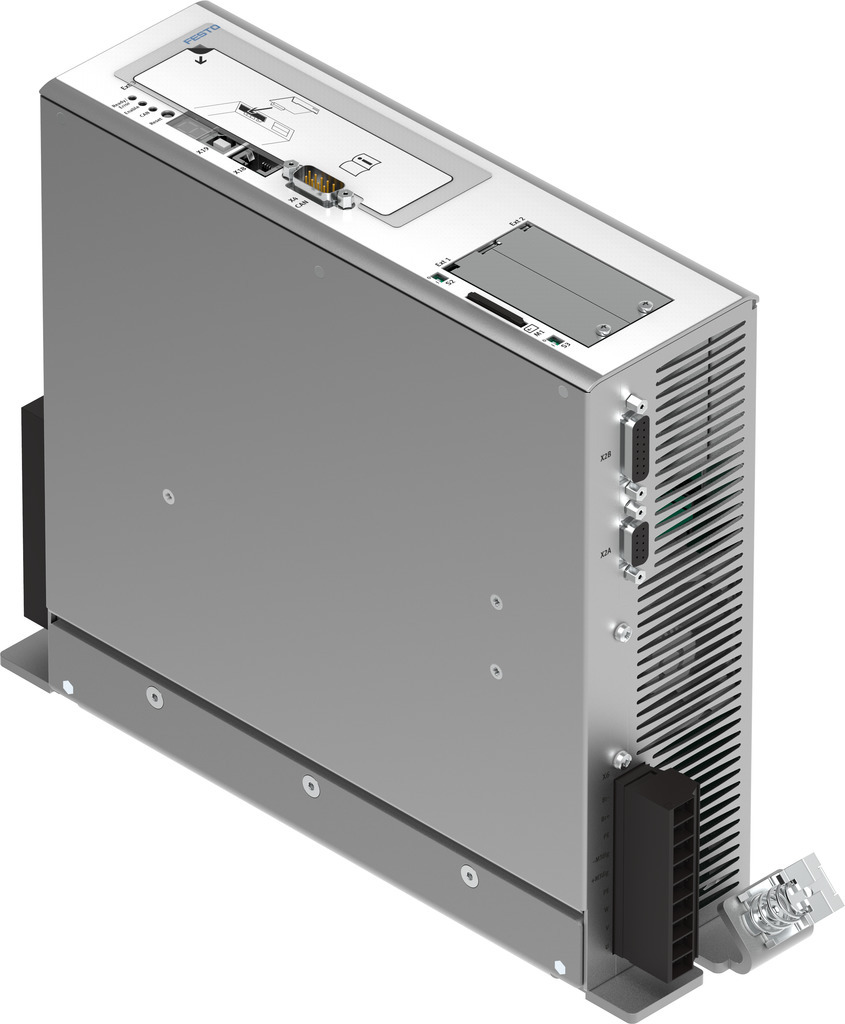

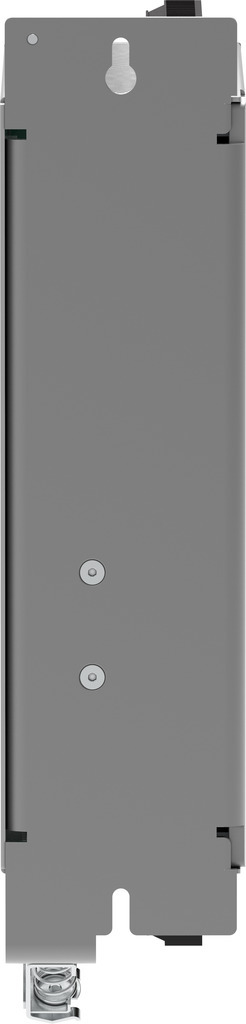

FESTO Motor controller

CMMP-AS-C5-11A-P3-M3

1501327

GTIN: 4052568237912

Downloads



CMMP-AS-M3_EN.PDF

Technical data

CAD data

Links

Spare parts

Pieces



Nominal current 5.5 A

Nominal operating voltage AC 400 V

Phases of nominal operating voltage 3-phase

Controller nominal output 3000 VA

Fieldbus link CANopen - DeviceNet - EtherCAT - EtherNet/IP -



Technical Data

• Type of mounting On sub-base Screw-clamped
• Product weight 3450 g
• Display 7-segment display
• Approva lRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity) To EU EMC Directive To EC Machinery Directive To EU Low Voltage Directive In accordance with EU RoHS Directive
• CE marking (see declaration of conformity) To UK instructions for EMC To UK regulations for machines To UK RoHS instructions To UK regulations for electrical equipment
• Storage temperature -25 °C ... 70 °C
• Ambient temperature 0 °C ... 40 °C
• Relative air humidity 0 - 90%
• Degree of protection IP10 IP20
• Pollution degree 2
• Note on materials RoHS-compliant
• LABS (PWIS) conformity VDMA24364 zone III
• Phases of nominal operating voltage 3-phase
• Nominal operating voltage AC400 V
• Permissible voltage fluctuations+/- 10 %
• Mains frequency 50 Hz ... 60 Hz
• Nominal current 5.5 A
• Mains filter Integrated
• Max. intermediate circuit voltage DC560 V
• Brake resistance 68 Ohm
• Pulse power, brake resistance 8.5 kVA
• Nominal voltage for logic power supply DC24 V
• Permissible range for logic voltage ± 20 %
• Current consumption of logic power supply without clamping brake1 A
• Output voltage class  AC3x 0 - 360 V
• Nominal output current 5 A
• Nominal current per phase, effective5 A
• Peak current per phase, effective15 A
• Max. peak current duration 5 s
• Controller nominal output 3000 VA
• Maximum output 6000 VA
• Output frequency 0 Hz ... 1000 Hz
• Parameterisation interface Parameterisation and commissioning USB Ethernet
• Fieldbus linkCANopen DeviceNet Ether CAT EtherNet/IP Modbus/TCP PROFINET Profibus DP
• Communication profile DS301/DSP402 FHPP
• Process interfacing I/O coupling For 256 position sets
• Max. fieldbus transmission rate1 Mbit/s
• Bus connection Plugs 9-pin Sub-D
• Encoder interface output, features Resolution 16384 ppr
• Encoder interface output, function Actual value feedback via encoder signals in speed control mode. Setpoint specification for downstream slave drive.
• Encoder interface input, features3-phase encoder signals EnDat HIPERFACE RS422 SINCOS
• Encoder interface input, function Setpoint speed value as encoder signal Specifies the speed of the slave drive in synchronous mode.
• Number of digital logic inputs10
• Features of logic input Galvanically isolated Freely configurable
• Working range of logic input8 V ... 30 V
• Number of digital logic outputs 24 V DC5
• Features of digital logic outputs Galvanically isolated Freely configurable in some cases
• Max. current digital logic outputs100 mA
• Number of analogue setpoint inputs2
• Features of setpoint inputs Differential inputs Configurable for speed Configurable for current
• Working range setpoint input ± 10 V
• Impedance of setpoint input 20 kOhm
• Number of analogue monitor outputs 2
• Working range of monitor outputs ± 10 V
• Resolution of monitor outputs 9 bit
• Features of monitor outputs Short-circuit proof
