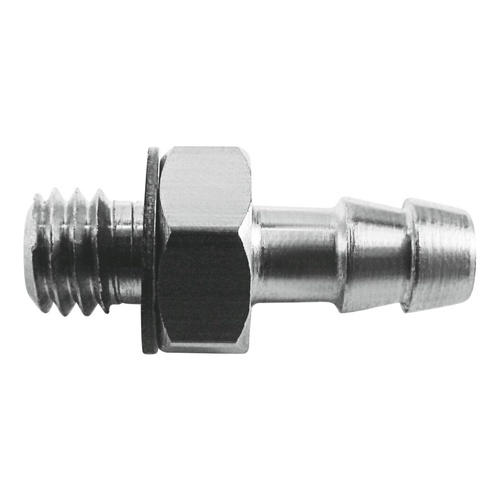

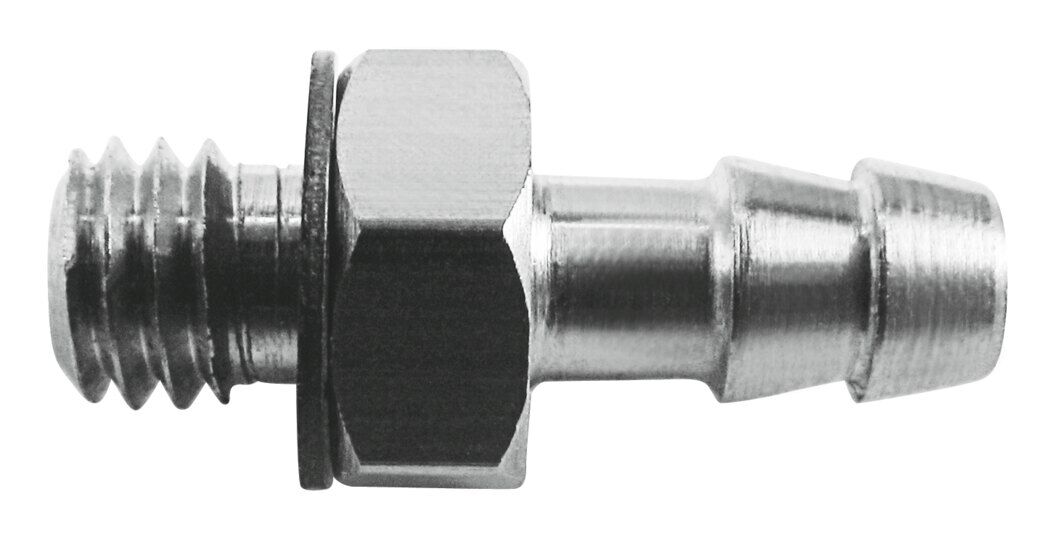

Barbed fitting

CN-M3-PK-3

15872





GTIN: 4052568022129

Pneumatic connection, port 1
Male thread M3
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Nominal size
1.5 mm
Ambient temperature
0 °C - 60 °C

Technical Data

  • Nominal size1.5 mm
  • Type of seal on screwed plugSealing ring
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Ambient temperature0 °C ... 60 °C
  • Pneumatic connection, port 1Male thread M3
  • Pneumatic connection, port 2For tubing outside diameter of 4 mm
  • Note on materialsRoHS-compliant
  • Material housingHigh-alloy steel



SKU 15872
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
