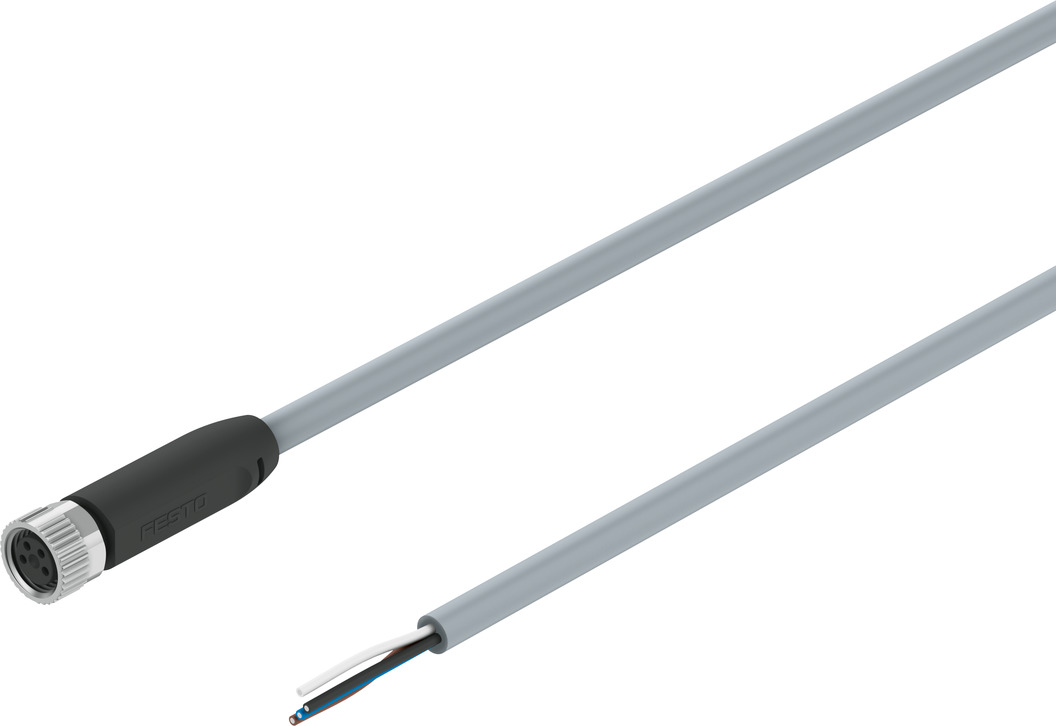

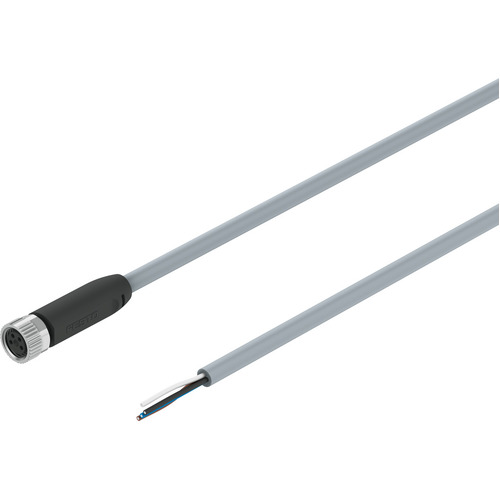

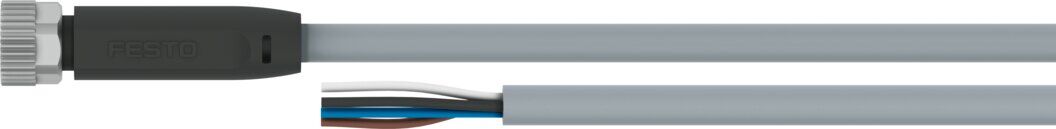

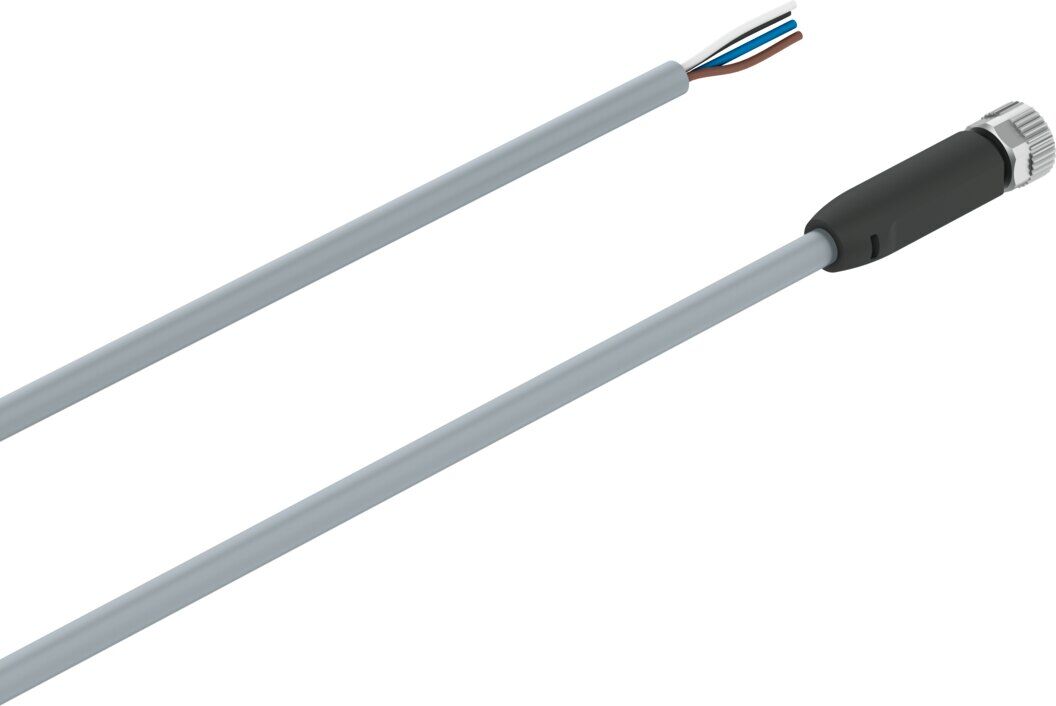

Connecting cable

Technical Data

• Conforms to standardEN 61076-2-104 EN 61984
• Approvalc UL us listed (OL)
• Intended useThe connecting cable connects field devices (sensors, actuators) with controllers.
• Explosion protectionThe information in the certificate must be observed! Zone 2 (ATEX) Zone 22 (ATEX)
• Certificate issuing authorityUL E253748
• Cable designationWithout inscription label holder
• Frequency of connection100
• Product weight66 g
• Instructions on useMeets the requirements of IEC 61010-1 and 61010-2-202, in particular for electrically operated valves from Festo. Only energy-limited circuits with a maximum current of 4 A at a max. open circuit voltage of 30 V DC are permissible for supplying electrically actuated valves from Festo.
• Electrical connection 1, functionField device side
• Electrical connection 1, designRound
• Electrical connection 1, connection typeSocket
• Electrical connection 1, cable outletStraight
• Electrical connection 1, connector systemM8x1, A-coded, to EN 61076-2-104
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, used connections/cores4
• Electrical connection 1, type of mountingScrew-type lock with hexagon A/F 9 mm and longitudinal knurl Rotatable
• Electrical connection 1, compatible type of mountingCompatible with rotatable/non-rotatable screw-type lock
• Electrical connection 1, connection pattern00991872
• Electrical connection 1, terminal allocationPin 1 = BN Pin 2 = WH Pin 3 = BU Pin 4 = BK
• Electrical connection 1, displayNone
• Electrical connection 2, functionController side
• Electrical connection 2, connection typeCable
• Electrical connection 2, connector systemOpen end
• Electrical connection 2, number of connections/cores4
• Electrical connection 2, used connections/cores4
• Electrical connection 2, terminal allocationPin 1 = BN Pin 2 = WH Pin 3 = BU Pin 4 = BK
• Electrical connection 2, displayNone
• Operational voltage range DC0 V ... 60 V
• Note on operational voltage range DC0 - 30 V for UL applications NEC/CEC CLASS 2
• Operational voltage range AC0 V ... 48 V
• Note on operational voltage range AC0 - 30 V for UL applications NEC/CEC CLASS 2
• Current rating at 40° C4 A
• Note on permissible current load at 40°CObserve derating
• Immunity to surge1.5 kV
• Cable length2.5 m
• Cable characteristicSuitable for energy chains/robot applications Abrasion-resistant Low adhesion Flame-retardant and self-extinguishing
• Test conditions cableTest conditions on request Torsional strength: > 300,000 cycles, ±270°/0.1 m Flexural strength: >50000 cycles, bending radius 5 mm Energy chain: > 5 million cycles, bending radius 28 mm
• Notes on test conditions cableTested at 23 °C
• Bending radius, fixed cable≥14 mm
• Bending radius, moving cable≥46 mm
• Cable diameter4.5 mm
• Cable structure4 x 0.25 mm²
• Nominal cross section conductor0.25 mm²
• Wire endsSheath removed Cut off bluntly
• Degree of protectionIP65 IP68 IP69K
• Note on degree of protectionIn assembled state
• Special characteristicsUV resistant Hydrolysis-resistant Resistant to cooling lubricants Resistant to microbes Oil resistant Ozone-resistant
• Outdoor applicationsApplication areas with direct exposure to outdoor climatic influences Class D1 based on IEC 60654-1
• Ambient temperature-40 °C ... 85 °C
• Note on ambient temperature-40 - 50 °C for UL applications
• Ambient temperature with moving cable-20 °C ... 85 °C
• Note on the ambient temperature with flexible cable installation-20 - 50 °C for UL applications
• Storage temperature-25 °C ... 55 °C
• Note on storage temperatureTemporarily during transport in packaging -40 ... 85 °C
• Relative air humidityMax. 93% at 40 °C
• Nominal altitude of use<= 2000 m NHN
• Overvoltage categoryII
• CE mark (see declaration of conformity)In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK RoHS instructions
• LABS (PWIS) conformityVDMA24364-B2-L
• Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
• Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
• Note on materialsCFC-free RoHS-compliant Cadmium-free Free of halogen Free of phosphoric acid ester
• Pollution degree3
• Note on the contamination levelIn mounted state
• Corrosion resistance class CRC1 - Low corrosion stress
• Material cable sheathTPE-U(PUR)
• Cable sheath colourGrey
• Material housingTPE-U(PUR)
• Housing colourBlack
• Material screw-type lockDie-cast zinc, nickel-plated
• Material sealsFPM
• Material electrical contactGold-plated copper alloy
• Material insulating sheathPP
