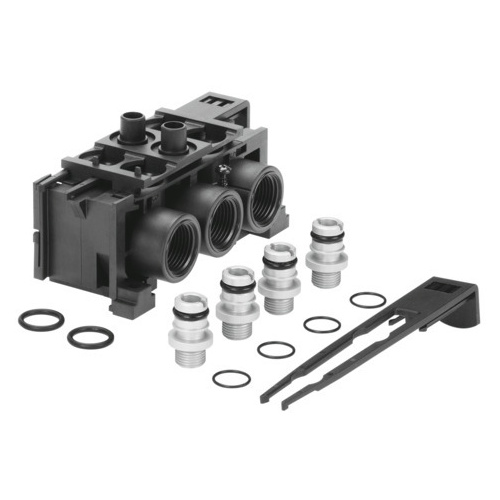

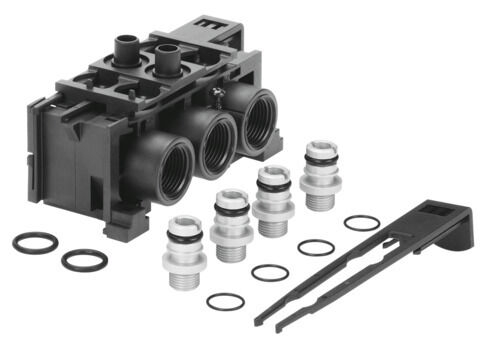

Manifold block

CPE14-PRSG-2

164965





GTIN: 4052568073572



Technical Data

  • Max. number of valve positions2
  • Burst pressure3 MPa
  • Burst pressure16 bar
  • Burst pressure232 psi
  • Operating pressure-0.09 MPa ... 1 MPa
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Product weight950 g
  • Mounting method for sub-baseWith through-hole via DIN rail
  • Pneumatic connection, port 1G3/8
  • Note on materialsRoHS compliant
  • Material housingReinforced PA



SKU 164965
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
