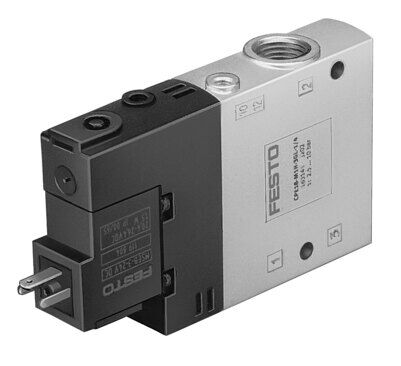

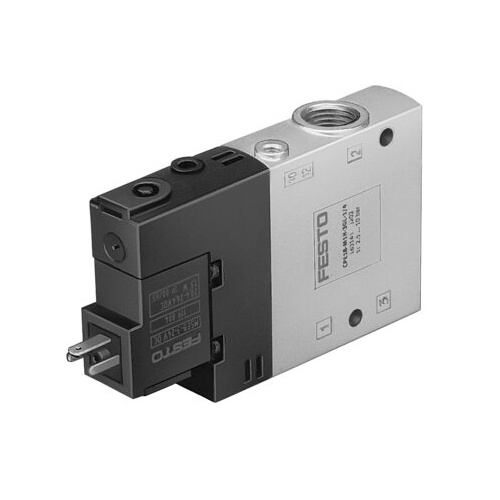

Solenoid valve

Technical Data

• Valve function3/2-way, single solenoid, open
• Type of actuationElectrical
• Construction width18 mm
• Standard nominal flow rate (standardised to DIN 1343)1700 l/min
• pneumatic working portG1/4
• Operating voltage110V AC
• Operating pressure0.25 MPa ... 1 MPa
• Operating pressure2.5 bar ... 10 bar
• DesignPiston gate valve
• Type of resetPneumatic spring
• Approvalc UL us - Recognised (Oil)
• Maritime classificationSee certificate
• CE mark (see declaration of conformity)To EU Low Voltage Directive
• UKCA marking (see declaration of conformity)To UK regulations for electrical equipment
• Certificate issuing authorityDNV-TAA000032X UL MH19482
• Degree of protectionIP65 With plug socket To IEC 60529
• Nominal size8 mm
• Sealing principleSoft
• Mounting positionAny
• Manual overrideDetenting via accessory Non-detenting
• Type of pilotingPiloted
• Pilot air supplyInternal
• Flow directionNon-reversible
• Symbol00991656
• Valve position codeLabel holder
• lapOverlap
• Switching time off18 ms
• Switching time on28 ms
• Duty cycle100%
• Max. positive test pulse with 0 signal3300 µs
• Max. negative test pulse with 1 signal3100 µs
• Characteristic coil data110 V AC: 50/60 Hz, pick-up power 3.0 VA, holding power 2.4 VA
• Permissible voltage fluctuations-15% / +10%
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
• Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Media temperature-5 °C ... 50 °C
• Ambient temperature-5 °C ... 50 °C
• Product weight150 g
• Electrical connectionType C
• Type of mountingWith through-hole
• Pilot exhaust port 82M5
• Pilot air port 12M5
• Pneumatic connection, port 1G1/4
• Pneumatic connection, port 2G1/4
• Pneumatic connection, port 3G1/4
• Note on materialsRoHS compliant
• Material sealsNBR
• Material housingDie-cast aluminium
