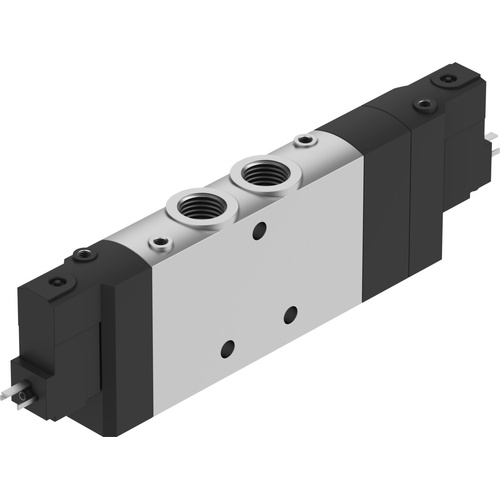

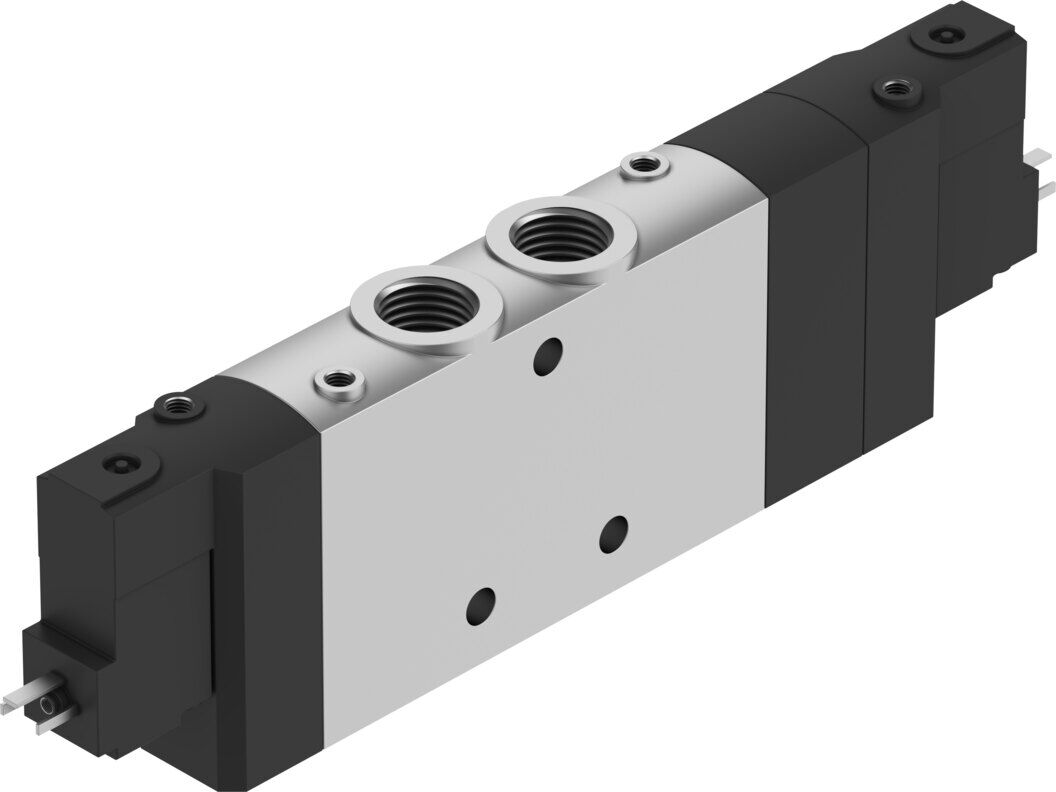

Solenoid valve

CPE24-M1H-5/3ES-3/8

170268





GTIN: 4052568138042

Valve function
5/3 exhausted
Standard nominal flow rate (standardised to DIN 1343)
2650 l/min
Pneumatic connection, port 1
G3/8
Type of actuation
Electrical


Technical Data

  • Valve function5/3 exhausted
  • Type of actuationElectrical
  • Construction width24 mm
  • Standard nominal flow rate (standardised to DIN 1343)2650 l/min
  • pneumatic working portG3/8
  • Operating voltage24 V DC
  • Operating pressure-0.09 MPa ... 1 MPa
  • Operating pressure-0.9 bar ... 10 bar
  • DesignPiston gate valve
  • Type of resetMechanical spring
  • Approvalc UL us - Recognised (Oil)
  • Maritime classificationSee certificate
  • Certificate issuing authorityDNV-TAA000032X UL MH19482
  • Degree of protectionIP65 With plug socket To IEC 60529
  • Nominal size11 mm
  • Exhaust-air functionCan be throttled
  • Sealing principleSoft
  • Mounting positionAny
  • Manual overrideDetenting via accessory Non-detenting
  • Type of pilotingPiloted
  • Pilot air supplyExternal
  • Flow directionReversible

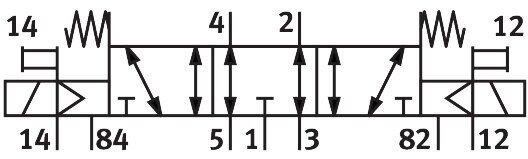

  • Symbol00991032
  • Valve position codeLabel holder
  • lapOverlap
  • Pilot pressure0.25 MPa ... 1 MPa
  • Pilot pressure2.5 bar ... 10 bar
  • Switching time off55 ms
  • Switching time on25 ms
  • Duty cycle100%
  • Max. positive test pulse with 0 signal3300 µs
  • Max. negative test pulse with 1 signal3100 µs
  • Characteristic coil data24 V DC: 1.5 W
  • Permissible voltage fluctuations-15% / +10%
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
  • Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-5 °C ... 50 °C
  • Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Ambient temperature-5 °C ... 50 °C
  • Product weight430 g
  • Electrical connectionType C
  • Type of mountingWith through-hole
  • Pilot exhaust port 82M5
  • Pilot exhaust port 84M5
  • Pilot air port 12M5
  • Pilot air port 14M5
  • Pneumatic connection, port 1G3/8
  • Pneumatic connection, port 2G3/8
  • Pneumatic connection, port 3G3/8
  • Pneumatic connection, port 4G3/8
  • Pneumatic connection, port 5G3/8
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material housingDie-cast aluminium





SKU 170268
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
