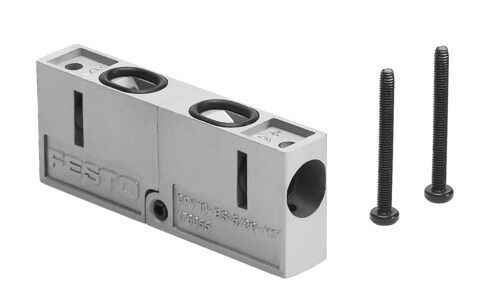

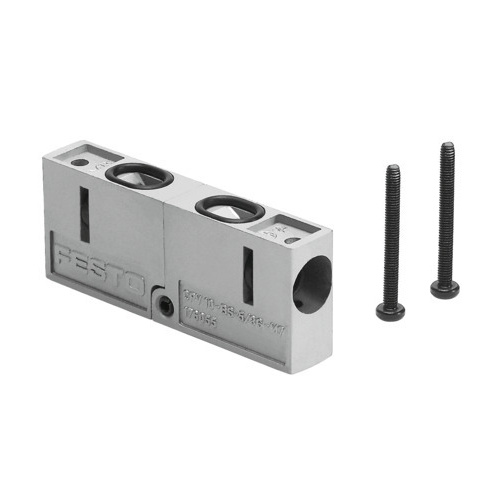

Valve kitCPV10-BS-5/3G-M7

176055

GTIN: 4052568143718

Valve function
5/3-way, closed





Technical Data Valve kit CPV10-BS-5/3G-M7

  • Valve function5/3-way, closed
  • pneumatic working portM7
  • Operating pressure2.5 bar ... 10 bar
  • Nominal size4 mm
  • Mounting positionAny
  • Burst pressure30 bar
  • Switching time off30 ms
  • Switching time on20 ms
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Shock resistance30 g/11 ms to EN 60068-2-27
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature-10 °C ... 60 °C
  • Ambient temperature-10 °C ... 60 °C
  • Product weight23 g
  • Type of mountingWith through-hole
  • Pneumatic connection, port 2M7
  • Note on materialsRoHS compliant
  • Material sealsNBR
  • Material housingDie-cast zinc
SKU 176055
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
