Please note: The product is not recommended for new designs.

More products of this category can be seen here: Valve manifolds

Please contact us for alternatives

Product is planned to be discontinued. Do not use for new designs.

08/2024 - Product is being phased out. Do not use for new designs.

12/2027 - Product is discontinued. Products for replacement may be available while stocks permit.

12/2031 - Product is discontinued.

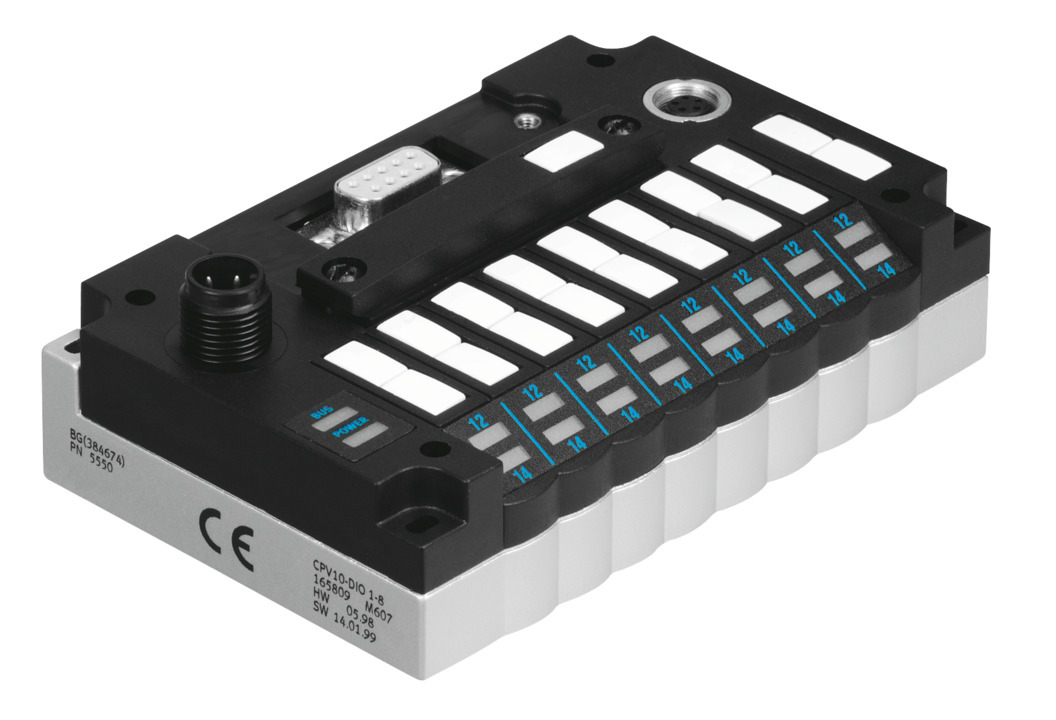

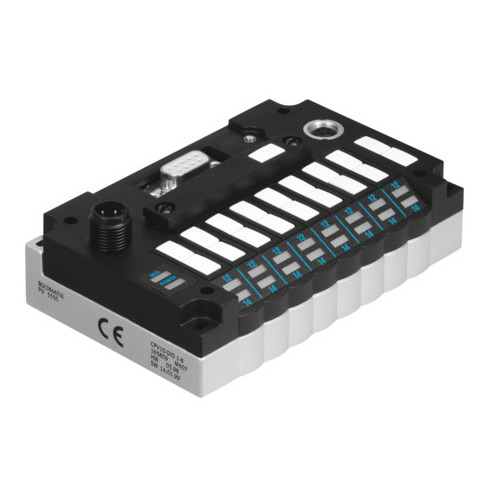

Electrical interface

CPV14-GE-DI01-8

165811

GTIN: 4052568137823

Downloads

Product information

Technical data

Reliability datasheet

CAD data

Links

Spare parts

Technical Data

• CP string expansionyes 16 inputs 8 outputs (or 16 valves)
• Field bus interface Either: Socket and plug, M12x1, 5-pin, B-coded Sub-D, 9-pin, socket
• Device-specific diagnostics Via device-specific diagnostics (DPV0) Missing module on CP string extension Short circuit/overload, outputs Undervoltage of outputs Undervoltage of sensor supply Undervoltage of valves
• Types of communication Cyclic communication
• Configuration support GSD file and bitmaps
• Max. number of valve coils with string expansion 32
• Max. number of valve coils 16
• Reverse polarity protection For all electrical connections
• Baud rate 9.6 kBaud ... 12 MBaud Automatic detection
• Operational voltage range DC20.4 V ... 26.4 V
• Max. number of outputs (16 solenoid coils omitted) 8
• Max. number of inputs 16
• Nominal operating voltage DC 24 V
• Power failure bridging 10 ms
• Residual ripple4 Vpp
• Current consumption at nominal operating voltage, load Depending on valve type
• Current consumption at nominal operating voltage Electronics: <= 100 mA Sensor supply: dependent on sensor
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Storage temperature -20 °C ... 70 °C
• Degree of protection IP65
• Ambient temperature -5 °C ... 50 °C
• Approval c UL us - Recognized (OL)
• Product weight 351 g
• Addressing range 1 ... 125 Set using switch module
• Fieldbus certification PNO
• Electrical isolation fieldbus interface Optocoupler
• LED display, bus-specific BUS: Communication and configuration errors
• LED display, product-specific 12/14: switching status of valves POWER: Operating voltage for electronics and load supply
• Product identification Product series: 4: Valves
• Material cover PA-reinforced
• Material sealsCR NBR
• Material housing Die-cast aluminium
• Note on materials RoHS-compliant
