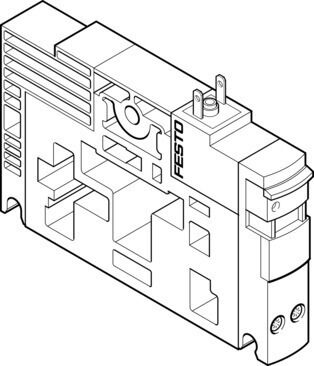

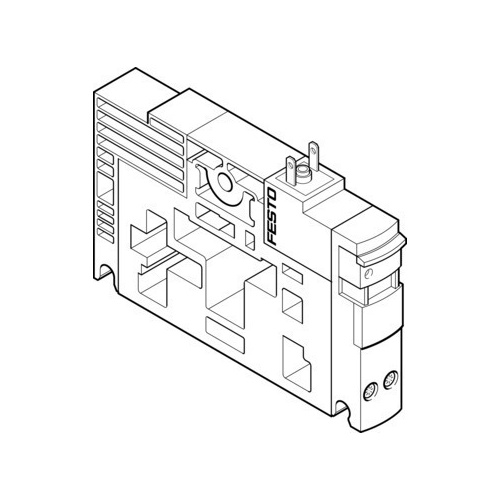

Vacuum generator CPV18-M1H-V140-1/4

185874

GTIN: 4052568146139

Nominal size, Laval nozzle
1.4 mm
Max. vacuum
85 %
Operating pressure
3 bar - 8 bar

Technical Data Vacuum generator CPV18-M1H-V140-1/4

  • Nominal size, Laval nozzle1.4 mm
  • Mounting positionAny
  • Ejector characteristicHigh vacuum

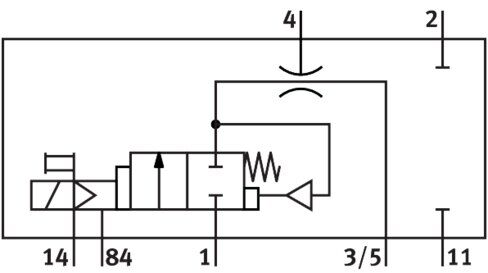

  • Symbol00991560
  • Operating pressure3 bar ... 8 bar
  • Max. vacuum85 %
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC1 - Low corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Media temperature0 °C ... 50 °C
  • Ambient temperature0 °C ... 50 °C
  • Product weight227 g
  • Electrical connectionPlug
  • Type of mountingWith through-hole
  • Pneumatic connection, port 1Sub-base
  • Pneumatic connection, port 3Sub-base
  • Vacuum connectionG1/4
  • Note on materialsRoHS compliant
  • Material housingDie-cast aluminium





SKU 185874
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
