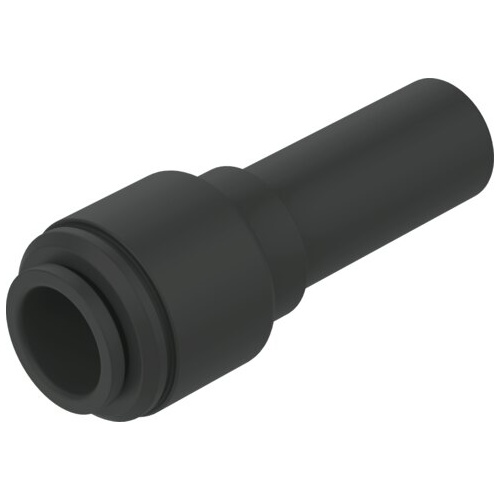

Push-in connector (x10 pack)CQ-15H-12

177701

GTIN: 4052568038502

Pneumatic connection, port 1
Push-in sleeve CQ-15
Pneumatic connection, port 2
For pipe/tubing outside diameter of 12 mm
Temperature-dependent operating pressure
-0.95 bar - 15 bar
Ambient temperature
-25 °C - 70 °C
Nominal size
9.15 mm





Technical Data Push-in connector CQ-15H-12

  • Nominal size9.15 mm
  • Mounting positionAny
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.95 bar ... 7 bar
  • Temperature-dependent operating pressure-0.95 bar ... 15 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-25 °C ... 70 °C
  • Product weight12 g
  • Pneumatic connection, port 1Push-in sleeve CQ-15
  • Pneumatic connection, port 2For pipe/tubing outside diameter of 12 mm
  • Note on materialsRoHS compliant
  • Material housingPOM
  • Material release ringPOM
  • Material tubing clamp componentHigh-alloy stainless steel
SKU 177701
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
