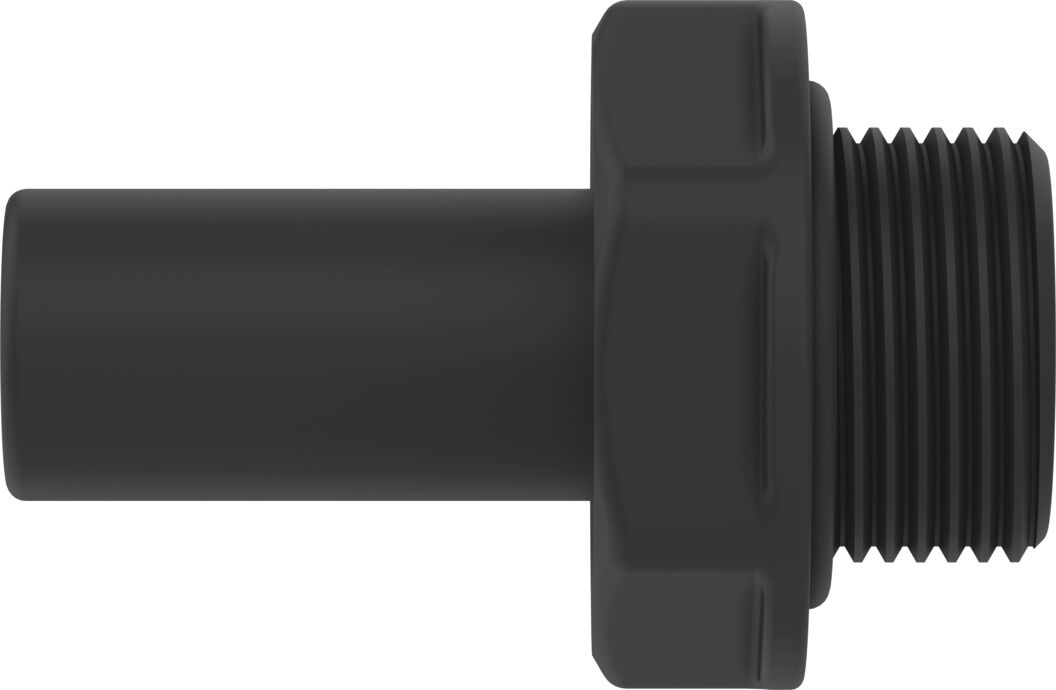

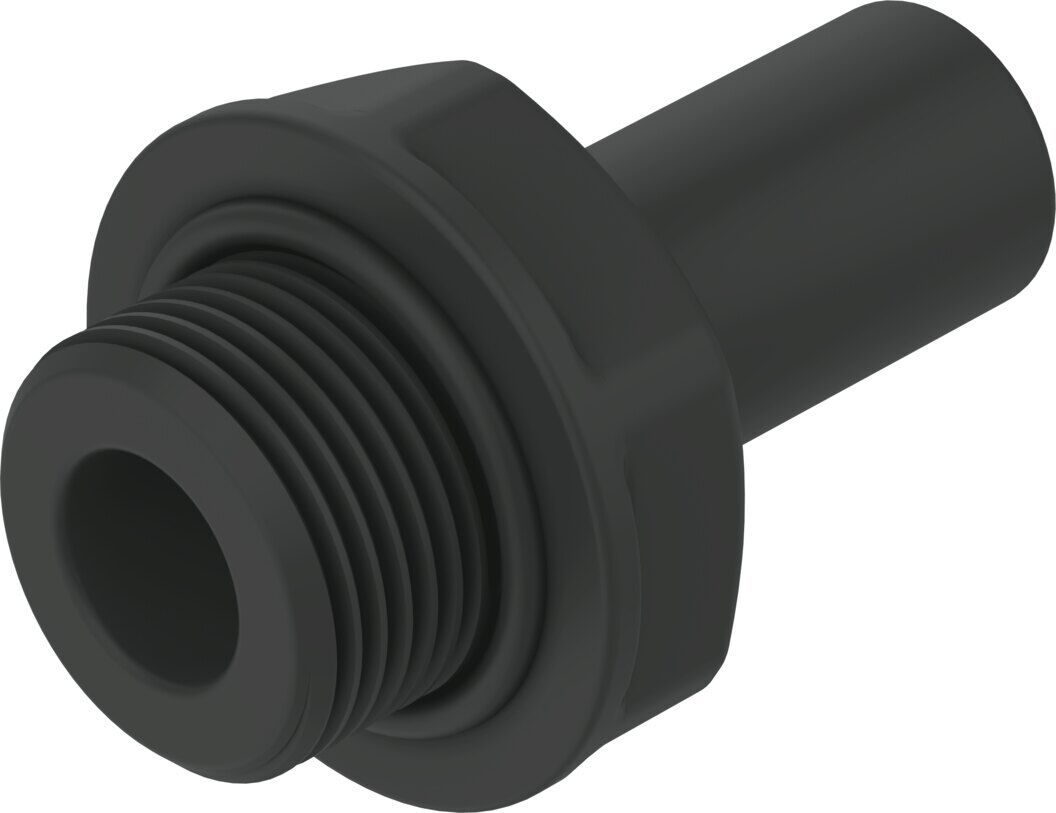

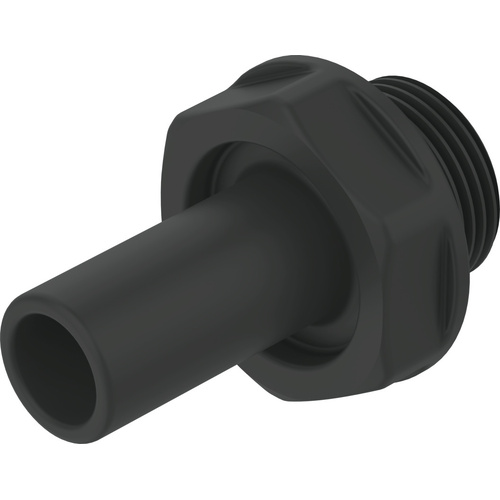

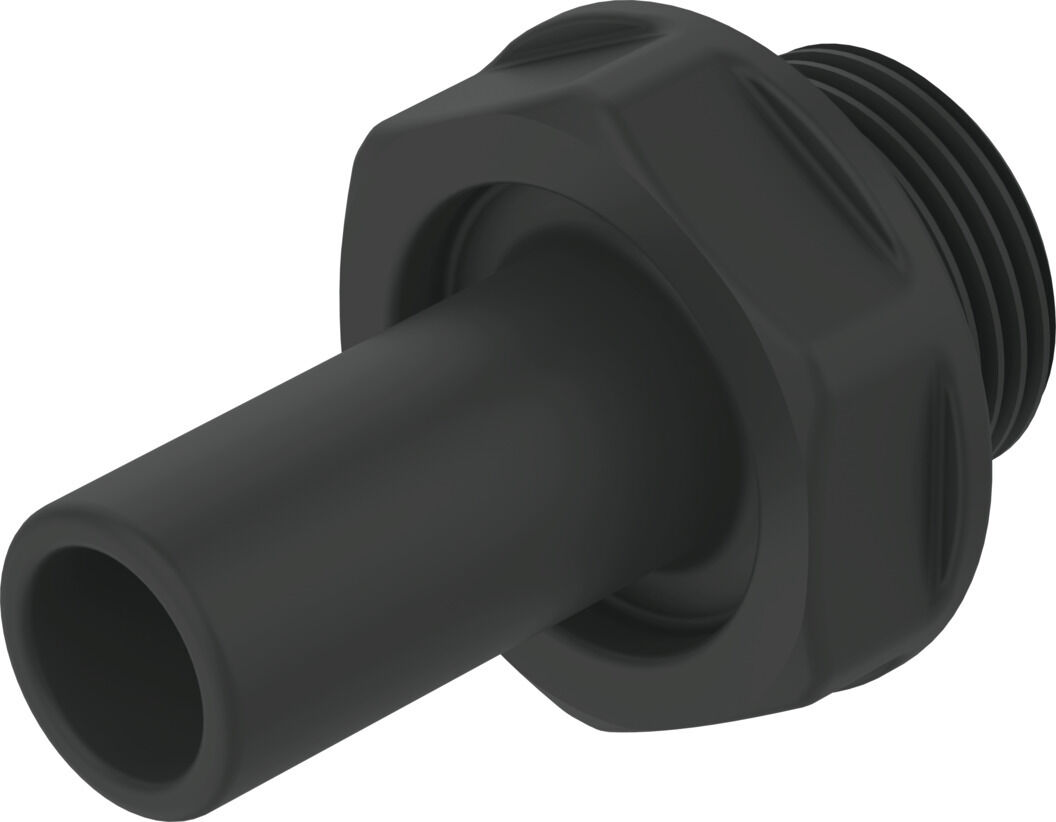

Push-in fitting

CQ-3/4-22H

177711





GTIN: 4052568038601

Pneumatic connection, port 1
Male thread G3/4
Pneumatic connection, port 2
Push-in sleeve CQ-22
Temperature-dependent operating pressure
-0.95 bar - 15 bar
Ambient temperature
-25 °C - 70 °C
Nominal size
17 mm

Technical Data

  • Nominal size17 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • Size of pack1
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.95 bar ... 7 bar
  • Temperature-dependent operating pressure-0.95 bar ... 15 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-25 °C ... 70 °C
  • Nominal torque3 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight28 g
  • Pneumatic connection, port 1Male thread G3/4
  • Pneumatic connection, port 2Push-in sleeve CQ-22
  • Note on materialsRoHS-compliant
  • Material housingPOM
  • Material release ringPOM
SKU 177711
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
