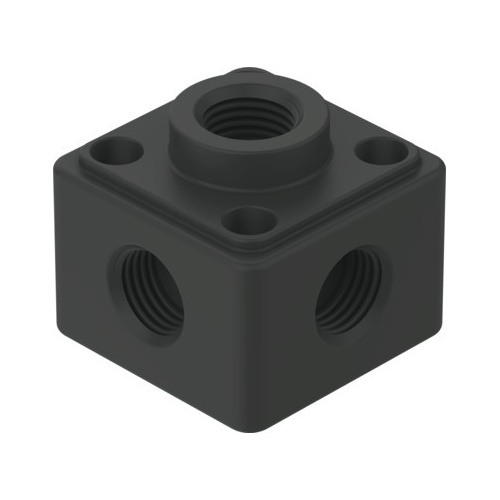

DistributorCQD-12/15/18/22

177717

GTIN: 4052568075620

Technical Data Distributor CQD-12/15/18/22

  • Nominal size18.6 mm
  • Mounting positionAny
  • Size of pack1
  • Operating pressure complete temperature range-0.95 bar ... 7 bar
  • Temperature-dependent operating pressure-0.95 bar ... 15 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Media temperature-25 °C ... 75 °C
  • Ambient temperature-25 °C ... 70 °C
  • Nominal torque2.5 Nm
  • Tolerance for nominal tightening torque±10%
  • Number of outputs4
  • Number of supply lines1
  • Pneumatic connection, port 1Female thread G1/2
  • Pneumatic connection, port 2Female thread G1/2
  • Note on materialsRoHS compliant
  • Material housingPOM





SKU 177717
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
