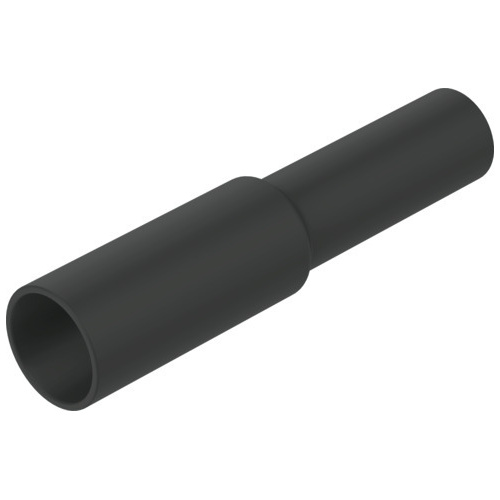

Push-in sleeveCQH-15-QS-12

177721

GTIN: 4052568038663

Pneumatic connection, port 1
Push-in sleeve CQ-15
Pneumatic connection, port 2
Push-in sleeve QS-12
Temperature-dependent operating pressure
-0.95 bar - 15 bar
Ambient temperature
-25 °C - 70 °C
Nominal size
8 mm



Technical Data Push-in sleeve CQH-15-QS-12

  • Nominal size8 mm
  • Mounting positionAny
  • Size of pack10
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.95 bar ... 7 bar
  • Temperature-dependent operating pressure-0.95 bar ... 15 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364 zone III
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-25 °C ... 70 °C
  • Product weight4 g
  • Pneumatic connection, port 1Push-in sleeve CQ-15
  • Pneumatic connection, port 2Push-in sleeve QS-12
  • Note on materialsRoHS compliant
  • Material housingPOM
SKU 177721
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
