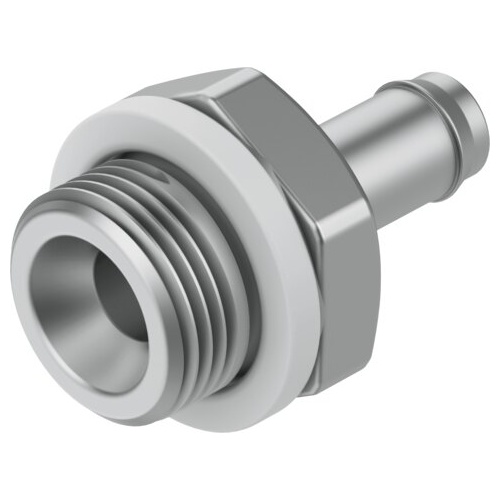

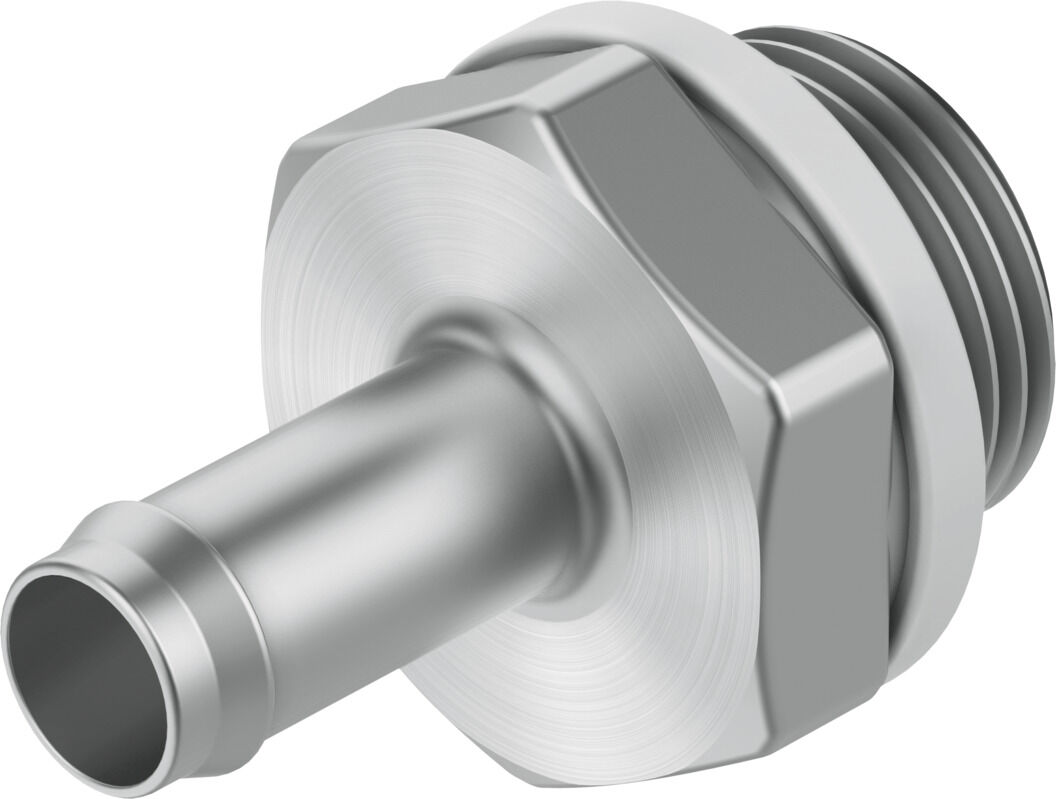

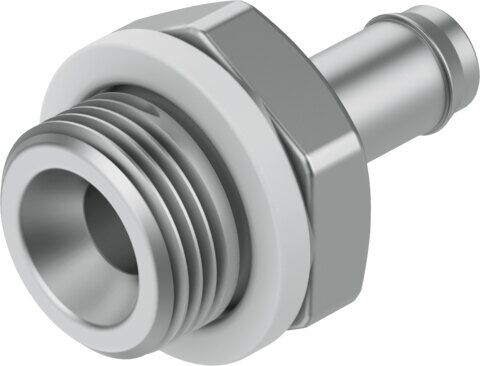

Barbed fitting

CRCN-3/8-PK-6

13974





GTIN: 4052568021696

Pneumatic connection, port 1
Male thread G3/8
Pneumatic connection, port 2
For tubing outside diameter of 8 mm
Nominal size
5.3 mm
Ambient temperature
0 °C - 60 °C

Technical Data

  • Nominal size5.3 mm
  • Type of seal on screwed plugSealing ring
  • Size of pack1
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC2 - Moderate corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature0 °C ... 60 °C
  • Product weight23.7 g
  • Pneumatic connection, port 1Male thread G3/8
  • Pneumatic connection, port 2For tubing outside diameter of 8 mm
  • Note on materialsRoHS-compliant
  • Material housingHigh-alloy stainless steel
  • Material thread sealPA-reinforced TPE-U(PU)






SKU 13974
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
