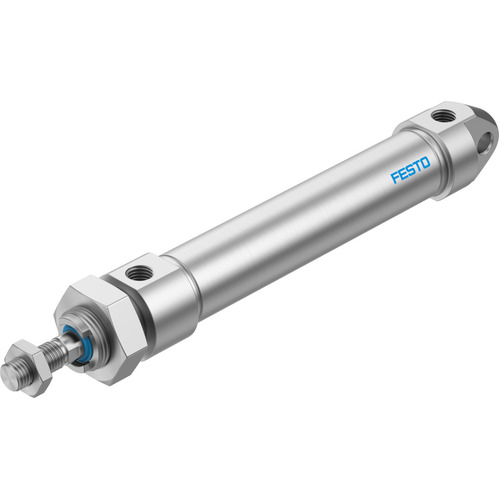

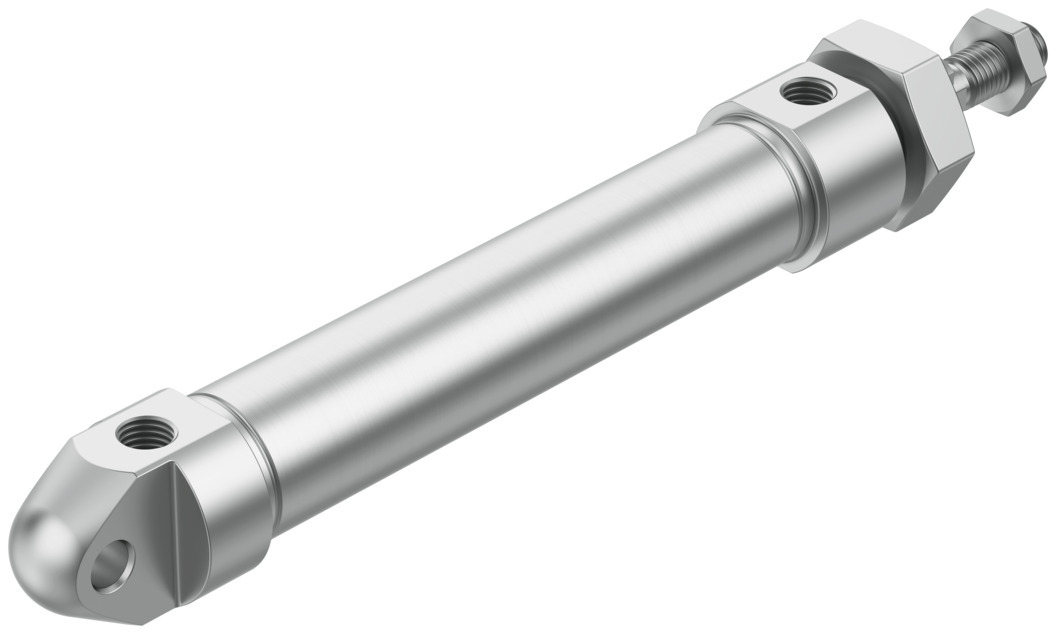

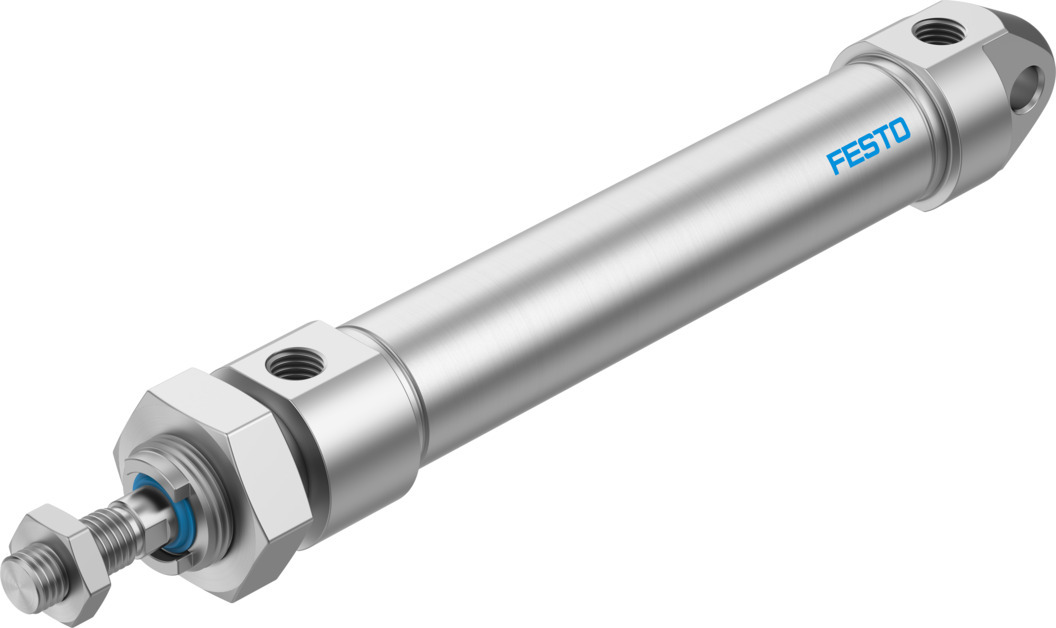

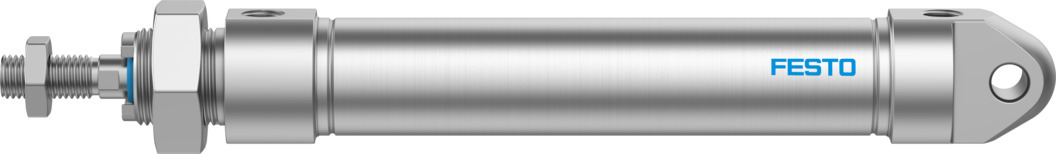

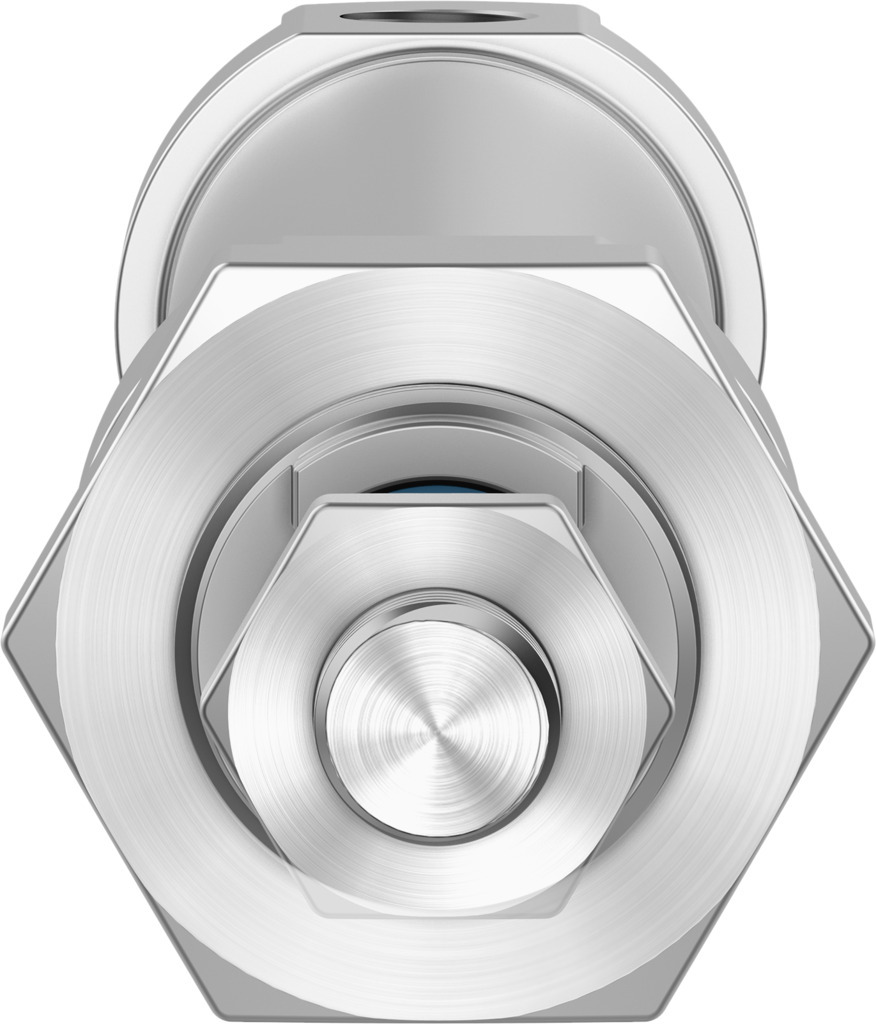

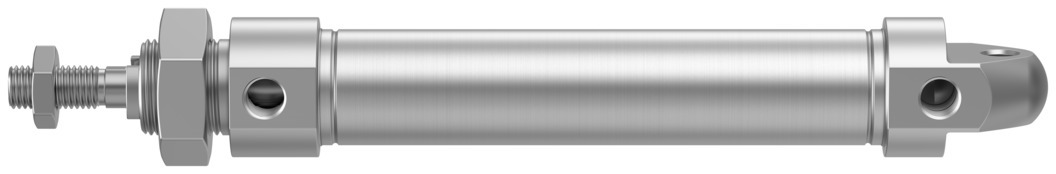

CRDSNU-25-100-P-A standards-based cylinder

CRDSNU-25-100-P-A

$259.48
RRP $314.40
SAVE $54.92 (17%)


Standards-based cylinder

Standards-based cylinder

CRDSNU-25-100-P-A

8152634





GTIN: 4052568575953

Downloads



CRDSNU_EN.PDF

Technical data

Links

Spare parts



Mode of operation  double-acting

Piston diameter 25 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke  295 N

Stroke 100 mm

Cushioning Elastic cushioning rings/plates at both ends

Technical Data

  • Stroke 100 mm
  • Piston diameter 25 mm
  • Piston rod thread M10x1.25
  • Cushioning Elastic cushioning rings/plates at both ends
  • Mounting position optional
  • Conforms to standardI SO 6432
  • Piston-rod end Male thread
  • Design Piston Piston rod Cylinder barrel
  • Position detection Via proximity switch
  • Symbol 00991217
  • Operating pressure 0.1 MPa ... 1 MPa
  • Operating pressure 1 bar ... 10 bar
  • Mode of operation Double-acting
  • Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformity VDMA24364-B2-L
  • Ambient temperature -20 °C ... 80 °C
  • Impact energy in end positions 0.3 J
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 247 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 295 N
  • Moving mass for 0 mm stroke 73 g
  • Additional moving mass per 10 mm stroke 6 g
  • Basic weight for 0 mm stroke 410 g
  • Additional weight per 10 mm stroke 11 g
  • Type of mounting With accessories
  • Pneumatic connection G1/8
  • Note on materials RoHS-compliant
  • Material cover High-alloy stainless steel
  • Material piston rod High-alloy stainless steel
  • Material cylinder barrel High-alloy stainless steel



(8152634)

SKU 8152634
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
