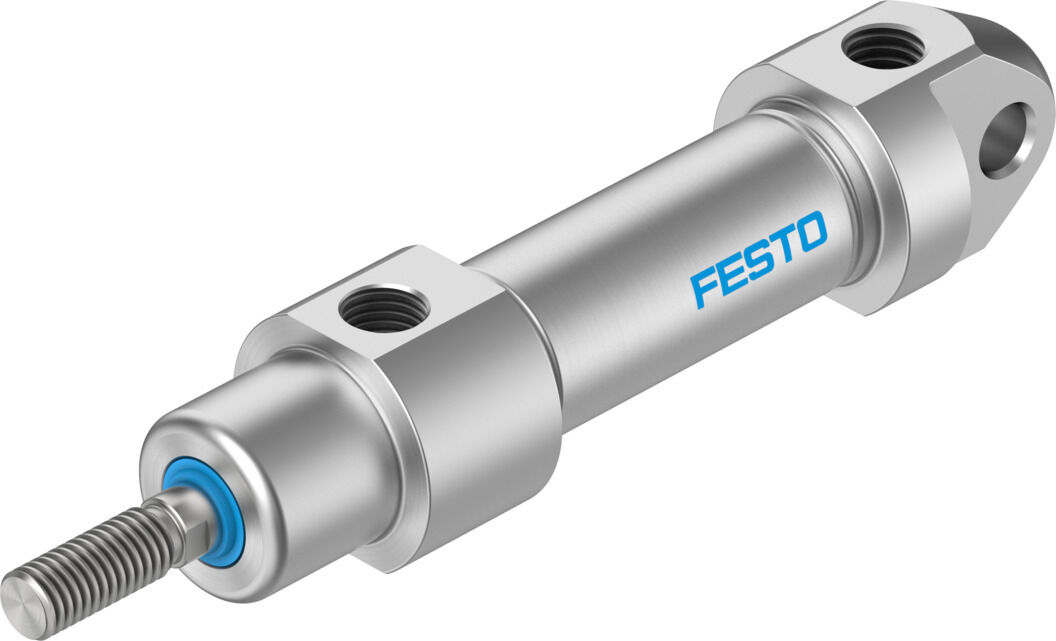

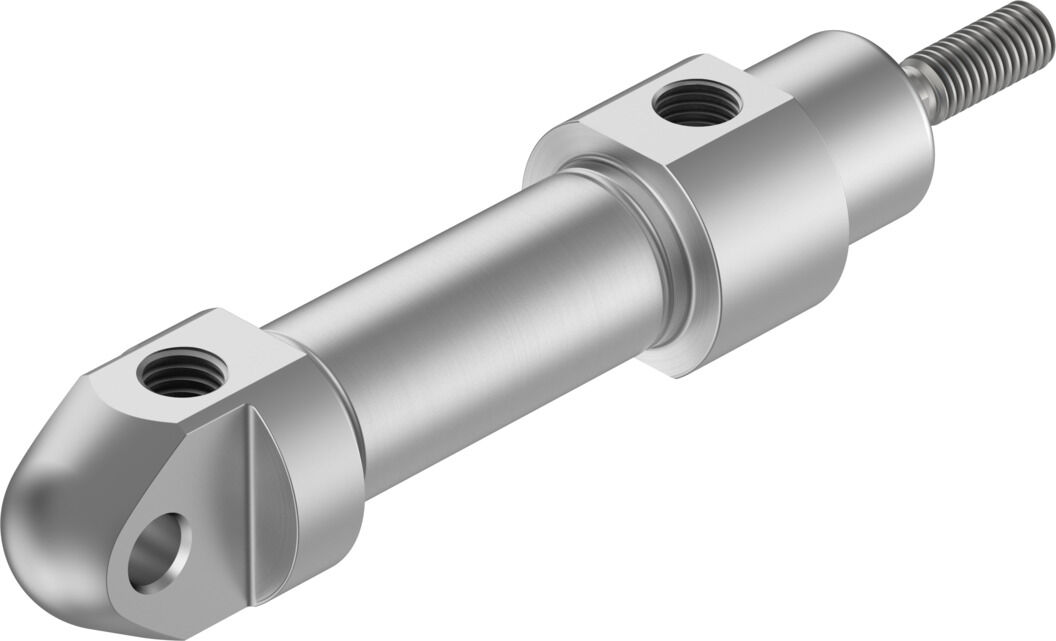

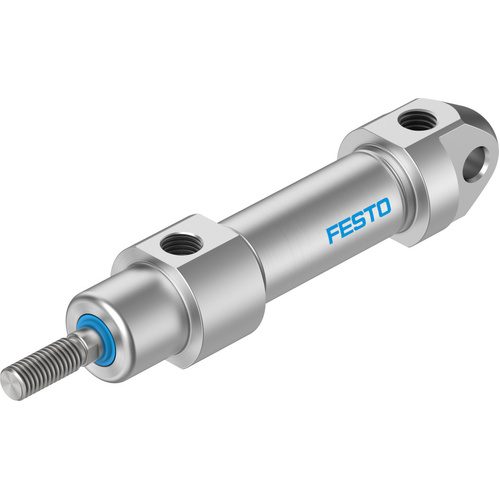

ISO cylinder

CRDSNU-B-20-100-PPS-A-MG-A1

8073975





GTIN: 4052568298111

Mode of operation
Double-acting
Piston diameter
20 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
188 N
Stroke
100 mm
Cushioning
Self-adjusting pneumatic end-position cushioning

Technical Data

  • Stroke100 mm
  • Piston diameter20 mm
  • Based on standardISO 6432
  • CushioningSelf-adjusting pneumatic end-position cushioning
  • Mounting positionoptional
  • DesignPiston Piston rod Cylinder barrel
  • Position detectionVia proximity switch
  • Symbol00992970
  • Operating pressure0.1 MPa ... 1 MPa
  • Operating pressure1 bar ... 10 bar
  • Mode of operationDouble-acting
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
  • Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature0 °C ... 80 °C
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke158 N
  • Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke188 N
  • Moving mass for 0 mm stroke42.1 g
  • Additional moving mass per 10 mm stroke3.9 g
  • Basic weight for 0 mm stroke310 g
  • Additional weight per 10 mm stroke7.2 g
  • Type of mountingWith accessories
  • Pneumatic connectionG1/8
  • Note on materialsRoHS-compliant
  • Material coverHigh-alloy stainless steel
  • Material piston rodHigh-alloy stainless steel
  • Material cylinder barrelHigh-alloy stainless steel





SKU 8073975
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
