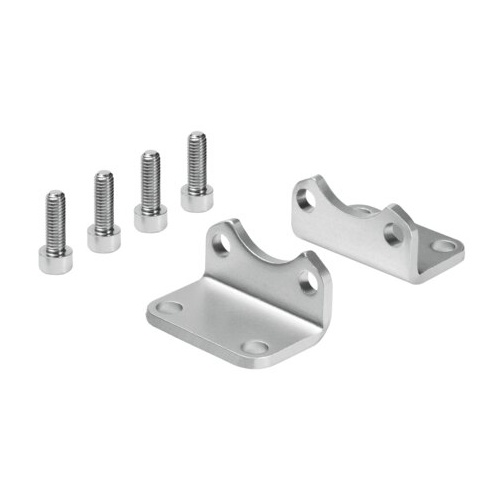

Foot mountingCRHNC-32

176937

GTIN: 4052568075385







Technical Data Foot mounting CRHNC-32

  • Size32
  • Based on standardISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI 10290)
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B2-L
  • Suitability for the production of Li-ion batteriesMetals with more than 5% by mass of copper, zinc or nickel are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils.
  • Ambient temperature-40 °C ... 150 °C
  • Max. load capacity0.9 kN
  • Product weight139 g
  • Note on materialsRoHS compliant
  • Material mountingHigh-alloy stainless steel
  • Material screwsHigh-alloy stainless steel
SKU 176937
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
