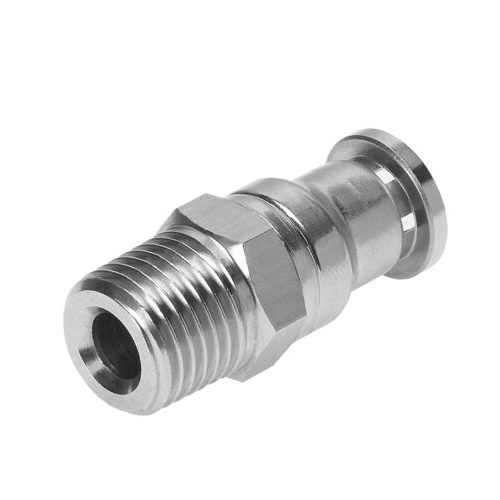

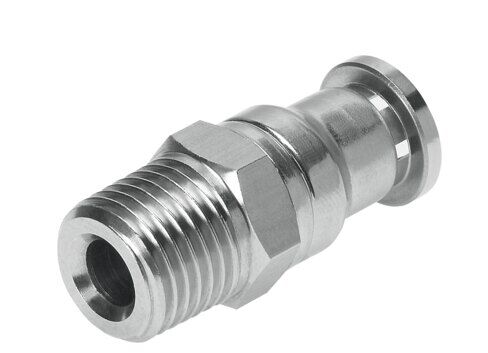

Push-in fitting

CRQS-1/4-10

162865





GTIN: 4052568072674

Pneumatic connection, port 1
Male thread R1/4
Pneumatic connection, port 2
For tubing outside diameter of 10 mm
Operating pressure complete temperature range
-0.95 bar - 10 bar
Ambient temperature
-15 °C - 120 °C
Nominal size
5.9 mm

Technical Data

  • SizeStandard
  • Nominal size5.9 mm
  • Tubing insertion depth25.5 mm
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack1
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-15 °C ... 120 °C
  • Product weight22 g
  • Suitable cablesPFAN
  • Type of mountingExternal hexagon, size 17 mm
  • Pneumatic connection, port 1Male thread R1/4
  • Pneumatic connection, port 2For tubing outside diameter of 10 mm
  • Colour of release ringSilver
  • Material screwed plugHigh-alloy stainless steel
  • Note on materialsRoHS-compliant
  • Material housingHigh-alloy stainless steel
  • Material release ringHigh-alloy stainless steel
  • Material tubing sealFPM
  • Material tubing clamp componentHigh-alloy stainless steel
  • Thrust ring materialHigh-alloy stainless steel





SKU 162865
Brand FESTO
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
