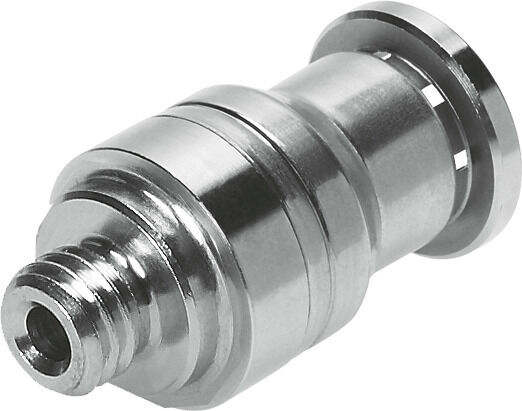

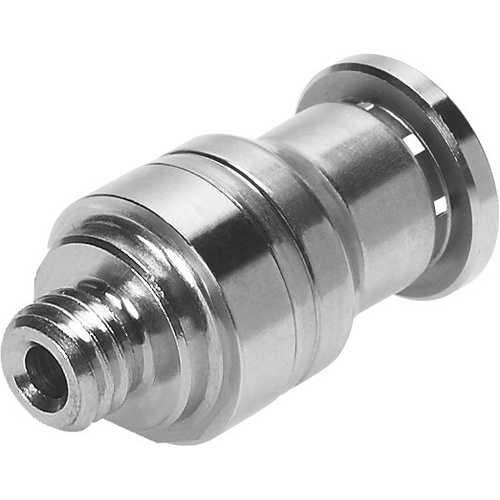

Push-in fitting

CRQS-M5-4-I

132328





GTIN: 4052568027933

Pneumatic connection, port 1
Male thread M5
Pneumatic connection, port 2
For tubing outside diameter of 4 mm
Operating pressure complete temperature range
-0.95 bar - 10 bar
Ambient temperature
-15 °C - 120 °C
Nominal size
2 mm

Technical Data

  • SizeStandard
  • Nominal size2 mm
  • Tubing insertion depth18 mm
  • Type of seal on screwed plugSealing ring
  • Mounting positionoptional
  • DesignStraight design
  • Size of pack1
  • DesignPush-pull principle
  • Operating pressure complete temperature range-0.095 MPa ... 1 MPa
  • Operating pressure complete temperature range-0.95 bar ... 10 bar
  • Operating pressure complete temperature range-13.775 psi ... 145 psi
  • Temperature-dependent operating pressure-0.095 MPa ... 1 MPa
  • Temperature-dependent operating pressure-0.95 bar ... 10 bar
  • Temperature-dependent operating pressure-13.775 psi ... 145 psi
  • Note on operating pressureWater: max. 0.6 MPa at max. 50°C
  • Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
  • Note on operating and pilot mediumLubricated operation possible
  • Corrosion resistance class CRC4 - Very high corrosion stress
  • LABS (PWIS) conformityVDMA24364-B1/B2-L
  • Suitable for use with foodSee supplementary material information
  • Ambient temperature-15 °C ... 120 °C
  • Nominal torque1.33 Nm
  • Tolerance for nominal tightening torque± 20%
  • Product weight5 g
  • Suitable cablesPFAN
  • Type of mountingInternal hexagon, size 2 mm
  • Pneumatic connection, port 1Male thread M5
  • Pneumatic connection, port 2For tubing outside diameter of 4 mm
  • Colour of release ringSilver
  • Material screwed plugHigh-alloy stainless steel
  • Note on materialsRoHS-compliant
  • Material housingHigh-alloy stainless steel
  • Material thread sealFPM High-alloy stainless steel
  • Material release ringHigh-alloy stainless steel
  • Material tubing sealFPM
  • Material tubing clamp componentHigh-alloy stainless steel
  • Thrust ring materialHigh-alloy stainless steel
