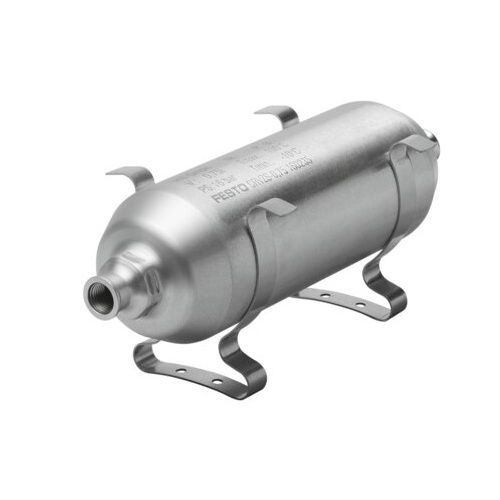

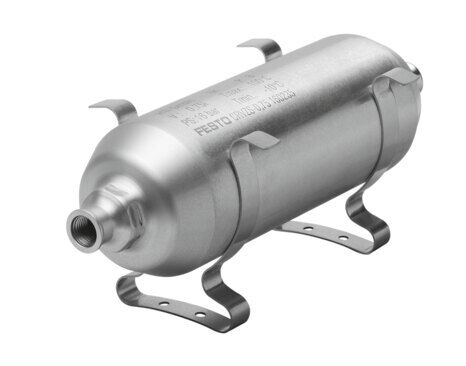

Air reservoir

Technical Data Air reservoir CRVZS-0.75

  • Volume 0.75 l
  • Mounting position Any
  • Conforms to standard AD 2000
  • Symbol 00991528
  • Operating pressure -0.095 MPa ... 1.6 MPa
  • Operating pressure -0.95 bar ... 16 bar
  • Operating pressure -13.78 psi ... 232 psi
  • Approval CRN German Technical Control Board (TÜV)
  • Certificate issuing authority CRN0H26575.5C
  • Operating medium Compressed air to ISO 8573-1:2010 [-:-:-] Nitrogen
  • Corrosion resistance class CRC3 - high corrosion stress
  • LABS (PWIS) conformity VDMA24364-B1/B2-L
  • Suitable for use with food See supplementary material information
  • Media temperature -10 °C ... 100 °C
  • Ambient temperature -10 °C ... 100 °C
  • Max. tightening torque for connecting thread 23 Nm
  • Product weight 736 g
  • Type of mounting Via retaining clips
  • Pneumatic connection G1/4
  • Note on materials RoHS compliant
  • Material air reservoir High-alloy stainless steel
  • Material fixing clips High-alloy stainless steel
SKU 160235
Shipping Weight 1.0000kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.200m
